Rolls-Royce Silver Cloud II Bentley Engine Workshop Manual

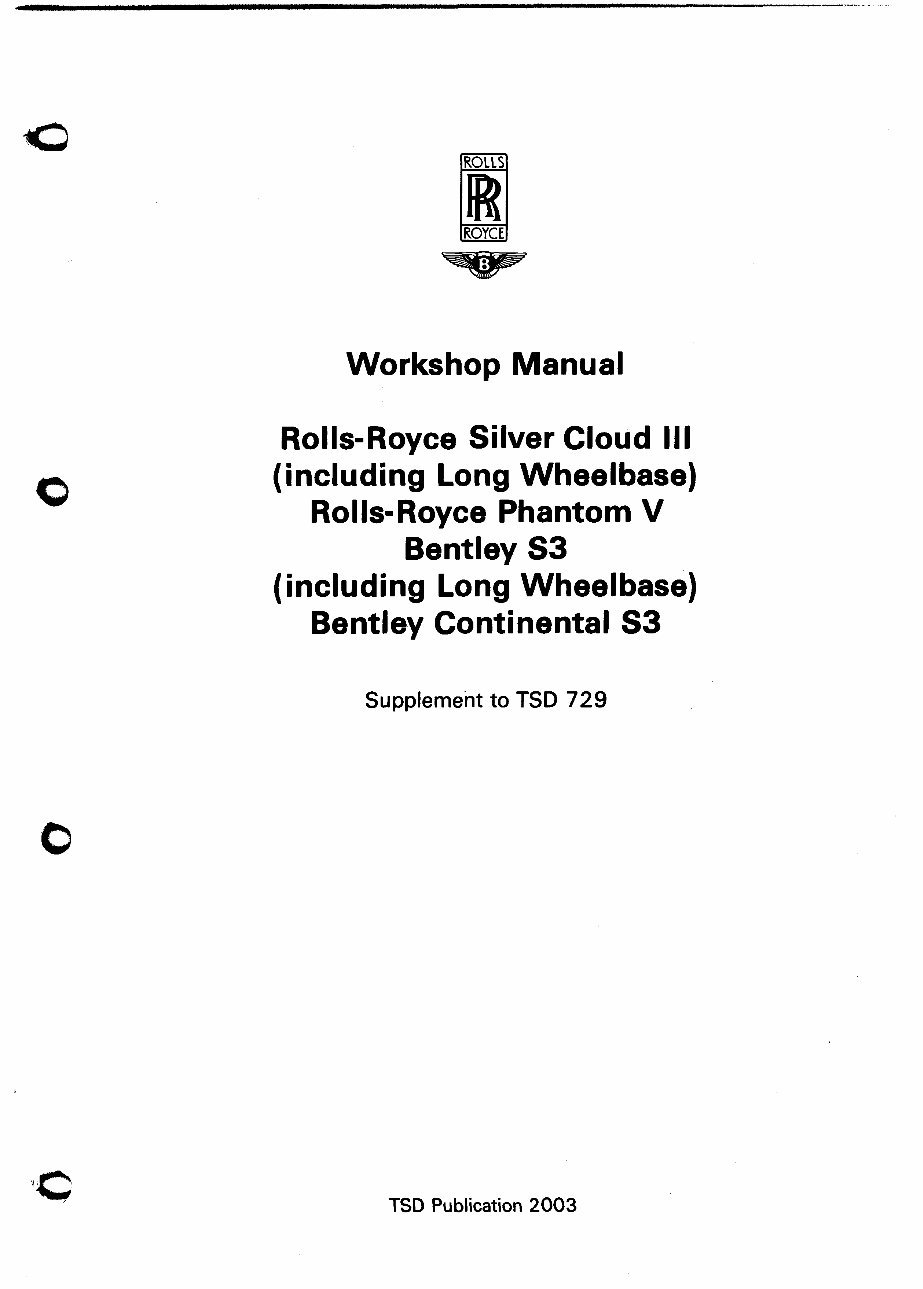

Workshop Manual Rolls-Royce Silver Cloud Ill (including Long Wheelbase) Rolls-Royce Phantom V Bentley S3 (including Long Wheelbase) Bentley Continental S3 Supplement to TSD 729 TSD Publication 2003

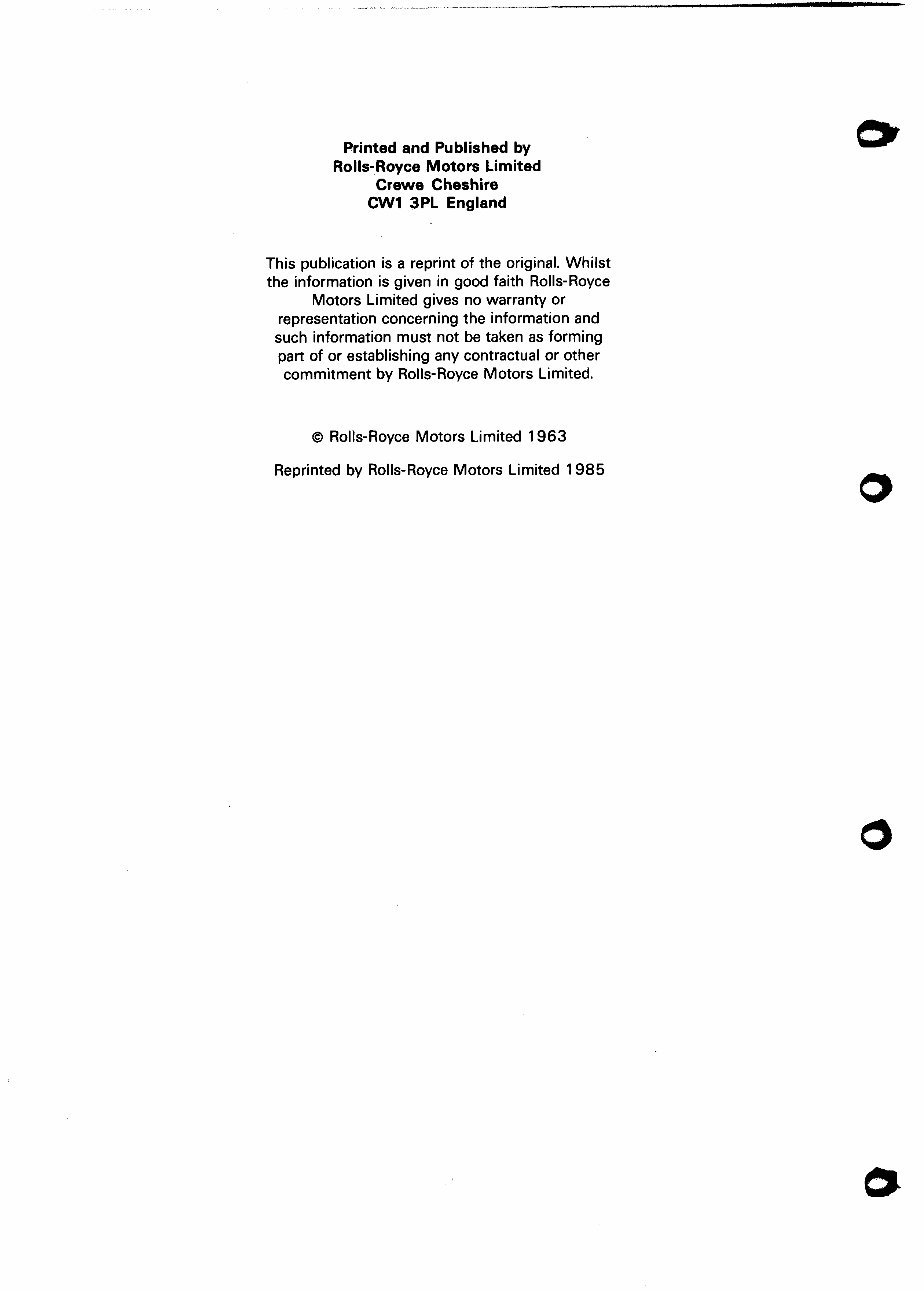

Printed and Published by Rolls-Royce Motors Limited Crewe Cheshire CW1 3PL England This publication is a reprint of the original. Whilst the information is given in good faith Rolls-Royce Motors Limited gives no warranty or representation concerning the information and such information must not be taken as forming part of or establishing any contractual or other commitment by Rolls-Royce Motors Limited. O Rolls-Royce Motors Limited 1963 Reprinted by Rolls-Royce Motors Limited 1985

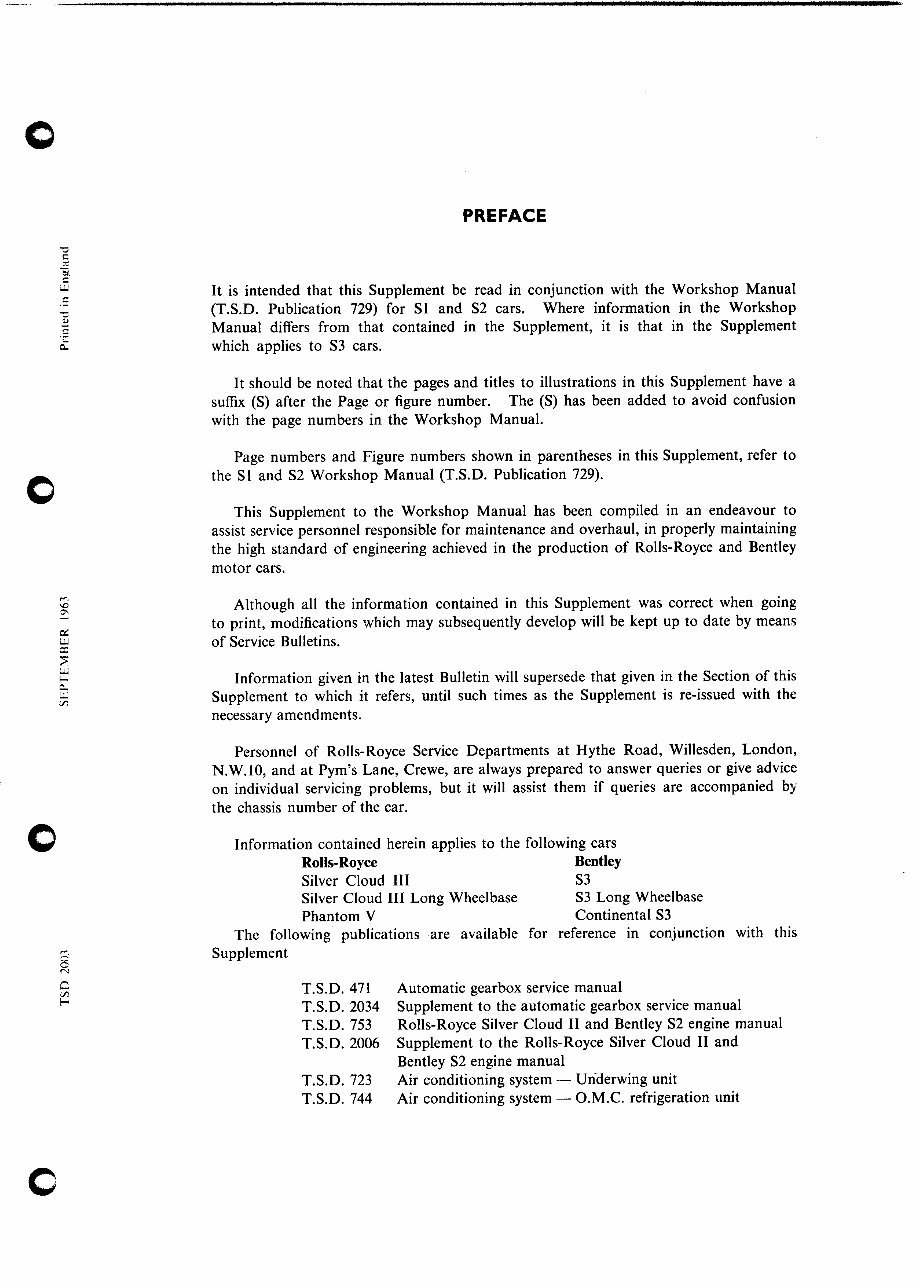

PREFACE a! iL m E iL; k LL! rn It is intended that this Supplement be read in conjunction with the Workshop Manual (T.S.D. Publication 729) for S1 and S2 cars. Where information in the Workshop Manual differs from that contained in the Supplement, it is that in the Supplement which applies to S3 cars. It should be noted that the pages and titles to illustrations in this Supplement have a suffix (S) after the Page or figure number. The (S) has been added to avoid confusion with the page numbers in the Workshop Manual. Page numbers and Figure numbers shown in parentheses in this Supplement, refer to the S1 and S2 Workshop Manual (T.S.D. Publication 729). This Supplement to the Workshop Manual has been compiled in an endeavour to assist service personnel responsible for maintenance and overhaul, in properly maintaining the high standard of engineering achieved in the production of Rolls-Royce and Bentley motor cars. Although all the information contained in this Supplement was correct when going to print, modifications which may subsequently develop will be kept up to date by means of Service Bulletins. Information given in the latest Bulletin will supersede that given in the Section of this Supplement to which it refers, until such times as the Supplement is re-issued with the necessary amendments. Personnel of Rolls-Royce Service Departments at Hythe Road, Willesden, London, N.W.10, and at Pym's Lane, Crewe, are always prepared to answer queries or give advice on individual servicing problems, but it will assist them if queries are accompanied by the chassis number of the car. Information contained herein applies to the following cars Rolls-Royce Bentley Silver Cloud 111 S3 Silver Cloud 111 Long Wheelbase S3 Long Wheelbase Phantom V Continental S3 The following publications are available for reference in conjunction with this Supplement T.S.D. 471 Automatic gearbox service manual T.S.D. 2034 Supplement to the automatic gearbox service manual T.S.D. 753 Rolls-Royce Silver Cloud I1 and Bentley S2 engine manual T.S.D. 2006 Supplement to the Rolls-Royce Silver Cloud I1 and Bentley S2 engine manual T.S.D. 723 Air conditioning system - Underwing unit T.S.D. 744 Air conditioning system - O.M.C. refrigeration unit

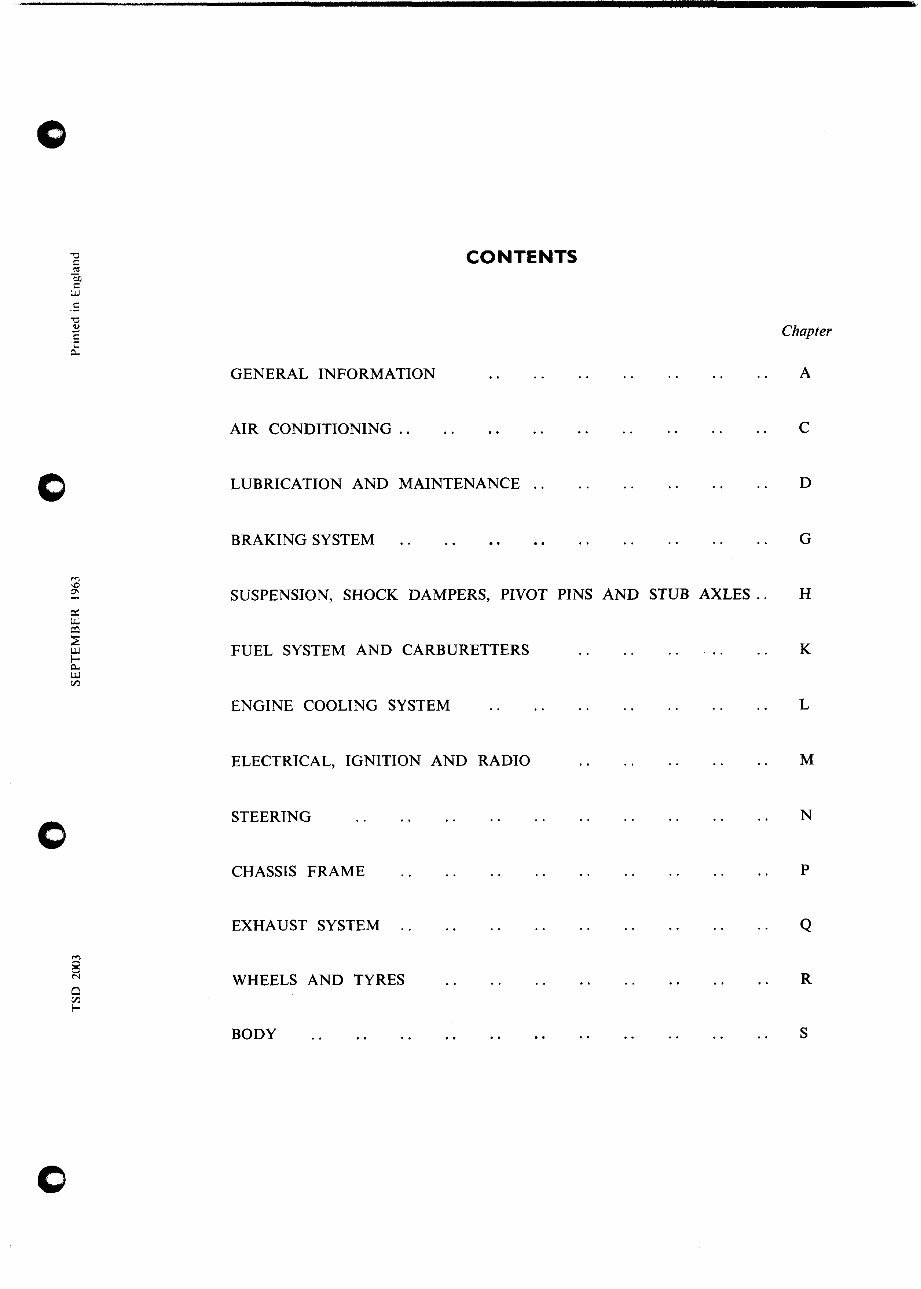

CONTENTS GENERAL INFORMATION Chapter . . . . .. A AIR CONDITIONING . . . . .. . . . . . . . . . . .. C LUBRICATION AND MAINTENANCE . . . . . . . . . . .. D BRAKING SYSTEM . . . . . . . . . . . . . . . . .. G SUSPENSION, SHOCK DAMPERS, PIVOT PINS AND STUB AXLES.. H FUEL SYSTEM AND CARBURETTERS . . . . . . . . .. K ENGINE COOLING SYSTEM . . . . . . . . . . . . .. L ELECTRICAL, IGNITION AND RADIO . . . . . . . . .. M STEERING . . . . . . . . . . . . . . . . , . .. N CHASSIS FRAME . . . . . . . . . . . . . . . . .. P EXHAUST SYSTEM . . . . . . . . . . . . . . . . . Q WHEELS AND TYRES . . . . . . . . . . . . . . .. R BODY . . . . . . .. . . . . . . .. . . , . .. S

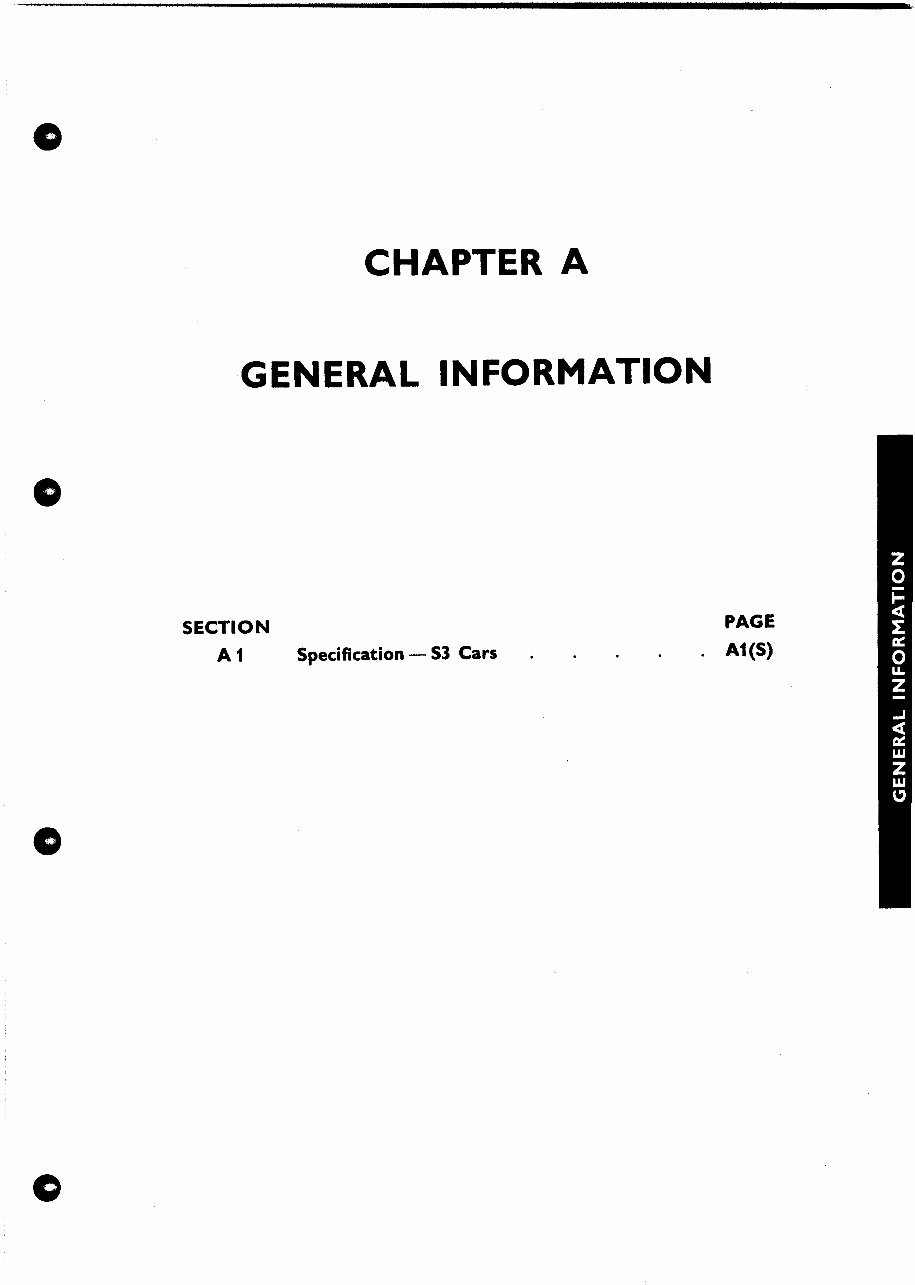

CHAPTER A GENERAL INFORMATION SECTION A 1 Specification - S3 Cars . PAGE . Al(S)

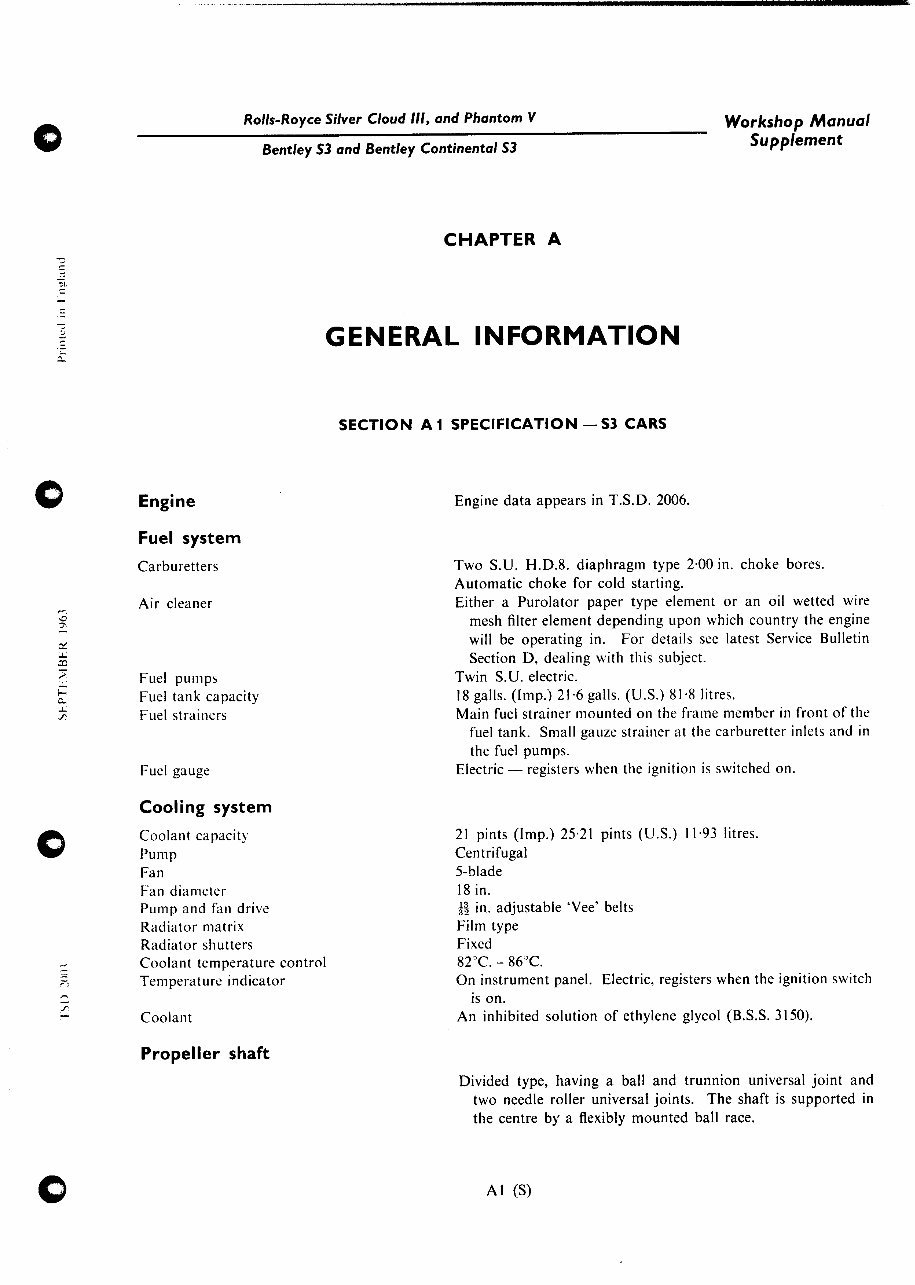

Rolls-Royce Silver Cloud 111, and Phantom V Workshop Manual Bentley S3 and Bentley Continental 53 Supplement CHAPTER A GENERAL INFORMATION SECTION A 1 SPECIFICATION - S3 CARS Engine Fuel system Carburetters Air cleaner Fuel pumps Fuel tank capacity Fuel strainers Fuel gauge Cooling system Coolant capacity Pulllp Fan Fan diameter Pump and fan drive Radiator niatrix Radiator shutters Coolant temperature control Temperature indicator Coolant Propeller shaft Engine data appears in T.S.D. 2006. Two S.U. H.D.8. diaphragm type 2.00 in. choke bores. Automatic choke for cold starting. Either a Purolator paper type element or an oil wetted wire mesh filter element depending upon which country the engine will be operating in. For details see latest Service Bulletin Section D, dealing with this subject. Twin S.U. electric. 18 galls. (Imp.) 21.6 galls. (U.S.) 81.8 litres. Main fuel strainer mounted on the frame member in front of the fuel tank. Small gauze strainer at the carburetter inlets and in the fuel pumps. Electric - registers when the ignition is switched on. 21 pints (Imp.) 25.21 pints (U.S.) 11.93 litres. Centrifugal 5-blade I8 in. .j$ in. adjustable 'Vee' belts Film type Fixed 82'C. - 86°C. On instrument panel. Electric, registers when the ignition switch is on. An inhibited solution of ethylene glycol (B.S.S. 3150). Divided type, having a ball and trunnion universal joint and two needle roller universal joints. The shaft is supported in the centre by a flexibly mounted ball race.

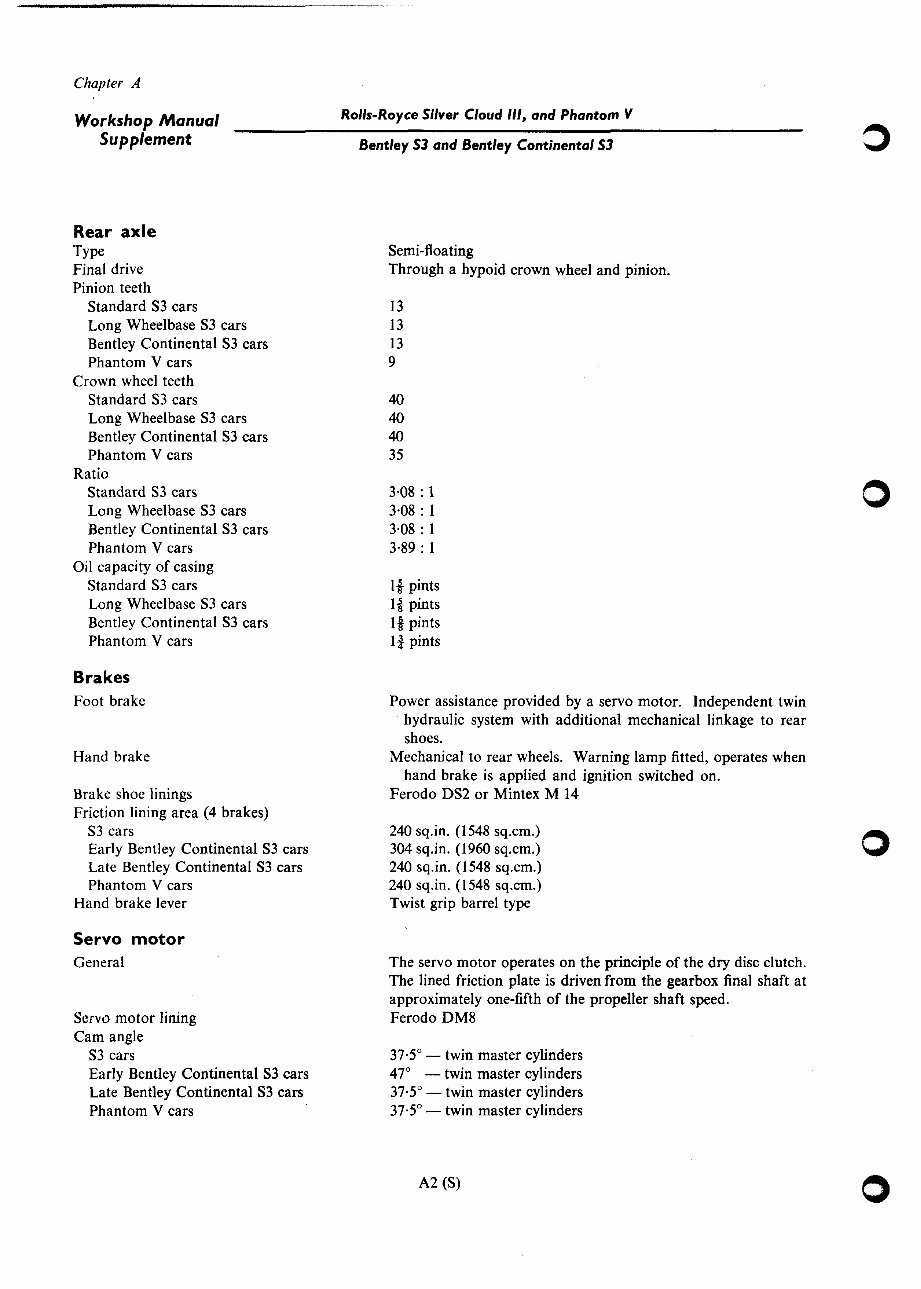

Chapter A Workshop Manual Rolls-Royce Silver Cloud 111, and Phantom V Supplement Bentley 53 and Bentley Continental 53 3 Rear axle Type Final drive Pinion teeth Standard S3 cars Long Wheelbase S3 cars Bentley Continental S3 cars Phantom V cars Crown wheel teeth Standard S3 cars Long Wheelbase S3 cars Bentley Continental S3 cars Phantom V cars Ratio Standard S3 cars Long Wheelbase S3 cars Bentley Continental S3 cars Phantom V cars Oil capacity of casing Standard S3 cars Long Wheelbase S3 cars Bentley Continental S3 cars Phantom V cars Brakes Foot brake Hand brake Brake shoe linings Friction lining area (4 brakes) S3 cars Early Bentley Continental S3 cars Late Bentley Continental S3 cars Phantom V cars Hand brake lever Servo motor General Servo motor lining Cam angle S3 cars Early Bentley Continental S3 cars Late Bentley Continental S3 cars Phantom V cars Semi-floating Through a hypoid crown wheel and pinion. 19 pints 13 pints 16 pints 12 pints Power assistance provided by a servo motor. Independent twin hydraulic system with additional mechanical linkage to rear shoes. Mechanical to rear wheels. Warning lamp fitted, operates when hand brake is applied and ignition switched on. Ferodo DS2 or Mintex M 14 240 sq.in. (1548 sq.cm.) 304 sq.in. (1960 sq.cm.) 240 sq.in. (1548 sq.cm.) 240 sq.in. (1548 sq.cm.) Twist grip barrel type The servo motor operates on the principle of the dry disc clutch. The lined friction plate is driven from the gearbox final shaft at approximately one-fifth of the propeller shaft speed. Ferodo DM8 37.5" - twin master cylinders 47" - twin master cylinders 37.5" - twin master cylinders 37.5" - twin master cylinders
