General Information SPECIFICATIONS LIFTING TOWING LUBRICANTS CONSUMABLES OIL CHANGE AND ENGINE OIL REFILLING ENGINE AND TRANSMISSION ASSEMBLY VALUES AND ADJUSTMENT AXLE ASSEMBLIES VALUES AND ADJUSTMENT BJ0F - BJ0G - BJ0J - BJ0K - BJ0V 77 11 311 002 "The repair methods given by the manufacturer in this document are based on the technical specifications current when it was prepared. The methods may be modified as a result of changes introduced by the manufacturer in the production of the various component units and accessories from which his vehicles are constructed." DECEMBER 2001 All copyrights reserved by Renault. EDITION ANGLAISE Copying or translating, in part or in full, of this document or use of the service part reference numbering system is forbidden without the prior written authority of Renault. © RENAULT 2001

General Information Contents Page 01A 02A 03A 04A 04B 05A SPECIFICATIONS Engine - Gearbox 01A-1 Vehicle identification 01A-2 LIFTING Trolley jack - Axle stands 02A-1 Underbody lift 02A-2 TOWING All types 03A-1 LUBRICANTS Packaging 04A-1 CONSUMABLES Packaging 04B-1 OIL CHANGE AND ENGINE OIL REFILLING Engine 05A-1 Gearbox 05A-3 Power assisted steering 05A-4 Page 07A 07B ENGINE AND TRANSMISSION ASSEMBLY VALUES AND ADJUSTMENT Capacities - Grades 07A-1 Accessories belt tension 07A-2 Tightening the cylinder head 07A-6 AXLE ASSEMBLIES VALUES AND ADJUSTMENT Wheels and tyres 07B-1 Brakes 07B-2 Underbody heights 07B-3 Front axle geometry checking values 07B-4 Rear axle geometry checking values 07B-5

SPECIFICATIONS Engine - Gearbox 01A 101A SPECIFICATIONS Engine - Gearbox VEHICLE IDENTIFICATION Example: BJ0K B : Body type (five-door) J : Project code 0K : Engine suffix Vehicle type Engine Gearbox type Type Cubic capacity (cm 3 ) BJ0K F4R 1998 PK6 BJ0E - BJ0F - BJ0G - BJ0M G9T 2188 PK6 / SU1 BJ0J P9X 2958 SU1 BJ0V V4Y 3498 SU1 01A-1

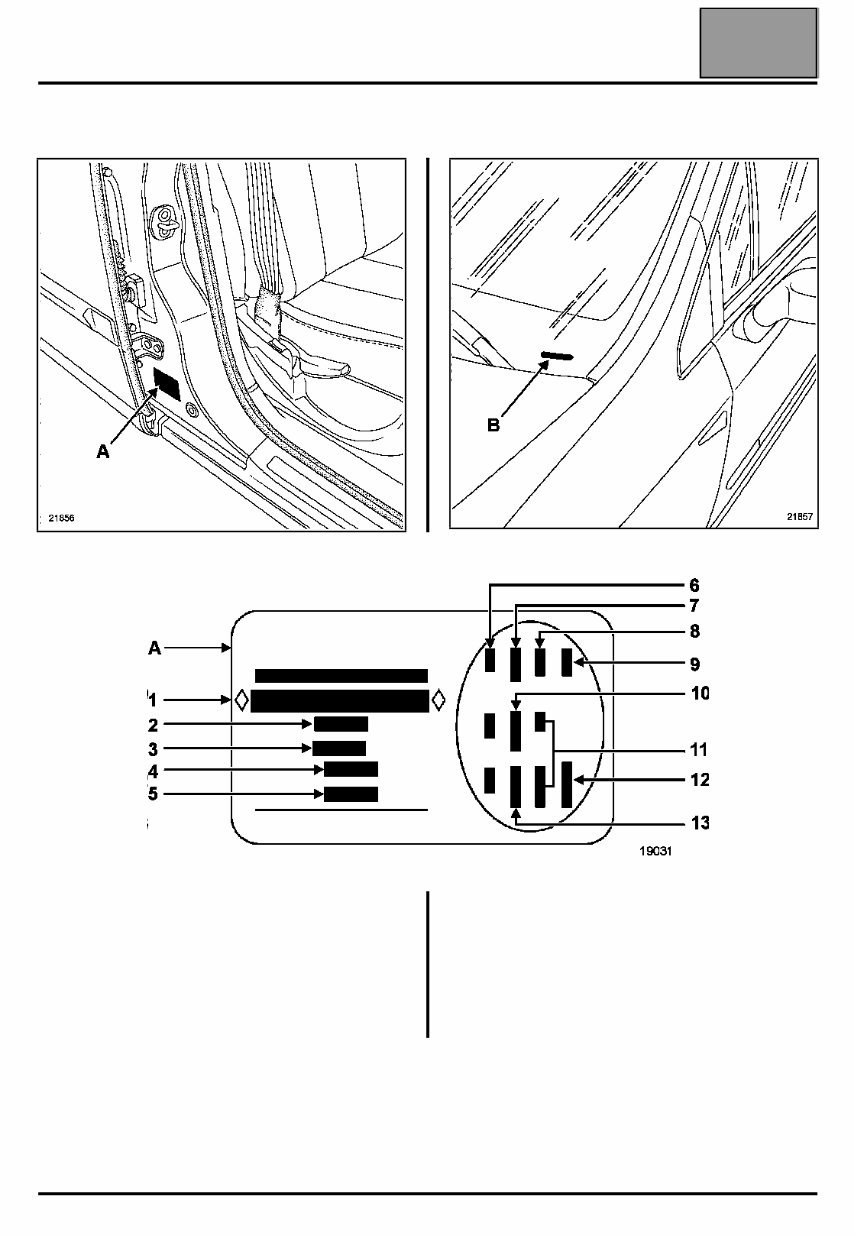

SPECIFICATIONS Vehicle identification 01A 01A-2 Vehicle identification LOCATION OF VEHICLE IDENTIFICATION PLATE 1 Vehicle type and type series number This information is repeated on marking (B). 2 MGVW (Maximum Gross Vehicle Weight) 3 GTW (Gross Train Weight - loaded vehicle with trailer) 4 Front axle MGVW 5 Rear axle MGVW 6 Technical specifications of the vehicle 7 Vehicle paint reference 8 Equipment level 9 Vehicle type 10 Trim code 11 Additional equipment details 12 Fabrication number 13 Interior trim code

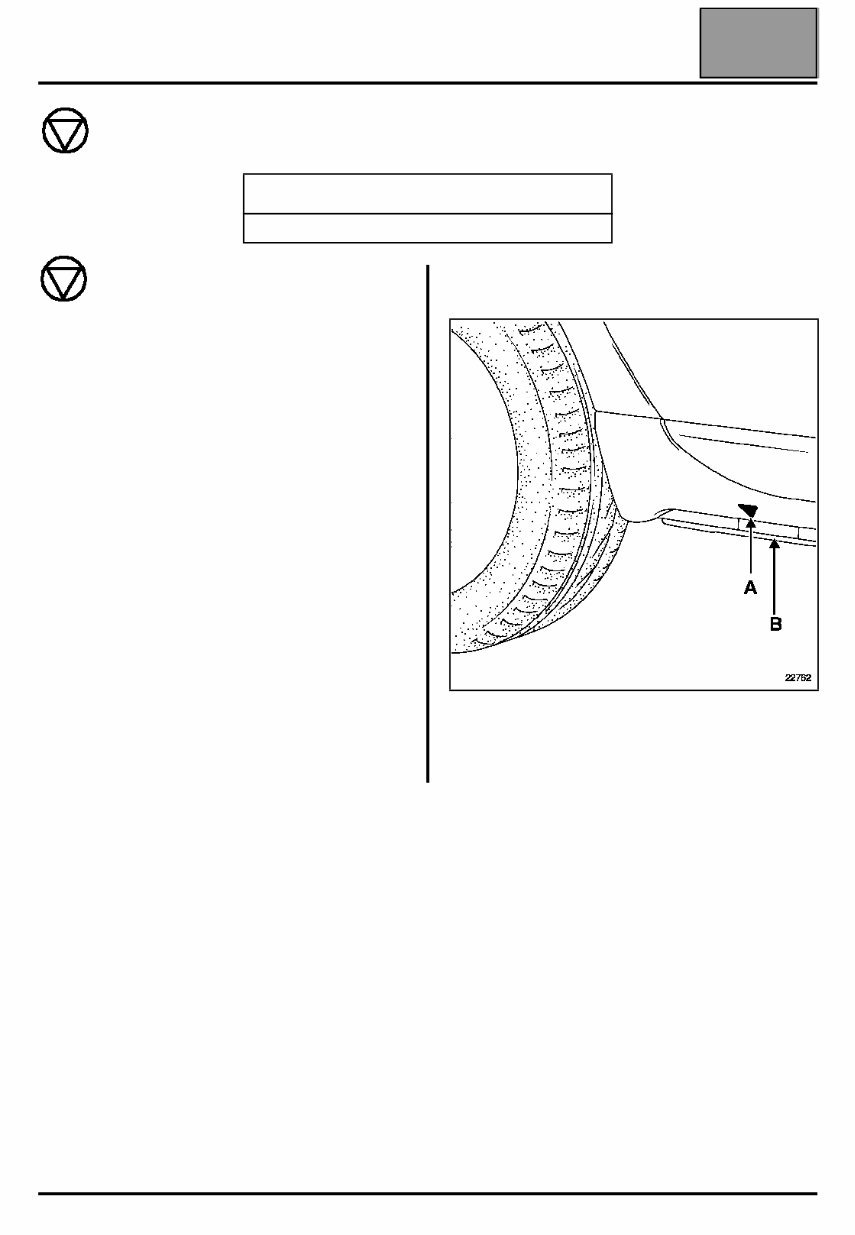

LIFTING APPARATUS Trolley jack - Axle stands 02A 02A-1 102A LIFTING APPARATUS Trolley jack - Axle stands Safety symbol (special precautions to be taken when carrying out operations). If a trolley jack is used, appropriate axle stands must always be used. IMPORTANT: The vehicle subframe is protected by products which guarantee against corrosion for 12 years. Materials fitted with rubber pads should always be used to prevent any direct metal to metal contact which could damage the original corrosion protection. The vehicle must not be raised by placing the jack beneath the front suspension arm or under the rear axle. To lift a front or rear wheel, place the jack at (B) on the subframe underbody flange in alignment with marks (A). To lift both the front and rear wheels laterally, use the cup Cha. 280-02. Place the jack under the sill body flange at the centre point of the front door. CAUTION: Position the body flange correctly into the shim groove. To move the vehicle onto axle stands, lift the entire vehicle laterally and position the axle stands under the body flange stiffeners provided for the tool kit trolley jack (B). SPECIAL TOOLING REQUIRED Cha. 280-02 Adaptor cup for trolley jack
