2014-2016 RENAULT TWINGO
SERVICE AND REPAIR
MANUAL
V4
Temp.mif
77 11 338 820
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The methods may be modified as a result of changes introduced by the manufacturer
in the production of the various component units and accessories from which his
vehicles are constructed."
Edition 4 - OCTOBER 2007
All copyrights reserved by Renault.
EDITION ANGLAISE
Copying or translating, in part or in full, of this document or use of the service part
reference numbering system is forbidden without the prior written authority of Renault.
© Renault s.a.s. 2007
This Technical Note relates to onboard computer Reprogramming and Calibration operations using
a RENAULT.NET connection or a Reprogramming CD (Part No.: 77 11 298 859).
Technical Note 3585A
ALL TYPES
Subsection concerned: 01B
COMPUTER REPROGRAMMING AND
CALIBRATION PROCEDURE
CONTENTS
Page
GENERAL INFORMATION......................................................................................................................................... 1
Tooling required ....................................................................................................................................................... 1
Calibration ............................................................................................................................................................... 2
Reprogramming ....................................................................................................................................................... 2
OPERATING PROCEDURE (Programming and reprogramming a computer)........................................................... 3
Preparing the RENAULT CLIP diagnostic tool ......................................................................................................... 3
Preparing the vehicle ............................................................................................................................................... 3
Programming phase - reprogramming..................................................................................................................... 4
Returning the vehicle ............................................................................................................................................... 4
CLIP screens depending on programming - reprogramming step........................................................................... 5
Linking the screens.................................................................................................................................................. 6
CODE SERVER PROCEDURE (in CD mode only) .................................................................................................. 15
CONSULTING THE COMPUTER IDENTIFICATION FRAME .................................................................................. 17
CONSULTING THE COMPUTER'S HISTORY ......................................................................................................... 17
CONSULTING THE DIAGNOSTIC TOOL LOG ........................................................................................................ 18
TRACE FILE (upon the request of Techline)............................................................................................................. 19
Creating the trace file ............................................................................................................................................ 19
Recovering the trace file after programming - reprogramming .............................................................................. 19
VEHICLE GENERAL INFORMATION
Programming – Reprogramming the computers
01B
01B-1
101B
VEHICLE GENERAL INFORMATION
Programming – Reprogramming the computers
GENERAL INFORMATION
Two types of operation can be carried out in after-sales, either programming or reprogramming of the computer.
These operations apply to all vehicles and all types of (re)programmable computer (e.g: Injection, Gearbox, Air
conditioning, Instrument panel, Parking brake, UCH).
The two types of operation are carried out with the RENAULT CLIP diagnostic tool using either RENAULT.NET, or
the Calibration - Reprogramming CD Part No. 77 11 298 859.
The reprogramming data available via RENAULT.NET is always more up to date than that available on the
CD (Part no. 77 11 298 859).
The CD is edited and distributed every month in the same way as the diagnostic tools update.
Each CD cancels and replaces the previous one.
Tooling required:
●
CLIP with the most recent update.
●
1 connection to RENAULT.NET (requires a CLIP with a RF kit and a RENAULT.NET certificate)
or
1 reprogramming CD, Part No. 77 11 298 859 from the current month.
●
1 RENAULT approved battery charger.
●
The FAULT FINDING REPAIR MANUAL relevant to the vehicle and the system to be (re)programmed.
●
1 RENAULT.NET connection to the NRE reprogramming codes server for each calibration - reprogramming with
a reprogramming CD (See CODE SERVER PROCEDURE).
VEHICLE GENERAL INFORMATION
Programming – Reprogramming the computers
01B
01B-2
Computer
The operation consists of downloading the calibration using the RENAULT CLIP diagnostic tool .
It affects computers supplied as non operational (also known as blank) by the Parts Department for all vehicles in the
RENAULT range, but only for certain types of computer.
The types of computers which are delivered blank and to be calibrated are, to date, engine management (Petrol,
Diesel and GPL injection), automatic and sequential gearboxes and ABS/ESP computers.
When T o Program:
The operation is carried out as part of a computer replacement operation.
The non operational status of the computer, as delivered by the Parts Department, is specified in DIALOGYS by the
message:
Reprogramming
The operation consists of exchanging the software and/or calibration for the most recent version using the RENAULT
CLIP diagnostic tool.
This relates to computers already fitted to the vehicle as well as computers supplied as operational (also called "full".
E.g: Air conditioning) by the Parts Department, for the entire RENAULT range.
It enables systematic replacement of the computer to be avoided.
When T o Reprogram:
The operation is carried out within the framework of:
●
an OTS or a Technical Note arising from a fault resulting from an After-Sales problem, or a functional improvement.
●
RENAULT Technical Directives or following a request from the Techline.
After having entered the VIN in the main menu, the types of (re)programmable computer are displayed in the
RENAULT CLIP diagnostic tool REPROGRAMMING menu.
Information:
Specific characteristic.
COMPUTER TO BE PROGRAMMED
VEHICLE GENERAL INFORMATION
Programming – Reprogramming the computers
01B
01B-3
OPERATING PROCEDURE (Programming and reprogramming a computer)
The operating procedure for Calibration and Reprogramming operations is strictly identical.
The operation is carried out using the RENAULT CLIP diagnostic tool, either connected to RENAULT.NETor with the
reprogramming CD.
Preparing the RENAULT CLIP diagnostic tool
●
Always use the latest available version of the CLIP update.
●
Always use the RENAULT.NET connection if available, in preference to the CD.
●
Whenever the CD mode is being used for calibration - reprogramming, always use the latest available version
of the CD.
●
Connect CLIP to the mains.
●
Set the Windows screen saver time for the RENAULT CLIP diagnostic tool to NONE or 60 minutes minimum.
Setting the RENAULT CLIP diagnostic tool Windows monitor screen locking delay:
In the RENAULT CLIP diagnostic tool Windows system:
●
Right click on the mouse and select Properties.
●
In the new Display Properties window, select the Screen Saver tab.
Then set the screen saver to (None) or set the Wait time delay to a minimum of 60 minutes.
●
Confirm and close the display windows.
Preparing the vehicle
●
Connect an approved battery charger to the vehicle.
●
Switch off all the vehicle's electrical consumers (Lights, Interior lighting, Air conditioning, CD Radio, etc).
●
Switch on the ignition (+ forced + after ignition, See Procedure).
WARNING
To prevent any computer malfunctioning or locking, the following operations must be carried out before
(re)programming.
The reprogramming data available via RENAULT.NET is always more up to date than that available
on the CD.
VEHICLE GENERAL INFORMATION
Programming – Reprogramming the computers
01B
01B-4
Programming - reprogramming phase
●
Enter the exact VIN of the vehicle in the RENAULT CLIP diagnostic tool main menu.
●
Find the Parts Department reference number for the computer to be reprogrammed (see CONSULTING THE
COMPUTER IDENTIFICATION FRAME ), which is necessary in the event of an EMERGENCY PROCEDURE.
●
During any calibration and reprogramming:
In the CD mode only, enter a reprogramming code: see CODE SERVER PROCEDURE .
●
At the end of calibration and reprogramming, observe the following instructions:
●
Proceed to the WARRANTY SCREEN by pressing the NEXT button.
Note the CODECAL and the SUPPLIER CODE and transfer them to the Repair Order.
If the CODECAL and the SUPPLIER CODE are lost, they can be recovered: see CONSULTING THE TOOL LOG.
Returning the vehicle
●
Test all the computers and deal with any faults present.
●
Check that all the vehicle's current systems are correctly configured.
WARNING
Using a VIN which is not allocated to the vehicle risks compromising the correct running of the programming -
reprogramming operation, as well as the conformity of the vehicle
Apply the correct pre-reprogramming Procedure for the vehicle and for the system to be reprogrammed.
– For example, in the case of a diesel injection: Backup the computer data if the command is available.
– For example, in the case of an Automatic Transmission: Put the gear lever in the P position.
WARNING
DO NOT WORK ON THE VEHICLE OR OPERATE THE DIAGNOSTIC TOOL.
Apply the pre-reprogramming procedure to the vehicle and to the system to be reprogrammed.
– For example, in the case of a diesel injection: Write the saved computer data if the command is available.
– Enter the VIN into the computer.
Always deal with faults in all computers (when a computer is being reprogrammed, it cannot transmit data to
the multiplex network. As a result, faults will be generated in other computers connected to the multiplex network).
VEHICLE GENERAL INFORMATION
Programming – Reprogramming the computers
01B
CLIP screens depending on programming – reprogramming step
Screen Step Commentary
02
12
CLIP home
CLIP determines, via the VIN, the Technical Specification of the
vehicle.
Warning: To ensure that reprogramming is carried out effectively,
enter the correct VIN for the vehicle (17 characters).
02
12
Reprog home
Select REPROGRAMMING and the system to (re)program.
15 Choice of computer
16 Connecting
CLIP identifies the computer concerned and recovers the technical
data necessary for the (re)programming operation.
17
Entering and confirming repair order/
Entering Vehicle Technical
Specification
Enter the After-Sales information necessary for the warranty.
Note:
Enter the repair order if it has not been written in the main menu.
The "Vehicle Technical Specification" field is to be filled in at the
request of Techline or if required in a reprogramming Technical
Note.
18 Pre-reprogramming Message
Description of the environment to be set up before any
reprogramming.
Warning: Follow the instructions which can differ from one
computer and vehicle to the next.
19 Checking battery voltage
CLIP automatically checks the voltage level necessary for the
correct running of the re-programming operation.
20 Select the reprogramming mode Choose the technical resource: either RENAULT.NET or CD.
21
22
Finding the file(s)
RENAULT.NET CLIP finds the technical data to download to the computer.
In RENAULT.NET mode, a password is needed for authentication.
CD
23 File selection
Confirm the operation by selecting the Software reference to be
downloaded.
24
Enter the reprogramming code in CD
mode.
See CODES SERVER
PROCEDURE
In CD mode only:
●
CLIP provides a reprogramming code.
●
Provide the code management server with the reprogramming
code and the VIN.
●
The server issues an "After-Sales reprogramming code".
●
Enter this code in CLIP.
25 File downloading CLIP downloads the technical data to the computer.
26 Post-reprogramming Message
Description of the actions to carry out to finish the reprogramming
operation and return the conforming vehicle.
Warning: Follow the instructions which can differ from one
computer and vehicle to the next.
27 Warranty screen
CLIP provides the warranty screen describing the operation
performed and the CODECAL necessary for the Warranty
procedure.
01B-5
VEHICLE GENERAL INFORMATION
Programming – Reprogramming the computers
01B
01B-6

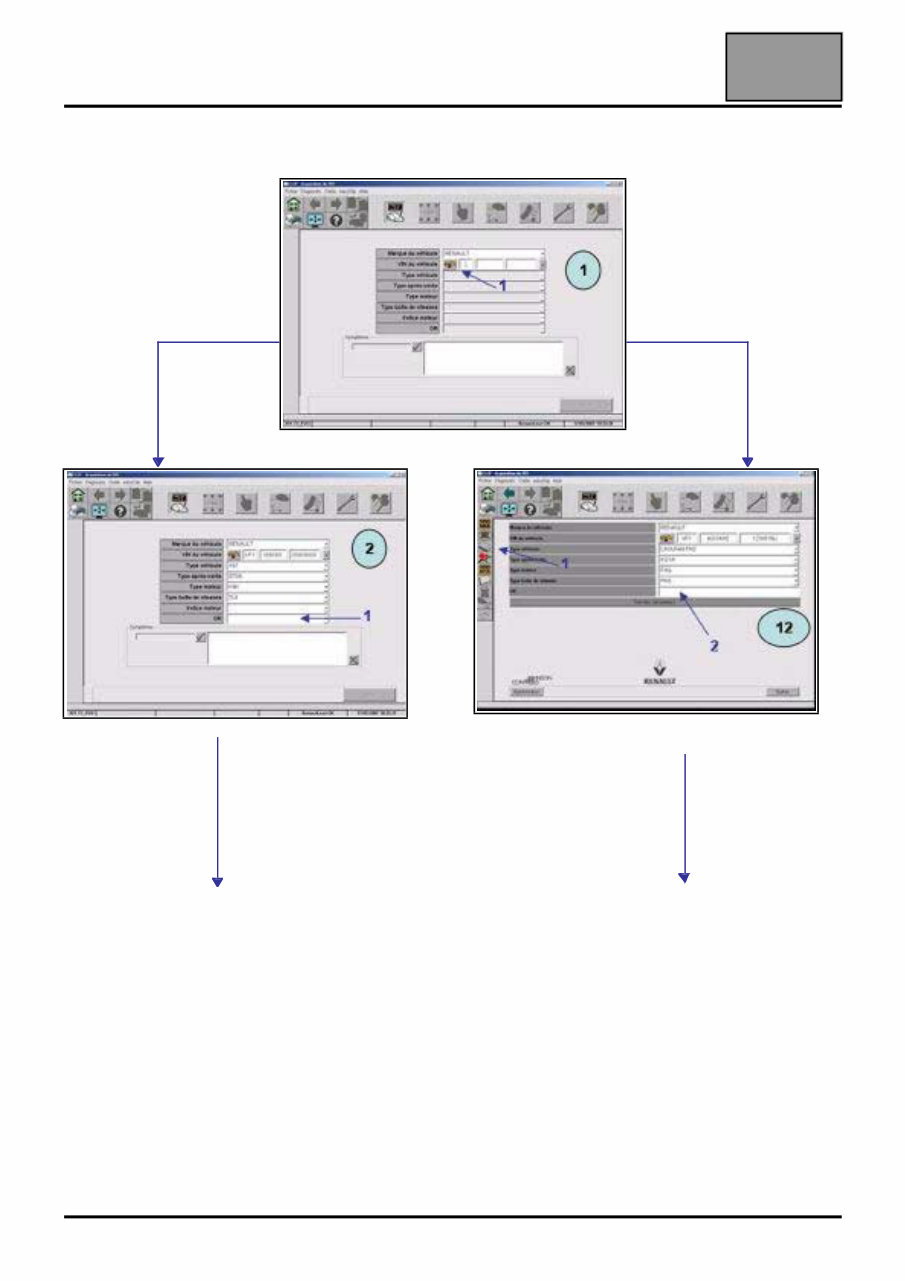

Order of the screens
1: Obtain vehicle VIN automatically.
1: Enter the repair order.
See New Interface
1: Select the reprogramming page.
2: Enter the repair order.
See Interface 2
VEHICLE GENERAL INFORMATION
Programming – Reprogramming the computers
01B
01B-7

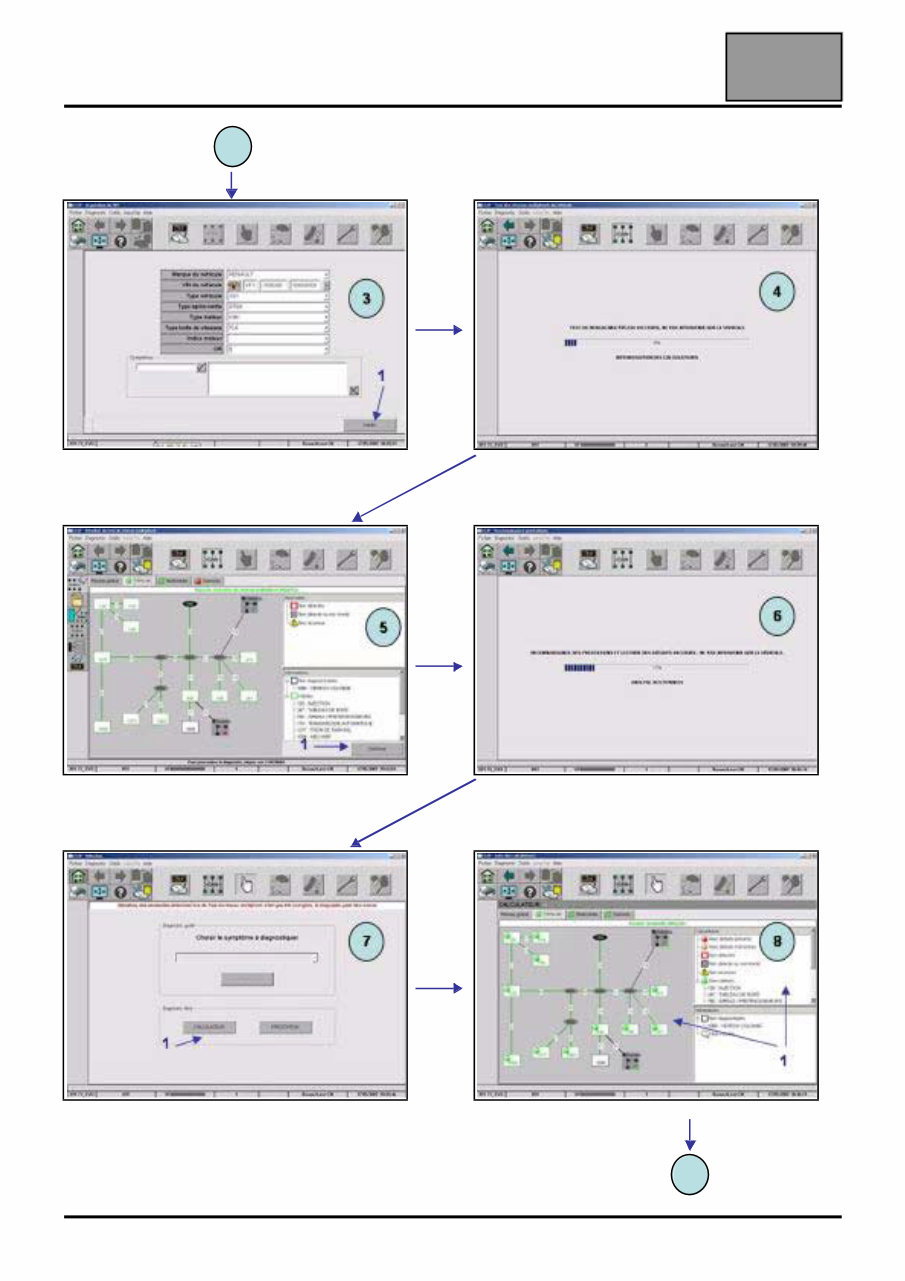

New Interface
1: Select the Validate button.
1: Select the Continue button.
1: Select the Computer button.
Multiplex network test.
Analyse data and Read faults.
1: Select the system to be reprogrammed.
2
9
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
2016 Renault Twingo III OEM Service & Repair Manual
Viewed 59 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
Get the comprehensive 2016 Renault Twingo III OEM Service & Repair Manual to keep your vehicle in top condition. This OEM manual provides detailed instructions and accurate diagrams for performing maintenance, repairs, and troubleshooting on your Twingo III. Whether you are a professional mechanic or a DIY enthusiast, this manual is an essential resource for ensuring the longevity and reliability of your car.
The 2016 Renault Twingo III OEM Service & Repair Manual covers all models of this popular vehicle, including:
- Twingo III Base Model
- Twingo III Turbo
- Twingo III GT
- Twingo III Electric
- Twingo III Limited Edition
Featuring step-by-step instructions and clear illustrations, this OEM manual makes even complex repairs easy to understand. Whether you need to change the oil, replace the brakes, or diagnose an electrical issue, this manual has got you covered. It also includes practical maintenance schedules to help you stay on top of regular servicing and prevent potential problems.
Invest in the 2016 Renault Twingo III OEM Service & Repair Manual today and take control of your car's maintenance. With the detailed OEM instructions and technical information provided in this manual, you can save time and money by performing repairs yourself and keep your Twingo III running smoothly and efficiently.
