© Renault s.a.s 2008
"The repair methods given by the manufacturer in this document are based on the technical
specifications current when it was prepared.
The methods may be modified as a result of changes introduced by the manufacturer in the
production of the various component units and accessories from which his vehicles are
constructed."
All copyrights reserved by Renault.
The reproduction or translation in part of whole of the present document, as well as the use
of the spare parts reference numbering system, are prohibited without the prior written
consent of Renault.
NOVEMBER 2008 Edition Anglaise
X44
0
General vehicle information
01A
VEHICLE MECHANICAL SPECIFICATIONS
01C
VEHICLE BODYWORK SPECIFICATIONS
01D
MECHANICAL INTRODUCTION
02A
LIFTING EQUIPMENT
03B
COLLISION
04B
CONSUMABLES - PRODUCTS
04E
PAINT
TWINGO - Section 0
Contents
Page
TWINGO - Section 0 ContentsPage
01A VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications 01A-1
01C VEHICLE BODYWORK SPECIFICATIONS
Vehicle: Identification 01C-1
Vehicle clearances:
Adjustment values 01C-3
01D MECHANICAL INTRODUCTION
Vehicle: Precautions for
repair 01D-1
Tightening torques: General
information 01D-3
02A LIFTING EQUIPMENT
Vehicle: Towing and lifting 02A-1
03B COLLISION
Damaged vehicle: Collision
fault finding 03B-1
Vehicle damaged at front:
Description 03B-4
Vehicle damaged at side:
Description 03B-7
Vehicle damaged at rear:
Description 03B-10
04B CONSUMABLES - PRODUCTS
Vehicle: Parts and
ingredients for the repairwork 04B-1
04E PAINT
Anti-corrosion protection
product Description 04E-1
03B COLLISION
01A- 1
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
01A

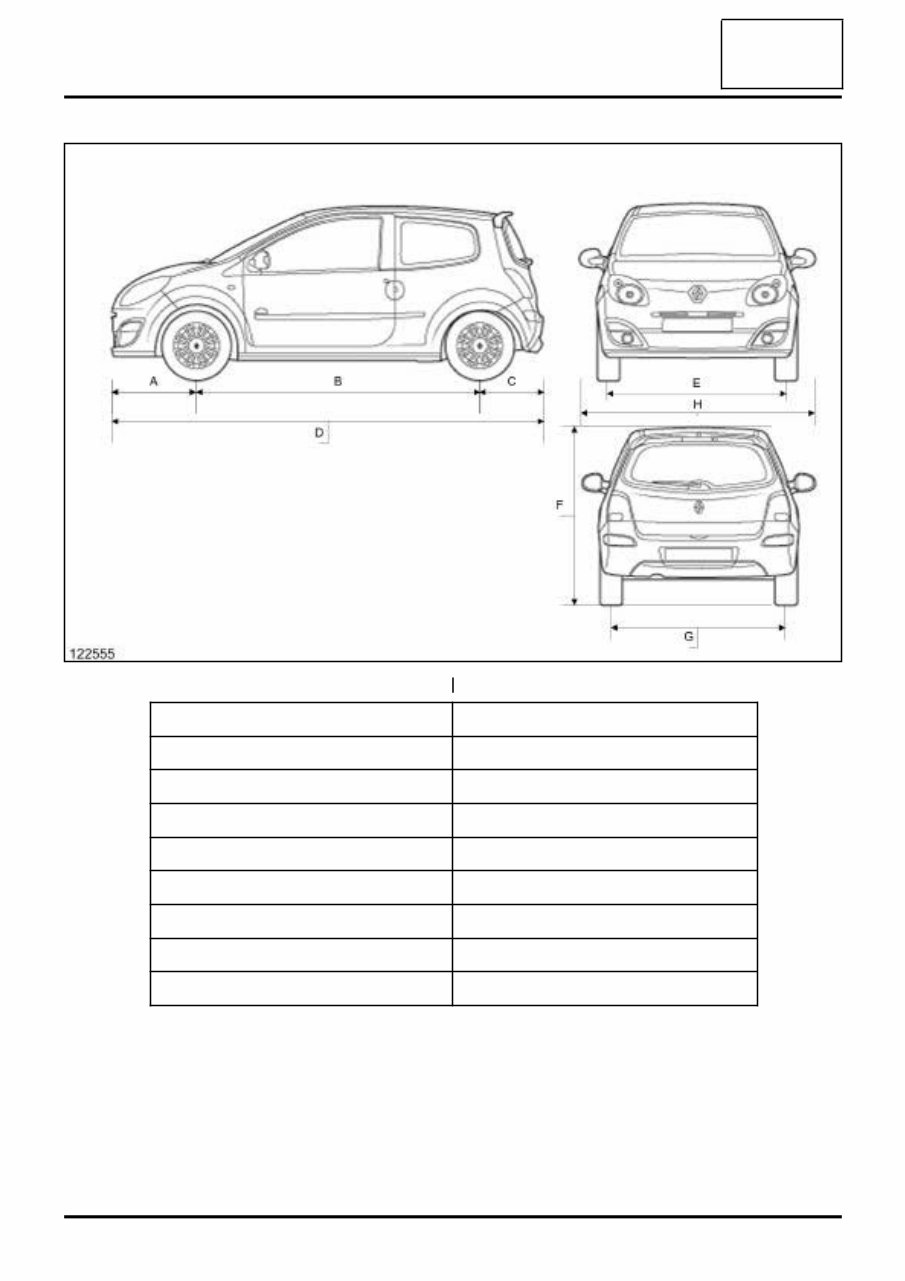

122555
Dimensions in metres
A 0.710 / 0.714 (RS)
B 2.367
C 0.525
D 3.602
E 1.400 / 1.414 (GT, RS)
F 1.470 (unladen)
G 1.386 / 1.400 (GT) / 1.430 (RS)
H 1.655
01A- 2
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
01A
Vehicle type Engine type Engine suf-
fix
Cubic capa-
city(cc)
Gearbox Gearbox
suffix
Emissions
standard
CN0A D4F 772 1149
JB1 521
EURO 4
JH1 020
CN0C
GN0C
D4F 780 1149 JH3 169
CN0D
GN0D
D7F 800 1149 JB1 520
CN0M
CN0E
GN0E
K9K 740 1461 JH3 166
CN0R K4M 854 1598 JR5 176
01C-1
VEHICLE BODYWORK SPECIFICATIONS
Vehicle: Identification
01C

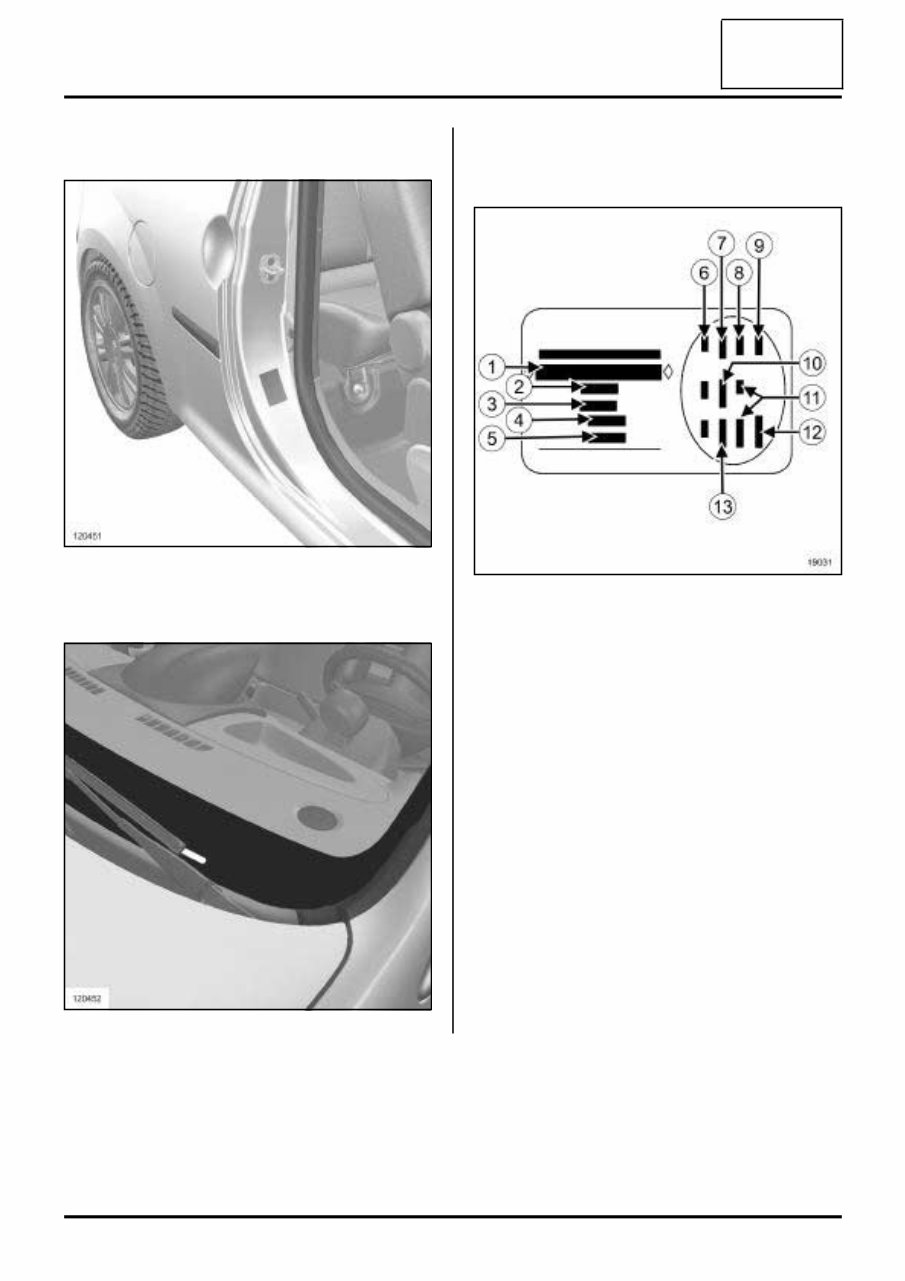

I - LOCATION OF VEHICLE IDENTIFICATION
PLATE
II - LOCATION OF THE VEHICLE IDENTIFICATION
NUMBER
III - DETAILED VIEW OF THE VEHICLE
IDENTIFICATION PLATE
Plate (A)
120451
120452
19031
(1) Vehicle type and type number;
this information also appears on
marking (B)
(2) MPAW (Vehicle's Maximum Per-
missible All-up Weight)
(3) GTW (Gross train weight, vehi-
cle under load with trailer)
(4) Maximum permissible front axle
load
(5) Maximum permissible rear axle
load
(6) Technical vehicle specifications
(7) Paintwork reference number
(8) Equipment level
(9) Vehicle type
(10) Upholstery code
(11) Additional equipment details
(12) Production number
(13) Interior tr im code
01C-2
VEHICLE BODYWORK SPECIFICATIONS
Vehicle: Identification
01C

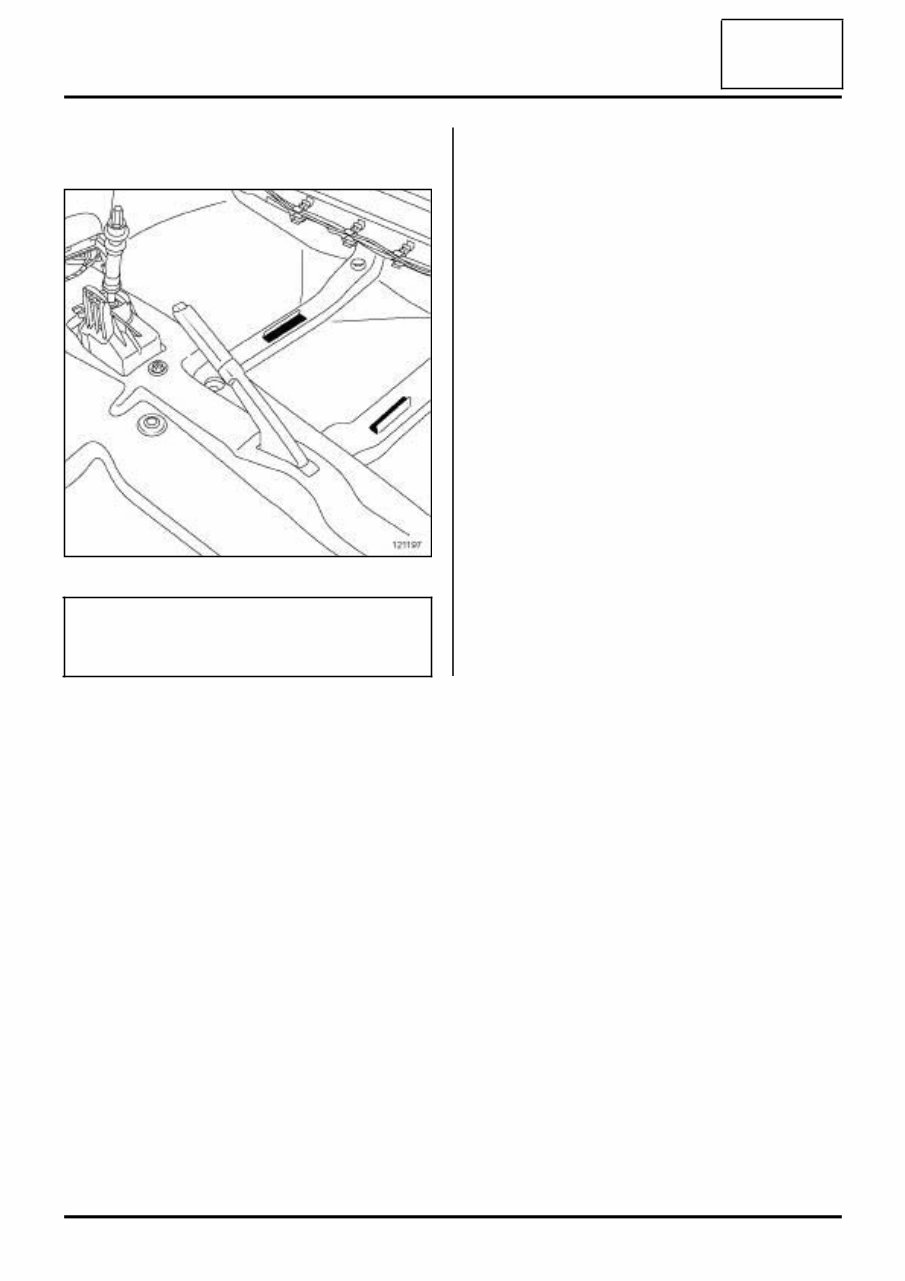

IV - COLD-MARKING OF THE BODY
Marking (B)
121197
Note:
If the complete body is being replaced, it must be
marked in compliance with the current regulations.

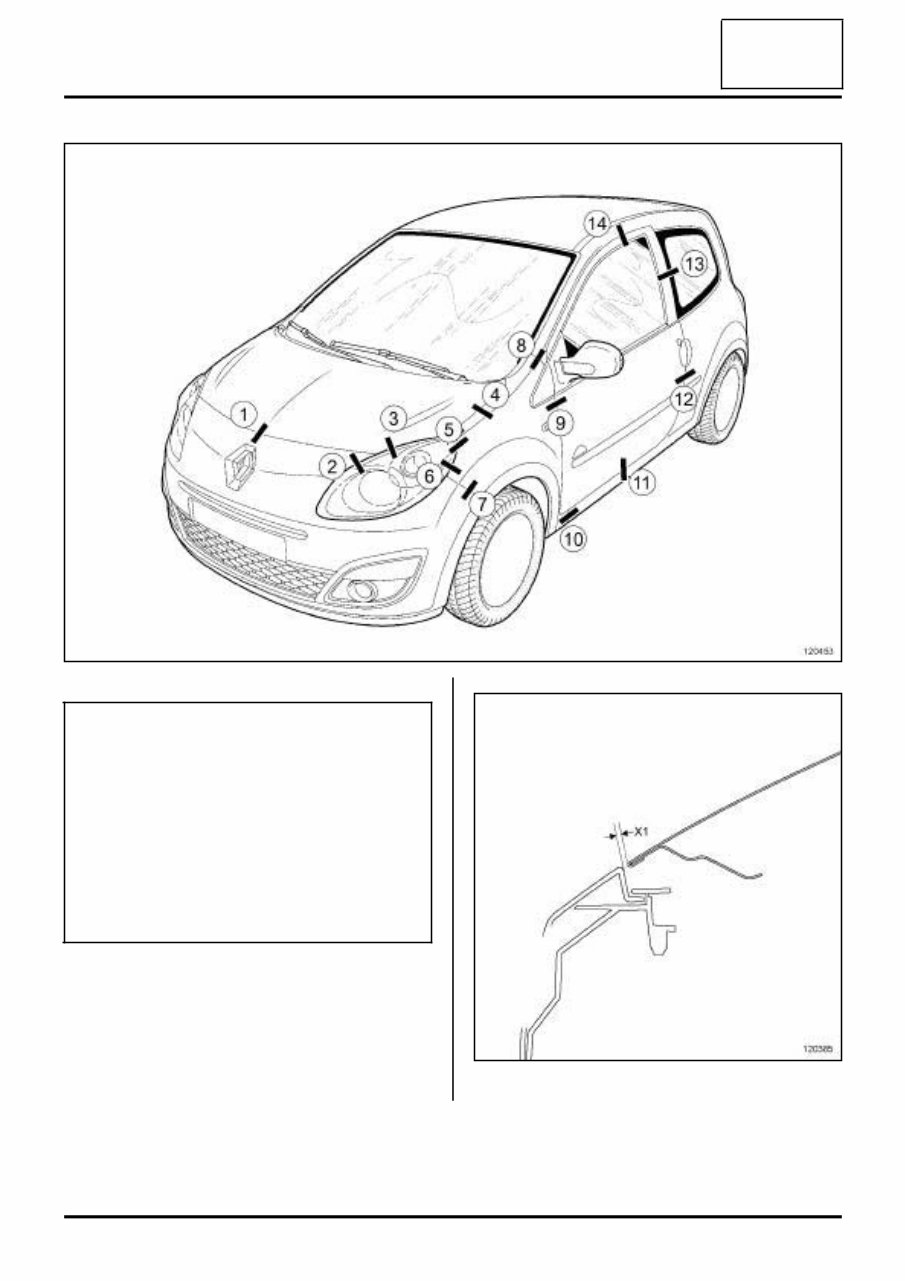

01C-3
VEHICLE BODYWORK SPECIFICATIONS
Vehicle clearances: Adjustment values
01C
All values are given in millimetres.
Section 1
(X1) = 3.5 ± 1.5
120453
WARNING
The clearance values are given for information
purposes.
When adjusting clearances, certain rules have to be
followed:
- maintain symmetry with respect to the opposite
side,
- ensure the flush fitting is correct,
- check correct operation of the opening, and water/
air-tightness.
120385
01C-4
VEHICLE BODYWORK SPECIFICATIONS
Vehicle clearances: Adjustment values
01C

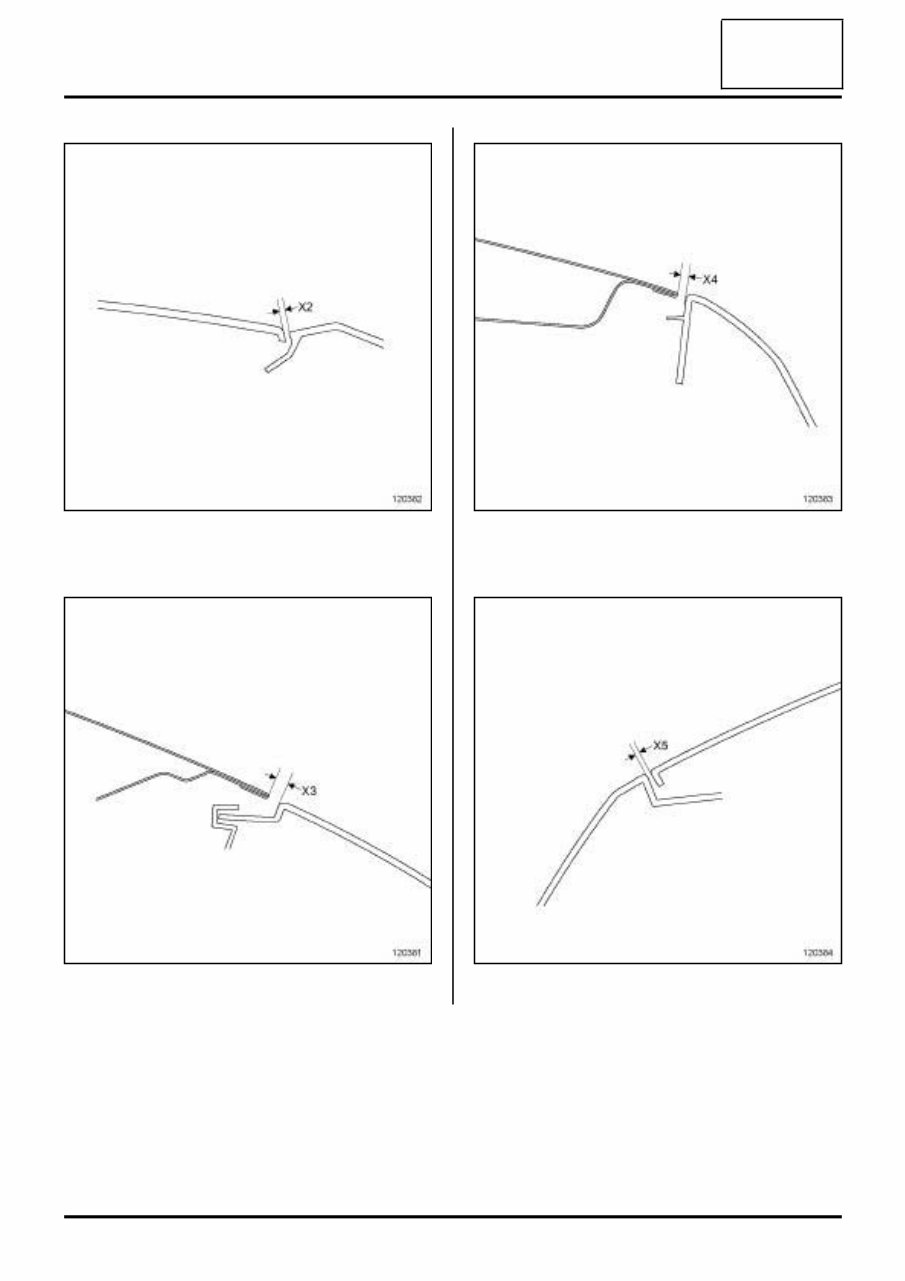

Section 2
(X2 ) = 2 ± 1.5
Section 3
(X3 ) = 3 ± 1.5
Section 4
(X4) = 3.5 ± 1.5
Section 5
(X5) = 2 ± 1.3
120382
120381
120383
120384
01C-5
VEHICLE BODYWORK SPECIFICATIONS
Vehicle clearances: Adjustment values
01C

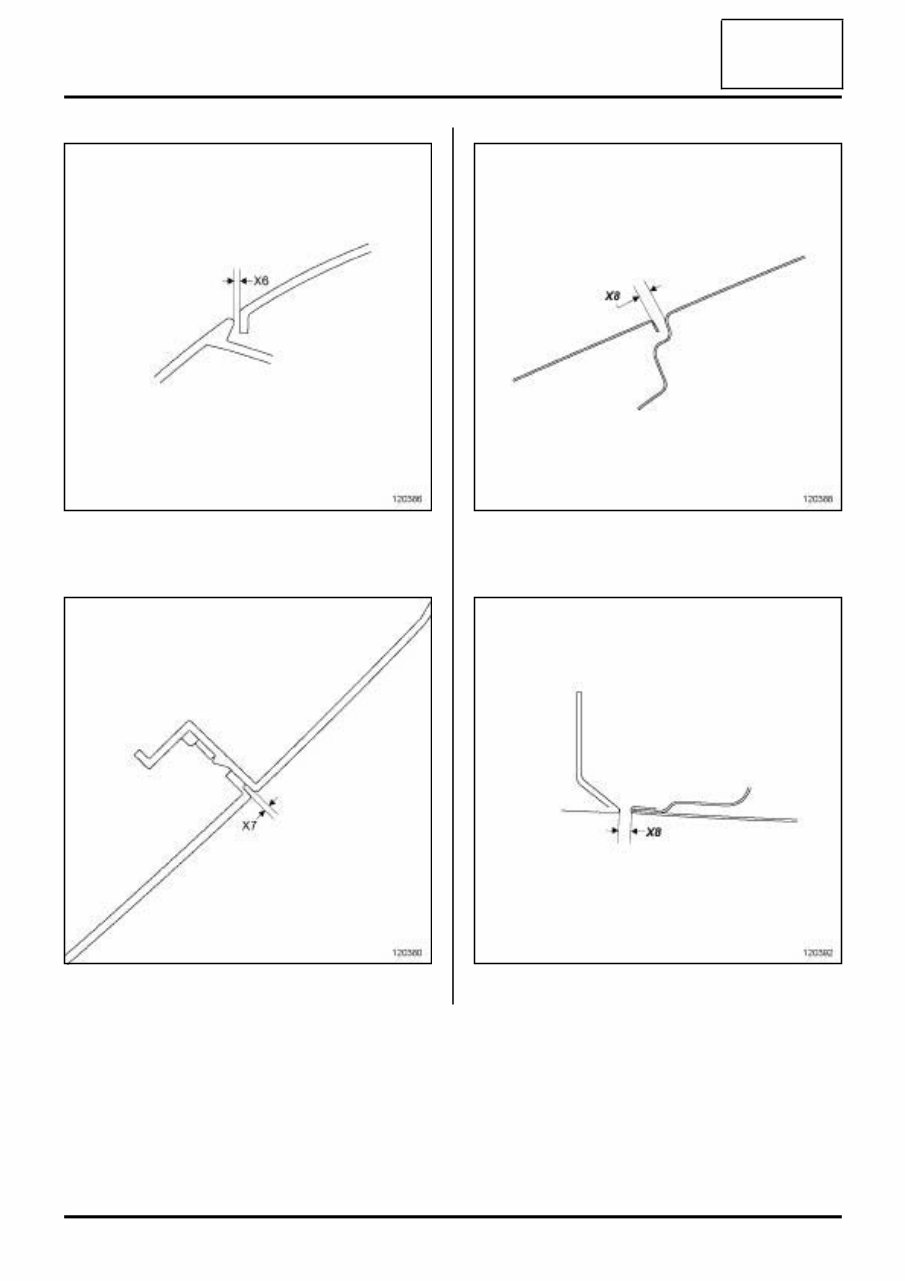

Section 6
(X6 ) = 2 ± 1.3
Section 7
(X7 ) = 0 + 1/- 0
Section 8
(X8) = 2.5 ± 1.3
Section 9
= 4.2 ± 1
120386
120380
120388
120392
01C-6
VEHICLE BODYWORK SPECIFICATIONS
Vehicle clearances: Adjustment values
01C

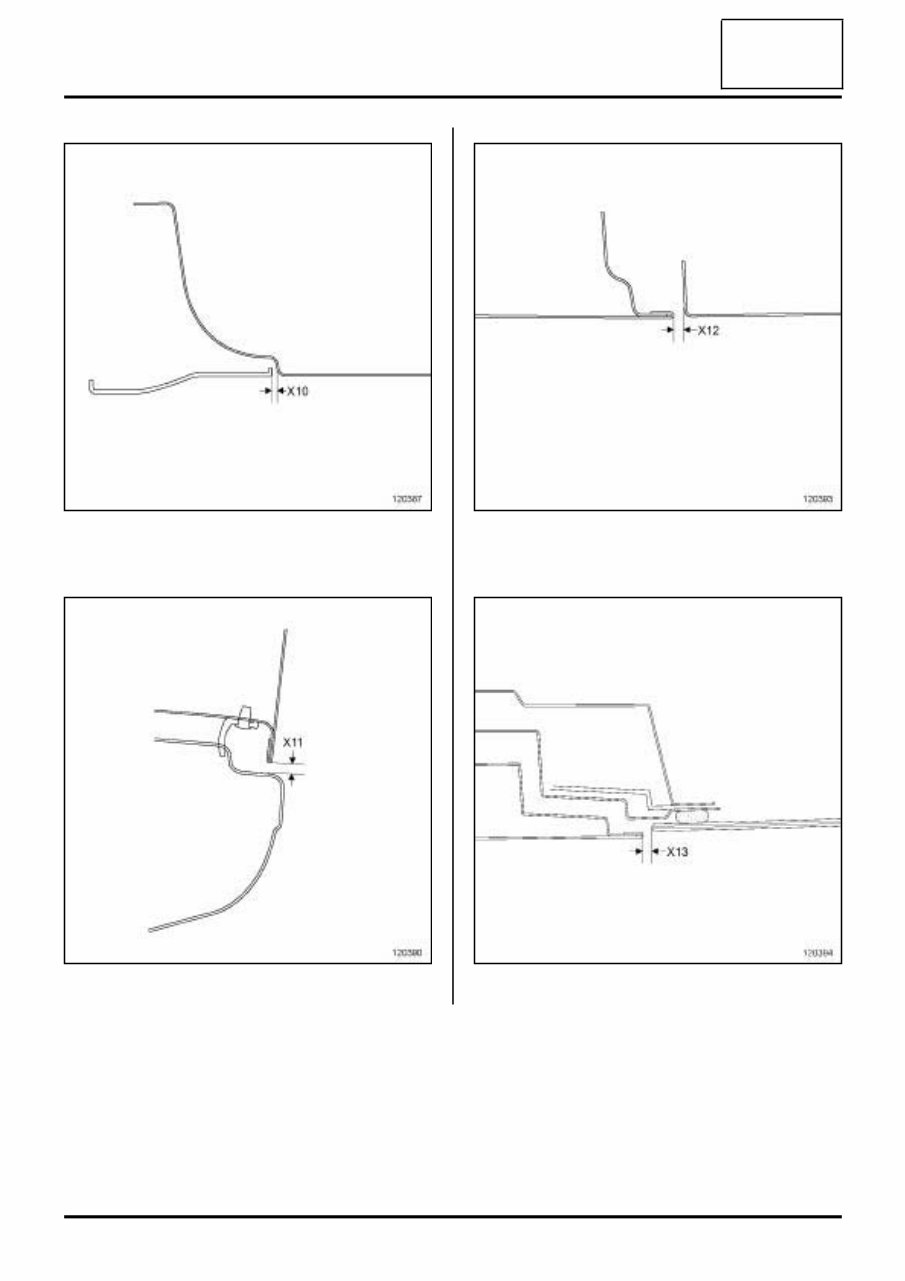

Section 10
(X10) = 2 ± 1.5
Section 11
(X11) = 5 ± 2
Section 12
(X12) = 4 ± 1.5
Section 13
(X13) = 4 ± 2.3
120387
120390
120393
120394
