2009 Renault Laguna III Service and Repair Manual

© Renault s.a.s 2007 "The repair procedures given by the manufacturer in this document are based on the technical specifications current when it was prepared. The procedures may be modified as a result of changes introduced by the manufacturer in the production of the various component units and accessories from which the vehicles are constructed". All rights reserved by Renault. Copying or translating, in part or in full, of this document or use of the service part reference numbering system is forbidden without the prior written authority of Renault. AUGUST 2009 EDITION ANGLAISE X91 0 General vehicle information 01A VEHICLE MECHANICAL SPECIFICATIONS 01C VEHICLE BODYWORK SPECIFICATIONS 01D MECHANICAL INTRODUCTION 02A LIFTING EQUIPMENT 03B COLLISION 04B CONSUMABLES - PRODUCTS

LAGUNA III - Section 0 Contents Pages LAGUNA III - Section 0 ContentsPages 01A VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications 01A-1 01C VEHICLE BODYWORK SPECIFICATIONS Vehicle: Identification 01C-1 Vehicle panel gaps: Adjustment value 01C-3 01D MECHANICAL INTRODUCTION Vehicle: Precautions for the repair 01D-1 Tightening torques: General information 01D-3 02A LIFTING EQUIPMENT Vehicle: Towing and lifting 02A-1 03B COLLISION Vehicle involved in an impact: Impact fault finding 03B-1 Vehicle involved in a frontal impact: Description 03B-4 Vehicle involved in a side impact: Description 03B-7 Vehicle involved in a rear impact: Description 03B-13 04B CONSUMABLES - PRODUCTS Vehicle: Parts and consumables for the repair 04B-1 03B COLLISION

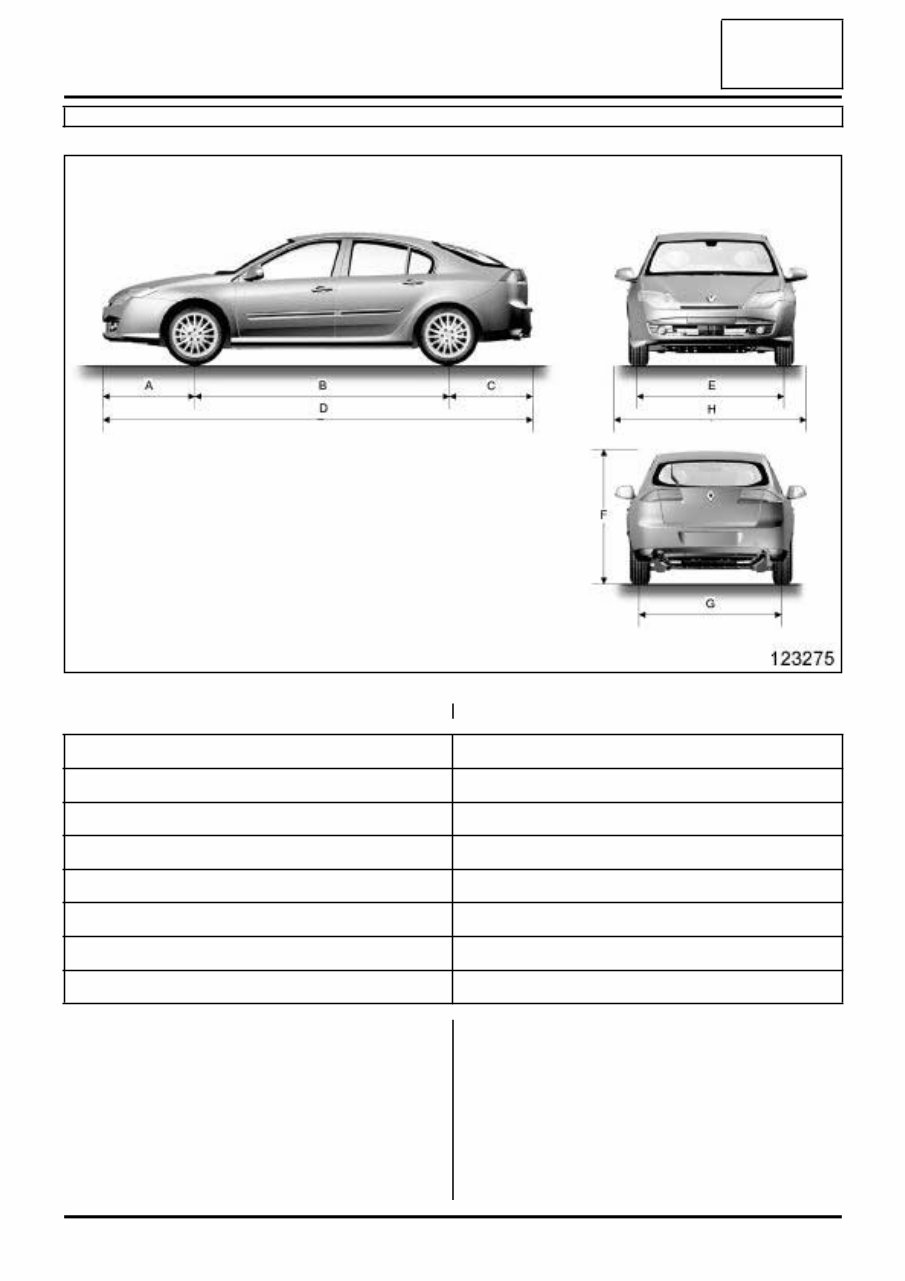

01A- 1 VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications B91 01A Dimensions in metres: 123275 (A ) 1.014 (B ) 2.756 (C ) 0.925 (D ) 4.695 (E) 1.557 (F) (unladen) 1.445 (G) 1.512 (H ) 1.811

01A- 2 VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications B91 01A Engine Gearbox Emissions standard Engine type Engine suffix Cubic capacity(cc) Gearbox type Gearbox suffix F4R 800 1998 PK4 008 Euro 4 802 Euro 5 811 AJ0 007, 018 Euro 4 813 Euro 3, 4 and 5 K4M 824 1598 TL4 016, 019 Euro 3 and 4 K9K 780 1461 013 Euro 1, 3 and 4 782 013, 022 Euro 5 M4R 704 1997 017, 020 Euro 3 and 4 726 Euro 5 M9R 742 1995 PK4 007 Euro 4 744 746 007, 009 748 Euro 3 and 4 754 800 012 Euro 4 802 007, 009 Euro 4 and 5 803 AJ0 004 Euro 4 805 Euro 4 and 5 806 PK4 020 Euro 4 808 004 809 AJ0 004 Euro 4 and 5 816 PK4 012 845 AJ0 004 849 V4Y 713 3498 AJ0 005 Euro 4 V9X 891 2998 006 Euro 5

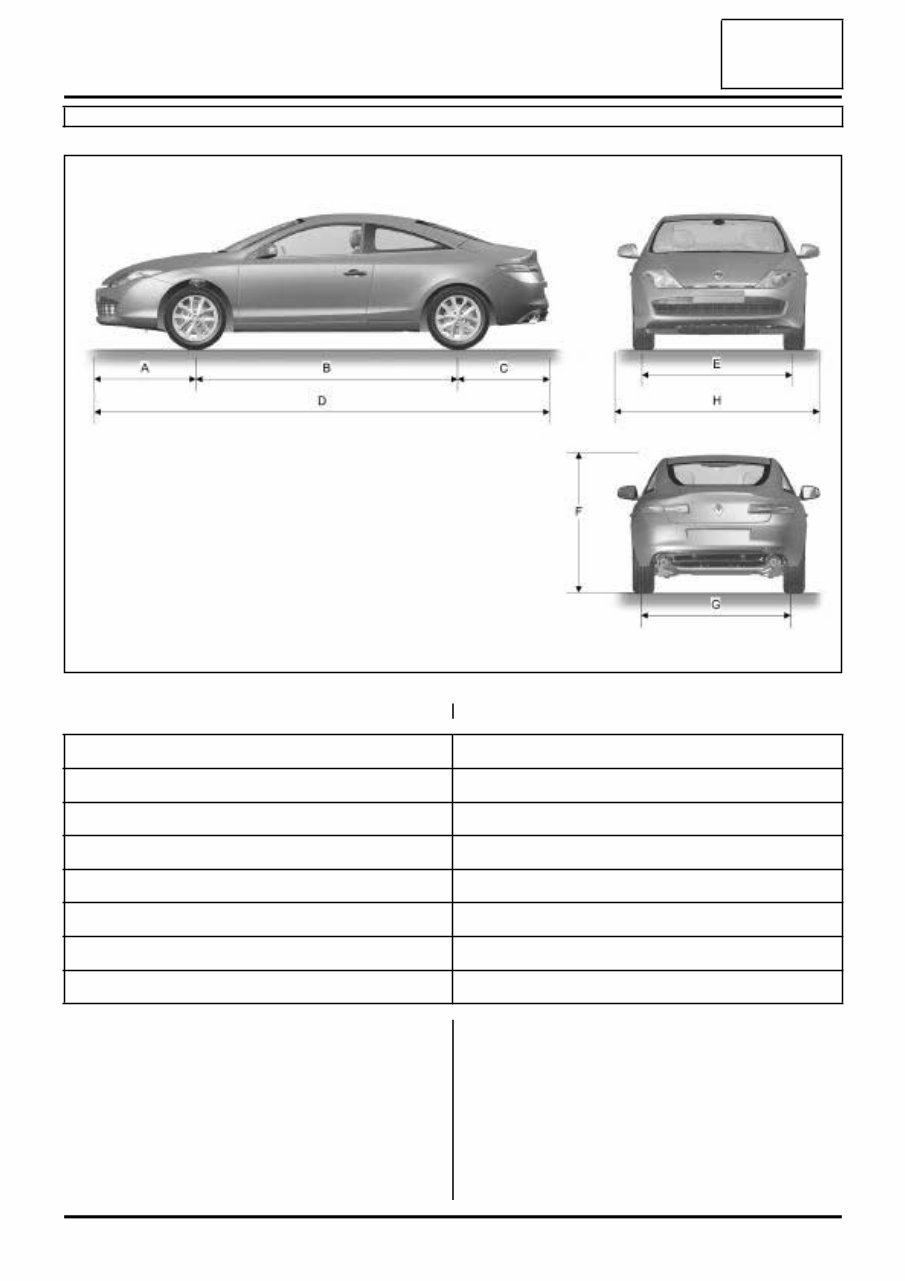

01A- 3 VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications K91 01A Dimensions in metres: 123276 (A ) 1.014 (B ) 2.758 (C ) 1.031 (D ) 4.776 (E) 1.557 (F) (unladen) 1.455 (G) 1.512 (H ) 1.811

01A- 4 VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications K91 01A Engine Gearbox Emissions standard Engine type Engine suffix Cubic capacity(cc) Gearbox type Gearbox suffix F4R 800 1998 PK4 008 Euro 4 802 Euro 5 811 AJ0 007, 018 Euro 4 813 Euro 3 and 4 K4M 824 1598 TL4 016, 019 Euro 3 and 4 K9K 780 1461 013 Euro 4 782 013, 022 Euro 5 M4R 704 1997 017, 020 Euro 3 and 4 726 Euro 5 M9R 742 1995 PK4 007 Euro 4 744 746 007, 009 748 Euro 3 and 4 754 Euro 4 800 012 802 007, 009 Euro 4 and 5 803 AJ0 004 Euro 4 805 Euro 4 and 5 806 PK4 020 Euro 4 808 004 809 AJ0 004 Euro 4 and 5 816 PK4 012 845 AJ0 004 849 V4Y 713 3498 AJ0 005 Euro 4 V9X 891 2998 006 Euro 5

01A- 5 VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications D91 01A Dimensions in metres: 141547 (A ) 1.019 (B ) 2.693 (C ) 0.931 (D ) 4.643 (E) 1.547 (F) (unladen) 1.401 (G) 1.542 (H ) 2.082

01A- 6 VEHICLE MECHANICAL SPECIFICATIONS Vehicle: Specifications D91 01A Engine Gearbox Emissions standard Engine type Engine suffix Cubic capacity(cc) Gearbox type Gearbox suffix F4R 800 1998 PK4 008 Euro 4 802 Euro 5 811 AJ0 007, 018 Euro 4 813 Euro 3 and 4 M9R 742 1995 PK4 007 Euro 4 744 748 007, 009 Euro 3 and 4 754 800 012 Euro 4 802 007, 009 Euro 4 and 5 803 AJ0 004 Euro 4 805 Euro 4 and 5 806 PK4 020 Euro 4 808 004 809 AJ0 004 Euro 4 and 5 816 PK4 012 845 AJ0 004 849 V4Y 713 3498 AJ0 005 Euro 4 and 5 V9X 891 2998 006 Euro 5

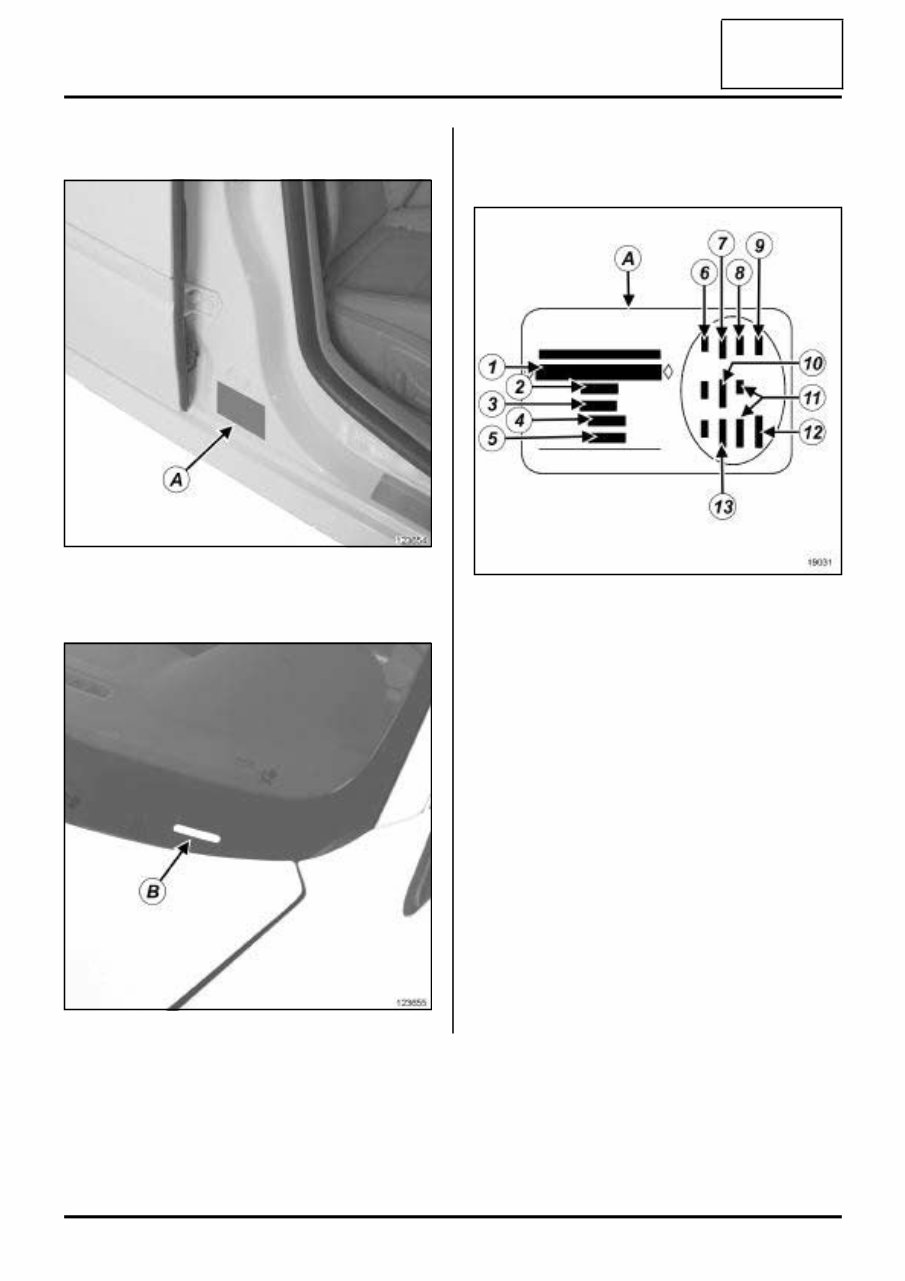

01C-1 VEHICLE BODYWORK SPECIFICATIONS Vehicle: Identification 01C I - LOCATION OF VEHICLE IDENTIFICATION PLATE (A) II - LOCATION OF THE VEHICLE IDENTIFICATION NUMBER (B) III - DETAILED VIEW OF THE VEHICLE IDENTIFICATION PLATE Plate (A) 123654 123655 19031 (1) Vehicle type mine and type number; this information also appears on marking (B) (2) MGVW (Maximum Gross Vehi- cle Weight) (3) GTW (Gross train weight, vehicle under load with trailer) (4) Maximum permissible front axle load (5) Maximum permissible rear axle load (6) Vehicle technical specifications (7) Paintwork reference number (8) Equipment level (9) Vehicle type (10) Upholstery code (11) Additional equipment details (12) Fabrication number (13) Interior tr im code

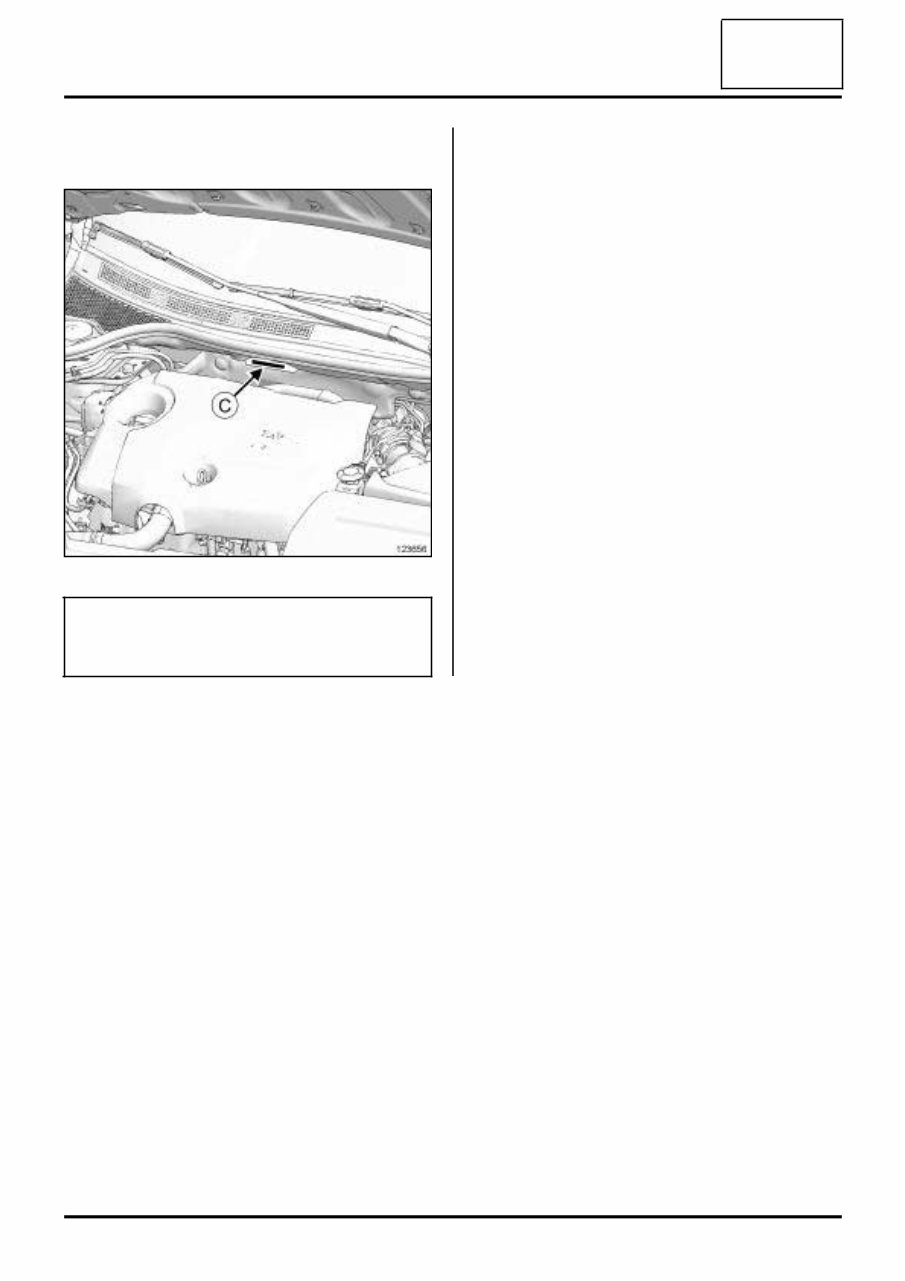

01C-2 VEHICLE BODYWORK SPECIFICATIONS Vehicle: Identification 01C IV - COLD-MARKING OF THE BODY Marking (C) 123656 Note: If the complete body is being replaced, it must be marked in compliance with the current regulations.
