10A- 1 ENGINE AND LOWER ENGINE ASSEMBLY Engine identification 10A List of engine Workshop Repair Manuals to be consul- ted depending on the engine type: - K4J and K4M engine, Technical Note 3784A, - K9K engine, Technical note 6006A, - F9Q engine, Technical Note 3652A, - F4R engine, Technical Note 3783 A. Vehicle type Engine type Engine suf- fix Cubic capacity (cc) Bore (mm) Stroke (mm) Compression ratio XM0B XM0H XM1A K4J 730 1390 79.5 70 10/1 XM08 732 XM0C XM0J XM1B K4M 760 1598 79.5 80.5 9.8/1 761 XM05 XM0U XM1M XM1N F4R 770 1998 82.7 93 9.8/1 771 XNOW 776 9.5/1 XM0F XM0T K9K 722 1461 76 80.5 17.9/1 XM02 XM13 728 XM02 729 XM1E 732 15.3/1 XM0G XM1G F9Q 800 1870 80 93 18.4/1 XM0L XM1D 804 17/1 XM00 808 18.4/1

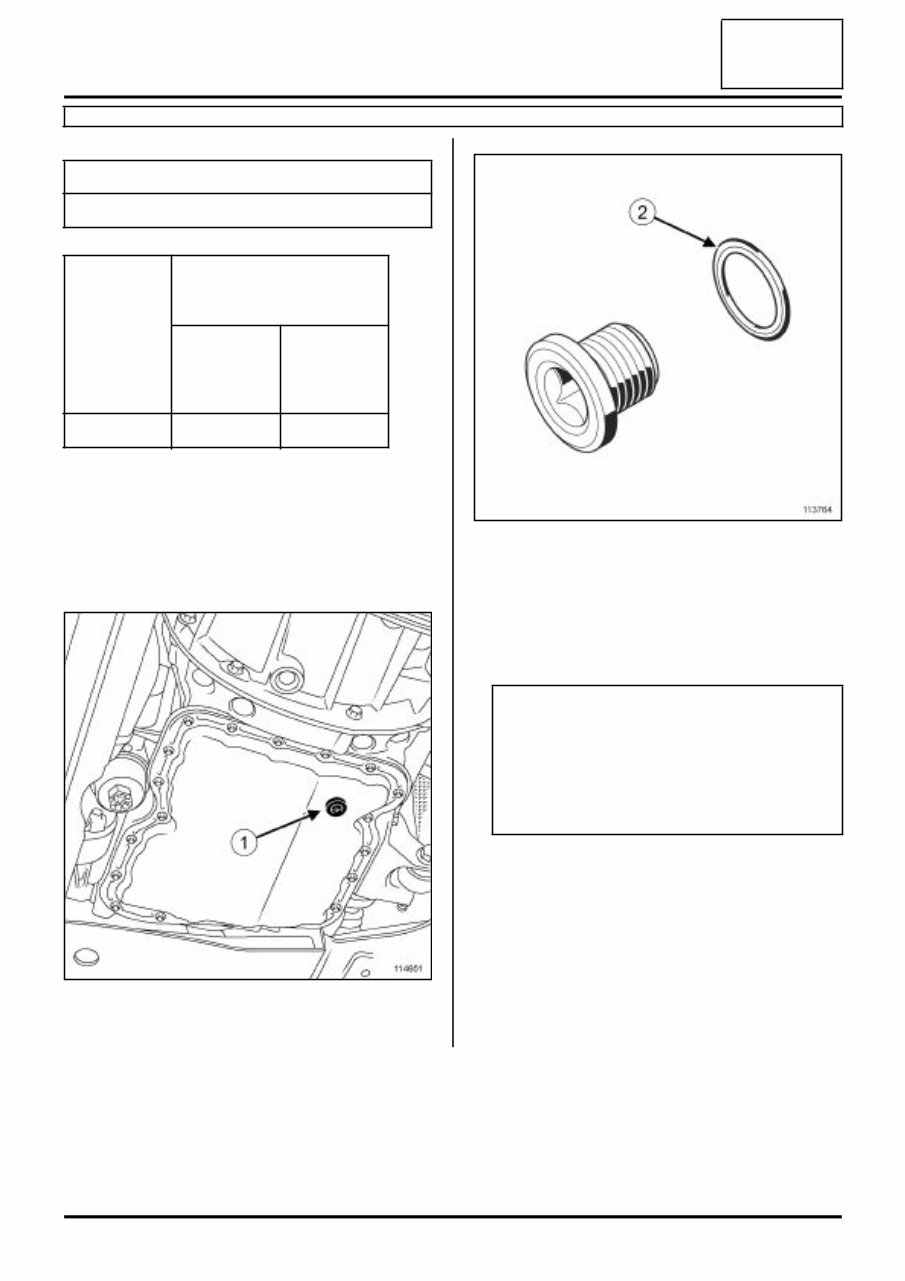

10A- 2 ENGINE AND LOWER ENGINE ASSEMBLY Engine oil: Draining - Refilling M9R, and 700 10A I - OIL SERVICE Remove the oil filler plug and the dipstick. Place the vehicle on a two-post lift (see 02A, Lifting equipment, Underbody lift ). Remove the engine undertray. Remove the drain plug (1) . Let the oil run into a drain tray. Copper seal Refit the new seal on the plug, positioning the groo- ve (2) towards the plug. Tighten to torque the drain plug ( 44 Nm ) . II - FILLING When filling up the engine oil, always leave at least 10 minutes for the oil to drain down before checking with a dipstick. Fill up the engine with oil. Refit the engine undertray. Tightening torques m drain plug 44 Nm Engine Average oil capacity (check and adjust with dipstick) (l) Draining Oil change with oil filter replacement M9R 6.4 6.7 114651 113764 WARNING Always check the oil level using the dipstick. Do not exceed the maximum level on the dipstick (as this could damage the engine). Correct the engine oil level if necessary before delivering the vehicle to the customer.

10A- 3 ENGINE AND LOWER ENGINE ASSEMBLY Oil consumption Check 10A PROCEDURE FOR MEASURING OIL CONSUMPTION 1 - Filling to the maximum level Turn the engine off. Wait two minutes for all of the oil to flow into the oil sump. Check the level on the dipstick. Top up to the "MAX" mark. Make a paint mark on both the fuel filler cap and the sump drain plug in order to be able to check later that they have not been removed. 2 - Customer driving Ask the customer to drive approximately 1,200 mi- les (2,000 km) in the vehicle without letting the oil level reach the "MIN" mark. 3 - Topping up Turn the engine off. Wait two minutes for all of the oil to flow into the oil sump. Check the level on the dipstick. Top up to the "MAX" mark. Note the quantity of oil added and the mileage cove- red since the last top-up to maximum level. 4 - Measurement of the oil consumption Oil consumption = Quantity of topping up oil (in litres) / number of kilometres (in thousands). Note: The operation should be carried out with the engine warm after the fan unit has started operating. Note: The operation should be carried out with the engine warm after the fan assembly has started operating.
