General information SPECIFICATIONS LIFTING TOWING OIL CHANGE VALUES AND SETTINGS This document refers to the specifications for the AVANTIME. For all information on sections in common with the ESPACE, refer to Workshop Repair Manual 315. DE0 T 77 11 304 502 "The repair methods given by the manufacturer in this document are based on the technical specifications current when it was prepared. The methods may be modified as a result of changes introduced by the manufacturer in the production of the various component units and accessories from which his vehicles are constructed." SEPTEMBER 2001 All copyrights reserved by Renault. EDITION ANGLAISE Copying or translating, in part or in full, of this document or use of the service part reference numbering system is forbidden without the prior written authority of Renault. © RENAULT 2001

General information Contents Page 01 02 03 05 07 SPECIFICATIONS Engine - Clutch - Gearbox 01-1 Vehicle identification 01-3 LIFTING Trolley jack - Strapping 02-1 Axle stands 02-2 TOWING All types 03-1 OIL CHANGE Engine 05-1 Gearbox 05-3 Power assisted steering 05-4 Brake circuit 05-5 Particle filters 05-6 VALUES AND SETTINGS Dimensions 07-1 Capacities - Grades 07-2 Accessories belt tension 07-3 Tightening the cylinder head 07-4 Dimensions of the main braking components 07-5 Front axle geometry checking values 07-6 Rear axle geometry checking values 07-7 Underbody height 07-8 Tyres 07-9

SPECIFICATIONS Engine- Clutch - Gearbox 01 101 SPECIFICATIONS Engine- Clutch - Gearbox VEHICLE IDENTIFICATION Example: D : Type of bodywork (coupe) E : Project code 0T : Engine suffix Vehicle type Engine Clutch type Gearbox type Type Capacity DE0 T L7X 2963 LUK PK6 01-1

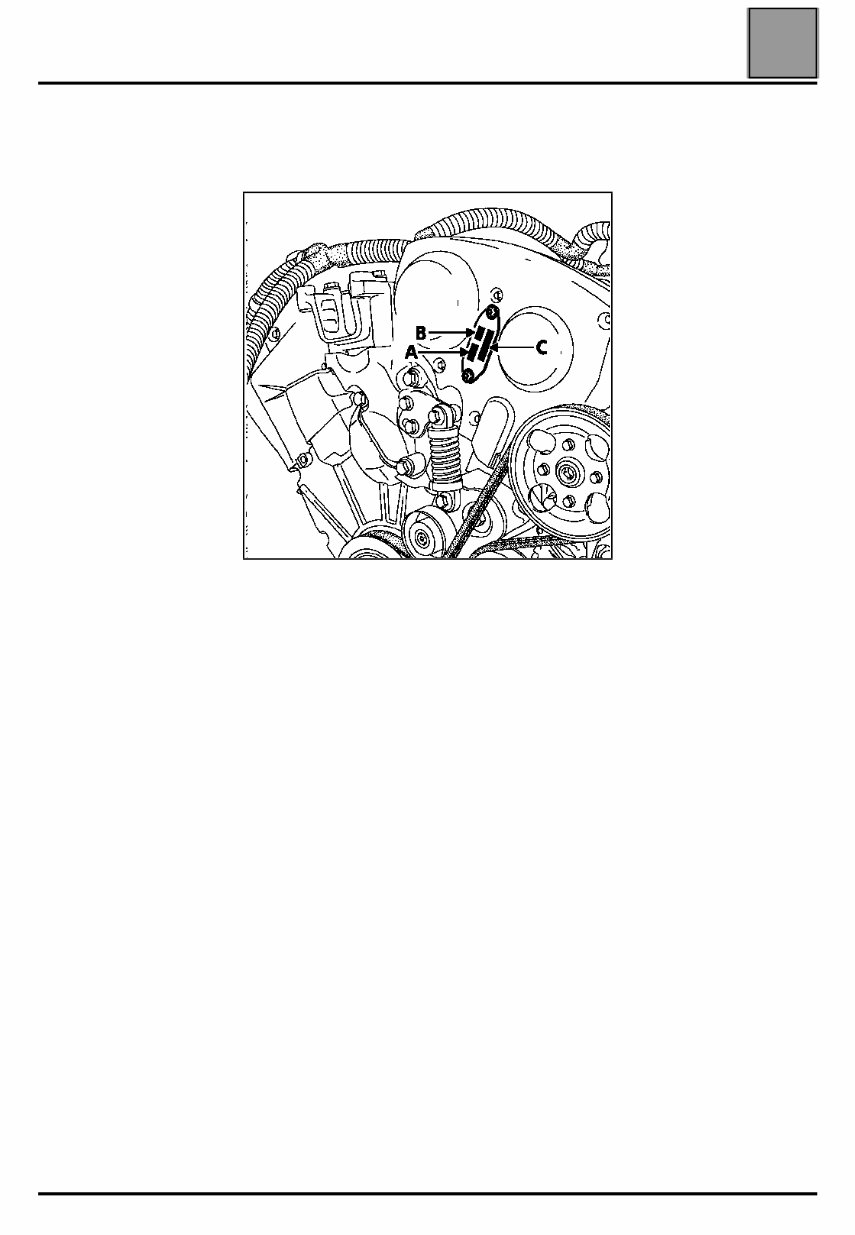

SPECIFICATIONS Engine- Clutch - Gearbox 01 01-2 ENGINE IDENTIFICATION Visual reminder. A: Engine type and approval B: Renault identification and engine suffix C: Engine fabrication number

SPECIFICATIONS Vehicle identification 01 01-3 Vehicle identification LOCATION OF VEHICLE IDENTIFICATION PLATE On the floor crossmember at the foot of the front right-hand seat, by lifting up the flap built into the carpet. The chassis number is also under the windscreen.

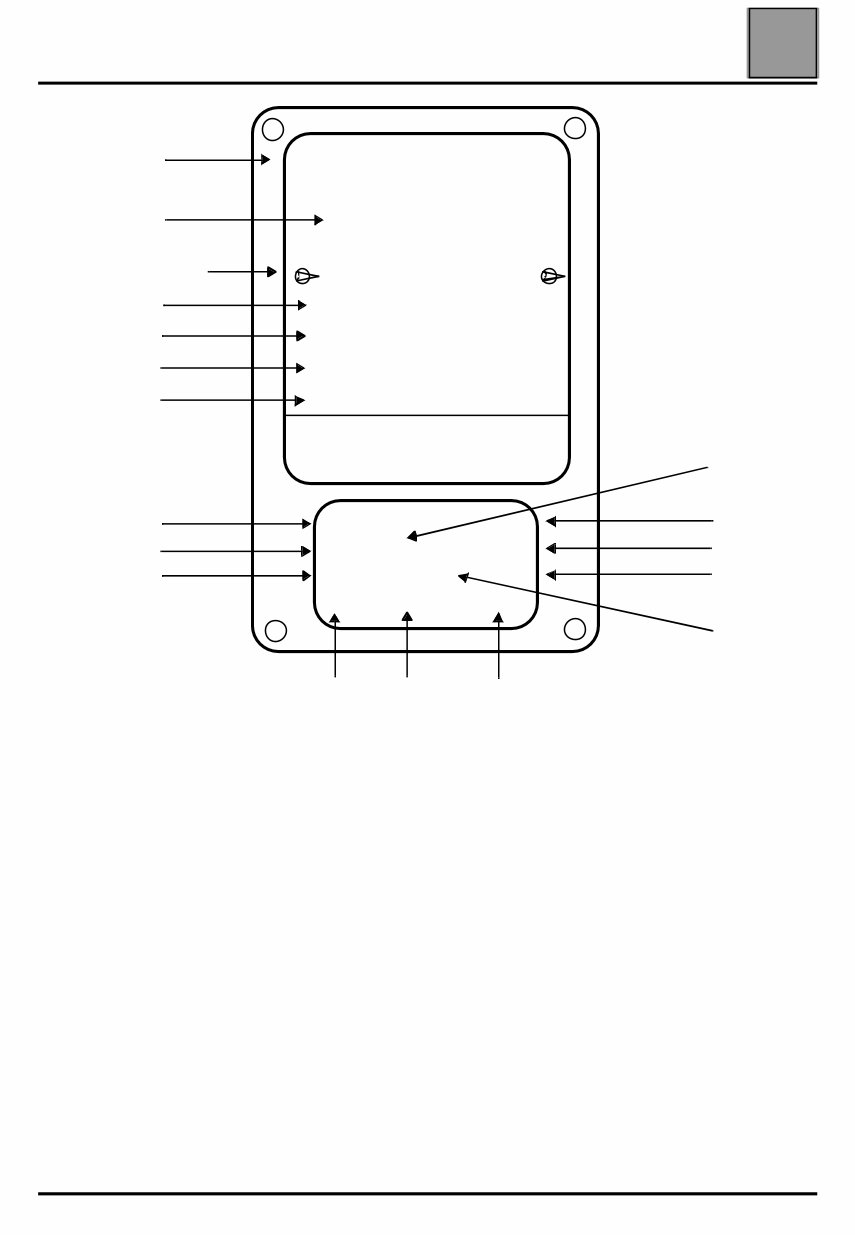

SPECIFICATIONS Vehicle identification 01 01-4 It includes: A : Manufacturer's name B : EEC approval number C : Vehicle type preceded by the manufacturer's world identification code (VF8 corresponds to MATRA AUTOMOBILE) D : Chassis number E: Maximum permissible all-up weight (P.T.M.A.) F: Maximum permitted total train weight (P.T.R. - vehicle loaded with trailer) G: Maximum gross front axle load (P.T.M.A. front axle) H : Maximum gross rear axle load (P.T.M.A. rear axle) 1: Vehicle type 2: Equipment level 3: Grade of paintwork and body paint part number 4: Special or limited series 5: Letter identifying the factory of manufacture, followed by the fabrication number 6: Additional factory option equipment 7: Interior matching code 8: Seat trim material 9 - 10: The Parts Catalogue pictogram identification 11: Special technical features NOTE: depending on the export country, some indications may not be included on the plate. The plate shown above is the most complete. A MATRA AUTOMOBILE S.A. B 00 00/00 * 0000 * 00* C D 00000000000000000 E 0000 Kg F 0000 Kg G 1 0000 Kg H 2 0000 Kg 000 *0000 0 *000000 4 1 5 0000 0 000000 2 00 000000 0000 6 00000 0000 00000 7 3 00 0000 0000 8 11 10 9

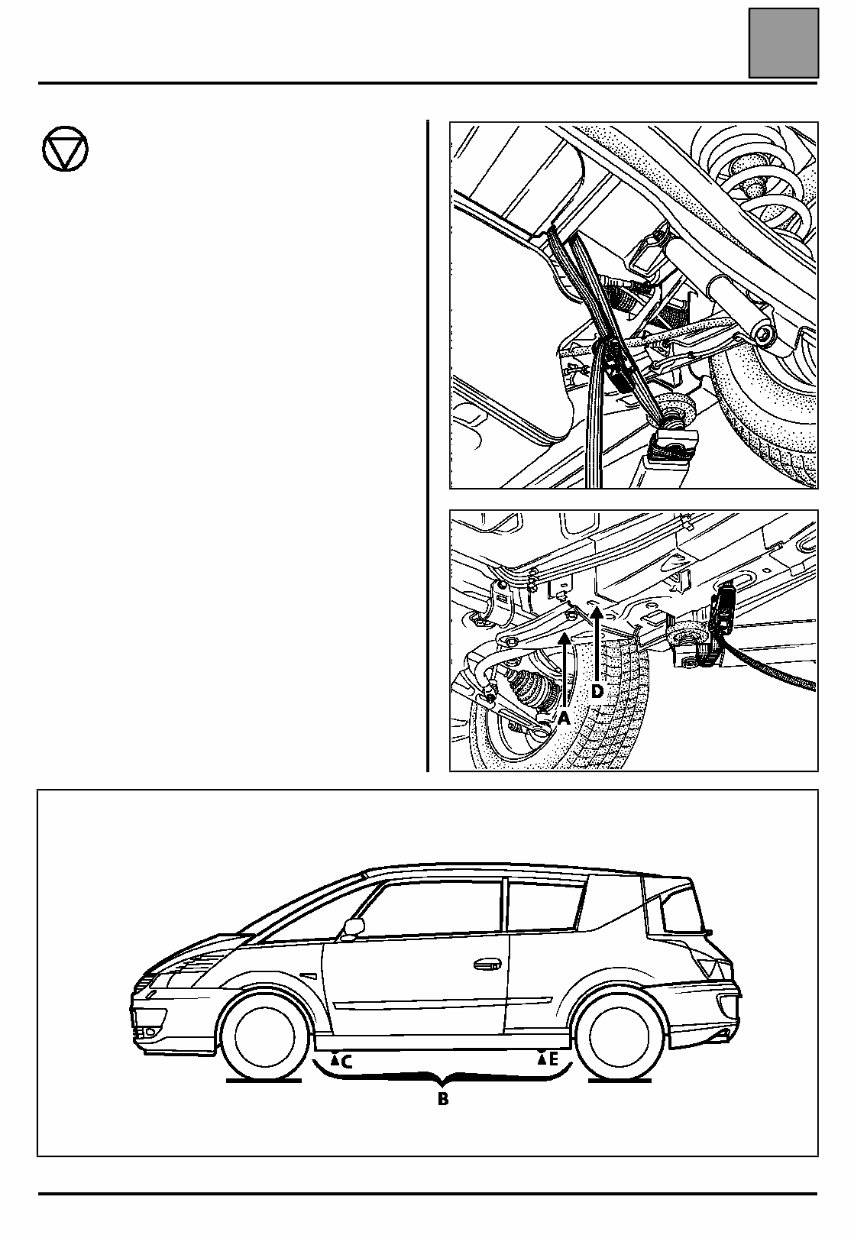

LIFTING Trolley jack - Strapping 02 02-1 102 LIFTING Trolley jack - Strapping If a trolley jack is used, appropriate axle stands must always be used. TROLLEY JACK It is forbidden to lift the vehicle with support from under the front suspension arm, under the front wheel arch reinforcement triangles (A ), under the rear axle crossmember and on the full length of the sill panel ( B). LIFTING THE VEHICLE To lift the front: – place the trolley jack on the jack support (C ) or the front side member extension ( D). To lift the rear: – use the tool kit jack supports ( E). VEHICLE STRAPPING Strapping is done beneath the floor because the doors no longer allow returning through the passenger compartment.

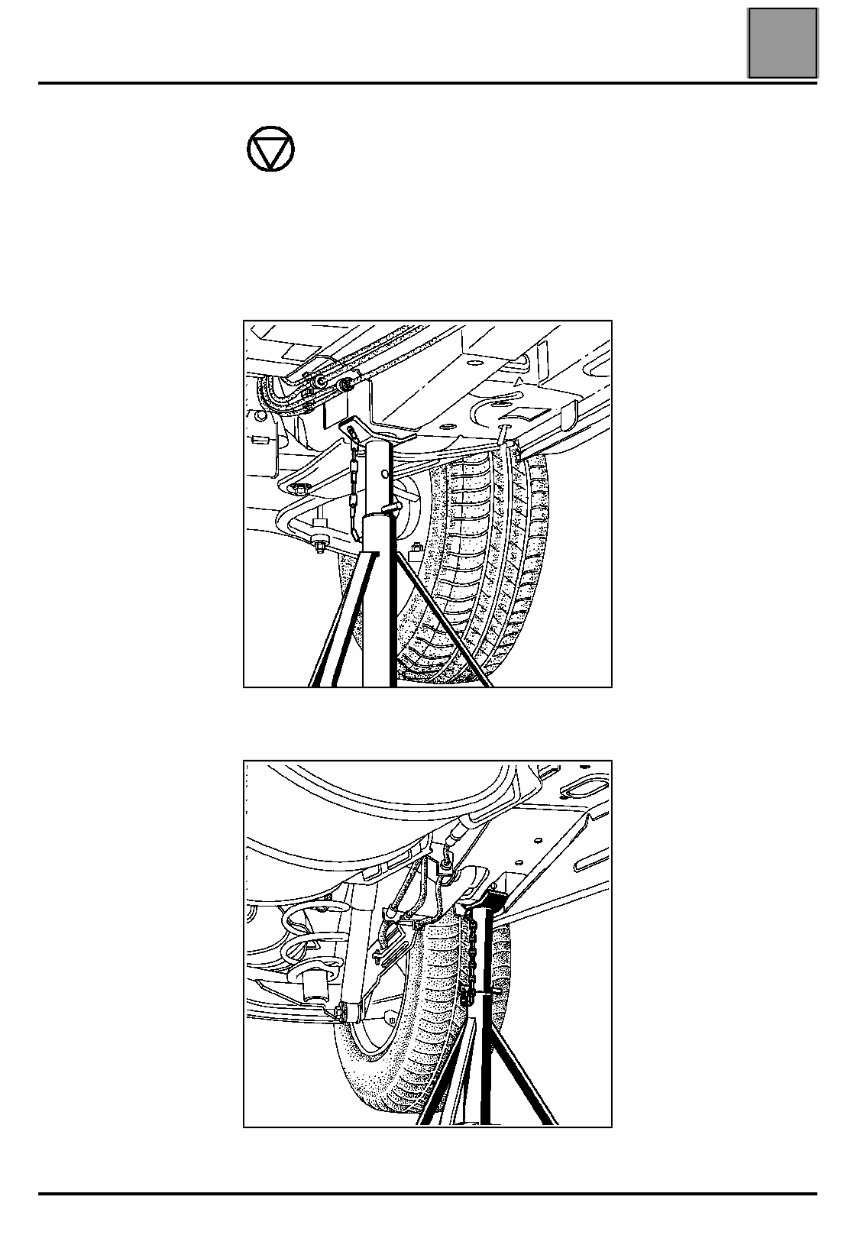

LIFTING Axle stands 02 02-2 Axle stands Warning: If a trolley jack is used, appropriate axle stands must always be used. AXLE STANDS When the vehicle is to be placed on axle stands, these must be positioned: – at the front under the side members behind the triangular reinforcements, – at the rear under the arm anchorage members.

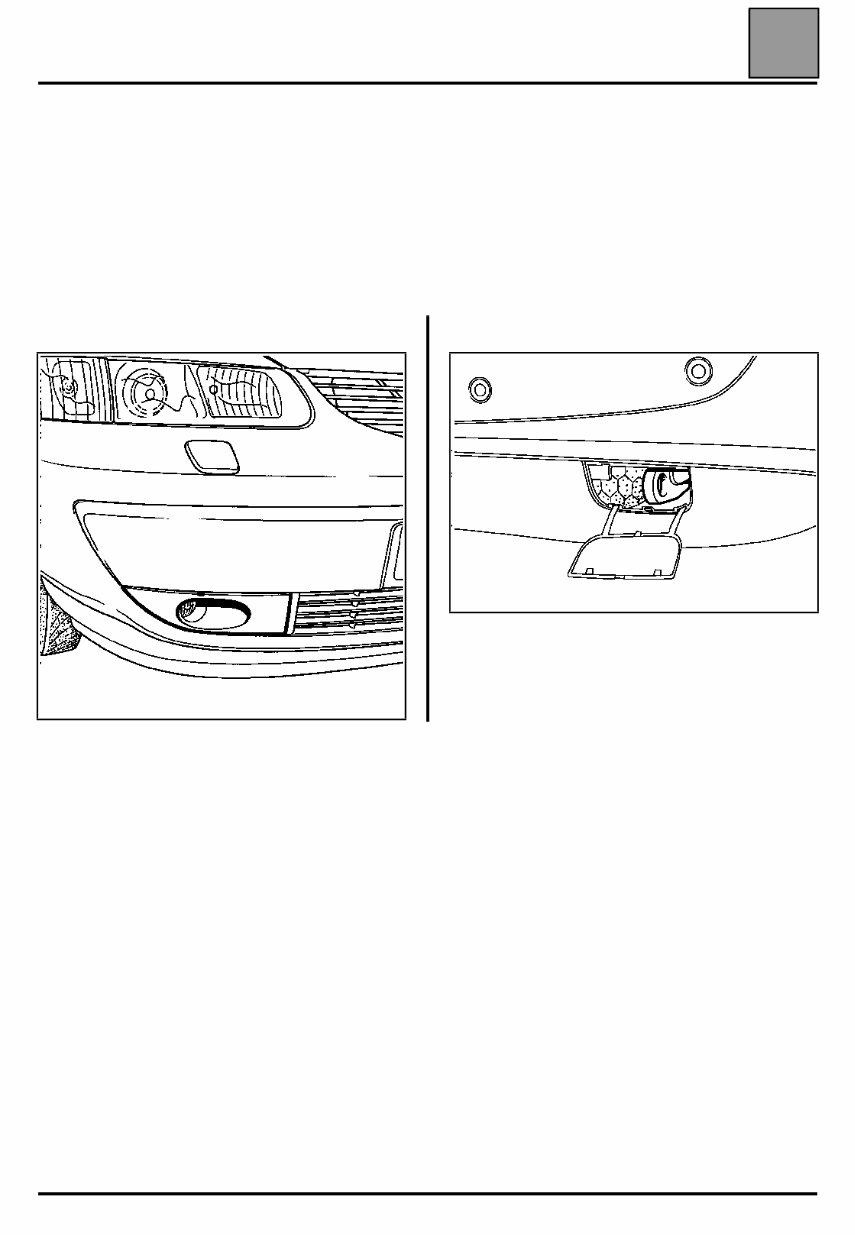

TOWING All types 03 03-1 103 TOWING All types OBSERVE THE TOWING REQUIREMENTS OF THE COUNTRY YOU ARE IN. NEVER USE THE DRIVESHAFTS AS ATTACHMENT POINTS. The towing points may only be used for towing the vehicle on the road. They should never be used for removing the vehicle from a ditch or for any other similar breakdown operation or to lift the vehicle, either directly or indirectly. They can be used for winching by placing a shackle between the towing ring and the winch hook. FRONT REAR Remove the ring cover which also serves as a guard for the additional front right headlight or the rear right blanking cover for the bumper and place the shackle in the ring. FOR LASHING ON TRANSPORT Use the wire ring of the front left side member and the two rings located behind the rear bumper.

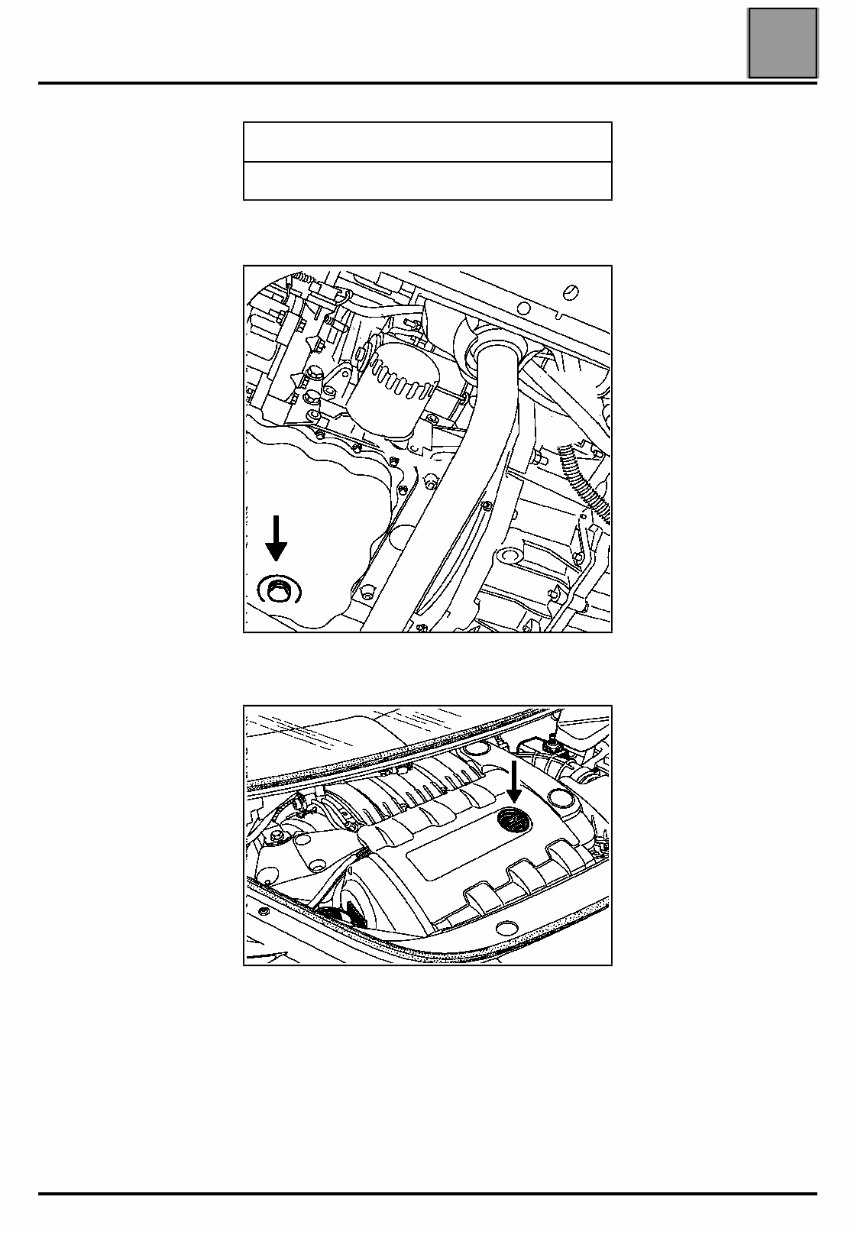

OIL CHANGE Engine 05 105 OIL CHANGE Engine DRAINING FILLING ESSENTIAL TOOLING REQUIRED Engine drain plug spanner 05-1
