2010 Renault Samsung SM5 Service and Repair Manual

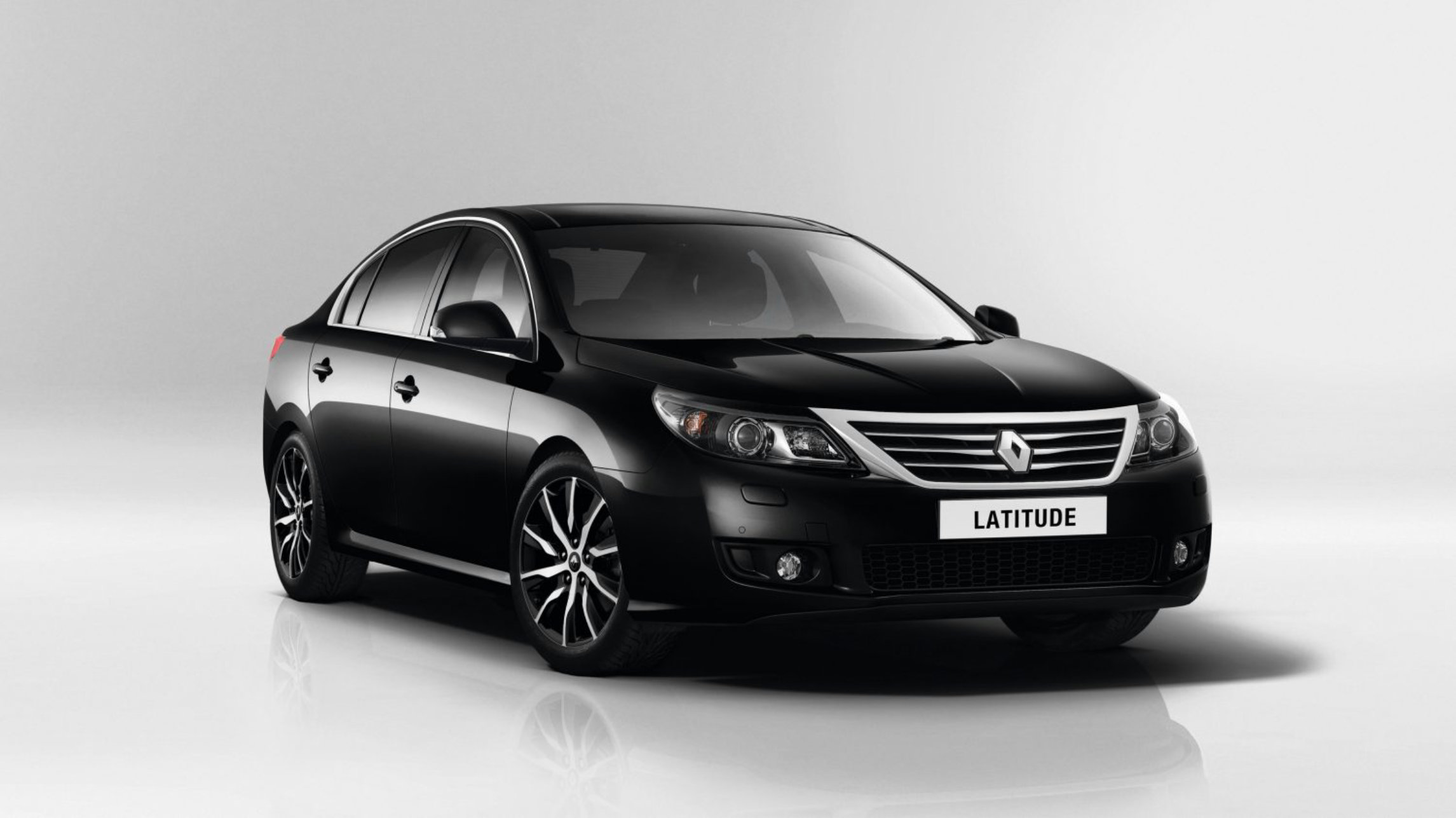

2011-2014 RENAULT LATITUDE SERVICE AND REPAIR MANUAL

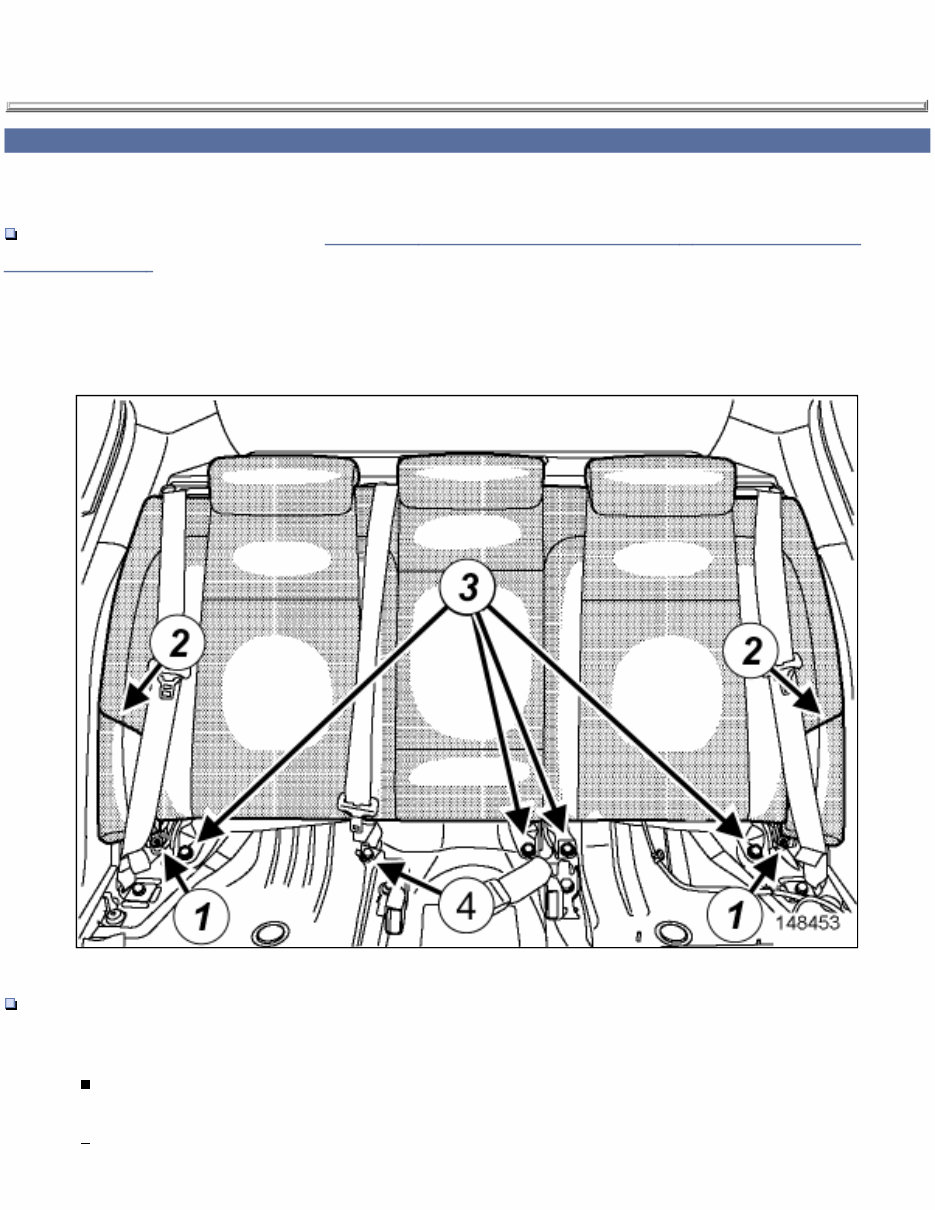

- 1 - 1/3 AND 2/3 REAR BENCH SEATBACK: REMOVAL - REFITTING REMOVAL 1. REMOVAL PREPARATION OPERATION Remove the rear bench seat base (see 76A, Rear seat frames and mechanisms , Rear bench seat base: Removal - Refitting ) . 2. REMOVAL OPERATION Remove: the bolts(1) ,

- 2 - the side trims of the 1/3 and 2/3 rear bench seatback(2) , the bolts(3) , the bolt of the rear seat belt buckle(4) . Tilt the 1/3 and 2/3 rear bench seatback.

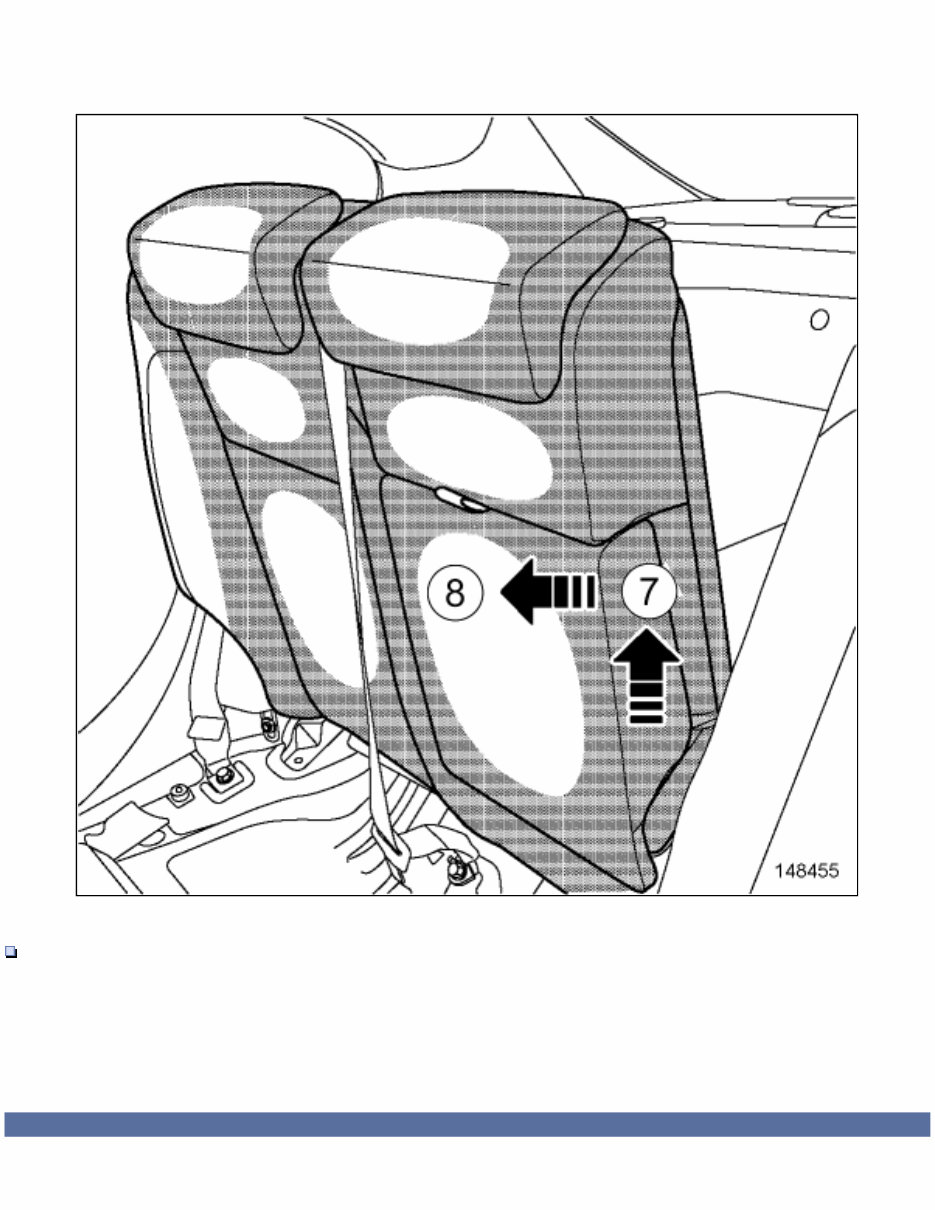

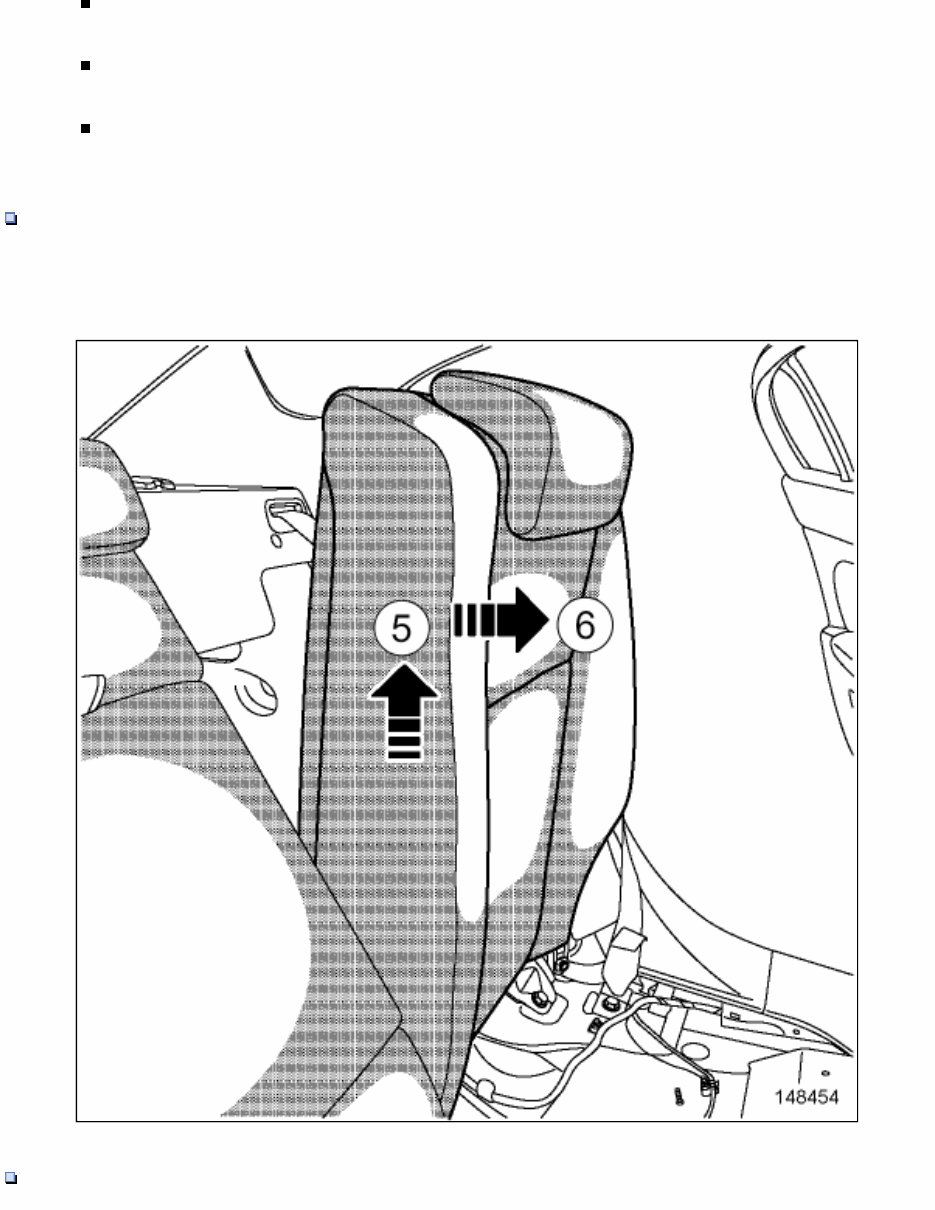

- 3 - Remove the 1/3 rear bench seatback at( 5) and ( 6) . Remove the 2/3 rear bench seatback at( 7) and ( 8) . REFITTING 1. REFITTING OPERATION

- 4 - Proceed in the reverse order to removal. Tighten to torque the 1/3 and 2/3 rear bench seatback bolts 44 N.m . Repair-70x13x02x14-01x37-1-6-1.xml XSL version : 3.02 du 22/07/11

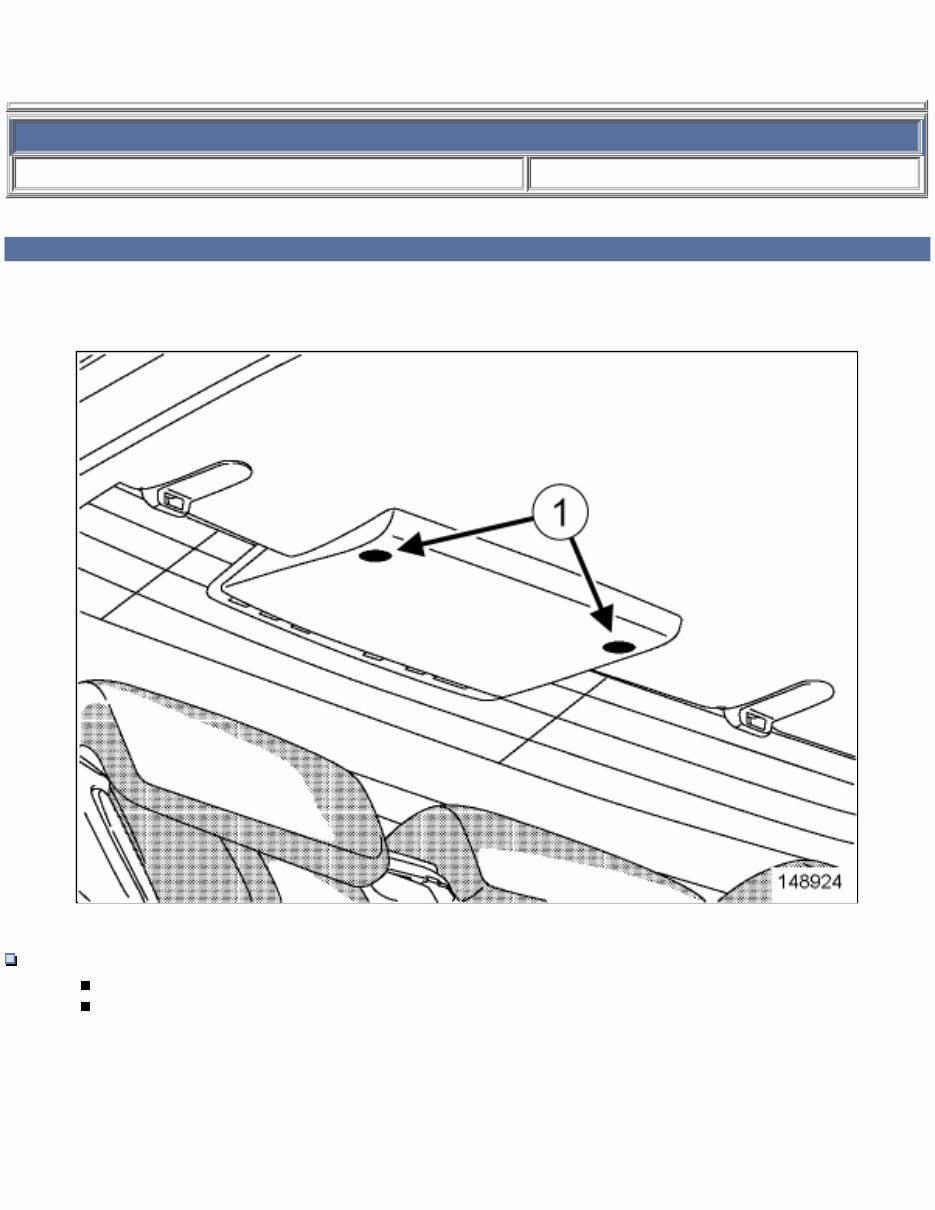

- 1 - 3RD BRAKE LIGHT: REMOVAL - REFITTING Special tooling required Set of trim removal levers. Car. 1363 REMOVAL 1. OPERATION FOR REMOVAL OF PART CONCERNED Remove: the bolt covers(1) using a flat blade screwdriver, the bolts.

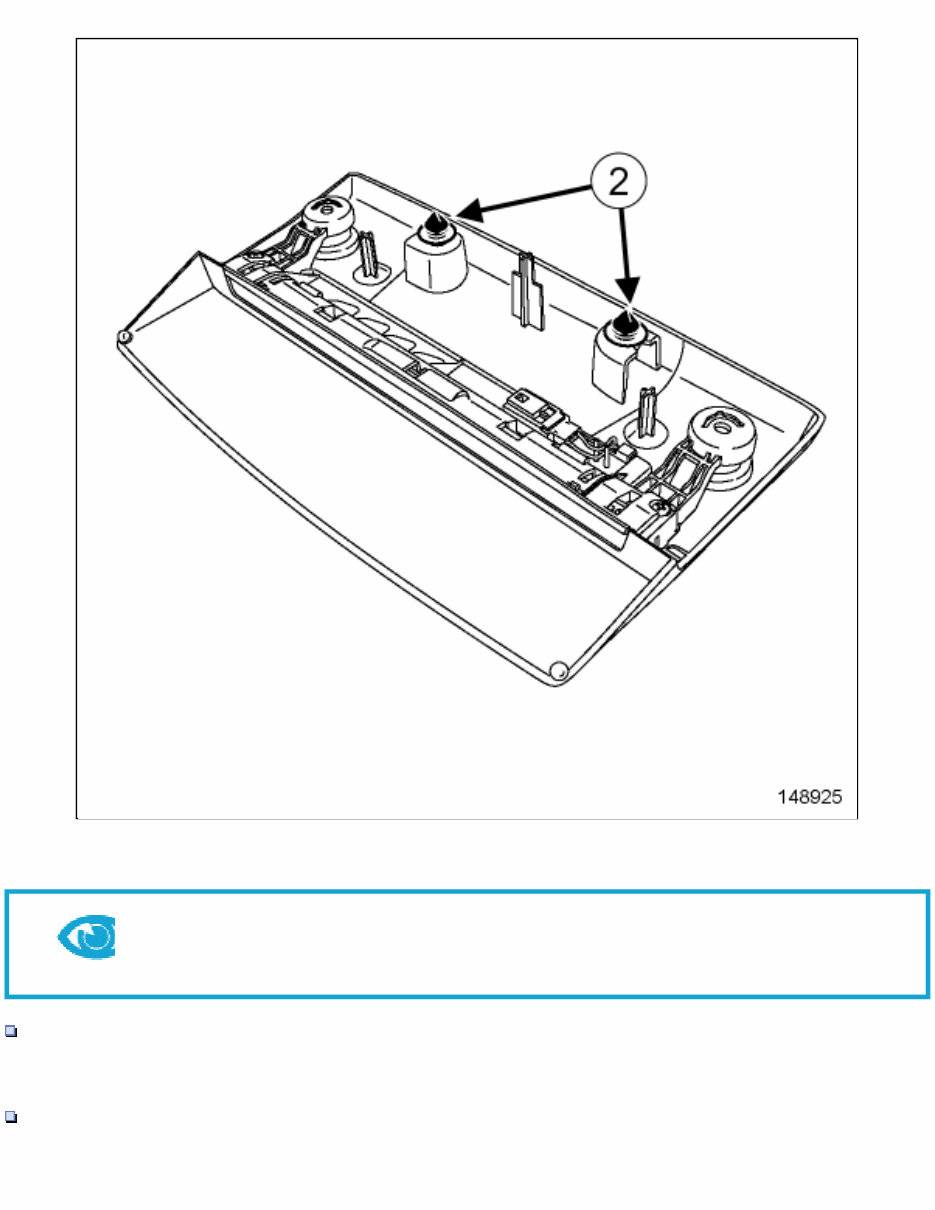

- 2 - Note: Take care not to damage the clips(2) . Unclip the third brake light at(2) using the toolSet of trim removal levers.(Car. 1363 ) . Disconnect the connector.

- 3 - Remove the third brake light. REFITTING 1. REFITTING PREPARATION OPERATION Note: If the LEDs are faulty, replace the complete third brake light. 2. REFITTING OPERATION FOR PART CONCERNED Connect the connector. Clip the third brake light onto the headlining. Refit: the bolts, the bolt covers. Repair-80x02x06x08-01x37-1-38-1.xml XSL version : 3.02 du 22/07/11

Technical Note 3867A XXXX Subsection concerned: 09A Shock absorber noise fault finding Fault finding on gurgling, banging, knocking and grating of shock absorbers. 77 11 332 262 "The repair methods given by the Manufacturer in this document are based on the technical specifications current when it was prepared. The methods may be modified as a result of changes introduced by the Manufacturer in the production of the various component units and accessories from which his vehicles are constructed." APRIL 2004 All copyrights reserved by RENAULT. EDITION ANGLAISE Copying or translating, in part or in full, of this document or use of the service part reference numbering system is forbidden without the prior written authority of RENAULT. © RENAULT 2004

NOISES AND VIBRATIONS Fault finding 09A Shock absorber noises 109A NOISES AND VIBRATIONS Fault finding FOREWORD 1 - Replacing each shock absorber must be justified by the fault finding attached. 2 - Noises heard when descending a pavement ("Cannon shot") are linked to the shock absorber definition: The shock absorber is compliant: do not replace the shock absorbers. 3 - Hissing noises (normal hydraulic noise of shock absorber) or cracking (micro-displacement of the tightened rear brake pads) caused when passengers get into or out of the vehicle are never linked to a shock absorber fault. Confirm the customer complaint in the same conditions without tightening the parking brake: If the noise has disappeared, the shock absorber is not to blame. 4 - Noises heard during parking manoeuvres are never due to the shock absorber -> Do not replace the shock absorbers. 5 - Before replacing any shock absorbers due to gurgling, make sure that the noise does not come from the end rubber pad, the stabiliser bar tie rods (and other ball joints) or shock absorber turret rubber mountings + check tightness of the turret and the shock absorber axle. BEFORE WORK Ask the customer for information regarding the conditions in which the noise occurs as soon as the Repair Order is issued. Before any road tests, check the tightening and clearance of the shock absorber front and rear axle mountings, linkage, ball joints and bearing clearances. Description Gurgling Banging/Knocking Grating Noise similar to tapping on a small drum - beat caused by internal valves in the shock absorber X Burst of small dry banging noises similar to metal impacts X Noise caused by contact between a metal part and a rubber part X Noise appearing on a bad road or deformed road at low speed (6-19 mph (10-30 km/h)). X X X Shock absorber noises v1.0 09A-1
