Pos Part Number Description Qty Model
0
SG
01
Illustration
001-00
Restrictions UPD
248
19:02
Remark
PET
Page: 001 KAT 524
USA / CANADA

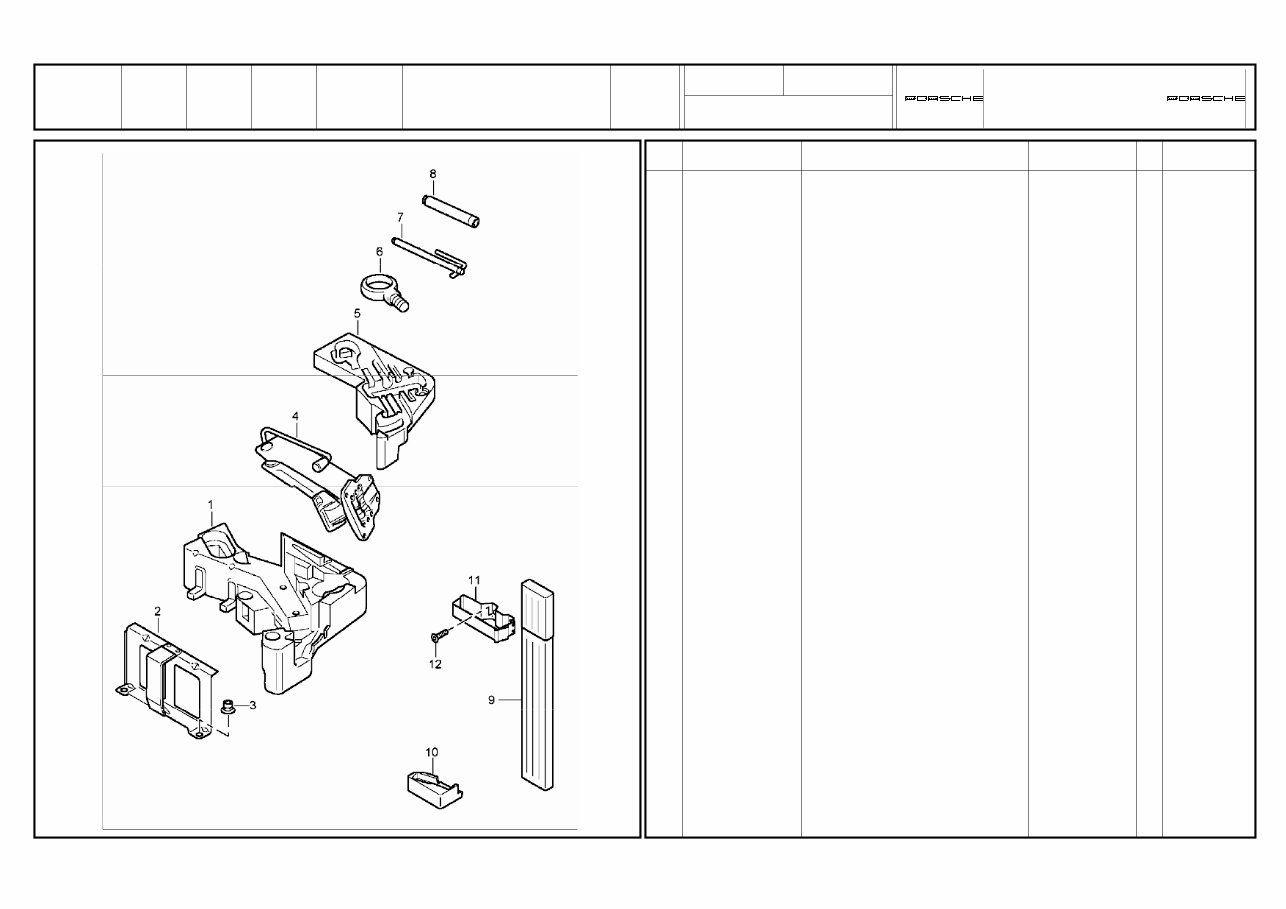

tool
jack
1 955 721 101 00 mounting
jack
1
2 955 721 111 00 support 1
3 N 102 058 01 hexagon nut
M 6
2
(4) 955 721 211 01 jack 1
5 955 721 102 00 mounting
tool
1
6 955 721 151 00 towing lug 1
- 955 721 153 00 extractor
for
hub cap
1
7 A 955 721 135 00 socket wrench
release
headlamp
rear light
1
7 955 721 135 01 socket wrench
release
headlamp
rear light
1
8 999 571 074 30 assembly aux. material
for
wheels
1
- 955 721 135 02 rim wrench 1
- 955 721 135 03 double-end spanner
10 X 13
1
- 955 721 135 04 screwdriver 1
9 A 955 721 722 00 warning triangle 1
9 000 722 722 05 warning triangle 1
10 955 721 723 00 mounting
warning triangle
1
11 955 721 724 00 support
warning triangle
1
12 N 908 183 01 pan-head screw
M 6 X 9
2
- 993 722 041 00 first-aid kit 1
et_bt1.frm
Model
9PA
Year
2006
28.01.2010
MG
Pos Part Number Description Qty Model
0
SG
01
Illustration
001-00
Restrictions UPD
248
19:02
Remark
PET
Page: 002 KAT 524
USA / CANADA
Pos Part Number Description Qty Model Remark
- 955 721 725 00 base wedge 2
et_bt2.frm
Model
9PA
Year
2006
28.01.2010
MG
Pos Part Number Description Qty Model
0
SG
01
Illustration
001-05
Restrictions UPD
248
19:02
Remark
PET
Page: 001 KAT 524
USA / CANADA

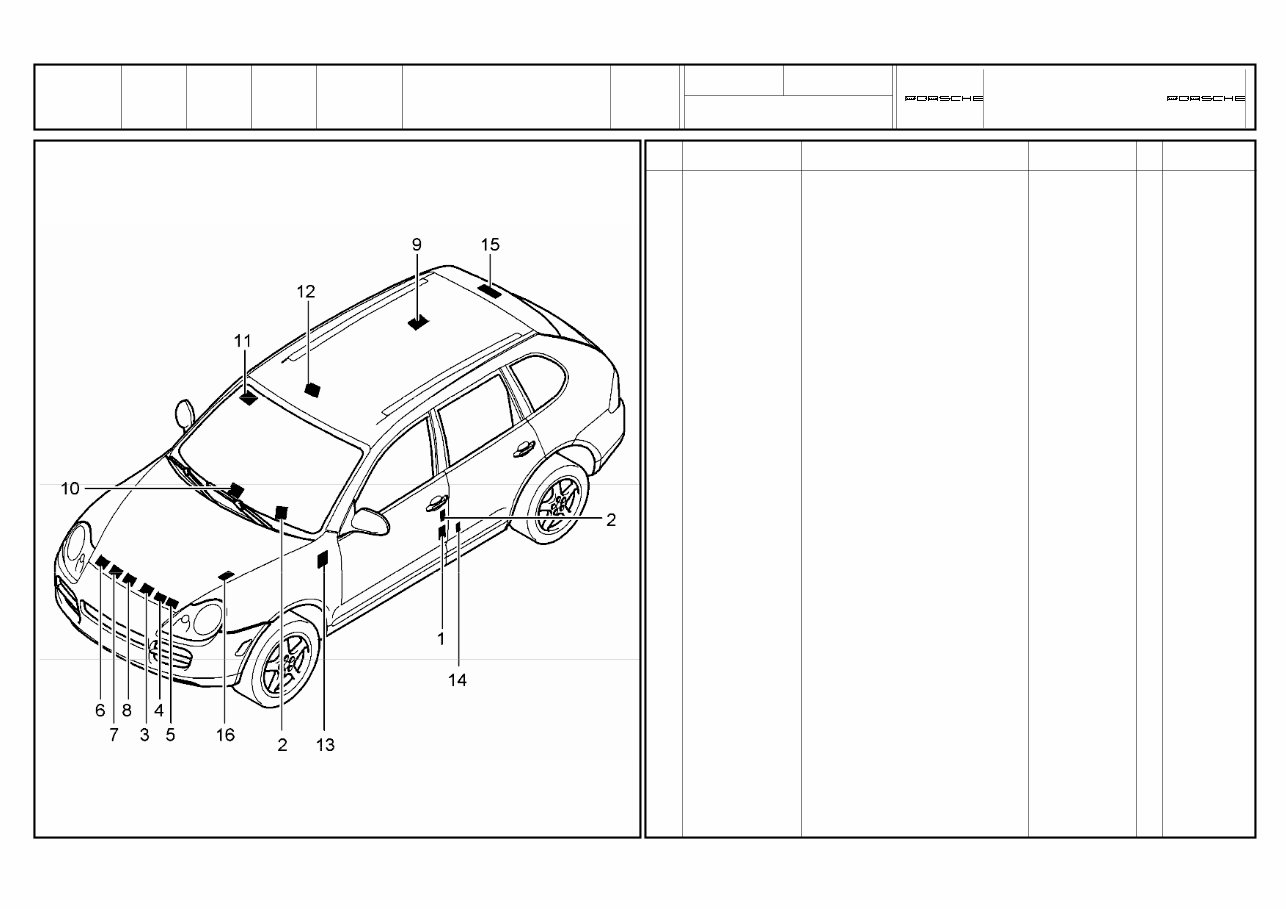

stickers
stickers
tyre pressure
1 955 701 287 32 sticker
tyre pressure
1 ID9J/G0L
(1) 955 701 287 42 sticker
tyre pressure
1 ID9J/G0R
(1) 955 701 287 52 sticker
tyre pressure
1 ID9K/G0L
(1) 955 701 287 62 sticker
tyre pressure
1 ID9K/G0R
(1) 955 701 287 72 sticker
tyre pressure
1 ID9L
(1) 955 701 290 00 indication sticker /LL 1
(2) 955 701 387 30 sticker
top speed
150 MPH
-04 1
(2) 955 701 387 40 sticker
top speed
120 MPH
-04 1
(2) 955 701 387 50 sticker
top speed
130 MPH
-04 1
(2) 955 701 388 00 sticker
top speed
120 MPH / 190 KM/H
05 1
(2) 955 701 388 10 sticker
top speed
130 MPH / 210 KM/H
05 1
(2) 955 701 388 20 sticker
top speed
150 MPH / 240 KM/H
05 1
stickers
engine specifications
3 955 006 109 00 sticker 03 1 IT91
(3) 955 006 109 02 sticker 04 1 IT91
(3) 955 006 109 05 sticker 05 1 IT91
(3) 955 006 109 06 sticker 06 1 IT91
et_bt1.frm
Model
9PA
Year
2006
28.01.2010
MG
Pos Part Number Description Qty Model
0
SG
01
Illustration
001-05
Restrictions UPD
248
19:02
Remark
PET
Page: 002 KAT 524
USA / CANADA
Pos Part Number Description Qty Model Remark
(3) 955 006 109 10 sticker 03 1 IT90
(3) 955 006 109 12 sticker 04 1 IT90
(3) 955 006 109 15 sticker 05 1 IT90
(3) 955 006 109 16 sticker 06 1 IT90
(3) 955 006 109 20 sticker 04 1 IT31
(3) 955 006 109 25 sticker 05 1 IT31
(3) 955 006 109 26 sticker 06 1 IT31
4 955 006 150 00 sticker
assembly
v-belt
1 IT90/T91
5 955 006 140 00 sticker
antiknock regulation
1
6 955 701 141 00 sticker
air conditioner
1
7 955 701 150 00 warning sign
oil level
high voltage
motor fan
1
8 A 993 006 544 01 sticker
engine oil
- MOBILOEL -
1
8 997 006 544 00 sticker
engine oil
- MOBILOEL -
1
9 955 006 117 10 sticker
type of fuel
98/95 ROZ
1 I0GG
(9) 955 006 117 20 sticker
type of fuel
MIN. 95 ROZ
1 I0GM/7GA
(9) 955 006 117 30 sticker
type of fuel
95/98 ROZ
1 I0GU
9 955 006 118 10 warning sign
fuel filler flap
(USA) 1
(9) 955 701 119 00 sticker
auxiliary heater
1 I7VE/7VL
stickers
airbag
10 A 955 701 421 01 warning sign
airbag
1 I4UB
10 955 701 421 02 warning sign
airbag
1 I4UB
10 955 701 421 10 warning sign
advanced airbag
06- 1 I4UQ
12 3B0 010 219 B warning sign
child car seat
1
14 955 701 434 00 warning sign
side airbag
2
- 955 701 294 00 sticker
emergency wheel
1
16 955 701 160 00 sticker
window cleaner
1
et_bt2.frm
Model
9PA
Year
2006
28.01.2010
MG
Pos Part Number Description Qty Model
0
SG
02
Illustration
002-00
Restrictions UPD
248
19:02
Remark
PET
Page: 001 KAT 524
USA / CANADA

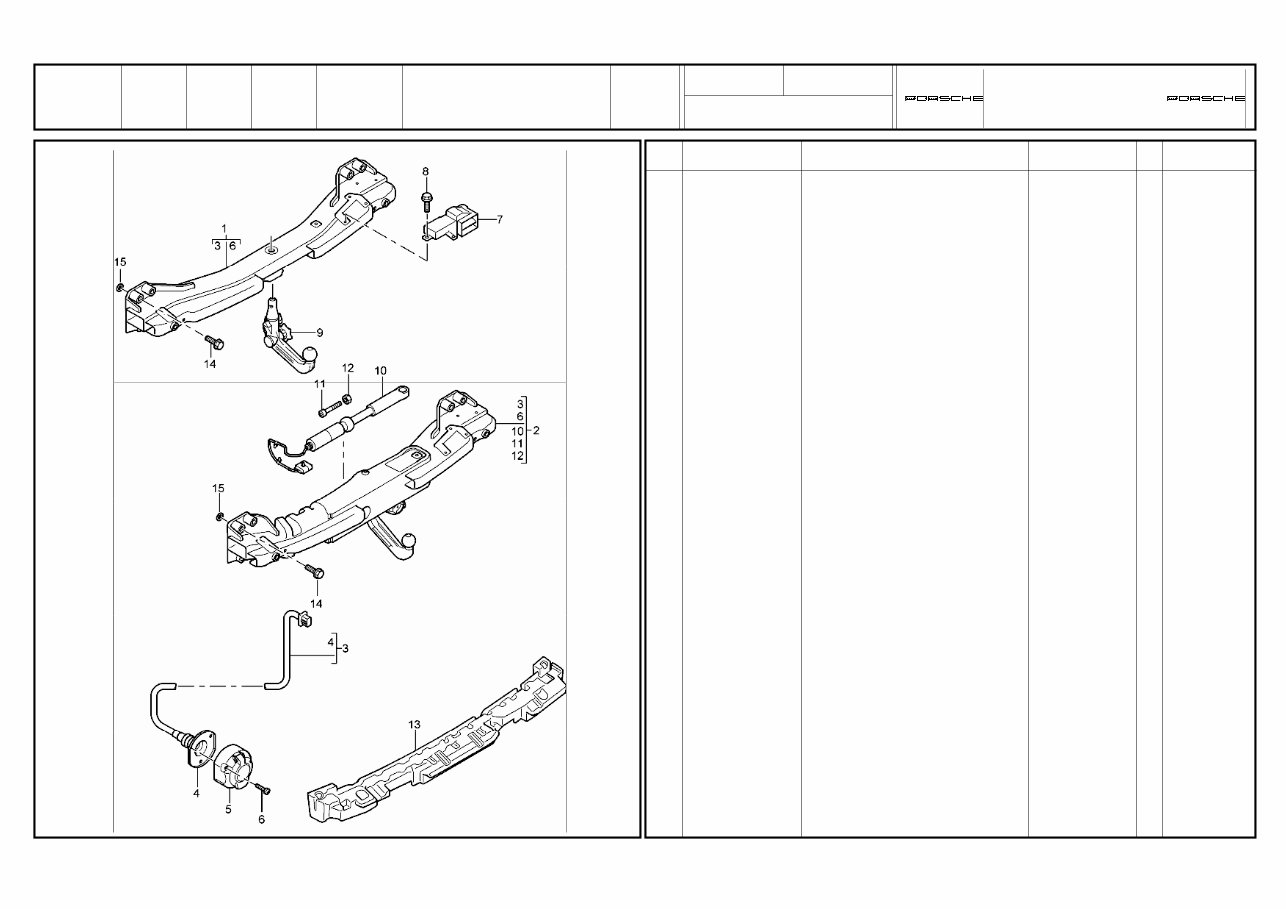

trailer coupling
1 955 722 004 01 trailer coupling
with
wiring harness
1 I1D6
- 955 044 000 28 ball head
trailer coupling
1 I1D6
- 955 722 030 00 cover
trailer coupling
1 I1D6
3 955 612 506 00 wiring harness 1 I1D6
7 - locking device
support
spare wheel
see group
0/02/05
I1G3
8 - hexagon-head bolt
see group
0/02/05
I1G3
13 955 722 025 01 foam part 1 I1D2/1D6
14 N 909 892 01 hexagon-head bolt
M 14 X 1,5 X 100
-05 8
14 N 910 292 03 hexagon-head bolt
BM 12 x 1,5 x 100
06- 8
15 955 722 033 00 gasket -05 8
et_bt1.frm
Model
9PA
Year
2006
28.01.2010
MG
Pos Part Number Description Qty Model
0
SG
02
Illustration
002-05
Restrictions UPD
248
19:02
Remark
PET
Page: 001 KAT 524
USA / CANADA

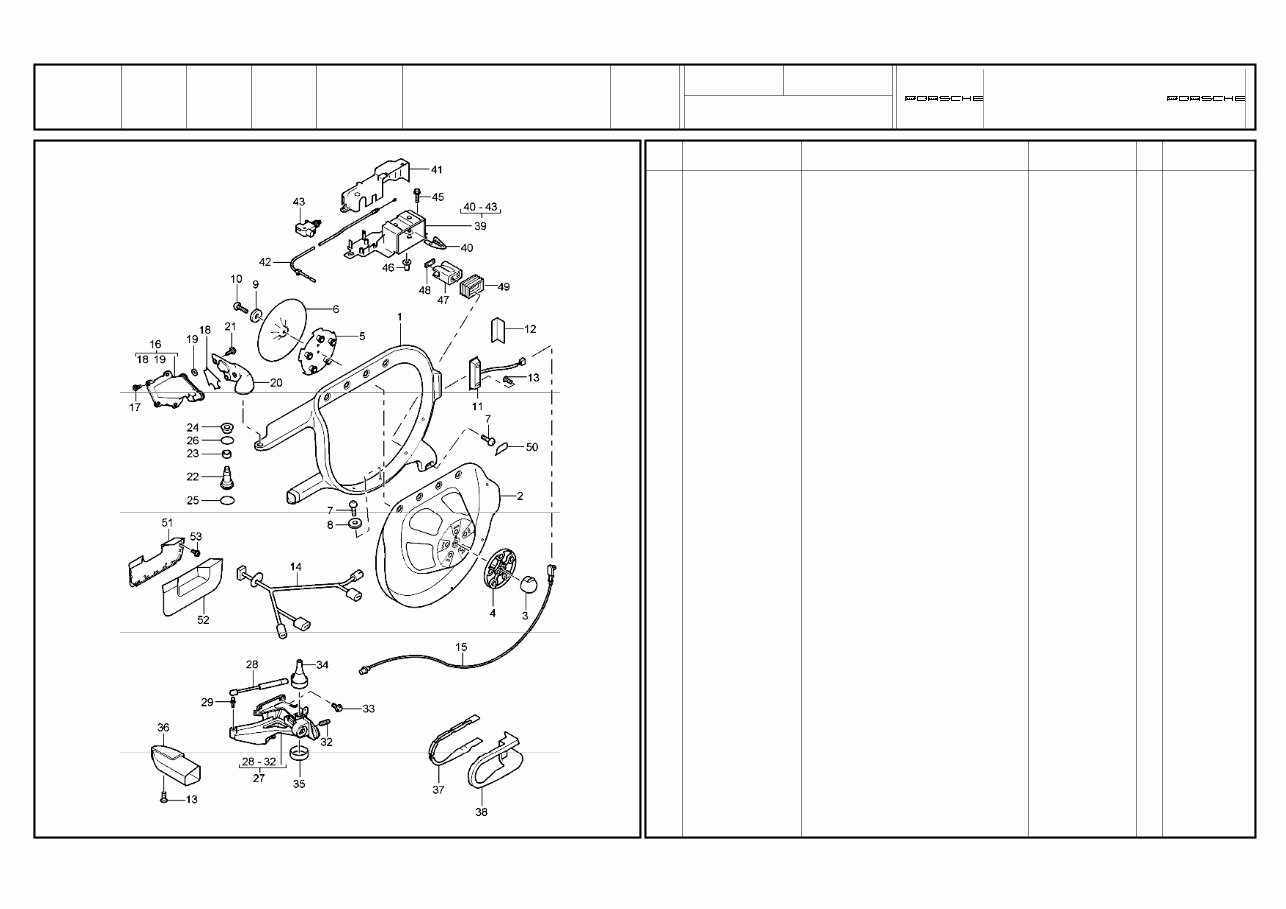

bracket
spare wheel
outer
1 955 722 010 00 retaining frame
spare wheel
outer
1
4W9 satin aluminium
2 955 722 012 00 spring support
spare wheel
1
03C rally black
3 955 722 013 00 centring aid
spare wheel
1
4 955 722 075 00 spacer 1
5 955 722 014 00 threaded plate 1
6 955 722 015 00 cap
wheel bolts
1
01C satin black
7 N 910 489 01 oval-head screw
M 8 X 28
12
8 955 722 401 00 DISTANZSCHEIBE 4,3 MM 3
(8) 955 722 402 00 DISTANZSCHEIBE 5,1 MM 2
(8) 955 722 403 00 spacer 1
9 N 910 651 01 washer
8,4 X 28 X 2,5
1
10 N 103 156 03 hexagon-head bolt
AM 8 X 40
1
11 A 955 613 271 00 tip switch 1
11 955 613 271 01 tip switch 1
12 955 722 017 00 protection cap
tip switch
1
4W9 satin aluminium
13 N 104 272 01 countersunk-head screw
M 5 X 12
3
14 955 612 812 00 wiring harness 1
15 955 612 813 00 wiring harness 1
et_bt1.frm
Model
9PA
Year
2006
28.01.2010
MG
Pos Part Number Description Qty Model
0
SG
02
Illustration
002-05
Restrictions UPD
248
19:02
Remark
PET
Page: 002 KAT 524
USA / CANADA
Pos Part Number Description Qty Model Remark
16 A 955 722 020 01 mounting
upper
inner
1
16 955 722 020 02 mounting
upper
inner
1
17 N 105 361 01 hexagon-head bolt
M 8 X 16
for
mounting
955 722 020 01
4
17 A N 101 277 06 hexagon-head bolt
M 8 X 26
4
17 N 101 277 07 hexagon-head bolt
M 8 X 26
4
18 955 722 404 00 spacer 1
19 955 722 405 00 sealing ring 3
20 955 722 121 00 mounting
upper
1
4W9 satin aluminium
21 N 910 460 01 screw
M 8 X 35
3
22 955 722 406 00 bolt 1
23 955 722 407 00 articulated support 1
24 955 722 408 00 spacer 1
25 955 722 409 00 circlip 1
26 955 722 410 00 circlip 1
27 A 955 722 201 02 bearing
lower
1
27 955 722 201 03 bearing
lower
see technical information
service
group 5
document
5789 (1/05)
1
28 955 722 411 00 gas-pressure spring 1
29 955 722 413 00 ball pin 2
32 N 106 086 01 threaded pin 2
M 16 X 25
33 N 106 266 01 hexagon-head bolt
M 8 X 30
4
34 955 722 255 00 cap
upper
1
35 955 722 256 00 cap
lower
1
36 955 722 203 00 cover
bearing
lower
1
4W9 satin aluminium
37 955 722 204 00 frame
bearing
lower
1
38 955 722 205 00 cover
bearing
lower
1
4W9 satin aluminium
39 955 722 031 01 locking device
support
spare wheel
1
40 955 722 032 11 rubber stop
upper
1
(40) 955 722 032 01 rubber stop
lower
1
41 955 722 035 00 cover
locking device
1
42 955 722 525 00 emergency operation 1
43 955 624 521 00 electric motor 1
- 955 624 523 00 connecting piece 1
- 955 624 525 00 end piece 1
45 N 014 156 5 screw
M 6 X 25
4
46 A N 908 179 01 blind rivet nut
M 6
4
et_bt2.frm
Model
9PA
Year
2006
28.01.2010
MG
Pos Part Number Description Qty Model
0
SG
02
Illustration
002-05
Restrictions UPD
248
19:02
Remark
PET
Page: 003 KAT 524
USA / CANADA
Pos Part Number Description Qty Model Remark
46 N 908 179 02 blind rivet nut
M 6
4
47 955 722 251 00 retaining bar 1
48 955 722 252 00 counterplate
retaining bar
1
49 955 722 253 00 bellows 1
01C satin black
50 955 722 254 00 cap 1
4W9 satin aluminium
51 955 722 261 00 spring support 1
01C satin black
52 955 722 262 00 cover 1
B41 satin black
53 N 101 319 03 screw
M 6 X 14
4
et_bt2.frm
Model
9PA
Year
2006
28.01.2010
MG
Pos Part Number Description Qty Model
0
SG
04
Illustration
004-00
Restrictions UPD
248
19:02
Remark
PET
Page: 001 KAT 524
USA / CANADA
paint touch-up applicator
lacquers
- 911 095 932 20 paint touch-up applicator X
041 black A 1
A5G marine blue D 3
R9A ivory white R 6
- 911 095 933 20 paint touch-up applicator
set
comprising:
paint touch-up applicator
primer
paint touch-up applicator
clear lacquer
X
M5W lapis blue metallic J 2
M6W lagoon green metallic G 4
M3W carmon red metallic E 4
M1W jarama beige metallic D 5
M1X prosecco metallic M 9
A7W crystal silver metallic 8 E
C9Z basalt black metallic Z 4
D7Z titanium metallic A 7
4W9 satin aluminium
M6X dark olive-metallic 05- 7 G
D5Q marine blue metallic 06- P 6
- 000 043 205 27 paint
set
door sill
1
Y7D slate grey
comprising:
primer
400 ML
hardener
50 ML
et_bt1.frm
Model
9PA
Year
2006
28.01.2010
MG
Pos Part Number Description Qty Model
1
SG
01
Illustration
101-00
Restrictions UPD
248
19:03
Remark
PET
Page: 001 KAT 524
USA / CANADA

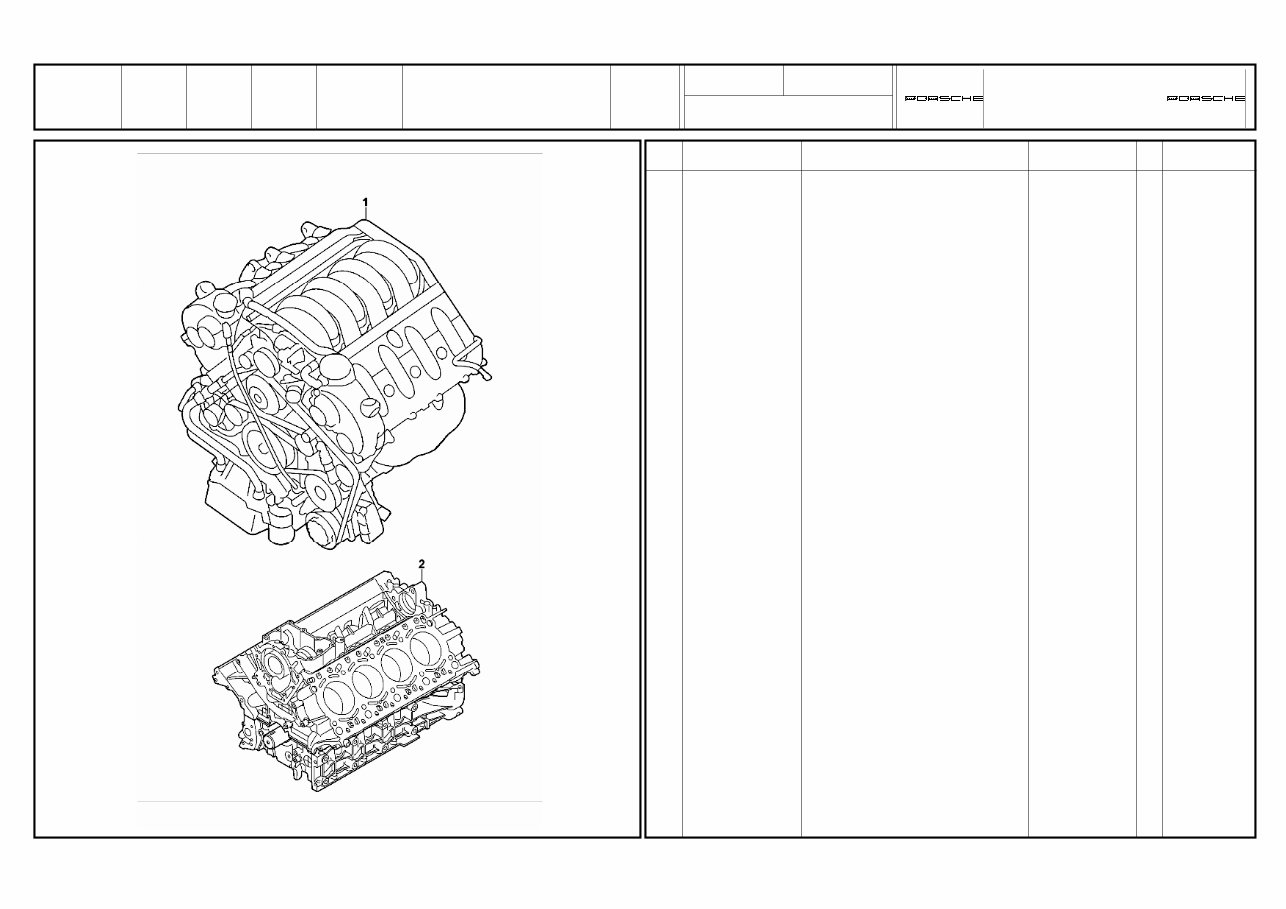

replacement engine
short engine
M48.00/50
M48.00
replacement engine
without
drive plate
tiptronic
without
flywheel
manual transmission
without
compressor
1 A 948 100 948 00 replacement engine 1 M48.00
1 A 948 100 948 01 replacement engine 1 M48.00
1 A 948 100 948 02 replacement engine 1 M48.00
1 A 948 100 948 03 replacement engine 1 M48.00
1 > 948 100 948 05 replacement engine 1 M48.00
(1)A 948 100 950 00 replacement engine 1 M48.50
(1)A 948 100 950 01 replacement engine 1 M48.50
(1)A 948 100 950 02 replacement engine 1 M48.50
(1)A 948 100 950 40 replacement engine 1 M48.50
(1)A 948 100 950 41 replacement engine 1 M48.50
(1)> 948 100 950 43 replacement engine
for cars with
country equipment
China
see technical information
service
group 2
document
2870 (9/08)
(CN)
1 M48.50
2 948 100 901 00 short engine
use also:
948.107.010.11
oil pump
1
1
M48.00
et_bt1.frm
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
Viewed 63 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99

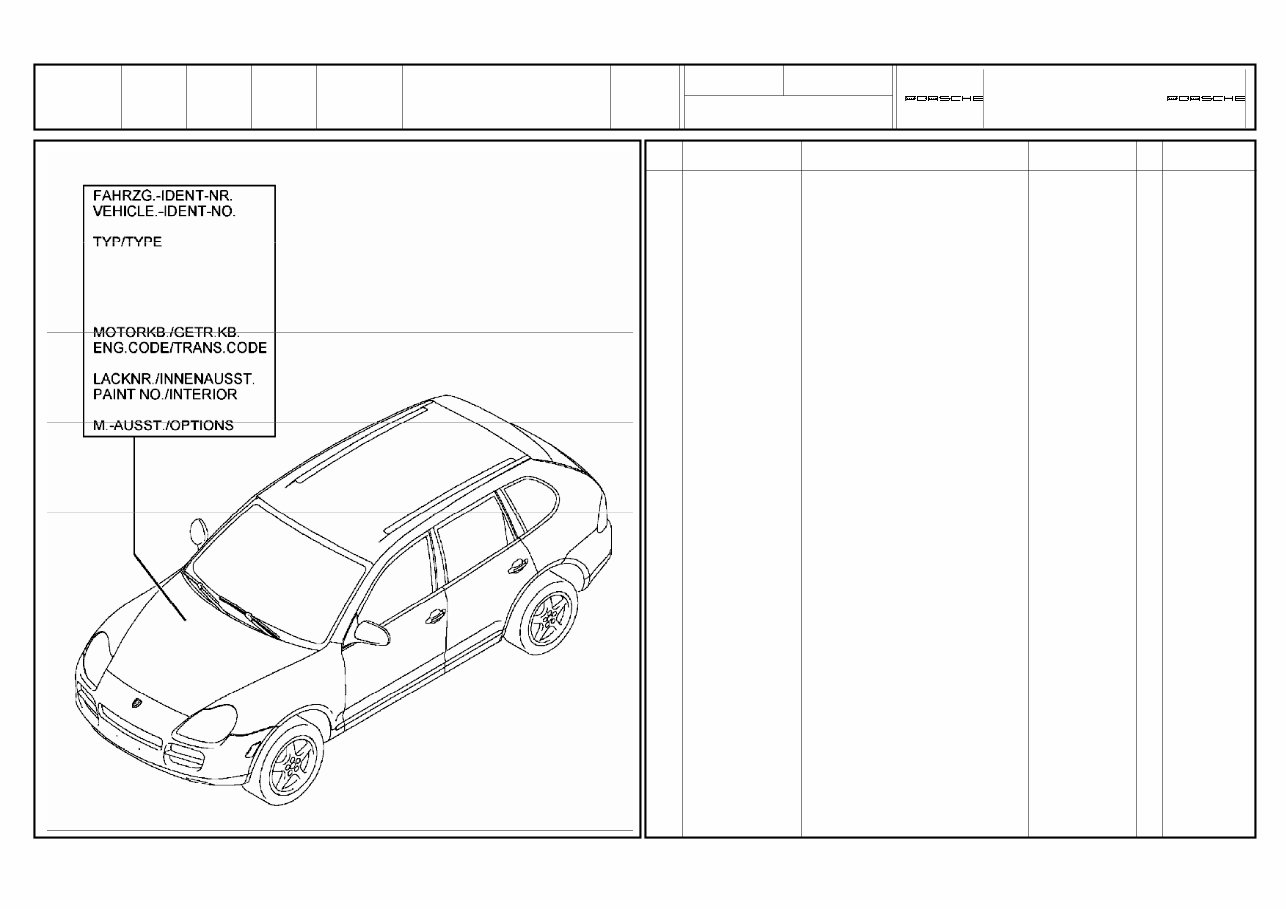

This Parts Manual is a comprehensive resource, featuring illustrated Exploded Parts Diagrams that provide a detailed overview of all the parts in your vehicle. It is an invaluable tool for disassembly, repair, and reassembly, with all part numbers conveniently listed in sections.
The manual is designed to be clear and easily understandable, making it suitable for both professional mechanics and DIY enthusiasts. It includes illustrations, part numbers, and descriptions to help you locate the exact part you need.
With the ability to print any necessary page, you can effortlessly find the replacement part you require. This means you can either take the printed part number to your local dealer or search the internet for significant cost savings compared to dealer prices.
Forget about the need to spend a fortune on having someone else print it for you. With this manual, you have the freedom to print any page whenever you need it, saving you time and money.
- File Format: PDF
- Compatibility: Compatible With All PC & MAC Computers
- Downloadable: YES, Instantly after payment received
- Language: English
- Requirements: Adobe Reader
Say goodbye to paying full dealer prices and additional shipping costs. Gain free instant access to this manual by clicking on the Instant Button above and completing the secure payment process.
