Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
0
SG
01
Illustration
001-00
Restrictions UPD
248
21:50
Remark
PET
Page: 001 KAT 532
USA / CANADA

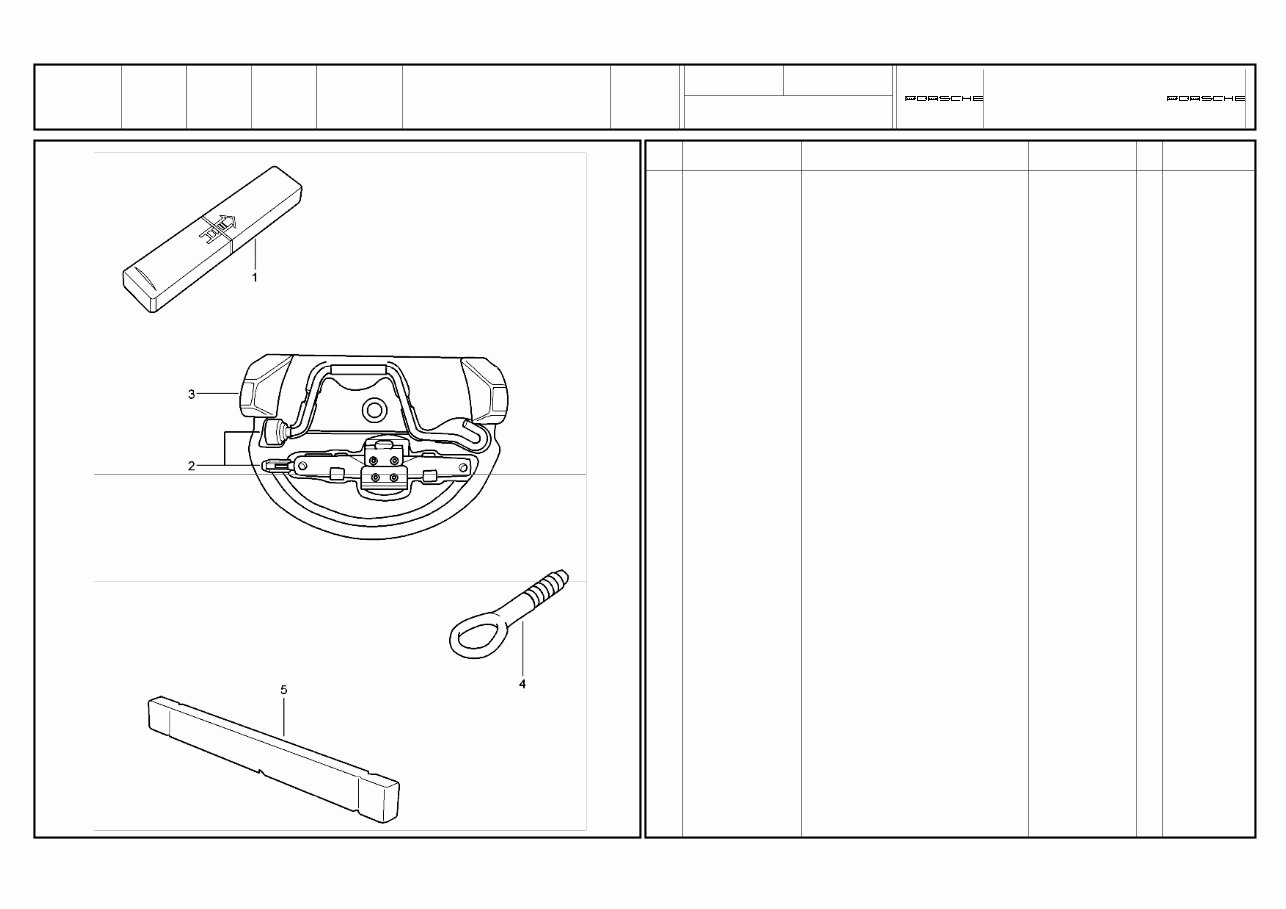

tool
jack
1 997 721 115 00 tool kit
with contents
comprising:
1
- 477 012 229 double-end spanner
10 X 13
1
- 477 012 231 screwdriver 1
- 111 012 287 handle
for
screwdriver
1
- 999 571 077 02 socket wrench
- 5 -
for
headlamp
1
2 996 721 211 00 scissors type jack 1 I447
3 996 722 101 00 foam part 1 I447
- 999 571 074 30 threaded bolt
for
assembly
wheels
1 I447
- 477 012 221 A rim wrench 1 I447
- 999 571 070 30 operating rod
for
rim wrench
1 I447
- 997 722 801 00 mounting
for
tool
1 I447
- 996 361 521 00 boot 1 I447
- 997 722 061 00 cover
emergency wheel
1 I447
- 997 722 103 00 mounting
emergency wheel
1 COUPE/TARGA
I447
- 997 722 103 01 mounting
emergency wheel
1 CABRIO
I447
4 997 721 551 00 towing lug 1
et_bt1.frm
Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
0
SG
01
Illustration
001-05
Restrictions UPD
248
21:50
Remark
PET
Page: 001 KAT 532
USA / CANADA

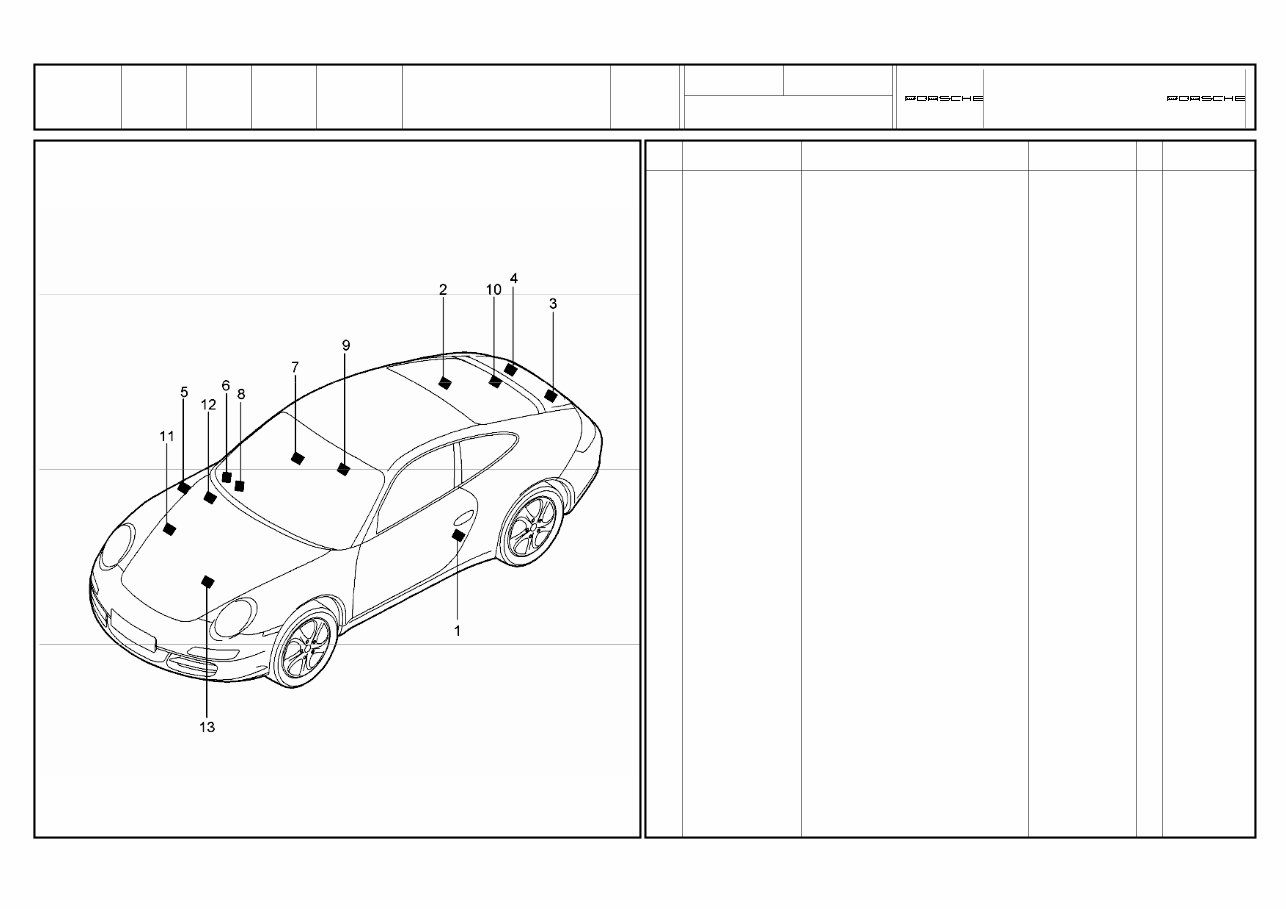

stickers
stickers
tyre pressure
without
paint identification label
1 997 701 289 6F sticker 1 CARRERA 2
I414
1 997 701 289 7F sticker (USA) 1 CARRERA 2
I414/447
1 997 701 289 6J sticker 1 CARRERA 2/S
I404/405/407
I419/421
1 997 701 289 7J sticker (USA) 1 CARRERA 2/S
I404/405/407
I419/421/447
1 997 701 289 6K sticker 1 CARRERA 2/S
IXRR
1 997 701 289 7K sticker (USA) 1 CARRERA 2/S
IXRR/447
1 997 701 289 6H sticker 1 CARRERA 4
I414
1 997 701 289 7H sticker (USA) 1 CARRERA 4
I414/447
1 997 701 289 6K sticker 1 CARRERA 4/S
IXRR/404/405
I407/419/421
1 997 701 289 7K sticker (USA) 1 CARRERA 4/S
IXRR/404/405
I407/419/421
I447
1 997 701 449 00 sticker
Mercury
1 I484
stickers
emergency wheel
1
I447
2 996 361 701 20 sticker
english
(USA) 1 I447
stickers
engine specifications
3 997 006 109 10 sticker 09
09
1 CARRERA
CARRERA 4
et_bt1.frm
Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
0
SG
01
Illustration
001-05
Restrictions UPD
248
21:50
Remark
PET
Page: 002 KAT 532
USA / CANADA
Pos Part Number Description Qty Model Remark
3 997 006 109 14 sticker 10
10
1 CARRERA
CARRERA 4
3 997 006 109 11 sticker 09
09
1 CARRERA S
CARRERA 4S
3 997 006 109 15 sticker 10
10
1 CARRERA S
CARRERA 4S
4 996 006 140 00 sticker
antiknock regulation
1
4 997 006 544 00 sticker
engine oil
- MOBIL 1 -
1
stickers
type of fuel
5 996 006 117 03 sticker
93 RON/MON/2
1
stickers
airbag
6 3B0 010 219 B sticker
child car seat
1
7 996 701 423 01 sticker
service
airbag
1
8 997 701 422 00 sticker
airbag
warning sign
1
11 996 701 141 01 sticker
air conditioner
1
stickers
convertible top control
see group
8/07/09
CABRIO
et_bt2.frm
Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
0
SG
04
Illustration
004-00
Restrictions UPD
248
21:51
Remark
PET
Page: 001 KAT 532
USA / CANADA

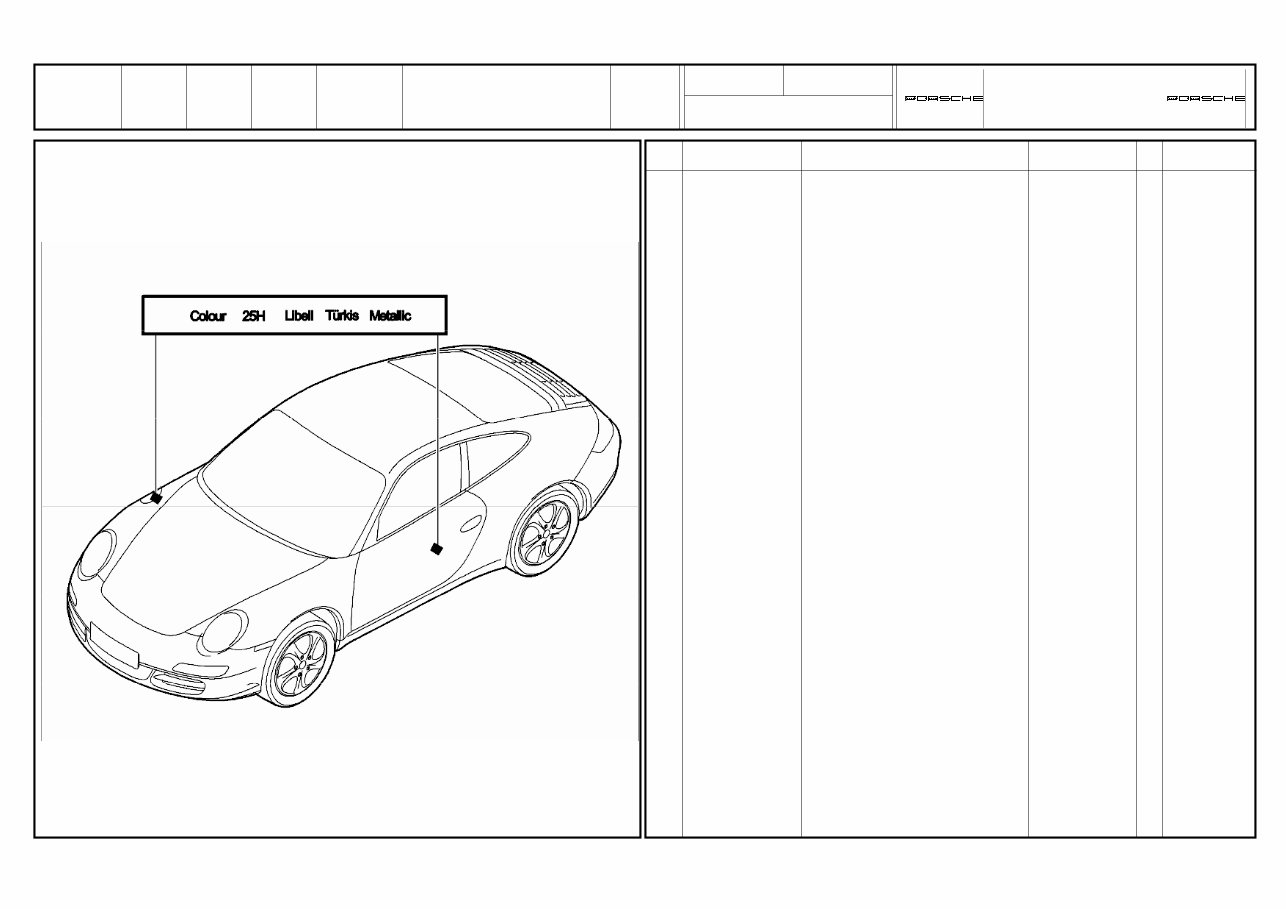

paint touch-up applicator
lacquers
- 911 095 932 20 paint touch-up applicator X
041 black A 1
80K guards red G 1
B9A carrara white B 4
12G speed yellow X 4
51A creamy white T 2
63A SportClassic Grey C 1
I756
- 911 095 933 20 paint touch-up applicator
set
comprising:
paint touch-up applicator
primer
paint touch-up applicator
clear lacquer
X
92T arctic silver metallic X 1
C9Z basalt black metallic Z 4
M7X atlas grey metallic E 7
37W midnight blue metallic E 9
M7Z gt silver metallic U 2
M7W Meteor Grey Metallic 9 Q
8A7 ruby red metallic -09 L 2
M3X ruby red metallic 10- A 6
M8W Macadamia Metallic 9 S
2B5 Malachite Green Metallic H 1
M2Z Nordic Gold Metallic 8 W
32B Sailing Blue Metallic E 5
M5R Aqua Blue Metallic D 2
22G porsche
Racing Green Metallic
J 1
M5X Dark Blue Metallic N 4
et_bt1.frm
Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
1
SG
01
Illustration
101-00
Restrictions UPD
248
21:51
Remark
PET
Page: 001 KAT 532
USA / CANADA

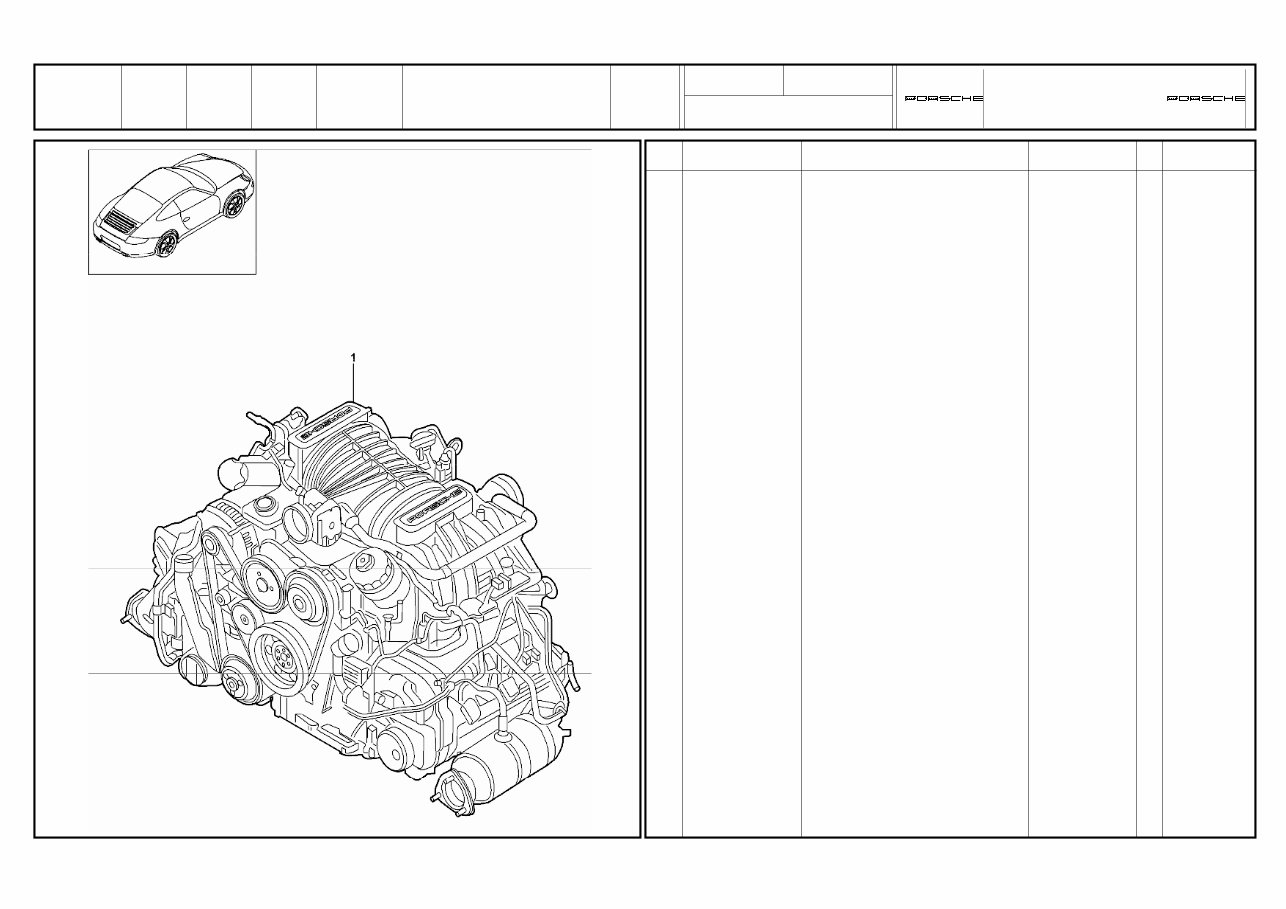

replacement engine MA1.01
MA1.02
without
drive plate
pdk
transmission
without
flywheel
manual transmission
with
compressor
air conditioner
1 > 9A1 100 901 00 replacement engine 09 1 MA1.01
I480
1 9A1 100 901 X replacement engine 09 1 MA1.01
I480
1 > 9A1 100 901 02 replacement engine 10- 1 MA1.01
I480
1 9A1 100 901 BX replacement engine 10- 1 MA1.01
I480
(1)> 9A1 100 901 01 replacement engine 09 1 MA1.01
I250
(1) 9A1 100 901 AX replacement engine 09 1 MA1.01
I250
(1)> 9A1 100 901 03 replacement engine 10- 1 MA1.01
I250
(1) 9A1 100 901 CX replacement engine 10- 1 MA1.01
I250
(1)> 9A1 100 902 00 replacement engine 09 1 MA1.02
I480
(1) 9A1 100 902 X replacement engine 09 1 MA1.02
I480
(1)> 9A1 100 902 02 replacement engine 10- 1 MA1.02
I480
(1) 9A1 100 902 BX replacement engine 10- 1 MA1.02
I480
(1)> 9A1 100 902 01 replacement engine 09 1 MA1.02
I250
(1) 9A1 100 902 AX replacement engine 09 1 MA1.02
I250
et_bt1.frm
Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
1
SG
01
Illustration
101-00
Restrictions UPD
248
21:51
Remark
PET
Page: 002 KAT 532
USA / CANADA
Pos Part Number Description Qty Model Remark
(1)> 9A1 100 902 03 replacement engine 10- 1 MA1.02
I250
(1) 9A1 100 902 CX replacement engine 10- 1 MA1.02
I250
(1)> 9A1 100 951 00 replacement engine
kit
10- 1 MA1.01
IX51/480
(1) 9A1 100 951 X replacement engine
kit
10- 1 MA1.01
IX51/480
(1)> 9A1 100 951 01 replacement engine
kit
10- 1 MA1.01
IX51/250
(1) 9A1 100 951 AX replacement engine
kit
10- 1 MA1.01
IX51/250
et_bt2.frm
Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
1
SG
01
Illustration
101-05
Restrictions UPD
248
21:51
Remark
PET
Page: 001 KAT 532
USA / CANADA

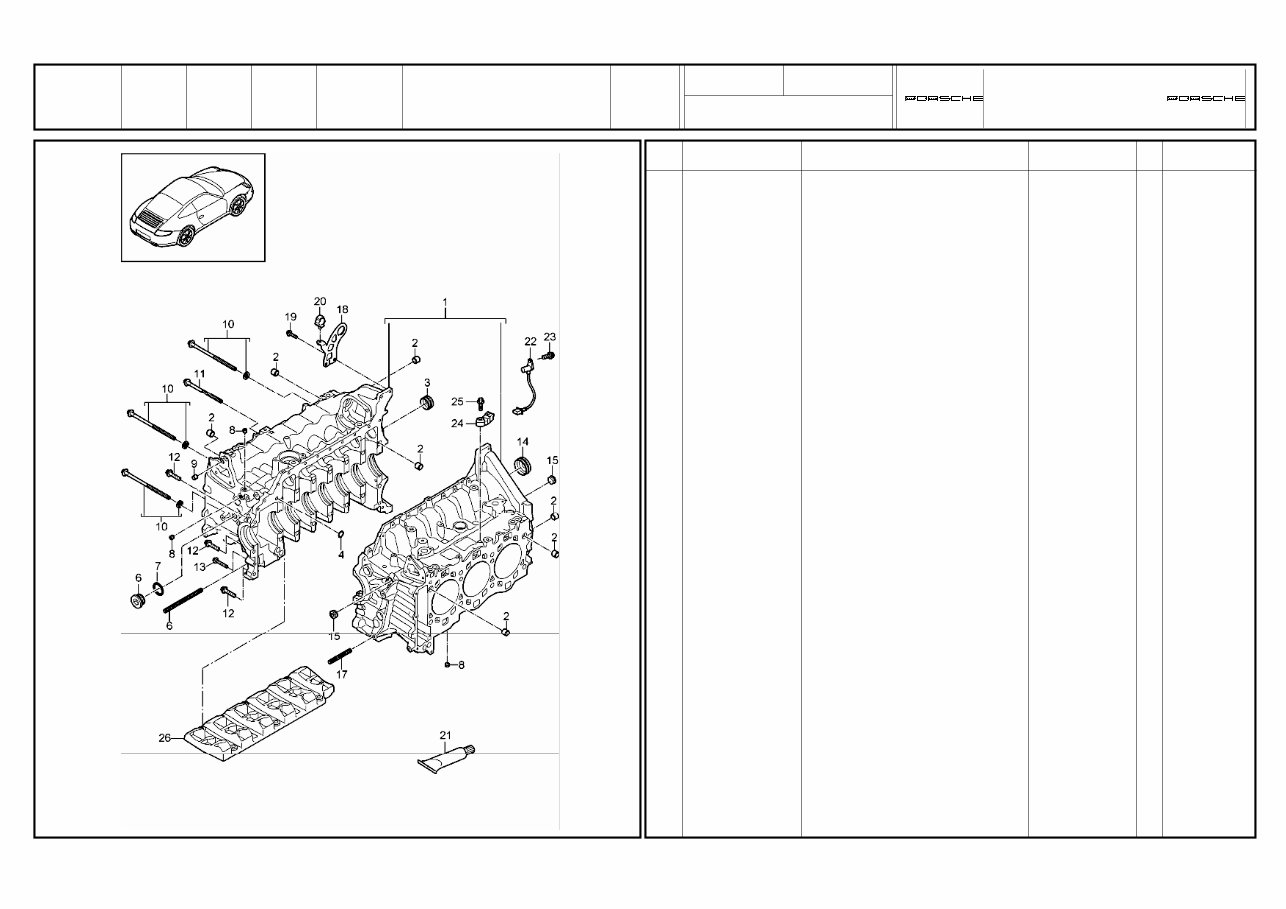

crankcase MA1.01
MA1.02
1 9A1 101 938 00 crankcase 1 MA1.01
1 9A1 101 936 00 crankcase 1 MA1.02
2 014 301 153 B dowel sleeve 6
3 9A1 101 215 01 lid 1
4 999 707 568 40 o-ring
12,0 x 3,0
1
5 900 060 109 01 stud
M 10 X 120
1
6 900 219 025 30 screw plug
M 30 X 1,5
1
7 900 123 015 30 sealing ring
A 30 X 36
1
8 999 063 033 01 screw plug
M 10 X 1,0 X 8,0
4
9 999 095 063 01 dowel sleeve
M 6 X 10
1
10 9A1 101 250 00 Outer hexagon round screw
M 10 X 1,5 X 195
14
11 900 385 281 01 torx screw
M 8 X 120
1
12 900 385 042 01 torx screw
M 8 x 35
3
13 900 385 045 01 torx screw
M 6 x 40
1
14 9A1 101 216 01 lid
M 8 X 35
1
15 999 063 034 01 screw plug
M 20 X 1,5 x 10
2
17 900 060 108 01 stud
M 10 x 60
1
18 9A1 101 213 00 shackle for transportation 1
19 900 385 072 01 torx screw
M 6 X 25
14
20 999 507 075 40 cable holder 1
et_bt1.frm
Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
1
SG
01
Illustration
101-05
Restrictions UPD
248
21:51
Remark
PET
Page: 002 KAT 532
USA / CANADA
Pos Part Number Description Qty Model Remark
21 000 043 207 31 sealing compound
80 ML
X
22 9A1 606 112 01 pulse sender 1
23 900 387 264 01 pan-head screw
M 6 X 16
2
24 997 606 121 00 knock sensor 2
25 900 385 042 01 torx screw
M 8 X 35
3
26 oil separator
see group
1/04/02
1
et_bt2.frm
Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
1
SG
01
Illustration
101-10
Restrictions UPD
248
21:51
Remark
PET
Page: 001 KAT 532
USA / CANADA

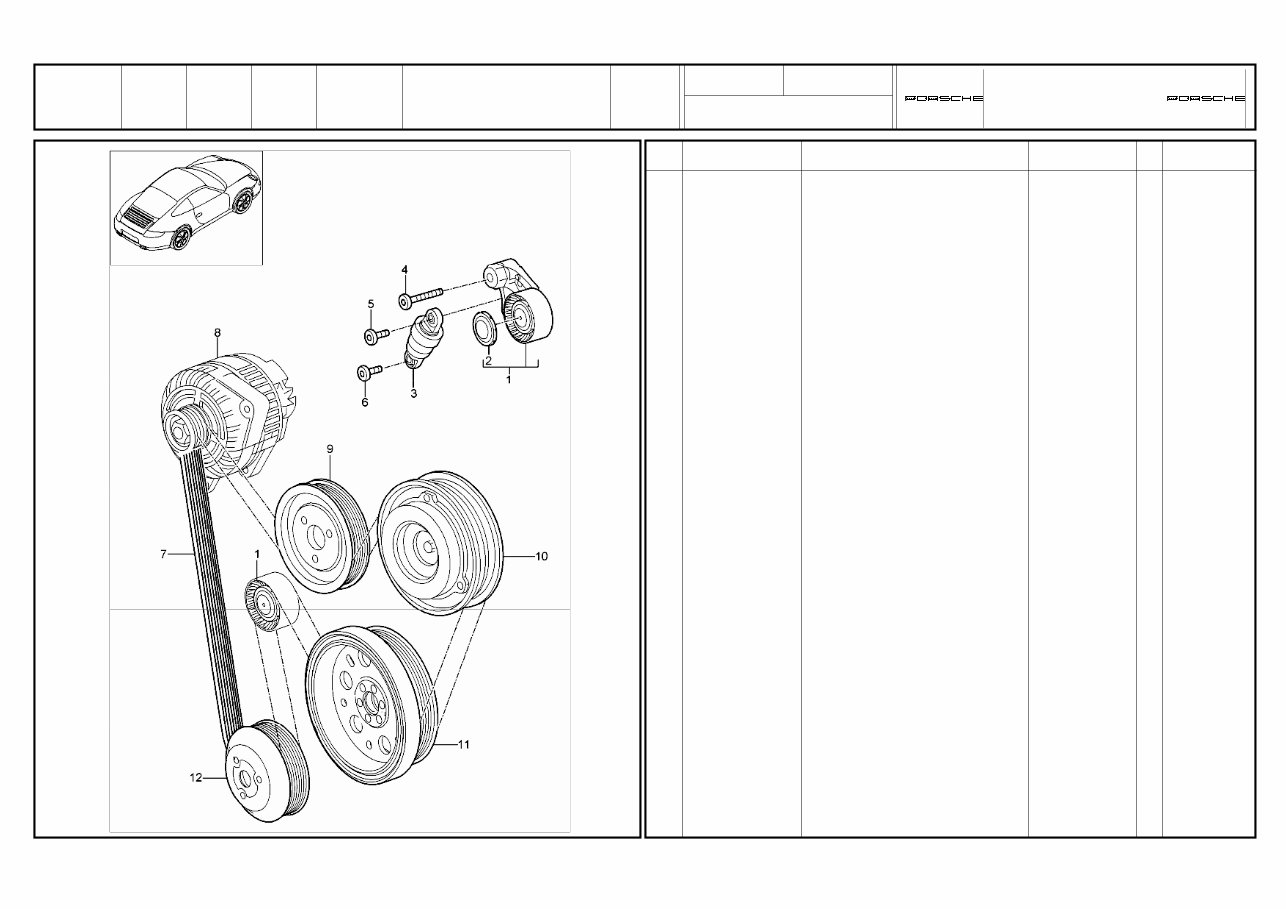

belt tensioner
v-belt
1 9A1 102 211 00 lever
tensioning roller
1
2 948 102 839 00 protection cap 1
3 948 102 261 00 tensioner
hydraulic
1
4 999 073 246 09 torx screw
M 8 X 33-10,9
1
5 999 073 411 01 torx screw
M 8 X 60
1
6 999 073 412 01 torx screw
M 8 X 26
1
7 9A1 102 216 01 v-belt 1
8 generator
see group
9/02/05
1
9 pulley
power-steering pump
see group
4/03/03
1
10 pulley
compressor
see group
8/13/15
1
11 pulley
crankshaft
see group
1/02/00
1
12 pulley
water pump
see group
1/05/00
1
et_bt1.frm
Model
997-2
Year
2010
05.02.2010
MG
Pos Part Number Description Qty Model
1
SG
02
Illustration
102-00
Restrictions UPD
248
21:51
Remark
PET
Page: 001 KAT 532
USA / CANADA

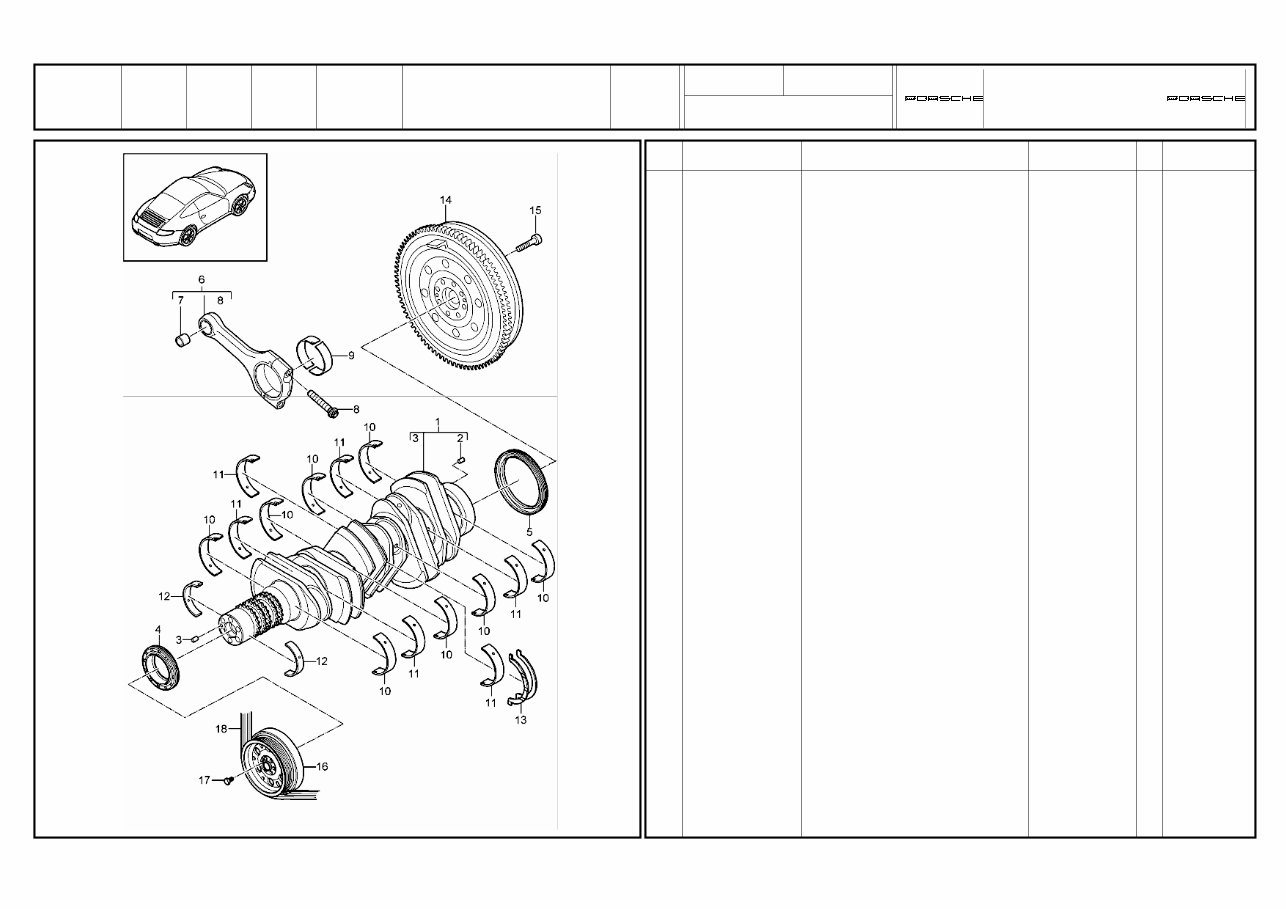

crankshaft MA1.01
MA1.02
1 9A1 102 077 04 crankshaft 1 MA1.01
1 9A1 102 081 03 crankshaft 1 MA1.02
2 900 095 031 00 tensioning sleeve
6,0 X 16
1
3 900 302 016 00 straight pin
A 6,0 X 16
1
4 9A1 101 222 02 shaft sealing ring
52,6 X 16,2
1
5 997 101 212 01 shaft sealing ring
85 x 105 x 11
1
6 9A1 103 914 02 connecting rod
set
comprising:
connecting rods
1
6
7 9A1 103 122 02 connecting rod bush
D = 22
6
8 9A1 103 115 02 connecting rod bolt
M 10 X 1,25 X 51
12
9 9A1 103 053 00 connecting-rod bearing
identification
red
12
(9) 9A1 103 053 01 connecting-rod bearing
identification
yellow
12
(9) 9A1 103 053 02 connecting-rod bearing
identification
blue
12
10 9A1 101 064 00 crankshaft bearing
identification
red
8
(10) 9A1 101 064 01 crankshaft bearing
identification
yellow
8
(10) 9A1 101 064 02 crankshaft bearing
identification
blue
8
et_bt1.frm
