2015 Peugeot 5008 1.6 E-HDi Automatic
LOCATION : COLD STAMPING OF THE SERIAL NUMBER (VIN)
ESSENTIAL : Observe the safety and cleanliness recommendations .
ESSENTIAL : Observe the precautions to be taken for the pre-tensioning components .
ESSENTIAL : Before any work on the structure of a vehicle with on board electric energy (electric vehicle/hybrid vehicle), the vehicle
must be isolated by an authorised technician.
1. Characteristics of the serial number
The regulation size of the punches for cold stamping is 7 mm.
The serial number consists of 17 characters.
The serial number is always situated on the right-hand section of the vehicle.
Depending on the vehicle, the serial number may be stamped on one or two lines.
Figure : C4EB0N9D

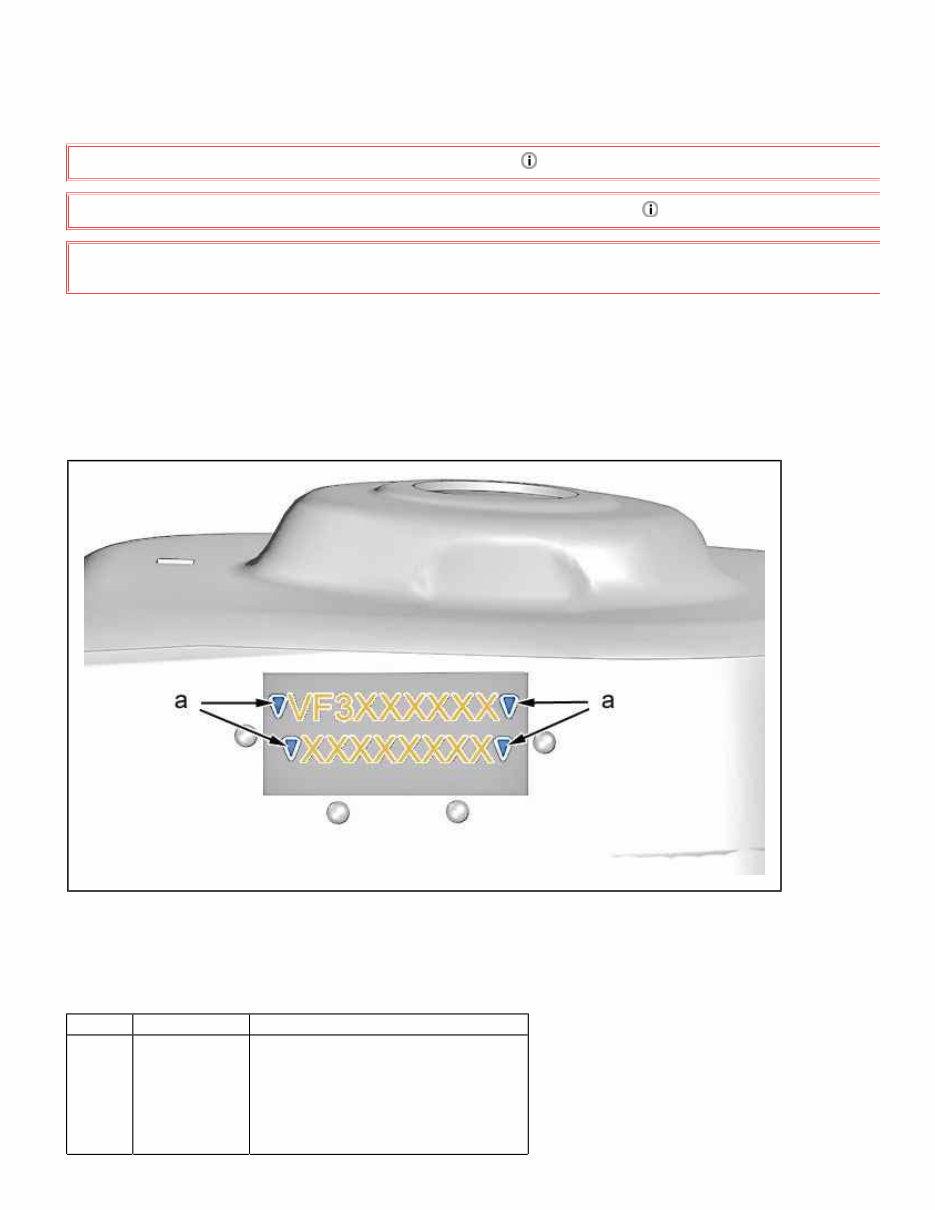

"a" Original punch.
Each line forming a serial number must have a non alphanumeric character "a" at each end.
2. Location of the original cold stampings
Reference Vehicle Location
"A" 307 (all types)
407
407 SW
806
Expert I
Partner I
RH front wing inner panel
1 of 10
Partner II
"B" 308 (all types) Front right suspension mounting (Wing side)
"C" 407 Coupe Front right suspension mounting (Engine side)
"D" 3008
5008
Partner III
RCZ
Front right wheel arch (Upper section)
"E" 1007
207 (all types)
208 (all types)
301
Bulkhead flange right-hand section
"F" 508 (all types)
607
4007
Bulkhead flange right-hand central section
"G" ION Rear right hand wheel arch
"H" Bipper Front RH floor
"J" 107 Seat crossmember (Front RH)
"K" 206 (all types)
206+
Tail panel (right side)
"L" BOXER (all types) Front right wheel arch
"M" 807
Expert III
Lower windscreen aperture
3. Location of the serial number cold stamping areas

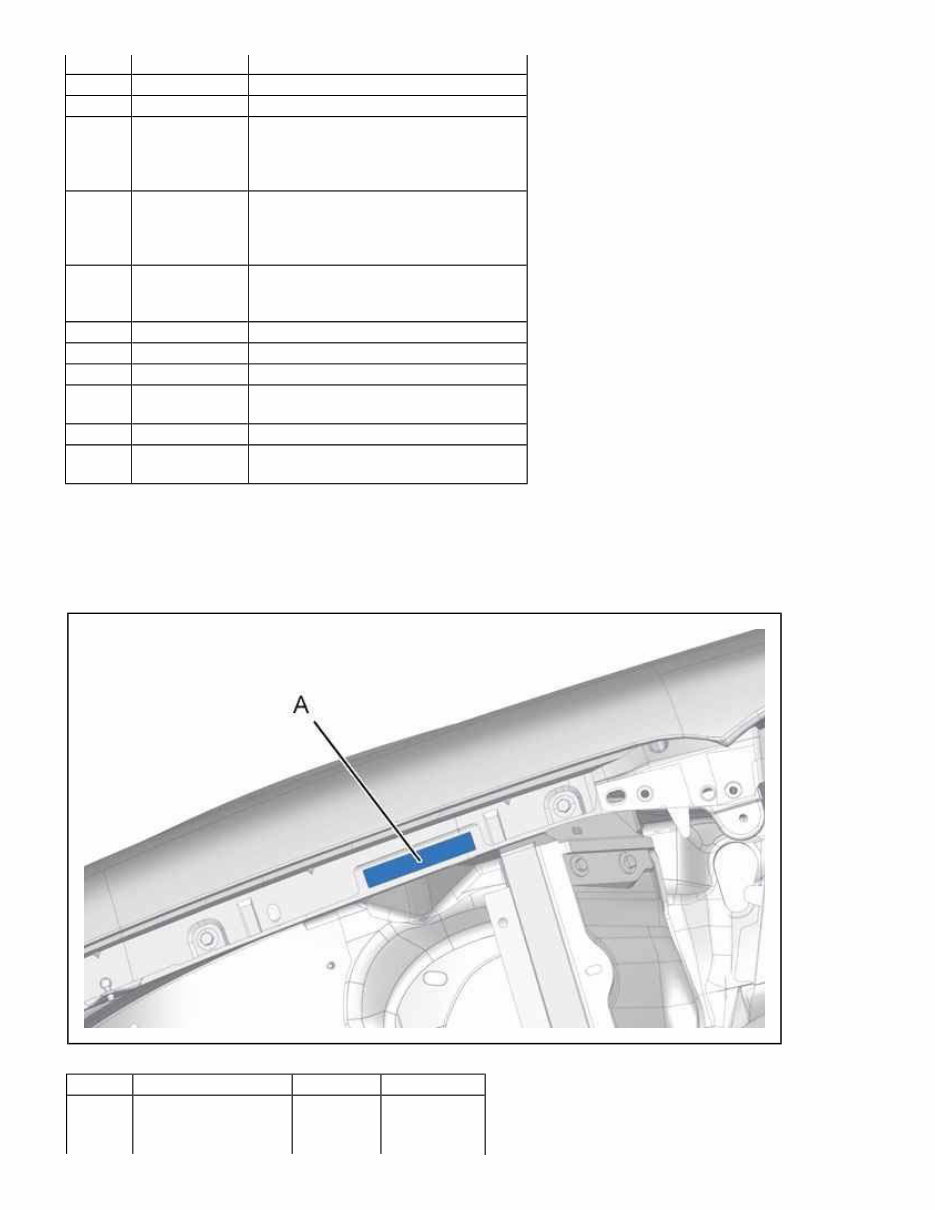

3.1. RH front wing inner panel
Figure : C4EB0NAD
Reference Original stamped part vehicles Number of lines
"A" RH front wing inner panel 307 (all types)
407
407 SW
1
2 of 10
806
Expert I
Partner I
Partner II

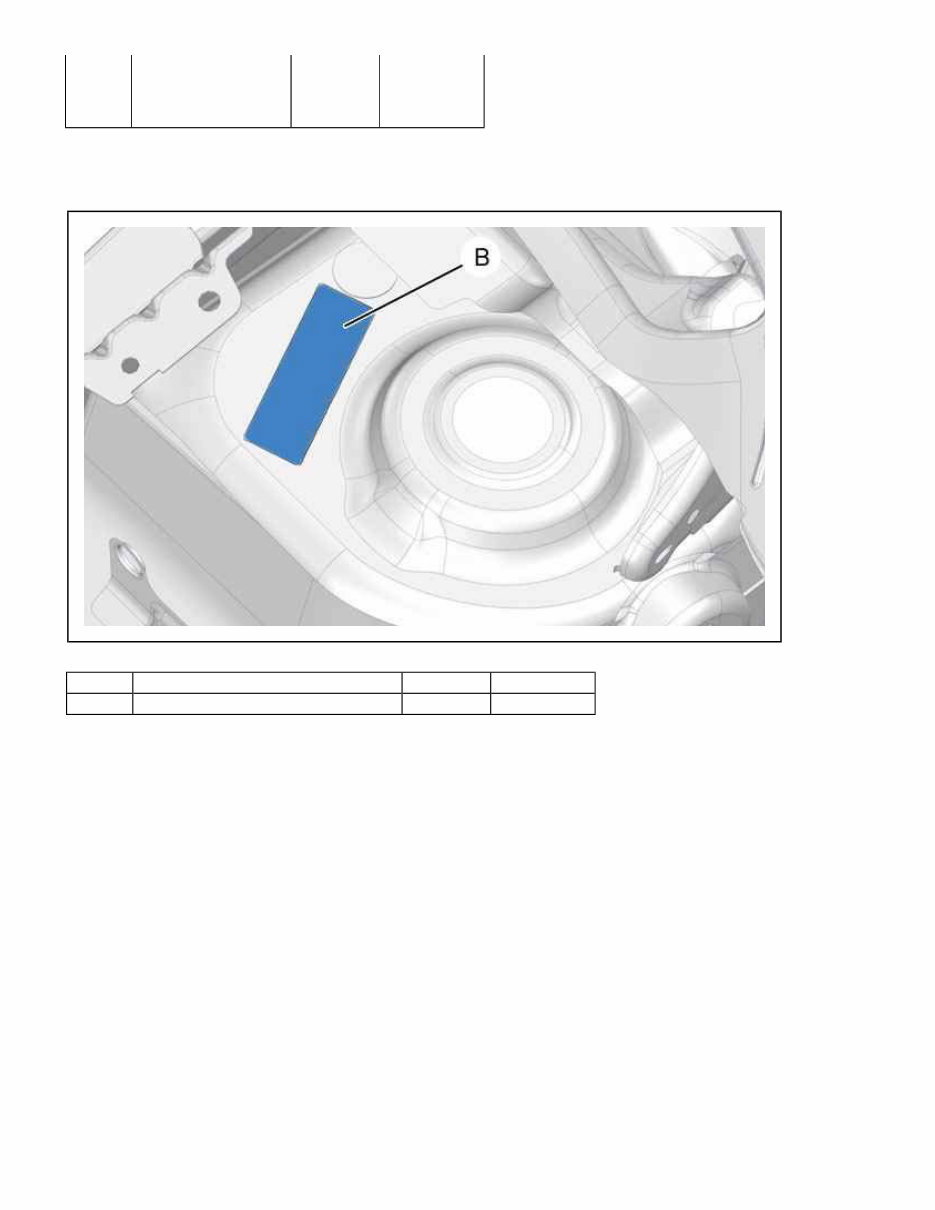

3.2. Front right suspension mounting (Wing side)
Figure : C4EB0NBD
Reference Original stamped part vehicles Number of lines
"B" Front right suspension mounting (Wing side) 308 (all types) 2

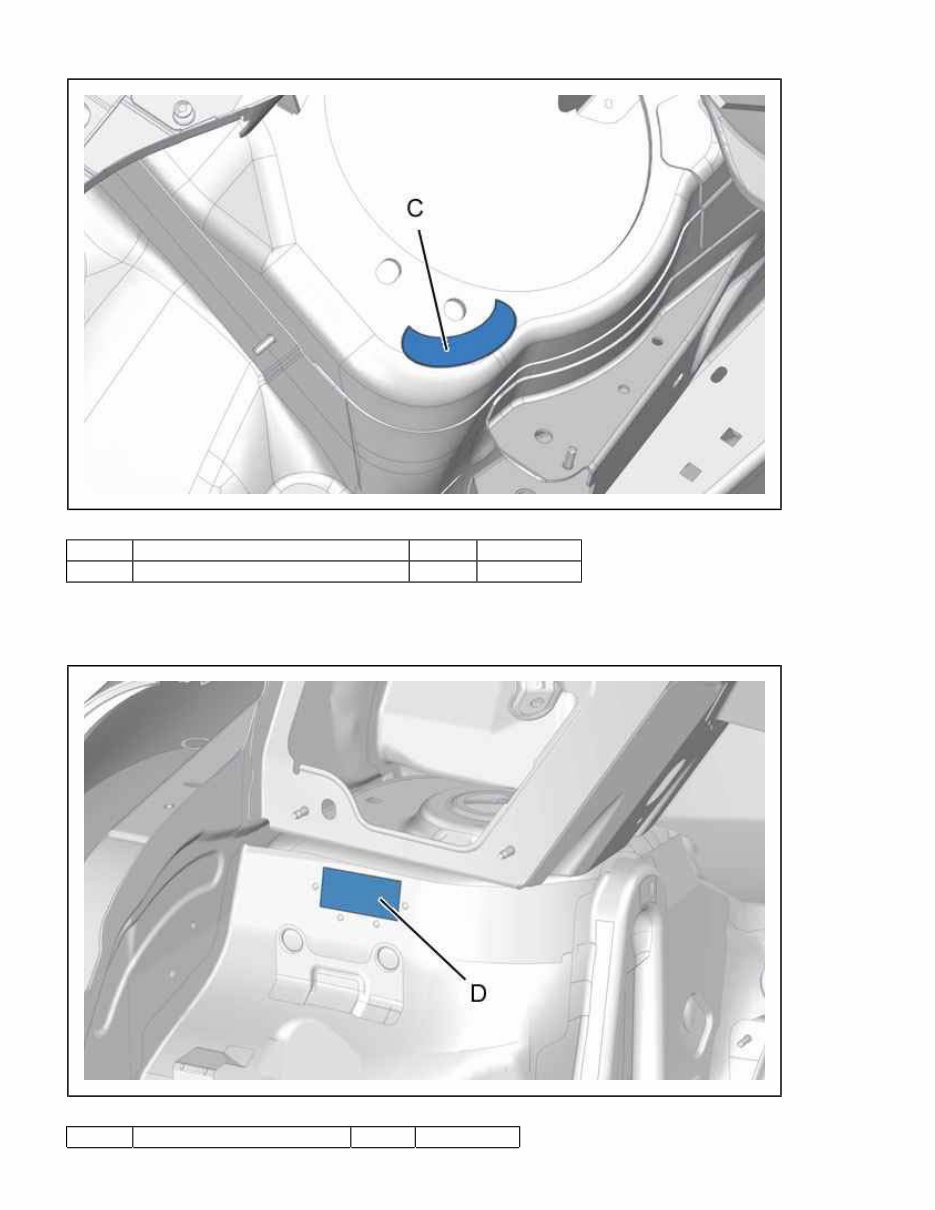

3.3. Front right suspension mounting (engine side)
3 of 10
Figure : C4EB0NCD
Reference Original stamped part vehicles Number of lines
"C" Front right suspension mounting (engine side) 407 Coupe 1
3.4. Front right wheel arch upper section
Figure : C4EB0NDD
Reference Original stamped part vehicles Number of lines
4 of 10
"D" Front right wheel arch upper section 3008
5008
Partner III
RCZ
2

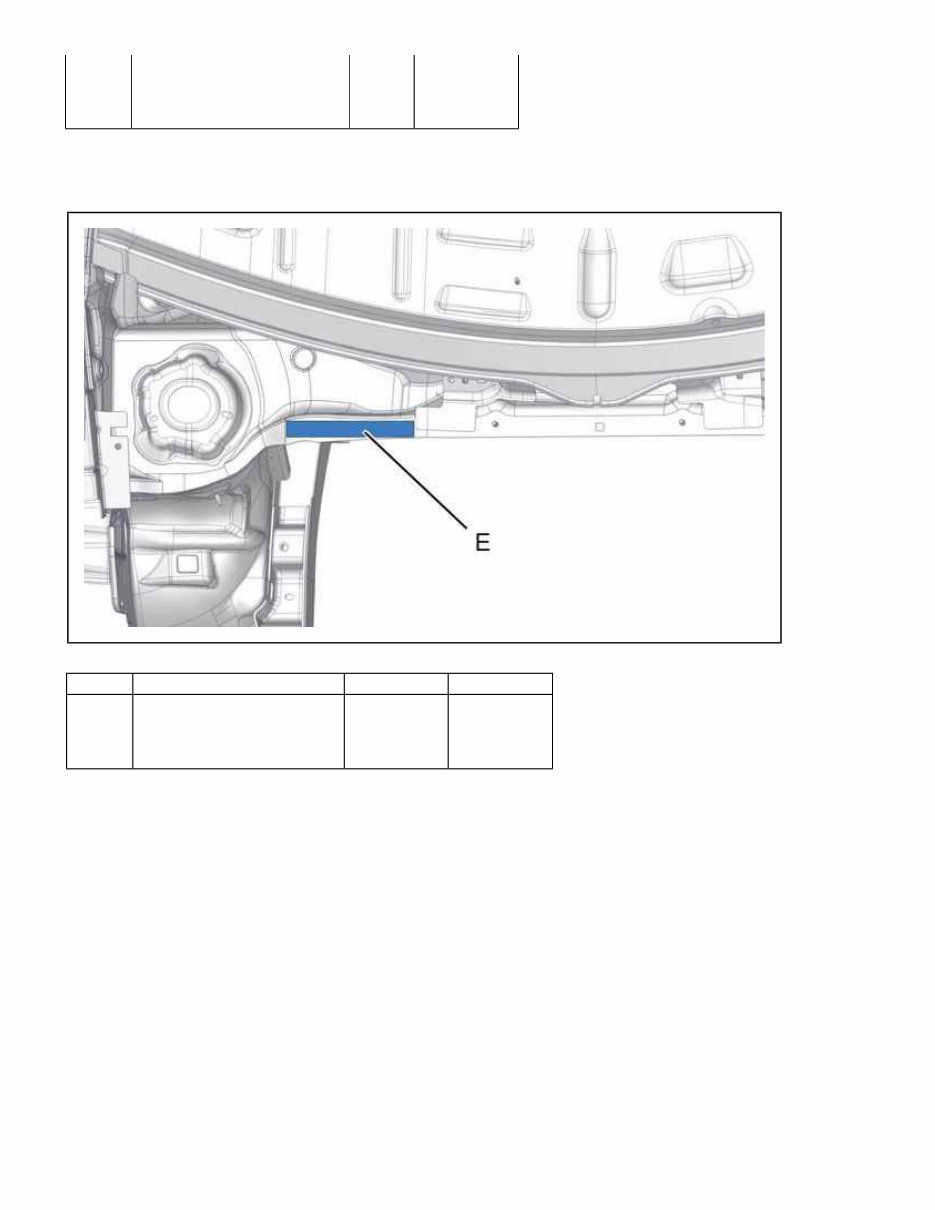

3.5. Bulkhead flange right-hand section
Figure : C4EB0NED
Reference Original stamped part vehicles Number of lines
"E" Bulkhead flange right-hand section 1007
207 ( all models)
208 ( all models)
301
1

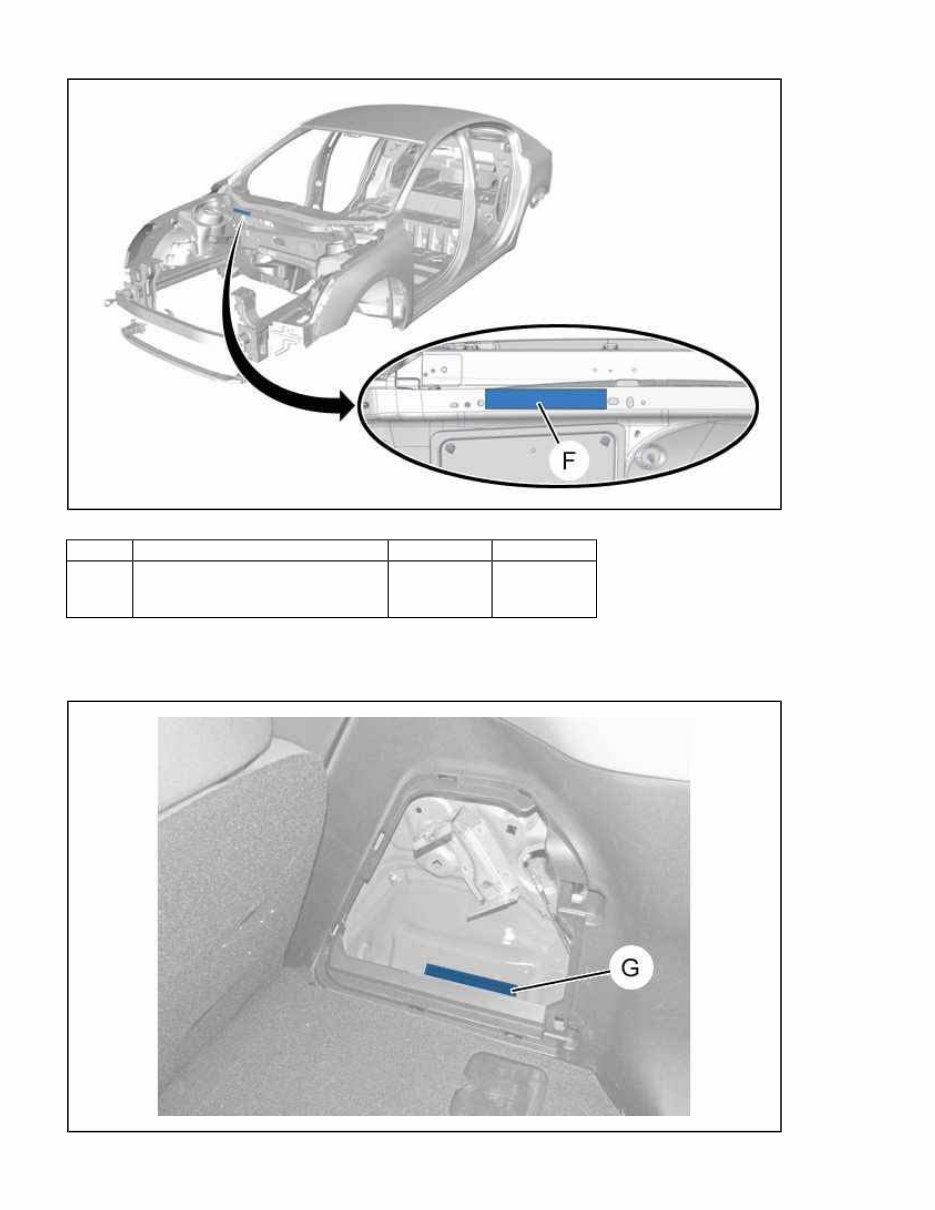

3.6. Bulkhead flange right-hand central section
5 of 10
Figure : C4EB0NFD
Reference Original stamped part vehicles Number of lines
"F" Bulkhead flange right-hand central section 508 ( all models)
607
4007
1
3.7. Rear right hand wheel arch
Figure : C4EB0NGD
6 of 10
Reference Original stamped part Vehicle Number of lines
"G" Rear right hand wheel arch ION 1

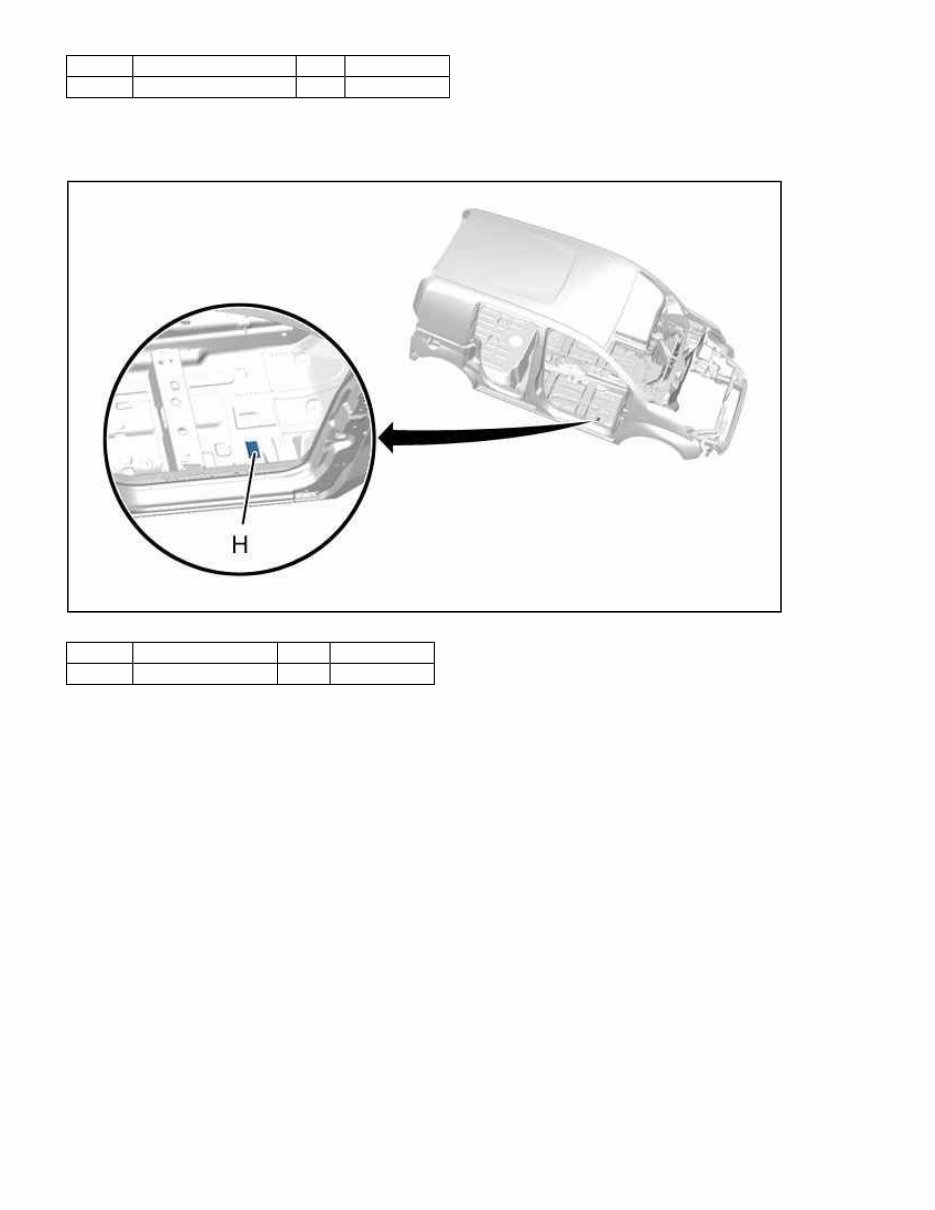

3.8. Front RH floor
Figure : C4EB0NHD
Reference Original stamped part vehicles Number of lines
"H" Front RH floor Bipper 2

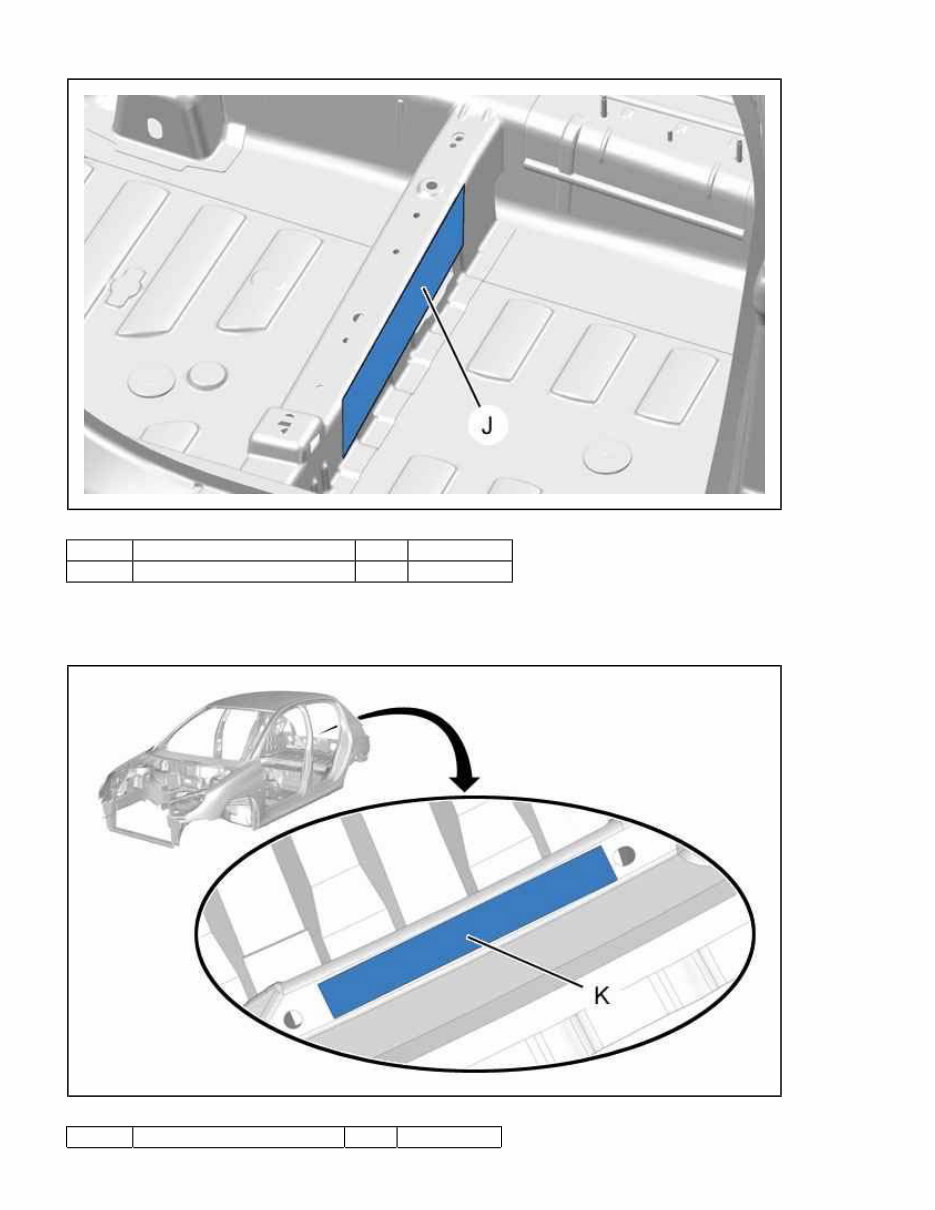

3.9. Seat crossmember (Right hand front)
7 of 10
Figure : C4EB0NID
Reference Original stamped part vehicles Number of lines
"J" Seat crossmember (Right hand front) 107 1
3.10. Tail panel (On the right-hand side )
Figure : C4EB0NJD
Reference Original stamped part vehicles Number of lines
8 of 10
"K" Tail panel (On the right-hand side ) 206
206 SW
206 CC
206+
1

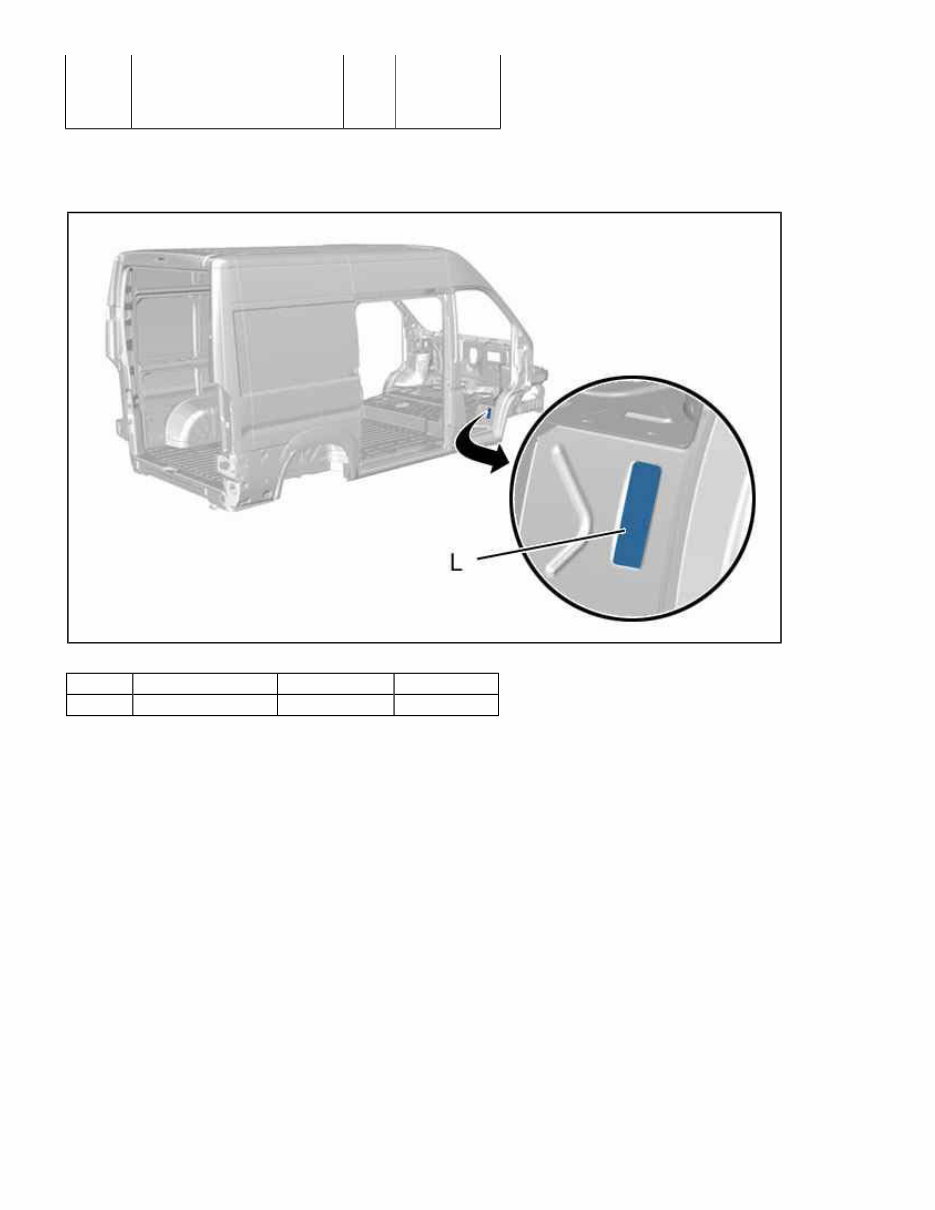

3.11. Front right wheel arch
Figure : C4EB0R1D
Reference Original stamped part vehicles Number of lines
"L" Front right wheel arch BOXER (all types) 2
3.12. Lower windscreen aperture
9 of 10
