2002 ENGINE Engine Mechanical - Aurora 3.5L SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L

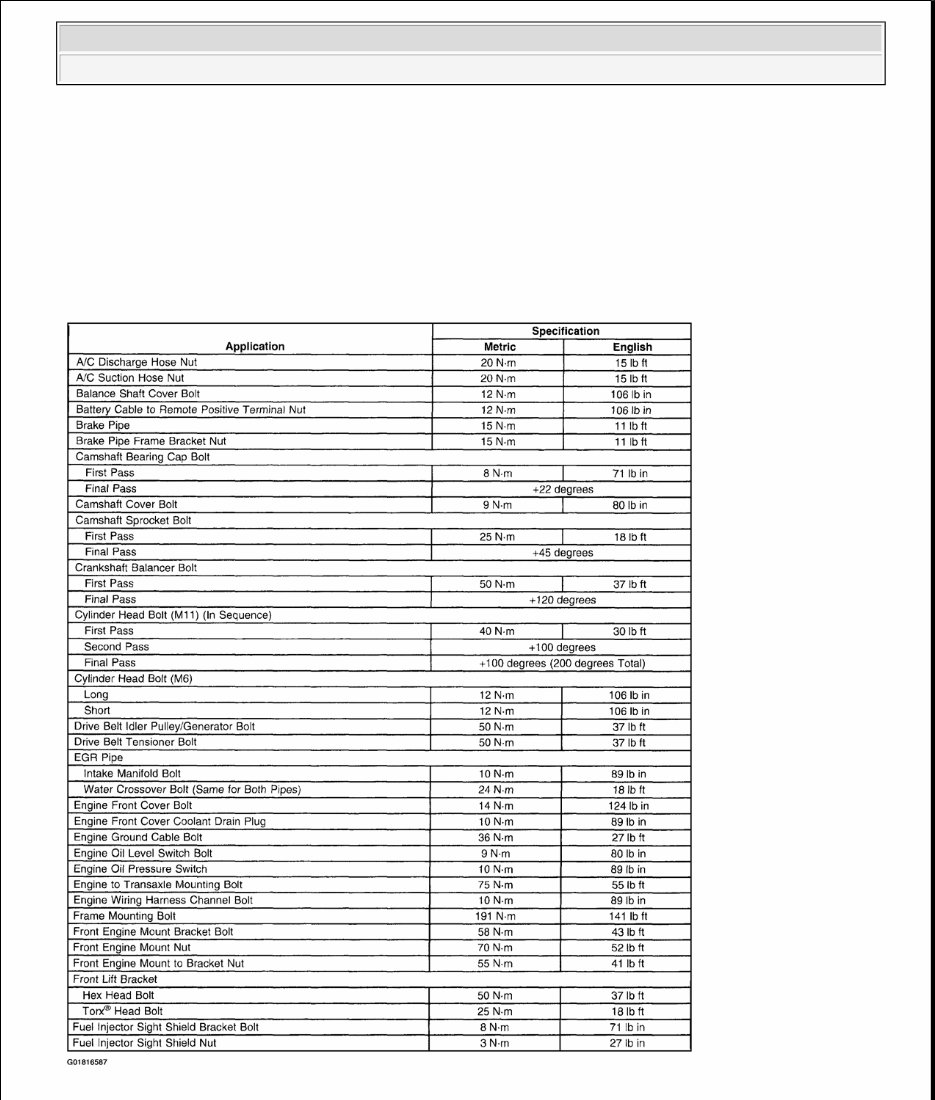

Fig. 1: Fastener Tightening Specifications (1 Of 2) Fig. 2: Fastener Tightening Specifications (2 Of 2) ENGINE MECHANICAL SPECIFICATIONS 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L

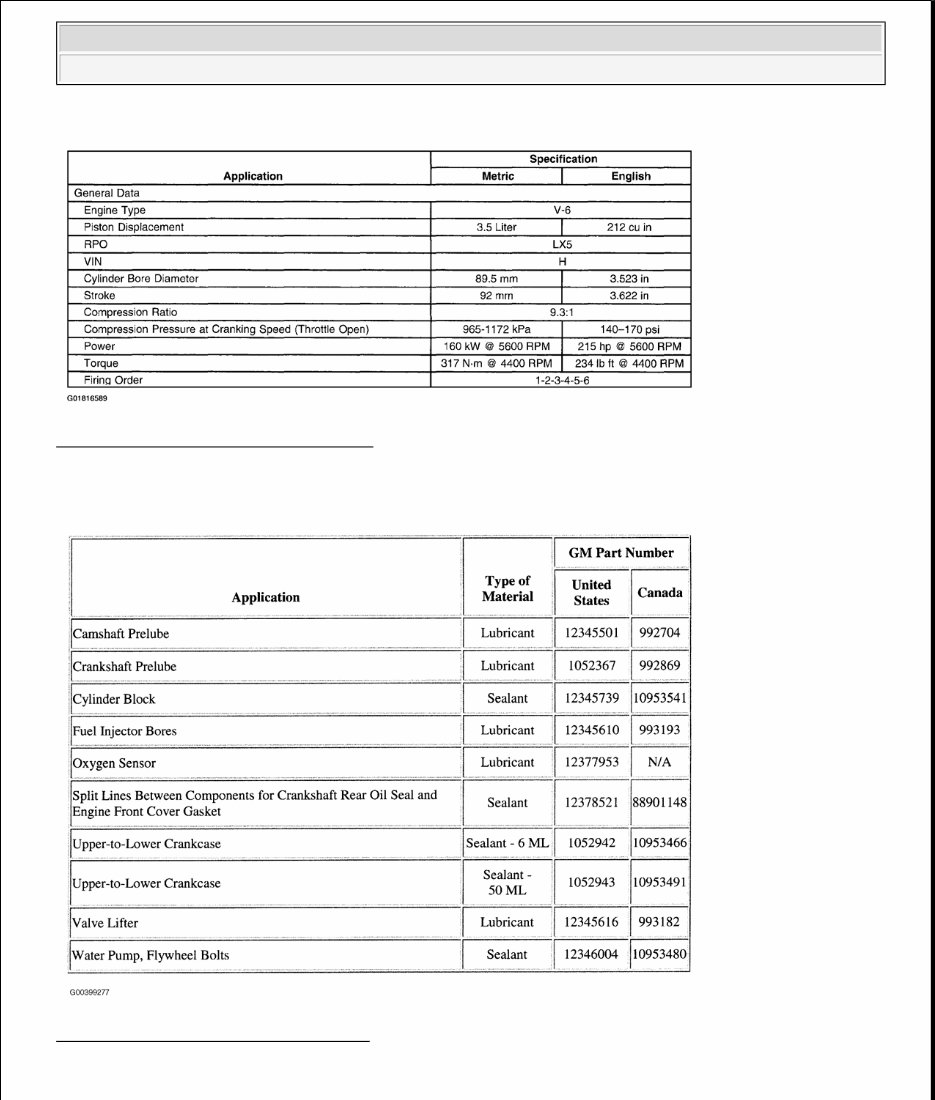

Fig. 3: Engine Mechanical Specifications SEALERS, ADHESIVES, AND LUBRICANTS Fig. 4: Sealers, Adhesives, & Lubricants Courtesy of GENERAL MOTORS CORP. 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L

DIAGNOSTIC INFORMATION AND PROCEDURES DIAGNOSTIC STARTING POINT - ENGINE MECHANICAL Begin the system diagnosis by reviewing the DISASSEMBLED VIEWS, ENGINE COMPONENT DESCRIPTION, Drive Belt System Description , LUBRICATION DESCRIPTION and NEW PRODUCT INFORMATIONand . Reviewing the description and operation information will help you determine the correct symptom diagnostic procedure when a malfunction exists. Reviewing the description and operation information will also help you determine if the condition described by the customer is normal operation. Refer to Symptoms - Engine Mechanical in order to identify the correct procedure for diagnosing the system and where the procedure is located. SYMPTOMS - ENGINE MECHANICAL Strategy Based Diagnostics 1. Perform a DIAGNOSTIC SYSTEM CHECKS in Engine Controls before using the symptom tables (if applicable). 2. Review the system operations in order to familiarize yourself with the system functions. Refer to DISASSEMBLED VIEWS, ENGINE COMPONENT DESCRIPTION, Drive Belt System Description , LUBRICATION DESCRIPTION and NEW PRODUCT INFORMATION. All diagnosis on a vehicle should follow a logical process. Strategy based diagnostics is a uniform approach for repairing all systems. The diagnostic flow may always be used in order to resolve a system problem. The diagnostic flow is the place to start when repairs are necessary. For a detailed explanation, refer to STRATEGY BASED DIAGNOSIS in General Information. Visual/Physical Inspection  Inspect for aftermarket devices which could affect the operation of the Engine. Refer to CHECKING AFTERMARKET ACCESSORIES in Wiring Systems.  Inspect the easily accessible or visible system components for obvious damage or conditions which could cause the symptom.  Check for the correct oil level, proper oil viscosity, and correct filter application.  Verify the exact operating conditions under which the concern exists. Note factors such as engine RPM, ambient temperature, engine temperature, amount of engine warm-up time, and other specifics.  Compare the engine sounds (if applicable) to a known good engine and make sure you are not trying to correct a normal condition. Intermittent Test the vehicle under the same conditions that the customer reported in order to verify the system is operating properly. Symptom List 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:  Base Engine Misfire without Internal Engine Noises  Base Engine Misfire with Abnormal Internal Lower Engine Noises  Base Engine Misfire with Abnormal Valve Train Noise  Base Engine Misfire with Coolant Consumption  Base Engine Misfire with Excessive Oil Consumption  Engine Noise on Start - Up, but Only Lasting a Few Seconds  Upper Engine Noise, Regardless of Engine Speed  Lower Engine Noise, Regardless of Engine Speed  Engine Noise Under Load  Engine Will Not Crank - Crankshaft Will Not Rotate  Oil Consumption Diagnosis  Oil Pressure Diagnosis and Testing  Oil Leak Diagnosis  Engine Compression Test BASE ENGINE MISFIRE WITHOUT INTERNAL ENGINE NOISES 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L

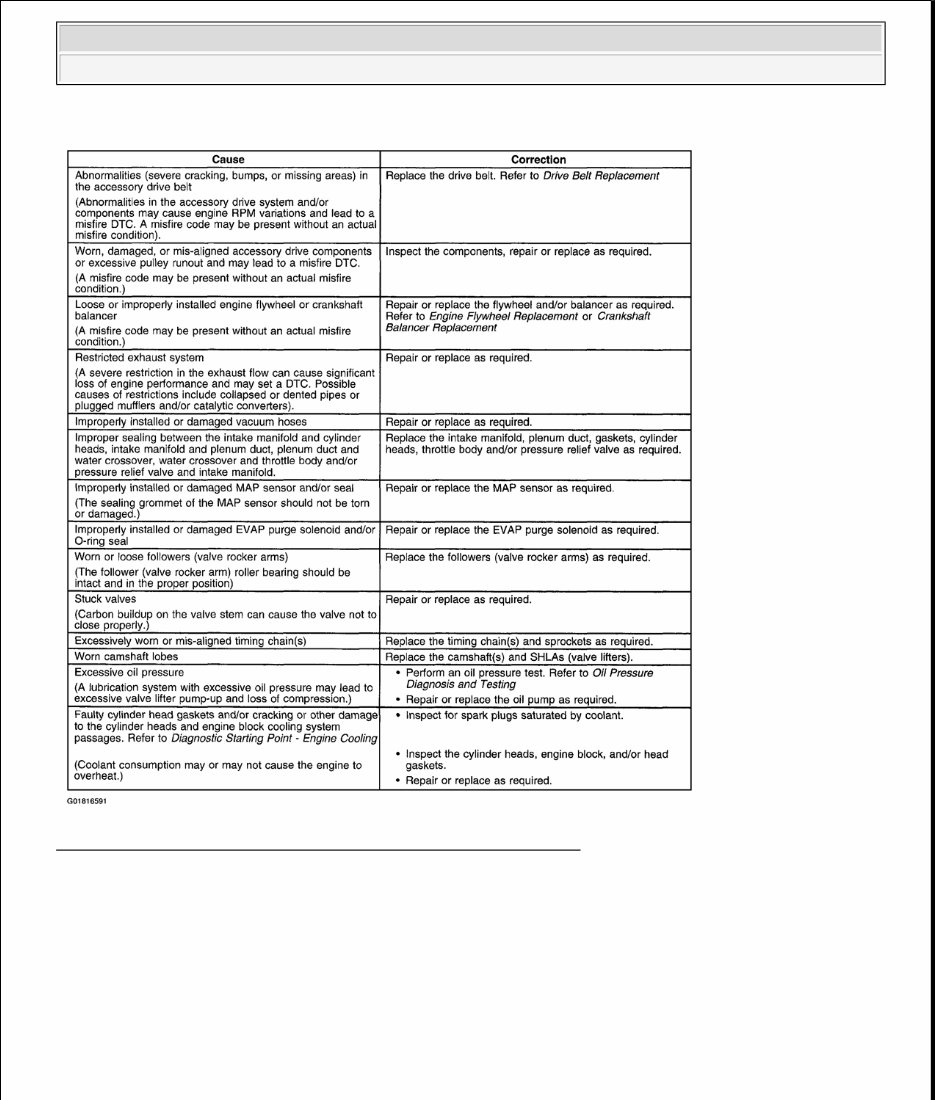

Fig. 5: Base Engine Misfire without Internal Engine Noises (1 Of 2) 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L

Fig. 6: Base Engine Misfire without Internal Engine Noises (2 Of 2) BASE ENGINE MISFIRE WITH ABNORMAL INTERNAL LOWER ENGINE NOISES Fig. 7: Base Engine Misfire with Abnormal Internal Lower Engine Noises BASE ENGINE MISFIRE WITH ABNORMAL VALVE TRAIN NOISE 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L

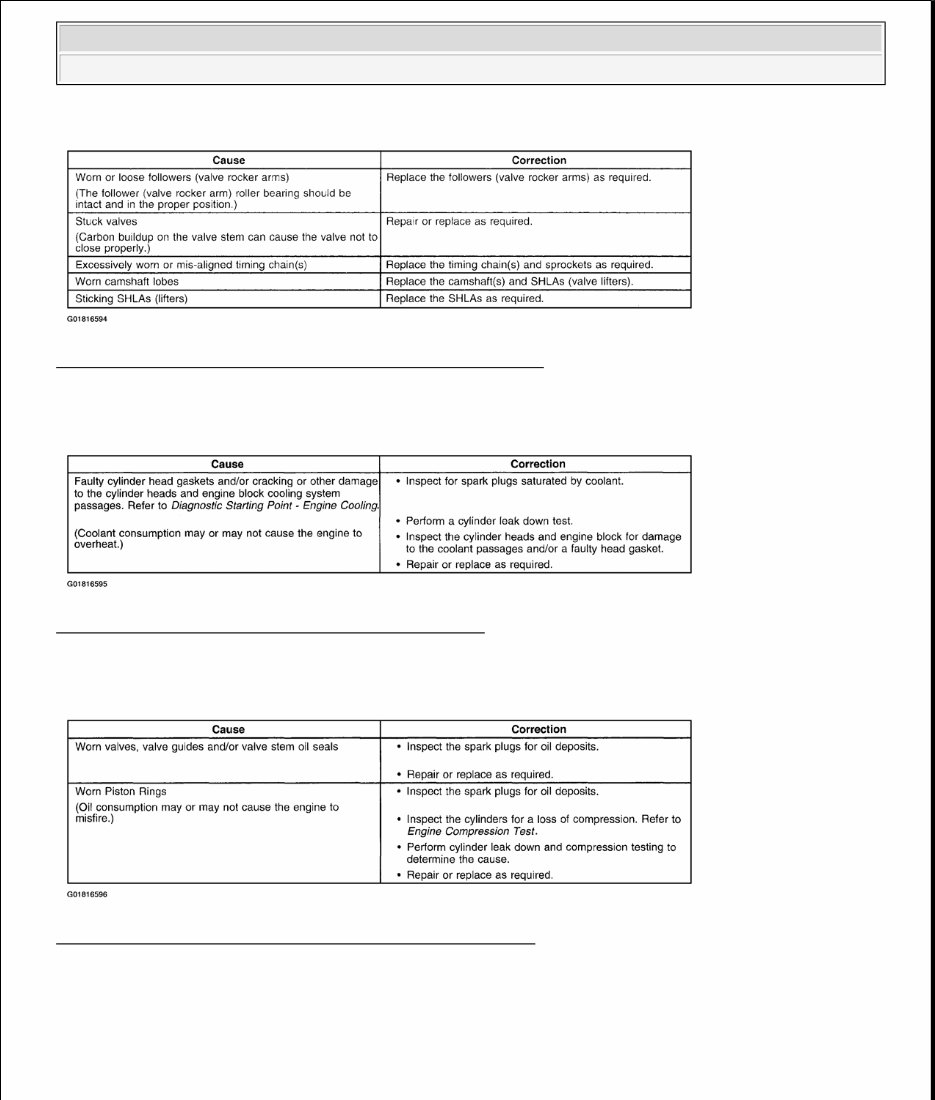

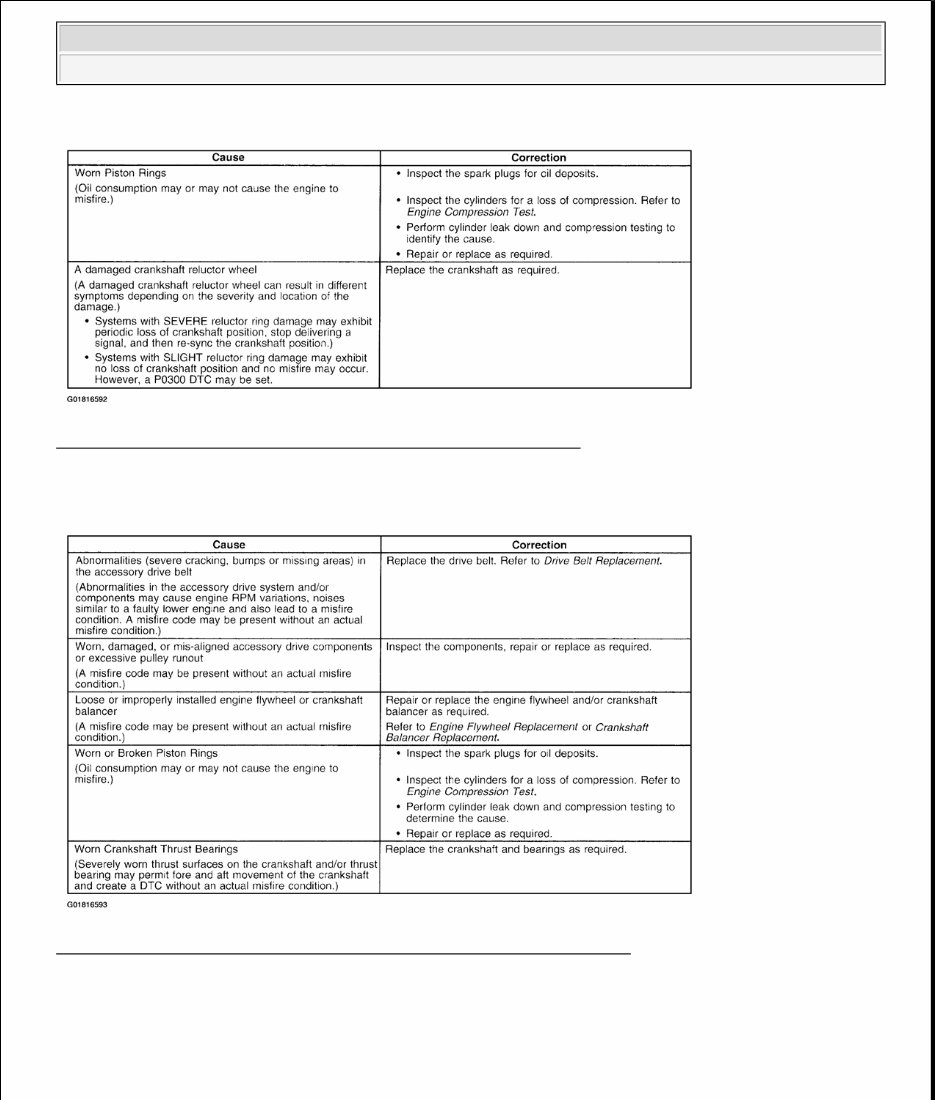

Fig. 8: Base Engine Misfire With Abnormal Valve Train Noise BASE ENGINE MISFIRE WITH COOLANT CONSUMPTION Fig. 9: Base Engine Misfire with Coolant Consumption BASE ENGINE MISFIRE WITH EXCESSIVE OIL CONSUMPTION Fig. 10: Base Engine Misfire with Excessive Oil Consumption ENGINE NOISE ON START-UP, BUT ONLY LASTING A FEW SECONDS 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L

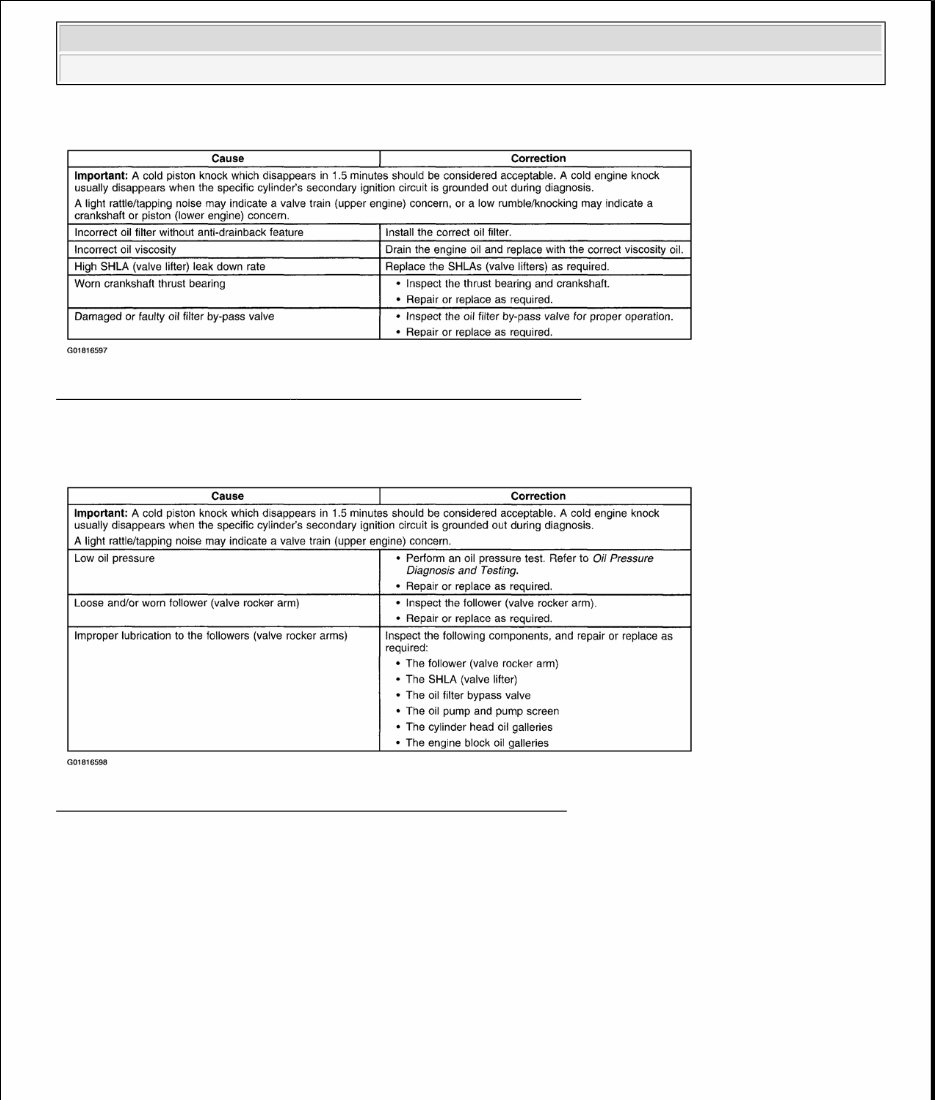

Fig. 11: Engine Noise on Start - Up, but Only Lasting a Few Seconds UPPER ENGINE NOISE, REGARDLESS OF ENGINE SPEED Fig. 12: Upper Engine Noise, Regardless of Engine Speed (1 Of 2) 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L

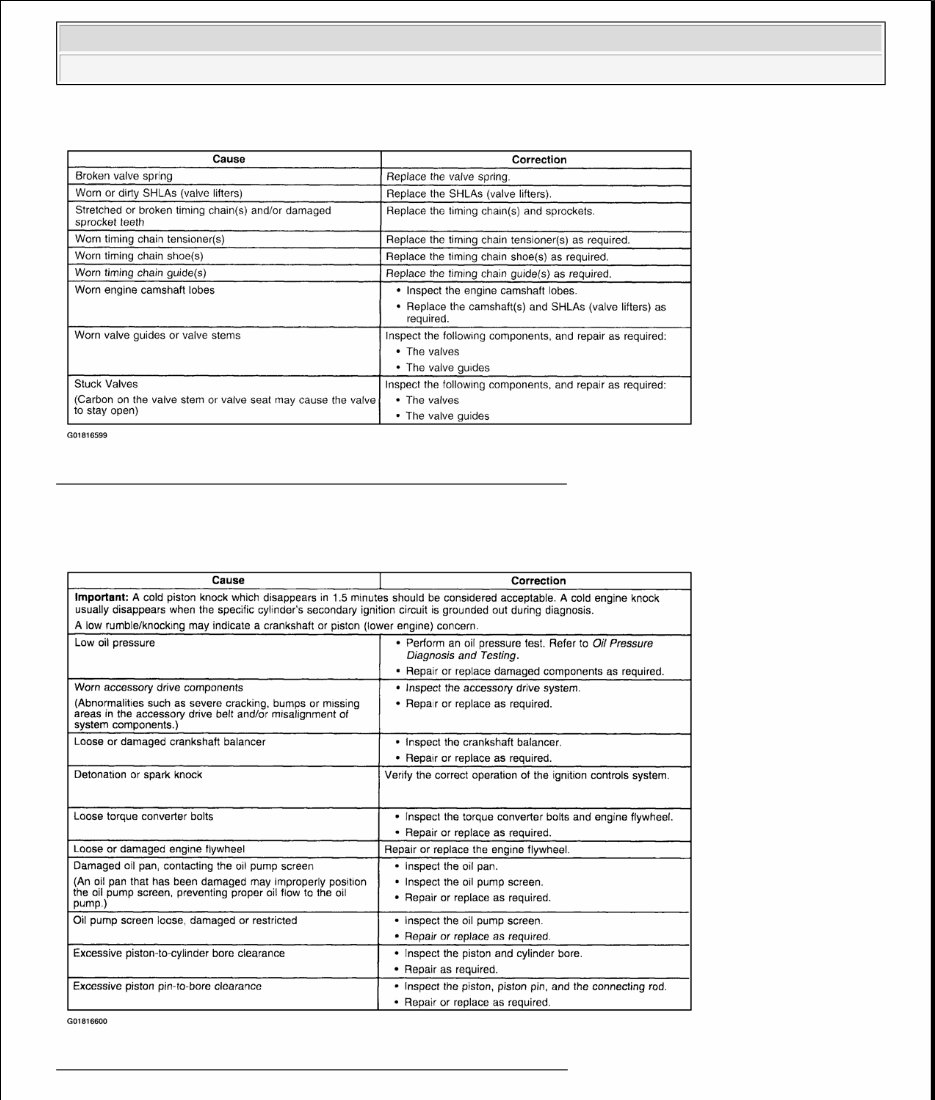

Fig. 13: Upper Engine Noise, Regardless of Engine Speed (2 Of 2) LOWER ENGINE NOISE, REGARDLESS OF ENGINE SPEED Fig. 14: Lower Engine Noise, Regardless of Engine Speed (1 Of 2) 2001 Oldsmobile Aurora 2002 ENGINE Engine Mechanical - Aurora 3.5L
