ACC-1
ENGINE
C
D
E
F
G
H
I
J
K
L
M
SECTION ACC
A
ACC
N
O
P
CONTENTS
ACCELERATOR CONTROL SYSTEM
PRECAUTION .............................................. 2
PRECAUTIONS .................................................. 2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................. 2
REMOVAL AND INSTALLATION ............... 3
ACCELERATOR CONTROL SYSTEM .............. 3
Exploded View ......................................................... 3
Removal and Installation ......................................... 3
SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................ 5
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................. 5
Accelerator Control .................................................. 5
Revision: July 2016 2016 Versa Sedan
ACC-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" INFOID:0000000014457027
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, it is recommended that all mainte-
nance and repair be performed by an authorized NISSAN/INFINITI dealer.
• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury
caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,
see the SR section.
• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the
Ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the
battery or batteries, and wait at least three minutes before performing any service.
Revision: July 2016 2016 Versa Sedan
ACCELERATOR CONTROL SYSTEM
ACC-3
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
I
J
K
L
M
A
ACC
N
P
O
REMOVAL AND INSTALLATION
ACCELERATOR CONTROL SYSTEM

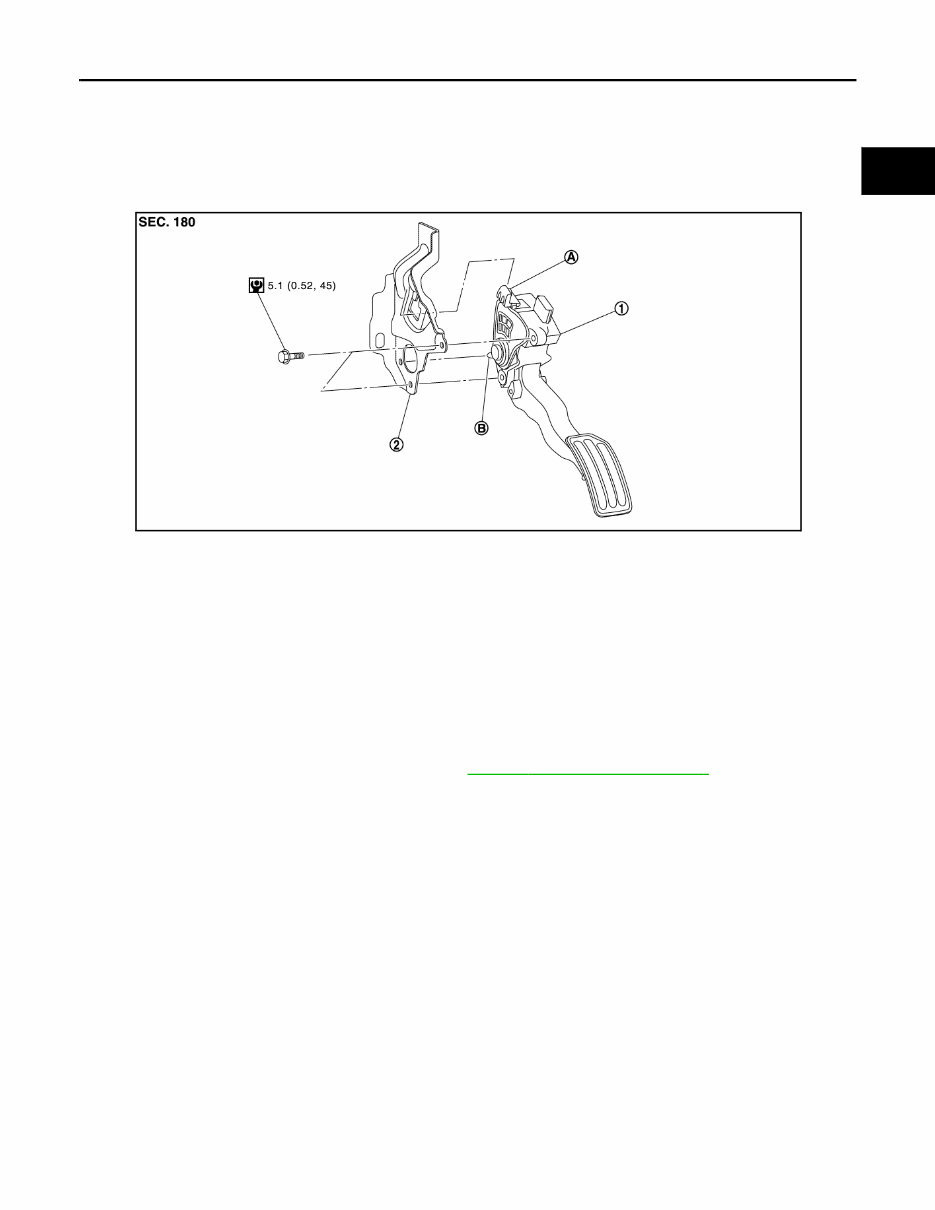

Exploded View INFOID:0000000012232780
Removal and Installation INFOID:0000000012232781
CAUTION:
• Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sensor
from accelerator pedal assembly.
• Avoid impact from dropping etc. during handling.
• Be careful to keep accelerator pedal assembly away from water.
REMOVAL
1. Disconnect the battery negative terminal. Refer to PG-67, " Removal and Installation " .
2. Disconnect the harness connector from the accelerator pedal position sensor.
3. Remove the accelerator pedal assembly bolts and the accelerator pedal assembly.
INSTALLATION
Installation is in the reverse order of removal.
• When installing the accelerator pedal assembly, align the locating hook and locating pin holes on the accel-
erator pedal bracket.
CAUTION:
Do not squeeze the locating hook in the accelerator pedal bracket when inserting the locating pin
into the hole on the accelerator pedal bracket side.
• After installation, perform inspection of the accelerator pedal assembly.
1. Accelerator pedal assembly 2. Accelerator pedal bracket A. Locating hook
B. Locating pin
JSBIA1087GB
Revision: July 2016 2016 Versa Sedan
ACC-4
< REMOVAL AND INSTALLATION >
ACCELERATOR CONTROL SYSTEM

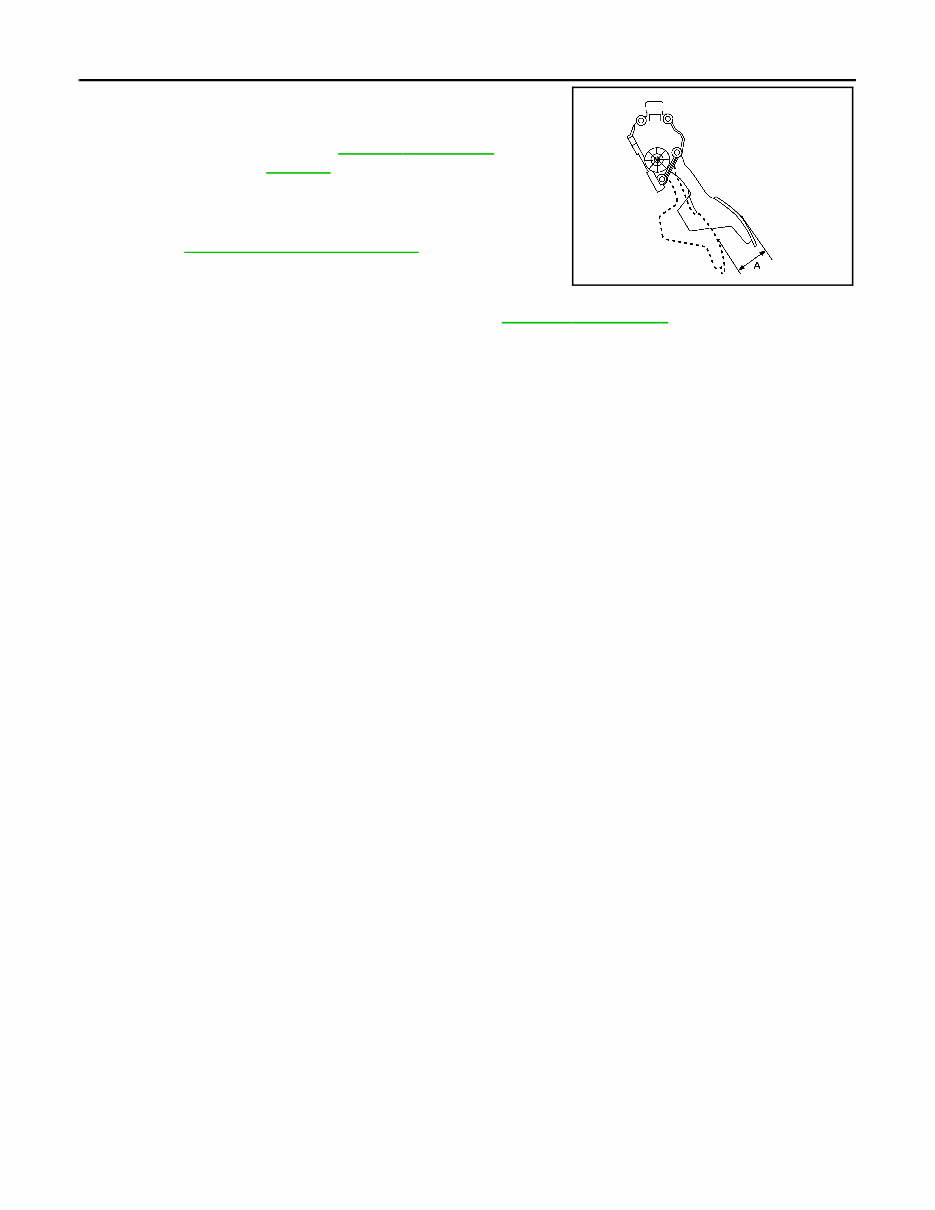

• Check that the accelerator pedal moves smoothly within the speci-
fied range.
• Depress and release the accelerator pedal to check that it returns
quickly and smoothly to the original released position.
• Perform an electrical inspection of accelerator pedal position sen-
sor. Refer to EC-422, " Component Inspection " .
CAUTION:
• Whenever the harness connector of accelerator pedal posi-
tion sensor is disconnected, perform “ACCELERATOR
PEDAL RELEASED POSITION LEARNING”. Refer to EC-125, " Description " .
• The accelerator pedal should return smoothly without catching to the fully raised position.
Accelerator
pedal travel (A)
: Refer to ACC-5, " Accelerator
Control " .
ALBIA0168GB
Revision: July 2016 2016 Versa Sedan
SERVICE DATA AND SPECIFICATIONS (SDS)
ACC-5
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D
E
F
G
H
I
J
K
L
M
A
ACC
N
P
O
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Accelerator Control INFOID:0000000012232782
Accelerator pedal - total travel (A) 51.2 ± 1.4 mm (2.02 ± 0.06 in)
Accelerator pedal - total pedal height 118 ± 5 mm (4.65 ± 0.20 in)
ALBIA0168GB
Revision: July 2016 2016 Versa Sedan
