Precaution for Supplemental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt,
helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to
service the system safely is included in the SR and SB section of this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a
collision which would result in air bag inflation, it is recommended that all maintenance and repair be performed
by an authorized NISSAN/INFINITI dealer.
Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by
unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see the SR section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual.
SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC)
AND HAMMERS
WARNING:
When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the Ignition ON or
engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a hammer. Heavy
vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.
When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the battery or
batteries, and wait at least three minutes before performing any service.

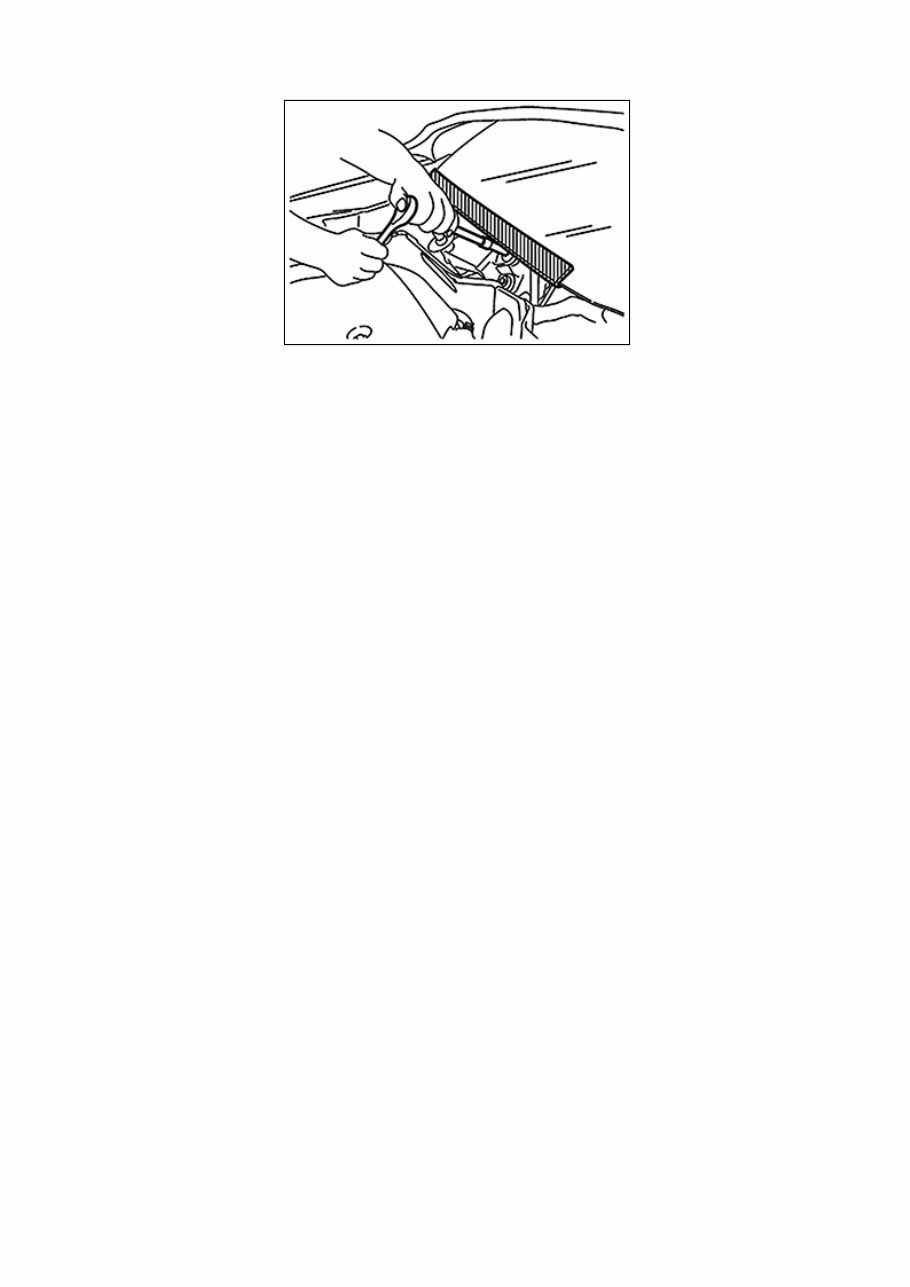

Precaution for Procedure without Cowl Top Cover
When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc. to prevent
damage to windshield.
NISA0000000012432481-01-PIIB3706J
Precaution for Brake System
WARNING:
Clean any dust from the front brake and rear brake with a vacuum dust collector. Do not blow with compressed air.
Brake fluid use refer to Fluids and Lubricants.
Do not reuse drained brake fluid.
Do not spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off immediately and
wash with water if it gets on a painted surface.
Always confirm the specified tightening torque when installing the brake pipes.
After pressing the brake pedal more deeply or harder than normal driving, such as air bleeding, inspect the brake pedal height
and play. Adjust brake pedal if it is outside the standard value.
Always clean with new brake fluid when cleaning the brake caliper and other components.
Do not use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and cause improper operation.
Always loosen the brake tube flare nut with a flare nut wrench.

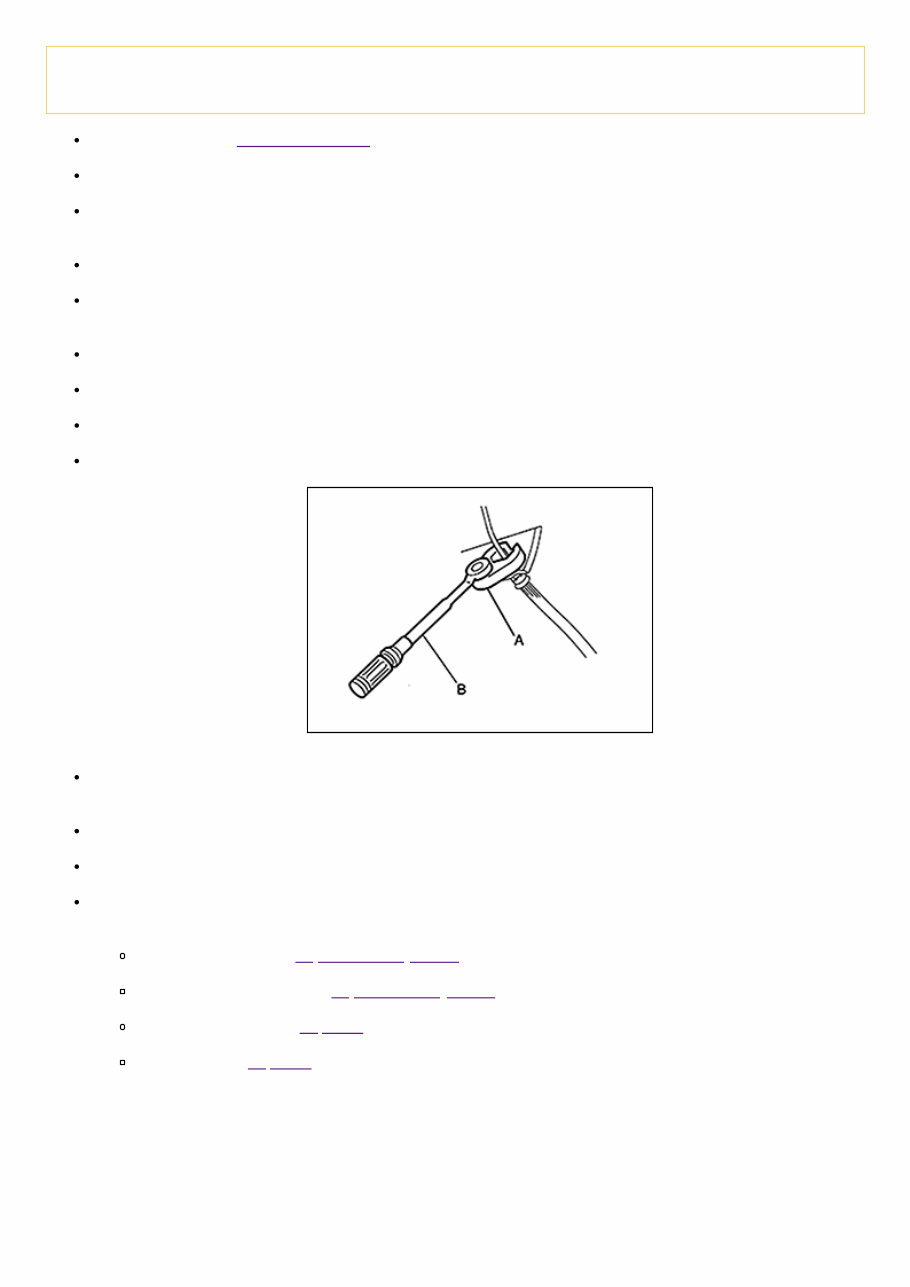

Tighten the brake tube flare nut to the specified torque with a crowfoot (A) and torque wrench (B).
NISA0000000012432482-01-JPFIA0001ZZ
Brake system is an important safety part. If a brake fluid leak is detected, always disassemble the affected part. If a
malfunction is detected, replace part with a new one.
Always connect the battery terminals when moving the vehicle.
Check that no brake fluid leakage is present after replacing the parts.
Burnish the brake contact surfaces after refinishing or replacing disc brake rotors, after replacing brake pads, or if a soft pedal
occurs at very low mileage.
Front brake pad: Refer to Inspection and Adjustment.
Front disc brake rotor: Refer to Inspection and Adjustment.
Rear brake lining: refer to Inspection.
Rear brake drum: Inspection.

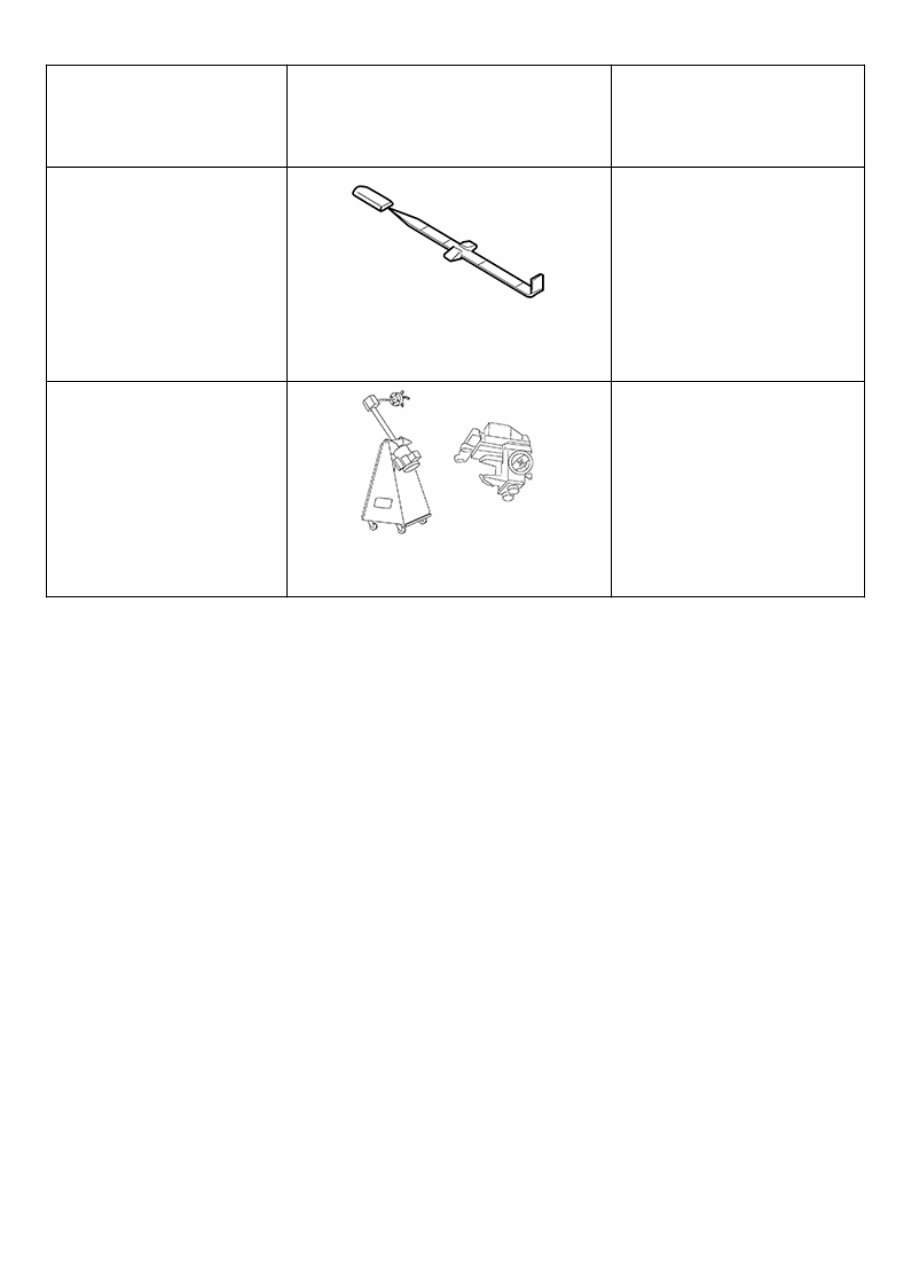

Special Service Tool
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name
Description
—
(J-46532)
Brake height tool
NISA0000000012432483-01-
LFIA0227E
Measuring brake pedal height
38-PFM92
( — )
ProCut™ PFM Series Lathe
NISA0000000012432483-02-
ALFIA0092ZZ
Refinishing rotors

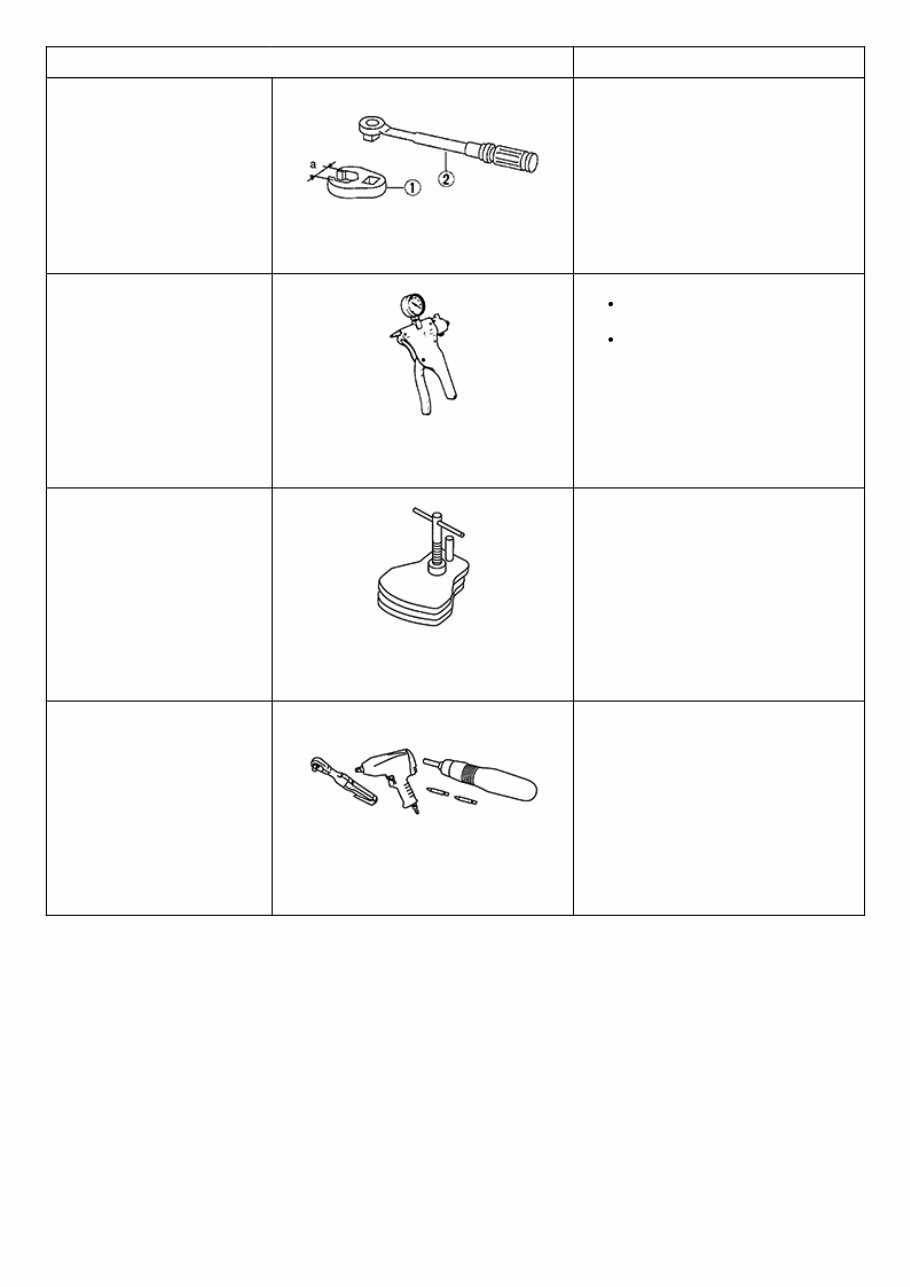

Commercial Service Tool
Tool name Description
1. Flare nut crowfoot
2. Torque wrench
NISA0000000012432484-01-NT360
Tightening brake tube flare nuts
a:10 mm (0.39 in) / 12 mm (0.47 in)
Vacuum pump
NISA0000000012432484-02-
ZZC1313D
Air tight
Inspection of check valve
Brake caliper wrench (front)
NISA0000000012432484-03-
NNFIA0040ZZ
Return the piston
Power tool
NISA0000000012432484-04-
PIIB1407E
Loosening nuts, screws and bolts
Inspection
INSPECTION

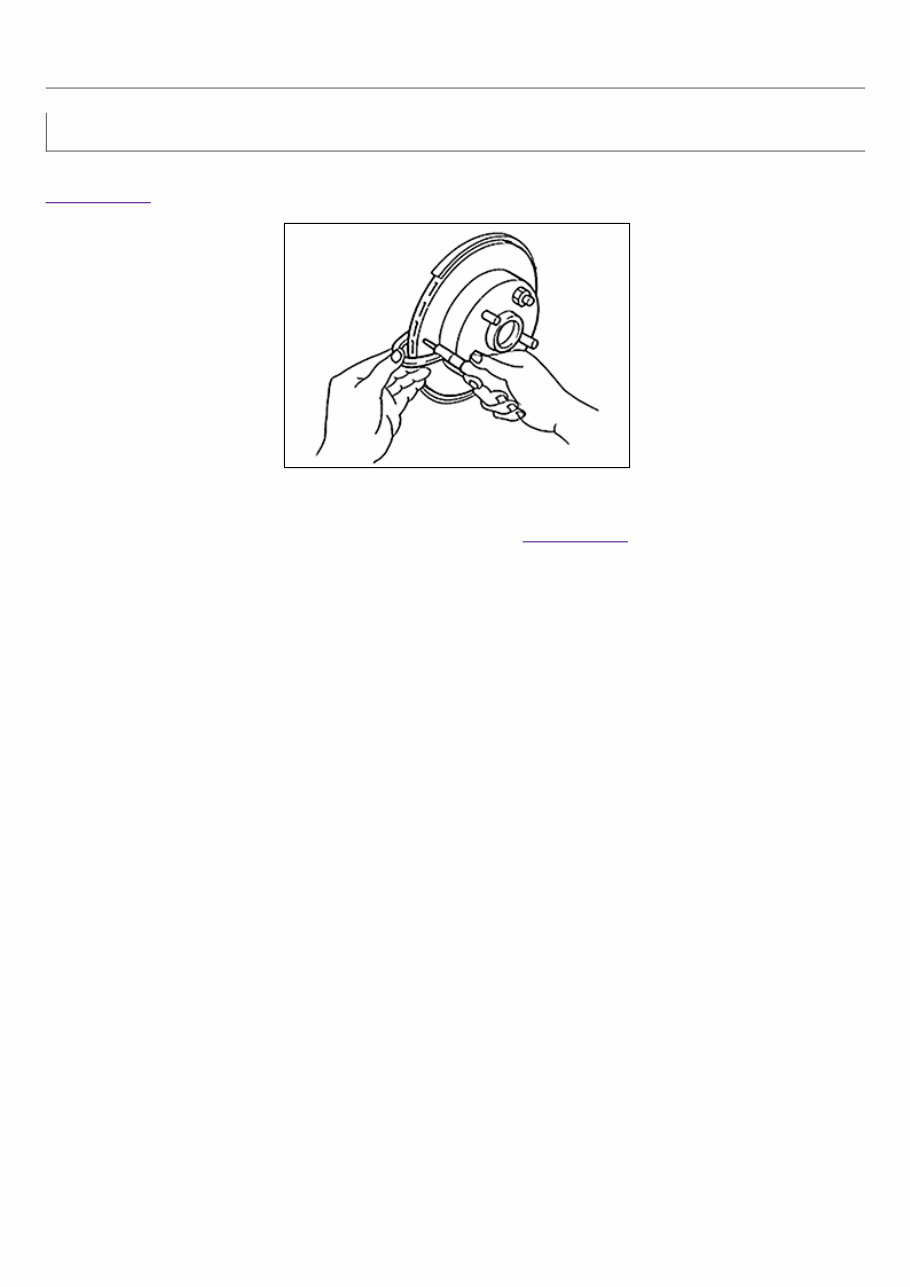

Uneven wear
Check the uneven wear of the disc rotor using a micrometer. Replace the disc rotor if the thickness is below the wear limit. Refer to
Front Disc Brake.
NISA0000000012541356-01-SBR020B
Thickness variation
(Measured at 8 positions)
: Refer to Front Disc Brake.
Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.
Reference page
Inspection
and
Adjustment,
Inspection
Inspection
and
Adjustment,
Inspection
Inspection
and
Adjustment
Inspection,
Inspection
and
Adjustment
Inspection,
Inspection
and
Adjustment,
Inspection
Inspection
and
Adjustment
Inspection
and
Adjustment
Inspection
and
Adjustment,
Inspection
Inspection
and
Adjustment,
Inspection
Inspection,
Inspection
and
Adjustment
Inspection
NVH
Troubleshooting
Chart
NVH
Troubleshooting
Chart
NVH
Troubleshooting
Chart
NVH
Troubleshooting
Chart
N
Troub
C
Possible cause and
SUSPECTED PARTS
Pads or
lining
damaged
Pads or
lining
uneven
wear
Shims
damaged
Rotor
imbalance
Rotor or
drum
damage
Rotor
runout
Rotor
deformation
Rotor or
drum
deflection
Rotor or
drum rust
Rotor
thickness
variation
Drum out
of round
AXLE AND
SUSPENSION
TIRE
Symptom BRAKE
Noise × × × × ×
Shake × ×
Shimmy,
Shudder
× × × × × × × × ×
×: Applicable
Inspection

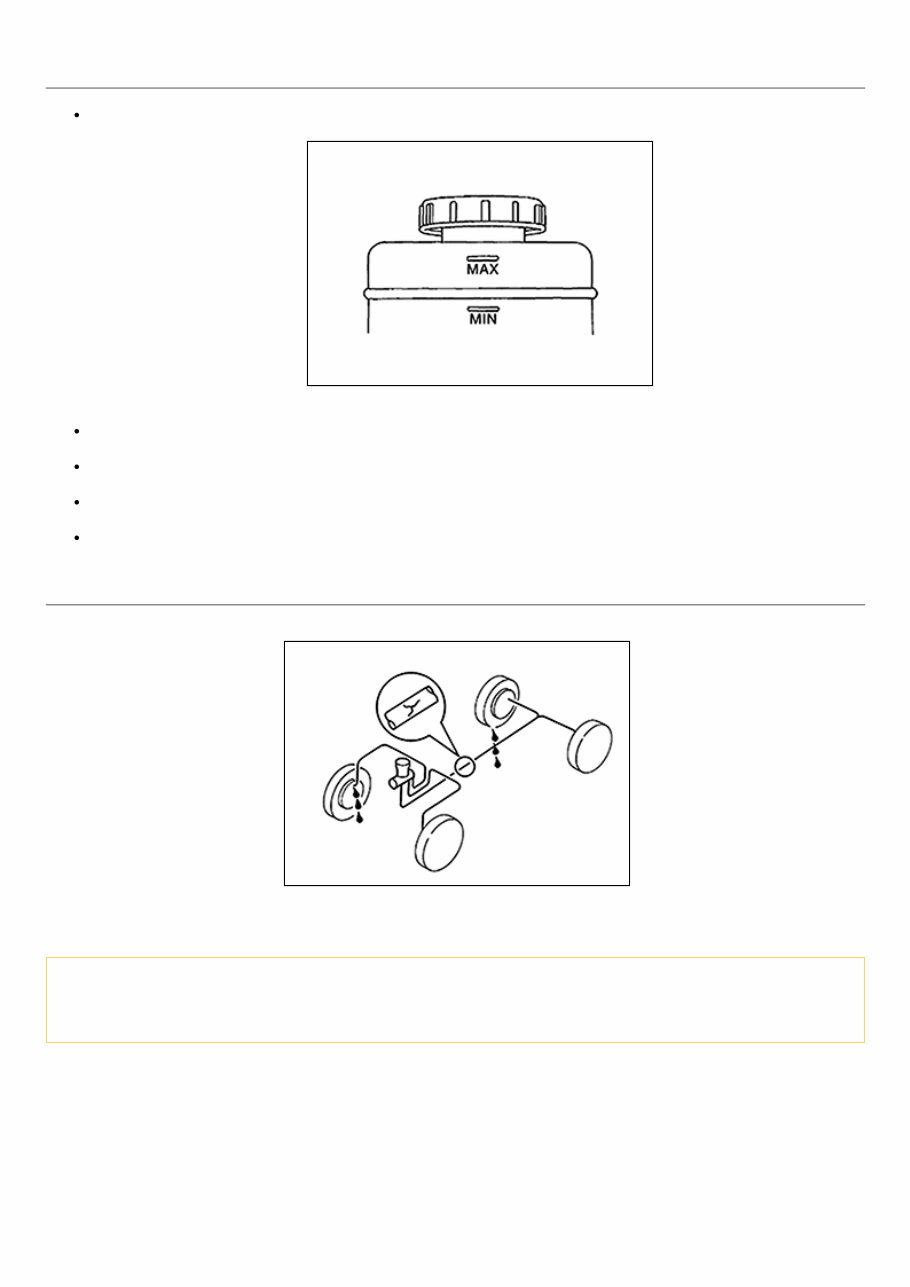

BRAKE FLUID LEVEL
Check that the fluid level in the reservoir tank is within the specified range between the MAX – MIN lines as shown.
NISA0000000012432487-01-JPFIA0007ZZ
Visually check for any brake fluid leaks around the reservoir tank.
Check the brake system for any leaks if the fluid level is extremely low (lower than MIN).
Check the brake system for fluid leaks if the warning lamp remains illuminated even after the parking brake is released.
Check the reservoir tank for the mixing of foreign matter (e.g. dust) and oils other than brake fluid.
BRAKE LINE
1 Check brake tubes and hoses for cracks, deterioration or other damage. Replace any damaged parts.
NISA0000000012432487-02-SBR389C

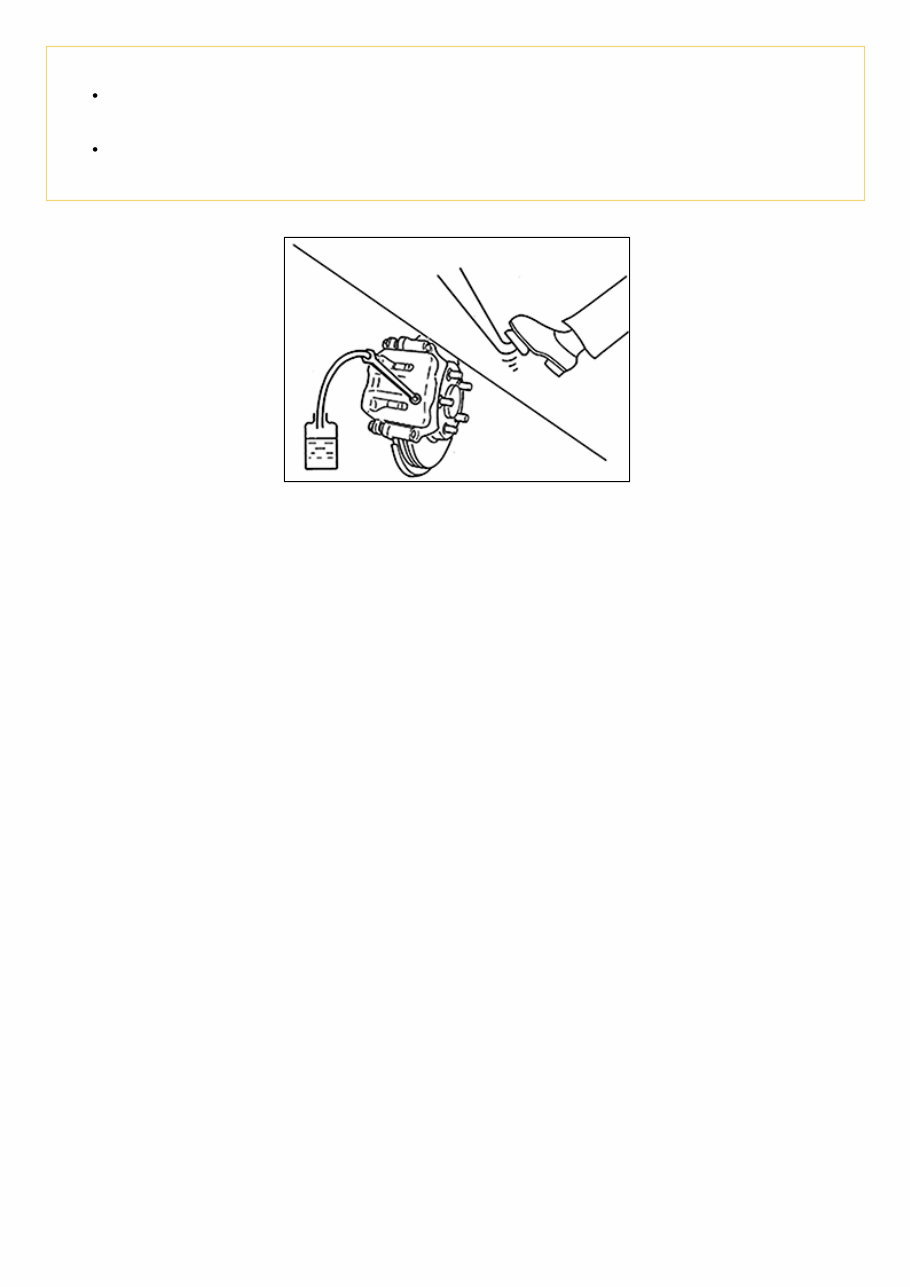

2 Check for brake fluid leaks by fully depressing brake pedal while engine is running.
CAUTION:
Retighten the applicable connection to the specified torque and repair any abnormal (damaged, worn or deformed) part if
any brake fluid leaks are present.
Draining
CAUTION:
Do not spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off
immediately and wash with water if it gets on a painted surface.
Turn the ignition switch OFF and disconnect ABS actuator and electric unit (control unit) or battery negative
terminal before performing work.
1 Connect a vinyl tube to the bleeder valve.
NISA0000000012432488-01-BRA0007D
2 Depress the brake pedal and loosen the bleeder valve to gradually discharge brake fluid.
Refilling
CAUTION:
Turn the ignition switch OFF and disconnect ABS actuator and electric unit (control unit) or battery negative
terminal before performing work.
Do not spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off
immediately and wash with water if it gets on a painted surface.
Monitor the brake fluid level in the reservoir while performing the air bleeding procedure.
Always use new brake fluid for refilling. Do not reuse drained brake fluid.
Do not allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.

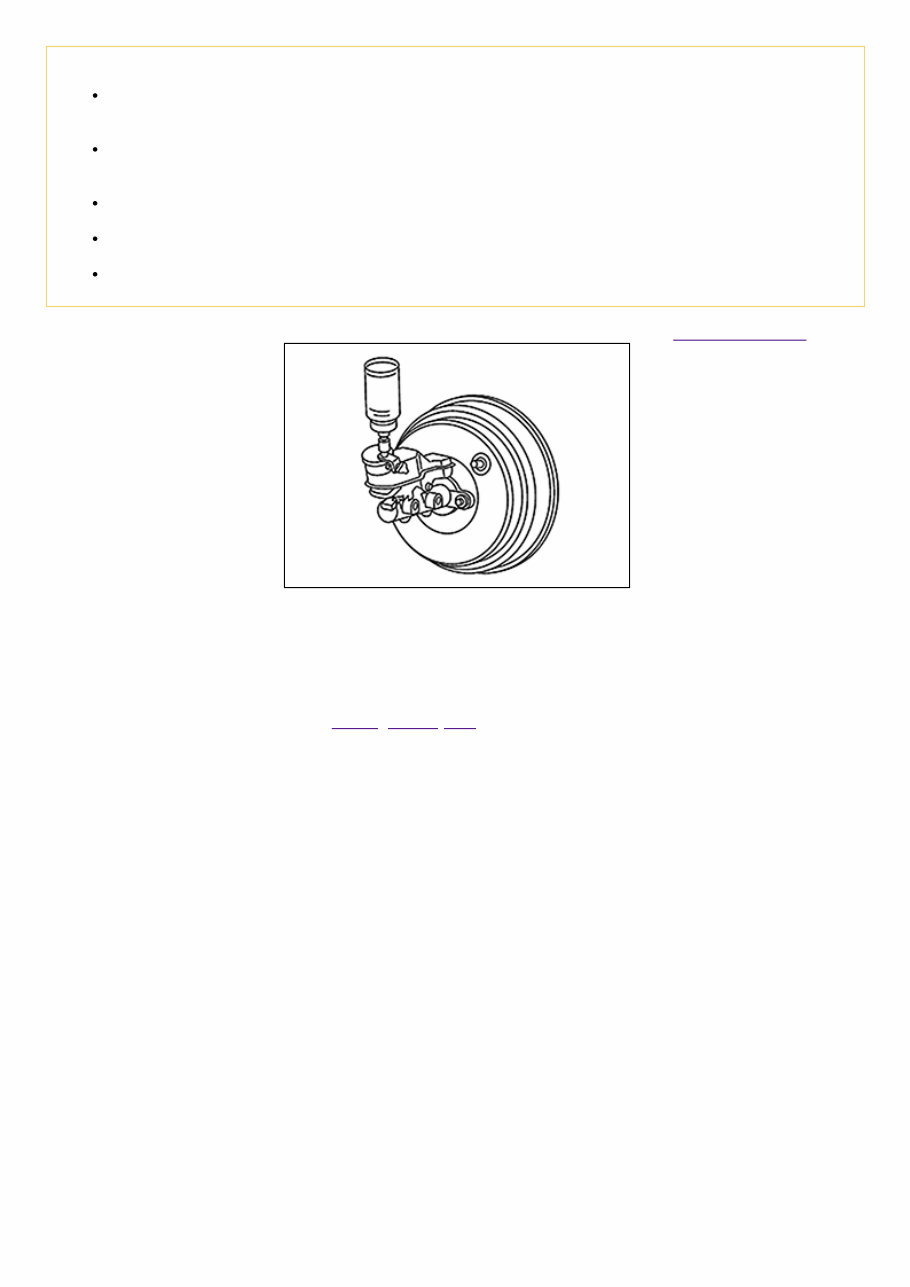

1 Check that there is no foreign material in the reservoir tank, and refill with new brake fluid. Refer to Fluids and Lubricants.
NISA0000000012432489-01-PFIA0403J
2 Loosen the bleeder valve, slowly depress the brake pedal to the full stroke, and then release the pedal. Repeat this operation at
intervals of 2 or 3 seconds until new brake fluid is discharged. Then close the bleeder valve with the brake pedal depressed. Repeat
the same work on each wheel.
3 Perform the air bleeding procedure. Refer to Bleeding Brake System.
