ACC-1
ACCELERATOR CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION ACC
A
ACC
Revision: October 2006 2006 Titan
PRECAUTIONS ......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................. 2
ACCELERATOR CONTROL SYSTEM ..................... 3
Removal and Installation ......................................... 3
ADJUSTABLE ACCELERATOR PEDAL
ASSEMBLY .......................................................... 3
NON-ADJUSTABLE ACCELERATOR PEDAL
ASSEMBLY .......................................................... 5
SERVICE DATA AND SPECIFICATIONS (SDS) ....... 7
Accelerator Control .................................................. 7
ACCELERATOR PEDAL STROKE AND
TRAVEL ................................................................ 7
ACC-2 Revision: October 2006
PRECAUTIONS
2006 Titan
PRECAUTIONS PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER” EBS00RE0
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
● To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
● Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
● Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
ACCELERATOR CONTROL SYSTEM
ACC-3
C
D
E
F
G
H
I
J
K
L
M
A
ACC
Revision: October 2006 2006 Titan
ACCELERATOR CONTROL SYSTEM PFP:18005
Removal and Installation EBS00L3P
ADJUSTABLE ACCELERATOR PEDAL ASSEMBLY
Adjustable Accelerator Pedal
CAUTION:
● Do not disassemble the accelerator pedal adjusting mechanism.
● Before removal and installation, the accelerator and brake pedals must be in the frontmost posi-
tion. This is to align the base position of the accelerator and brake pedals.
● Do not disassemble the accelerator pedal assembly.
● Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
● Avoid damage from dropping the accelerator pedal assembly during handling.
● Keep the accelerator pedal assembly away from water.
Removal
1. Move the accelerator and brake pedals to the frontmost position.
2. Turn the ignition switch OFF and disconnect the negative battery terminal.
3. Disconnect the adjustable brake pedal cable from the adjustable brake pedal.
● Unlock, then pull the adjustable brake pedal cable to disconnect it from the adjustable brake pedal.

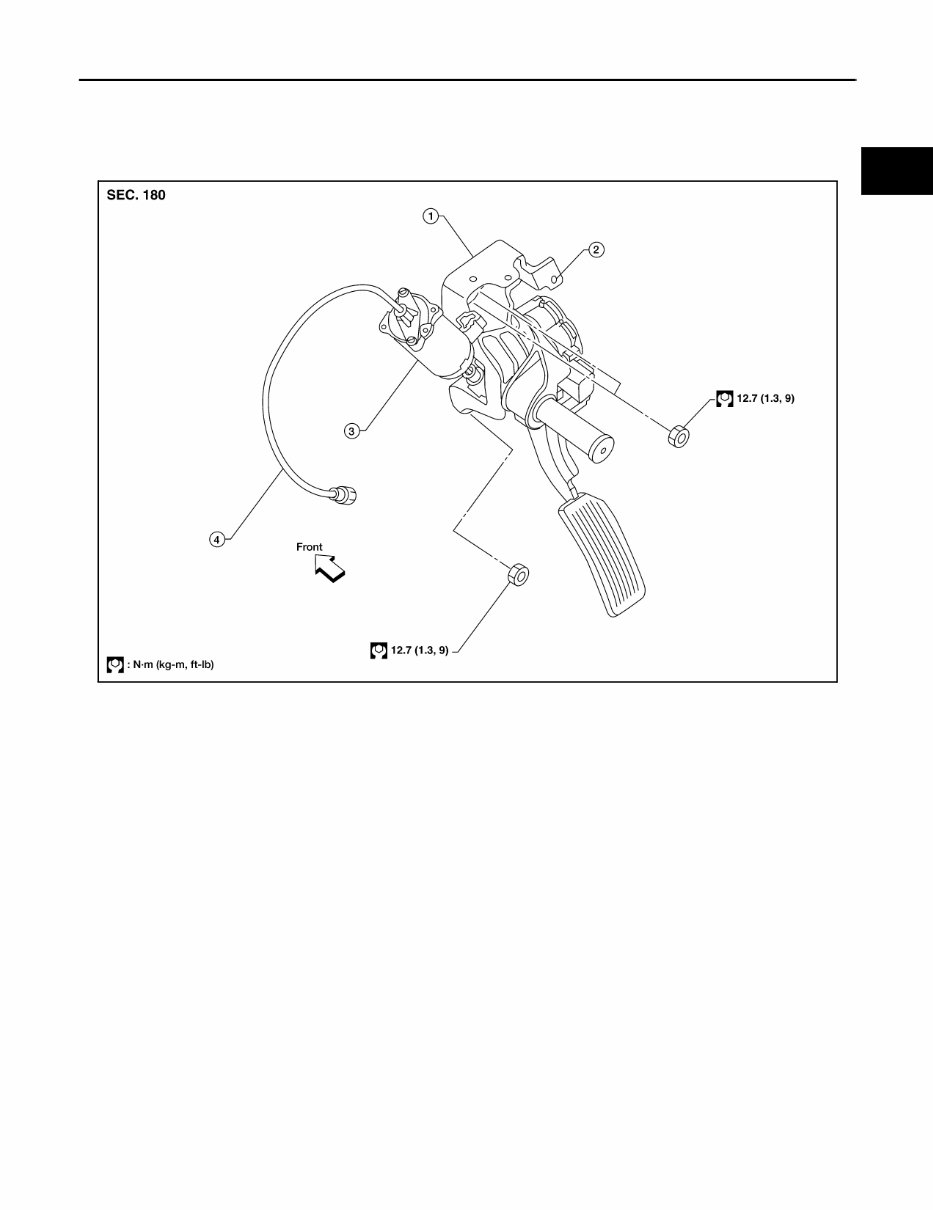

LBIA0379E
1. Adjustable accelerator pedal assem-
bly
2. Adjustable accelerator pedal bracket
(part of the accelerator pedal assembly)
3. Adjustable pedal electric motor (part
of the accelerator pedal assembly)
4. Adjustable brake pedal cable (part
of the accelerator pedal assembly)
ACC-4 Revision: October 2006
ACCELERATOR CONTROL SYSTEM
2006 Titan

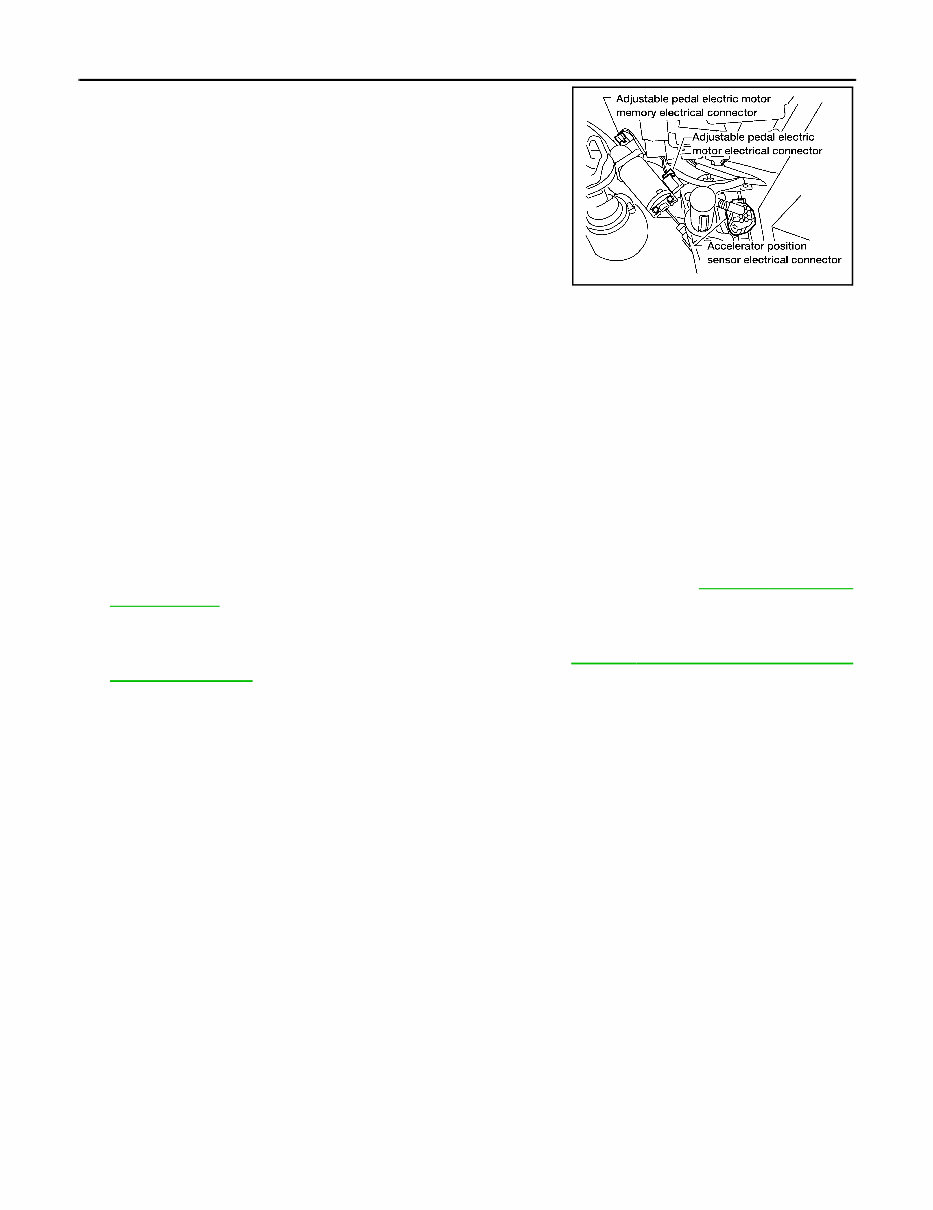

4. Disconnect the adjustable pedal electric motor electrical connec-
tor.
5. Disconnect the adjustable pedal electric motor memory electri-
cal connector, if equipped.
6. Disconnect the accelerator position sensor electrical connector.
7. Remove the two upper and one lower accelerator pedal nuts.
8. Remove the adjustable accelerator pedal assembly.
CAUTION:
● Do not disassemble the accelerator pedal assembly.
● Do not remove the accelerator pedal position sensor
from the accelerator pedal bracket.
● Do not disassemble the accelerator pedal adjusting mechanism.
● Avoid damage from dropping the accelerator pedal assembly during handling.
● Keep the accelerator pedal assembly away from water.
Installation
Installation is in the reverse order of removal.
Inspection After Installation
● Check that the accelerator pedal moves smoothly within the specified ranges.
● Depress and release the accelerator pedal to check that it returns smoothly to the original released posi-
tion.
● Perform an electrical inspection of the accelerator pedal position sensor. Refer to EC-562, " DTC P2138
APP SENSOR " .
CAUTION:
When the harness connector of the accelerator pedal position sensor is disconnected, perform
″Accelerator Pedal Released Position Learning″. Refer to EC-83, " Accelerator Pedal Released
Position Learning " .
LBIA0380E
Adjustable accelerator pedal – total pedal applied stroke : 48.3 mm (1.90 in)
Adjustable accelerator pedal – total pedal adjustment travel : 73.2 mm (2.88 in)
ACCELERATOR CONTROL SYSTEM
ACC-5
C
D
E
F
G
H
I
J
K
L
M
A
ACC
Revision: October 2006 2006 Titan
NON-ADJUSTABLE ACCELERATOR PEDAL ASSEMBLY
Non-Adjustable Accelerator Pedal
CAUTION:
● Do not disassemble the accelerator pedal assembly.
● Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
● Avoid damage from dropping the accelerator pedal assembly during handling.
● Keep the accelerator pedal assembly away from water.
Removal
1. Turn the ignition switch OFF and disconnect the negative battery terminal.
2. Disconnect the accelerator position sensor electrical connector.
3. Remove the two upper and one lower accelerator pedal nuts.
4. Remove the adjustable accelerator pedal assembly.
CAUTION:
● Do not disassemble the accelerator pedal assembly.
● Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
● Avoid damage from dropping the accelerator pedal assembly during handling.
● Keep the accelerator pedal assembly away from water.
Installation
Installation is in the reverse order of removal.
Inspection After Installation
● Check that the accelerator pedal moves smoothly within the specified range.

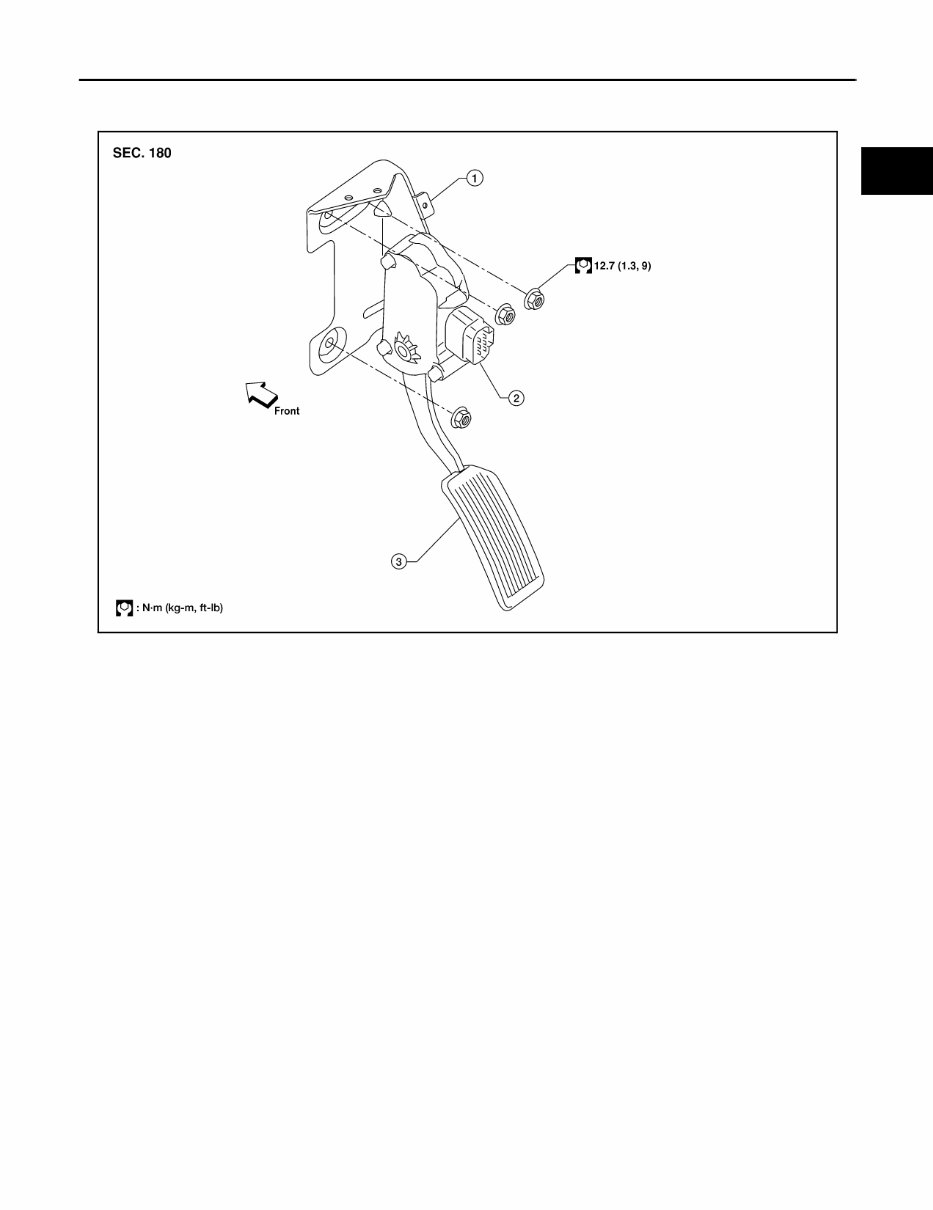

LBIA0404E
1. Non-adjustable accelerator pedal
A/T cable attachment bracket
(part of the accelerator pedal
assembly)
2. Non-adjustable accelerator pedal position
sensor (part of the accelerator pedal
assembly)
3. Non-adjustable accelerator pedal
assembly
Non-adjustable accelerator pedal – total pedal applied stroke : 48 mm (1.89 in)
ACC-6 Revision: October 2006
ACCELERATOR CONTROL SYSTEM
2006 Titan
● Depress and release the accelerator pedal to check that it returns smoothly to the original released posi-
tion.
● Perform an electrical inspection of the accelerator pedal position sensor. Refer to EC-562, " DTC P2138
APP SENSOR " .
CAUTION:
When the harness connector of the accelerator pedal position sensor is disconnected, perform
″Accelerator Pedal Released Position Learning″. Refer to EC-83, " Accelerator Pedal Released
Position Learning " .
SERVICE DATA AND SPECIFICATIONS (SDS)
ACC-7
C
D
E
F
G
H
I
J
K
L
M
A
ACC
Revision: October 2006 2006 Titan
SERVICE DATA AND SPECIFICATIONS (SDS) PFP:00030
Accelerator Control EBS00L3Q
ACCELERATOR PEDAL STROKE AND TRAVEL
Unit: mm (in)
Non-adjustable accelerator pedal - total pedal applied stroke 48 (1.89)
Adjustable accelerator pedal - total pedal applied stroke 48.3 (1.90)
Adjustable accelerator pedal - total pedal adjustment travel 73.2 (2.88)
ACC-8 Revision: October 2006
SERVICE DATA AND SPECIFICATIONS (SDS)
2006 Titan
