ACC-1
ACCELERATOR CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
ACC
Revision: October 2004 2005 Titan
ACCELERATOR CONTROL SYSTEM ..................... 2
Removal and Installation ......................................... 2
ADJUSTABLE ACCELERATOR PEDAL
ASSEMBLY .......................................................... 2
NON-ADJUSTABLE ACCELERATOR PEDAL
ASSEMBLY .......................................................... 3
SERVICE DATA AND SPECIFICATIONS (SDS) ....... 5
Accelerator Control .................................................. 5
ACCELERATOR PEDAL STROKE AND
TRAVEL ................................................................ 5
ACC-2 Revision: October 2004
ACCELERATOR CONTROL SYSTEM
2005 Titan
ACCELERATOR CONTROL SYSTEM PFP:18005
Removal and Installation EBS00L3P
ADJUSTABLE ACCELERATOR PEDAL ASSEMBLY
Adjustable Accelerator Pedal
CAUTION:
● Do not disassemble the accelerator pedal adjusting mechanism.
● Before removal and installation, the accelerator and brake pedals must be in the frontmost posi-
tion. This is to align the base position of the accelerator and brake pedals.
● Do not disassemble the accelerator pedal assembly.
● Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
● Avoid damage from dropping the accelerator pedal assembly during handling.
● Keep the accelerator pedal assembly away from water.
Removal
1. Move the accelerator and brake pedals to the frontmost position.
2. Turn the ignition switch OFF and disconnect the negative battery terminal.
3. Disconnect the adjustable brake pedal cable from the adjustable brake pedal.
● Unlock, then pull the adjustable brake pedal cable to disconnect it from the adjustable brake pedal.

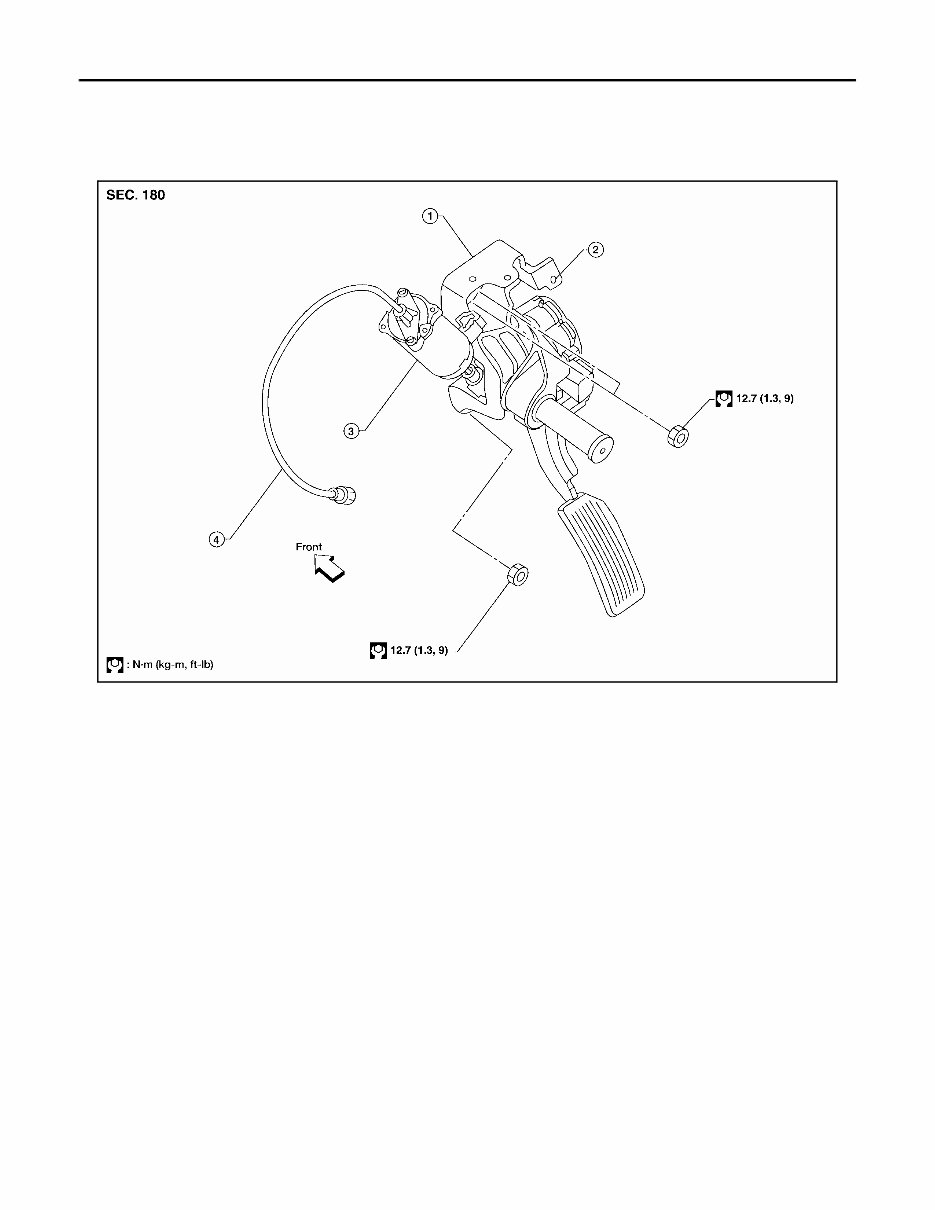

LBIA0379E
1. Adjustable accelerator pedal assem-
bly
2. Adjustable accelerator pedal bracket
(part of the accelerator pedal assembly)
3. Adjustable pedal electric motor (part
of the accelerator pedal assembly)
4. Adjustable brake pedal cable (part
of the accelerator pedal assembly)
ACCELERATOR CONTROL SYSTEM
ACC-3
C
D
E
F
G
H
I
J
K
L
M
A
ACC
Revision: October 2004 2005 Titan
4. Disconnect the adjustable pedal electric motor electrical connec-
tor.
5. Disconnect the adjustable pedal electric motor memory electri-
cal connector, if equipped.
6. Disconnect the accelerator position sensor electrical connector.
7. Remove the two upper and one lower accelerator pedal nuts.
8. Remove the adjustable accelerator pedal assembly.
Installation
Installation is in the reverse order of removal.
Inspection After Installation
● Check that the accelerator pedal moves smoothly within the specified ranges.
● Depress and release the accelerator pedal to check that it returns smoothly to the original released posi-
tion.
● Perform an electrical inspection of the accelerator pedal position sensor. Refer to EC-588, " DTC P2138
APP SENSOR " .
CAUTION:
When the harness connector of the accelerator pedal position sensor is disconnected, perform
″Accelerator Pedal Released Position Learning″. Refer to EC-89, " Accelerator Pedal Released
Position Learning " .
NON-ADJUSTABLE ACCELERATOR PEDAL ASSEMBLY
Non-Adjustable Accelerator Pedal
LBIA0380E
Adjustable accelerator pedal – total pedal applied stroke : 48.3 mm (1.90 in)
Adjustable accelerator pedal – total pedal adjustment travel : 73.2 mm (2.88 in)
LBIA0404E
ACC-4 Revision: October 2004
ACCELERATOR CONTROL SYSTEM
2005 Titan
CAUTION:
● Do not disassemble the accelerator pedal assembly.
● Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
● Avoid damage from dropping the accelerator pedal assembly during handling.
● Keep the accelerator pedal assembly away from water.
Removal
1. Turn the ignition switch OFF and disconnect the negative battery terminal.
2. Disconnect the accelerator position sensor electrical connector.
3. Remove the two upper and one lower accelerator pedal nuts.
4. Remove the adjustable accelerator pedal assembly.
Installation
Installation is in the reverse order of removal.
Inspection After Installation
● Check that the accelerator pedal moves smoothly within the specified range.
● Depress and release the accelerator pedal to check that it returns smoothly to the original released posi-
tion.
● Perform an electrical inspection of the accelerator pedal position sensor. Refer to EC-588, " DTC P2138
APP SENSOR " .
CAUTION:
When the harness connector of the accelerator pedal position sensor is disconnected, perform
″Accelerator Pedal Released Position Learning″. Refer to EC-89, " Accelerator Pedal Released
Position Learning " .

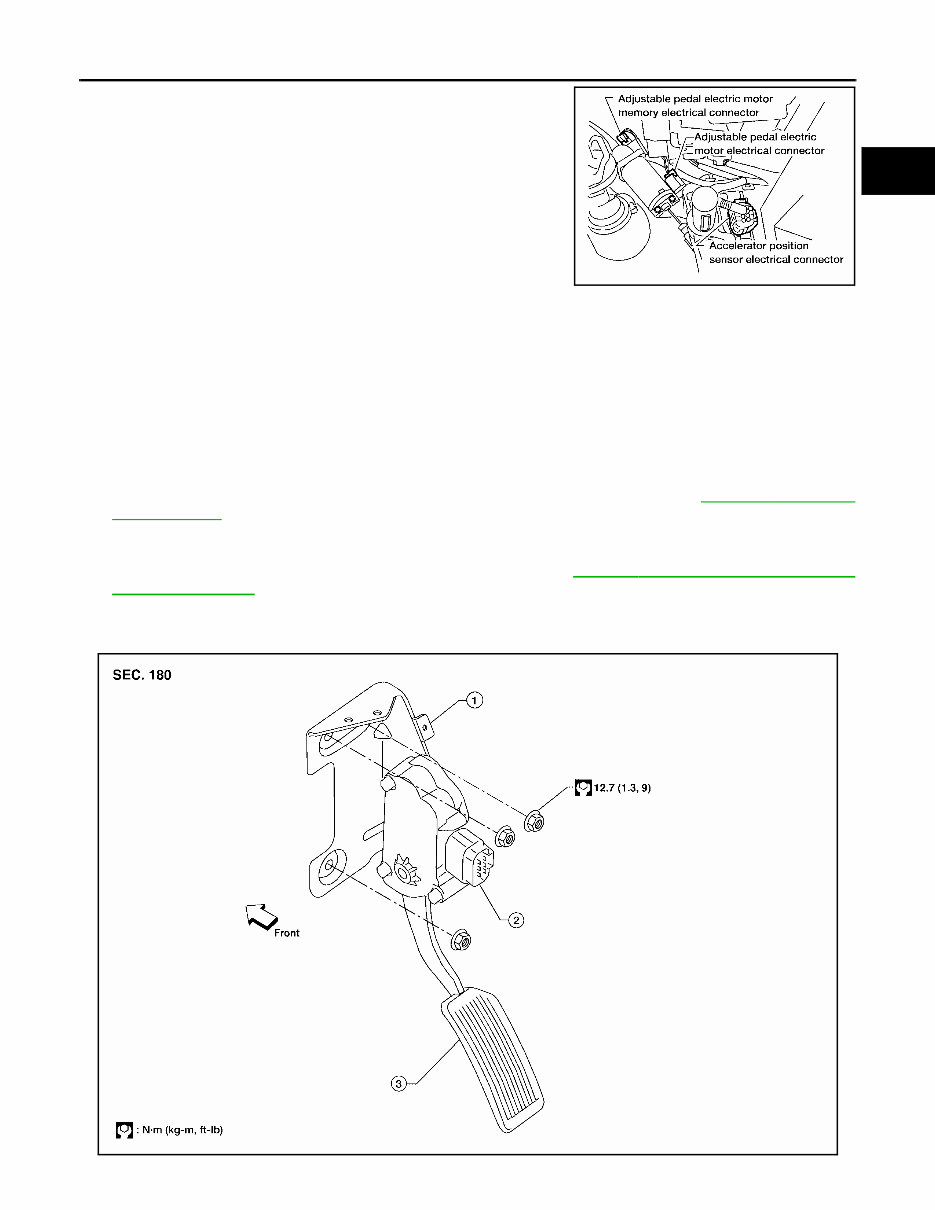

1. Non-adjustable accelerator pedal
A/T cable attachment bracket
(part of the accelerator pedal
assembly)
2. Non-adjustable accelerator pedal position
sensor (part of the accelerator pedal
assembly)
3. Non-adjustable accelerator pedal
assembly
Non-adjustable accelerator pedal – total pedal applied stroke : 48 mm (1.89 in)
SERVICE DATA AND SPECIFICATIONS (SDS)
ACC-5
C
D
E
F
G
H
I
J
K
L
M
A
ACC
Revision: October 2004 2005 Titan
SERVICE DATA AND SPECIFICATIONS (SDS) PFP:00030
Accelerator Control EBS00L3Q
ACCELERATOR PEDAL STROKE AND TRAVEL
Unit: mm (in)
Non-adjustable accelerator pedal - total pedal applied stroke 48 (1.89)
Adjustable accelerator pedal - total pedal applied stroke 48.3 (1.90)
Adjustable accelerator pedal - total pedal adjustment travel 73.2 (2.88)
ACC-6 Revision: October 2004
SERVICE DATA AND SPECIFICATIONS (SDS)
2005 Titan
