HAC-1
VENTILATION, HEATER & AIR CONDITIONER
C
D
E
F
G
H
J
K
L
M
SECTION HAC
A
B
HAC
N
O
P
CONTENTS
HEATER & AIR CONDITIONING CONTROL SYSTEM
MANUAL AIR CONDITIONER
BASIC INSPECTION ................................... 3
DIAGNOSIS AND REPAIR WORKFLOW ......... 3
Work Flow ................................................................ 3
INSPECTION AND ADJUSTMENT .................... 4
Description & Inspection .......................................... 4
FUNCTION DIAGNOSIS .............................. 5
COMPRESSOR CONTROL FUNCTION ............ 5
Description ............................................................... 5
Component Part Location ........................................ 6
Component Description ............................................ 7
MANUAL AIR CONDITIONER SYSTEM ........... 9
System Diagram ....................................................... 9
System Description .................................................. 9
Component Part Location ...................................... 15
Component Description .......................................... 17
DIAGNOSIS SYSTEM (BCM) ...........................19
COMMON ITEM ........................................................ 19
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .................................................... 19
AIR CONDITIONER .................................................. 19
AIR CONDITIONER : CONSULT-III Function ........ 20
MAGNET CLUTCH CONTROL SYSTEM .........21
System Diagram ..................................................... 21
System Description ................................................ 21
COMPONENT DIAGNOSIS ........................ 22
MODE DOOR MOTOR ......................................22
Description ............................................................. 22
Component Function Check ................................. 22
Diagnosis Procedure .............................................. 22
AIR MIX DOOR MOTOR ................................... 24
Description ..............................................................24
Component Function Check .................................24
Diagnosis Procedure ..............................................24
INTAKE DOOR MOTOR ................................... 26
Description ..............................................................26
Component Function Check .................................26
Diagnosis Procedure ..............................................26
BLOWER MOTOR ............................................ 28
Description ..............................................................28
Component Function Check .................................28
Diagnosis Procedure ..............................................28
Component Inspection (Blower Motor) ...................31
Component Inspection (Fan Control Amp.) ............31
MAGNET CLUTCH ........................................... 32
Description ..............................................................32
Component Function Check ...................................32
Diagnosis Procedure ..............................................32
INTAKE SENSOR ............................................. 36
Description ..............................................................36
Diagnosis Procedure ..............................................36
Component Inspection ............................................37
POWER SUPPLY AND GROUND CIRCUIT
FOR A/C AMP. .................................................. 38
Description ..............................................................38
Component Function Check ...................................38
Diagnosis Procedure ..............................................38
ECU DIAGNOSIS ........................................ 40
BCM (BODY CONTROL MODULE) ................. 40
Reference Value .....................................................40
A/C AMP. ........................................................... 55
Reference Value .....................................................55
Wiring Diagram — AIR CONDITIONER CON-
TROL SYSTEM — ..................................................57
Revision: 2008 August 2009 Rogue
HAC-2
SYMPTOM DIAGNOSIS ............................ 63
MANUAL AIR CONDITIONER SYSTEM .......... 63
Diagnosis Chart By Symptom ................................ 63
INSUFFICIENT COOLING ................................ 64
Description ............................................................. 64
Inspection procedure ............................................. 64
INSUFFICIENT HEATING ................................ 65
Description ............................................................. 65
Inspection procedure ............................................. 65
NOISE ............................................................... 67
Description ............................................................. 67
Inspection procedure ............................................. 67
PRECAUTION ............................................ 69
PRECAUTIONS ................................................ 69
FOR USA AND CANADA ........................................ 69
FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" .......................... 69
FOR USA AND CANADA : Precaution Necessary
for Steering Wheel Rotation After Battery Discon-
nect ........................................................................ 69
FOR USA AND CANADA : Precaution for Proce-
dure without Cowl Top Cover ................................ 70
FOR USA AND CANADA : Precautions For Xenon
Headlamp Service ................................................. 70
FOR USA AND CANADA : Working with HFC-
134a (R-134a) ....................................................... 70
FOR USA AND CANADA : General Refrigerant
Precaution ............................................................. 71
FOR USA AND CANADA : Refrigerant Connec-
tion ......................................................................... 71
FOR USA AND CANADA : Service Equipment ..... 73
FOR MEXICO ........................................................... 75
FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" ................................................ 75
FOR MEXICO : Precaution Necessary for Steer-
ing Wheel Rotation After Battery Disconnect ........ 75
FOR MEXICO : Precaution for Procedure without
Cowl Top Cover ..................................................... 76
FOR MEXICO : Precautions For Xenon Headlamp
Service ................................................................... 76
FOR MEXICO : Working with HFC-134a (R-134a) ... 76
FOR MEXICO : General Refrigerant Precaution ... 77
FOR MEXICO : Refrigerant Connection ................ 77
FOR MEXICO : Service Equipment ....................... 79
COMPRESSOR ................................................ 82
General Precautions .............................................. 82
FLUORESCENT LEAK DETECTOR ................ 83
General Precautions .............................................. 83
PREPARATION .......................................... 84
PREPARATION ................................................ 84
Special Service Tool .............................................. 84
Commercial Service Tool ....................................... 86
Sealant or/and Lubricant ........................................ 86
ON-VEHICLE REPAIR ............................... 88
A/C CONTROL ................................................. 88
Exploded View ....................................................... 88
Removal and Installation ........................................ 88
INTAKE SENSOR ............................................. 89
Exploded View ....................................................... 89
Removal and Installation ........................................ 89
REFRIGERANT PRESSURE SENSOR ........... 90
Exploded View ....................................................... 90
Removal and Installation ........................................ 90
DOOR MOTOR ................................................. 91
Exploded View ....................................................... 91
INTAKE DOOR MOTOR .......................................... 91
INTAKE DOOR MOTOR : Removal and Installa-
tion ......................................................................... 91
MODE DOOR MOTOR ............................................. 91
MODE DOOR MOTOR : Removal and Installation ... 91
AIR MIX DOOR MOTOR .......................................... 91
AIR MIX DOOR MOTOR : Removal and Installa-
tion ......................................................................... 92
Revision: 2008 August 2009 Rogue
DIAGNOSIS AND REPAIR WORKFLOW
HAC-3
< BASIC INSPECTION >
[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
M
A
B
HAC
N
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work Flow INFOID:0000000004232193
DETAILED FLOW
1.LISTEN TO CUSTOMER COMPLAINT
Listen to customer complaint. (Get detailed information about the conditions and environment when the symp-
tom occurs.)
>> GO TO 2.
2.VERIFY THE SYMPTOM WITH OPERATIONAL CHECK
Verify the symptom with operational check. Refer to HAC-4, " Description & Inspection " .
>> GO TO 3.
3.GO TO APPROPRIATE TROUBLE DIAGNOSIS
Go to appropriate trouble diagnosis (Refer to HAC-63, " Diagnosis Chart By Symptom " below).
>> GO TO 4.
4.REPAIR OR REPLACE
Repair or replace the specific parts.
>> GO TO 5.
5.FINAL CHECK
Final check.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 3.
Revision: 2008 August 2009 Rogue
HAC-4
< BASIC INSPECTION >
[MANUAL AIR CONDITIONER]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
Description & Inspection INFOID:0000000004232194
DESCRIPTION
The purpose of the operational check is to check that the individual system operates normally.
INSPECTION PROCEDURE
1.CHECKING BLOWER MOTOR
1. Turn fan control dial to 1st speed. Blower should operate on low speed.
2. Turn fan control dial to 2nd speed, and continue checking blower speed until all speeds are checked.
3. Leave blower on maximum speed.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Go to diagnosis procedure. Refer to HAC-28, " Diagnosis Procedure " .
2.CHECKING DISCHARGE AIR
1. Turn mode control dial to each position.
2. Confirm that discharge air comes out according to the air distribution table. Refer to HAC-9, " System
Description " .
Is the inspection result normal?
YES >> GO TO 3.
NO >> Go to diagnosis procedure. Refer to HAC-22, " Diagnosis Procedure " .
3.CHECKING INTAKE AIR
1. Press REC switch. Recirculation indicator lamp turns ON.
2. Press REC switch again. Recirculation indicator lamp turns OFF.
3. Listen for intake door position change. (Slight change of blower sound can be heard.)
Is the inspection result normal?
YES >> GO TO 4.
NO >> Go to diagnosis procedure. Refer to HAC-26, " Diagnosis Procedure " .
4.CHECKING A/C SWITCH
1. Turn fan control dial to 1st speed.
2. Press A/C switch. A/C switch indicator lamp turns ON.
3. Confirm that the magnet clutch engages (sound or visual inspection).
Is the inspection result normal?
YES >> GO TO 5.
NO >> Go to diagnosis procedure. Refer to HAC-32, " Diagnosis Procedure " .
5.CHECKING TEMPERATURE DECREASE
1. Turn temperature control dial counterclockwise until full cold position.
2. Check for cool air at discharge air outlets.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Go to diagnosis procedure. Refer to HAC-64, " Inspection procedure " .
6.CHECKING TEMPERATURE INCREASE
1. Turn temperature control dial clockwise until full hot position.
2. Check for warm air at discharge air outlets.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to diagnosis procedure. Refer to HAC-65, " Inspection procedure " .
Conditions : Engine running at normal operating temperature
Revision: 2008 August 2009 Rogue
COMPRESSOR CONTROL FUNCTION
HAC-5
< FUNCTION DIAGNOSIS >
[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
M
A
B
HAC
N
O
P
FUNCTION DIAGNOSIS
COMPRESSOR CONTROL FUNCTION
Description INFOID:0000000004232195
PRINCIPLE OF OPERATION
Compressor is not activated.

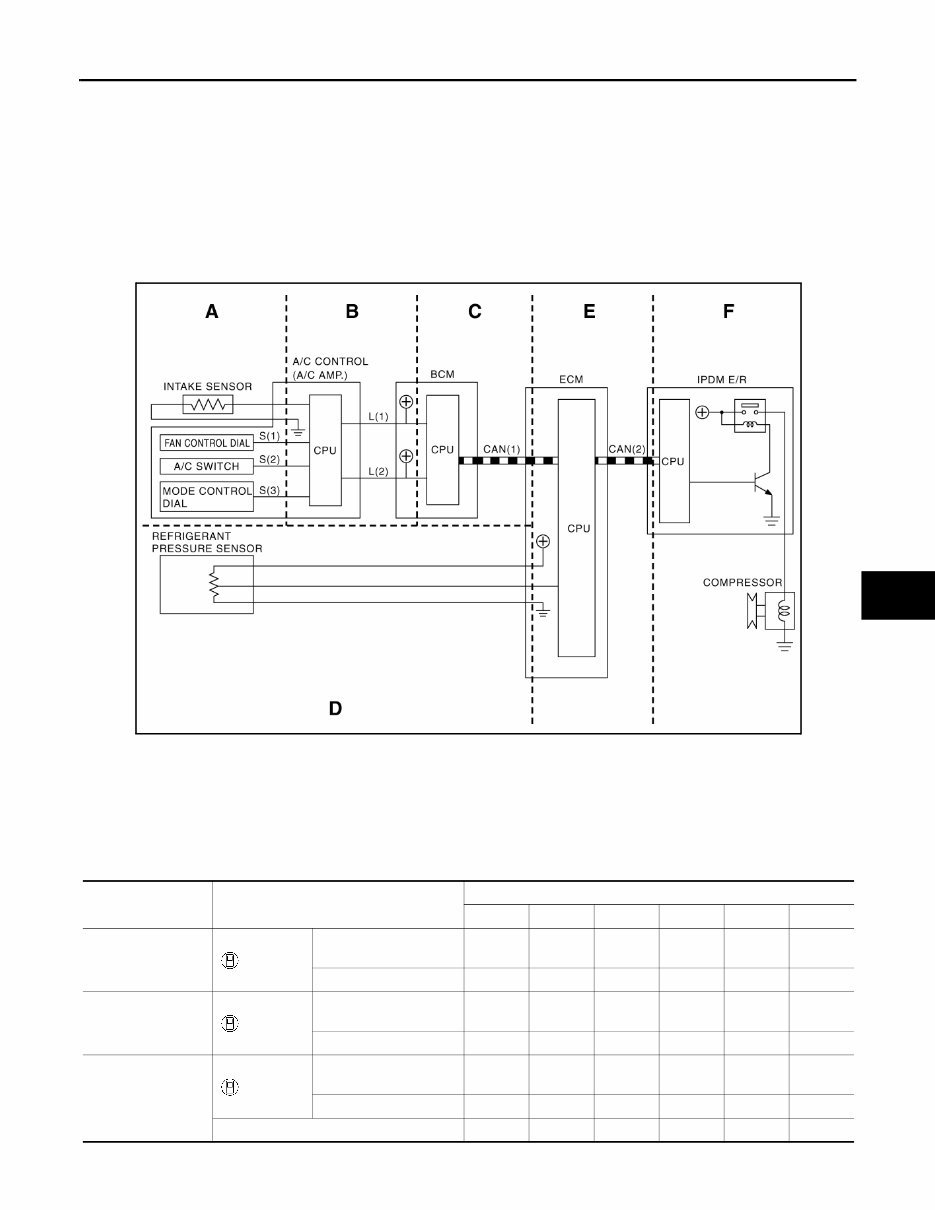

Functional circuit diagram
Functional Initial Inspection Chart
×: Applicable
L (1) : Fan ON signal S (3) : Defogger signal
L (2) : A/C switch signal CAN (1) : A/C switch signal
S (1) : Fan ON signal : Blower fan motor switch signal
S (2) : A/C switch signal CAN (2) : A/C compressor request signal
JPIIA0394GB
Control unit Diagnosis Item
Location
A B C D E F
ECM
“ENGINE”
Self-diagnosis
(CAN system diagnosis)
– – – – × –
Data monitor – – – × × –
BCM
“BCM”
Self-diagnosis
(CAN system diagnosis)
– – × – – –
Data monitor – × × – – –
IPDM E/R
“IPDM E/R”
Self-diagnosis
(CAN system diagnosis)
– – – – – ×
Data monitor – – – – × –
Auto active test – – – – – ×
Revision: 2008 August 2009 Rogue
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
2009 Nissan Rogue Service & Repair Manual
Viewed 94 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
If you own a 2009 Nissan Rogue and enjoy taking a DIY approach to fixing problems on your vehicle, then this service & repair manual is a must-have. It includes every troubleshooting and replacement procedure recommended by the manufacturer, complete with step-by-step instructions, clear images, and exploded-view illustrations.
While your Rogue is undoubtedly durable, regular maintenance is still necessary to keep it running smoothly. And when parts do eventually wear out, this manual will provide you with all the information you need to replace them correctly.
Gone are the days of flipping through countless pages or dealing with greasy, torn, or lost pages. With this electronic manual, you can easily search for specific information, take screenshots, and bookmark pages for future reference. And if you prefer a physical copy, you can always print it out.
This manual is compatible with almost any electronic device, including PC and Mac computers, Android and Apple smartphones and tablets. All you need is Adobe Reader (available for free) to access the manual. Keep your vehicle reliable and save on repair costs with this comprehensive service & repair manual for your 2009 Nissan Rogue.
