2023 Nissan Qashqai, Rogue Sport Service & Repair Manual

Description GUID-CA8796B3-BEF0-4BA2-ABC1-00BCB65587F2 This volume explains “Removal, Disassembly, Installation, Inspection and Adjustment” and “Trouble Diagnoses”.

Terms GUID-D8E53875-C5A3-410D-BA1E-46BFF801771F The captions WARNING and CAUTION warn you of steps that must be followed to prevent personal injury and/or damage to some part of the vehicle. WARNING indicates the possibility of personal injury if instructions are not followed. CAUTION indicates the possibility of component damage if instructions are not followed. BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information. Standard value: Tolerance at inspection and adjustment. Limit value: The maximum or minimum limit value that should not be exceeded at inspection and adjustment.

Units GUID-A9F88C84-A428-419E-BB43-67BAF8DDA95E The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit), and alternatively expressed in the metric system and in the yard/pound system. Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about the standard tightening torque. “Example” Range Outer Socket Lock Nut : 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb) Standard Drive Shaft Installation Bolt : 44.3 N·m (4.5 kg-m, 33 ft-lb)

Contents GUID-2F27FC6E-3476-42FA-807F-7BF8A557F7D0 A QUICK REFERENCE INDEX, a black tab (e.g. ) is provided on the first page. You can quickly find the first page of each section by matching it to the section's black tab. THE CONTENTS are listed on the first page of each section. THE TITLE is indicated on the upper portion of each page and shows the part or system. THE PAGE NUMBER of each section consists of two or three letters which designate the particular section and a number (e.g. “BR-5”). THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of work and hidden or tricky steps which are not shown in the previous large illustrations. Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle or transmission, etc. are presented in a step-by-step format where necessary.

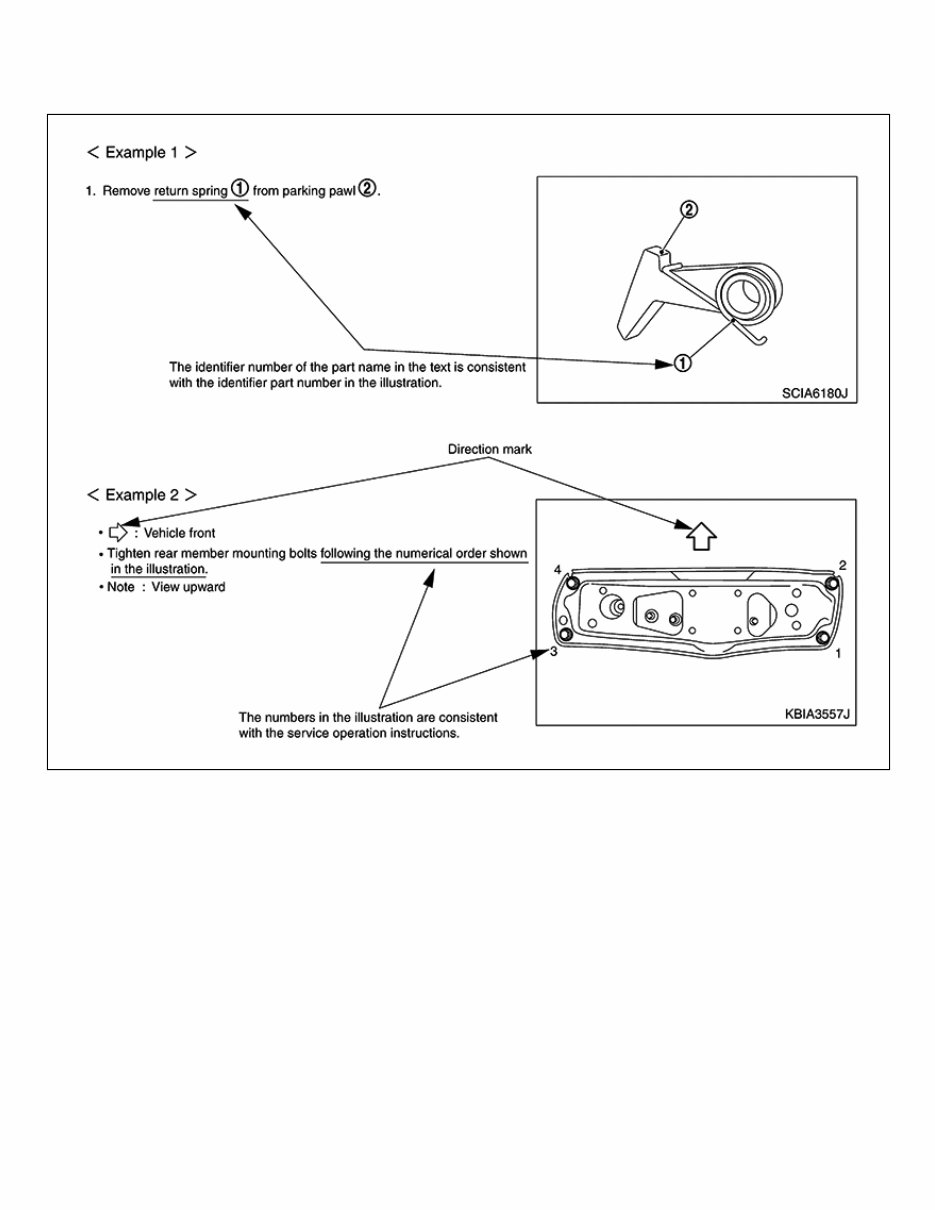

Relation between Illustrations and Descriptions GUID-C7EC34B3-5A2D-4465-8A31-96FE5B3EF396 The following sample explains the relationship between the part description in an illustration, the part name in the text and the service procedures. GUID-NISJSAIA2307GB

Components GUID-8763B5F4-6E31-4F1B-9DC9-C8252D982643 THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubrication points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to perform repairs. The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG. Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration. GUID-NISJPFIA0511GB Cap Bleeder valve Cylinder body Piston seal Piston Piston boot Sliding pin Sliding pin boot Bushing Torque member : Apply rubber grease. : Apply brake fluid. : N·m (kg-m, in-lb) : Always replace after every disassembly SYMBOLS

SYMBOL DESCRIPTION SYMBOL DESCRIPTION N·m (kg-m, ft-lb) Tightening torque The tightening torque specifications of bolts and nuts may be presented as either a range or a standard tightening torque. Always replace after every disassembly. N·m (kg-m, in-lb) Select with proper thickness. Should be lubricated with oil. Adjustment is required. Sealing point Direction Should be lubricated with grease. Unless otherwise indicated, use recommended multi-purpose grease. Metal clip Apply petroleum jelly. Clip Sealing point with locking sealant. Pawl Apply ATF.

Description GUID-FB15ADEE-9B75-4658-8F1A-9DF852ED3D25 Note: Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following instructions before diagnosing. Before performing trouble diagnoses, read the “Work Flow” in each section. After repairs, re-check that the problem has been completely eliminated. Refer to Component Parts and Harness Connector Location for the Systems described in each section for identification/location of components and harness connectors. When checking circuit continuity, ignition switch should be OFF. Refer to the Circuit Diagram for quick pinpoint check. If you need to check circuit continuity between harness connectors in more detail, such as when a sub-harness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG section for identification of harness connectors. Before checking voltage at connectors, check battery voltage. After accomplishing the Diagnosis Procedures and Electrical Components Inspection, check that all harness connectors are reconnected as they were.

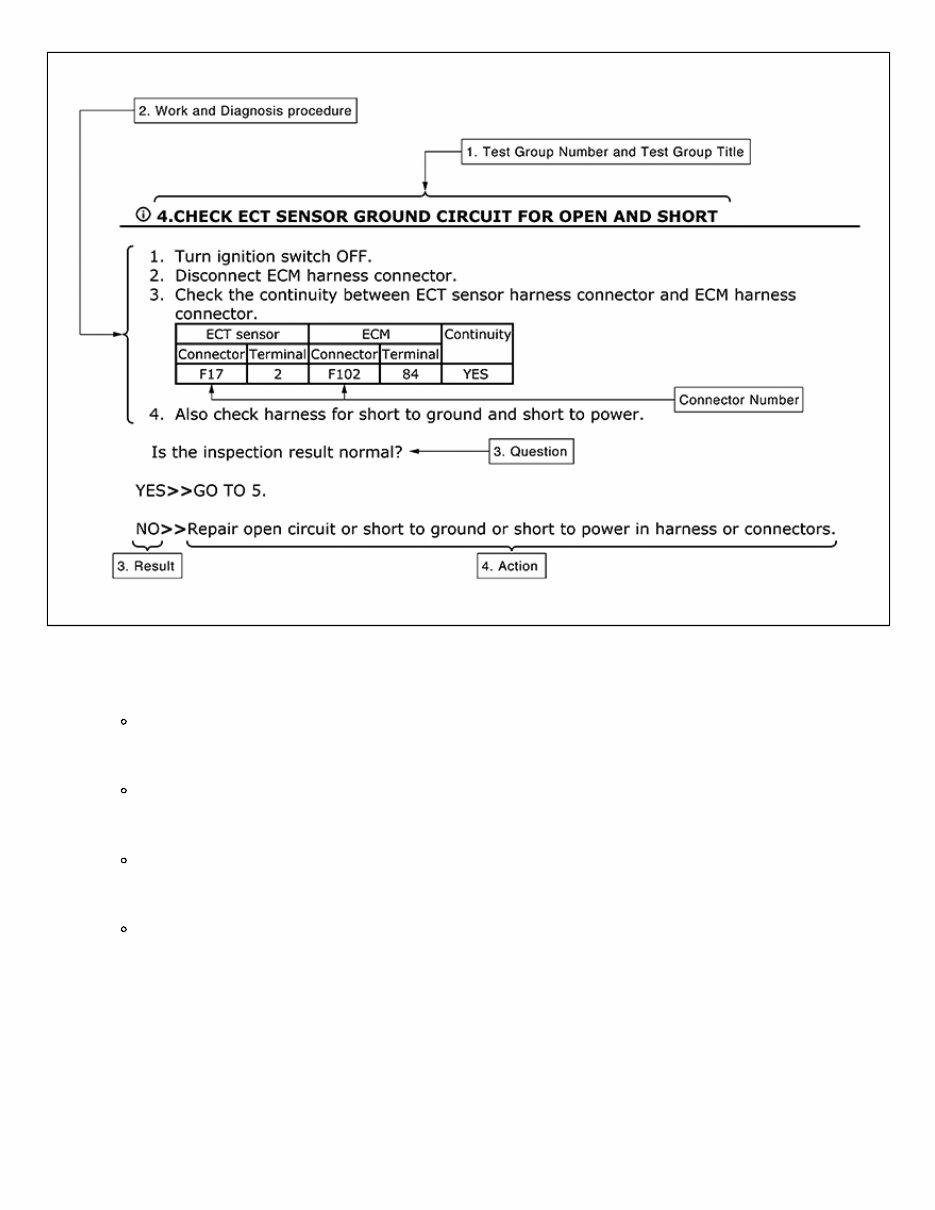

How to Follow Test Groups in Trouble Diagnosis GUID-AF1CDD27-F4AA-40F1-ABA0-DE38E37FF436 GUID-TGALAIA0017GB 1. Test group number and test group title Test group number and test group title are shown in the upper portion of each test group. 2. Work and diagnosis procedure Start to diagnose a problem using procedures indicated in enclosed test groups. 3. Questions and results Questions and required results are indicated in test group. 4. Action Next action for each test group is indicated based on result of each question.

Key to Symbols Signifying Measurements or Procedures GUID-7EEDA63C-F296-4BF6-9BAC-2BB3E4064AF5 GUID-NISJPAIA0982GB
