ACC-1 ENGINE C D E F G H I J K L M SECTION ACC A ACC N O P CONTENTS ACCELERATOR CONTROL SYSTEM PRECAUTION .............................................. 2 PRECAUTIONS .................................................. 2 Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TEN- SIONER" .................................................................. 2 REMOVAL AND INSTALLATION ............... 3 ACCELERATOR CONTROL SYSTEM .............. 3 Exploded View ......................................................... 3 Removal and Installation ......................................... 3 Inspection ................................................................ 4 Revision: 2011 September 2012 QUEST

ACC-2 < PRECAUTION > PRECAUTIONS PRECAUTION PRECAUTIONS Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" INFOID:0000000007495933 The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted. Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this Service Manual. WARNING: Always observe the following items for preventing accidental activation. • To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, all maintenance must be performed by an authorized NISSAN/INFINITI dealer. • Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”. • Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser- vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors. PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS WARNING: Always observe the following items for preventing accidental activation. • When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury. • When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the battery, and wait at least 3 minutes before performing any service. Revision: 2011 September 2012 QUEST

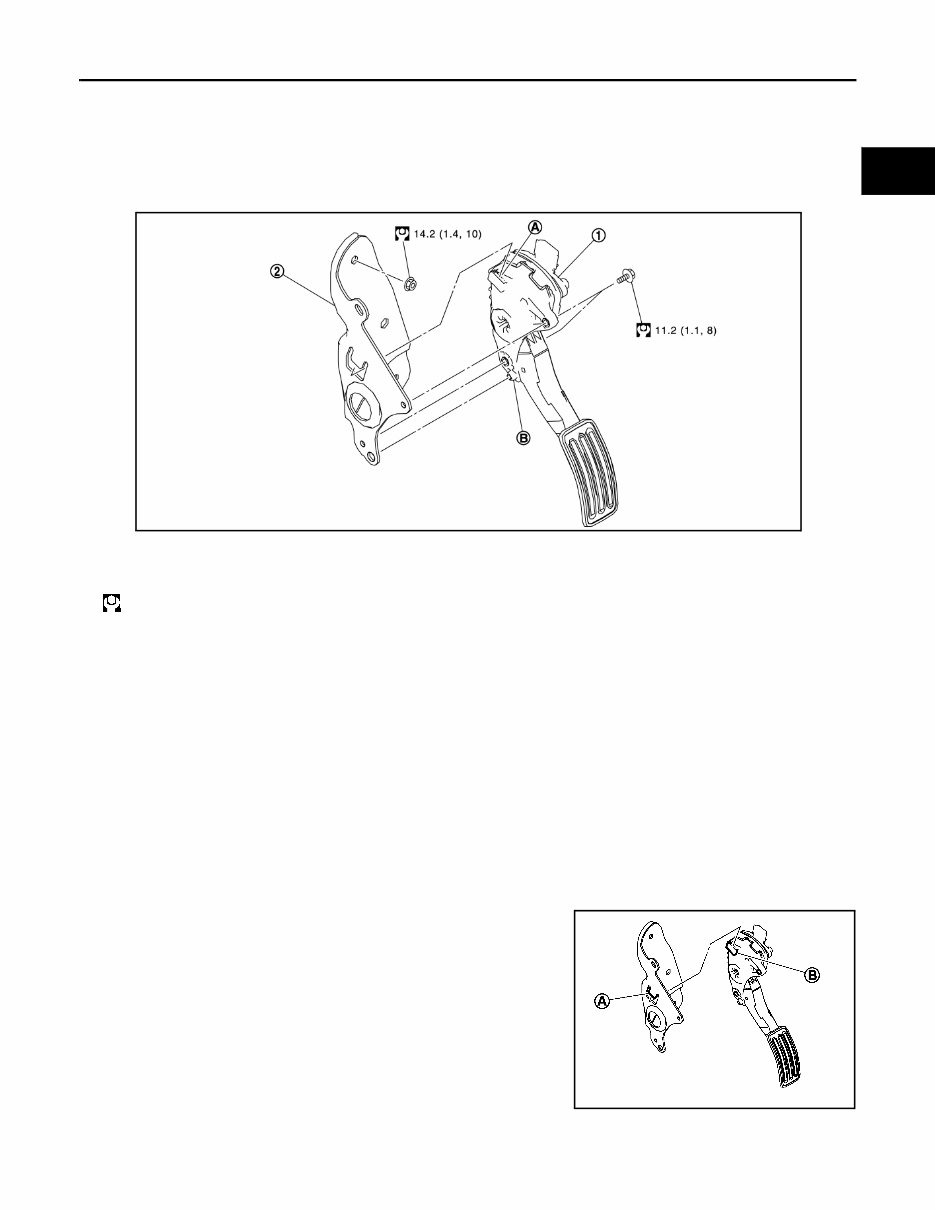

ACCELERATOR CONTROL SYSTEM ACC-3 < REMOVAL AND INSTALLATION > C D E F G H I J K L M A ACC N P O REMOVAL AND INSTALLATION ACCELERATOR CONTROL SYSTEM Exploded View INFOID:0000000007495934 Removal and Installation INFOID:0000000007495935 REMOVAL 1. Disconnect accelerator pedal position sensor harness connector. 2. Remove accelerator pedal assembly. CAUTION: • Never disengage accelerator pedal assembly and bracket. • Never disassemble accelerator lever. Never remove accelerator pedal position sensor from accelerator lever. • Avoid impact from dropping etc. during handling. • Be careful to keep accelerator lever away from water. INSTALLATION Read the following instructions carefully, and install accelerator pedal assembly in the reverse order of removal. • Insert pawl (A) of bracket into locating hole (B) of accelerator pedal assembly to tighten the mounting bolts. 1. Accelerator pedal assembly 2. Accelerator pedal bracket A. Locating hole B. Locating pin : N·m (kg-m, ft-lb) JPBIA5304GB JSBIA1415ZZ Revision: 2011 September 2012 QUEST

ACC-4 < REMOVAL AND INSTALLATION > ACCELERATOR CONTROL SYSTEM Inspection INFOID:0000000007495936 INSPECTION AFTER INSTALLATION • Check accelerator pedal moves smoothly within the whole operation range when it is fully depressed and released. • Check accelerator pedal securely returns to the fully released position. • For the electrical inspection of accelerator pedal position sensor, refer to EC-401, " Component Inspection " . - CAUTION: When harness connector of accelerator pedal position sensor is disconnected, perform “Accelerator Pedal Released Position Learning”. Refer to EC-119, " Description " . Revision: 2011 September 2012 QUEST
