ACC-1
ENGINE
C
D
E
F
G
H
I
J
K
L
M
SECTION ACC
A
ACC
N
O
P
CONTENTS
ACCELERATOR CONTROL SYSTEM
PRECAUTION .............................................. 2
PRECAUTIONS .................................................. 2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................. 2
REMOVAL AND INSTALLATION ............... 3
ACCELERATOR CONTROL SYSTEM .............. 3
Exploded View ......................................................... 3
Removal and Installation ......................................... 3
Inspection ................................................................ 4
SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................ 5
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................. 5
Accelerator Control .................................................. 5
Revision: September 2016 2017 NV200 NAM
ACC-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" INFOID:0000000014437680
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, it is recommended that all mainte-
nance and repair be performed by an authorized NISSAN/INFINITI dealer.
• Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury
caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module,
see the SR section.
• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the
Ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the
battery or batteries, and wait at least three minutes before performing any service.
Revision: September 2016 2017 NV200 NAM
ACCELERATOR CONTROL SYSTEM
ACC-3
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
I
J
K
L
M
A
ACC
N
P
O
REMOVAL AND INSTALLATION
ACCELERATOR CONTROL SYSTEM

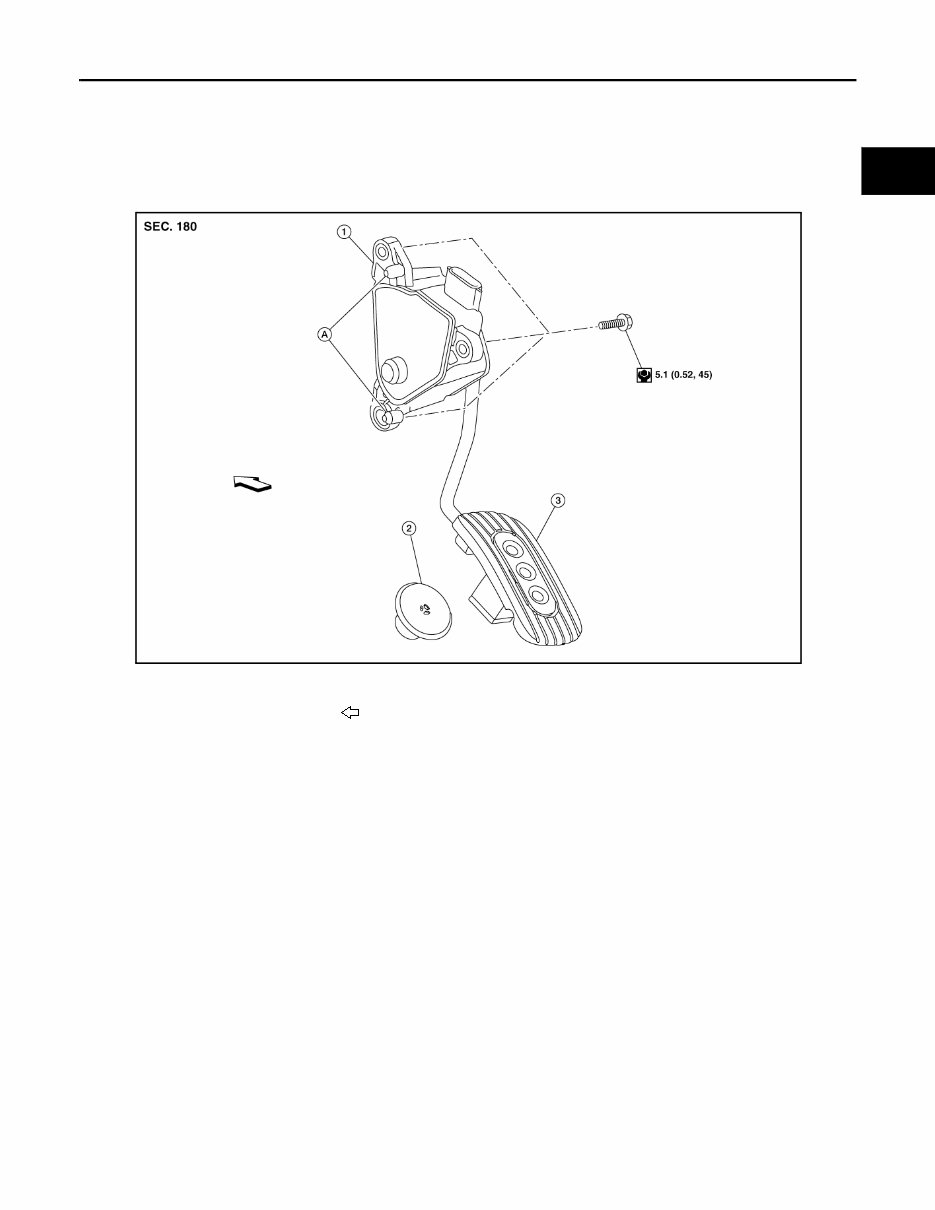

Exploded View INFOID:0000000014437681
Removal and Installation INFOID:0000000014437682
REMOVAL
1. Disconnect the harness connector (A) from the accelerator pedal assembly (1).
1. Accelerator pedal assembly 2. Accelerator pedal stopper (Under front floor trim) 3. Accelerator pedal pad
A.
Locating pin
Front
AWBIA1552ZZ
Revision: September 2016 2017 NV200 NAM

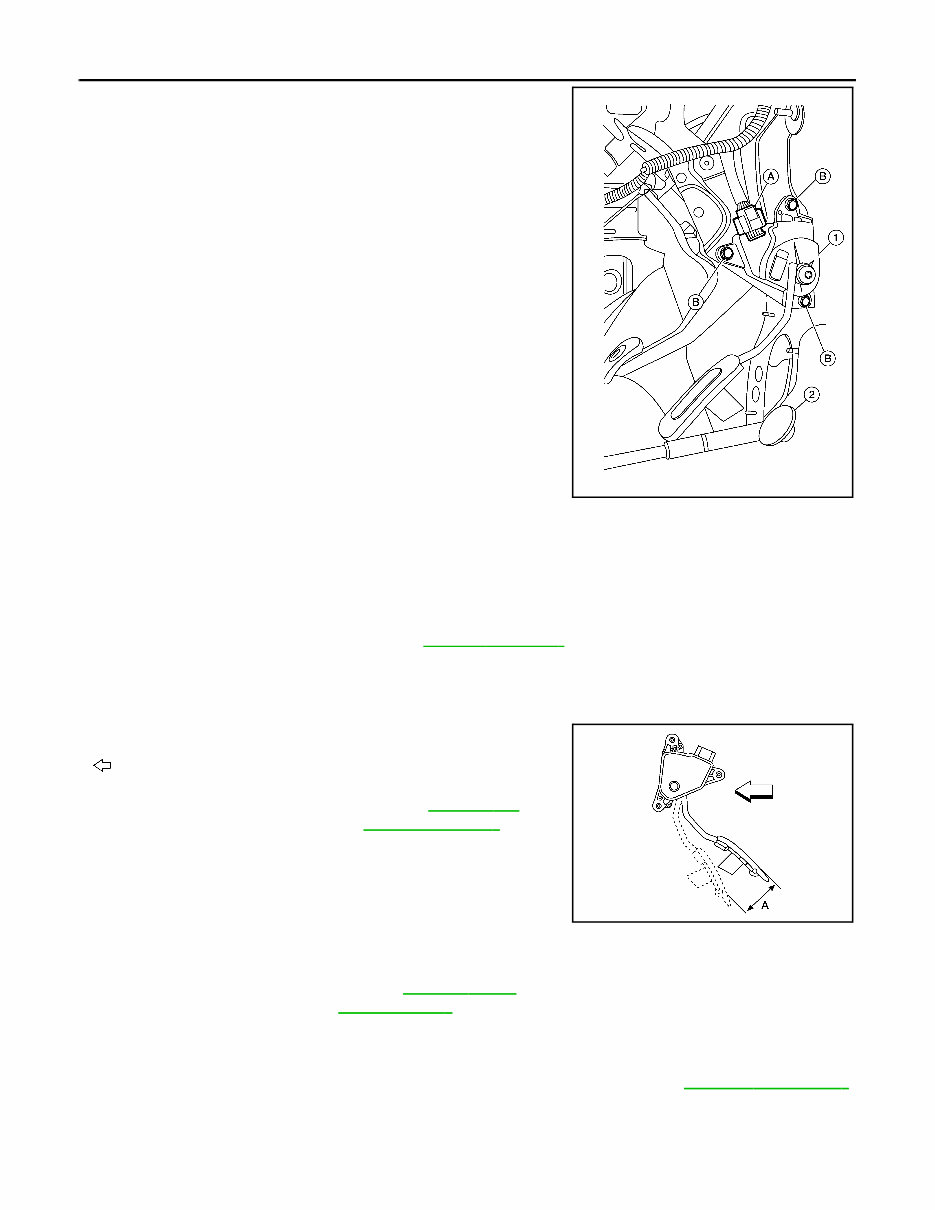

ACC-4
< REMOVAL AND INSTALLATION >
ACCELERATOR CONTROL SYSTEM
2. Remove bolts (B) and the accelerator pedal assembly (1).
CAUTION:
• Do not disassemble accelerator pedal assembly.
• Do not remove accelerator pedal position sensor from
accelerator pedal assembly.
• Do not drop or impact the accelerator pedal assembly.
• Do not expose the accelerator pedal assembly to water.
3. Position aside front floor trim and remove accelerator pedal stopper (2) (if equipped) by rotating counter-
clockwise.
INSTALLATION
Installation is in the reverse order of removal.
Note:
• Insert locating pins into bracket to position accelerator pedal assembly.
• Perform accelerator pedal inspection. Refer to ACC-4, " Inspection " .
Inspection INFOID:0000000014437683
INSPECTION AFTER INSTALLATION
• Check that the accelerator pedal moves smoothly within the speci-
fied range.
: Front
• Check the accelerator pedal height.
CAUTION:
• Whenever the harness connector of the accelerator pedal position sensor has been disconnected,
perform “ACCELERATOR PEDAL RELEASED POSITION LEARNING”. Refer to EC-119, " Description " .
• The accelerator pedal should return smoothly to the fully released position.
AWBIA1553ZZ
Accelerator pedal stroke (A): Refer to ACC-5, " Ac-
celerator Control " .
AWBIA1554ZZ
Accelerator pedal height: Refer to ACC-5, " Accel-
erator Control " .
Revision: September 2016 2017 NV200 NAM
SERVICE DATA AND SPECIFICATIONS (SDS)
ACC-5
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D
E
F
G
H
I
J
K
L
M
A
ACC
N
P
O

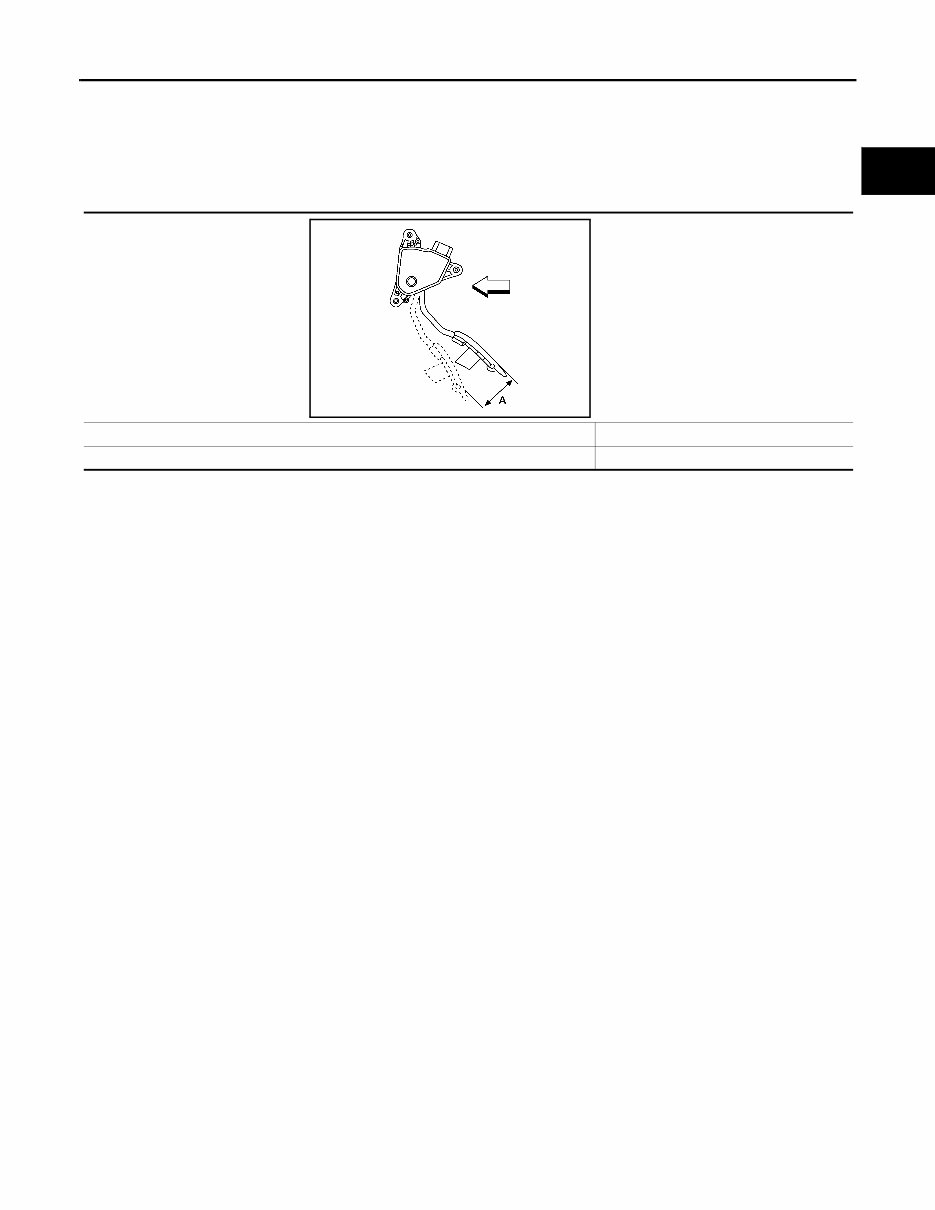

SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Accelerator Control INFOID:0000000014437684
Unit: mm (in)
Accelerator pedal stroke (A) 47.8 - 55.0 (1.88 - 2.17)
Accelerator pedal height 147.9 - 157.9 (5.82 - 6.22)
AWBIA1554ZZ
Revision: September 2016 2017 NV200 NAM
