ACCELERATOR CONTROL SYSTEM PFP:18005
Removal and Installation NBS002RX
REMOVAL
1. Move accelerator and brake pedals to the front most position (Adjustable type).
2. Turn ignition switch “OFF” and disconnect negative battery terminal.
3. Disconnect accelerator pedal position sensor harness connector.
4. Disconnect drive cable from accelerator pedal assembly (Adjustable type).
● Unlock (1) then pull (2) to disconnect drive cable.
5. Loosen nuts, and remove accelerator pedal assembly.
CAUTION:
● Before removal and installation accelerator and brake pedals must be in front most position.
This is to align the base position of accelerator and brake pedals (Adjustable type).
● Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sen-
sor from accelerator pedal assembly.
● Adjusting mechanism for accelerator pedal position is not able to disassemble (Adjustable
type).
● Avoid impact from dropping etc. during handling.
● Be careful to keep accelerator pedal assembly away from water.
NOTE:
Drive cable of the adjustable type accelerator pedal assembly is a component of brake pedal. Refer to
BR-7, " BRAKE PEDAL " .
INSTALLATION
Install in the reverse order of removal.

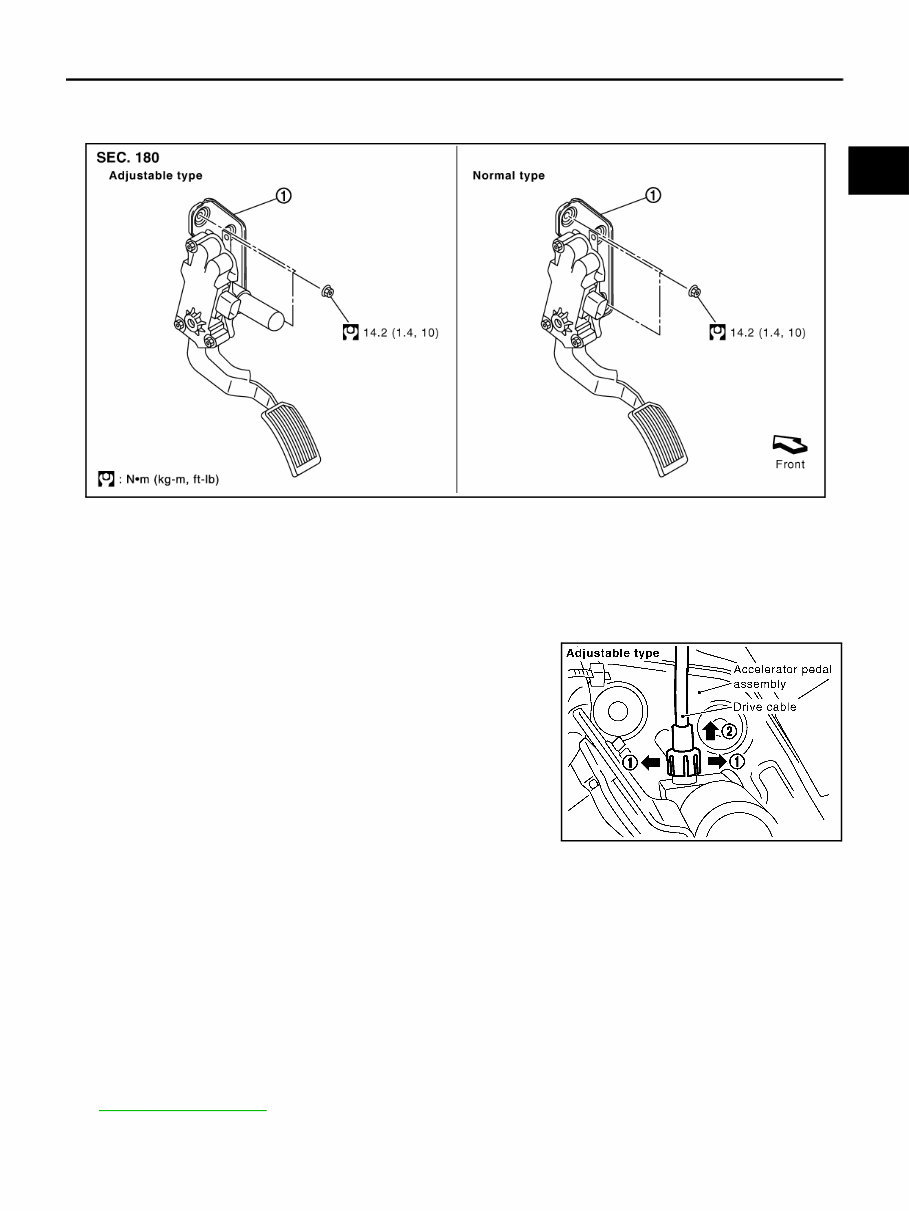

1. Accelerator pedal assembly
PBIC4824E
SBIA0382E
ACC-4
ACCELERATOR CONTROL SYSTEM
Revision: 2006 July 2007 Murano
INSPECTION AFTER INSTALLATION
● Make sure accelerator pedal moves smoothly within the whole operation range when it is fully depressed
and released.
● Make sure accelerator pedal securely returns to the fully released position.
● Check operation conditions in forward and rearward movement of accelerator pedal assembly (Adjustable
type). Refer to BR-7, " BRAKE PEDAL " .
● For the electrical inspection of accelerator pedal position sensor, refer to EC-565, " DTC P2122, P2123
APP SENSOR " , EC-571, " DTC P2127, P2128 APP SENSOR " and EC-585, " DTC P2138 APP SENSOR "
.
CAUTION:
When harness connector of accelerator pedal position sensor is disconnected, perform “Acceler-
ator Pedal Released Position Learning”. Refer to EC-76, " Accelerator Pedal Released Position
Learning " .
