2010-2017 Nissan Micra K13 Service and Repair Manual

ACC-1 ENGINE C D E F G H I J K L M SECTION ACC A ACC N O P CONTENTS ACCELERATOR CONTROL SYSTEM PRECAUTION .............................................. 2 PRECAUTIONS .................................................. 2 FOR EUROPE ............................................................ 2 FOR EUROPE : Precaution for Supplemental Re- straint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" .................................................. 2 EXCEPT FOR EUROPE ............................................. 2 EXCEPT FOR EUROPE : Precaution for Supple- mental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" ............................ 2 REMOVAL AND INSTALLATION ............... 4 ACCELERATOR CONTROL SYSTEM .............. 4 Exploded View ......................................................... 4 Removal and Installation ......................................... 4 Inspection ................................................................ 4

ACC-2 < PRECAUTION > PRECAUTIONS PRECAUTION PRECAUTIONS FOR EUROPE FOR EUROPE : Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" INFOID:0000000006845278 The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this Service Manual. The vehicle may be equipped with a passenger air bag deactivation switch. Because no rear seat exists where a rear-facing child restraint can be placed, the switch is designed to turn off the passenger air bag so that a rear-facing child restraint can be used in the front passenger seat. The switch is located in the center of the instrument panel, near the ashtray. When the switch is turned to the ON position, the passenger air bag is enabled and could inflate for certain types of collision. When the switch is turned to the OFF position, the passenger air bag is disabled and will not inflate. A passenger air bag OFF indicator on the instrument panel lights up when the passenger air bag is switched OFF. The driver air bag always remains enabled and is not affected by the passenger air bag deactivation switch. WARNING: Always observe the following items for preventing accidental activation. • To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, all maintenance must be performed by an authorized NISSAN/INFINITI dealer. • Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see the “SRS AIR BAG”. • Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors. • The vehicle may be equipped with a passenger air bag deactivation switch which can be operated by the customer. When the passenger air bag is switched OFF, the passenger air bag is disabled and will not inflate. When the passenger air bag is switched ON, the passenger air bag is enabled and could inflate for certain types of collision. After SRS maintenance or repair, make sure the passenger air bag deactivation switch is in the same position (ON or OFF) as when the vehicle arrived for service. PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS WARNING: Always observe the following items for preventing accidental activation. • When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury. • When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the battery, and wait at least 3 minutes before performing any service. EXCEPT FOR EUROPE EXCEPT FOR EUROPE : Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" INFOID:0000000006845279 The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this Service Manual. WARNING:

PRECAUTIONS ACC-3 < PRECAUTION > C D E F G H I J K L M A ACC N P O Always observe the following items for preventing accidental activation. • To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, all maintenance must be performed by an authorized NISSAN/INFINITI dealer. • Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”. • Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser- vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors. PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS WARNING: Always observe the following items for preventing accidental activation. • When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury. • When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the battery, and wait at least 3 minutes before performing any service.

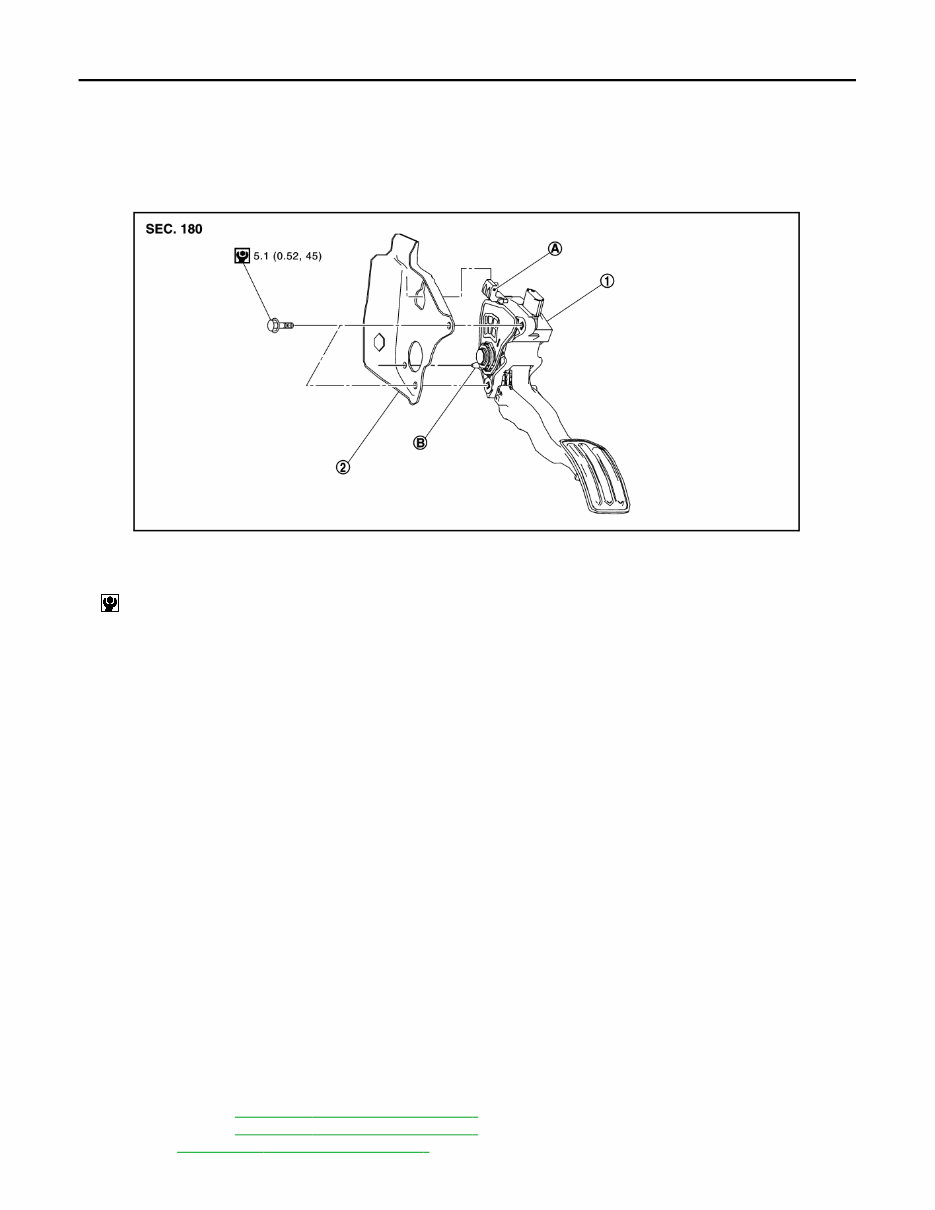

ACC-4 < REMOVAL AND INSTALLATION > ACCELERATOR CONTROL SYSTEM REMOVAL AND INSTALLATION ACCELERATOR CONTROL SYSTEM Exploded View INFOID:0000000005988502 Removal and Installation INFOID:0000000005988503 REMOVAL 1. Disconnect accelerator pedal position sensor harness connector. 2. Loosen mounting bolts, and remove accelerator pedal assembly. CAUTION: • Never disassemble accelerator pedal assembly. Never remove accelerator pedal position sensor from accelerator pedal assembly. • Avoid impact from dropping etc. during handling. • Be careful to keep accelerator pedal assembly away from water. INSTALLATION Note the following, and install in the reverse order of removal. • Insert the locating pin while inserting the locating hook in to the break pedal bracket. Tighten mounting bolts to accelerator pedal assembly. CAUTION: Never squeeze the locating hook into the break pedal bracket when inserting the locating pin into the hole on the brake pedal bracket side. Inspection INFOID:0000000005988504 INSPECTION AFTER INSTALLATION • Check accelerator pedal moves smoothly within the whole operation range when it is fully depressed and released. • Check accelerator pedal securely returns to the fully released position. • For the electrical inspection of accelerator pedal position sensor. Refer to following; - HR12DE (TYPE 1): EC3-407, " Component Inspection " - HR12DE (TYPE 2): EC3-747, " Component Inspection " - HR12DDR: EC3-1297, " Component Inspection " 1. Accelerator pedal assembly 2. Brake pedal bracket A. Locating hook B. Locating pin : N·m (kg-m, in-lb) JPBIA3364GB

ACCELERATOR CONTROL SYSTEM ACC-5 < REMOVAL AND INSTALLATION > C D E F G H I J K L M A ACC N P O - HR15DE (TYPE 1): EC4-279, " Component Inspection " - HR15DE (TYPE 2): EC4-497, " Component Inspection " - K9K: ECD-175, " Component Inspection " CAUTION: When harness connector of accelerator pedal position sensor is disconnected, perform “ACCELERA- TOR PEDAL RELEASED POSITION LEARNING”. Refer to following; • HR12DE (TYPE 1): EC3-171, " Work Procedure " • HR12DE (TYPE 2): EC3-594, " Work Procedure " • HR12DDR: EC3-999, " Work Procedure " • HR15DE (TYPE 1): EC4-108, " Work Procedure " • HR15DE (TYPE 2): EC4-392, " Work Procedure "

SRC-1 RESTRAINTS C D E F G I J K L M SECTION SRC A B SRC N O P CONTENTS SRS AIRBAG CONTROL SYSTEM TYPE 1 HOW TO USE THIS MANUAL ..................... 6 APPLICATION NOTICE ..................................... 6 Information ............................................................... 6 PRECAUTION .............................................. 7 PRECAUTIONS .................................................. 7 Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TEN- SIONER" .................................................................. 7 Service ..................................................................... 7 SYSTEM DESCRIPTION ............................. 8 COMPONENT PARTS ....................................... 8 Component Parts Location ....................................... 8 Component Description ............................................ 9 SYSTEM ............................................................10 System Diagram ..................................................... 10 System Description ................................................ 11 DIAGNOSIS SYSTEM (AIR BAG) ....................13 Description ............................................................. 13 On Board Diagnosis Function ................................ 13 CONSULT Function ............................................... 16 ECU DIAGNOSIS INFORMATION ............. 17 DIAGNOSIS SENSOR UNIT .............................17 DTC Index ............................................................. 17 WIRING DIAGRAM ..................................... 19 SRS AIR BAG SYSTEM ....................................19 Application Notice .................................................. 19 TYPE A ..................................................................... 19 TYPE A : Wiring Diagram ....................................... 20 TYPE B ......................................................................23 TYPE B : Wiring Diagram .......................................24 BASIC INSPECTION .................................. 26 DIAGNOSIS AND REPAIR WORK FLOW ....... 26 Work Flow ...............................................................26 DTC/CIRCUIT DIAGNOSIS ........................ 29 B1001, B1002, B1003, B1004, B1005 DIAG- NOSIS SENSOR UNIT ...................................... 29 DTC Logic ...............................................................29 Diagnosis Procedure ..............................................29 B1006, B1007, B1008, B1009, B1010 DIAG- NOSIS SENSOR UNIT ...................................... 30 DTC Logic ...............................................................30 Diagnosis Procedure ..............................................30 B1011, B1012, B1013, B1014, B1015 DIAG- NOSIS SENSOR UNIT ...................................... 31 DTC Logic ...............................................................31 Diagnosis Procedure ..............................................31 B1033, B1034 CRASH ZONE SENSOR ........... 32 DTC Logic ...............................................................32 Diagnosis Procedure ..............................................32 B1035 CRASH ZONE SENSOR ....................... 34 DTC Logic ...............................................................34 Diagnosis Procedure ..............................................34 B1042, B1043, B1044, B1045, B1046, B1047 DIAGNOSIS SENSOR UNIT ............................. 36 DTC Logic ...............................................................36 Diagnosis Procedure ..............................................36 B1049 DRIVER AIRBAG MODULE .................. 37 DTC Logic ...............................................................37 Diagnosis Procedure ..............................................37 B1050 DRIVER AIRBAG MODULE .................. 39

SRC-2 DTC Logic .............................................................. 39 Diagnosis Procedure ............................................. 39 B1051 DRIVER AIRBAG MODULE ................. 41 DTC Logic .............................................................. 41 Diagnosis Procedure ............................................. 41 B1052 DRIVER AIRBAG MODULE ................. 43 DTC Logic .............................................................. 43 Diagnosis Procedure ............................................. 43 B1058, B1059 DIAGNOSIS SENSOR UNIT .... 45 Description ............................................................. 45 DTC Logic .............................................................. 45 Diagnosis Procedure ............................................. 45 B1065 PASSENGER AIR BAG MODULE ....... 46 DTC Logic .............................................................. 46 Diagnosis Procedure ............................................. 46 B1066 PASSENGER AIR BAG MODULE ....... 48 DTC Logic .............................................................. 48 Diagnosis Procedure ............................................. 48 B1067 PASSENGER AIR BAG MODULE ....... 50 DTC Logic .............................................................. 50 Diagnosis Procedure ............................................. 50 B1068 PASSENGER AIR BAG MODULE ....... 52 DTC Logic .............................................................. 52 Diagnosis Procedure ............................................. 52 B1074, B1075 DIAGNOSIS SENSOR INIT ...... 54 DTC Logic .............................................................. 54 Diagnosis Procedure ............................................. 54 B1081 SEAT BELT PRE-TENSIONER RH ...... 55 DTC Logic .............................................................. 55 Diagnosis Procedure ............................................. 55 B1082 SEAT BELT PRE-TENSIONER RH ...... 57 DTC Logic .............................................................. 57 Diagnosis Procedure ............................................. 57 B1083 SEAT BELT PRE-TENSIONER RH ...... 59 DTC Logic .............................................................. 59 Diagnosis Procedure ............................................. 59 B1084 SEAT BELT PRE-TENSIONER RH ...... 61 DTC Logic .............................................................. 61 Diagnosis Procedure ............................................. 61 B1086 SEAT BELT PRE-TENSIONER LH ...... 63 DTC Logic .............................................................. 63 Diagnosis Procedure ............................................. 63 B1087 SEAT BELT PRE-TENSIONER LH ...... 65 DTC Logic .............................................................. 65 Diagnosis Procedure ............................................. 65 B1088 SEAT BELT PRE-TENSIONER LH ...... 67 DTC Logic .............................................................. 67 Diagnosis Procedure .............................................. 67 B1089 SEAT BELT PRE-TENSIONER LH ...... 69 DTC Logic .............................................................. 69 Diagnosis Procedure .............................................. 69 B1090, B1091, B1092, B1093 DIAGNOSIS SENSOR UNIT .................................................. 71 DTC Logic .............................................................. 71 Diagnosis Procedure .............................................. 71 B1209 FRONTAL COLLISION DETECTION ... 72 Description ............................................................. 72 DTC Logic .............................................................. 72 Diagnosis Procedure .............................................. 72 SYMPTOM DIAGNOSIS ............................ 73 SRS AIR BAG WARNING LAMP DOES NOT TURN OFF ........................................................ 73 Diagnosis Procedure .............................................. 73 SRS AIR BAG WARNING LAMP DOES NOT TURN ON .......................................................... 74 Diagnosis Procedure .............................................. 74 TYPE 2 HOW TO USE THIS MANUAL ................... 75 APPLICATION NOTICE ................................... 75 Information ............................................................. 75 PRECAUTION ............................................ 76 PRECAUTIONS ................................................ 76 FOR EUROPE .......................................................... 76 FOR EUROPE : Precaution for Supplemental Re- straint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" ................................................ 76 FOR EUROPE : Service ........................................ 76 EXCEPT FOR EUROPE ........................................... 77 EXCEPT FOR EUROPE : Precaution for Supple- mental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" .......................... 77 EXCEPT FOR EUROPE : Service ......................... 78 SYSTEM DESCRIPTION ........................... 79 COMPONENT PARTS ...................................... 79 Component Parts Location .................................... 79 Component Description ......................................... 80 SYSTEM ........................................................... 81 System Diagram .................................................... 81 System Description ................................................ 81 DIAGNOSIS SYSTEM (AIR BAG) .................... 83 Description ............................................................. 83 On Board Diagnosis Function ................................ 83 CONSULT Function ............................................... 86

SRC-3 C D E F G I J K L M A B SRC N O P ECU DIAGNOSIS INFORMATION ............. 88 DIAGNOSIS SENSOR UNIT .............................88 DTC Index ............................................................. 88 WIRING DIAGRAM ..................................... 91 SRS AIR BAG SYSTEM ....................................91 Application Notice .................................................. 91 TYPE A ..................................................................... 91 TYPE A : Wiring Diagram ....................................... 92 TYPE B ..................................................................... 97 TYPE B : Wiring Diagram ....................................... 98 TYPE C ................................................................... 102 TYPE C : Wiring Diagram .................................... 103 BASIC INSPECTION ................................ 105 DIAGNOSIS AND REPAIR WORK FLOW ..... 105 Work Flow ............................................................ 105 DTC/CIRCUIT DIAGNOSIS ...................... 108 B1001, B1002, B1003, B1004, B1005 DIAG- NOSIS SENSOR UNIT .................................... 108 DTC Logic ............................................................ 108 Diagnosis Procedure ............................................ 108 B1006, B1007, B1008, B1009, B1010 DIAG- NOSIS SENSOR UNIT .................................... 109 DTC Logic ............................................................ 109 Diagnosis Procedure ............................................ 109 B1011, B1012, B1013, B1014, B1015 DIAG- NOSIS SENSOR UNIT .................................... 110 DTC Logic ............................................................ 110 Diagnosis Procedure ............................................ 110 B1023 PASSENGER AIR BAG OFF INDICA- TOR ................................................................. 111 DTC Logic ............................................................ 111 Diagnosis Procedure ............................................ 111 B1024 PASS A/B DEACT SW ........................ 113 DTC Logic ............................................................ 113 Diagnosis Procedure ............................................ 113 B1033, B1034 CRASH ZONE SENSOR ......... 115 DTC Logic ............................................................ 115 Diagnosis Procedure ............................................ 115 B1035 CRASH ZONE SENSOR ..................... 117 DTC Logic ............................................................ 117 Diagnosis Procedure ............................................ 117 B1042, B1043, B1044, B1045, B1046, B1047 DIAGNOSIS SENSOR UNIT ........................... 119 DTC Logic ............................................................ 119 Diagnosis Procedure ............................................ 119 B1049 DRIVER AIRBAG MODULE ................ 120 DTC Logic ............................................................. 120 Diagnosis Procedure ............................................ 120 B1050 DRIVER AIRBAG MODULE ................ 122 DTC Logic ............................................................. 122 Diagnosis Procedure ............................................ 122 B1051 DRIVER AIRBAG MODULE ................ 124 DTC Logic ............................................................. 124 Diagnosis Procedure ............................................ 124 B1052 DRIVER AIRBAG MODULE ................ 126 DTC Logic ............................................................. 126 Diagnosis Procedure ............................................ 126 B1058, B1059 DIAGNOSIS SENSOR UNIT ... 128 DTC Logic ............................................................. 128 Diagnosis Procedure ............................................ 128 B1065 PASSENGER AIR BAG MODULE ...... 129 DTC Logic ............................................................. 129 Diagnosis Procedure ............................................ 129 B1066 PASSENGER AIR BAG MODULE ...... 131 DTC Logic ............................................................. 131 Diagnosis Procedure ............................................ 131 B1067 PASSENGER AIR BAG MODULE ...... 133 DTC Logic ............................................................. 133 Diagnosis Procedure ............................................ 133 B1068 PASSENGER AIR BAG MODULE ...... 135 DTC Logic ............................................................. 135 Diagnosis Procedure ............................................ 135 B1074, B1075 DIAGNOSIS SENSOR INIT .... 137 DTC Logic ............................................................. 137 Diagnosis Procedure ............................................ 137 B1081 SEAT BELT PRE-TENSIONER RH .... 138 DTC Logic ............................................................. 138 Diagnosis Procedure ............................................ 138 B1082 SEAT BELT PRE-TENSIONER RH .... 140 DTC Logic ............................................................. 140 Diagnosis Procedure ............................................ 140 B1083 SEAT BELT PRE-TENSIONER RH .... 142 DTC Logic ............................................................. 142 Diagnosis Procedure ............................................ 142 B1084 SEAT BELT PRE-TENSIONER RH .... 144 DTC Logic ............................................................. 144 Diagnosis Procedure ............................................ 144 B1086 SEAT BELT PRE-TENSIONER LH ..... 146 DTC Logic ............................................................. 146 Diagnosis Procedure ............................................ 146 B1087 SEAT BELT PRE-TENSIONER LH ..... 148 DTC Logic ............................................................. 148

SRC-4 Diagnosis Procedure ............................................ 148 B1088 SEAT BELT PRE-TENSIONER LH .... 150 DTC Logic ............................................................. 150 Diagnosis Procedure ............................................ 150 B1089 SEAT BELT PRE-TENSIONER LH .... 152 DTC Logic ............................................................. 152 Diagnosis Procedure ............................................ 152 B1090, B1091, B1092, B1093 DIAGNOSIS SENSOR UNIT ................................................ 154 DTC Logic ............................................................. 154 Diagnosis Procedure ............................................ 154 B1113, B1114 SATELLITE SENSOR RH ...... 155 DTC Logic ............................................................. 155 Diagnosis Procedure ............................................ 155 B1115 SATELLITE SENSOR RH ................... 157 DTC Logic ............................................................. 157 Diagnosis Procedure ............................................ 157 B1118, B1119 SATELLITE SENSOR LH ....... 159 DTC Logic ............................................................. 159 Diagnosis Procedure ............................................ 159 B1120 SATELLITE SENSOR LH ................... 161 DTC Logic ............................................................. 161 Diagnosis Procedure ............................................ 161 B1122, B1123, B1124, B1125 DIAGNOSIS SENSOR UNIT ................................................ 163 DTC Logic ............................................................. 163 Diagnosis Procedure ............................................ 163 B1129 SIDE AIR BAG MODULE RH ............. 164 DTC Logic ............................................................. 164 Diagnosis Procedure ............................................ 164 B1130 SIDE AIR BAG MODULE RH ............. 166 DTC Logic ............................................................. 166 Diagnosis Procedure ............................................ 166 B1131 SIDE AIR BAG MODULE RH ............. 168 DTC Logic ............................................................. 168 Diagnosis Procedure ............................................ 168 B1132 SIDE AIR BAG MODULE RH ............. 170 DTC Logic ............................................................. 170 Diagnosis Procedure ............................................ 170 B1134 SIDE AIR BAG MODULE LH .............. 172 DTC Logic ............................................................. 172 Diagnosis Procedure ............................................ 172 B1135 SIDE AIR BAG MODULE LH .............. 174 DTC Logic ............................................................. 174 Diagnosis Procedure ............................................ 174 B1136 SIDE AIR BAG MODULE LH .............. 176 DTC Logic ............................................................. 176 Diagnosis Procedure ............................................ 176 B1137 SIDE AIR BAG MODULE LH ............... 178 DTC Logic ............................................................ 178 Diagnosis Procedure ............................................ 178 B1138, B1139, B1140, B1141 DIAGNOSIS SENSOR INIT .................................................. 180 DTC Logic ............................................................ 180 Diagnosis Procedure ............................................ 180 B1145 CURTAIN AIR BAG MODULE RH ...... 181 DTC Logic ............................................................ 181 Diagnosis Procedure ............................................ 181 B1146 CURTAIN AIR BAG MODULE RH ...... 183 DTC Logic ............................................................ 183 Diagnosis Procedure ............................................ 183 B1147 CURTAIN AIR BAG MODULE RH ...... 185 DTC Logic ............................................................ 185 Diagnosis Procedure ............................................ 185 B1148 CURTAIN AIR BAG MODULE RH ...... 187 DTC Logic ............................................................ 187 Diagnosis Procedure ............................................ 187 B1150 CURTAIN AIR BAG MODULE LH ....... 189 DTC Logic ............................................................ 189 Diagnosis Procedure ............................................ 189 B1151 CURTAIN AIR BAG MODULE LH ....... 191 DTC Logic ............................................................ 191 Diagnosis Procedure ............................................ 191 B1152 CURTAIN AIR BAG MODULE LH ....... 193 DTC Logic ............................................................ 193 Diagnosis Procedure ............................................ 193 B1153 CURTAIN AIR BAG MODULE LH ....... 195 DTC Logic ............................................................ 195 Diagnosis Procedure ............................................ 195 B1154, B1155, B1156, B1157 DIAGNOSIS SENSOR UNIT ................................................. 197 DTC Logic ............................................................ 197 Diagnosis Procedure ............................................ 197 B1209 FRONTAL COLLISION DETECTION .. 198 Description ........................................................... 198 DTC Logic ............................................................ 198 Diagnosis Procedure ............................................ 198 B1210 SIDE COLLISION DETECTION ........... 199 Description ........................................................... 199 DTC Logic ............................................................ 199 Diagnosis Procedure ............................................ 199 SYMPTOM DIAGNOSIS ........................... 200 SRS AIR BAG WARNING LAMP DOES NOT TURN OFF ....................................................... 200

SRC-5 C D E F G I J K L M A B SRC N O P Diagnosis Procedure ............................................ 200 SRS AIR BAG WARNING LAMP DOES NOT TURN ON ........................................................ 201 Diagnosis Procedure ............................................ 201
