HOW TO USE THIS MANUAL : Repair Manual RDE-000789996 MR —> MR sieref Link Refer to HOW TO USE THIS MANUAL : Repair Manual. MR —> MD sieref Link Refer to Vehicle Description. DESCRIPTION This volume explains “Removal, Disassembly, Installation, Inspection and Adjustment” and “Trouble Diagnosis”. TERMS Item Description DANGER To be used to inform an operation which will cause a death or serious personal injury if instructions are not following. Example: Touching high voltage components without using the appropriate protective equipment will cause electrocution. WARNING To be used to inform an operation which may cause a death or serious personal injury if instructions are not following. CAUTION To be used to inform an operation which may cause personal injury or component damage if instructions are not following. NOTE To be used to inform you helpful information. BOLD STATEMENTS except DANGER, WARNING and NOTE Give you helpful information. Standard value: Tolerance at inspection and adjustment. Limit value: The maximum or minimum limit value that should not be exceeded at inspection and adjustment. Symbol Description Electric shock symbol It may cause an electric shock if instructions are not following to be used in caution for an operation. To be used to describe the removal of component, connector, etc. where high voltage is/might be present. Insulated gloves Always wear when inspecting or performing service operation of high voltage components. Insulated safety shoes/Insulated rubber sheet Always wear when inspecting or performing service operation of high voltage components on lift-up vehicle. Safety glasses Always wear during under the circumstances During removal/installation or check operation of high voltage terminals and harnessed where spark might terminal appear by short circuit. Operation inside battery pack. Face shield Insulated hand tools Always use when performing high voltage presents operation such as operation inside high voltage battery pack.

UNITS The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit), and alternatively expressed in the metric system and in the yard/pound system. Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about the standard tightening torque. “Example” Range Outer Socket Lock Nut : 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb) Standard Drive Shaft Installation Bolt : 44.3 N·m (4.5 kg-m, 33 ft-lb) CONTENTS THE CONTENTS are listed on the first page of each section. THE TITLE is indicated on the upper portion of each page and shows the part or system. THE PAGE NUMBER of each section consists of two or three letters which designate the particular section and a number (e.g. “BR-5”). THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of work and hidden or tricky steps which are not shown in the previous large illustrations. Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle or transmission, etc. are presented in a step-by-step format where necessary. RELATION BETWEEN ILLUSTRATIONS AND DESCRIPTION The following sample explains the relationship between the part description in an illustration, the part name in the text and the service procedures.

RDE-000789996-01-AIA0519E COMPONENTS THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubrication points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to perform repairs. The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG. Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.

RDE-000789996-02-PFIA0511GB 1. Cap 2. Bleeder valve 3. Cylinder body 4. Piston seal 5. Piston 6. Piston boot 7. Sliding pin 8. Sliding pin boot 9. Bushing 10. Torque member : Apply rubber grease. : Apply brake fluid. : N·m (kg-m, in-lb) : Always replace after every disassembly Symbols RDE-000789996-03-AIA0749E

HOW TO USE THIS MANUAL : Diagnosis Manual RDE-000789997 DESCRIPTION NOTE: Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following instructions before diagnosing. Before performing trouble diagnoses, read the “Work Flow” in each section. After repairs, re-check that the problem has been completely eliminated. Refer to Component Parts and Harness Connector Location for the Systems described in each section for identification/location of components and harness connectors. When checking circuit continuity, ignition switch should be OFF. Refer to the Circuit Diagram for quick pinpoint check. If you need to check circuit continuity between harness connectors in more detail, such as when a sub-harness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG section for identification of harness connectors. Before checking voltage at connectors, check battery voltage. After accomplishing the Diagnosis Procedures and Electrical Components Inspection, check that all harness connectors are reconnected as they were. HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSIS

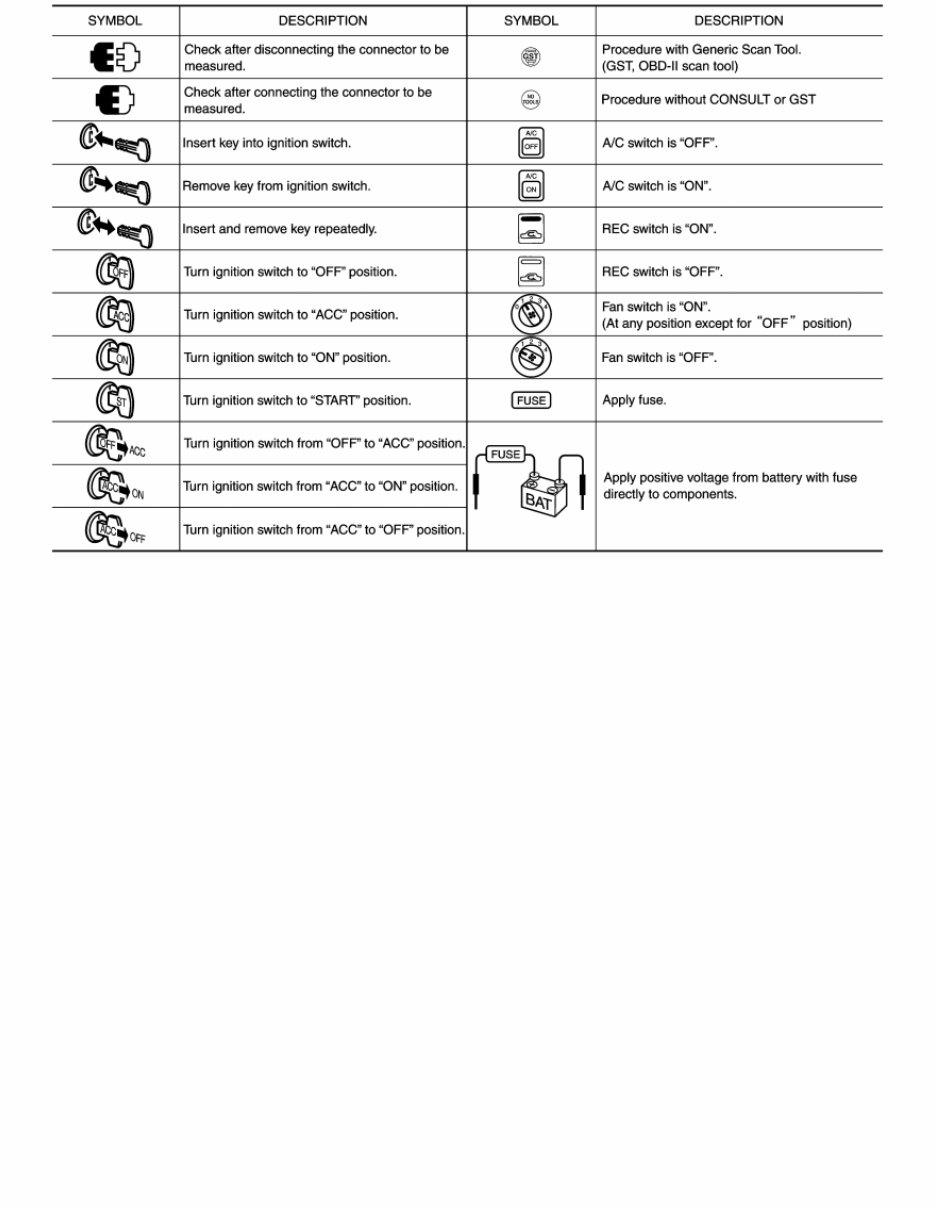

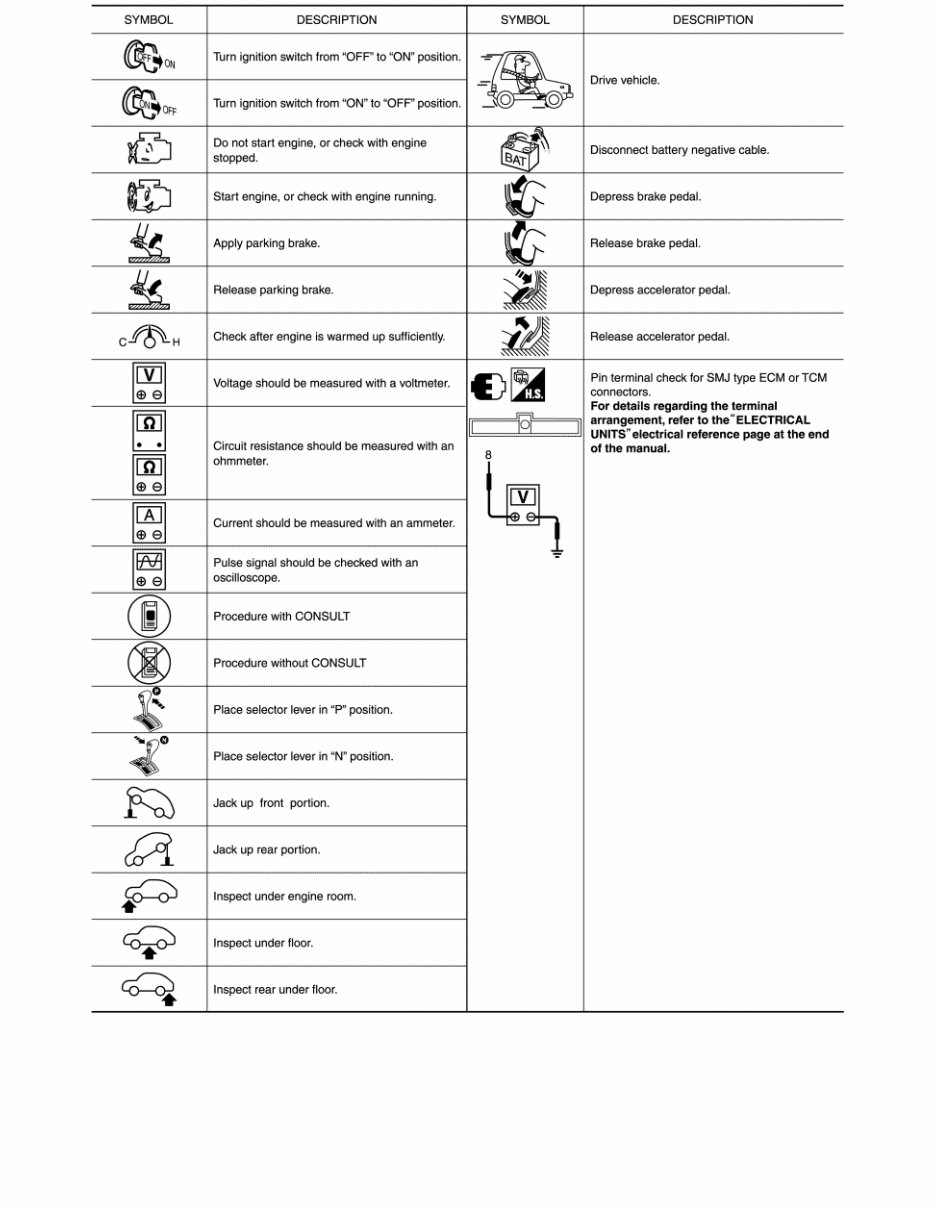

RDE-000789997-01-AIA0017GB 1. Test group number and test group title Test group number and test group title are shown in the upper portion of each test group. 2. Work and diagnosis procedure Start to diagnose a problem using procedures indicated in enclosed test groups. 3. Questions and results Questions and required results are indicated in test group. 4. Action Next action for each test group is indicated based on result of each question. KEY TO SYMBOLS SIGNIFYING MEAAUREMENTS OR PROCEDURES

RDE-000789997-02-PAIA0982GB

RDE-000789997-03-SAIA1461GB

HOW TO USE THIS MANUAL : Wiring Diagram RDE-000789998 CONNECTOR SYMBOLS Most of connector symbols in wiring diagrams are shown from the terminal side. Connector symbols shown from the terminal side are enclosed by a single line and followed by the direction mark. RDE-000789998-03-AIA0257E Connector symbols shown from the harness side are enclosed by a double line and followed by the direction mark. Certain systems and components, especially those related to OBD, may use a new style slide-locking type harness connector. For description and how to disconnect, refer to PG section, “Description”, “HARNESS CONNECTOR”. Male and female terminals

RDE-000789998-04-GI363 Connector guides for male terminals are shown in black and female terminals in white in wiring diagrams. SAMPLE/WIRING DIAGRAM -EXAMPLE- Each section includes wiring diagrams.
