ACC-1
ENGINE
C
D
E
F
G
H
I
J
K
L
M
SECTION ACC
A
ACC
N
O
P
CONTENTS
ACCELERATOR CONTROL SYSTEM
PRECAUTION .............................................. 2
PRECAUTIONS .................................................. 2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................. 2
REMOVAL AND INSTALLATION ............... 3
ACCELERATOR CONTROL SYSTEM .............. 3
Removal and Installation ......................................... 3
SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................ 5
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................. 5
Accelerator Control .................................................. 5
ACC-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" INFOID:0000000001396343
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
ACCELERATOR CONTROL SYSTEM
ACC-3
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
I
J
K
L
M
A
ACC
N
P
O
REMOVAL AND INSTALLATION
ACCELERATOR CONTROL SYSTEM
Removal and Installation INFOID:0000000001396342
Adjustable Accelerator Pedal
CAUTION:
• Before removal and installation the accelerator and brake pedals must be in the frontmost position.
This is to align the base position of the accelerator and brake pedals.
• Do not disassemble the accelerator pedal assembly.
• Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
• Do not disassemble the accelerator pedal adjusting mechanism.
• Avoid damage from dropping the accelerator pedal assembly during handling.
• Keep the accelerator pedal assembly away from water.
REMOVAL
1. Move the accelerator and brake pedals to the frontmost position.
2. Turn the ignition switch OFF and disconnect the negative battery terminal.
3. Disconnect the adjustable brake pedal cable from the adjustable brake pedal.
• Unlock, then pull the adjustable brake pedal cable to disconnect it from the adjustable brake pedal.

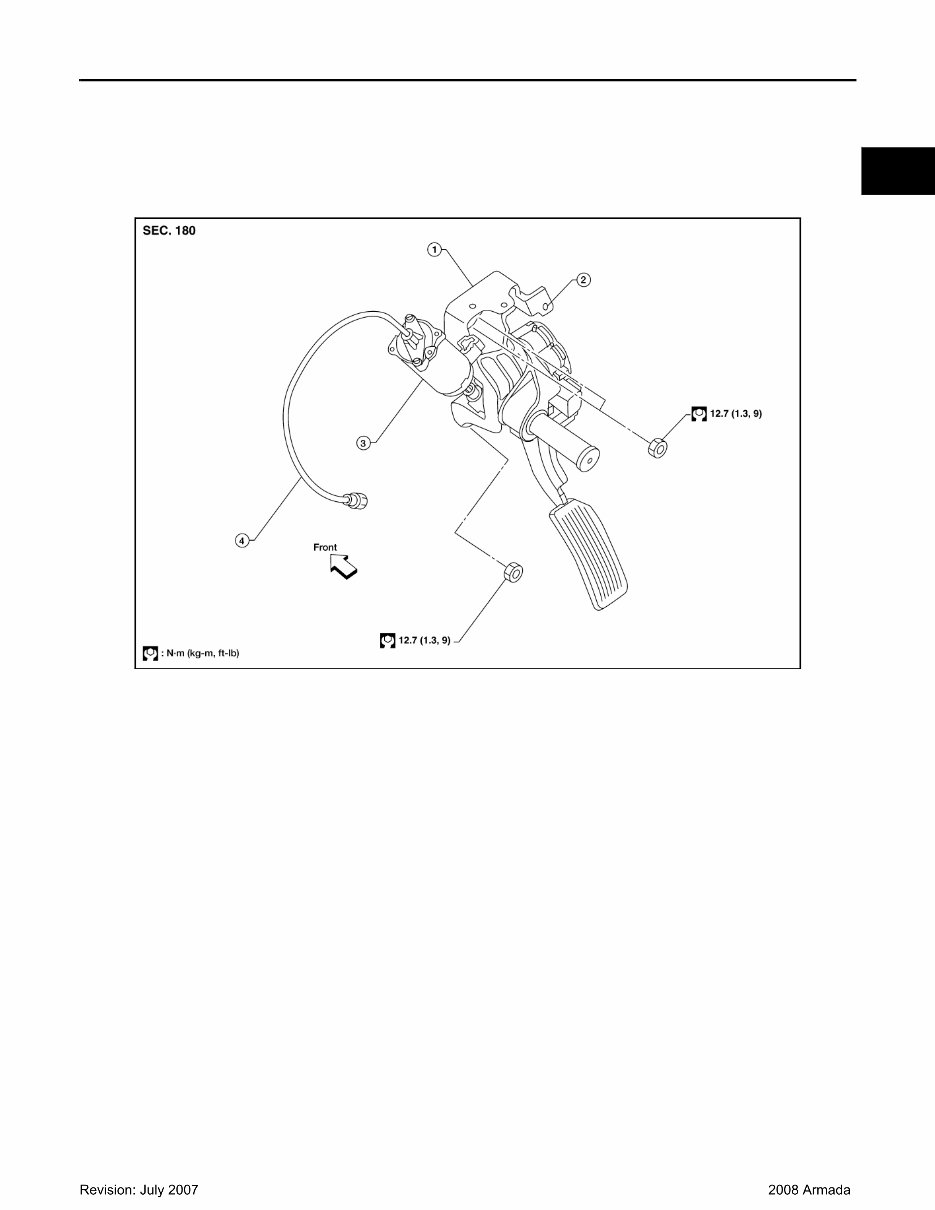

LBIA0379E
1. Adjustable accelerator pedal assem-
bly
2. A/T control cable mounting bracket (part
of the accelerator pedal assembly)
3. Adjustable pedal electric motor (part
of the accelerator pedal assembly)
4. Adjustable brake pedal cable (part of
the accelerator pedal assembly)
ACC-4
< REMOVAL AND INSTALLATION >
ACCELERATOR CONTROL SYSTEM

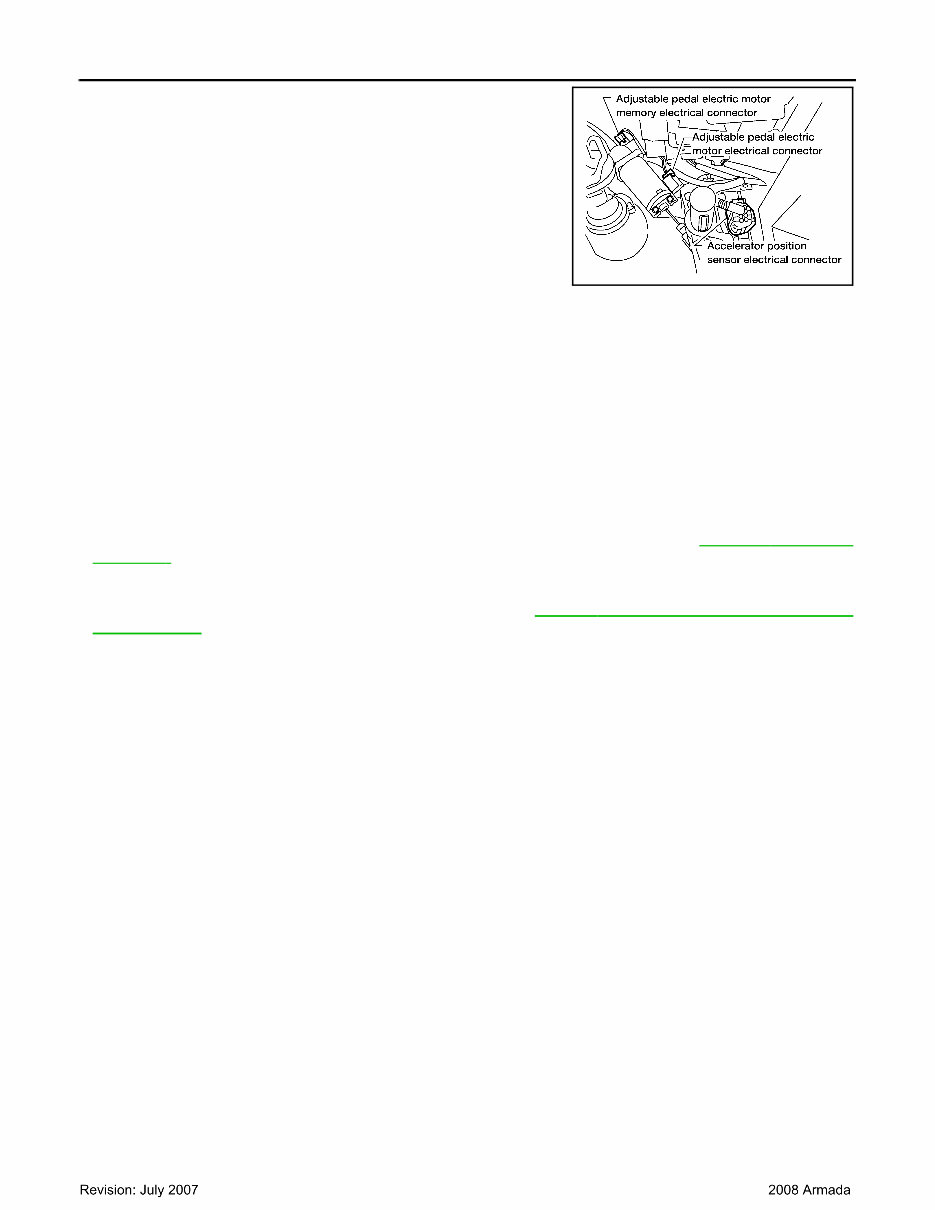

4. Disconnect the adjustable pedal electric motor electrical connec-
tor.
5. Disconnect the adjustable pedal electric motor memory electri-
cal connector, if equipped.
6. Disconnect the accelerator position sensor electrical connector.
7. Remove the two upper and one lower accelerator pedal nuts.
8. Remove the adjustable accelerator pedal assembly.
CAUTION:
• Do not disassemble the accelerator pedal assembly.
• Do not remove the accelerator pedal position sensor from
the accelerator pedal bracket.
• Do not disassemble the accelerator pedal adjusting mechanism.
• Avoid damage from dropping the accelerator pedal assembly during handling.
• Keep the accelerator pedal assembly away from water.
INSTALLATION
Installation is in the reverse order of removal.
INSPECTION AFTER INSTALLATION
• Check that the accelerator pedal moves smoothly within the specified ranges.
• Depress and release the accelerator pedal to check that it returns smoothly to the original released position.
• Perform an electrical inspection of the accelerator pedal position sensor. Refer to EC-374, " Component
Inspection " .
CAUTION:
When the harness connector of the accelerator pedal position sensor is disconnected, perform
″Accelerator Pedal Released Position Learning″. Refer to EC-22, " Accelerator Pedal Released Posi-
tion Learning " .
LBIA0380E
Adjustable accelerator pedal – total pedal applied stroke : 48.3 mm (1.90 in)
Adjustable accelerator pedal – total pedal adjustment travel : 73.2 mm (2.88 in)
SERVICE DATA AND SPECIFICATIONS (SDS)
ACC-5
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D
E
F
G
H
I
J
K
L
M
A
ACC
N
P
O
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Accelerator Control INFOID:0000000001396341
Adjustable Accelerator Pedal
Unit: mm (in)
Adjustable accelerator pedal - total pedal applied stroke 48.3 (1.90)
Adjustable accelerator pedal - total pedal adjustment travel 73.2 (2.88)
