FL-1
FUEL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION FL
A
FL
PREPARATION .......................................................... 2
Commercial Service Tool ........................................ 2
FUEL SYSTEM .......................................................... 3
Checking Fuel Lines ................................................ 3
FUEL FILTER ............................................................. 4
Water Draining from Fuel Filter ............................... 4
DRAINING WATER .............................................. 4
FUEL FILTER CHECK ......................................... 4
Changing Fuel Filter ................................................ 4
REMOVAL ............................................................ 4
INSTALLATION .................................................... 4
Bleeding Fuel Filter .................................................. 5
FUEL LEVEL SENSOR UNIT .................................... 6
Removal and Installation ......................................... 6
REMOVAL ............................................................ 6
INSTALLATION .................................................... 8
FUEL TANK ............................................................... 9
Removal and Installation ......................................... 9
REMOVAL ............................................................ 9
INSTALLATION .................................................. 11
FL-2
PREPARATION
PREPARATION PFP:00002
Commercial Service Tool EBS00OHD
Tool number
Tool name Description

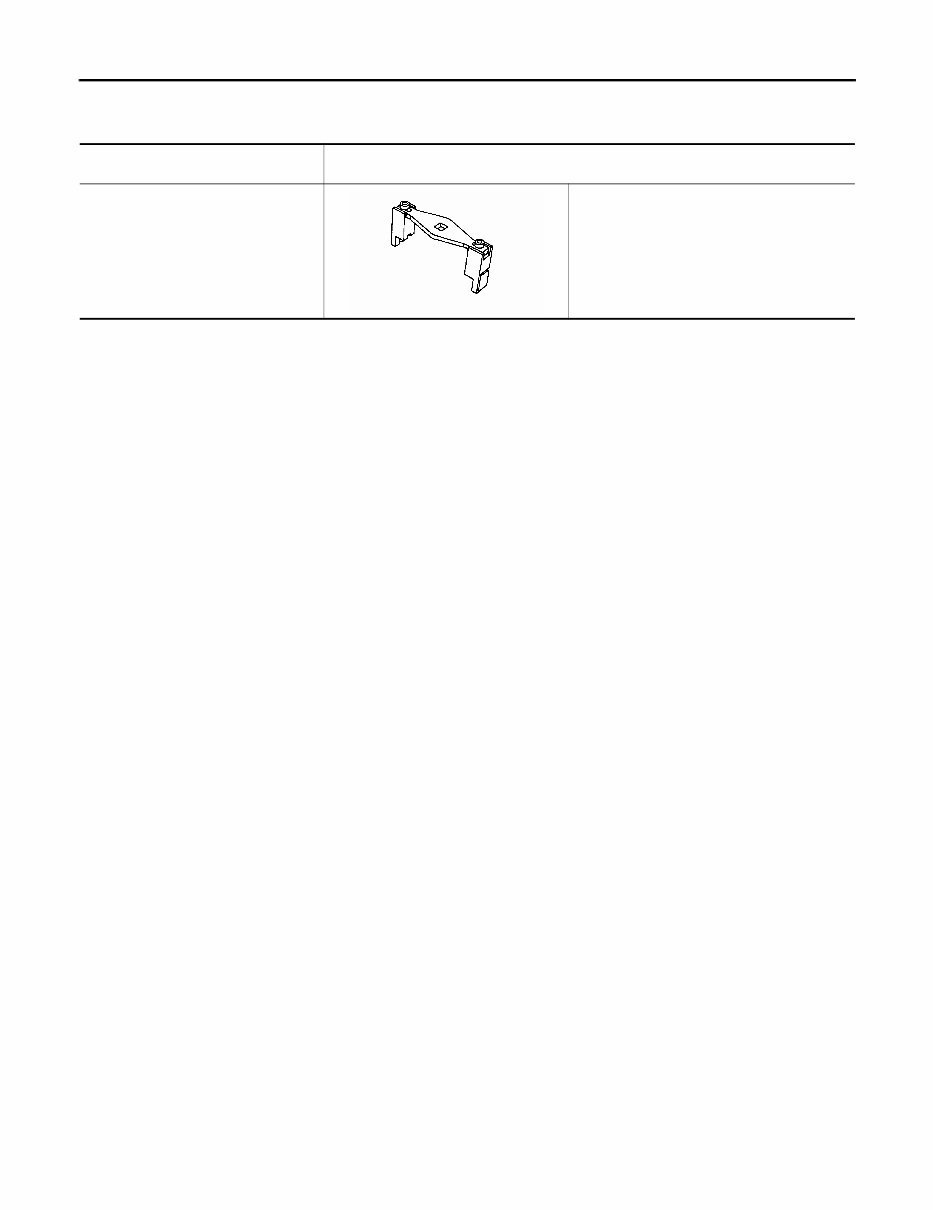

Fuel tank lock ring wrench Removing and installing fuel tank lock ring
ZZA0122D
FUEL SYSTEM
FL-3
C
D
E
F
G
H
I
J
K
L
M
A
FL
FUEL SYSTEM PFP:17503
Checking Fuel Lines EBS00OI0

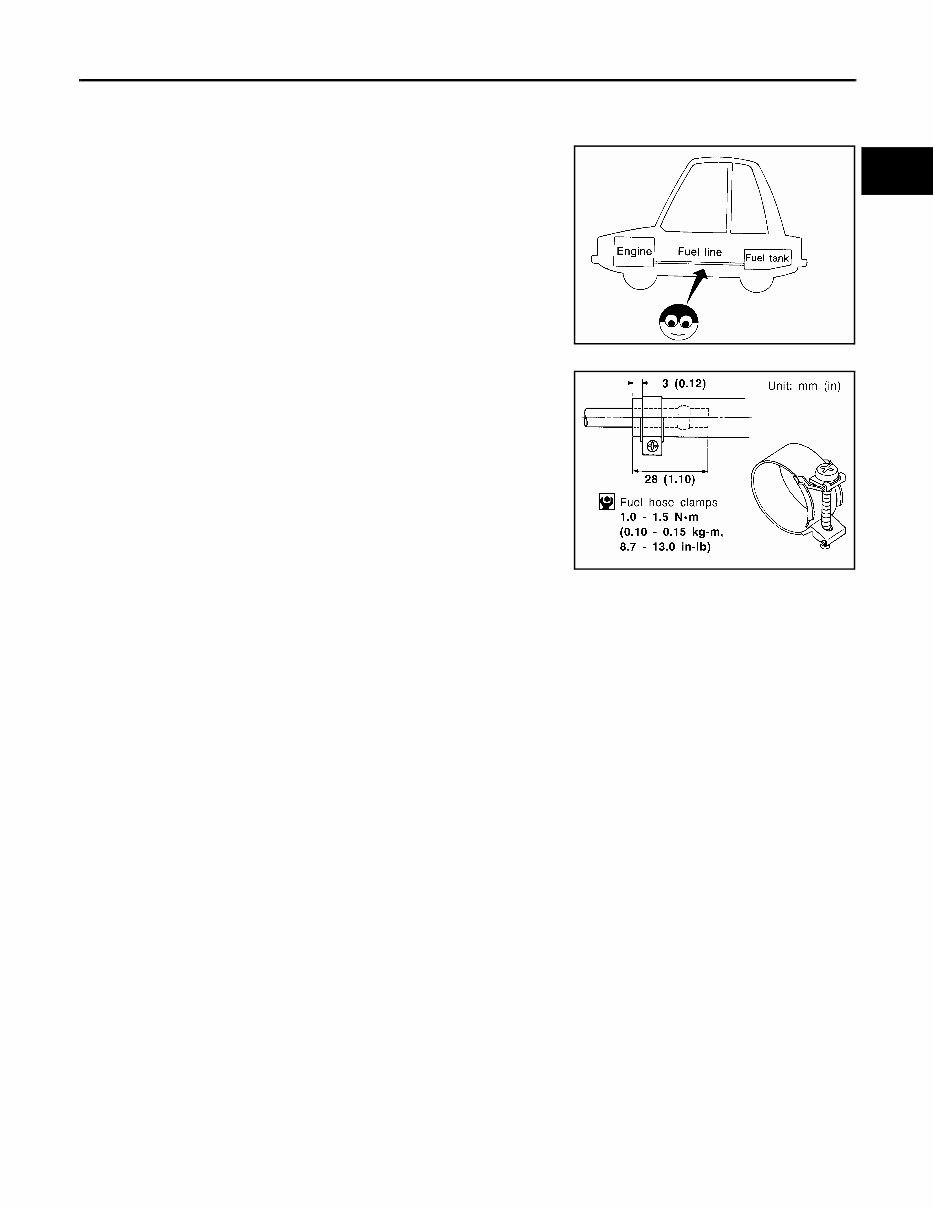

Inspect fuel lines and tank for improper attachment, leaks, cracks,
damage, chafing and deterioration.If necessary, repair or replace.
CAUTION:
Tighten high-pressure rubber hose clamp so that clamp end is
3 mm (0.12 in) from hose end.
Tightening torque specifications are the same for all rubber
hose clamps.
Ensure that screw does not contact adjacent parts.
SMA803A
MMA104A
FL-4
FUEL FILTER
FUEL FILTER PFP:16400
Water Draining from Fuel Filter EBS00OI1
DRAINING WATER

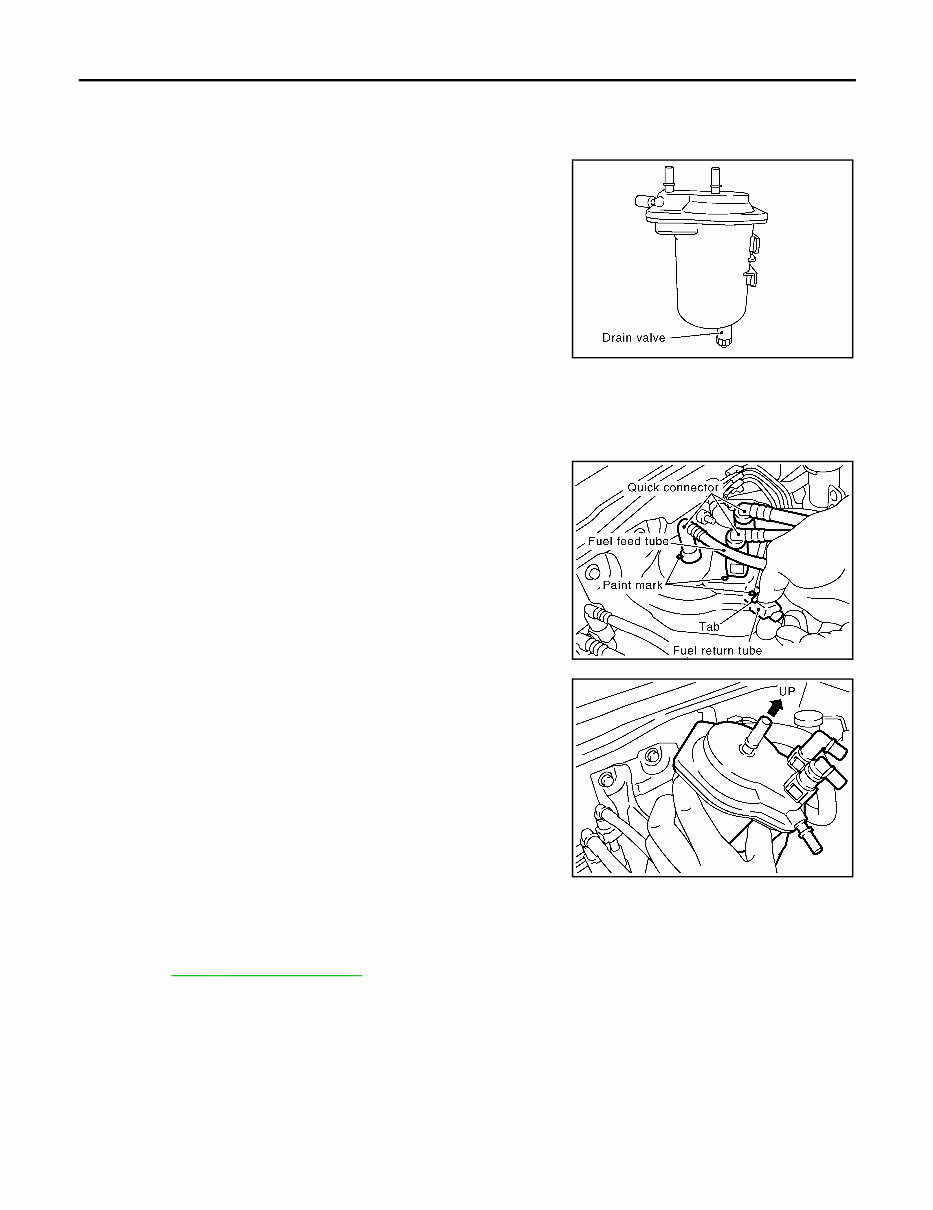

Open drain valve at the bottom of fuel filter.
FUEL FILTER CHECK
Check fuel filter for fuel leakage, damage and other abnormal sings.
Changing Fuel Filter EBS00OI2
REMOVAL
1. Remove quick connectors as shown.
2. Remove fuel filter from fuel filter bracket.
CAUTION:
Do not spill the fuel during removal. If the fuel is spill,
immediately wipe it off. Be especially careful to prevent the
fuel from adhering to the insulators of the engine mounts.
INSTALLATION
● Install in the reverse order of removal.
● After installation, operate the priming bulb vertically to perform air bleeding.
Refer to FL-5, " Bleeding Fuel Filter " .
MBIB0530E
MBIB0531E
MBIB0532E
FUEL FILTER
FL-5
C
D
E
F
G
H
I
J
K
L
M
A
FL
Bleeding Fuel Filter EBS00OI3

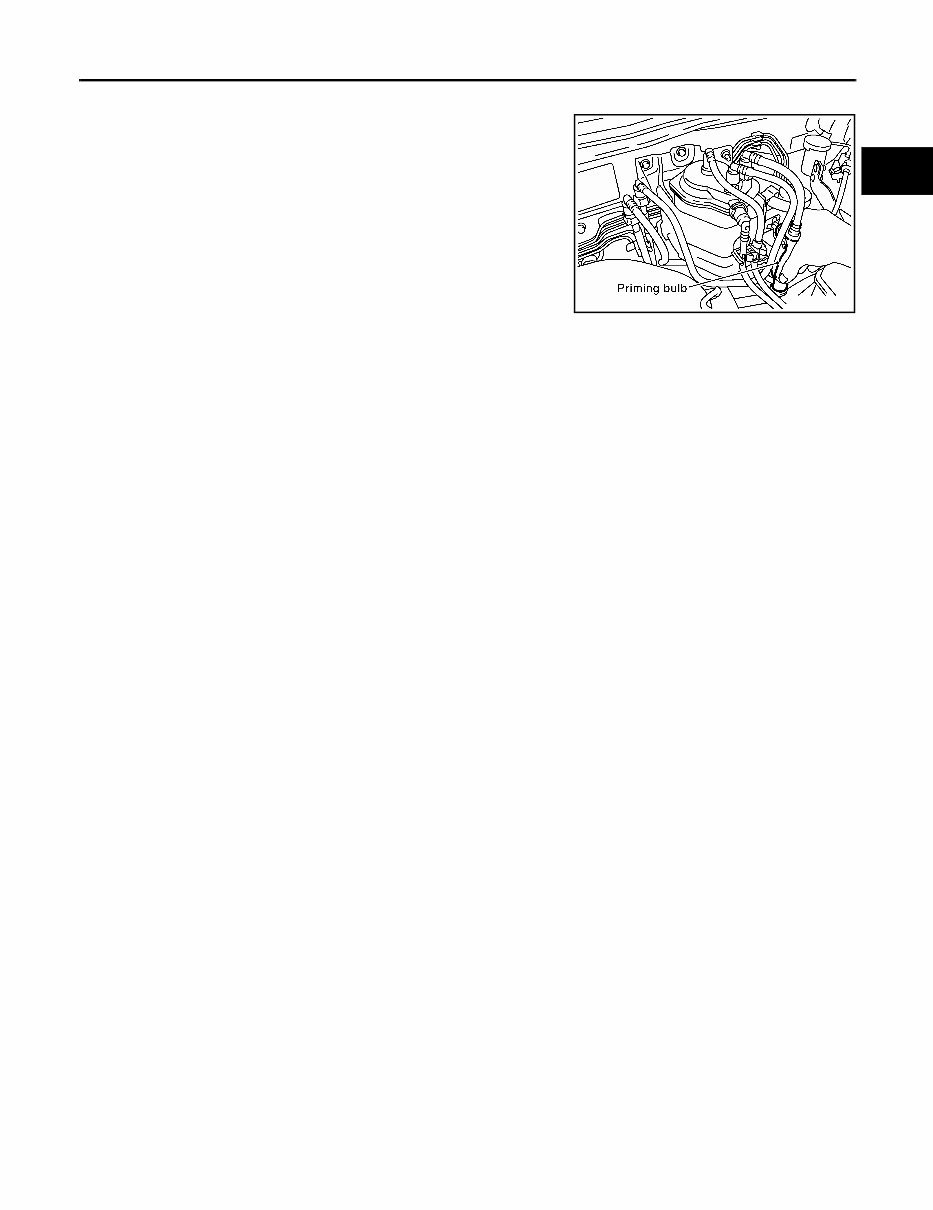

1. Prime the circuit using the priming bulb.
2. Perform engine cranking with repeating several times until
engine starting.
MBIB0533E
