Dodge Dakota 2005-2011 Workshop Manual Note: The manual is referenced to year 2005, which is the 3rd Generation Dakota. This is applicable for the years 2005-2011 North America Edition. Please be aware that there may be some slight differences of your actual model due to year by year cosmetic and minor electrical updates by the manufacturer. INDEX Introduction IN Vehicle Theft Security 8Q Lubrication and Maintenance 0 Wipers/Washers 8R Suspension 2 Navigation/Telecommunication 8T Differential & Driveline 3 Wiring 8W Brakes 5 Engine 9 Clutch 6 Exhaust Systems 11 Cooling 7 Frame and Bumpers 13 Audio 8A Fuel System 14 Chime/Buzzer 8B Steering 19 Electronic Control Modules 8E Transmission and Transfer Case 21 Engine Systems 8F Tires/Wheels 22 Heated Systems 8G Body 23 Horn 8H Heating and Air Conditioning 24 Ignition Control 8I Emissions Control 25 Instrument Cluster 8J Index IX Lamps 8L DTC Index DT Message Systems 8M Power Systems 8N Restraints 8O Speed Control 8P

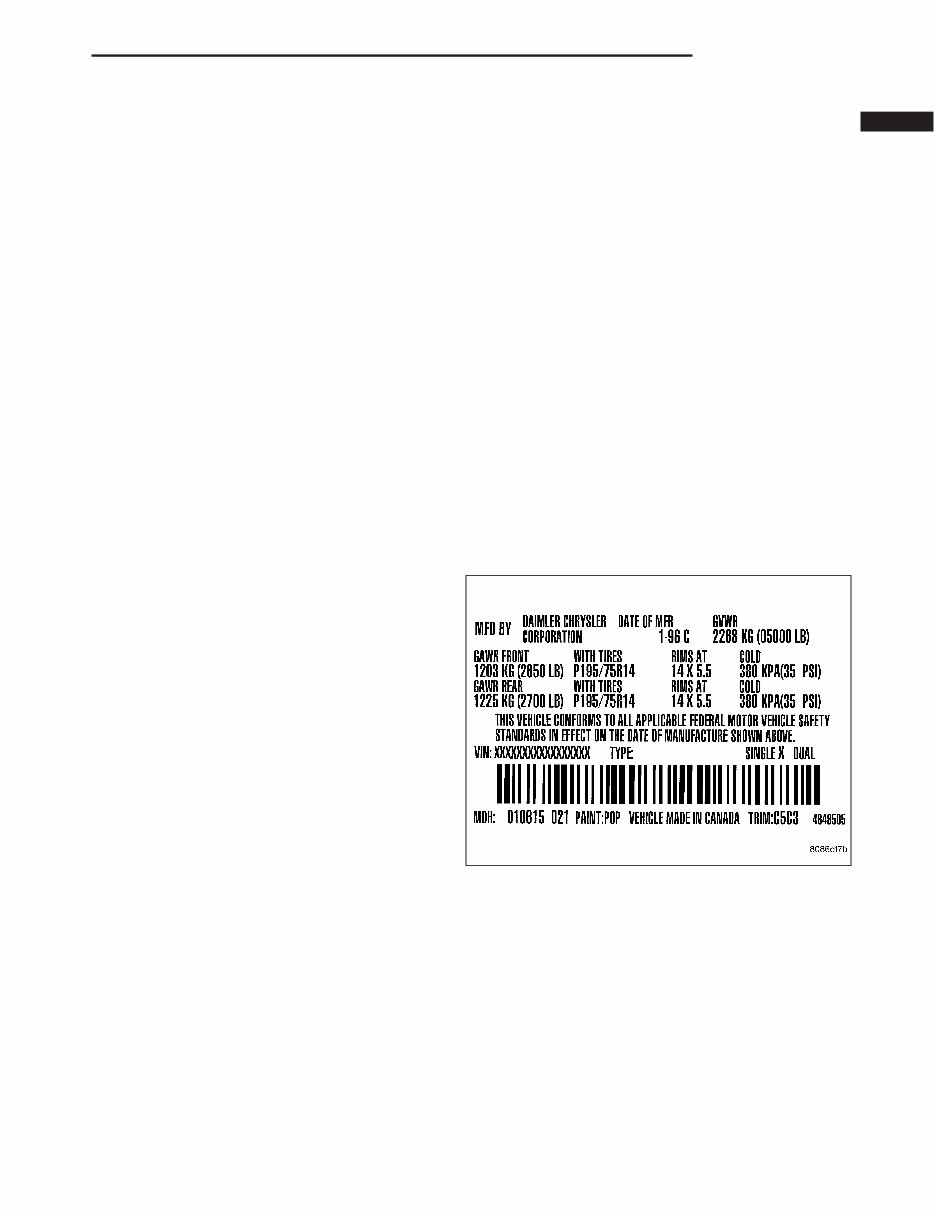

INTRODUCTION TABLE OF CONTENTS page page VEHICLE CERTIFICATION LABEL DESCRIPTION .......................... 1 VEHICLE IDENTIFICATION NUMBER DESCRIPTION .......................... 2 VEHICLE EMISSION CONTROL INFORMATION (VECI) LABEL DESCRIPTION .......................... 3 INTERNATIONAL SYMBOLS DESCRIPTION .......................... 3 FASTENER IDENTIFICATION DESCRIPTION .......................... 4 FASTENER USAGE DESCRIPTION FASTENER USAGE ..................... 6 THREADED HOLE REPAIR ............... 6 METRIC SYSTEM DESCRIPTION .......................... 7 TORQUE REFERENCES DESCRIPTION .......................... 9 VEHICLE CERTIFICATION LABEL DESCRIPTION A vehicle certification label is attached to every DaimlerChrysler Corporation vehicle. The label certi- fies that the vehicle conforms to all applicable Federal Motor Vehicle Standards. The label also lists: • Month and year of vehicle manufacture. • Gross Vehicle Weight Rating (GVWR). The gross front and rear axle weight ratings (GAWR’s) are based on a minimum rim size and maximum cold tire inflation pressure. • Vehicle Identification Number (VIN). • Type of vehicle. • Type of rear wheels. • Bar code. • Month, Day and Hour (MDH) of final assembly. • Paint and Trim codes. • Country of origin. The label is located on the driver-side door shut-face. ND INTRODUCTION 1

VEHICLE IDENTIFICATION NUMBER DESCRIPTION The Vehicle Identification Number (VIN) plate is attached to the top left side of the instrument panel. The VIN contains 17 characters that provide data con- cerning the vehicle. Refer to the decoding chart to determine the identification of a vehicle. To protect the consumer from theft and possible fraud the manufacturer is required to include a Check Digit at the ninth position of the Vehicle Identification Num- ber. The check digit is used by the manufacturer and government agencies to verify the authenticity of the vehicle and official documentation. The formula to use the check digit is not released to the general public. VIN DECODING INFORMATION POSITION INTERPRETATION CODE = DESCRIPTION 1 Country of Origin 1 = Manufactured by DaimlerChrysler Corporation 2 Make D = Dodge 3 Vehicle Type 7 = Truck less Side Airbags 3 = Truck with Side Airbags 4 Gross Vehicle Weight Rating H = 6001-7000 lbs. 5 Vehicle Line E = Dakota 4x2 W = Dakota 4x4 6 Series 2 = Dakota ST 4 = Dakota SLT/Sport 5 = Dakota LARAMIE/SPORT 7 Body Style 2 = Club Cab Dakota 8 = Quad Cab Dakota 8 Engine K = 3.7L 6 cyl. MPI Gasoline N = 4.7L 8 cyl. MPI Gasoline J = 4.7L 8 cyl. MPI High Output Gasoline 9 Check Digit 0 through 9 or X 10 Model Year 5 = 2005 11 Assembly Plant S = Warren Truck Assembly 12 Thru 17 Vehicle Build Sequence 2 INTRODUCTION ND

VEHICLE EMISSION CONTROL INFORMATION (VECI) LABEL DESCRIPTION All vehicles are equipped with a combined VECI label. This label is located in the engine compartment. The VECI label contains the following: • Engine family and displacement • Evaporative family • Emission control system schematic • Certification application • Engine timing specifications (if adjustable) • Idle speeds (if adjustable) • Spark plug and gap The label also contains an engine vacuum schematic. There are unique labels for vehicles built for sale in the state of California and the country of Canada. Canadian labels are written in both the English and French languages. These labels are permanently attached and cannot be removed without defacing information and destroying label. INTERNATIONAL SYMBOLS DESCRIPTION The graphic symbols illustrated in the following International Control and Display Symbols Chart are used to identify various instrument controls. The symbols correspond to the controls and displays that are located on the instrument panel. ND INTRODUCTION 3

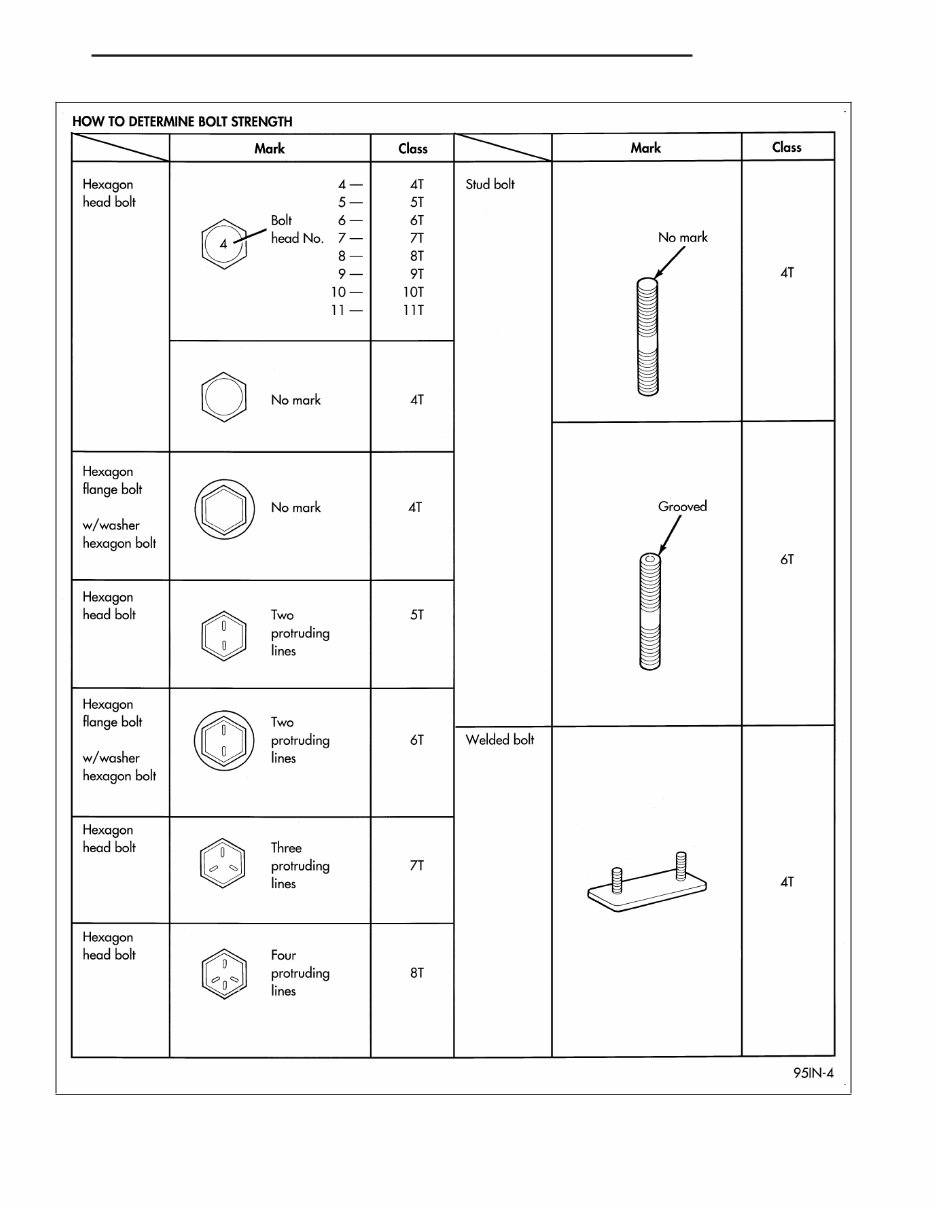

FASTENER IDENTIFICATION DESCRIPTION The SAE bolt strength grades range from grade 2 to grade 8. The higher the grade number, the greater the bolt strength. Identification is determined by the line marks on the top of each bolt head. The actual bolt strength grade corresponds to the number of line marks plus 2. The most commonly used metric bolt strength classes are 9.8 and 10.9. The metric strength class identification number is imprinted on the head of the bolt. The higher the class number, the greater the bolt strength. Some metric nuts are imprinted with a single-digit strength class on the nut face. Refer to the Fastener Identification and Fastener Strength Charts. Bolt Markings and Torques - Metric Bolt Markings 8.8/8.9 10.9 12.9 Bolt Dia. N·m Ft. Lbs. N·m Ft. Lbs. N·m Ft. Lbs. 6 12 105* 14 120* 16 12 8 25 250* 32 23 38 28 10 54 40 60 45 74 55 12 95 70 108 80 135 100 14 155 115 175 130 216 160 16 243 180 324 210 324 240 * Inch Lbs. Bolt Markings and Torques - U. S. Customary Bolt Markings Grade 5 Grade 8 Bolt Dia. N·m Ft. Lbs N·m Ft. Lbs 1/4 - 20 10 95* 14 125* 1/4 - 28 10 95* 17 150* 5/16 - 18 22 200* 30 270* 5/16 - 24 26 240* 33 300* 3/8 - 16 40 30 55 40 3/8 - 24 47 35 60 45 7/16 - 14 68 50 88 65 7/16 - 20 74 55 95 70 1/2 - 13 101 75 135 100 1/2 -20 115 85 150 110 9/16 - 12 135 105 182 135 9/16 - 18 155 115 202 150 5/8 - 11 202 150 263 195 5/8 - 18 215 160 284 210 3/4 - 10 230 170 297 220 3/4 - 16 236 175 304 225 7/8 - 14 405 300 540 400 * Inch Lbs. 4 INTRODUCTION ND

ND INTRODUCTION 5

FASTENER USAGE DESCRIPTION FASTENER USAGE WARNING: Use of an incorrect fastener may result in component damage or personal injury. Fasteners and torque specifications references in this Service Manual are identified in metric and SAE format. During any maintenance or repair procedures, it is important to salvage all fasteners (nuts, bolts, etc.) for reassem- bly. If the fastener is not salvageable, a fastener of equivalent specification must be used. THREADED HOLE REPAIR Most stripped threaded holes can be repaired using a HelicoilT. Follow the vehicle or HelicoilT recommendations for application and repair procedures. 6 INTRODUCTION ND

METRIC SYSTEM DESCRIPTION ND INTRODUCTION 7

The metric system is based on quantities of one, ten, one hundred, one thousand and one million. The following chart will assist in converting metric units to equivalent English and SAE units, or vise versa. CONVERSION FORMULAS AND EQUIVALENT VALUES MULTIPLY BY TO GET MULTIPLY BY TO GET in-lbs x 0.11298 = Newton Meters (N·m) N·m x 8.851 = in-lbs ft-lbs x 1.3558 = Newton Meters (N·m) N·m x 0.7376 = ft-lbs Inches Hg (60° F) x 3.377 = Kilopascals (kPa) kPa x 0.2961 = Inches Hg psi x 6.895 = Kilopascals (kPa) kPa x 0.145 = psi Inches x 25.4 = Millimeters (mm) mm x 0.03937 = Inches Feet x 0.3048 = Meters (M) M x 3.281 = Feet Yards x 0.9144 = Meters M x 1.0936 = Yards mph x 1.6093 = Kilometers/Hr. (Km/h) Km/h x 0.6214 = mph Feet/Sec x 0.3048 = Meters/Sec (M/S) M/S x 3.281 = Feet/Sec mph x 0.4470 = Meters/Sec (M/S) M/S x 2.237 = mph Kilometers/Hr. (Km/h) x 0.27778 = Meters/Sec (M/S) M/S x 3.600 Kilometers/Hr. (Km/h) COMMON METRIC EQUIVALENTS 1 inch = 25 Millimeters 1 Cubic Inch = 16 Cubic Centimeters 1 Foot = 0.3 Meter 1 Cubic Foot = 0.03 Cubic Meter 1 Yard = 0.9 Meter 1 Cubic Yard = 0.8 Cubic Meter 1 Mile = 1.6 Kilometers Refer to the Metric Conversion Chart to convert torque values listed in metric Newton- meters (N·m). Also, use the chart to convert between millimeters (mm) and inches (in.). 8 INTRODUCTION ND

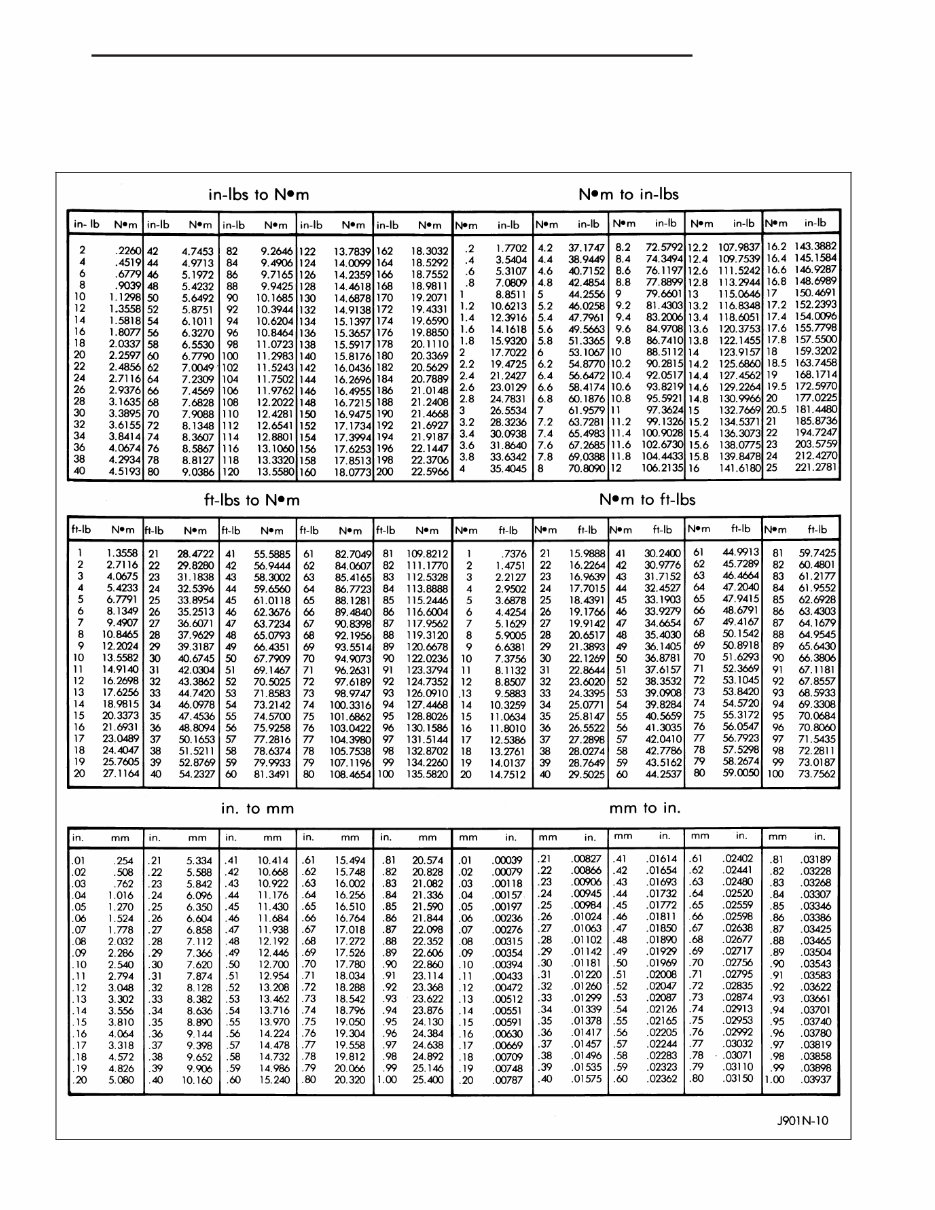

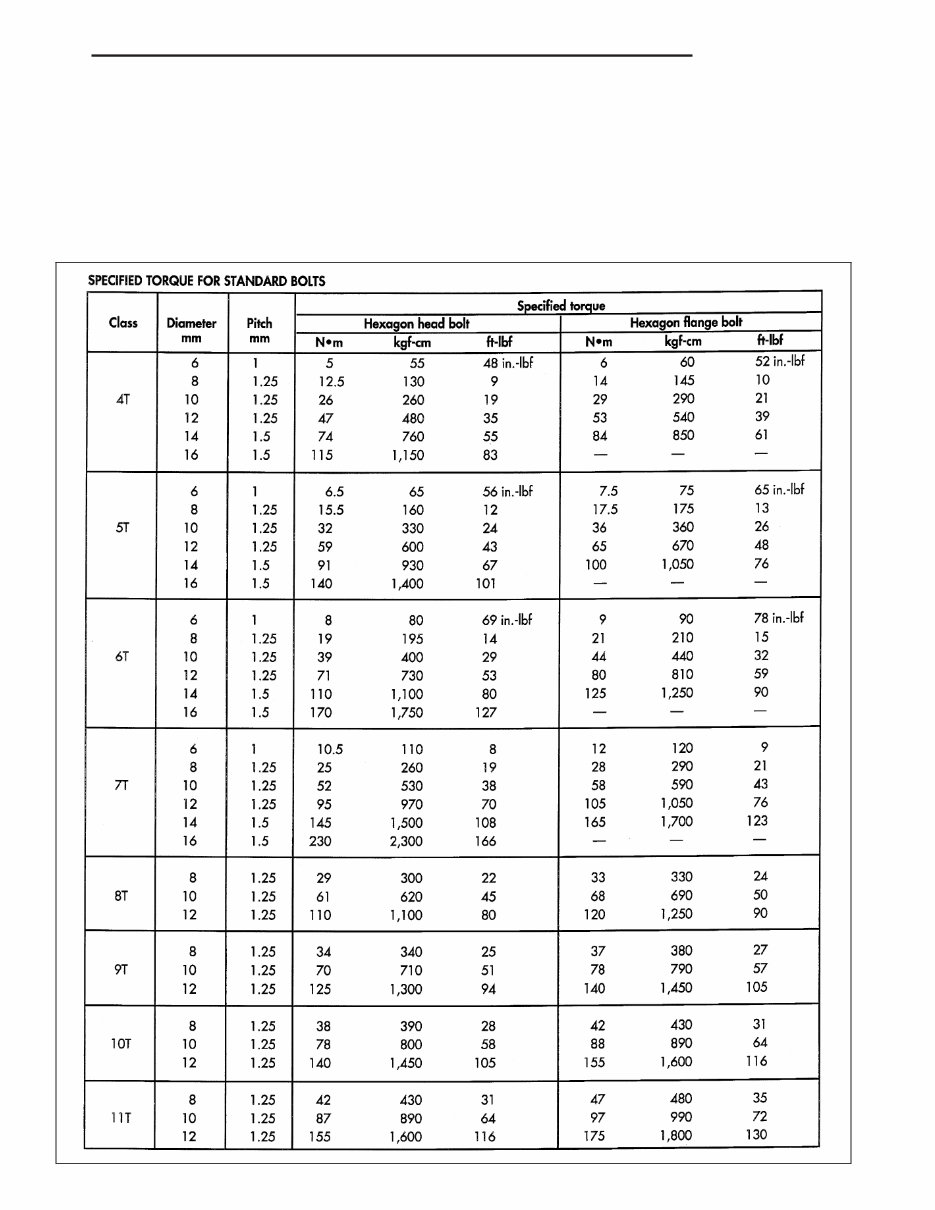

TORQUE REFERENCES DESCRIPTION Individual Torque Charts appear within many or the Groups. Refer to the Standard Torque Specifications Chart for torque references not listed in the individual torque charts. ND INTRODUCTION 9
