1997-2004 Mitsubishi Montero Sport Wiring Diagram Manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Copyright 2002-2004 Triple S Customs
M
M
I
I
T
T
S
S
U
U
B
B
I
I
S
S
H
H
I
I
M
M
O
O
N
N
T
T
E
E
R
R
O
O
S
S
P
P
O
O
R
R
T
T
1
1
9
9
9
9
7
7
-
-
2
2
0
0
0
0
4
4
V
V
E
E
H
H
I
I
C
C
L
L
E
E
W
W
I
I
R
R
I
I
N
N
G
G
chodina@live.co.uk chodina@live.co.uk
Copyright 2002-2004 Triple S Customs
2

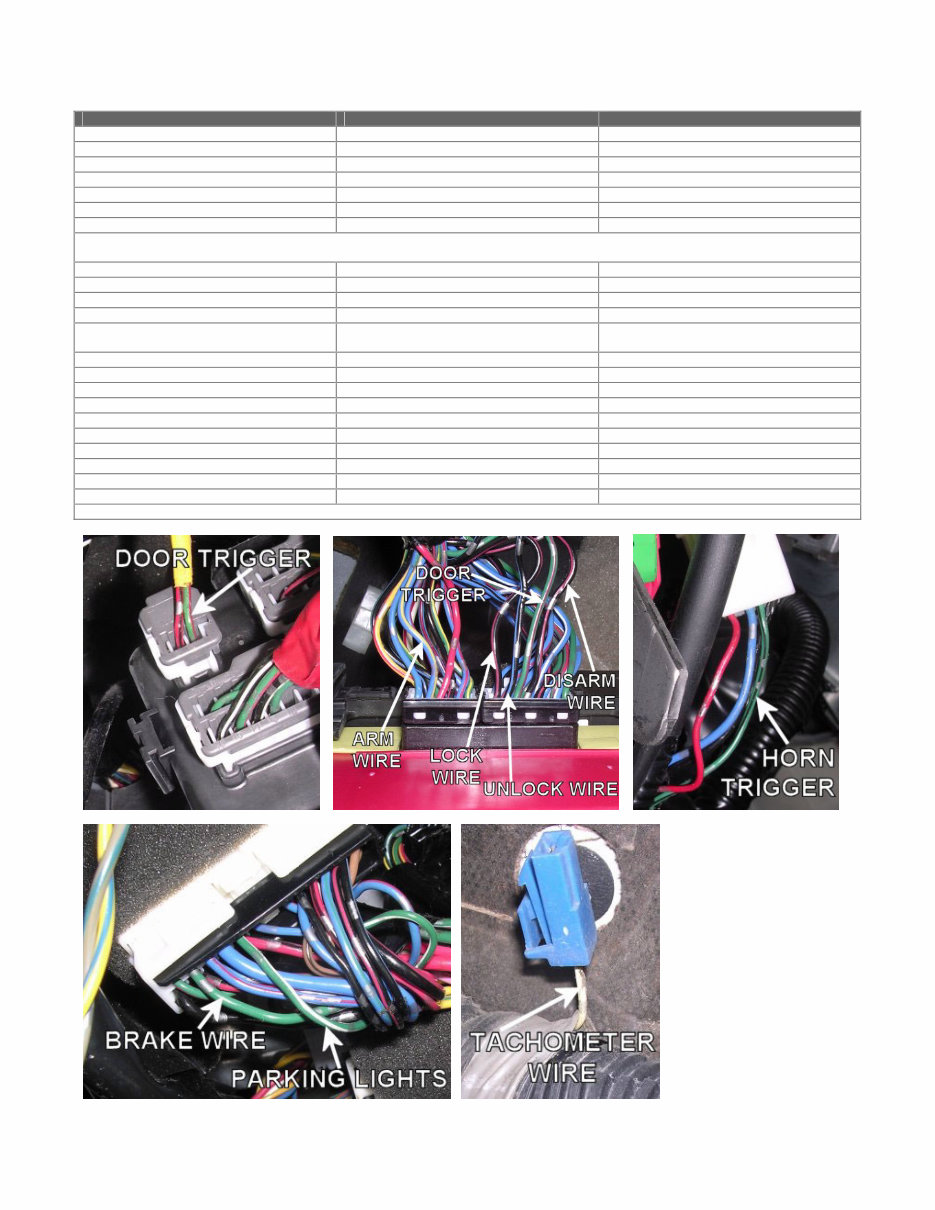

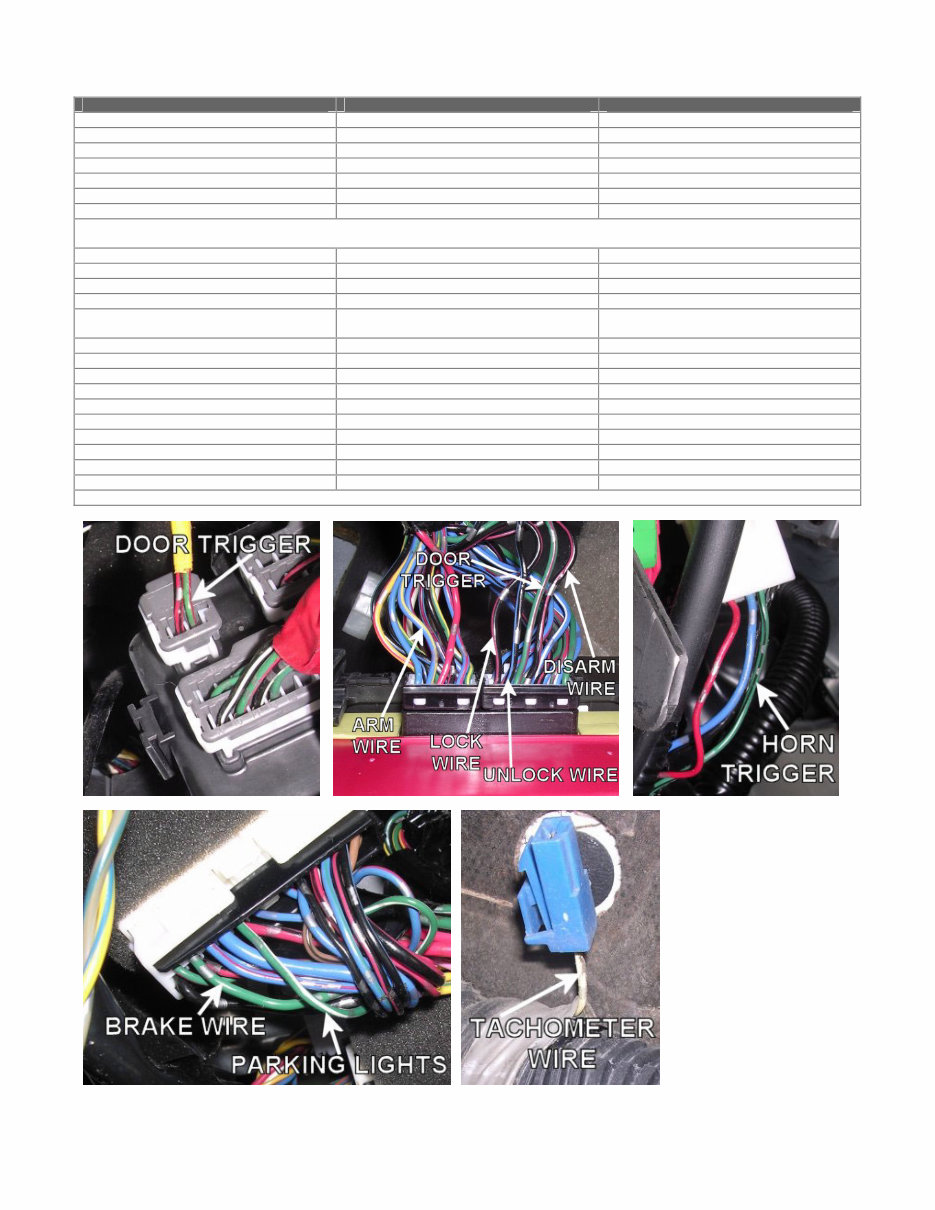

WIRING INFORMATION: 1997 Mitsubishi Montero Sport
WIRE WIRE COLOR WIRE LOCATION
12V CONSTANT WIRE WHITE Ignition Harness
STARTER WIRE BLACK/YELLOW or BLACK/BLUE Ignition Harness
IGNITION WIRE BLACK/WHITE Ignition Harness
ACCESSORY WIRE BLUE/RED Ignition Harness
SECOND ACCESSORY WIRE BLUE Ignition Harness
POWER DOOR LOCK (-) BLACK/RED Red Module On Back Of Fuse Box
POWER DOOR UNLOCK (-) BLACK/BLUE Red Module On Back Of Fuse Box
DO NOT cycle the door locks quickly. This can damage the door lock module and prevent the door locks from operating. Also, relays must be
used to trigger the door locks.
PARKING LIGHTS (+) GREEN/WHITE Large Harness Behind Driver’s Dash Speaker
DOOR TRIGGER (-) GREEN/RED Connector At Top Left Of Fuse Box
FACTORY ALARM ARM (-) BLUE/YELLOW Red Module On Back Of Fuse Box
FACTORY ALARM DISARM (-) BLACK/RED Red Module On Back Of Fuse Box
TACHOMETER WIRE WHITE Test Connector At Firewall On Driver’s Side
Under Hood
BRAKE WIRE (+) GREEN Plug At Brake Pedal Switch
HORN TRIGGER (- GREEN/BLACK Connector To Right Of Steering Column
LEFT FRONT WINDOW UP RED At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN GREEN At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP RED/BLUE Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN BLACK/YELLOW Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP RED/WHITE Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN GREEN/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP BLUE/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN BLUE Harness In Driver’s Kick From Driver Door
Some models are equipped with a factory Immobilizer system. This must be bypassed when installing a remote start system.
chodina@live.co.uk chodina@live.co.uk
Copyright 2002-2004 Triple S Customs
3
WIRING INFORMATION: 1998 Mitsubishi Montero Sport
WIRE WIRE COLOR WIRE LOCATION
12V CONSTANT WIRE WHITE Ignition Harness
STARTER WIRE BLACK/YELLOW or BLACK/BLUE Ignition Harness
IGNITION WIRE BLACK/WHITE Ignition Harness
ACCESSORY WIRE BLUE/RED Ignition Harness
SECOND ACCESSORY WIRE BLUE Ignition Harness
POWER DOOR LOCK (-) BLACK/RED Red Module On Back Of Fuse Box
POWER DOOR UNLOCK (-) BLACK/BLUE Red Module On Back Of Fuse Box
DO NOT cycle the door locks quickly. This can damage the door lock module and prevent the door locks from operating. Also, relays must be
used to trigger the door locks.
PARKING LIGHTS (+) GREEN/WHITE Large Harness Behind Driver’s Dash Speaker
DOOR TRIGGER (-) GREEN/RED Connector At Top Left Of Fuse Box
FACTORY ALARM ARM (-) BLUE/YELLOW Red Module On Back Of Fuse Box
FACTORY ALARM DISARM (-) BLACK/RED Red Module On Back Of Fuse Box
TACHOMETER WIRE WHITE Test Connector At Firewall On Driver’s Side
Under Hood
BRAKE WIRE (+) GREEN Plug At Brake Pedal Switch
HORN TRIGGER (- GREEN/BLACK Connector To Right Of Steering Column
LEFT FRONT WINDOW UP RED At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN GREEN At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP RED/BLUE Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN BLACK/YELLOW Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP RED/WHITE Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN GREEN/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP BLUE/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN BLUE Harness In Driver’s Kick From Driver Door
Some models are equipped with a factory Immobilizer system. This must be bypassed when installing a remote start system.
chodina@live.co.uk chodina@live.co.uk
Copyright 2002-2004 Triple S Customs
4
WIRING INFORMATION: 1999 Mitsubishi Montero Sport
WIRE WIRE COLOR WIRE LOCATION
12V CONSTANT WIRE WHITE Ignition Harness
STARTER WIRE BLACK/YELLOW or BLACK/BLUE Ignition Harness
IGNITION WIRE BLACK/WHITE Ignition Harness
ACCESSORY WIRE BLUE/RED Ignition Harness
SECOND ACCESSORY WIRE BLUE Ignition Harness
POWER DOOR LOCK (-) BLACK/RED Red Module On Back Of Fuse Box
POWER DOOR UNLOCK (-) BLACK/BLUE Red Module On Back Of Fuse Box
DO NOT cycle the door locks quickly. This can damage the door lock module and prevent the door locks from operating. Also, relays must be
used to trigger the door locks.
PARKING LIGHTS (+) GREEN/WHITE Large Harness Behind Driver’s Dash Speaker
DOOR TRIGGER (-) GREEN/RED Connector At Top Left Of Fuse Box
FACTORY ALARM ARM (-) BLUE/YELLOW Red Module On Back Of Fuse Box
FACTORY ALARM DISARM (-) BLACK/RED Red Module On Back Of Fuse Box
TACHOMETER WIRE WHITE Test Connector At Firewall On Driver’s Side
Under Hood
BRAKE WIRE (+) GREEN Plug At Brake Pedal Switch
HORN TRIGGER (- GREEN/BLACK Connector To Right Of Steering Column
LEFT FRONT WINDOW UP RED At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN GREEN At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP RED/BLUE Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN BLACK/YELLOW Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP RED/WHITE Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN GREEN/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP BLUE/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN BLUE Harness In Driver’s Kick From Driver Door
Some models are equipped with a factory Immobilizer system. This must be bypassed when installing a remote start system.
chodina@live.co.uk chodina@live.co.uk
Copyright 2002-2004 Triple S Customs
5
WIRING INFORMATION: 2000 Mitsubishi Montero Sport
WIRE WIRE COLOR WIRE LOCATION
12V CONSTANT WIRE WHITE Ignition Harness
STARTER WIRE BLACK/YELLOW or BLACK/BLUE Ignition Harness
IGNITION WIRE BLACK/WHITE Ignition Harness
ACCESSORY WIRE BLUE/RED Ignition Harness
SECOND ACCESSORY WIRE BLUE Ignition Harness
POWER DOOR LOCK (-) BLACK/RED Red Module On Back Of Fuse Box
POWER DOOR UNLOCK (-) BLACK/BLUE Red Module On Back Of Fuse Box
DO NOT cycle the door locks quickly. This can damage the door lock module and prevent the door locks from operating. Also, relays must be
used to trigger the door locks.
PARKING LIGHTS (+) GREEN/WHITE Large Harness Behind Driver’s Dash Speaker
DOOR TRIGGER (-) GREEN/RED Connector At Top Left Of Fuse Box
FACTORY ALARM ARM (-) BLUE/YELLOW Red Module On Back Of Fuse Box
FACTORY ALARM DISARM (-) BLACK/RED Red Module On Back Of Fuse Box
TACHOMETER WIRE WHITE Test Connector At Firewall On Driver’s Side
Under Hood
BRAKE WIRE (+) GREEN Plug At Brake Pedal Switch
HORN TRIGGER (- GREEN/BLACK Connector To Right Of Steering Column
LEFT FRONT WINDOW UP RED At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN GREEN At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP RED/BLUE Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN BLACK/YELLOW Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP RED/WHITE Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN GREEN/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP BLUE/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN BLUE Harness In Driver’s Kick From Driver Door
Some models are equipped with a factory Immobilizer system. This must be bypassed when installing a remote start system.
chodina@live.co.uk chodina@live.co.uk
Copyright 2002-2004 Triple S Customs
6
WIRING INFORMATION: 2001
Mitsubishi Montero Sport
WIRE WIRE COLOR WIRE LOCATION
12V CONSTANT WIRE WHITE Ignition Harness
STARTER WIRE BLACK/YELLOW or BLACK/BLUE Ignition Harness
IGNITION WIRE BLACK/WHITE Ignition Harness
ACCESSORY WIRE BLUE/RED Ignition Harness
SECOND ACCESSORY WIRE BLUE Ignition Harness
POWER DOOR LOCK (-) BLACK/RED Red Module On Back Of Fuse Box
POWER DOOR UNLOCK (-) BLACK/BLUE Red Module On Back Of Fuse Box
DO NOT cycle the door locks quickly. This can damage the door lock module and prevent the door locks from operating. Also, relays must be
used to trigger the door locks.
PARKING LIGHTS (+) GREEN/WHITE Large Harness Behind Driver’s Dash Speaker
DOOR TRIGGER (-) GREEN/RED Connector At Top Left Of Fuse Box
FACTORY ALARM ARM (-) BLUE/YELLOW Red Module On Back Of Fuse Box
FACTORY ALARM DISARM (-) BLACK/RED Red Module On Back Of Fuse Box
TACHOMETER WIRE WHITE Test Connector At Firewall On Driver’s Side
Under Hood
BRAKE WIRE (+) GREEN Plug At Brake Pedal Switch
HORN TRIGGER (- GREEN/BLACK Connector To Right Of Steering Column
LEFT FRONT WINDOW UP RED At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN GREEN At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP RED/BLUE Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN BLACK/YELLOW Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP RED/WHITE Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN GREEN/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP BLUE/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN BLUE Harness In Driver’s Kick From Driver Door
Some models are equipped with a factory Immobilizer system. This must be bypassed when installing a remote start system.
chodina@live.co.uk chodina@live.co.uk
Copyright 2002-2004 Triple S Customs
7
WIRING INFORMATION: 2002 Mitsubishi Montero Sport
WIRE WIRE COLOR WIRE LOCATION
12V CONSTANT WIRE WHITE Ignition Harness
STARTER WIRE BLACK/YELLOW or BLACK/BLUE Ignition Harness
IGNITION WIRE BLACK/WHITE Ignition Harness
ACCESSORY WIRE BLUE/RED Ignition Harness
SECOND ACCESSORY WIRE BLUE Ignition Harness
POWER DOOR LOCK (-) BLACK/RED Red Module On Back Of Fuse Box
POWER DOOR UNLOCK (-) BLACK/BLUE Red Module On Back Of Fuse Box
DO NOT cycle the door locks quickly. This can damage the door lock module and prevent the door locks from operating. Also, relays must be
used to trigger the door locks.
PARKING LIGHTS (+) GREEN/WHITE Large Harness Behind Driver’s Dash Speaker
DOOR TRIGGER (-) GREEN/RED Connector At Top Left Of Fuse Box
FACTORY ALARM ARM (-) BLUE/YELLOW Red Module On Back Of Fuse Box
FACTORY ALARM DISARM (-) BLACK/RED Red Module On Back Of Fuse Box
TACHOMETER WIRE WHITE Test Connector At Firewall On Driver’s Side
Under Hood
BRAKE WIRE (+) GREEN Plug At Brake Pedal Switch
HORN TRIGGER (- GREEN/BLACK Connector To Right Of Steering Column
LEFT FRONT WINDOW UP RED At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN GREEN At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP RED/BLUE Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN BLACK/YELLOW Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP RED/WHITE Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN GREEN/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP BLUE/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN BLUE Harness In Driver’s Kick From Driver Door
Some models are equipped with a factory Immobilizer system. This must be bypassed when installing a remote start system.
chodina@live.co.uk chodina@live.co.uk
Copyright 2002-2004 Triple S Customs
8
WIRING INFORMATION: 2003 Mitsubishi Montero Sport
WIRE WIRE COLOR WIRE LOCATION
12V CONSTANT WIRE WHITE Ignition Harness
STARTER WIRE BLACK/YELLOW or BLACK/BLUE Ignition Harness
IGNITION WIRE BLACK/WHITE Ignition Harness
ACCESSORY WIRE BLUE/RED Ignition Harness
SECOND ACCESSORY WIRE BLUE Ignition Harness
POWER DOOR LOCK (-) BLACK/RED Red Module On Back Of Fuse Box
POWER DOOR UNLOCK (-) BLACK/BLUE Red Module On Back Of Fuse Box
DO NOT cycle the door locks quickly. This can damage the door lock module and prevent the door locks from operating. Also, relays must be
used to trigger the door locks.
PARKING LIGHTS (+) GREEN/WHITE Large Harness Behind Driver’s Dash Speaker
DOOR TRIGGER (-) GREEN/RED Connector At Top Left Of Fuse Box
FACTORY ALARM ARM (-) BLUE/YELLOW Red Module On Back Of Fuse Box
FACTORY ALARM DISARM (-) BLACK/RED Red Module On Back Of Fuse Box
TACHOMETER WIRE WHITE Test Connector At Firewall On Driver’s Side
Under Hood
BRAKE WIRE (+) GREEN Plug At Brake Pedal Switch
HORN TRIGGER (- GREEN/BLACK Connector To Right Of Steering Column
LEFT FRONT WINDOW UP RED At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN GREEN At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP RED/BLUE Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN BLACK/YELLOW Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP RED/WHITE Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN GREEN/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP BLUE/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN BLUE Harness In Driver’s Kick From Driver Door
Some models are equipped with a factory Immobilizer system. This must be bypassed when installing a remote start system.
chodina@live.co.uk chodina@live.co.uk
Copyright 2002-2004 Triple S Customs
9
WIRING INFORMATION: 2004 Mitsubishi Montero Sport
WIRE WIRE COLOR WIRE LOCATION
12V CONSTANT WIRE WHITE Ignition Harness
STARTER WIRE BLACK/YELLOW or BLACK/BLUE Ignition Harness
IGNITION WIRE BLACK/WHITE Ignition Harness
ACCESSORY WIRE BLUE/RED Ignition Harness
SECOND ACCESSORY WIRE BLUE Ignition Harness
POWER DOOR LOCK (-) BLACK/RED Red Module On Back Of Fuse Box
POWER DOOR UNLOCK (-) BLACK/BLUE Red Module On Back Of Fuse Box
DO NOT cycle the door locks quickly. This can damage the door lock module and prevent the door locks from operating. Also, relays must be
used to trigger the door locks.
PARKING LIGHTS (+) GREEN/WHITE Large Harness Behind Driver’s Dash Speaker
DOOR TRIGGER (-) GREEN/RED Connector At Top Left Of Fuse Box
FACTORY ALARM ARM (-) BLUE/YELLOW Red Module On Back Of Fuse Box
FACTORY ALARM DISARM (-) BLACK/RED Red Module On Back Of Fuse Box
TACHOMETER WIRE WHITE Test Connector At Firewall On Driver’s Side
Under Hood
BRAKE WIRE (+) GREEN Plug At Brake Pedal Switch
HORN TRIGGER (- GREEN/BLACK Connector To Right Of Steering Column
LEFT FRONT WINDOW UP RED At Driver Window Motor Inside Door
LEFT FRONT WINDOW DOWN GREEN At Driver Window Motor Inside Door
RIGHT FRONT WINDOW UP RED/BLUE Harness In Driver’s Kick From Driver Door
RIGHT FRONT WINDOW DOWN BLACK/YELLOW Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW UP RED/WHITE Harness In Driver’s Kick From Driver Door
LEFT REAR WINDOW DOWN GREEN/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW UP BLUE/WHITE Harness In Driver’s Kick From Driver Door
RIGHT REAR WINDOW DOWN BLUE Harness In Driver’s Kick From Driver Door
Some models are equipped with a factory Immobilizer system. This must be bypassed when installing a remote start system.
chodina@live.co.uk chodina@live.co.uk
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
Viewed 30 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$28.99
The Mitsubishi Montero Sport Wiring Diagram manual covers the years 1997 to 2004 and provides essential information for professional mechanics and DIY enthusiasts. It includes details on wire color, location, and type, along with images for door trigger, arm wire, lock wire, unlock wire, brake wire, parking lights, and tachometer wire. The manual consists of 9 pages and is available in English format. It is compatible with both Win and Mac systems, offering convenience to a wide range of users.
With comprehensive coverage of wire diagrams for various model years, this manual is a valuable resource for anyone working on Mitsubishi Montero Sport vehicles. Whether you are a professional mechanic or a DIY enthusiast, this manual offers detailed insights into the wiring system, making it a worthwhile investment for anyone looking to understand and work on the electrical components of the Mitsubishi Montero Sport.
