5-1 GROUP 5 SYNTHETIC-RESIN PARTS CONTENTS LOCATION OF SYNTHETIC-RESIN PARTS . . . . . . . . . . . . . . . . . . . . . . . . 5-2

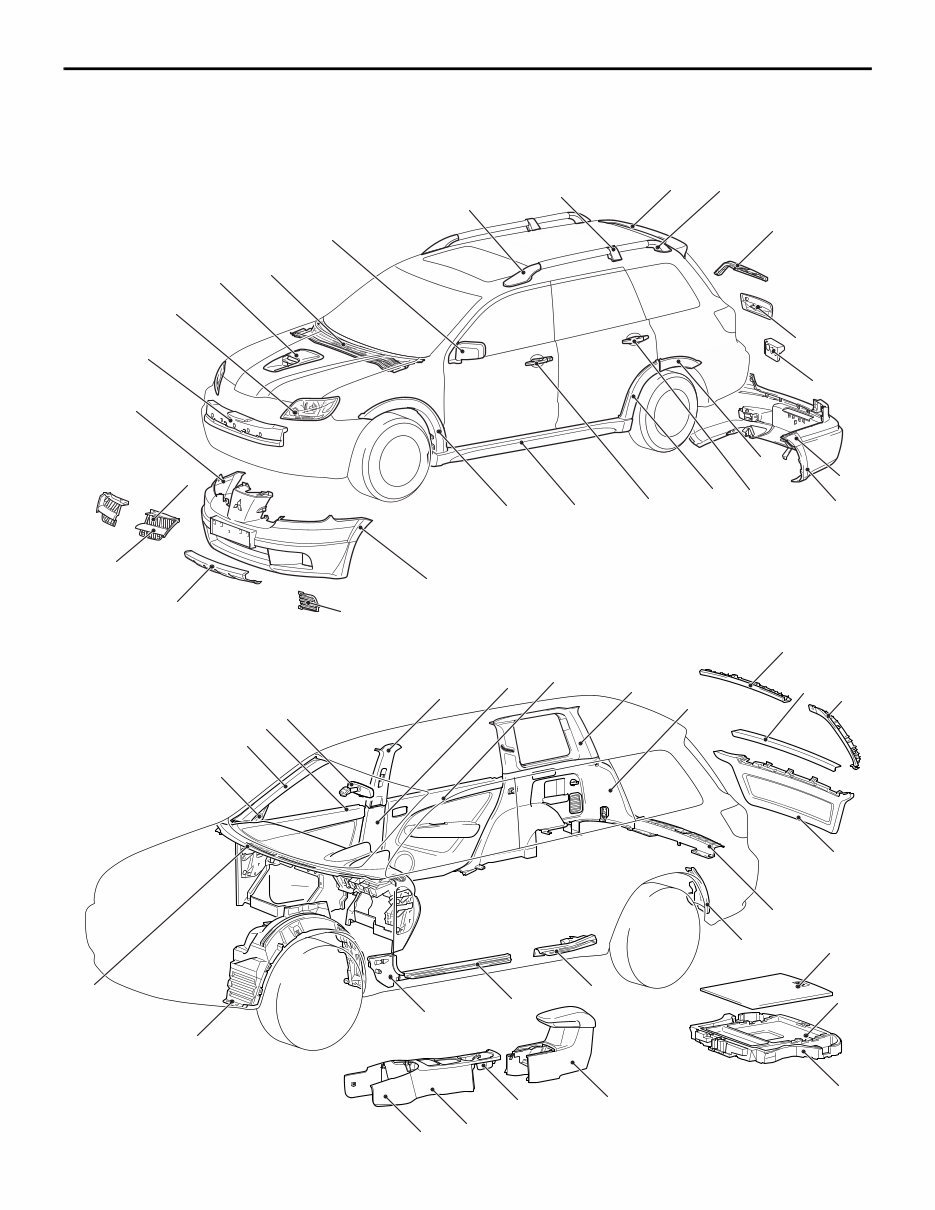

LOCATION OF SYNTHETIC-RESIN PARTS SYNTHETIC-RESIN PARTS 5-2 LOCATION OF SYNTHETIC-RESIN PARTS M4050001000593 The location and material of each of the principal synthetic-resin parts are shown below. AB400055 1 2, 6 3 5 7 8 9 10 4 11 12 15 16 18 40 41 34 45 AB 17 38 39 33 37 36 35 54 AB200178 13 14 20 21 22 23 24 25 26 27 28 29 30 32 42 43 44 31 46 47 48 49 50 52 53 51 AD 19
LOCATION OF SYNTHETIC-RESIN PARTS SYNTHETIC-RESIN PARTS 5-3 NO PART NAME NAME OF RESIN ABBREVIATION HEAT-WITHST AND TEMP [°C] 1 Radiator grille outer Acrylonitrile butadiene styrene ABS 80 2 Door mirror (Colour) 3 Roof spoiler 4 Tailgate garnish 5 Radiator grille inner Acrylonitrile styrene acrylate ASA (AAS) 80 6 Door mirror (Black) 7 Roof rack cover front 8 Roof rack cover centre 9 Roof rack cover rear 10 Headlamp Polycarbonate PC 120 11 Rear door outside handle Polycarbonate+Polyethylene terephthalate PC+PET 120 12 Front door outside handle 13 Front splash shield Polyethylene PE 100 14 Rear splash shield 15 Rear wiper arm Polyethylene terephthalate PET 115 16 Front bumper core Polypropylene PP 80 17 Rear bumper core 18 Air intake bezel 19 Delta cover inner 20 Inside rear view mirror 21 Quarter trim, lower 22 Tailgate trim, upper 23 Tailgate trim 24 Tailgate side trim 25 Tailgate trim, lower 26 Rear-end trim 27 Luggage floor centre lid 28 Luggage floor box, centre 29 Rear scuff plate 30 Front scuff plate 31 Cowl side trim 32 Luggage floor box, side Polypropylene foam PP-E 80
LOCATION OF SYNTHETIC-RESIN PARTS SYNTHETIC-RESIN PARTS 5-4 NOTE: . • If the material symbols designated by the ISO differ from the old symbols, both are given, with the old symboling enclosed in brackets. ISO: International Standardization Organization. • A slash (/) in the material symbol indicates that two different materials make two-layer construction. A plus sign (+) indicates that the two different materials mix each other. • The indicated heat-withstand temperature for parts which are composed of two or more types of material is the value for the material with the lowest heat-withstand temperature. • The material symbols for synthetic-resin parts are embossed on the parts in hidden places. 33 Centre cover Rubber denatured polypropylene PP+E/P 80 34 Front bumper face 35 Rear bumper extension (Intense, Turbo) 36 Rear over fender (Intense, Turbo) 37 Rear door over fender (Intense, Turbo) 38 Side sill garnish 39 Front over fender (Intense, Turbo) 40 Front bumper extension (Intense, Turbo) 41 Rear bumper face Talc filled rubber modified polypropylene PP+E/P-TD(HMP P) 80-100 42 Front door trim Talc filled polypropylene (10%) PP-TD10 (PPF) 100-120 43 Centre pillar trim, lower 44 rear door trim 45 Front deck garnish Talc filled polypropylene (20%) PP-TD20 (PPF) 120-130 46 Front pillar trim 47 Centre pillar trim, upper 48 Quarter trim, upper 49 Floor console rear 50 Floor console panel 51 Floor console front 52 Lower side cover 53 Instrument panel 54 Hood air inlet garnish (Turbo) Polypropylene ether+polyamide 6 PPE (PPO) +PA6 150-160 NO PART NAME NAME OF RESIN ABBREVIATION HEAT-WITHST AND TEMP [°C]
