BRAKES Anti-Lock Braking System (ABS) - Outlander GENERAL INFORMATION The 4 ABS ensures directional stability and control during hard braking. This ABS uses a 4-sensor system that controls all four wheels independently of each other.  EBD *1 (Electronic Brake-force Distribution system) control can obtain ideal rear wheel brake force.  The magnetic encoder for wheel speed detection has been installed instead of the rotor as the wheel speed sensor.  For wiring harness saving and secure data communication, CAN *2 bus has been adopted as a tool of communication with another ECU.  Fail-safe function which ensures that safety is maintained.  Diagnostic function which provides improved serviceability. Specifications ITEM SPECIFICATIONS CHART CONSTRUCTION DIAGRAM NOTE:  *1 : EBD (Electronic Brake-force Distribution)  *2 : For further details on CAN communication, refer to GENERAL INFORMATION .  On vehicles with ASC, the ABS system is controlled by the ASC-ECU. For the system construction, refer to GENERAL INFORMATION . Item Specifications ABS control type 4 sensors Wheel speed sensor Magnetic encoder Front 86 (N pole: 43, S pole: 43) Rear 86 (N pole: 43, S pole: 43) Type Semiconductor 2007-2012 MITSUBISHI OUTLANDER SERVICE AND REPAIR MANUAL BRAKES AKES Ant Anti-Loc -Lock B k Braking aking Syst System (ABS) - Out em (ABS) - Outlander ander

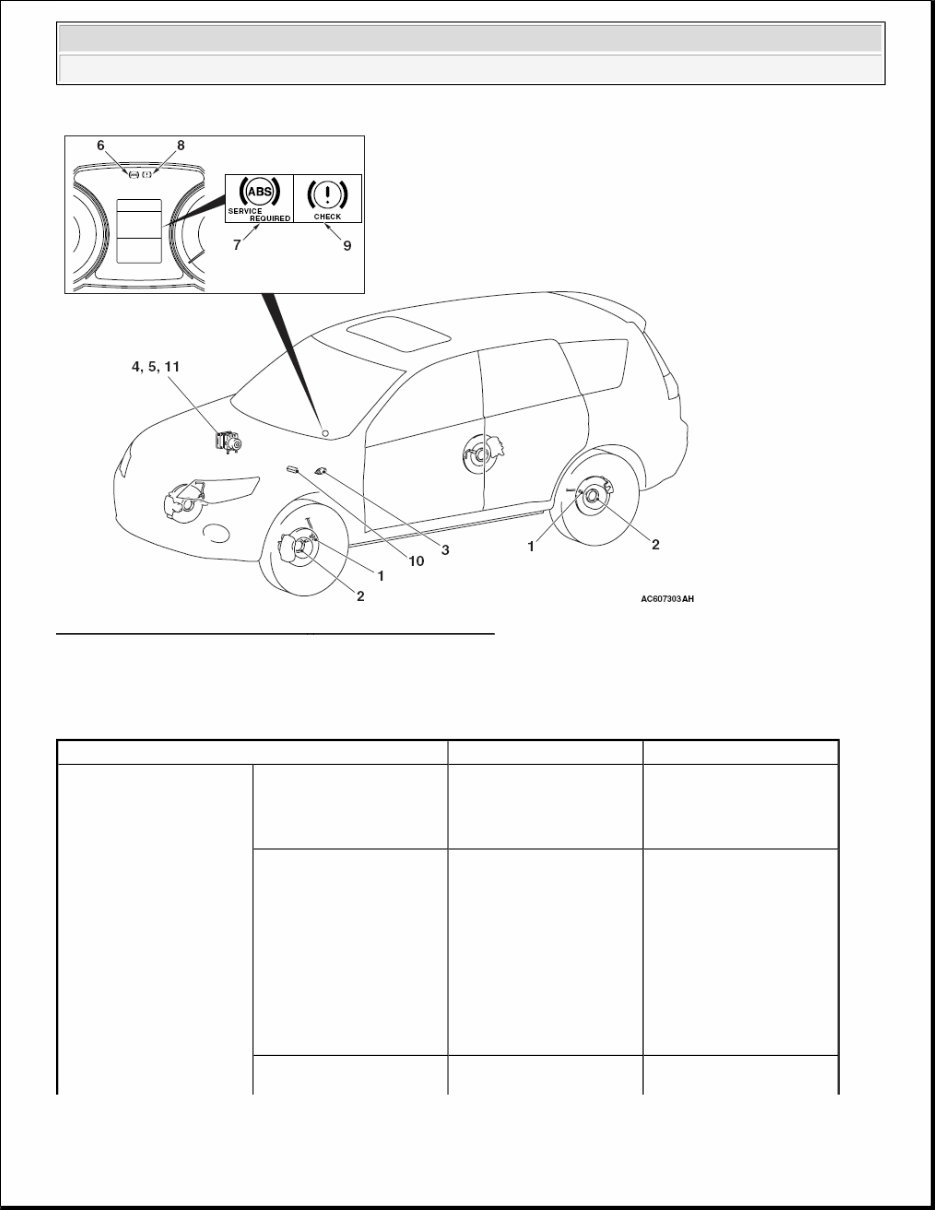

Fig. 1: Anti Lock Brake System - Construction Diagram Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. MAIN COMPONENTS AND FUNCTIONS MAIN COMPONENTS AND FUNCTIONS CHART Name of part Number Outline of function Sensor Wheel speed sensor 1 Outputs the frequency signal in proportion to the rotation speed of each wheel to ABS-ECU. Magnetic encoder for wheel speed detection 2 When the magnetic encoder for wheel speed detection (a plate on which north and south pole sides of the magnets are arranged alternately) rotates, the wheel speed sensor outputs frequency pulse signal in proportion to each wheel speed. Stoplight switch 3 Outputs the signal indicating whether the Mitsubishi Outlander SE BRAKES Anti-Lock Braking System (ABS) - Outlander

brake pedal is depressed or not to ABS-ECU. G sensor <4WD> 4 Incorporated in ABS- ECU, and detects the longitudinal acceleration of the vehicle. Actuator Hydraulic unit 5 Drives the solenoid valve using the signal from ABS-ECU, and controls the brake fluid pressure for each wheel. ABS warning light 6 Informs the driver of the system status by illuminating, flashing, or turning off the warning light according to the signal from ABS-ECU. ABS warning display 7 Informs the driver of the system status by illuminating or turning off the warning light according to the signal from ABS-ECU. Brake warning light 8 Used as the warning light for the parking brake, brake fluid level, and EBD control. Informs the driver of the system status by illuminating or turning off the warning light according to the signal from ABS-ECU. Brake warning display 9 Used as the warning light for the parking brake, brake fluid level, and EBD control. Informs the driver of the system status by illuminating or turning off the warning light according to the signal from ABS-ECU. Diagnosis connector 10 Outputs the diagnosis code and establishes the communication with scan tool. ABS-ECU 11 Controls actuators Mitsubishi Outlander SE BRAKES Anti-Lock Braking System (ABS) - Outlander

SPECIFICATIONS SERVICE SPECIFICATIONS SERVICE SPECIFICATIONS CHART ABS DIAGNOSIS INTRODUCTION The anti-lock brake system (ABS) operates differently from conventional brake systems. These differences include sounds, sensations, and vehicle performance that owners and service technicians who are not familiar with ABS may not be used to. Some operational characteristics may seem to be malfunctions, but they are simply signs of normal ABS operation. When diagnosing the ABS system, keep these operational characteristics in mind. Inform the owner of the kind of performance characteristics to expect from an ABS-equipped vehicle. ABS DIAGNOSTIC TROUBLE CODE DETECTION CONDITIONS ABS diagnostic trouble codes (ABS DTCs) are set under different conditions, depending on the malfunction detected. Most ABS DTCs will only be set during vehicle operation. Some ABS DTCs will also be set during the ABS self-check immediately after the engine is started. When you check if an ABS DTC will be displayed again after the DTC has been erased, you should duplicate the ABS DTC set conditions. Depending on the detection timing and set conditions for the specific ABS DTC, you must either drive the vehicle or turn the engine off and restart it. To set the proper conditions for that DTC again, refer to "ABS DTC SET CONDITIONS" for each ABS DTC that you are trying to reset. ABS DIAGNOSTIC TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. If you follow them carefully, you will be sure that you have (described above) based on the signals coming from each sensor. Controls the self- diagnosis and fail-safe functions. Controls the diagnosis function (scan tool compatible). Item Standard value Wheel speed sensor current mA 5.9 - 8.4 or 11.8 - 16.8 Wheel speed sensor insulation resistance Mohms 5 or more 2008 Mitsubishi Outlander SE 2008 BRAKES Anti-Lock Braking System (ABS) - Outlander

exhausted most of the possible ways to find an ABS fault. 1. Gather information about the problem from the customer. 2. Verify that the condition described by the customer exists. 3. Check the vehicle for any ABS DTC. 4. If you cannot verify the condition and there are no ABS DTCs, the malfunction is intermittent. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS . 5. If you can verify the condition but there are no ABS DTCs, or the system cannot communicate with the scan tool, check that the basic brake system is operating properly.  If the basic brake system is not operating properly, refer to the BASIC BRAKE SYSTEM DIAGNOSIS .  If the basic brake system is operating properly, refer to BRAKE BOOSTER OPERATION CHECK . 6. If there is an ABS DTC, record the number of the DTC, then erase the DTC from the memory using the scan tool. 7. Recreate the ABS DTC set conditions to see if the same ABS DTC will set again.  If the same ABS DTC sets again, perform the diagnostic procedures for the DTC. Refer to DIAGNOSTIC TROUBLE CODE CHART .  If you cannot get the same ABS DTC to set again, the malfunction is intermittent. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS . DIAGNOSIS FUNCTION HOW TO CONNECT THE SCAN TOOL (M.U.T.-III) Required Special Tools:  MB991958: Scan Tool (M.U.T.-III Sub Assembly)  MB991824: Vehicle Communication Interface (V.C.I.)  MB991827: M.U.T.-III USB Cable  MB991910: M.U.T.-III Main Harness A 1. Ensure that the ignition switch is at the "LOCK" (OFF) position. 2. Start up the personal computer. 3. Connect special tool MB991827 to special tool MB991824 and the personal computer. 4. Connect special tool MB991910 to the special tool MB991824. 5. Connect special tool MB991910 to the data link connector. 6. Turn the power switch special tool MB991824 to the "ON" position. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. 2008 Mitsubishi Outlander SE 2008 BRAKES Anti-Lock Braking System (ABS) - Outlander

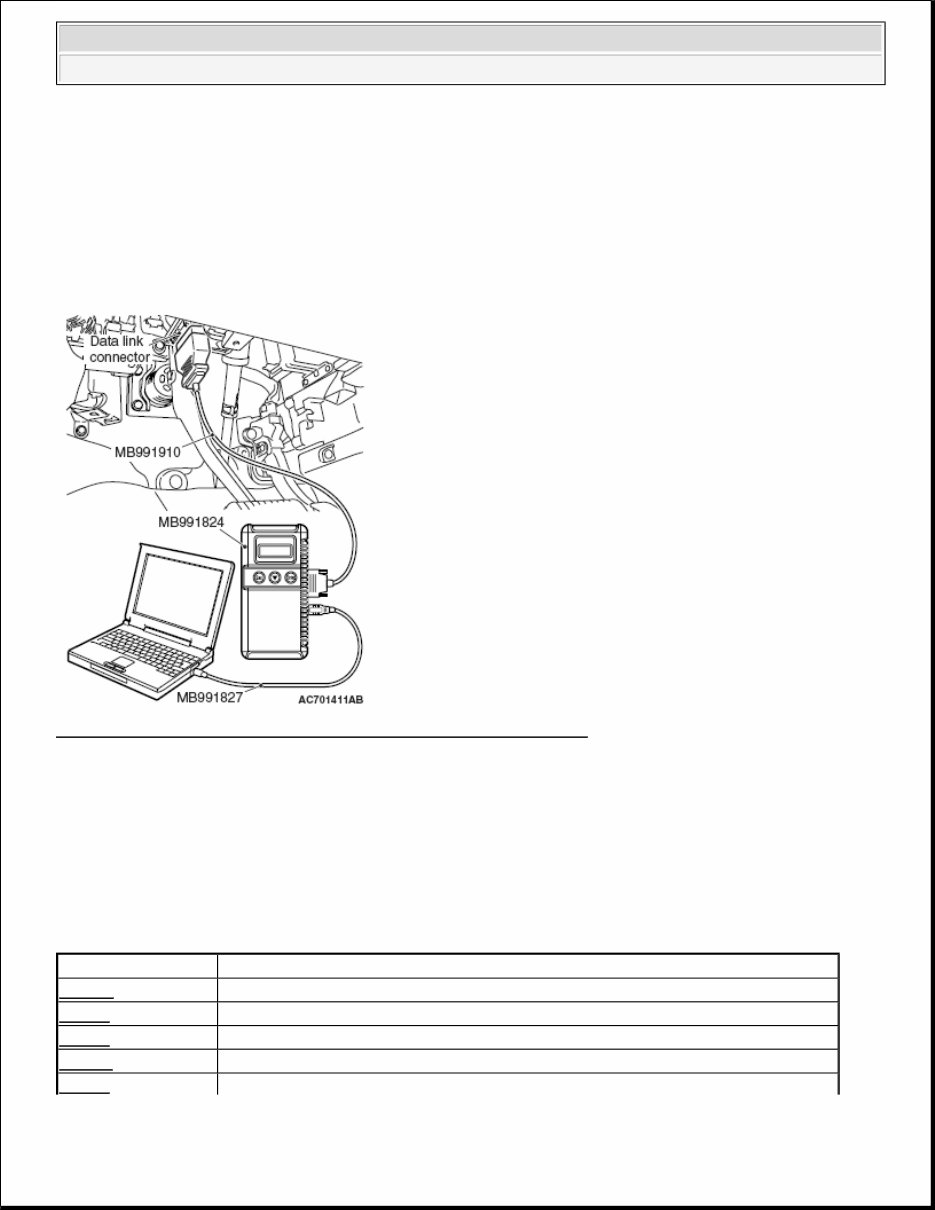

Fig. 2: Connecting Special Tool MB991910 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 7. Start the M.U.T.-III system on the personal computer. HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES Required Special Tools:  MB991958: Scan Tool (M.U.T.-III Sub Assembly)  MB991824: Vehicle Communication Interface (V.C.I.)  MB991827: M.U.T.-III USB Cable  MB991910: M.U.T.-III Main Harness A NOTE: When the special tool MB991824 is energized, the special tool MB991824 indicator light will be illuminated in a green color. NOTE: Disconnect the scan tool MB991958 in the reverse order of the connecting sequence, making sure that the ignition switch is at the "LOCK" (OFF) position. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. NOTE: If the battery voltage is low, diagnostic trouble codes will not be set. Check the 2008 Mitsubishi Outlander SE 2008 BRAKES Anti-Lock Braking System (ABS) - Outlander

Fig. 3: Connecting Special Tool MB991910 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 1. Connect scan tool MB991958 to the data link connector. 2. Turn the ignition switch to the "ON" position. 3. Select "System Select." 4. Select "ABS/ASC/ASTC" from the system list, and select the "OK" button. 5. Select "Diagnostic Trouble Code." 6. If a DTC is set, it is shown. 7. Choose "DTC erase" to erase the DTC. HOW TO READ DATA LIST Required Special Tools:  MB991958: Scan Tool (M.U.T.-III Sub Assembly)  MB991824: Vehicle Communication Interface (V.C.I.)  MB991827: M.U.T.-III USB Cable  MB991910: M.U.T.-III Main Harness A battery if scan tool MB991958 does not display. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan 2008 Mitsubishi Outlander SE 2008 BRAKES Anti-Lock Braking System (ABS) - Outlander

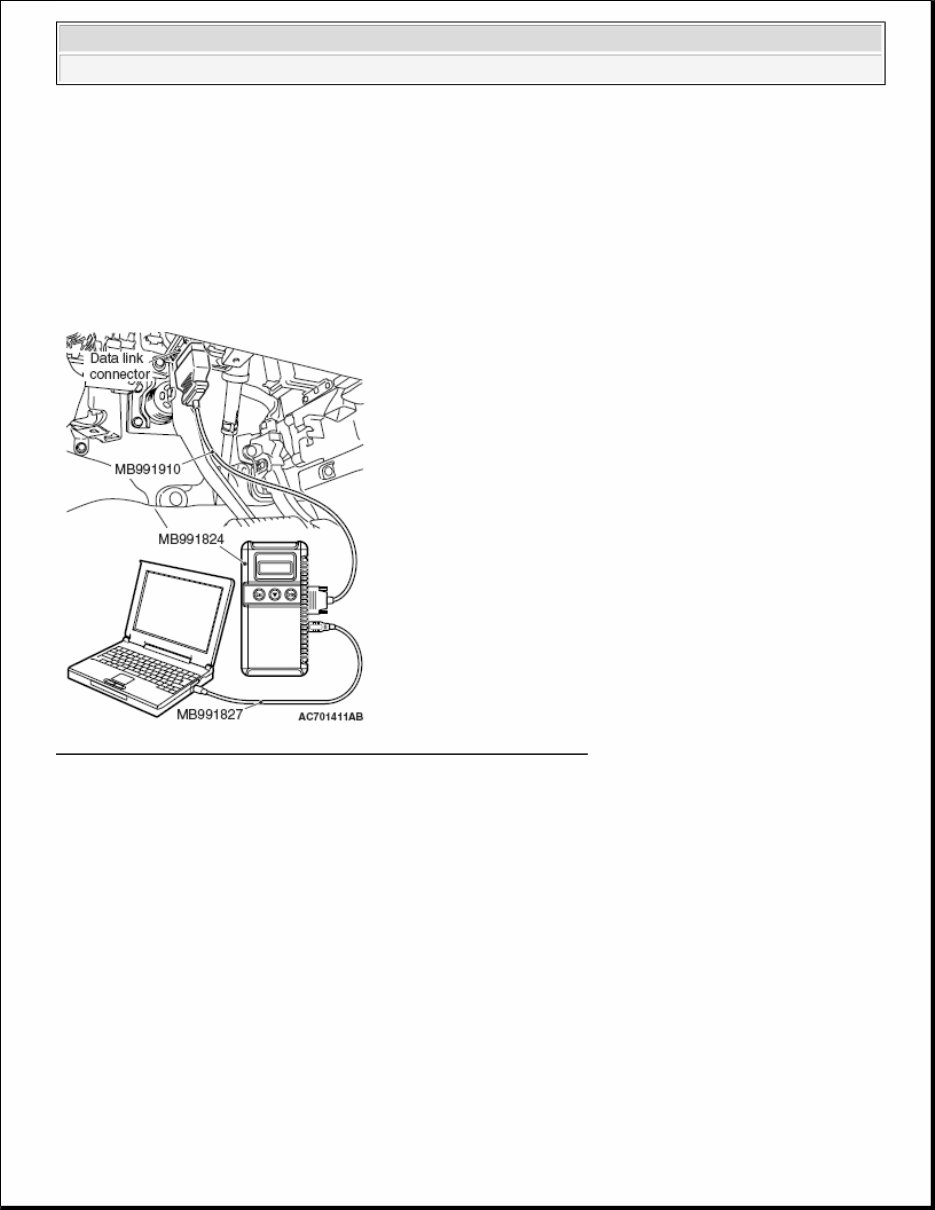

1. Connect scan tool MB991958 to the data link connector. 2. Turn the ignition switch to the "ON" position. 3. Select "System Select." 4. Select "ABS/ASC/ASTC" from the system list, and select the "OK" button. 5. Select "Data List." Fig. 4: Connecting Special Tool MB991910 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. HOW TO PERFORM ACTUATOR TEST Required Special Tools:  MB991958: Scan Tool (M.U.T.-III Sub Assembly)  MB991824: Vehicle Communication Interface (V.C.I.)  MB991827: M.U.T.-III USB Cable  MB991910: M.U.T.-III Main Harness A tool MB991958. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. 2008 Mitsubishi Outlander SE 2008 BRAKES Anti-Lock Braking System (ABS) - Outlander

1. Connect scan tool MB991958 to the data link connector. 2. Turn the ignition switch to the "ON" position. 3. Select "System Select." 4. Select "ABS/ASC/ASTC" from the system list, and select the "OK" button. 5. Choose "Actuator Test" from "ABS" screen. 6. Choose an appropriate item and select the "OK" button. Fig. 5: Connecting Special Tool MB991910 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DIAGNOSTIC TROUBLE CODE CHART DIAGNOSTIC TROUBLE CODE CHART CAUTION: During diagnosis, a DTC code associated with other systems may be set when the ignition switch is turned on with connector(s) disconnected. On completion, check all systems for DTCs. If DTC code(s) are set, erase them all. DTC Inspection item C100A Abnormality in FL wheel speed sensor circuit C1015 Abnormality in FR wheel speed sensor circuit C1020 Abnormality in RL wheel speed sensor circuit C102B Abnormality in RR wheel speed sensor circuit C1011 Abnormality in FL wheel speed sensor signal 2008 Mitsubishi Outlander SE 2008 BRAKES Anti-Lock Braking System (ABS) - Outlander

C101C Abnormality in FR wheel speed sensor signal C1027 Abnormality in RL wheel speed sensor signal C1032 Abnormality in RR wheel speed sensor signal C1014 Mutual monitoring of FL wheel speed sensor C101F Mutual monitoring of FR wheel speed sensor C102A Mutual monitoring of RL wheel speed sensor C1035 Mutual monitoring of RR wheel speed sensor C1041 Abnormality in periodical signal for FL wheel speed sensor C1042 Abnormality in periodical signal for FR wheel speed sensor C1043 Abnormality in periodical signal for RL wheel speed sensor C1044 Abnormality in periodical signal for RR wheel speed sensor C1046 FL wheel speed sensor control phase time exceeded C1047 FR wheel speed sensor control phase time exceeded C1048 RL wheel speed sensor control phase time exceeded C1049 RR wheel speed sensor control phase time exceeded C104B Abnormality in FL wheel inlet valve system C104F Abnormality in FR wheel inlet valve system C1053 Abnormality in RL wheel inlet valve system C1057 Abnormality in RR wheel inlet valve system C105F Abnormality in FL wheel outlet valve system C1063 Abnormality in FR wheel outlet valve system C1067 Abnormality in RL wheel outlet valve system C105B Abnormality in RR wheel outlet valve system C2104 Malfunction of valve power supply circuit C1073 Malfunction of motor drive circuit C2116 Abnormality in pump motor power supply voltage C1000 Abnormality in stop light switch circuit C2200 Abnormality in ABS-ECU C2100 Abnormality in battery voltage (low voltage) 9.7 ± 0.3 V or less (1) 8.0 ± 0.5 V or less (1) C2101 Abnormality in battery voltage (high voltage) 18.0 ± 1.0 V or more C1395 Brake fluid filling not completed C2203 VIN not recorded C1210 (2) Abnormality in G Abnormality in output voltage C1242 (2) Abnormality in G Abnormality in output voltage C2111 (2) G sensor power supply circuit Low input C2112 (2) G sensor power supply circuit High input C1608 Implausible diagnosis data U0001 Bus-off 2008 Mitsubishi Outlander SE 2008 BRAKES Anti-Lock Braking System (ABS) - Outlander
