2012-2016 Mitsubishi Mirage Service & Repair Manual

1-1 GROUP 1 BODY CONSTRUCTION CONTENTS BODY COMPONENTS. . . . . . . . . . . . 1-2 BODY MAIN CROSS-SECTIONAL VIEWS . . . . . . . . . . . . . . . . . . . . . . . . 1-4 MAINTENANCE, SERVICEABILITY . . . . . . . . . . . . . . . 1-6 BODY CONSTRUCTION CHARACTERISTICS . . . . . . . . . . . . . 1-8 FRONT BODY. . . . . . . . . . . . . . . . . . . . . . . 1-8 SIDE BODY . . . . . . . . . . . . . . . . . . . . . . . . . 1-13 REAR BODY . . . . . . . . . . . . . . . . . . . . . . . . 1-15 ROOF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15 UNDER BODY. . . . . . . . . . . . . . . . . . . . . . . 1-16 DOOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19 SILENCER APPLICATION LOCATIONS . . . . . . . . . . . . . . . . . . . . 1-21 URETHANE FOAM USAGE LOCATIONS . . . . . . . . . . . . . . . . . . . . 1-23

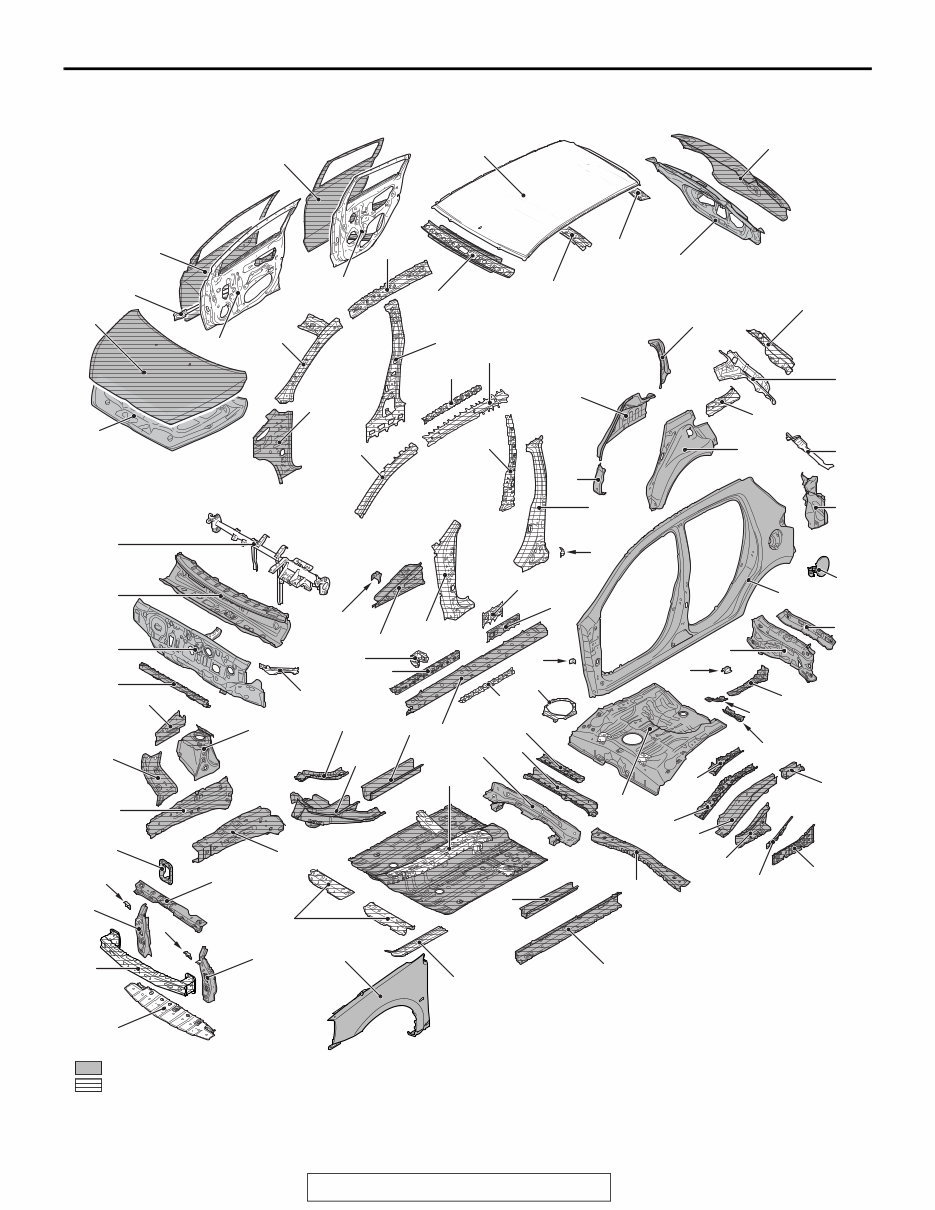

BODY COMPONENTS TSB Revision BODY CONSTRUCTION 1-2 BODY COMPONENTS M4010001002238 ABC00328 : Anti-corrosion steel panels : High-tensile steel panels (*: Indicates 590MPa-high-tensile steel panels.) (**: Indicates 980MPa-ultra-high-tensile steel panels.) NOTE: AB 1 2 3 4 4 5 6 8* 9 10 7* 22 12 13 14 15 16 50 51 52* 17 18 19 20 27 28 29 30 31 32 35 33 34 36 38 39 40* 41 42 48* 49 43 63 80 81 82 83 84 85* 86* 87 37 64** 65* 77* 79* 78* 76* 67 68 69 44 45 72* 75* 74* 73** 46* 70* 47 53* 54 55 56* 58* 59* 57* 61 62 60* 66* 88* 71* 21 23 25* 26 3 11 24

BODY COMPONENTS TSB Revision BODY CONSTRUCTION 1-3 1. Front panel crossmember lower 2. Front bumper reinforcement 3. Headlight support panel 4. Headlight support bracket 5. Headlight support panel upper 6. Front sidemember plate 7. Front inner sidemember 8. Front outer sidemember 9. Engine mounting gusset 10. Fender shield frame upper inner 11. Front inner wheel house 12. Dash panel crossmember 13. Dash panel 14. Cowl top panel 15. Front deck crossmember 16. Hood inner panel 17. Hood outer panel 18. Front door panel inner 19. Front door side door beam 20. Front door panel outer 21. Rear door panel inner 22. Rear door panel outer 23. Roof rail front 24. Roof panel 25. Roof bow 26. Roof rail rear 27. Liftgate inner panel 28. Liftgate outer panel 29. Gate pillar reinforcement 30. Rear inner pillar 31. Quarter panel extension upper outer 32. Quarter panel extension lower outer 33. Fuel filler lid 34. Side outer panel 35. Rear end panel outer 36. Rear end panel inner 37. Spare tire bracket 38. Rear towing hook bracket 39. Rear floor stay 40. Rear floor sidemember reinforcement 41. Rear floor sidemember extension 42. Rear floor sidemember 43. Rear floor 44. Rear floor crossmember 45. Rear floor rear seat under crossmember 46. Front floor side sill inner 47. Front floor sidemember 48. Front sidemember reinforcement rear 49. Front floor 50. Front fender 51. Front floor sidemember 52. Front floor sidemember rear 53. Front pillar reinforcement lower inner 54. Front deck frame upper outer 55. Front fender bracket 56. Front pillar reinforcement upper 57. Front lower inner pillar 58. Front upper inner pillar 59. Roof side rail inner 60. Center inner pillar 61. Rear pillar reinforcement 62. Rear pillar brace 63. Front fender bracket 64. Side sill reinforcement 65. Center pillar reinforcement 66. Roof side rail reinforcement center 67. Side sill rear end plate 68. Rear wheel house inner panel 69. Quarter panel lower inner 70. Side inner sill rear 71. Rear seat crossmember reinforcement 72. Rear floor crossmember reinforcement 73. Front floor front crossmember 74. Front sidemember reinforcement rear lower 75. Dash side brace 76. Rear door hinge reinforcement 77. Side sill bulkhead 78. Side sill reinforcement outer support 79. Side sill reinforcement support front 80. Center pillar reinforcement lower 81. Side sill reinforcement support rear 82. Side sill support rear 83. Canister bracket 84. Side sill reinforcement inner 85. Side sill inner reinforcement 86. Rear floor sidemember reinforcement upper 87. Rear seat pan reinforcement 88. Rail roof side support

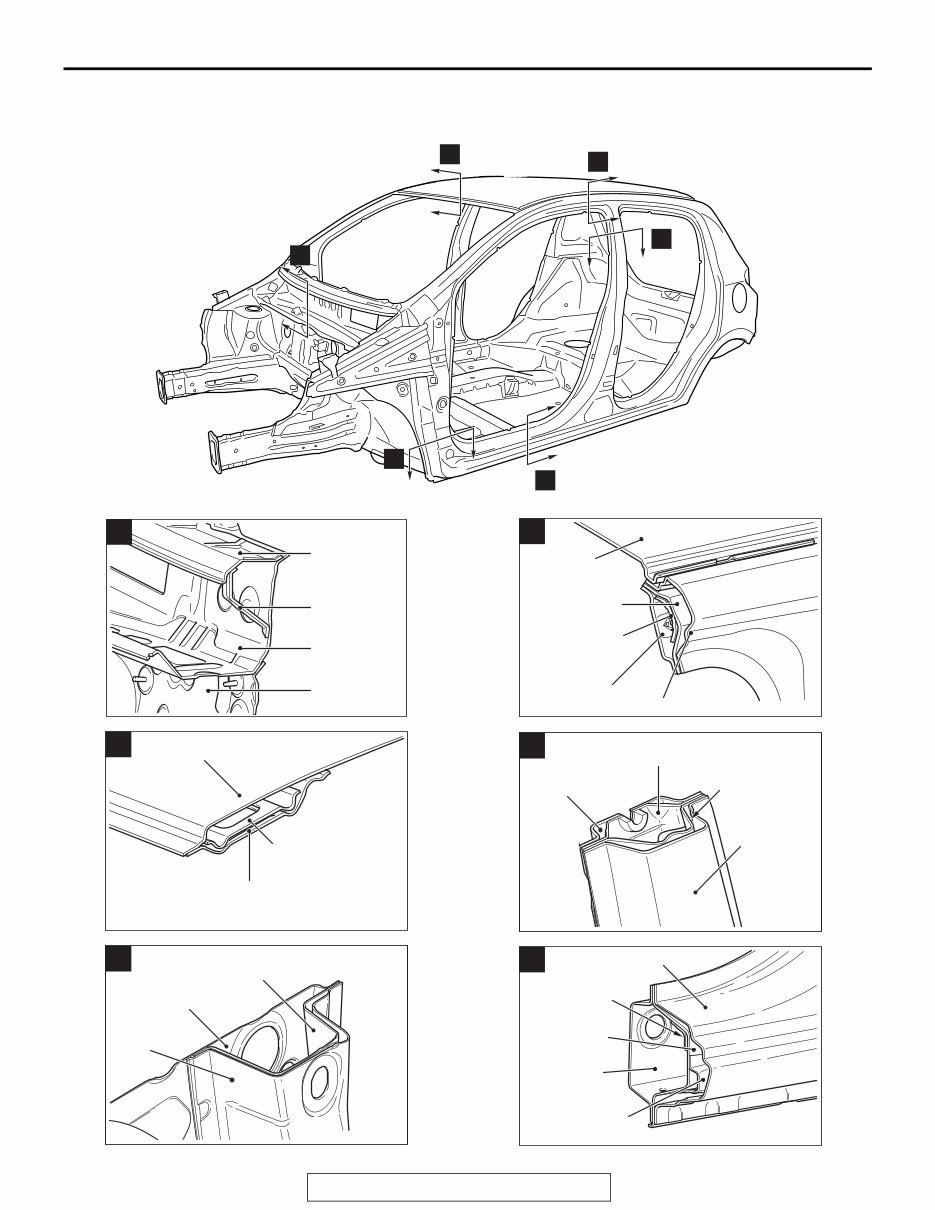

BODY MAIN CROSS-SECTIONAL VIEWS TSB Revision BODY CONSTRUCTION 1-4 BODY MAIN CROSS-SECTIONAL VIEWS M4010002001380 ABB00524AB A B D C E F ABB00614AB A Cowl top outer panel Cowl top stay Cowl top inner panel Dash panel ABC00322AB B Roof panel Roof front rail inner Front roof reinforcement rail ABB00616AB Front inner pillar lower Side outer panel Front pillar reinforcement lower C ABC00323AB D Side outer panel Roof side rail inner Rail roof side support Roof side rail reinforcement center Roof panel ABB00618 AB Center pillar seat belt reinforcement Center inner pillar upper Center pillar reinforcement Side outer panel E ABC00324AB F Side sill reinforcement Side sill reinforcement outer support Side sill reinforcement support front Front floor side sill inner Side outer panel

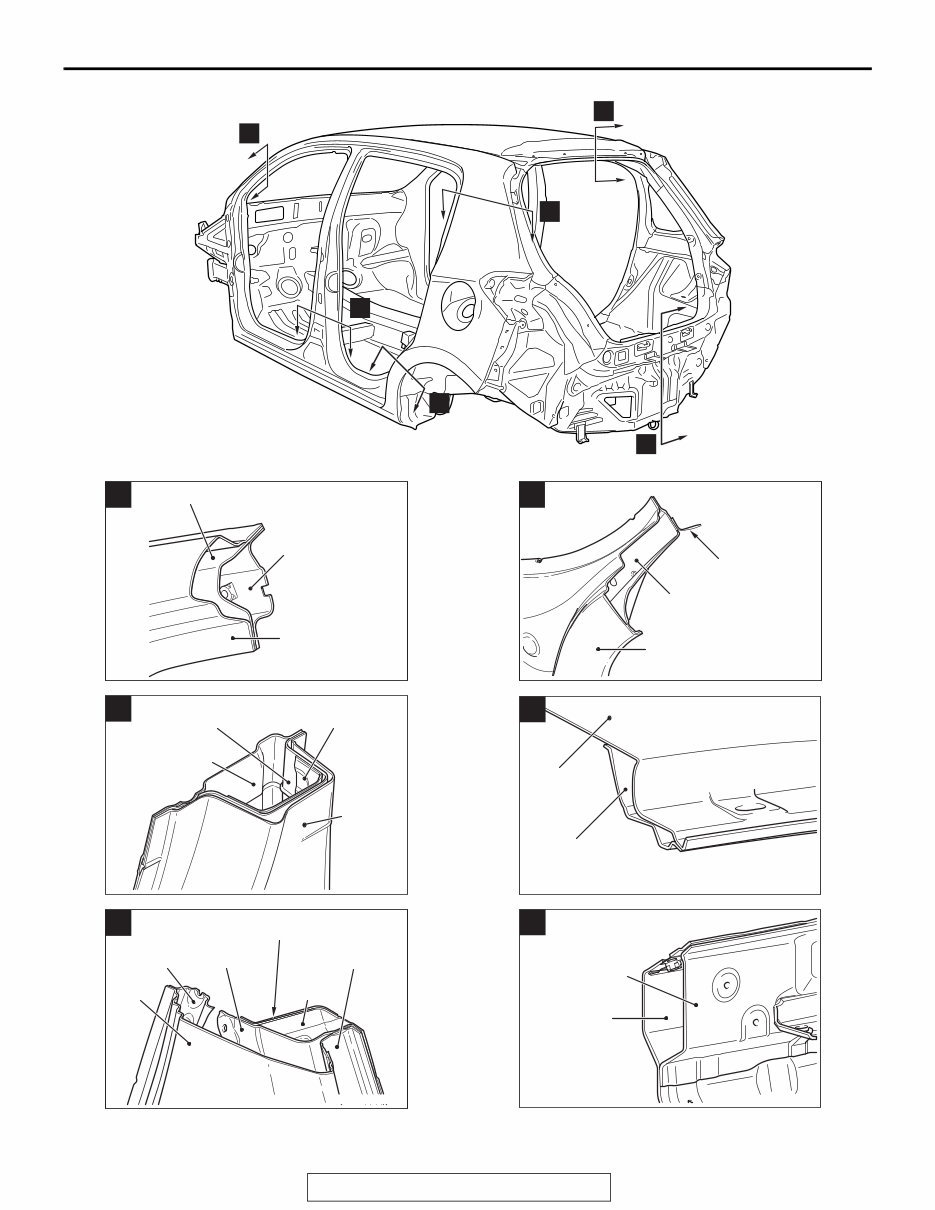

BODY MAIN CROSS-SECTIONAL VIEWS TSB Revision BODY CONSTRUCTION 1-5 ABB00525 G I J K H L AB ABB00620 AB Front inner pillar upper Front pillar reinforcement upper Side outer panel G ABC00129 AB H Center inner pillar upper Center pillar reinforcement Rear door hinge reinforcement Side outer panel ABB00622AB Gate pillar reinforcement Quarter outer upper A extension Gate pillar inner upper extension Gate pillar inner panel Rear pillar reinforcement Side outer panel I ABB00623 AB Rear wheel house inner panel Quarter panel lower inner Side outer panel J ABB00624AB K Roof panel Roof rear rail inner ABB00625AB L Rear end outer panel Rear end inner panel
