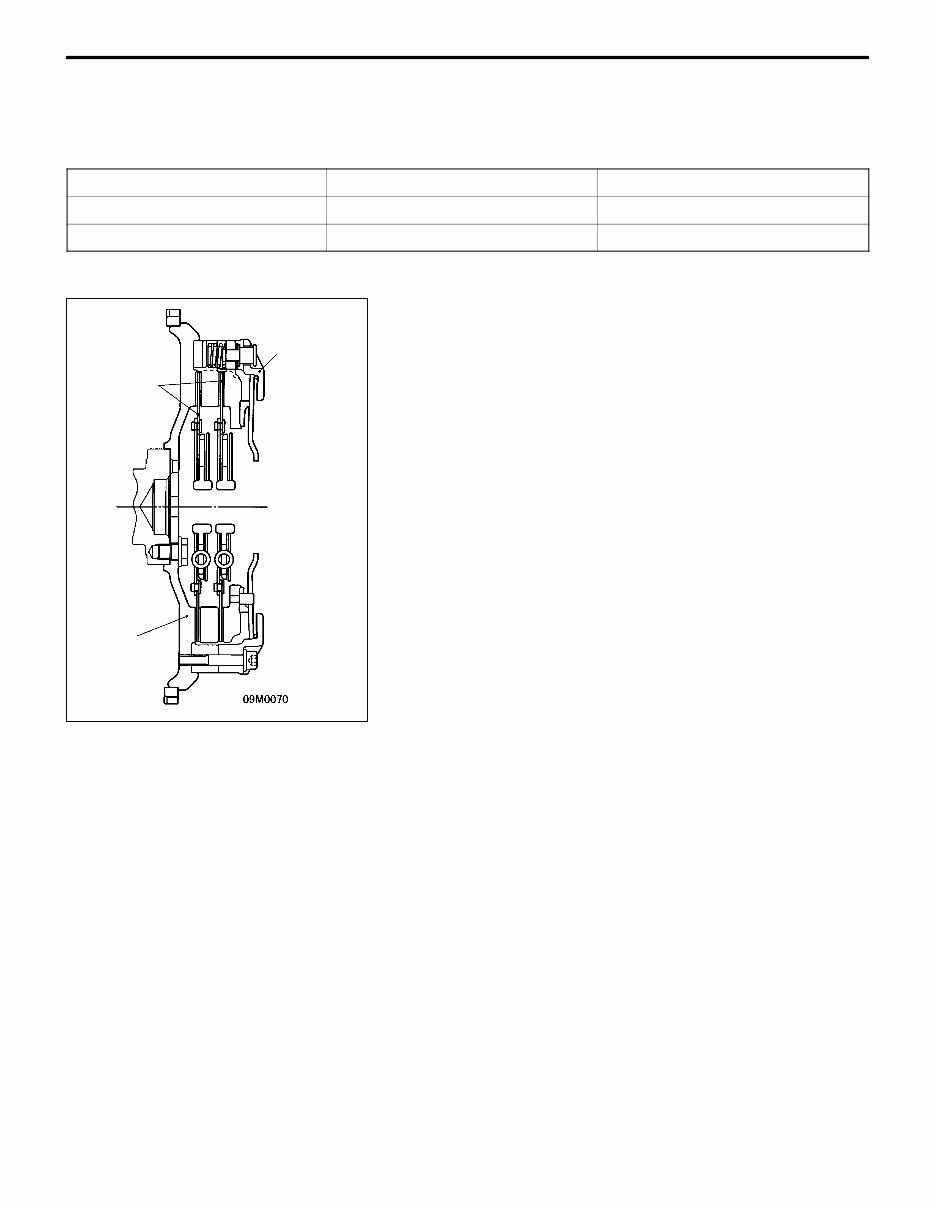

POWER TRAIN – Clutch 2-2 CLUTCH The EVOLUTION-VI RS is optionally equipped with a twin plate clutch. Specifications Item Twin plate clutch (option) Standard clutch Clutch disc size mm 200 × 152 230 × 150 Clutch cover load setting N 6,370 8,826 TWIN PLATE CLUTCH The twin plate clutch is characterized by the following: D Lager torque transmission capacity due to the increased number of clutch discs D Constant friction coefficient even at high temperatures (severe usage) and less lowered wear-resistant perfor- mance due to metal clutch facing Caution The twin plate clutch is so designed as to be used on a vehicle for motor sport competitions. In view of noises at starting and during driving and maneu- verability, it is not suited to ordinary driving. It should also be noted that the disc must be replaced more frequently than a standard type clutch because of the inherent characteristics of its friction material. Clutch cover assembly Clutch disc Flywheel

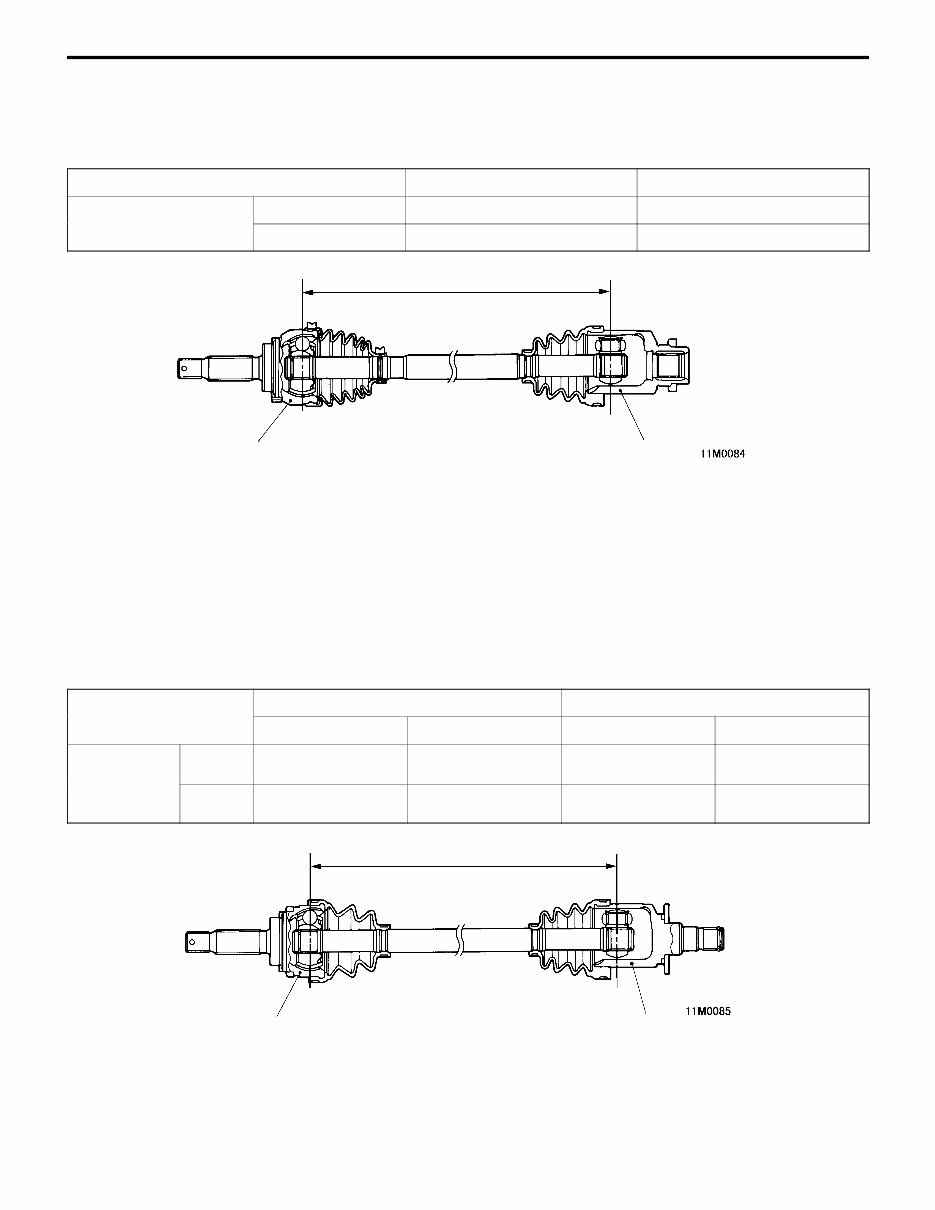

POWER TRAIN – Front Axle / Rear Axle 2-3 FRONT AXLE DRIVE SHAFTS The joint-to-joint distance of the drive shaft (dimension A in the illustration) has been revised. Item EVOLUTION-VI Base vehicle (EVOLUTION-V) Joint-to-joint distance (dimension A) mm LH side 352 365 (dimension A) mm RH side 429 442 BJ TJ A FRONT HUB Induction hardened front hubs which were installed optionally on RS to be put in competitions have been replaced by non-induction hardened front hubs (same ones as used in GSR). For customers having the will to enter a competition, however, induction hardened front hubs are still available as service parts. REAR AXLE DRIVE SHAFTS The joint-to-joint distance of the drive shaft (dimension A in the illustration) has been revised. Item EVOLUTION-VI Base vehicle (EVOLUTION-V) Item Without AYC system With AYC system Without AYC system With AYC system Joint-to-joint distance LH side 490 432 498 443 (dimension A) mm RH side 570 442 578 453 TJ BJ A REAR HUB Induction hardened rear hubs which were installed on RS to be put in competitions have been replaced by non-induction hardened rear hubs (same ones as used in GSR). For customers having the will to enter a competition, however, induction hardened rear hubs are still available as service parts.
