2-1
POWER TRAIN
CONTENTS
CLUTCH 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Twin Plate Clutch 2 . . . . . . . . . . . . . . . . . . . . . . . . . .
FRONT AXLE 3 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive Shafts 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front hub 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REAR AXLE 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive Shafts 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear hub 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
POWER TRAIN – Clutch
2-2
CLUTCH
The EVOLUTION-VI RS is optionally equipped with a twin plate clutch.
Specifications
Item Twin plate clutch (option) Standard clutch
Clutch disc size mm 200 × 152 230 × 150
Clutch cover load setting N 6,370 8,826
TWIN PLATE CLUTCH
The twin plate clutch is characterized by the following:
D Lager torque transmission capacity due to the increased
number of clutch discs
D Constant friction coefficient even at high temperatures
(severe usage) and less lowered wear-resistant perfor-
mance due to metal clutch facing
Caution
The twin plate clutch is so designed as to be used on
a vehicle for motor sport competitions.
In view of noises at starting and during driving and maneu-
verability, it is not suited to ordinary driving.
It should also be noted that the disc must be replaced
more frequently than a standard type clutch because of
the inherent characteristics of its friction material.
Clutch
cover
assembly
Clutch disc
Flywheel
POWER TRAIN – Front Axle / Rear Axle
2-3

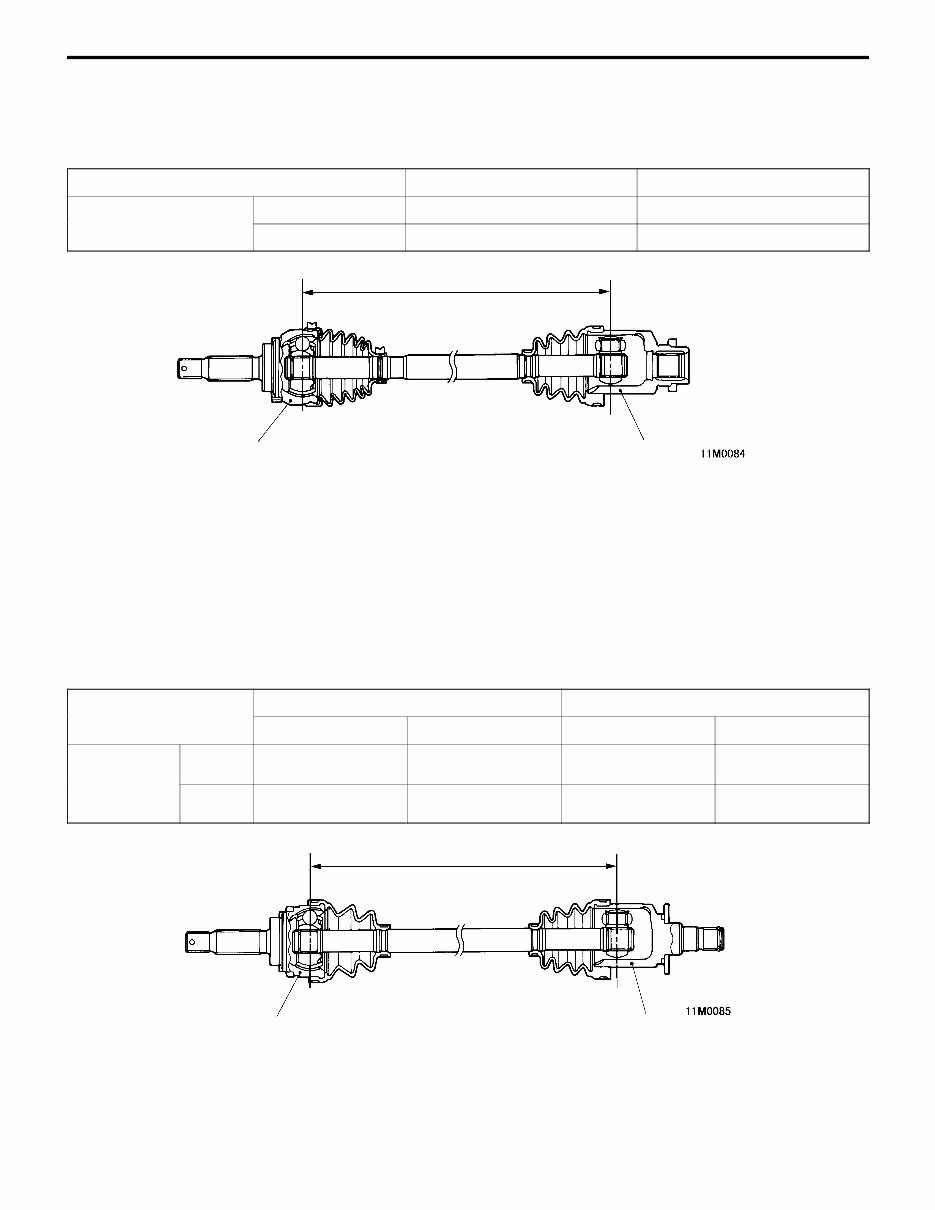

FRONT AXLE
DRIVE SHAFTS
The joint-to-joint distance of the drive shaft (dimension A in the illustration) has been revised.
Item EVOLUTION-VI Base vehicle (EVOLUTION-V)
Joint-to-joint distance
(dimension A) mm
LH side 352 365
(dimension A) mm
RH side 429 442
BJ
TJ
A
FRONT HUB
Induction hardened front hubs which were installed optionally on RS to be put in competitions have been
replaced by non-induction hardened front hubs (same ones as used in GSR).
For customers having the will to enter a competition, however, induction hardened front hubs are still
available as service parts.
REAR AXLE
DRIVE SHAFTS
The joint-to-joint distance of the drive shaft (dimension A in the illustration) has been revised.
Item
EVOLUTION-VI Base vehicle (EVOLUTION-V)
Item
Without AYC system With AYC system Without AYC system With AYC system
Joint-to-joint
distance
LH side 490 432 498 443
(dimension
A) mm
RH side 570 442 578 453
TJ
BJ
A
REAR HUB
Induction hardened rear hubs which were installed on RS to be put in competitions have been replaced
by non-induction hardened rear hubs (same ones as used in GSR). For customers having the will to
enter a competition, however, induction hardened rear hubs are still available as service parts.
NOTES
