Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
1
Mitsubishi FTO
Owners Handbook
Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
2
Contents
Contents ........................................................................................................................................ 2
Forward ............................................................................................................................. 5
Acknowledgements ........................................................................................................... 5
Disclaimer ......................................................................................................................... 5
General overview.................................................................................................................................... 6
Dashboard ..................................................................................................................................... 6
Interior .......................................................................................................................................... 7
Exterior ......................................................................................................................................... 8
Vehicle Introduction and Safety ........................................................................................................... 9
Warning notes ............................................................................................................................... 9
Tips when driving an automatic vehicle. ......................................................................... 12
Opening / closing the vehicle ............................................................................................................... 14
The key ....................................................................................................................................... 14
Unlocking the door ..................................................................................................................... 14
Keyless entry .............................................................................................................................. 15
Central door locking ................................................................................................................... 16
Window operation ...................................................................................................................... 17
Engine compartment ................................................................................................................... 18
Fuel access .................................................................................................................................. 19
Boot access ................................................................................................................................. 19
Sunroof ....................................................................................................................................... 20
Power sunroof.................................................................................................................. 20
Manual sunroof................................................................................................................ 20
Driving position .................................................................................................................................... 22
Seat adjustment ........................................................................................................................... 22
Front seat adjustment ....................................................................................................... 22
Rear seat .......................................................................................................................... 24
Seat belts ..................................................................................................................................... 25
When you fasten your seat belt........................................................................................ 26
SRS Air bag restraint system .............................................................................................................. 27
Instrument panel .................................................................................................................................. 29
Instrument overview ................................................................................................................... 29
Amp-meter....................................................................................................................... 29
Odometer / trip meter ...................................................................................................... 30
Warning lights ............................................................................................................................ 31
Light switch ................................................................................................................................ 33
Wiper switch ............................................................................................................................... 34
Front wiper ...................................................................................................................... 34
Wash / wipe control......................................................................................................... 35
Rear screen wiper. ........................................................................................................... 35
Other switches ............................................................................................................................ 36
Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
3
Hazard switch .................................................................................................................. 36
Windscreen de-mist ......................................................................................................... 36
Fog / park light ................................................................................................................ 37
Ignition switch ................................................................................................................. 37
Park brake ........................................................................................................................ 38
Hand brake operation ...................................................................................................... 41
Adjustable items ......................................................................................................................... 42
Steering wheel adjustment ............................................................................................... 42
Interior mirror adjustment ............................................................................................... 42
Door mirrors .................................................................................................................... 42
Door mirror parking ........................................................................................................ 43
ABS ................................................................................................................................. 43
Traction Control operation .............................................................................................. 44
Interior bits ...................................................................................................................... 44
Passenger interior lights................................................................................................... 46
Clock ............................................................................................................................... 46
Storage space .............................................................................................................................. 47
Coin holder ...................................................................................................................... 47
Glove box ........................................................................................................................ 47
Center console ................................................................................................................. 47
Storage in boot................................................................................................................. 48
Climate control ..................................................................................................................................... 48
Climate controls............................................................................................................... 50
Air flow indicator ............................................................................................................ 51
Automatic air conditioning ......................................................................................................... 52
Operating the system as an automatic air conditioning ................................................... 53
Operating the system as a normal air conditioner............................................................ 54
Audio equipment .................................................................................................................................. 56
Antenna....................................................................................................................................... 56
Safety features ...................................................................................................................................... 58
Fitting of snow chains ................................................................................................................. 58
Emergency flare .......................................................................................................................... 58
Tool kit and jack ......................................................................................................................... 59
Supporting the vehicle ................................................................................................................ 60
Changing the wheel and tyre. ..................................................................................................... 60
Starting the vehicle by external battery. .......................................................................... 64
Towing the vehicle. ......................................................................................................... 65
Service guide ......................................................................................................................................... 66
Capacities.................................................................................................................................... 66
Fuses ........................................................................................................................................... 66
Removal of fuses ............................................................................................................. 67
Engine oil .................................................................................................................................... 68
Belt adjustment. .......................................................................................................................... 69
Globes......................................................................................................................................... 69
Tyre information ......................................................................................................................... 70
Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
4
Engine information ..................................................................................................................... 71
Removing the spark plugs........................................................................................................... 71
Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
5
Forward
This manual has been translated from the Japanese original owner’s manual. It is not an exact
replication, some parts have been omitted and some added.
Acknowledgements
Mitsubishi Motors copyright most of the illustrations. Any additional illustrations or drawings are the
property of Tarkus Services. Thanks to Chihiro Iwamura and Junko Machida for help with the
translation.
Disclaimer
Great care has been taken in the translation / production of this manual, but, vehicle manufacturers
can make alterations and design changes during production of a vehicle. No liability can be accepted
by the authors or production team, for any damage or injuries caused by any errors or omissions in
this manual.
Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
6
General overview

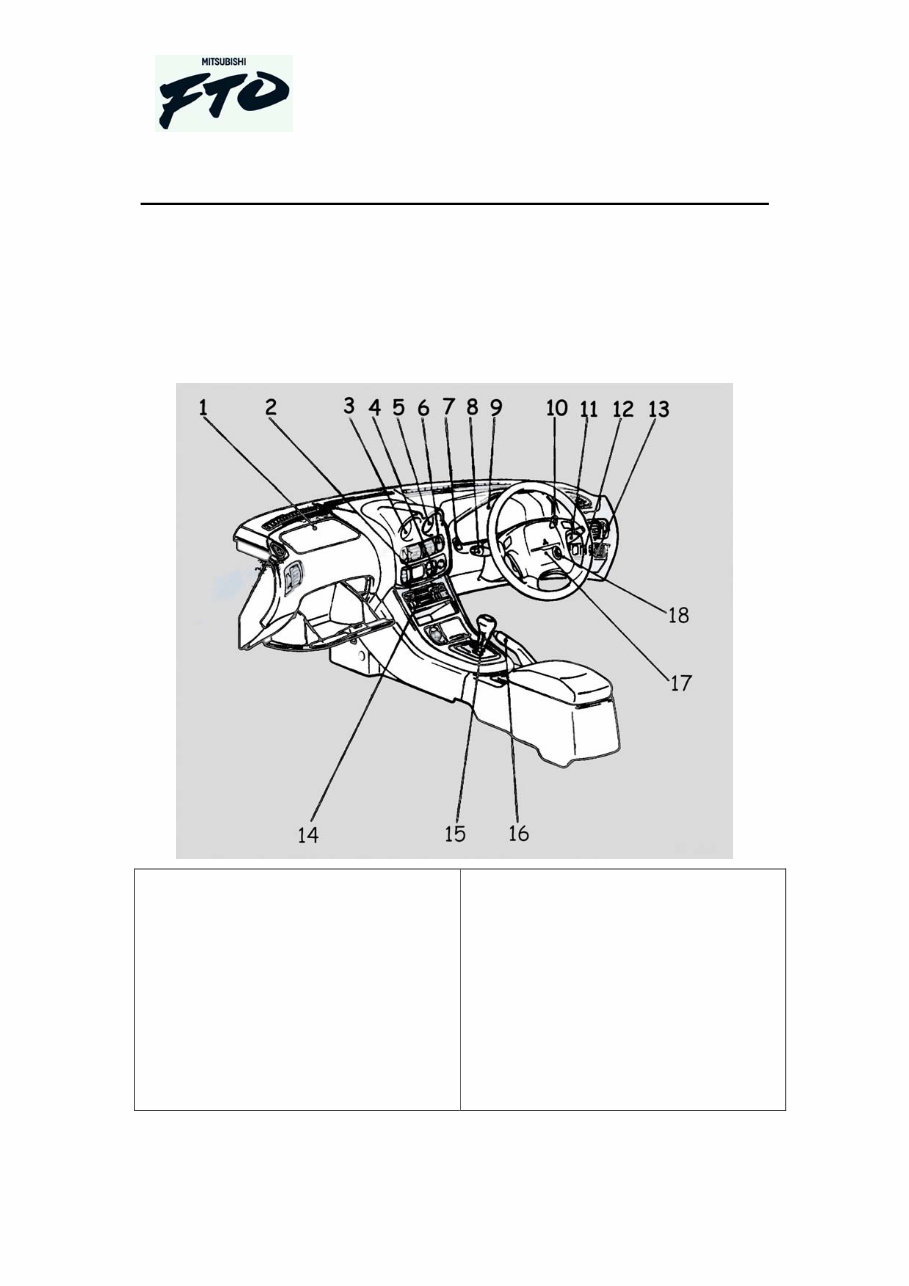

Dashboard
1. Passenger air bag cover
2. Climate control screen
3. Analogue clock
4. Heated rear screen switch
5. Ammeter
6. Emergency hazard switch
7. Electric antenna switch
8. Windscreen wiper switch
9. Instrument panel
10. Fog light switch
11. Indicator / light switch
12. Traction control switch
13. Exterior mirror control
14. Radio
15. Gear lever
16. Handbrake
17. Drivers air bag cover
18. Ignition switch
Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
7

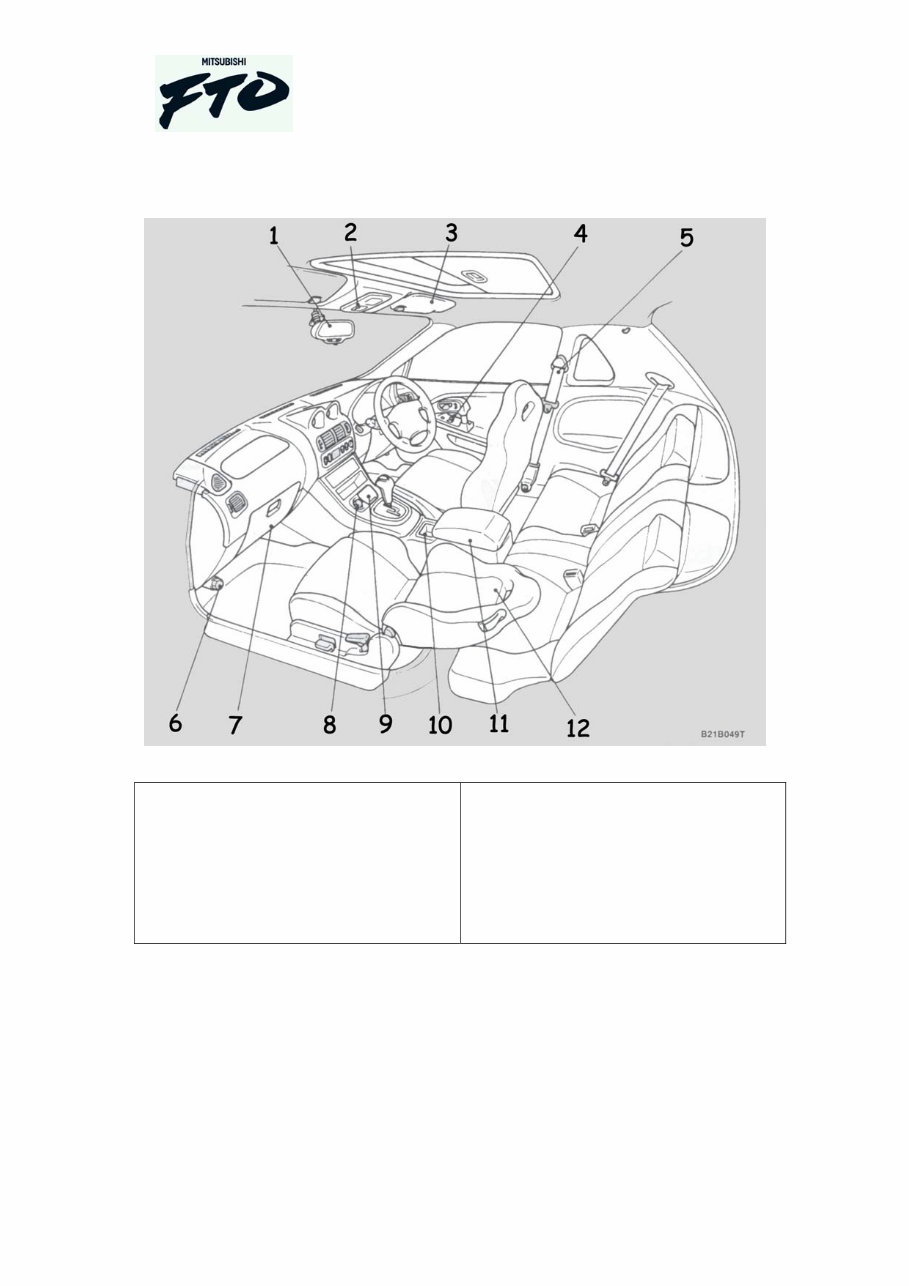

Interior
1. Rear view mirror
2. Sunroof switch
3. Sun visor
4. Power window switch panel
5. Seat belt
6. Emergency flare
7. Glove box
8. Cigarette lighter
9. Ash tray
10. Cup tray
11. Console box
12. Seat
Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
8

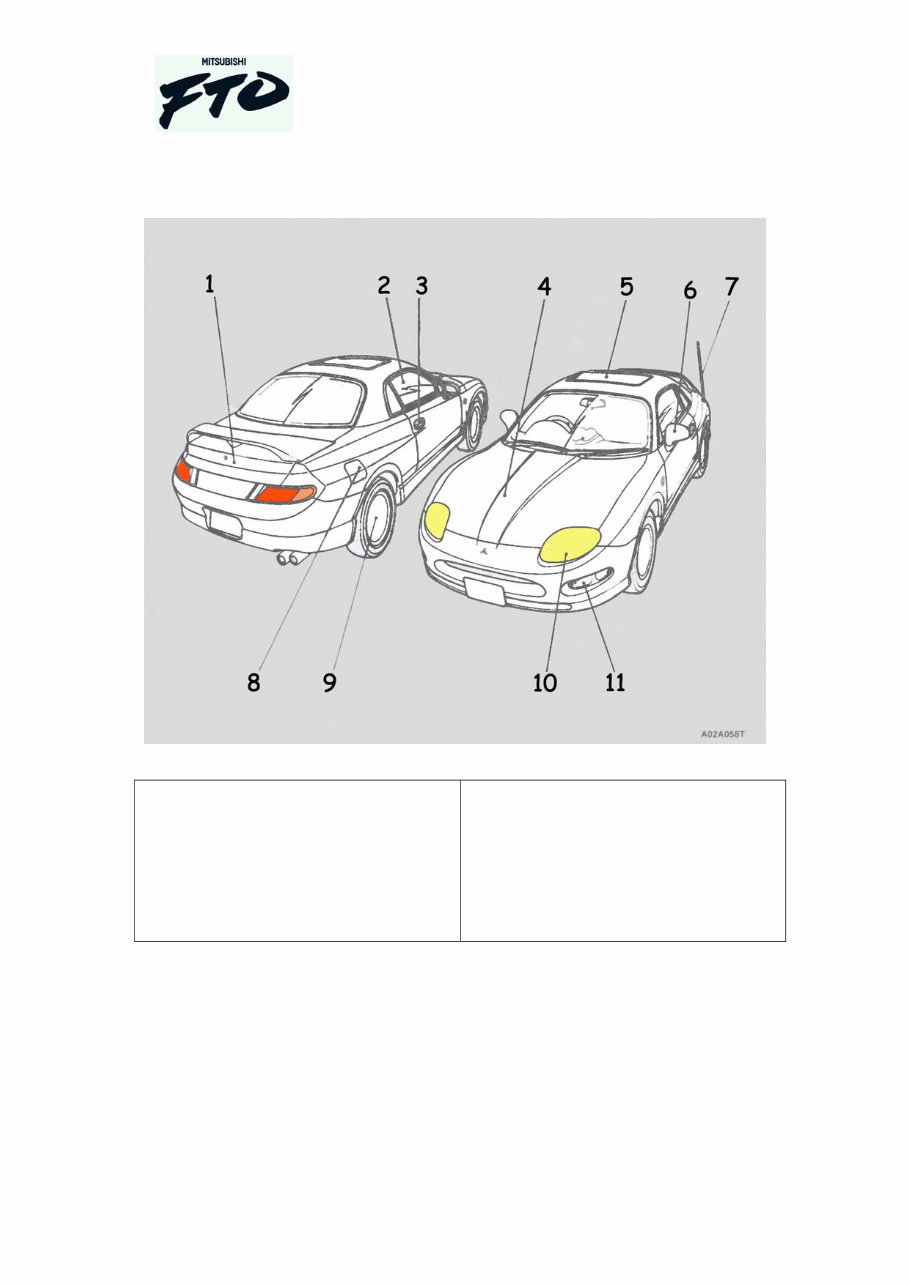

Exterior
1. Boot lid
2. Power windows
3. Door handle / lock
4. Bonnet
5. Sun roof
6. Mirrors
7. Antenna
8. Fuel cover
9. Wheel
10. Headlight
11. Sidelight
Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
9
Vehicle Introduction and Safety
Please read this section.
Even if you do not read the entire manual, this section should be studied before
operating the vehicle.
Warning notes

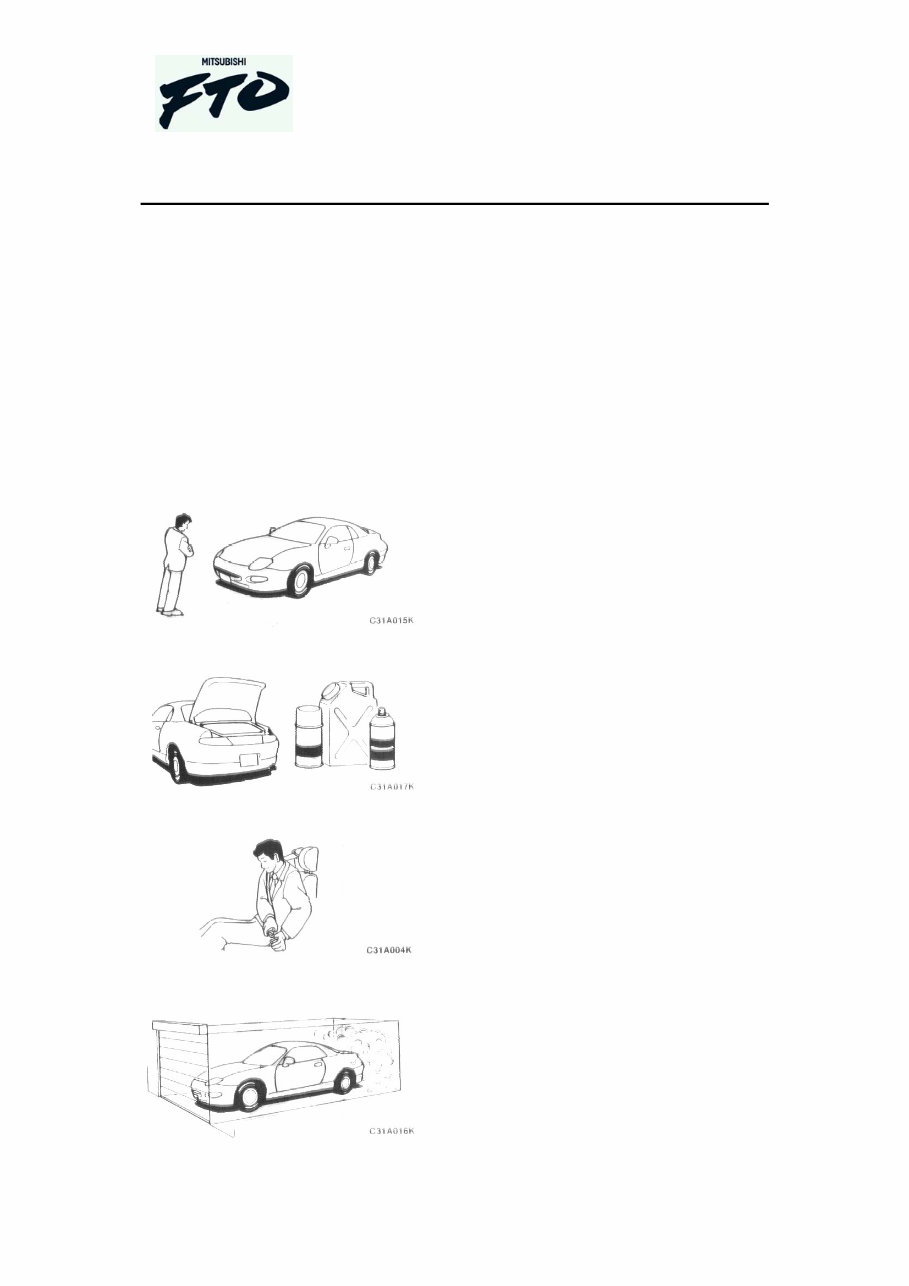

Check exterior of vehicle before driving.
Do not carry flammable liquids or gas
bottles in the vehicle, as this may cause a
fire or explosion in the event of an
accident.
Make sure seat belt is adjusted and
fastened for all passengers as well as the
driver, before driving. For more
information on the seat belts, see later in
this manual.
Do not run the engine in a confined area,
as this will cause a build up of carbon
monoxide, which is dangerous. Make
sure that there is adequate ventilation if
you do need to run the engine in a
confined space.
Owners Handbook
Copyright © Tarkus Services (2003)
www.angelfire.com/emo/fto
All rights reserved
26-Aug-04
10

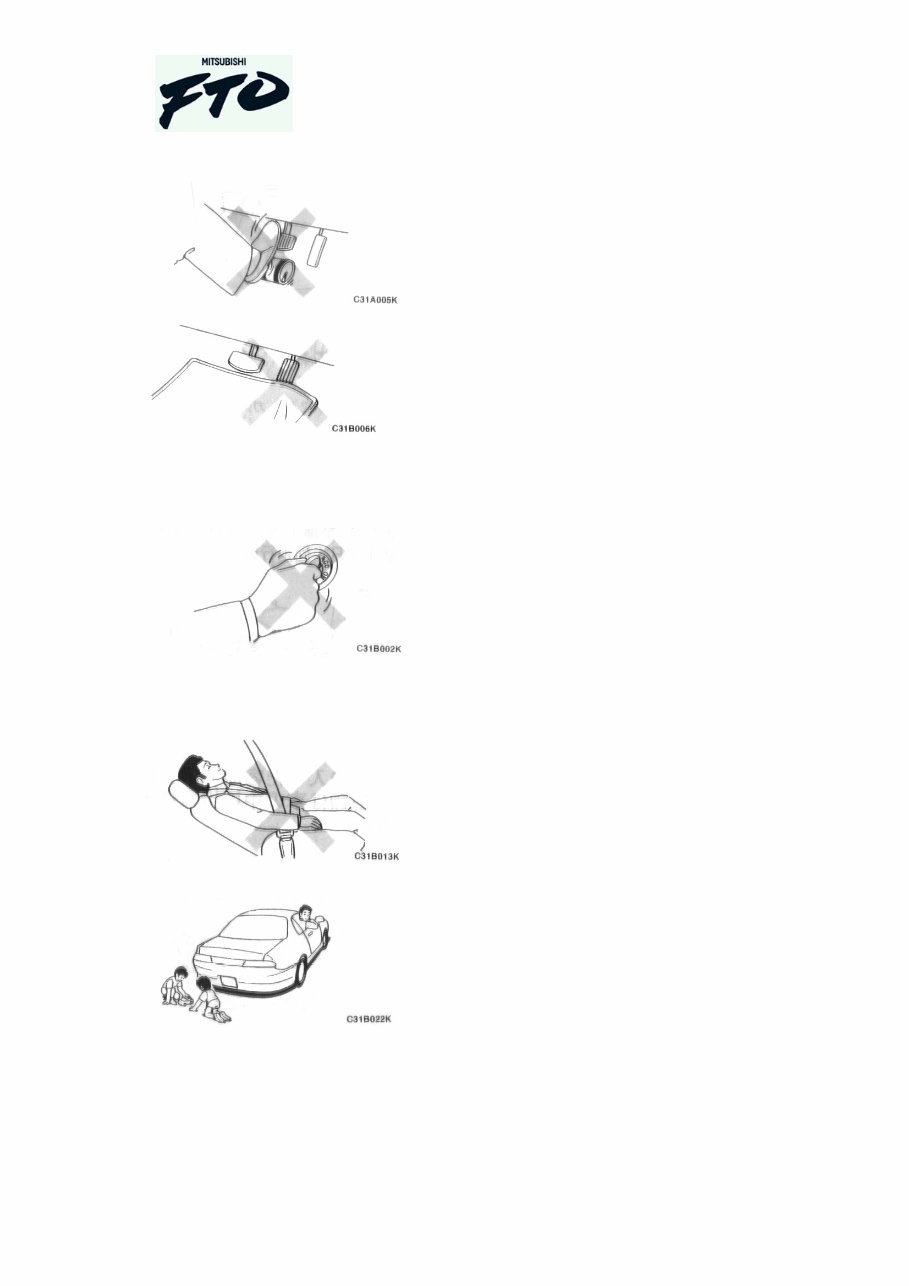

Make that there is nothing loose that can
interfere with the controls of the vehicle,
such as cans or bottles.
Make sure that any mats or covers do not
interfere with the controls of the vehicle.
Page 6 ?
2000cc ? “check translation”.
Do not try to turn the ignition switch off,
while driving. This may cause serious
damage to the engine. If you turn the key
to “ACC” or “LOCK” position while
driving you will lose the use of the power
brakes and power steering, also the
steering lock will engage. Also no
warning lights will be illuminated.
Do not put the seats in the reclined
position, while the vehicle is moving.
When reversing, make sure that the rear
of the vehicle is clear of obstructions and
children.
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$33.99
Viewed 59 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$33.99
The Mitsubishi FTO Owner Handbook is a comprehensive manual designed to provide a detailed overview of the vehicle and its components. It covers a wide range of topics including the dashboard, interior, exterior, and engine compartment. The manual also includes information on vehicle introduction and safety, driving position, seat adjustment, and seat belts.
- Dashboard: Provides detailed information about the instrument panel, warning lights, light switch, and wiper switch.
- Driving Position: Covers seat adjustment, front seat adjustment, rear seat, and seat belts.
- Instrument Panel: Includes an overview of the instrument panel, amp-meter, odometer/trip meter, and warning lights.
- Wiper Switch: Covers front wiper, wash/wipe control, rear screen wiper, hazard switch, windscreen de-mist, fog/park light, and ignition switch.
- Adjustable Items: Provides information on steering wheel adjustment, interior mirror adjustment, door mirrors, door mirror parking, ABS, traction control operation, and passenger interior lights.
- Interior Bits: Covers the clock, storage space, coin holder, glove box, center console, storage in the boot, and climate control.
- Climate Control: Includes details about climate controls, air flow indicator, automatic air conditioning, and operating the system as a normal air conditioner.
- Audio Equipment: Provides information about the antenna and audio equipment.
- Safety Features: Covers the fitting of snow chains, emergency flare, tool kit and jack, supporting the vehicle, changing the wheel and tire, starting the vehicle by external battery, towing the vehicle, and service guide.
- Service Guide: Includes details about capacities, fuses, removal of fuses, engine oil, belt adjustment, globes, tyre information, and engine information.
Whether you are a professional mechanic or a DIY enthusiast, the Mitsubishi FTO Owner Handbook is a valuable resource for understanding and maintaining your vehicle.
