PURPOSE : INFORMATION ISSUE NO. : MSB-10X00-008 DATE : 2010-02-20
SUBJECT : INFORMATION ON 2010 DELICA D:5 FOR
WORKSHOP MANUAL No.1 (Gr. 00 – 80)
GROUP : GENERAL
<MODEL>
(G.EXP)
DELICA D:5
(CW0W)
<M/Y>
10
1. Description:
This Service Bulletin contains the information on 2010 DELICA D:5 (Japanese domestic
specification model).
2. Applicable Manual:
Manual Language Pub. No. Attached Sheet
Attached sheet Attached sheet 1
(1/325 325/325)
2010 DELICA D:5
Workshop Manual
CD-Rom
English PWRE0804R
Body Repair
Manual
Attached sheet 2
(1/3 3/3)
3. Effective Models:
From 2010 models
4. Details:
See Attached sheet.
MSB-10X00-008 (10SY005) 1
00-1
GROUP 00
GENERAL
CONTENTS
VEHICLE IDENTIFICATION . . . . . . . 00-2
MODELS . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-2
CHASSIS NUMBER . . . . . . . . . . . . . . . . . . 00-2
VEHICLE IDENTIFICATION CODE
PLATE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-3
ENGINE MODEL STAMPING. . . . . . . . . . . 00-3
GENERAL DATA AND
SPECIFICATIONS . . . . . . . . . . . . . . . 00-4
PRECAUTIONS BEFORE SERVICE . 00-5
BATTERY CURRENT SENSOR
CALIBRATION. . . . . . . . . . . . . . . . . . . . . . . 00-5
CODING LIST . . . . . . . . . . . . . . . . . . . . . . . 00-5
MSB-10X00-008 (10SY005) 2
Attached sheet 1 (1/325)
00-2

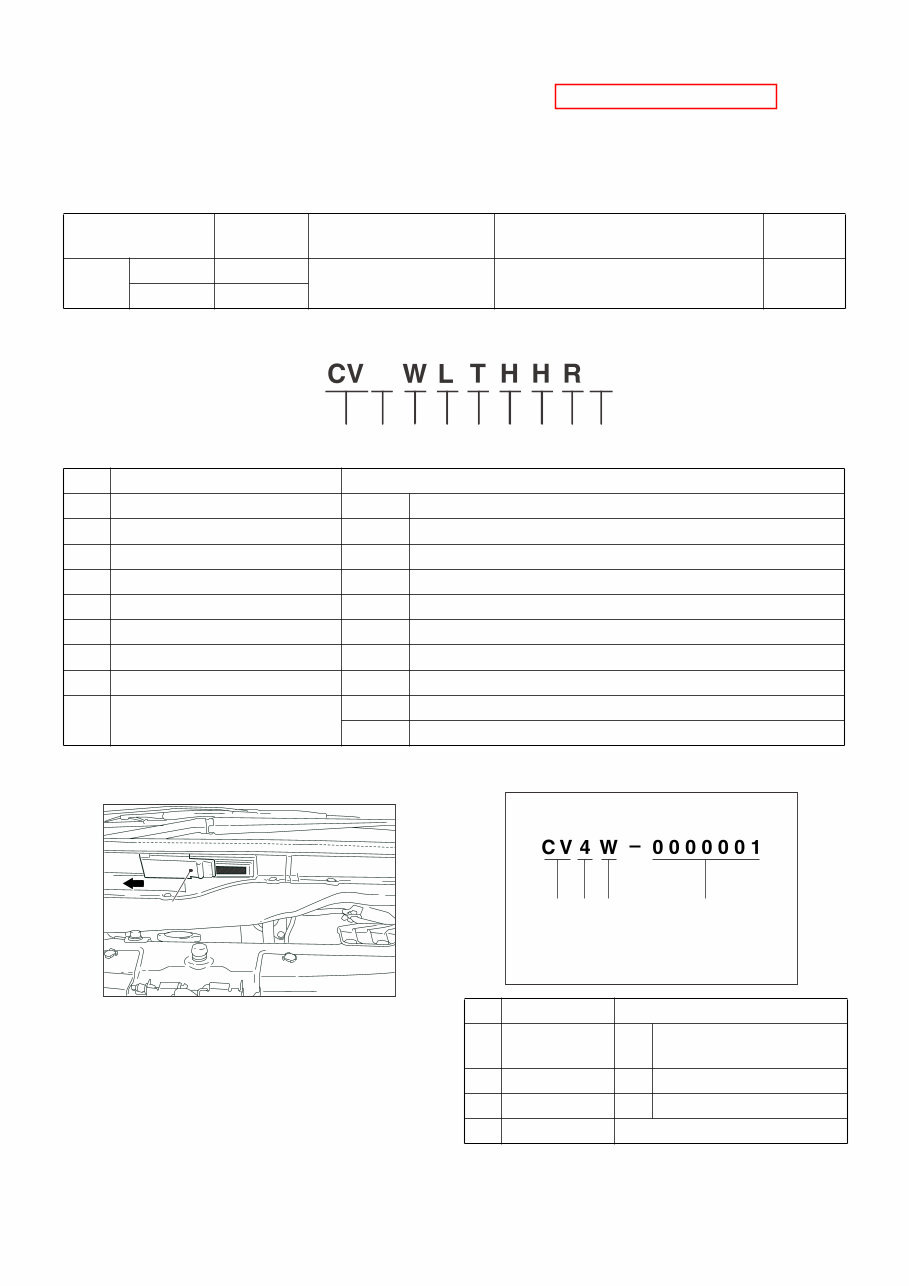

VEHICLE IDENTIFICATION
MODELS
M1001000305108
MODEL CODE
CHASSIS NUMBER
M1001005601793
The chassis number is stamped on the toeboard
inside the engine compartment.
The cap should be slid to the left to confirm the chas-
sis number.
CODE CHART
Model code Seating
capacity
Engine model Transmission model Fuel
system
CV4W LTHHR 8 persons 4B11 (1,998 mL) DOHC
MIVEC petrol engine
F1CJA (Front wheel drive 2WD,
INVECS-III CVT with sport mode)
MPI
LTHHR3 7 persons
AC705025
1 2 3 4 5 6 7 8
3 4
9
AB
No. Item Content
1 Development CV DELICA D:5
2 Engine type 4 2.0L petrol engine (4B11)
3 Vehicle type W Wagon
4 Body style L 4-door with tailgate
5 Transmission type T CVT
6 Price class (Trim level) H H (H-line)
7 Engine specification H MIVEC (DOHC)
8 Steering wheel location R Right hand
9 Seating capacity None 8 persons
3 7 persons
AC705029
Cap
AB
No. Item Content
1 Development
order
CV DELICA D:5
2 Engine type 4 2.0 L petrol engine (4B11)
3 Vehicle type W Wagon
4 Serial number 0000001 to 9999999
AC612238
2 3 1 4
MSB-10X00-008 (10SY005) 3
Attached sheet 1 (2/325)
00-3

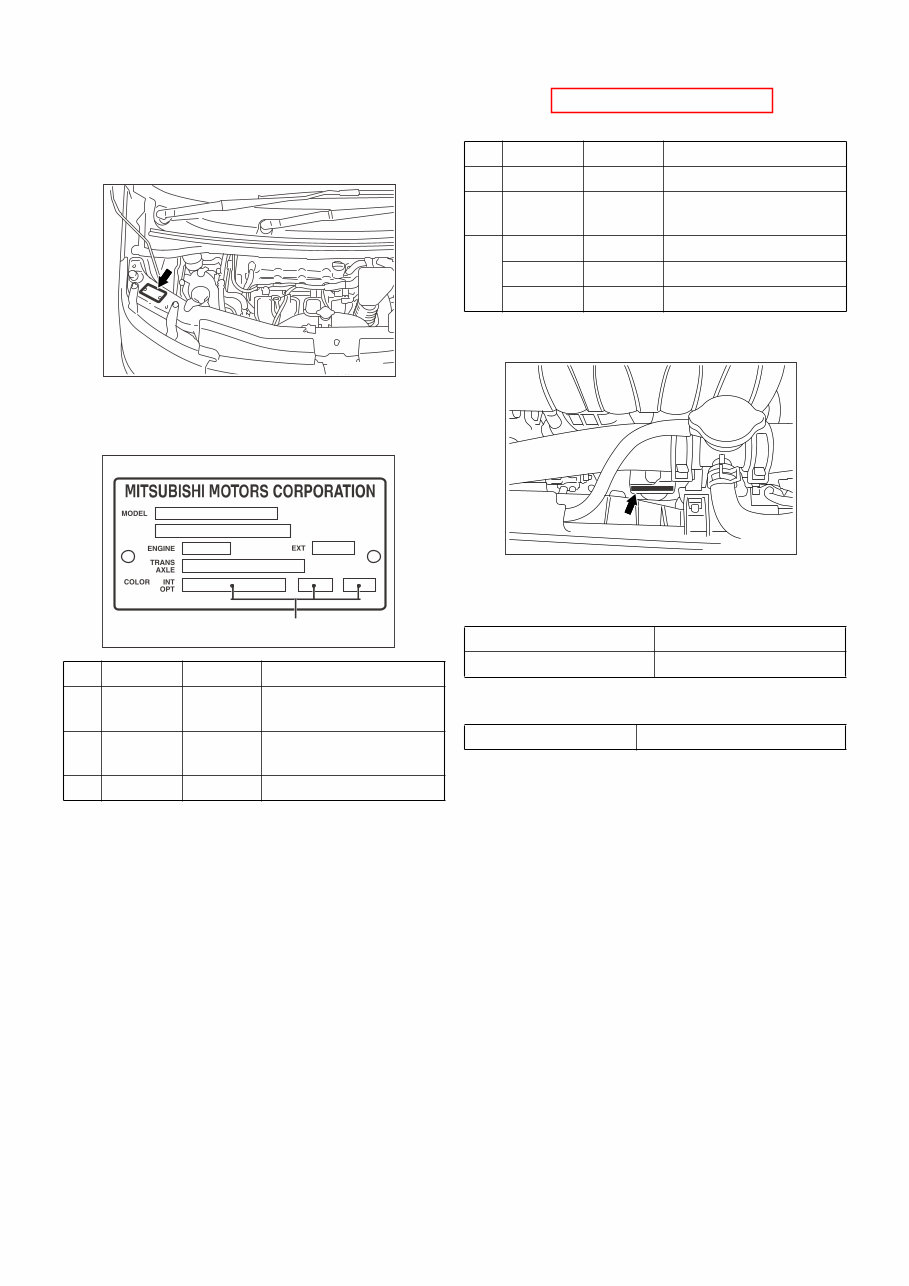

VEHICLE IDENTIFICATION CODE PLATE
M1001005402877
The vehicle identification code plate is riveted onto
the cowl top as shown in the illustration.
CODE CHART
ENGINE MODEL STAMPING
M1001005700913
The engine model is stamped on the cylinder block.
These engine model numbers are as shown as fol-
lows.
The engine serial number is stamped near the
engine model number.
No. Item Example Content
1 MODEL CV4WLT
HHR
CV4W: Vehicle model
LTHHR: Model series
2 CHASSIS
No.
CV4W-00
00060
Chassis number
3 ENGINE 4B11 Engine model
AC705124
1
2
3
6
4
5
AC705125
4 EXT HU5B Exterior code
5 TRANS
AXLE
F1CJA Transmission model
6 COLOUR A19A75 Body colour code
INT 03H Interior code
OPT Z40 Equipment code
Engine model Engine displacement
4B11 1,998 mL
Engine serial number AA0201 to YY9999
No. Item Example Content
AC507578 AK
MSB-10X00-008 (10SY005) 4
Attached sheet 1 (3/325)
00-4

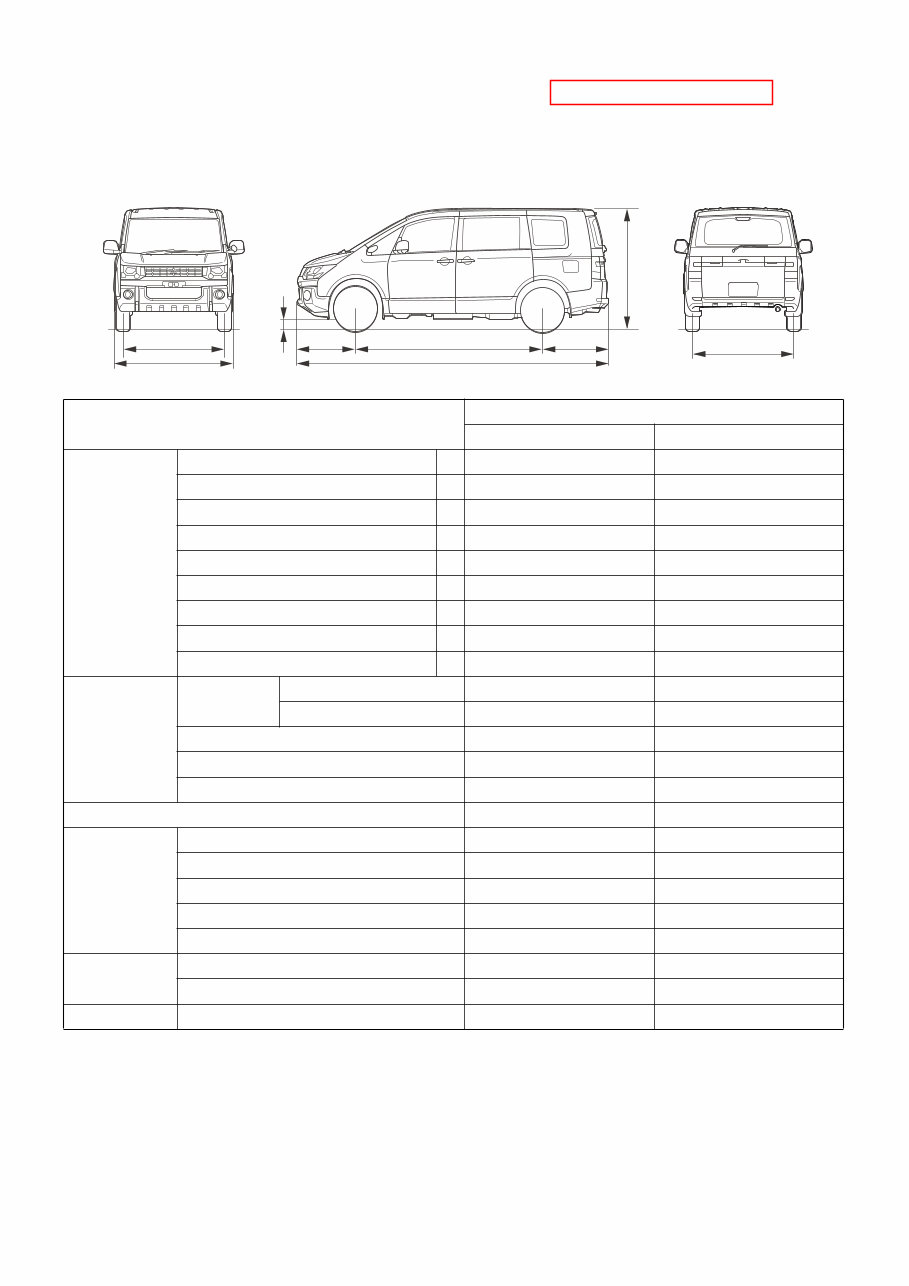

GENERAL DATA AND SPECIFICATIONS
M1001000905229
AC705010
1
2
7
3 4
6
5
8
9
Item CV4W
LTHHR LTHHR3
Vehicle
dimension
mm
Front track 1 1,540 1,540
Overall width 2 1,795 1,795
Front overhang 3 890 890
Wheelbase 4 2,850 2,850
Rear overhang 5 990 990
Overall length 6 4,730 4,730
Ground clearance (unladen) 7 190 190
Overall height (unladen) 8 1,850 1,850
Rear track 9 1,540 1,540
Vehicle weight
kg
Kerb weight Without optional parts 1,690 1,690
With optional parts 1,740 1,740
Max. gross vehicle weight 2,125 2,180
Max. axle weight rating-front 1,050 1,050
Max. axle weight rating-rear 1,150 1,150
Seating capacity 8 7
Engine Model code 4B11 4B11
Type DOHC MIVEC DOHC MIVEC
Total displacement mL 1,998 1,998
Max. output kW/r/min 110/6,000 110/6,000
Max. torque N m/r/min 197/4,200 197/4,200
Transmission Model code F1CJA F1CJA
Type CVT with sport mode CVT with sport mode
Fuel system Fuel supply system MPI MPI
MSB-10X00-008 (10SY005) 5
Attached sheet 1 (4/325)
00-5

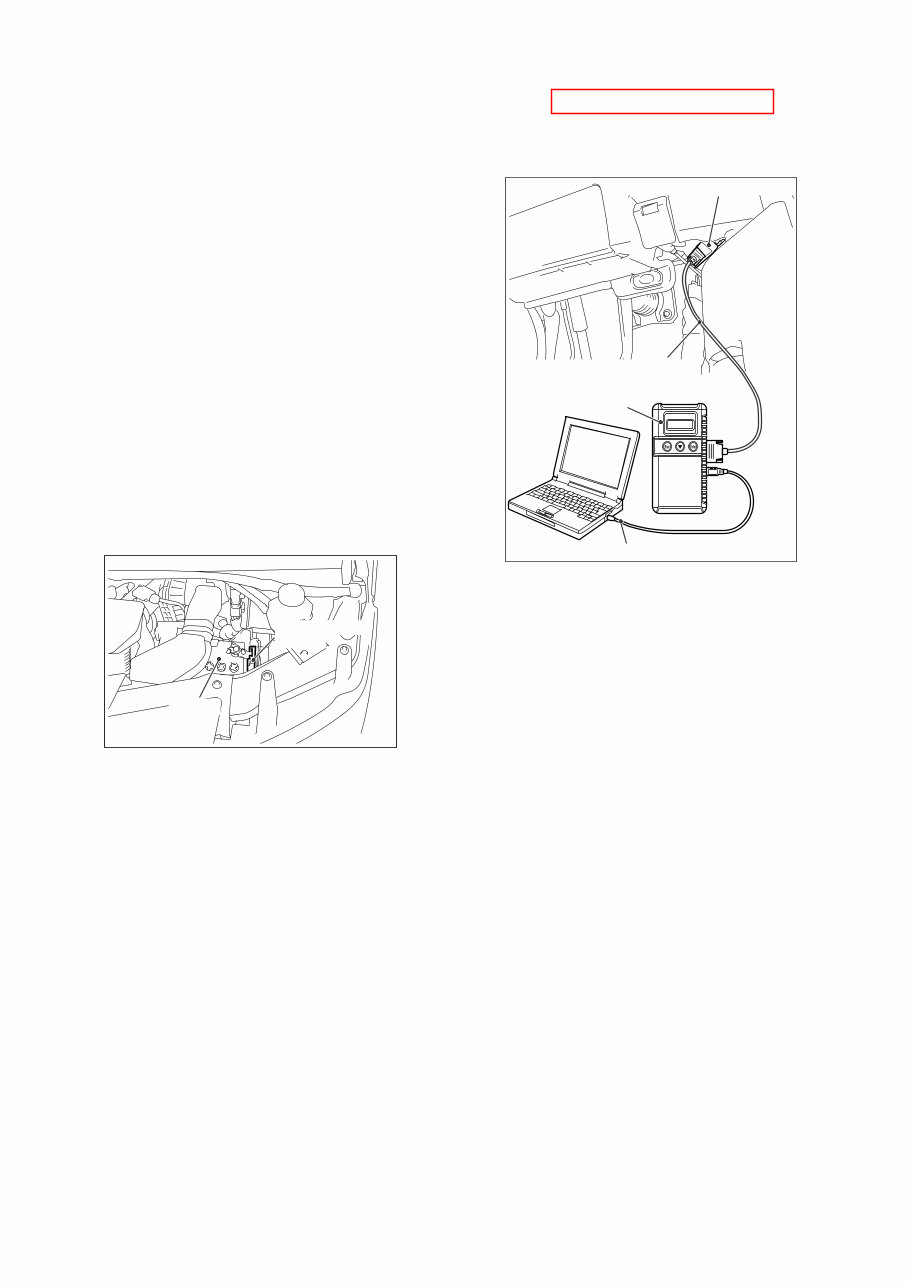

PRECAUTIONS BEFORE SERVICE
BATTERY CURRENT SENSOR
CALIBRATION
M1001018600057
PURPOSE
The engine-ECU carries out the electrical generation
control according to the charge level of the battery,
based on the battery current sensor signal. To
improve the effect of reducing the fuel consumption
by the electrical generation control, it is necessary to
accurately detect the charge level of the battery. For
this, if the following services are performed, carry out
the battery current sensor calibration.
Replacing the battery current sensor
Replacing the engine-ECU
LEARNING PROCEDURE
1. After the ignition switch is in "LOCK" (OFF)
position, disconnect the battery cable from the
negative battery terminal.
2. Remove the battery current sensor from the
battery cable (Do not disconnect the battery
current sensor connector).
3. Connect the battery cable without the battery
current sensor to the negative battery terminal.
4. Connect the M.U.T.-III to the diagnosis connector.
5. Turn the ignition switch to the ON position (But do
not start the engine).
6. Select "MPI/GDI/DIESEL" from System select
Screen of the M.U.T.-III.
7. Select "Special Function" from MPI/GDI/DIESEL
Screen.
8. Select "Learning" from Special Function Screen.
9. Select "Battery current SNSR.calibration" from
Learning Screen.
10.Start the calibration by pressing the "OK" button.
11.Confirm that the M.U.T.-III data list item No. 119
Battery current sensor calibration is "Completed".
12.After the ignition switch is in "LOCK" (OFF)
position, disconnect the M.U.T.-III.
13.Install the battery current sensor.
CODING LIST
M1001015001219
The coding data of the engine-ECU and
ETACS-ECU has been changed or added as follows:
AK900999AF
Battery current
sensor
Battery
AC610113AB
M.U.T.-III main harness A
V. C. I.
USB cable
Diagnosis connector
MSB-10X00-008 (10SY005) 6
Attached sheet 1 (5/325)
00-6
VARIANT CODING
ENGINE-ECU CODING DATA LIST
ETACS-ECU CODING DATA LIST
OPTION CODING
Item name Initial value
Final gear ratio 6.466
Tyre circumference 2155mm
Item name Initial value
SST oil cooling fan Not present
Engine type 2.0L D4 MPI VVT
Chassis Type for A.S.C. Type 1
OSS Not present
Dead lock operation customize Disabled
After wipe customize Enabled(def.E)
Tyre circumference 2155mm
Idle neutral control Not present
T/M oil cooler Not present
Side air bag Not present or Present
Corner sensor control unit Not present
ESS ECU Not present
Intelligent/Comfort washer costom Enabled(def.E)
Rear wiper mode With Lo control
10MY SPEC Enable
Rear wiper by reverse customize Enabled(d.FR/RR)
Auto fold mirror Keyless/KOS
Door unlock by IG lock customize Enabled(def.D)
Rheostat cancel mode Available
Coming home light customize Disabled or Enabled(def.E)
Welcome light customize Disabled or Enable(d.Small)
ESS by stop lamp Not present
Washer function improvement Enable
KOS function customize by Disp. Disabled
Gate/Trunk lamp Mode-2 (cargo)
Room lamp improvement Enable
AUDIO/S.RADIO type Undefined
H/L leveling type CAN com/static
ESS by turn lamp Present
Display opening type MMC
Item name
Door unlock mode customize
MSB-10X00-008 (10SY005) 7
Attached sheet 1 (6/325)
00E-1
GROUP 00E
GENERAL
<ELECTRICAL>
CONTENTS
ABBREVIATION SYMBOLS . . . . . . . 00E-2
MSB-10X00-008 (10SY005) 8
Attached sheet 1 (7/325)
00E-2
ABBREVIATION SYMBOLS
M1001008101407
1. FOR SYSTEM NAME
Abbreviation
symbol
Meaning
HSA Hill start assist
MSB-10X00-008 (10SY005) 9
Attached sheet 1 (8/325)
11C-1
GROUP 11C
ENGINE
MECHANICAL
<4B11>
CONTENTS
GENERAL . . . . . . . . . . . . . . . . . . . . . 11C-2
SERVICE SPECIFICATIONS . . . . . . . 11C-2
ON-VEHICLE SERVICE . . . . . . . . . . . 11C-2
IGNITION TIMING CHECK . . . . . . . . . . . . . 11C-2
IDLE SPEED CHECK . . . . . . . . . . . . . . . . . 11C-3
COMPRESSION PRESSURE CHECK . . . . 11C-3
MANIFOLD VACUUM CHECK . . . . . . . . . . 11C-5
MSB-10X00-008 (10SY005) 10
Attached sheet 1 (9/325)
