2006 TRANSMISSIONS Automatic Transaxle/Transmission External Controls - Fusion, Milan & Zephyr SPECIFICATIONS TORQUE SPECIFICATIONS TORQUE SPECIFICATIONS DESCRIPTION AND OPERATION EXTERNAL CONTROLS Description Nm lb-ft lb-in Floor selector lever nuts 12 9 - Selector lever cable grommet nuts 8 - 71 2006 Ford Fusion SE 2006 TRANSMISSIONS Automatic Transaxle/Transmission External Controls - Fusion, Milan & Zephyr 2006 Ford Fusion SE 2006 TRANSMISSIONS Automatic Transaxle/Transmission External Controls - Fusion, Milan & Zephyr

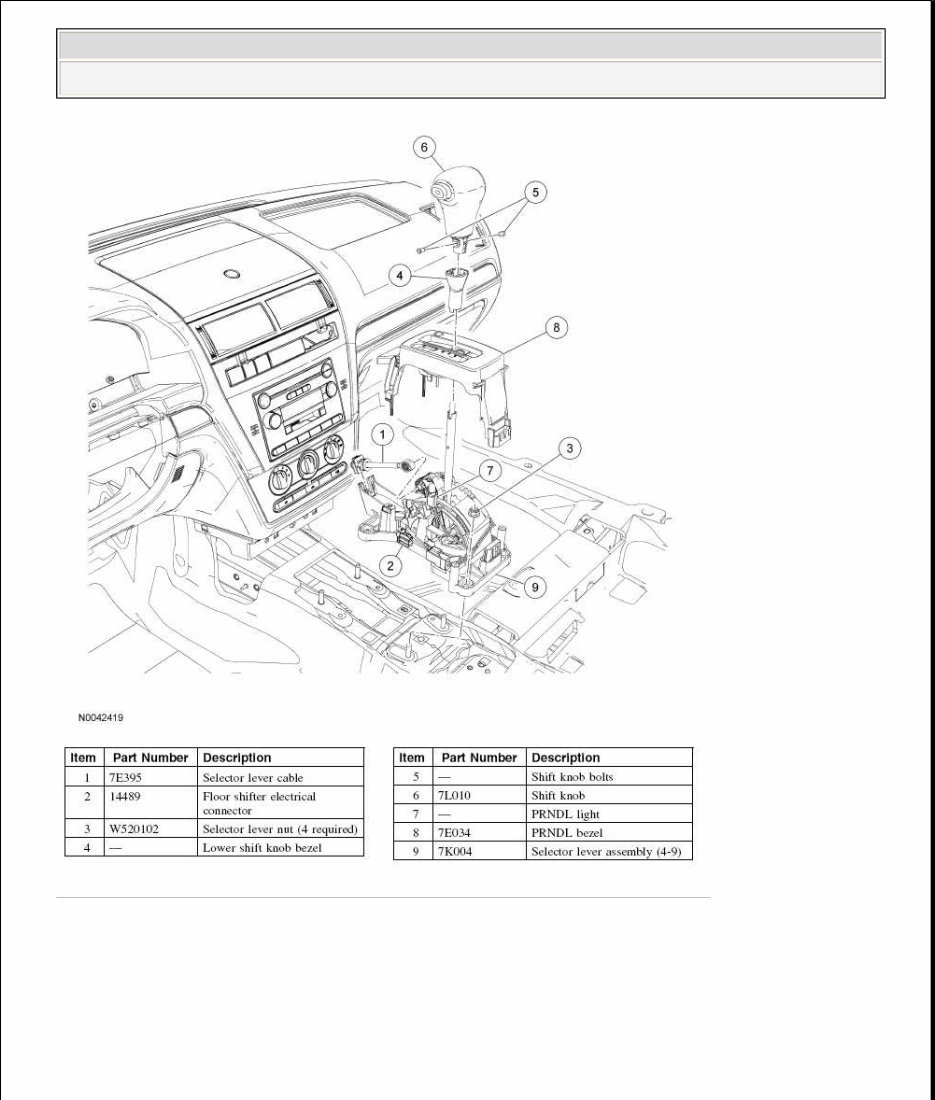

Fig. 1: Identifying External Controls - Floor Shift Components Courtesy of FORD MOTOR CO. The transaxle shift control linkage consists of: A shift cable that connects the transaxle range selector lever to the floor shifter assembly. A brake shift interlock actuator that is integral to the floor shifter assembly. 2006 Ford Fusion SE 2006 TRANSMISSIONS Automatic Transaxle/Transmission External Controls - Fusion, Milan & Zephyr

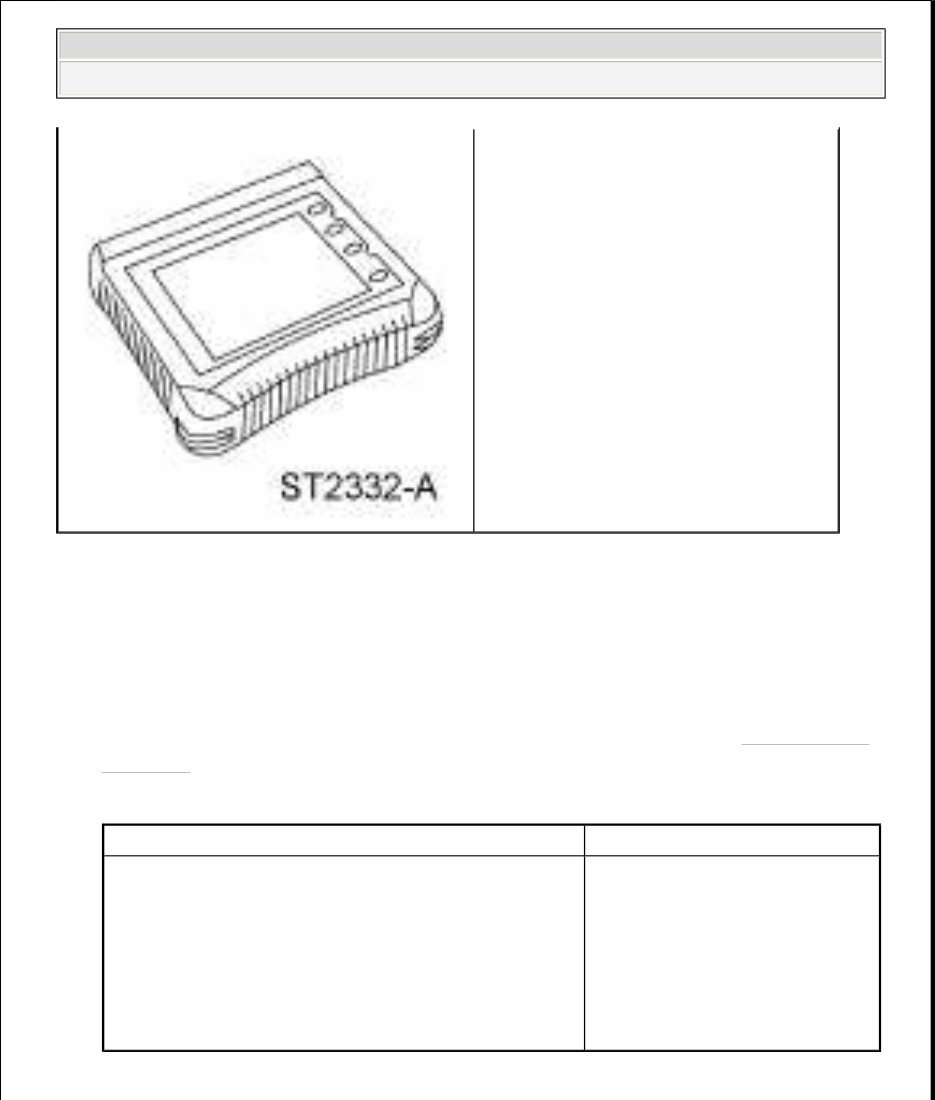

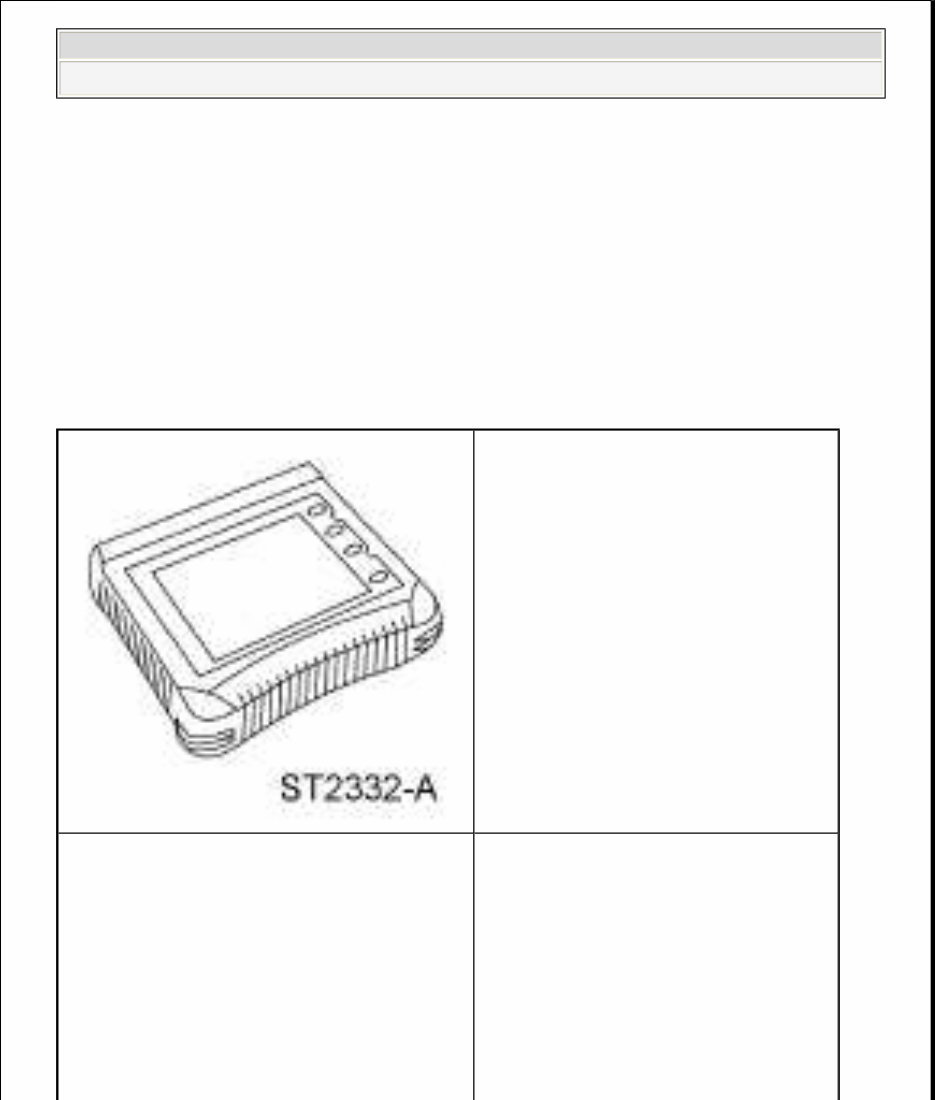

The floor shifter assembly: Locks the transaxle range selector lever in the PARK position when the ignition switch is in the LOCK position. Requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the LOCK position. DIAGNOSIS AND TESTING EXTERNAL CONTROLS SPECIAL TOOL(S) DESCRIPTION 73 III Digital Multimeter 105-R0057 or equivalent Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or 2006 Ford Fusion SE 2006 TRANSMISSIONS Automatic Transaxle/Transmission External Controls - Fusion, Milan & Zephyr
Inspection and Verification 1. Verify the customer concern by operating the system. 2. Visually inspect for obvious signs of mechanical or electrical damage. 3. If an obvious cause for an observed or reported concern is found, correct the cause before proceeding to the next step. 4. If the concern is not visually evident, verify the symptom. GO to SYMPTOM CHART . VISUAL INSPECTION CHART DIAGNOSTIC TROUBLE CODE (DTC) CHART equivalent diagnostic tool Mechanical Electrical Transmission shift cable Manual control lever Transmission control module out of adjustment (6-speed transaxle) Fuse Connections Wiring harness Brake pedal position (BPP) switch Shift lock actuator 2006 Ford Fusion SE 2006 TRANSMISSIONS Automatic Transaxle/Transmission External Controls - Fusion, Milan & Zephyr
Symptom Chart SYMPTOM CHART Electrical Connectors DTC Component Description Condition Symptom Action B2572 Brake Shift Interlock Brake Shift Interlock Output Circuit Failure The associated circuitry connected to the smart junction box (SJB) or fuse, or the SJB itself may have an issue causing a brake shift interlock concern. Brake shift interlock is inoperative or does not operate correctly. GO to PINPOINT TEST A . Condition Possible Sources Action Shift interlock system does not release/lock correctly Circuitry open/shorted Fuse(s) Stoplight switch GO to PINPOINT TEST A . Shift interlock system does not release/lock correctly Shift lock actuator INSTALL a new selector lever assembly. REFER to SELECTOR LEVER . Shift control linkage is out of correct gear relationship Shift linkage out of adjustment REFER to SELECTOR LEVER CABLE ADJUSTMENT . Loose shift cable bracket CHECK the shift cable bracket. Tighten as necessary. 2006 Ford Fusion SE 2006 TRANSMISSIONS Automatic Transaxle/Transmission External Controls - Fusion, Milan & Zephyr
The Mercury Milan Full Service & Repair Manual 2008 is a comprehensive guide that provides detailed information on servicing and repairing the Mercury Milan model from the year 2008. This manual is a must-have for Mercury Milan owners or mechanics who want to perform their own repairs and maintenance.
The manual covers all aspects of the Mercury Milan 2008, including engine, transmission, electrical system, suspension, brakes, heating and cooling systems, and much more. It includes step-by-step instructions, diagrams, and illustrations to help you understand and complete each repair or service task with ease.
With this manual, you'll have the confidence and knowledge to tackle any repair or maintenance project on your Mercury Milan 2008. Whether you're a DIY enthusiast or a professional mechanic, this manual is designed to make your work easier and more efficient.
This Full Service & Repair Manual covers the following Mercury Milan 2008 models:
Mercury Milan Base Sedan 4-Door
Mercury Milan Premier Sedan 4-Door
Mercury Milan Hybrid Sedan 4-Door
Get your copy of the Mercury Milan Full Service & Repair Manual 2008 today and keep your Mercury Milan running smoothly!
