Identification Codes Printable View (488 KB) Vehicle Identification Number (VIN) Vehicle Identification Number (VIN) Location The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label. SECTION 100-01: Identification Codes 2007 Crown Victoria/Grand Marquis Workshop Manual DESCRIPTION AND OPERATION Procedure revision date: 06/19/2006 Item Description 1 World manufacturer identifier (WMI) 2 Restraint type code 3 Vehicle line and series code 4 Engine code 5 VIN check digit 6 Model year code 7 Assembly plant code 19.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_688\S7A~us~en~file=S7A01001.htm~ge...
World Manufacturer Identifier (WMI) The first 3 vehicle identification number (VIN) positions are the world manufacturer identifier (WMI) code. 2FA — Ford Motor Company of Canada Ltd., passenger car 2FD — Ford Motor Company of Canada Ltd., passenger car (incomplete vehicle) 2ME — Ford Motor Company of Canada Ltd., Mercury, passenger car 2MH — Ford Motor Company of Canada Ltd., Mercury, passenger car (incomplete vehicle) Restraint Type Code The fourth VIN position is the vehicle restraint system type code. F — Active safety belts — all positions, driver and front passenger air bags H — Active safety belts — all positions, driver and front passenger air bags and driver and front passenger side impact air bags Vehicle Line and Series Code 8 Production sequence number 19.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_688\S7A~us~en~file=S7A01001.htm~ge...
Positions 5 through 7 indicate vehicle line, series and body type. P70 — Crown Victoria (Long wheel-base) P71 — Crown Victoria (Police Interceptor) P72 — Crown Victoria (Base fleet vehicle) P73 — Crown Victoria (Base 4-door) P74 — Crown Victoria (LX 4-door) M70 — Grand Marquis (Long wheel-base) M74 — Grand Marquis (GS 4-door) M75 — Grand Marquis (LS 4-door) Engine Code The eighth VIN position is the engine displacement and number of cylinders code. W — 4.6L EFI (SOHC), 8-cylinder, gasoline V — 4.6L EFI (SOHC), 8-cylinder, flex fuel Check Digit Code 19.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_688\S7A~us~en~file=S7A01001.htm~ge...
The ninth VIN position is the check digit code (0-9). Model Year Code The tenth VIN position is the model year code. 7 — 2007 Assembly Plant Code The eleventh VIN position is the assembly plant code. X — St. Thomas, Talbotville, Ontario (Canada) Production Sequence Code The last 6 VIN positions are the production sequence number. These 6 digits also are used as the vehicle serial and warranty number. Ford — 100001-599999 Mercury — 600001-999999 19.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_688\S7A~us~en~file=S7A01001.htm~ge...

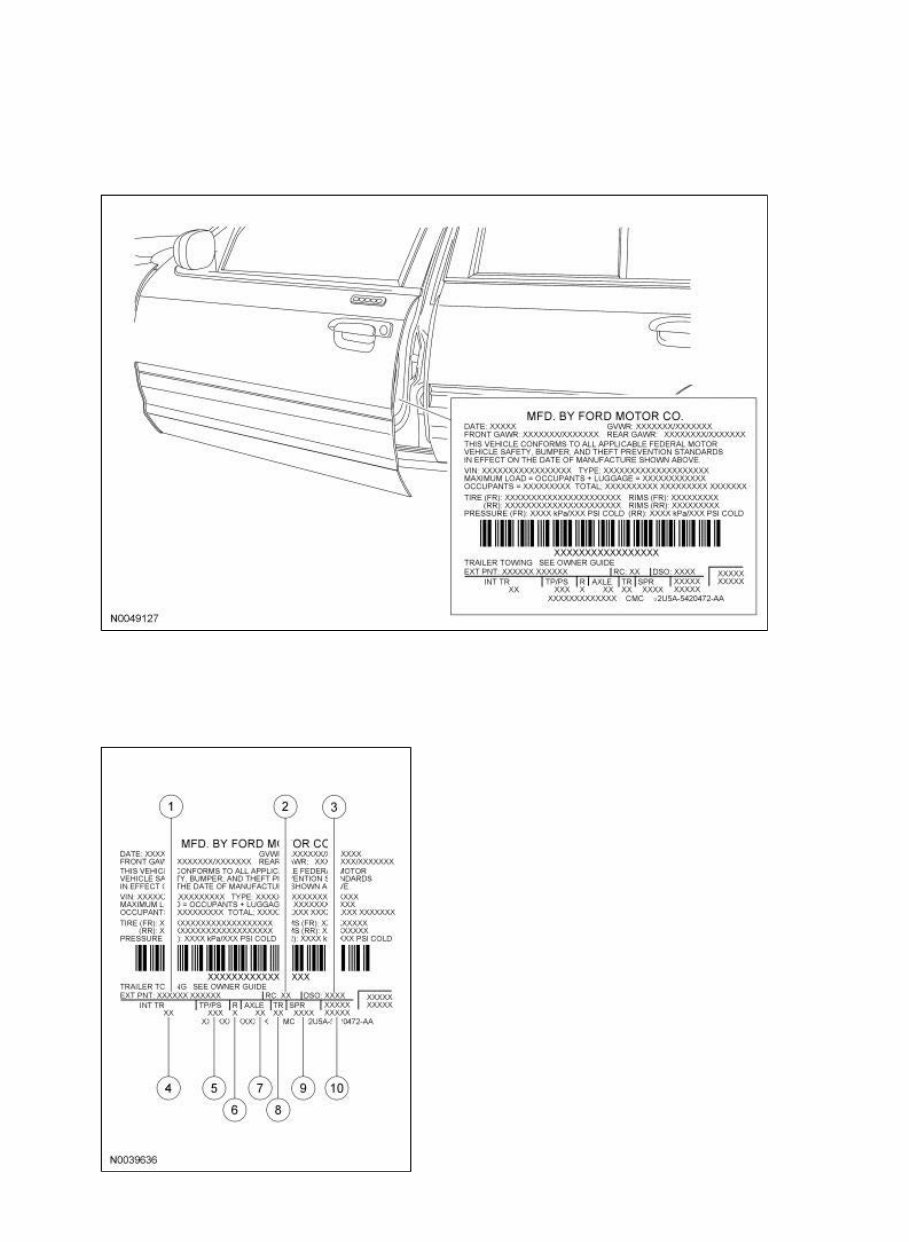

Vehicle Certification (VC) Label Vehicle Certification (VC) Label Location The upper portion of the vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR) as well as tire size and pressure ratings. The VC label is located on the left-hand front door edge. 19.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_688\S7A~us~en~file=S7A01001.htm~ge...
Paint Code The first set of numbers/letters listed indicate the vehicle primary body color code. The second set of letters/numbers listed (if applicable), indicate a 2-tone or accent body color code. All colors are base coat/clear coat. Primary Body Color AQ — Arizona Beige, Mercury/Ford BU — Medium Brown Metallic, Ford BY — School Bus Yellow, Ford HG — Smokestone, Mercury/Ford JL — Dark Toreador Red, Mercury/Ford JP — Silver Birch Metallic, Mercury/Ford KR — Norcea Blue Pearl, Mercury/Ford LK — Dark Blue, Ford LM — Royal Blue, Ford LN — Light Blue Metallic, Ford LS — Light Ice Blue Metallic, Mercury/Ford MM — Ultra Blue, Ford P2 — Driftwood Beige, Mercury/Ford T3 — Satellite Silver Pearl, Mercury/Ford TM — Light Gray, Ford TN — Silver Gray Metallic, Ford UA — Ebony, Mercury/Ford WT — Performance White, Mercury/Ford Item Description 1 Exterior paint color code 2 Region code 3 Domestic special order 4 Interior trim code 5 Tape/paint stripe code 6 Radio code 7 Axle code 8 Transmission code 9 Spring code 10 Powertrain calibration information 19.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_688\S7A~us~en~file=S7A01001.htm~ge...
YG — Medium Titanium, Ford Accent Body Color AQ — Arizona Beige, Ford BU — Medium Brown Metallic, Ford BY — School Bus Yellow, Ford HG — Smokestone, Mercury/Ford JL — Dark Toreador Red, Ford JP — Silver Birch Metallic, Ford KR — Norcea Blue, Ford LK — Dark Blue, Ford LM — Royal Blue, Ford LN — Light Blue Metallic, Ford LS — Light Ice Blue Metallic, Ford MM — Ultra Blue, Ford P2 — Driftwood Beige, Ford T3 — Satellite Silver, Ford TM — Light Gray, Ford TN — Silver Gray Metallic, Ford UA — Ebony, Ford WT — Performance White, Ford YG — Medium Titanium, Ford Interior Trim Code The interior trim codes are listed below. The first letter/number is for the interior fabric. The second letter is for the interior color. A — Dalton cloth (split bench), Ford B — Atmore cloth (split bench), Mercury C — G-Grain vinyl 40/20/40 bench, Ford D — Luxury Atmore cloth (split bench), Mercury F — Luxury Atmore cloth (split bench), Ford H — Stockton cloth (front bucket with cloth rear seats), Ford I — Stockton cloth (front bucket seats with vinyl rear seat), Ford K — Milled Pebble leather (5-passenger seating), Ford P — Laura cloth (split bench), Ford Q — Dalton leather 40/20/04 (split bench), Ford R — G-Grain F350 Special Off-Road Package vinyl (split bench), Ford Y — Milled Pebble leather (split bench), Ford Z — G-Grain Super Soft Milled Pebble leather (split bench), Ford 2 — Milled Pebble leather (front bucket seats), Mercury 3 — Milled Pebble leather twin comfort seats, Mercury 19.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_688\S7A~us~en~file=S7A01001.htm~ge...
4 — Milled Pebble Super-Soft leather (split bench), Mercury The interior trim colors are: J — Light Camel, Mercury/Ford L — Medium Light Stone, Mercury/Ford N — Charcoal Black, Mercury/Ford V — Cashmere/Medium Light Stone, Mercury Tape and Paint Stripe Code Tape and paint stripe codes do not apply to all vehicles. If applicable, the code(s) is as follows: B — Black C — Light Chestnut J — Medium Red P — Light Charcoal Q — Dark Blue Radio Code The radio type codes are: B — Luxury electronic AM/FM stereo with cassette and clock (pre-equipment package 1) F — Electronic AM/FM stereo K — Premium electronic AM/FM stereo with cassette, compact disc (CD) and clock X — Electronic AM/FM stereo with 6-disc CD changer Y — Radio delete Z — Electronic AM/FM stereo with CD player and clock Axle Ratio Code 19.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_688\S7A~us~en~file=S7A01001.htm~ge...
The axle ratios are: 58 — 2.73 conventional (non-limited slip) — without Traction Control Z5 — 3.27 conventional (non-limited slip) C6 — 3.55 limited slip X5 — 3.27 limited slip C8 — 2.73 conventional (non-limited slip) — with Traction Control Transmission Code The transmission codes are: Q — 4-speed automatic overdrive, (4R75E) Livonia S — 4-speed automatic overdrive, (4R75E) Sharonville Spring Code The first number/letter listed identifies the front spring codes. The second number/letter listed identifies the rear spring codes. Front Springs 19.09.2002 file://C:\TSO\tsocache\SUPER10-45B629E_688\S7A~us~en~file=S7A01001.htm~ge...
