1992 Mercedes-Benz SL-Class (R129) Service & Repair Manual

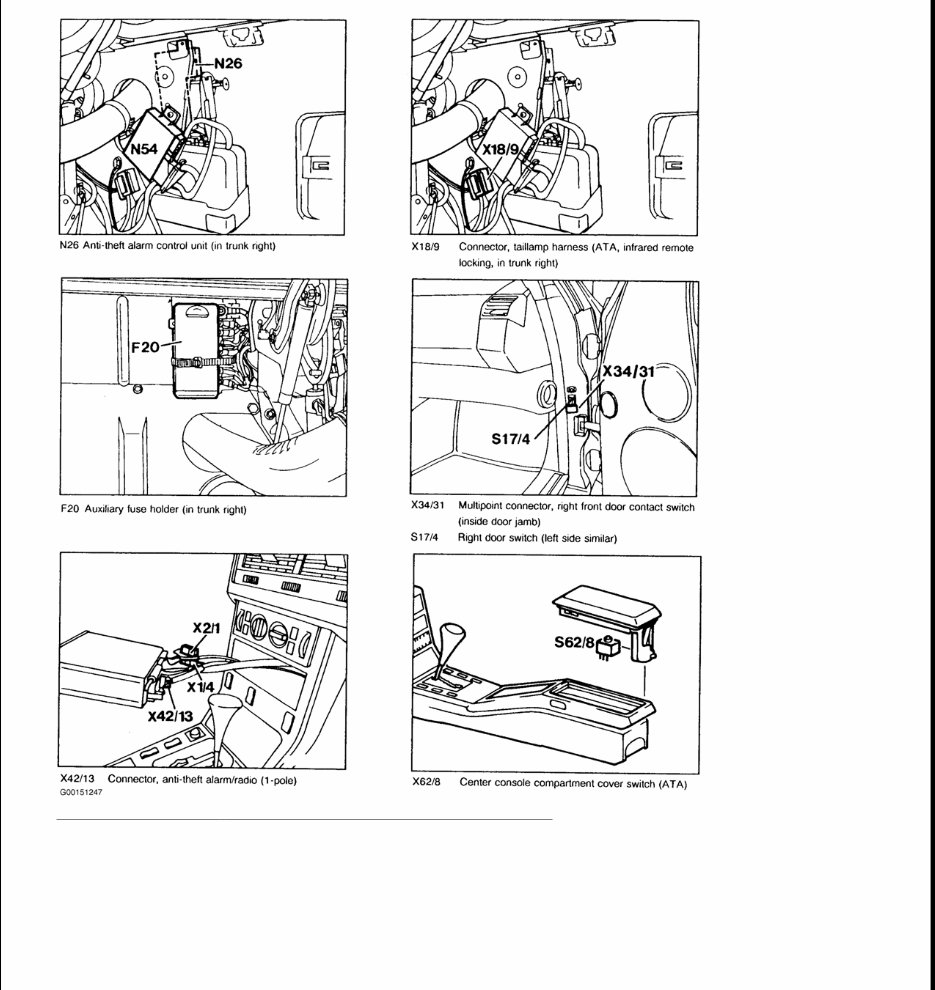

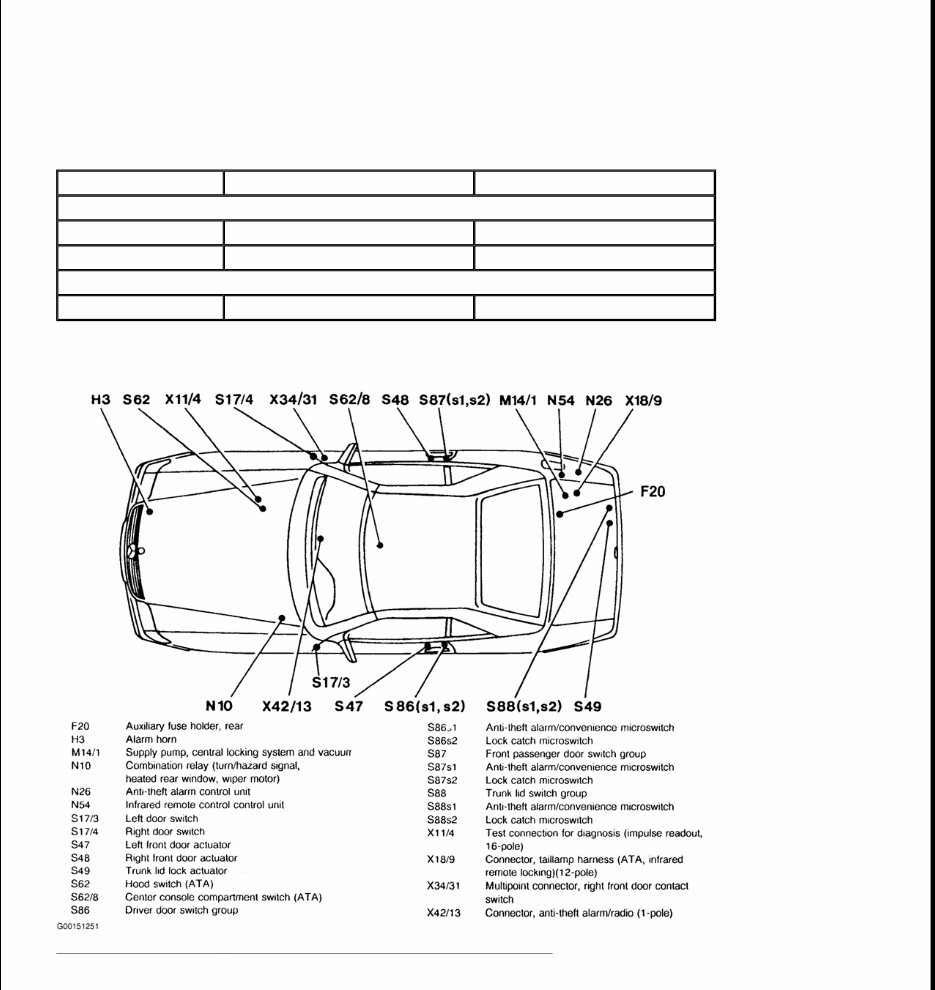

1990-93 ACCESSORIES & EQUIPMENT Anti-Theft System - 300SL, 500SL & 600SL IDENTIFICATION MODEL IDENTIFICATION COMPONENT LOCATIONS Fig. 1: Locating Anti - Theft Alarm System Components (1 Of 2) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Model Chassis Code Engine Code 1990-93 300SL 129.061 104.981 500SL 129.066 119.960 1993 600SL 129.076 120.981

Fig. 2: Locating Anti - Theft Alarm System Components (2 Of 2) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. TROUBLE SHOOTING ANTI-THEFT SYSTEM

Fig. 3: Diagnostic Chart (1 Of 2) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 4: Diagnostic Chart (2 Of 2) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. SYSTEM TESTS ANTI-THEFT FUNCTION TEST

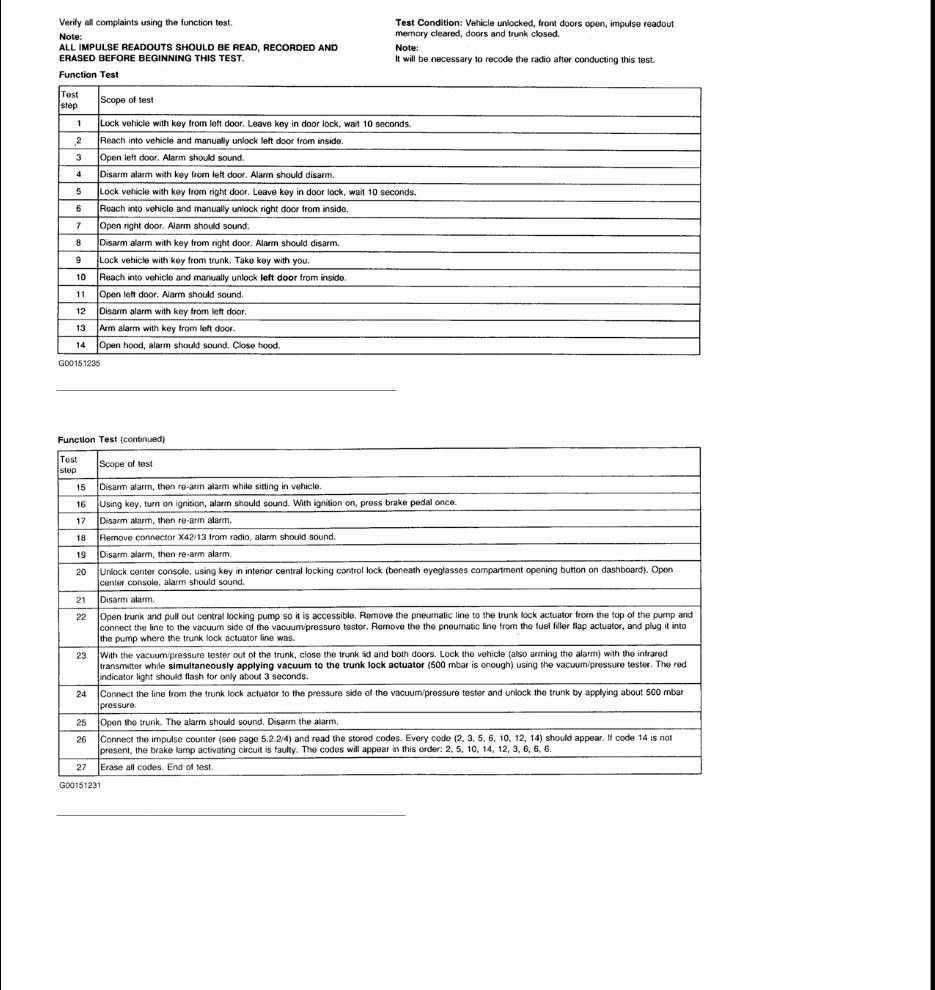

Fig. 5: Anti - Theft Function Test, Steps 1 - 14 Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 6: Anti - Theft Function Test, Steps 15 - 27 Courtesy of MERCEDES-BENZ OF NORTH AMERICA. PREPARATION FOR TEST, IMPULSE READOUT 1. All alarm activations are stored in the control unit's (N26) memory. 2. Each impulse readout number refers to a particular activation circuit. 3. The impulse readout can be recalled and read using the impulse counter at the diagnostic socket.

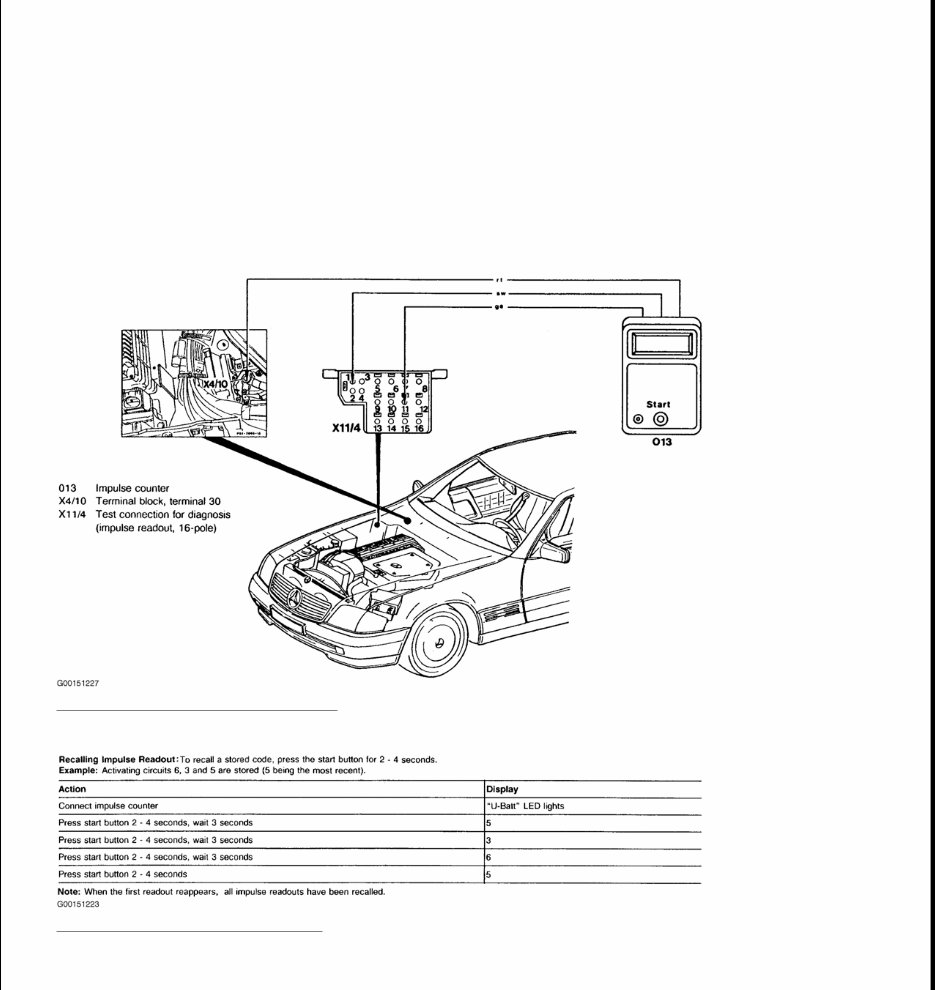

4. If there are multiple stored impulse readouts, the impulse readout stored most recently will be indicated first. 5. The impulse readout only shows which sensor(s) caused the alarm to sound. It cannot detect faults, except in cases where the alarm sounds for no reason (in which case, the respective sensor is identified). 6. Difficulties in arming or disarming the system cannot be detected by the impulse readout. In such cases, the socket box test must be performed. 7. If the first indicated impulse readout number reappears after one or more impulse readouts, then all impulse readouts have been displayed. 8. The impulse readout can be erased individually only after having read all readouts. 9. The impulse readout 1 indicates that no alarm activations are stored. Fig. 7: Connecting Impulse Counter Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 8: Recalling Impulse Readout Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

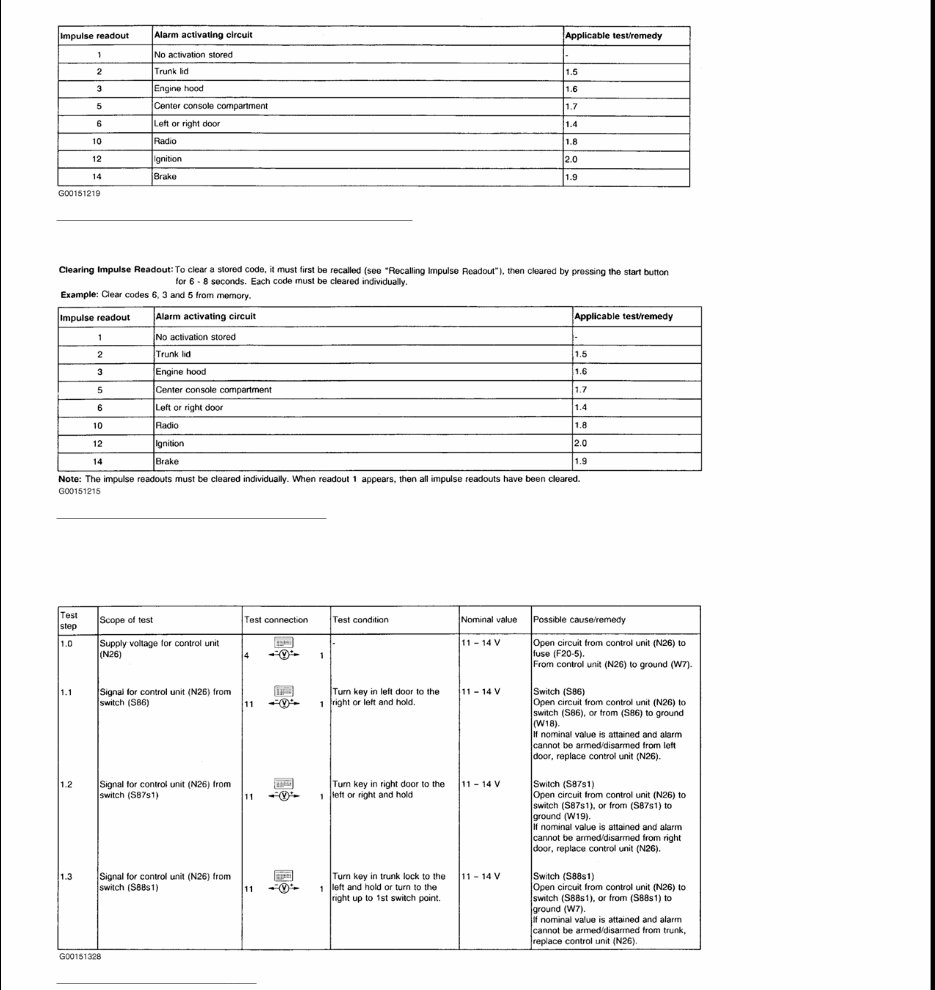

Fig. 9: Identifying Impulse Readout Numbers Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 10: Clearing Impulse Readout Courtesy of MERCEDES-BENZ OF NORTH AMERICA. ANTI-THEFT ALARM SYSTEM TEST USING SOCKET BOX TESTER Fig. 11: Test Steps 1.0 - 1.3

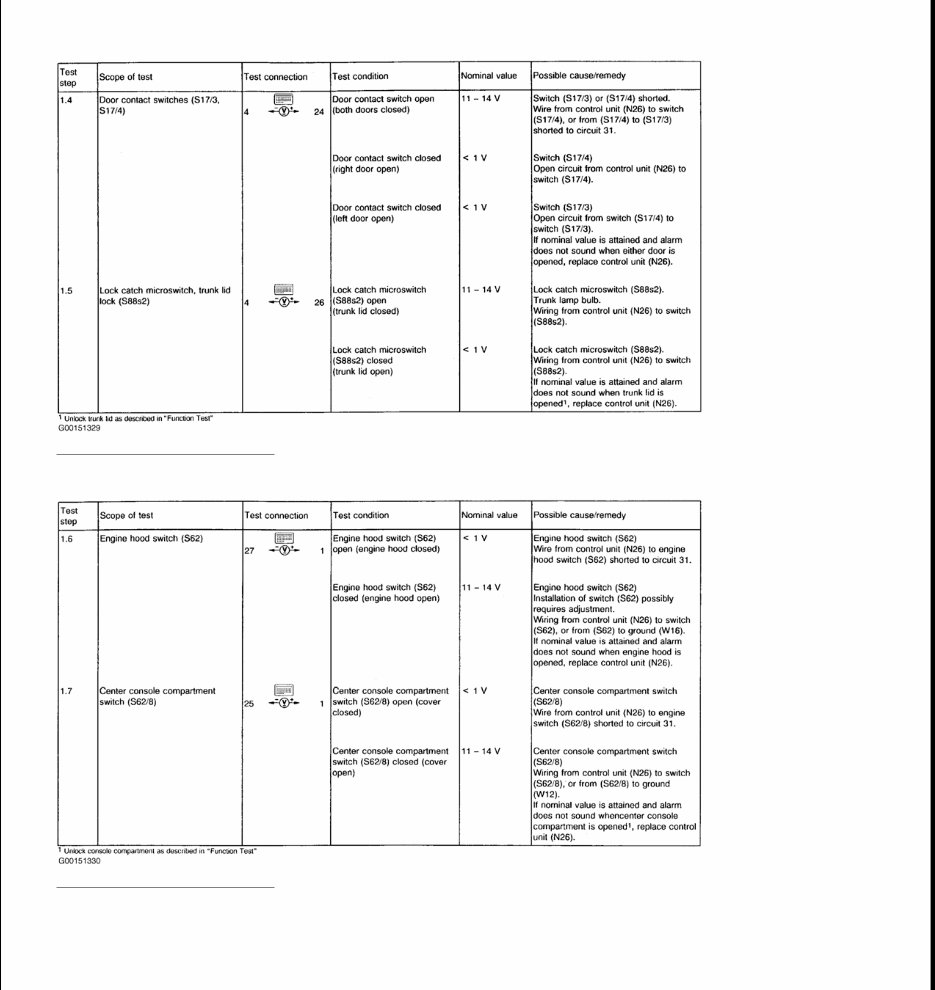

Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 12: Test Steps 1.4 & 1.5 Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 13: Test Steps 1.6 & 1.7 Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

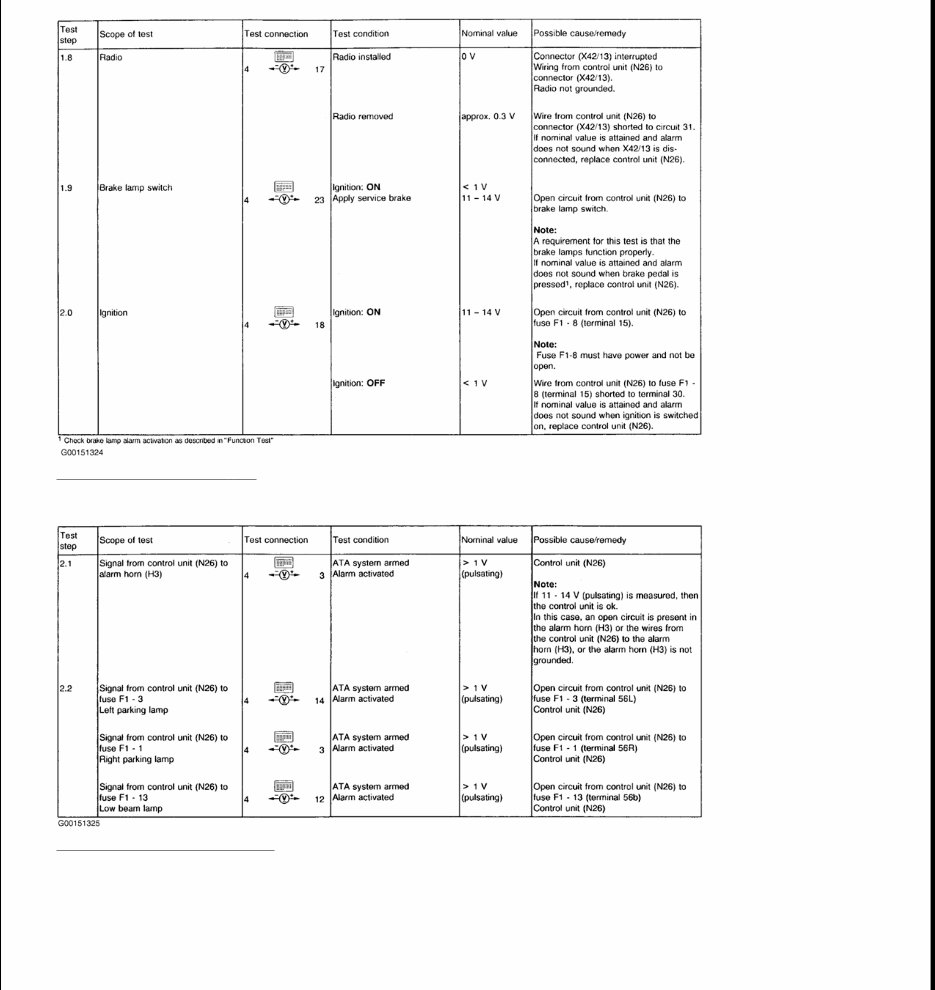

Fig. 14: Test Steps 1.8 - 2.0 Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 15: Test Steps 2.1 & 2.2 Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

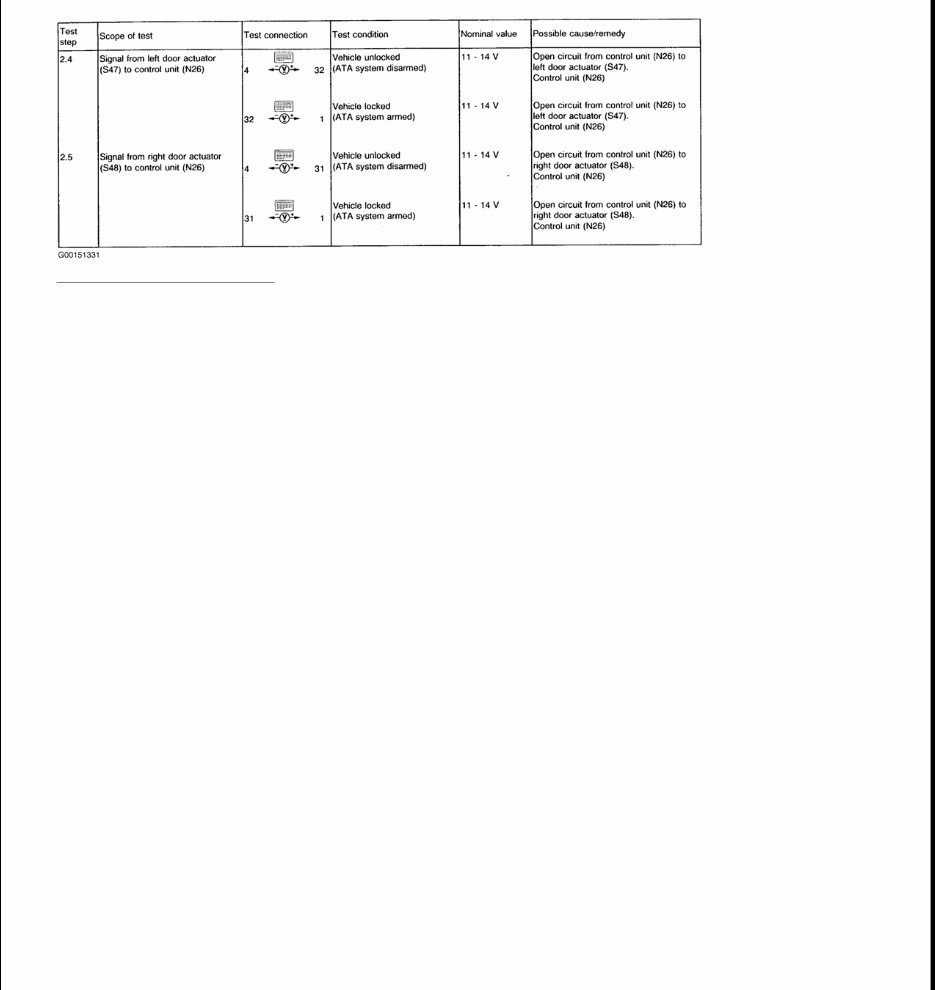

Fig. 16: Test Steps 2.4 & 2.5 Courtesy of MERCEDES-BENZ OF NORTH AMERICA. WIRING DIAGRAMS
