2000 Mercedes-Benz C-Class C230 Kompressor Owners Manual

C230 Kompressor C280 C43 AMG

Drive Sensibly - Save Fuel Fuel consumption, to a great extent, depends on driving habits and operating conditions. To save fuel you should: • keep tires at the recommended inflation pressures, • remove unnecessary loads, • remove roof rack when not in use, • allow engine to warm up under low load use, • avoid frequent acceleration and deceleration, • have all maintenance work performed at regular intervals by an authorized Mercedes-Benz dealer. Fuel consumption is also increased by driving in cold weather, in stop-and-go traffic, on short trips and in hilly country. MERCEDES-BENZ 24 HOUR ROADSIDE ASSISTANCE 1-800-FOR MERCEDES 1-0800-367-6372 USA. 1-800-387-0100 Canada What You Should Know at the Gas Station • Fuel: To prevent fuel vapors from escaping into open air, fully insert filler nozzle unit. Only fill fuel tank until the filler nozzle unit cuts out - do not overfill. Leaving the engine running and the fuel cap open can cause the "Check Engine" lamp to illuminate. Use premium unleaded gasoline: Posted Octane Index 91 (Average of 96 RON/86 MON). Fuel tank capacity approx. 16.4 US gal (62.0 I). This includes approx. 2.1 US gal (8.0 I) reserve. Warning ! Gasoline is highly flammable and poisonous, it burns violently and can cause serious injury. Whenever you are around gasoline, avoid inhaling fumes and skin contact, extinguish all smoking materials. Never allow sparks, flame or smoking materials near gasoline! • Engine Oil: Engine oil level check, see Index. Fill quantity between upper and lower dipstick marking level: 2.1 US qt (2.0 I). Recommended engine oils, see Index. • Spark Plugs: Approved spark plugs, refer to "Technical Data". • Coolant: For normal replenishing, use water (potable water quality). For further information (e.g. anticorrosion/antifreeze), refer to Index.

• Bulbs: High beam: H1 (55 W), low beam: H7 (55 W), low beam: Xenon (optional) fog lamps: H1 (55 W), turn signal lamps, parking and standing lamps, front: 2357 NA (28.5/8.3 W/30/2.2 cp), stop lamps: 21 W/32 cp, backup lamps: 21 W/32 cp, turn signal lamps, rear: 21 W/32 cp, tail, parking, side marker and standing lamp: 5 W/4 cp, tail and parking lamp, passenger side: 21/4 W, tail, parking arid rear fog lamp, driver's side: 21/4 W, license plate lamps: 5 W. • Tire Pressure: For tire pressure, refer to tire pressure label inside the fuel filler flap. • Air Conditioner: R-134a refrigerant and special PAG lubricant, refer to "Technical Data" (also see Index).

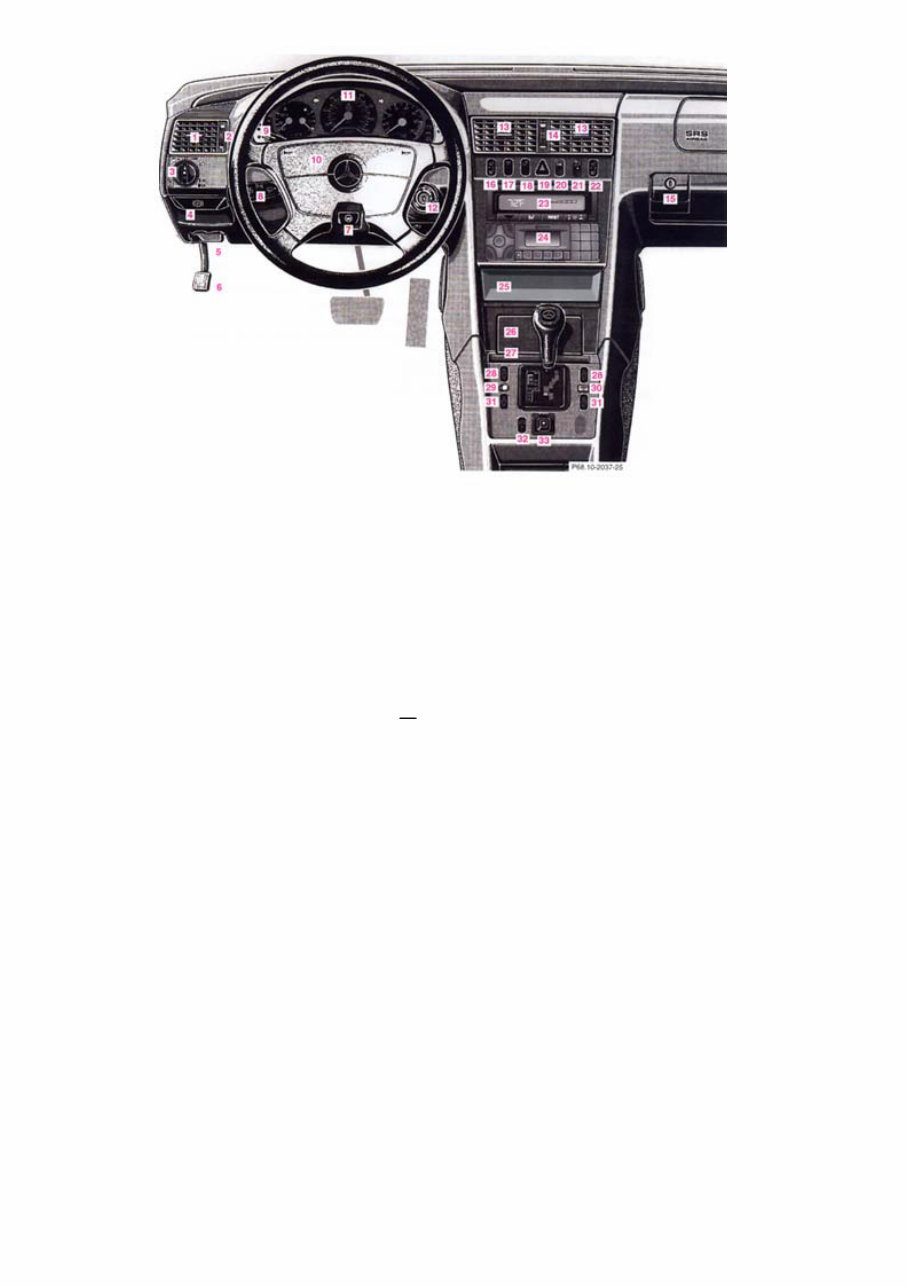

Instruments and Controls For more detailed descriptions see Index. For adjustments of air outlets, refer to Automatic Climate Control (see Index). 1. Side air outlet, adjustable 2. Air volume control for side air outlet 3. Exterior lamp switch 4. Parking brake release 5. Hood lock release 6. Parking brake pedal 7. Steering wheel adjustment lever 8. Combination switch 9. Cruise control switch 10. Horn, airbag 11. Instrument cluster 12. Steering lock with ignition/starter switch 13. Center air outlets, adjustable 14. Air volume control for center air outlets 15. Glove box (illuminated with electronic key in steering lock position 1 or 2) 16. Left front seat heater switch 17. ASR or ESP control switch 18. Switch for rear seat head restraints 19. Hazard warning flasher switch 20. Central locking switch, 21. Switch for Tow-Away Protection Indicator lamp for antitheft alarm system 22. Right front seat heater switch 23. Climate control (C 230) Automatic climate control (C 280, C43 AMG) Rear window defroster switch 24. Audio system 25. Open storage compartment 26. Ashtray with lighter 27. Storage/eyeglasses compartment 28. Power window switches, front doors 29. Power window safety switch, rear doors 30. Airbag off indicator lamp 31. Power window switches, rear doors 32. Trunk lid release switch 33. Mirror adjustment switch

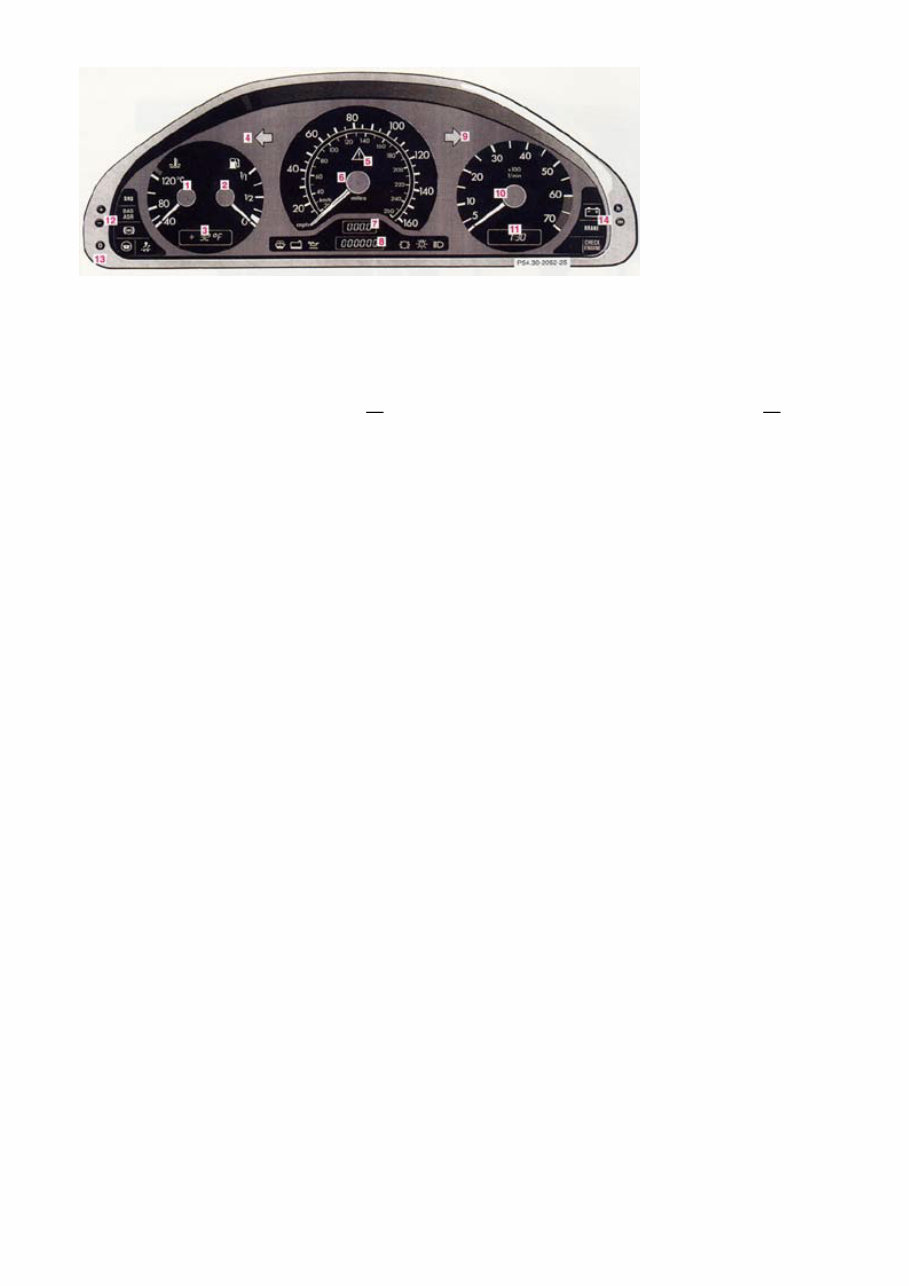

Instrument Cluster 1. Coolant temperature gauge. See Index 2. Fuel gauge with reserve and fuel cap placement warning lamp (yellow). See Index 3. Outside temperature indicator. See Index 4. Left turn signal indicator lamp (green) 5. ASR or ESP warning lamp (yellow). See Index 6. Speedometer 7. Trip odometer, See Index 8. Main odometer, or FSS indicator. See Index 9. Right turn signal indicator lamp (green) 10. Tachometer. See Index 11. Clock. See Index 12. Push buttons for intensity of instrument lamps. See Index 13. Push button for resetting trip odometer. See Index 14. Push buttons for setting clock. See Index

Indicator Lamp Symbols Function Indicator Lamp High beam Battery not being charged properly. See Index Warning Lamps (should go out with the engine running unless) Exterior lamp failure. See Index ASR or ESP. Adjust driving to road condition. See Index BAS malfunction. See Index ASR malfunction. See Index Fluid level for windshield and headlamp washer system low. See Index BAS malfunction. See Index ESP malfunction. See Index Coolant level low. See Index ABS malfunction. See Index Engine oil level low. See Index Fasten seat belts. See Index Brake pads worn down. See Index SRS malfunction. See Index Brake fluid low (except Canada). Parking brake engaged. See Index Telescoping steering column not locked. See Index Brake fluid low (Canada only). Parking brake engaged. See Index Engine malfunction indicator lamp. If the lamp comes on when the engine is running, it indicates a malfunction of the fuel management system or emission control system, or the fuel cap is not closed tight. In all cases, we recommend that you have the malfunction checked as soon as possible. See Index Additional Function Indicator Lamps in the Instrument Cluster Function Indicator Lamp on the Center Console FSS indicator (distance). See Index Passenger Airbag automatically switched off. See Index FSS indicator (days). See Index

Catalytic Converter Your Mercedes-Benz is equipped with monolithic type catalytic converters, an important element in conjunction with the oxygen sensors to achieve substantial control of the pollutants in the exhaust emissions. Keep your vehicle in proper operating condition by following our recommended maintenance instructions as outlined in your Service Booklet. Caution! To prevent damage to the catalytic converters, use only premium unleaded gasoline in this vehicle. Any noticeable irregularities in engine operation should be repaired promptly. Otherwise, excessive unburned fuel may reach the catalytic converter causing it to overheat, which could start a fire. Warning! As with any vehicle, do not idle, park or operate this vehicle in areas where combustible materials such as grass, hay or leaves can come into contact with the hot exhaust system, as these materials could be ignited and cause a vehicle fire.

Starting and Turning Off the Engine Before Starting Ensure that parking brake is engaged and that selector lever is in position "P" or "N". Turn electronic key in steering lock to position 2. The charge indicator lamp should come on. Starting Do not depress accelerator. Briefly turn electronic key in steering lock clockwise to the stop and release. The starter will engage until the engine is running. If engine will not run, and the starting procedure stops, turn electronic key completely to the left and repeat starting the engine. After several unsuccessful attempts, have the system checked at the nearest authorized Mercedes-Benz dealer. Important! Due to the installed starter nonrepeat feature, the electronic key must be turned completely to the left before attempting to start the engine again. The battery charge indicator lamp should go out as soon as the engine has started. In areas where temperatures frequently drop below -4°F (-20°C) we recommend that an engine block heater be installed. Your authorized Mercedes-Benz dealer will advise you on this subject. Turning Off Turn the electronic key in the steering lock to position 0 to stop the engine. The electronic key can only be removed with your foot off the brake pedal and the selector lever in position "P".

Driving Instructions Warning ! If you feel a sudden significant vibration or ride disturbance, or you suspect that possible damage to your vehicle has occurred, you should turn on the hazard flashers, carefully slow down, and drive with caution to an area which is a safe distance from the roadway. Inspect the tires and under the vehicle for possible damage. If the vehicle or tires appear unsafe, have it towed to the nearest Mercedes-Benz or tire dealer for repairs. Power Assistance Warning ! When the engine is not running, the brake and steering systems are without power assistance. Under these circumstances, a much greater effort is necessary to stop or steer the vehicle. Brakes Warning ! After driving in heavy rain for some time without applying the brakes or through water deep enough to wet brake components, the first braking action may be somewhat reduced and increased pedal pressure may be necessary. Be sure to maintain a safe distance from vehicles in front. Resting your foot on the brake pedal will cause excessive and premature wear of the brake pads. It can also result in the brakes overheating thereby significantly reducing their effectiveness. It may not be possible to stop the car in sufficient time to avoid an accident. The condition of the parking brake system is checked each time the vehicle is in the shop for the required service. If the parking brake is released and the brake warning lamp in the instrument cluster stays on, the brake fluid level in the reservoir is too low. Brake pad wear or a leak in the system may be the reason for low brake fluid in the reservoir. Have the brake system inspected at an authorized Mercedes-Benz dealer immediately. All checks and maintenance work on the brake system should be carried out by an authorized Mercedes-Benz dealer. Install only brake pads and brake fluid recommended by Mercedes-Benz. Warning ! If other than recommended brake pads are installed, or other than recommended brake fluid is used, the braking properties of the vehicle can be degraded to an extent that safe braking is substantially impaired. This could result in an accident. Caution ! When driving down long and steep grades, relieve the load on the brakes by shifting into a lower gear. This helps prevent overheating of the brakes and reduces brake pad wear. After hard braking, it is advisable to drive on for some time, rather than immediately parking, so the air stream will cool down the brakes faster.

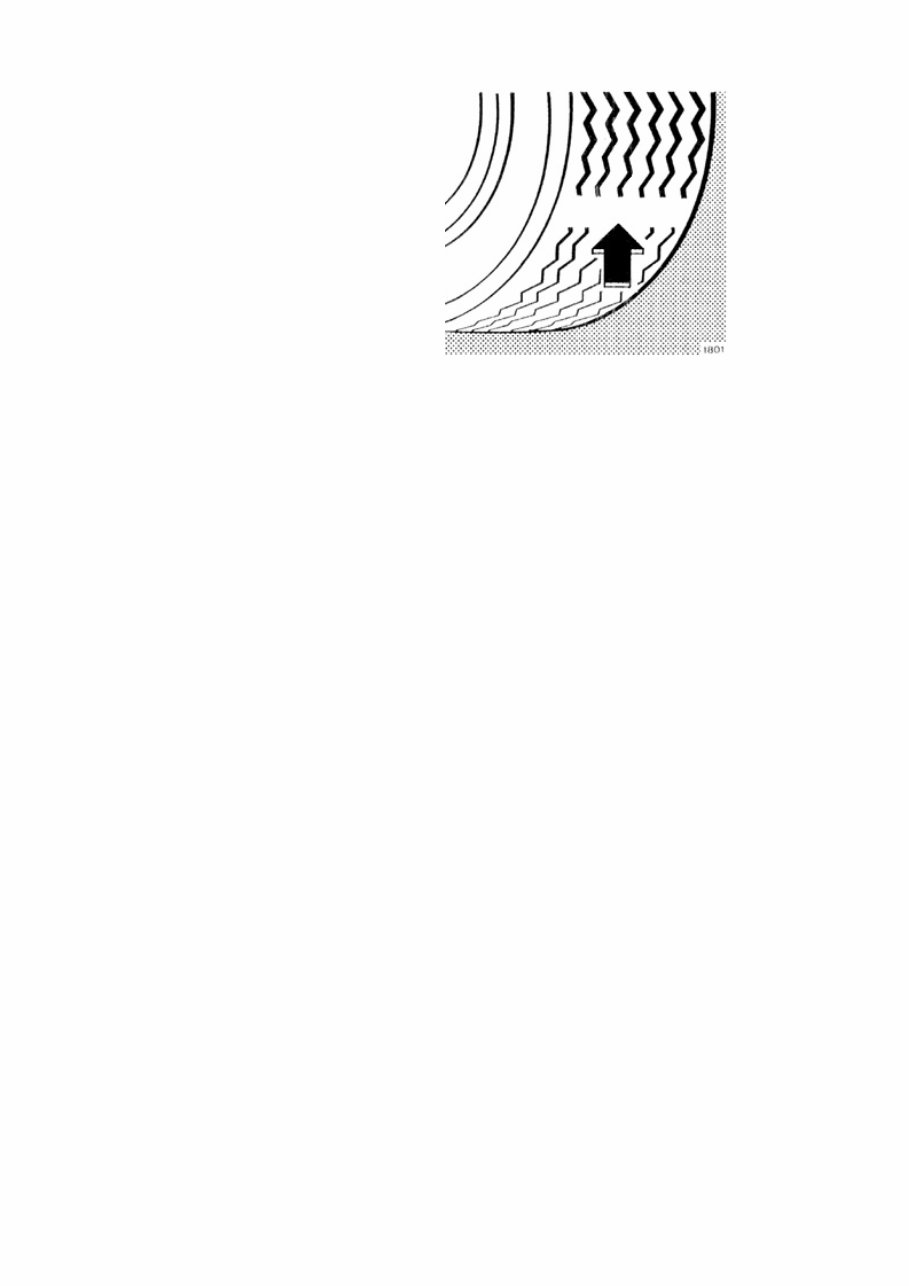

Tires Tread wear indicators (TWI) are required by law. These indicators are located in six places on the tread circumference and become visible at a depth of approximately1/16 in (1.5 mm), at which point the tire is considered worn and should be replaced. The tread wear indicator appears as a solid band across the tread. Warning ! Do not allow your tires to wear down too far. As tread depth approaches 1 /16 in (1.5 mm), the adhesion properties on a wet road are sharply reduced. Depending upon the weather and/or road surface (conditions), the tire traction varies widely. Specified tire pressures must be maintained. This applies particularly if the tires are subjected to high loads (e.g. high speeds, heavy loads, high ambient temperatures). Warning ! Do not drive with a flat tire. A flat tire affects the ability to steer or brake the vehicle. You may lose control of the car. Continued driving with a flat tire or driving at high speed with a flat tire will cause excessive heat build-up and possibly a fire. Aquaplaning Depending on the depth of the water layer on the road, aquaplaning may occur, even at low speeds and with new tires. Reduce vehicle speed, avoid track grooves in the road and apply brakes cautiously in the rain. Tire Traction The safe speed on a wet, snow covered or icy road is always lower than on a dry road. You should pay particular attention to the condition of the road whenever the outside temperatures are close to the freezing point. Warning ! If ice has formed on the road, tire traction will be substantially reduced. Under such weather conditions, drive, steer and brake with extreme caution. We recommend M + S radial- ply tires for the winter season for all four wheels to insure normal balanced handling characteristics. On packed snow, they can reduce your stopping distance as compared with summer tires. Stopping distance, however, is still considerably greater than when the road is not snow or ice covered.
