00-001/09 - MULTI-MODEL - ENGINE CAUTION FOR NEW VEHICLE STORAGE SI107438 TSB NUMBER: 00-001/09 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS 2008-2010 MX-5 2008-2010 RX-8 2008-2010 Mazda3 2008-2010 Mazda5 2008-2010 Mazda6 2008-2010 CX-7 2008-2010 CX-9 2008-2010 Tribute 2008-2010 Tribute Hybrid 2008-2009 B-Series CAUTION Take caution when starting new vehicles in inventory. Engine damage can occur if engine is not started properly. Engine oil on friction components such as the cylinder bore, piston rings, crank and camshaft journals, etc., may thin or dry out completely during long- term storage. As a result, it may take some time before oil from oil pump reaches all friction components. The following procedures must be used during Pre Delivery Inspections and long-term storage of new vehicles in inventory. MAINTENANCE PROCEDURE 1. Operate engine and warm it up at least once every two months of storage. 2. Do not race the engine for the ﬁrst 30 seconds after engine start up. Instead, allow engine to idle for at least 30 seconds after start up. This will allow proper lubrication of all friction components. 3. If battery is discharged, do not jump start engine. Charge the battery off the car. Proceed to Step 2 after charging the battery. 4. Keep engine speed below 3,000 rpm during driving and while parked.

00-005/18 - VEHICLE WARRANTY / SERVICE / MAINTENANCE PROCEDURES SI106983 TSB NUMBER: 00-005/18 TSB ISSUE DATE 09/14/2018 BULLETIN NOTES This bulletin supersedes the previously issued bulletin(s) listed below. The changes are noted in Red. Previous TSBs:Issued Dates: 00-002/09 11/17/09 00-001/07 07/05/07 APPLICABLE MODEL(S)/VINS 2008-2010 Tribute HYBRID For Internal Mazda Corporate Use Only DESCRIPTION A very limited number of Tribute Hybrid vehicles were produced during the 2008-2010 MY. These special vehicles were sold ONLY in the state of California by Dealers who chose to be “Mazda Certified Hybrid” dealers. At the time of launch, their technicians received specialized training to safely perform service and maintenance on these vehicles. With the discontuation of the Tribute Hybrid, Mazda did not require these dealers to continue to be Mazda Certified Hybrid dealers, therefore all repairs or maintenance on Tribute Hybrid vehicles must be sublet to a Ford Certified Hybrid dealer. IMPORTANT: ALL REPAIRS OR MAINTENANCE ON TRIBUTE HYBRID VEHICLES MUST BE SUBLET TO A FORD CERTIFIED HYBRID DEALER.

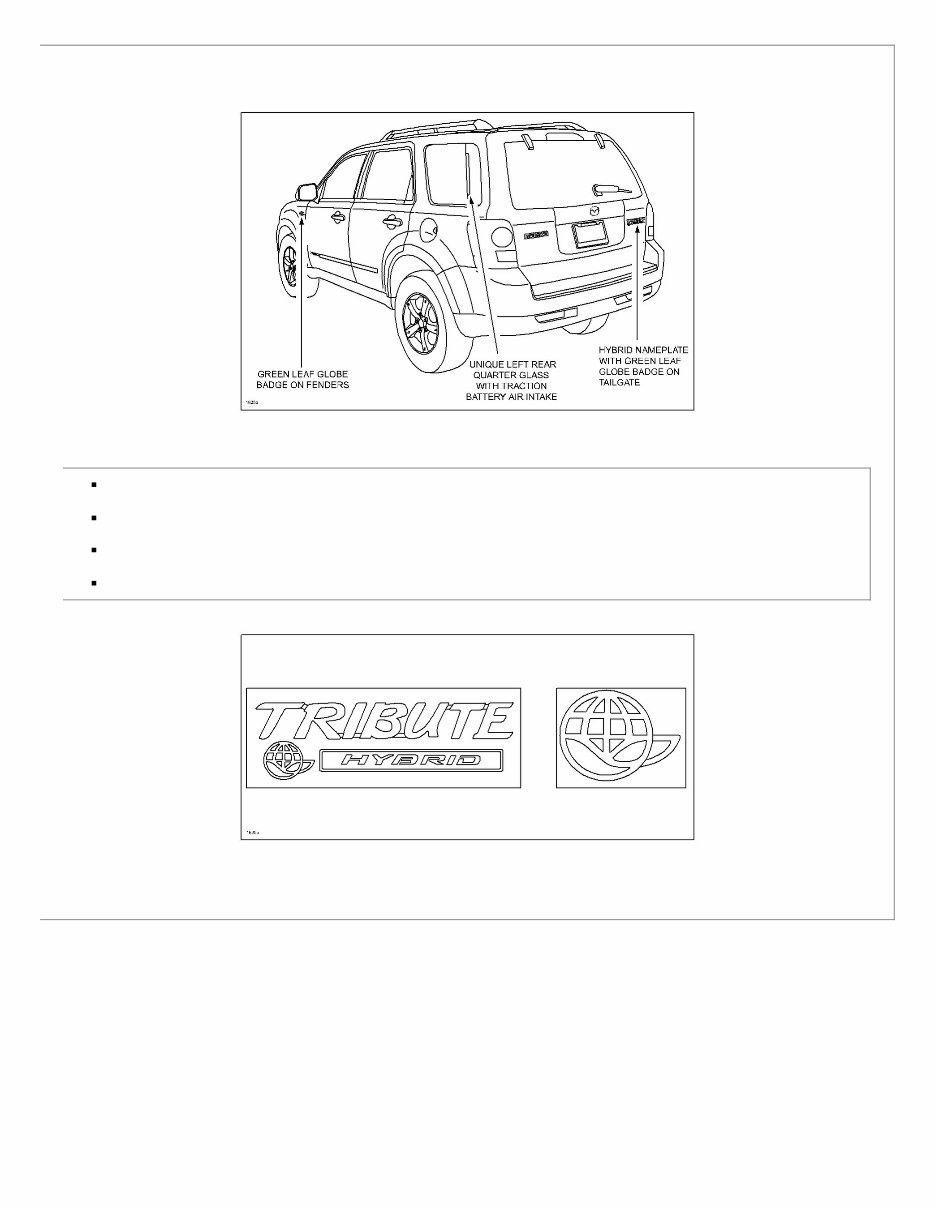

TRIBUTE HYBRID VEHICLE INFORMATION For easy identiﬁcation all hybrid vehicles will be equipped with the following: “Hybrid” nameplate “Green Leaf Globe” badge on tailgate. “Green Leaf Globe” badge on both front fenders. Unique left rear quarter glass with traction battery air intake (2008-2009 MY only). MAZDA BADGE REMOVED FROM LIFTGATE (starting 2010 MY).

TRIBUTE HYBRID WARRANTY REPAIR INFORMATION ALL WARRANTY REPAIRS ON TRIBUTE HYBRID VEHICLES MUST BE SUBLET TO A FORD CERTIFIED HYBRID DEALER. INSIDE THE UNITED STATES Any Hybrid vehicle requiring warranty repairs: The vehicle must be taken to the nearest Ford Certified Hybrid dealer. After determining the nearest Ford Certified Hybrid dealer, the Mazda dealer can assist with arranging transport of vehicle to (and from) that dealer. Mazda will reimburse the dealer for the covered warranty repairs from the Ford Certified Hybrid dealer. Any other charges including towing and rental vehicles must be approved prior to repair. NOTE: Since the Tribute warranty is through Mazda and not Ford, when a Tribute Hybrid vehicle is being taken to a Ford Certified Hybrid dealer for repair, the Mazda dealer will need to contact the Ford dealer to receive permission to bring the vehicle in for repair, schedule an appointment time and make arrangements for payment of the repairs. Mazda will reimburse the Mazda dealer for the repair charges as outlined in the Mazda Warranty Polices & Procedures Manual Policy 3.41, (Hybrid Vehicle Unique Component Warranty). OUTSIDE THE UNITED STATES NOTE: Hybrid customers who travel with their vehicle outside the United States should be advised of the following information in case vehicle repair becomes necessary at that time. IN CANADA: The vehicle must be taken to the nearest “Ford Certified Hybrid dealer”. After determining the nearest “Ford Certified Hybrid dealer”, the Mazda dealer in Canada can contact the CEC to assist with arranging transport of vehicle to (and from) that dealer. Mazda will reimburse the dealer for the covered warranty repairs from the “Ford Certified Hybrid dealer”. Any other charges including towing and rental vehicles must be approved prior to repair. NOTE: Since the Tribute warranty is through Mazda and not Ford, when a Tribute Hybrid vehicle is being taken to a “Ford Certified Hybrid dealer” for repair, the Mazda dealer will need to contact the Ford dealer to receive permission to bring the vehicle in for repair, schedule an appointment time and make arrangements for payment of the repairs. Mazda will reimburse the Mazda dealer for the repair charges as outlined in the Mazda Warranty Polices & Procedures Manual Policy 3.41, (Hybrid Vehicle Unique Component Warranty).

IN MEXICO: Should warranty repair become necessary while the vehicle is in Mexico, the hybrid customer will be responsible to return the vehicle back into the U.S. to the nearest Mazda dealer. WARRANTY ASSISTANCE FOR TRIBUTE HYBRID VEHICLES NOTE: This Service Bulletin is for information purposes only. No parts or warranty claim information is included.

00-002/11 - SPECIAL SERVICE TOOL SHIPMENT - OCTOBER 2011 SI108518 TSB NUMBER: 00-002/11 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS 2012 Mazda3 (2.0L SKYACTIV) 1995-2009 B-Series 1997-2006 MPV 2006-2012 MX-5 1997-2003 Protege 2001-2011 Tribute 2007-2012 CX-7 1997-2005 Miata 2003-2012 Mazda6 2007-2012 CX-9 1997-2002 626 2004-2012 Mazda3 2004-2011 RX-8 1997-2002 Millenia 2006-2012 Mazda5 2011-2012 Mazda2 DESCRIPTION/PRICING In support of current and new models, Mazda will ship to all dealers three (3) new Special Service Tools (SSTs). The SSTs will be shipped automatically by Mazda’s tool vendor, America Kowa Seiki during October 2011. The following SSTs are the latest addition to the Mazda Required Tool (MRT) list. Part Number Description Pricing 49D0-13-1A0 Injector Seal Installer Kit Consists of: 49D0-13-102 (Guide) 49D0-13-103 (Installer) 49D0-13-104 (Former) $124.1 3 49B0-12- 013A Foot Set (for Pivot) - This foot set is to be used in conjunction with current MRT/Pivot tool (49B0-12- 0A20) - This new foot set must be used when servicing SKYACTIV engines $48.39

MTRA018 Amp Clamp - This item will be shipped to dealers who have not yet ordered $215.0 0 BILLING INFORMATION Tool(s) will be automatically invoiced to your dealer parts account statement. Do not send your payment to American Kowa Seiki. SHIPPING INFORMATION Tools will be shipped via UPS Ground to your service department October 2011. Please advise your shipping/receiving personnel of this tool shipment. OBTAINING ADDITIONAL TOOLS To order additional SSTs, submit orders using Mazda Tool and Equipment website. You can log on to Mazda Tool and Equipment website at: http://dealers.mazdausa.com CUSTOMER SERVICE INFORMATION For warranty or product information call America Kowa Seiki at 877-768-6657. Customer service representatives are available from 7:30 AM until 7:00 PM CST, Monday through Friday. SPECIAL SERVICE EQUIPMENT AND USAGE

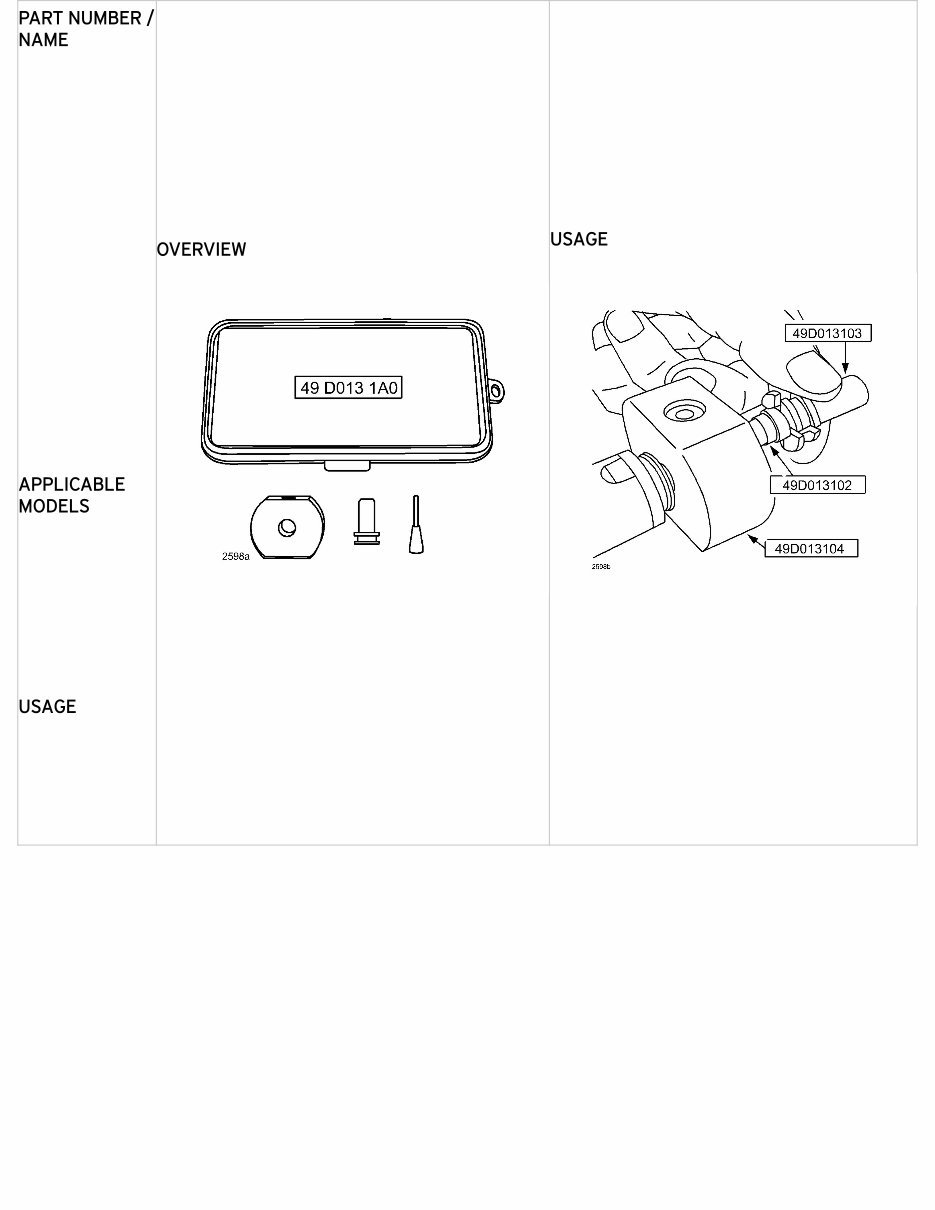

PART NUMBER / NAME: 49D0-13-1A0 Injector Seal Installer Kit Consists of: 49D0-13-102 (Guide) 49D0-13-103 (Installer) 49D0-13-104 (Former) APPLICABLE MODELS: 2012 Mazda3 (2.0L SKYACTIV) USAGE: To install a Teﬂon seal and stopper ring on fuel injectors. OVERVIEW USAGE

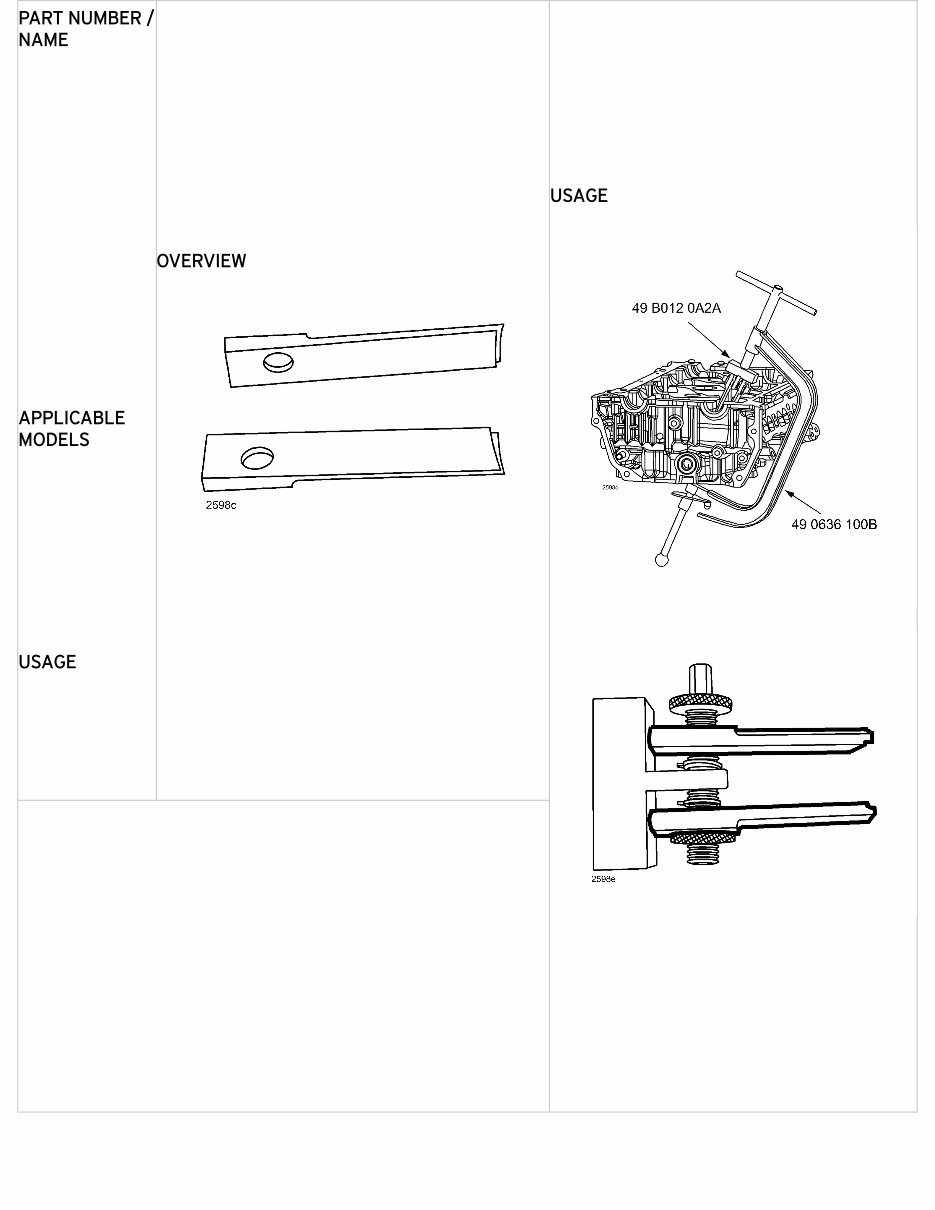

PART NUMBER / NAME: 49B0-12-013A Foot Set (For Pivot) Consists of: 49B0-12- 013AR 49B0-12- 013AL APPLICABLE MODELS: All years - MULTI-MODEL (Including 2.0L SKYACTIV) USAGE: To remove/install valve spring keepers. OVERVIEW USAGE Note: Remove the foot set from the current MRT pivot tool (49B0-12-0A20) and replace with the revised foot set shown above. The updated pivot tool is needed when servicing SKYACTIV engines. The tool can also be used when servicing other engines. Part numbers on each foot (old): 49B0-12-013R 49B0-12-013L

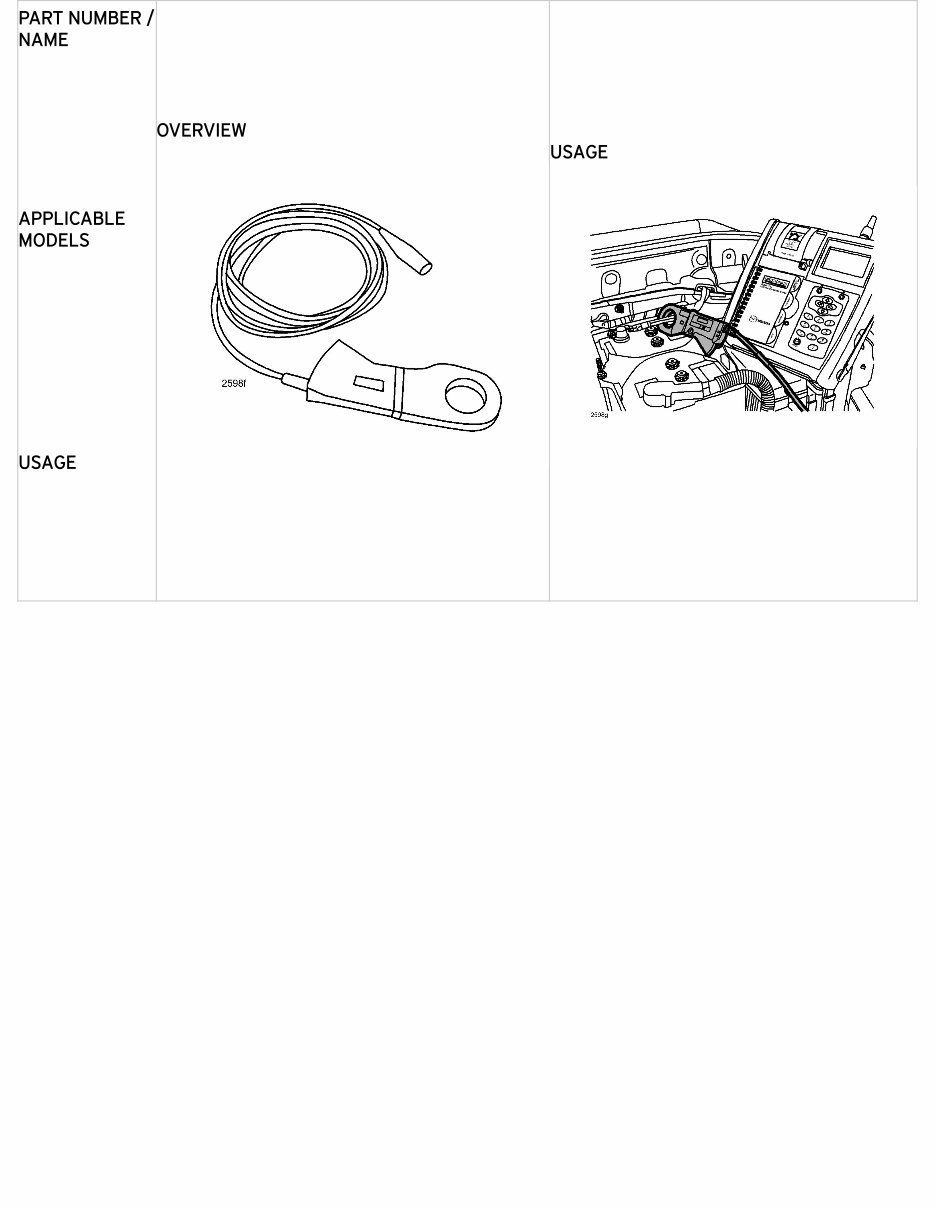

PART NUMBER / NAME: MTRA018 Amp Clamp APPLICABLE MODELS: All years - MULTI-MODEL (Including 2.0L SKYACTIV) USAGE: To use with MTRGR81291K T for measuring parasitic draw. OVERVIEW USAGE
