00-001/08 - SPECIAL TOOL SHIPMENT - FEBRUARY 2008 SI108507 TSB NUMBER: 00-001/08 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS 1998-2008 B-Series 1998-2003 Protege 2002-2003 Protege5 2003 Protegespeed 1998-2005 Miata 2004-2005 Mazdaspeed MX-5/Miata 1998-2002 626 1998-2002 Millenia 1998-2006 MPV 2001-2006 Tribute 2008 Tribute 2008 Tribute Hybrid 2003-2008 Mazda6 2006-2007 Mazdaspeed6 2004-2008 Mazda3 2007-2008 Mazdaspeed3 2004-2008 RX-8 2006-2008 Mazda5 2006-2008 MX-5 2007-2008 CX-7 2007-2008 CX-9

DESCRIPTION Mazda will ship to all dealers one (1) laminated application chart for Evaporative Emissions Fuel Filler Neck and Fuel Caps. This application chart will be shipped to your dealers during February 2008. PRICING Part Number Description Pricing 9999-SST-EVAPCHARTApplication Chart - Evaporative Emissions Fuel Filler Neck and Fuel CapsNo charge BILLING INFORMATION No charge for the laminated application chart. SHIPPING INFORMATION Laminated application chart will be sent via US mail. OBTAINING ADDITIONAL TOOLS You can download additional copies through MGSS under Service Tools. SPECIAL SERVICE TOOL (SST) AND USAGE PART NUMBER/NAME: 9999-SST-EVAPCHART Application Chart - Evaporative Emissions Fuel Filler Neck and Fuel Cap APPLICABLE MODELS: MULTI-MODEL 1998 to 2008. USAGE: To show model applications for the evaporative fuel ﬁller neck and fuel cap. Secure the laminated application chart to the current MRT/Evaporative Emissions Tester (134-01049). OVERVIEW USAGE

00-001/05 - MULT. MODELS - WDS PTU BATTERY WARRANTY AND ORDER INFORMATION SI108504 TSB NUMBER: 00-001/05 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS 1997-2003 Protege 2002-2003 Protege5 1997-2005 Miata 1997-2002 626 1995-2002 Millenia 1997-1998 MPV 2000-2005 MPV 2004-2005 Mazda3 2004-2005 RX-8 2003-2005 Mazda6 2001-2005 Tribute 1995-2005 B-Series Truck DESCRIPTION Mazda Worldwide Diagnostic System (WDS) PTU batteries are not covered by the system’s 1-year extension agreement. WDS support information was communicated in the “WDS Support Extension Program” documentation sent to all dealers as part of the 1-year extension agreement. The WDS PTU batteries are considered a consumable item and most have been in use for several years. WDS PTU batteries are available for purchase on Mazda Tool and Equipment website. PARTS INFORMATION Part Number Description Qty. Notes 418-F402 WDS PTU Battery Pack 1 Available on Mazda Tool and Equipment website

NOTE: Replacement batteries carry a 13 month warranty.

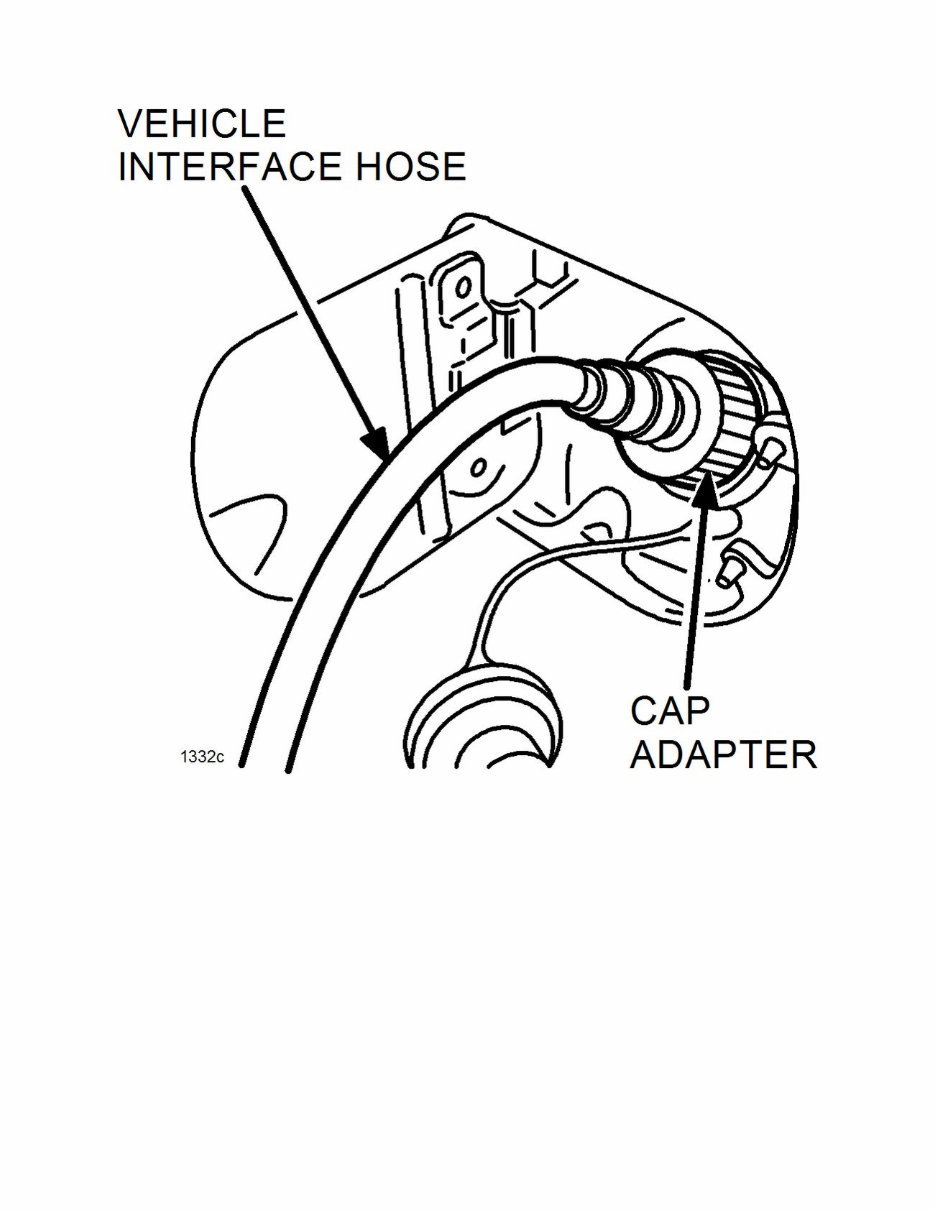

00-002/04 - MULTI MODEL - EVAPORATIVE EMISSIONS CAP AND RECEIVER ADAPTERS SI108512 TSB NUMBER: 00-002/04 BULLETIN NOTE This bulletin supersedes the previous bulletin, issued on 03/23/2004. APPLICABLE MODEL(S)/VINS, DESCRIPTION and SPECIAL SERVICE TOOL (SST) & USAGE have been revised. APPLICABLE MODEL(S)/VINS 1996-2003 Protege 1997-2002 Millenia 1997-2002 626 1997-2005 MX-5 Miata 1997-2005 MPV 1997-2005 B-Series Trucks 2003-2005 Mazda6 2004-2005 Mazda3 2004-2005 RX-8 2001-2005 Tribute For Internal Mazda Corporate Use Only DESCRIPTION In support of current models with OBD II evaporative monitoring systems; evaporative cap and receiver adapters are available. Cap and receiver adapters are used for testing the vehicle's evaporative emissions system. The adapters are used to test the vehicle's evaporative emission system at the fuel ﬁller neck and the fuel cap. NOTE: Mazda evaporative emissions cap and receiver adapters use a standard OBD port thread type. For Mazda dealers not currently using the Mazda Evaporative Emissions Tester (134-01049), these adapters may be adaptable to non-Mazda Evaporative Emissions Testers. Adaptability to non-Mazda Evaporative Emissions Testers can be conﬁrmed by verifying that the tester's vehicle connection hose uses the same thread type as the 2004 model year B-Series or Tribute under hood OBD port (located under the green cap in the engine compartment). If the tester uses the same thread type as this OBD port, the new adapters may be used with non-Mazda tester.

HOW TO ORDER ADAPTERS Adapters are available as a set or individually. To order adapters submit orders using Mazda Tool and Equipment website. You can logon to Mazda Tool and Equipment website at: http://dealers.mazdausa.com Note: Adapters will not be automatically shipped to dealers, they must be ordered by dealers using Mazda Tool and Equipment website. CUSTOMER SERVICE INFORMATION Please contact America Kowa Seiki at 800-824-9655 for warranty, and product information. Customer service representatives are

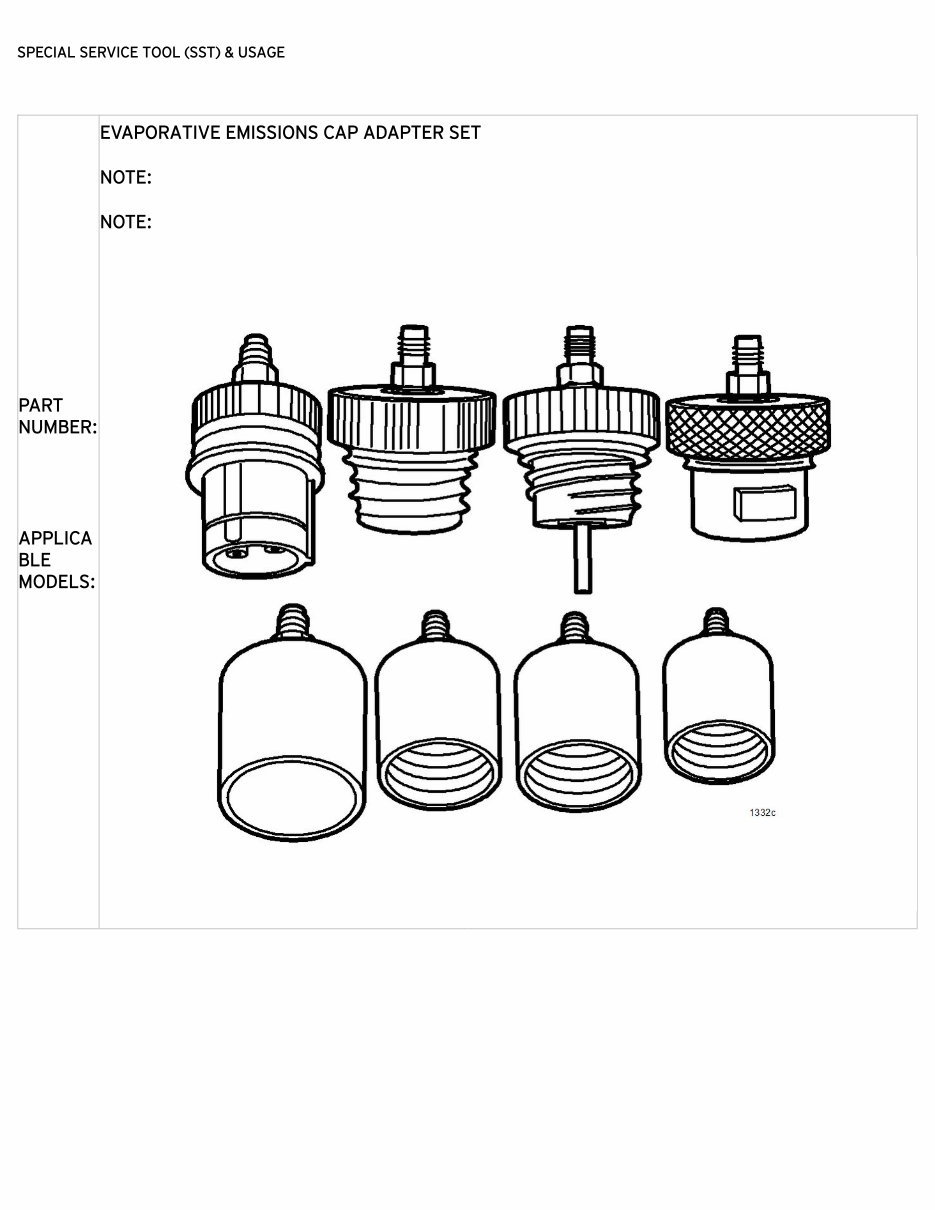

available from 7:30 AM until 7:00 PM CST, Monday through Friday. SPECIAL SERVICE TOOL (SST) & USAGE PART NUMBER: AKS1343 059 APPLICA BLE MODELS: All EVAPORATIVE EMISSIONS CAP ADAPTER SET NOTE: Includes all Cap Adapters and Receiver Adapters shown in this table. NOTE: Adapters are available as a set or individually.

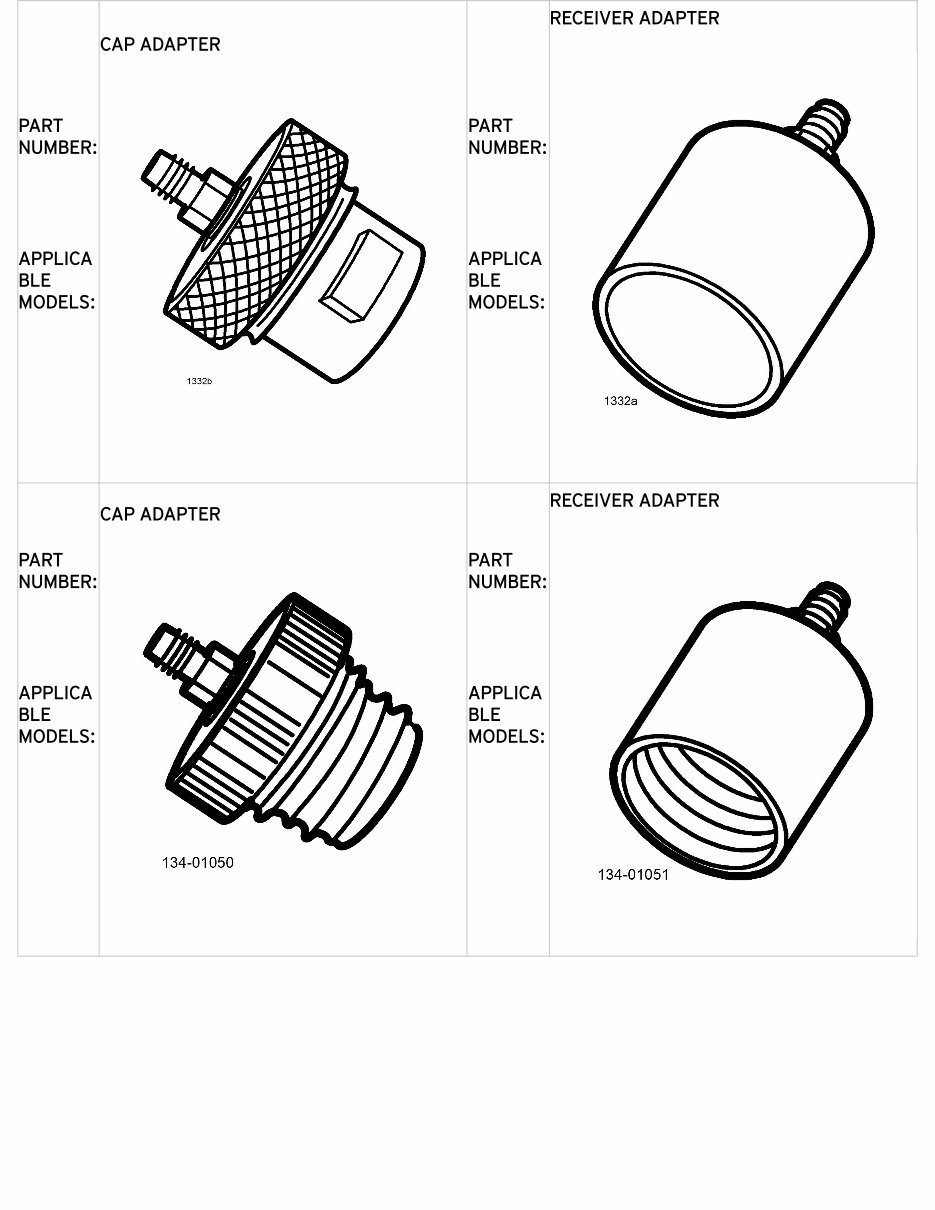

PART NUMBER: AKS4411 31 APPLICA BLE MODELS: Mazda3 CAP ADAPTER PART NUMBER: AKS4411 30 APPLICA BLE MODELS: Mazda3 RECEIVER ADAPTER PART NUMBER: 134- 01050 APPLICA BLE MODELS: Millenia, Miata, MPV, Protege, 626 CAP ADAPTER PART NUMBER: 134- 01051 APPLICA BLE MODELS: Millenia, Miata, MPV, Protege, 626 RECEIVER ADAPTER

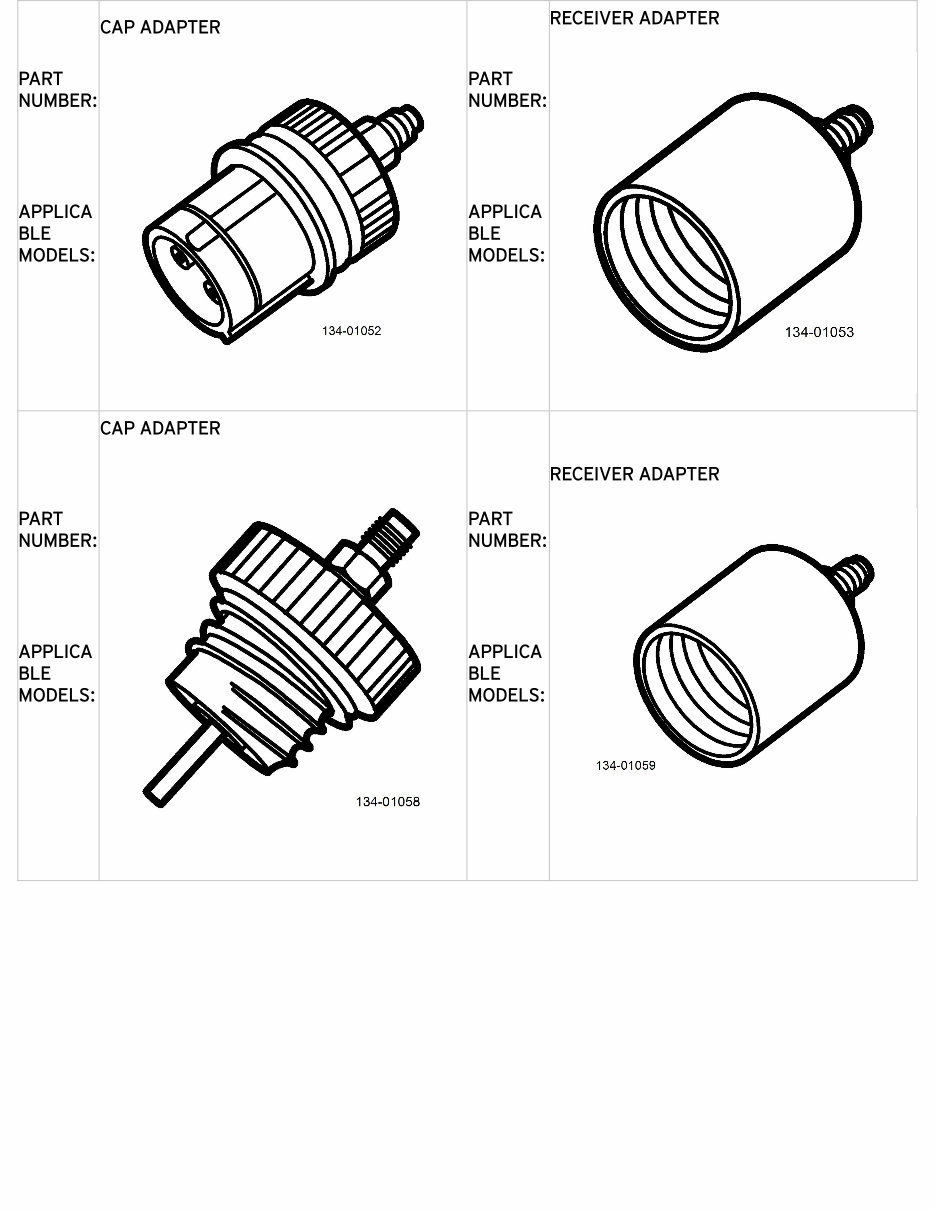

PART NUMBER: 134- 01052 APPLICA BLE MODELS: Truck, Tribute CAP ADAPTER PART NUMBER: 134- 01053 APPLICA BLE MODELS: Truck, Tribute RECEIVER ADAPTER PART NUMBER: 134- 0158 APPLICA BLE MODELS: Mazda6, RX-8 CAP ADAPTER PART NUMBER: 134- 01059 APPLICA BLE MODELS: Mazda6, RX-8 RECEIVER ADAPTER
