2003 MAZDA Tribute Owners Manual

Introduction 3 Instrument Cluster 8 Warning and control lights 10 Gauges 15 Entertainment Systems 17 AM/FM stereo with CD 17 AM/FM stereo with cassette and in-dash six CD 27 Climate Controls 44 Manual heating and air conditioning 44 Lights 48 Headlamps 48 Turn signal control 50 Bulb replacement 51 Driver Controls 56 Windshield wiper/washer control 56 Steering wheel adjustment 58 Power windows 60 Mirrors 61 Speed control (Cruise control) 62 Locks and Security 69 Keys 69 Locks 69 Anti-theft system 74 Seating and Safety Restraints 79 Seating 79 Safety restraints 89 Air bags 99 Child restraints 108 Table of Contents 1

Driving 120 Starting 120 Brakes 124 Transmission operation 128 Vehicle loading 147 Trailer towing 149 Roadside Emergencies 155 Hazard flasher switch 155 Fuses and relays 156 Overheating 162 Jump starting 169 Wrecker towing 174 Customer Assistance 176 Reporting safety defects (U.S. only) 186 Cleaning 187 Maintenance and Specifications 192 Engine compartment 200 Engine oil 203 Battery 207 Fuel information 214 Air filter(s) 228 Refill capacities 234 Engine data 236 Accessories 239 Index 240 All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Mazda Motor Corporation. Mazda may change the contents without notice and without incurring obligation. Copyright © 2002 Mazda Motor Corporation Table of Contents 2

CALIFORNIA Proposition 65 Warning WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. CONGRATULATIONS Congratulations on acquiring your new Mazda Motor Corporation product. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it. For more information on Mazda Motor Corporation and its products visit the following website: • In the United States: www.mazdausa.com • In Canada: www.mazda.ca Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available. Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle. WARNING: In the event of an accident the Fuel pump shut-off switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter. Introduction 3

SAFETY AND ENVIRONMENT PROTECTION Warning symbols in this guide How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by a bold WARNING statement. These comments should be read and observed. Warning symbols on your vehicle When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind. Protecting the environment We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol. Always dispose of used automotive fluids in a responsible manner. Follow your community’s regulations and standards for recycling and disposing of automotive fluids. BREAKING-IN YOUR VEHICLE There are no particular breaking-in rules for your vehicle. During the first 1,600 km (1,000 miles) of driving, vary speeds frequently. This is necessary to give the moving parts a chance to break in. Introduction 4

SPECIAL NOTICES Event Data Recorder The computer in your vehicle is capable of recording detailed data potentially including but not limited to information such as: • the use of restraint systems including seat belts by the driver and passengers, • information about the performance of various systems and modules in the vehicle, and • information related to engine, throttle, steering, brake or other system status potentially including information related to how the driver operates the vehicle including but not limited to vehicle speed. This information may be stored during regular operation or in a crash or near crash event. This stored information may be read out and used by: • Mazda Motor Company. • service and repair facilities. • law enforcement or government agencies. • others who may assert a right or obtain your consent to know such information. Emission warranty The New Vehicle Limited Warranty includes Bumper to Bumper Coverage, Safety Restraint Coverage and Corrosion Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide. Using your vehicle as an ambulance WARNING: Do not use this vehicle as an ambulance. Do not use your vehicle as an ambulance, as it is not equipped with an ambulance preparation package. Introduction 5

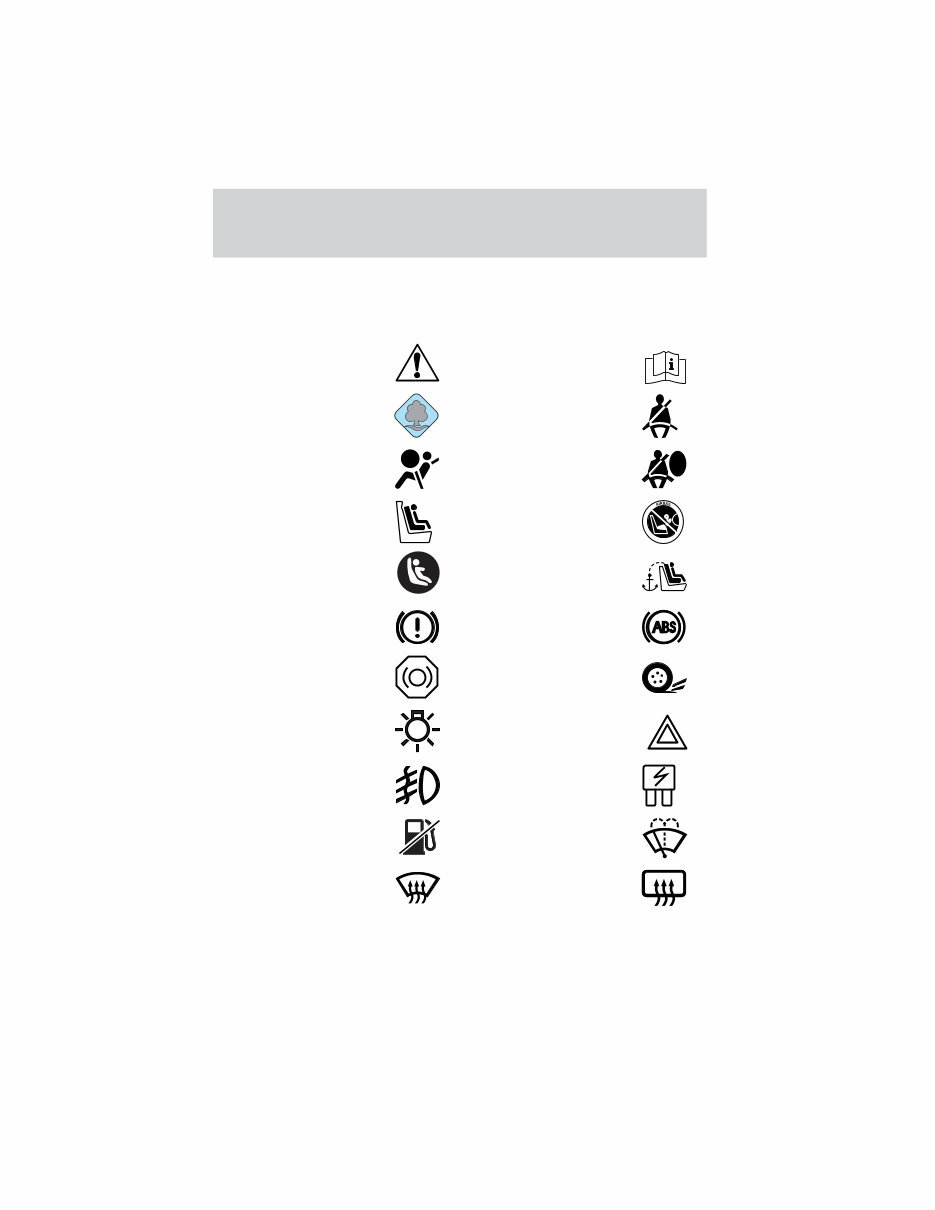

These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Protecting the Environment Fasten Safety Belt Air Bag-Front Air Bag-Side Child Seat Child Seat Installation Warning Child Seat Lower Anchor Child Seat Tether Anchor Brake System Anti-Lock Brake System Brake Fluid - Non-Petroleum Based Traction Control Master Lighting Switch Hazard Warning Flasher Fog Lamps-Front Fuse Compartment Fuel Pump Reset Windshield Wash/Wipe Windshield Defrost/Demist Rear Window Defrost/Demist Introduction 6

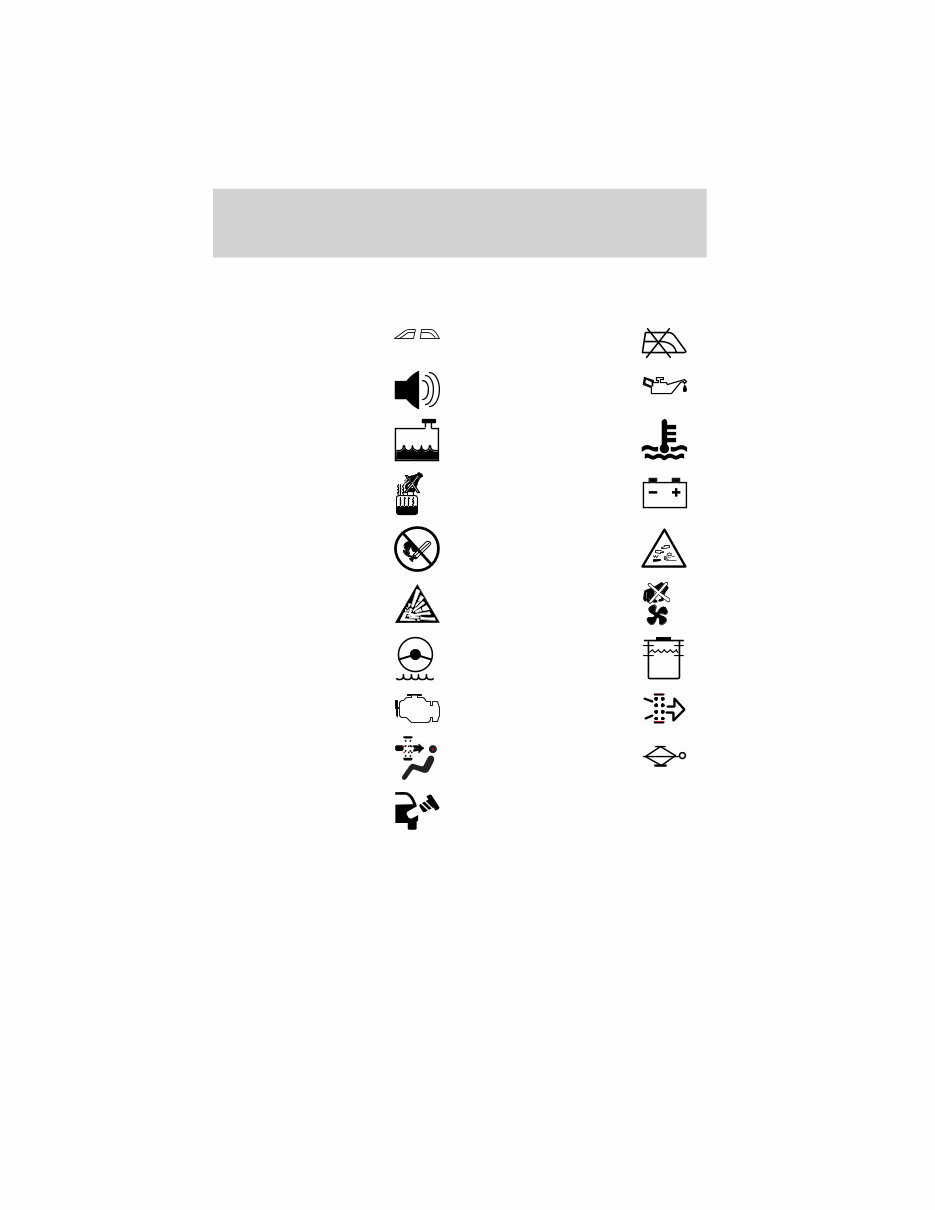

Vehicle Symbol Glossary Power Windows Power Window Lockout Personal Alarm System Feature Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, or Sparks Battery Acid Explosive Gas Fan Warning Power Steering Fluid Maintain Correct Fluid Level MAX MIN Emission System Engine Air Filter Passenger Compartment Air Filter Jack Check fuel cap INFORMATION ABOUT THIS GUIDE The information found in this guide was accurate at the time of printing. Mazda may change the contents without notice. Introduction 7

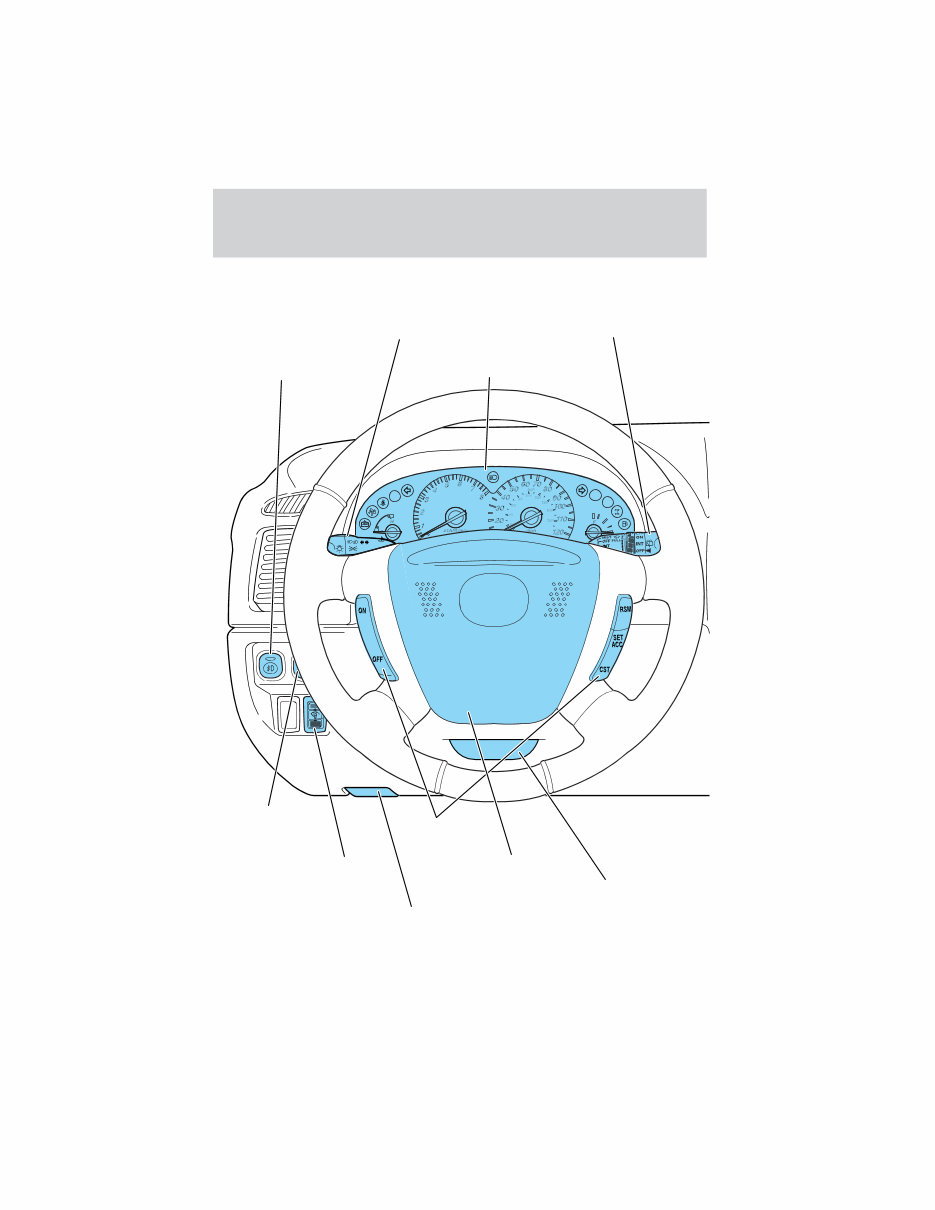

Instrument cluster (pg. 10) Windshield wiper/washer control (pg. 56) Driver air bag (pg. 99) Speed controls* (pg. 62) Instrument panel dimmer/dome light control (pg. 49) Hood release handle (pg. 198) Power mirror control* (pg. 61) Fog lamp control* (pg. 48) Headlamp and turn signal control (pg. 48) Manual tilt steering column lever (pg. 58) * if equipped Instrument Cluster 8

Audio system (pg. 17) 4WD control* (pg. 137) Climate controls (pg. 44) Auxiliary power point (pg. 59) Rear window defroster control (pg. 47) Hazard flasher control (pg. 155) Cigarette lighter *if equipped Instrument Cluster 9

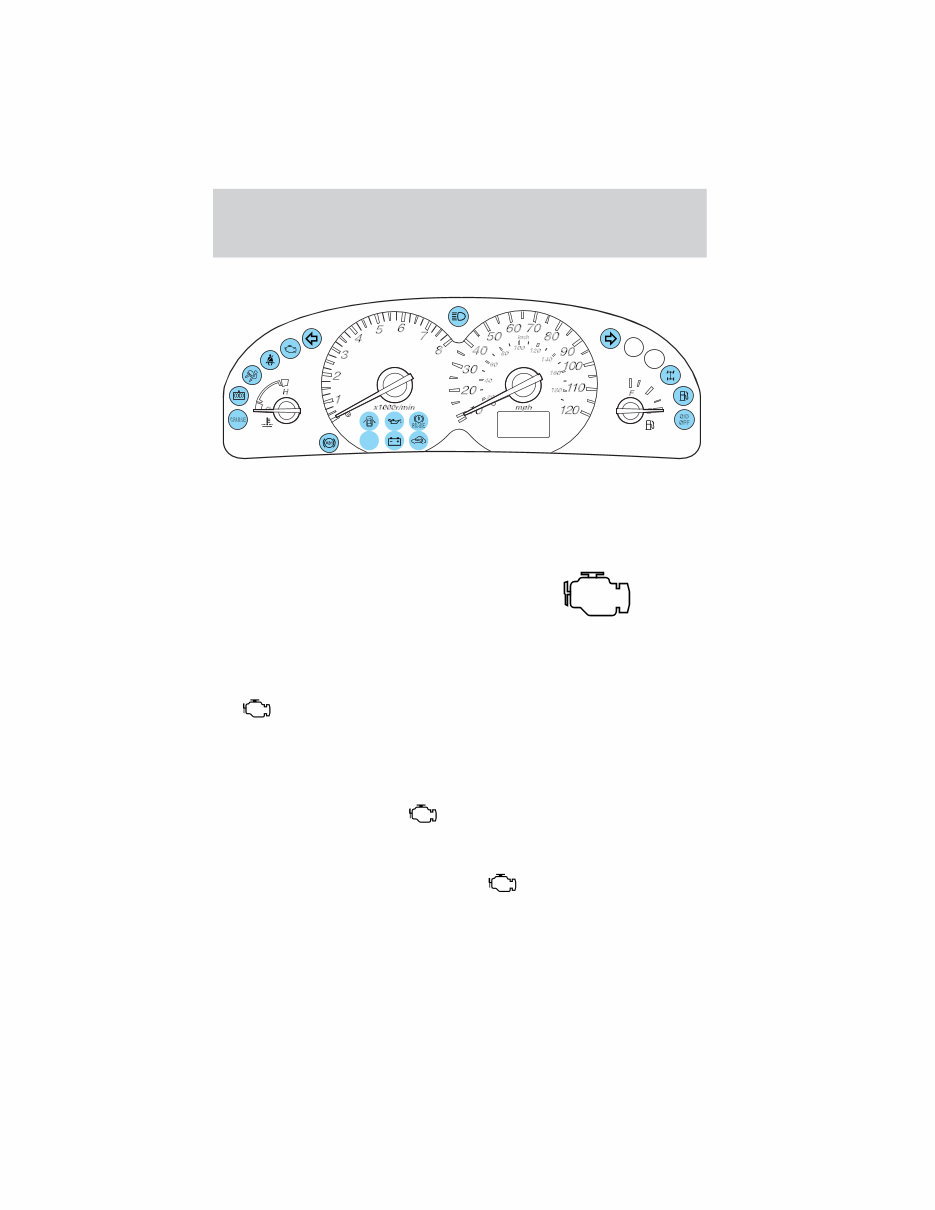

WARNING LIGHTS AND CHIMES Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately. Service engine soon: Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle. The indicator light illuminates when the ignition is first turned to the RUN position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing. What you should do if the light illuminates Light turns on (without blinking): This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your light to illuminate. Examples are: 1. The vehicle has run out of fuel. (The engine may misfire or run poorly.) CHECK FUEL CAP Instrument Cluster 10
