00-001/02 - 2001 - 2002 Tribute - STAMPING OF ENGINE NUMBER DURING REPLACEMENT SI107144 TSB NUMBER: 00-001/02 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS 2001-2002 Tributes registered in the States of Georgia and Tennessee. DESCRIPTION In some states, stamping of the engine type and serial number is required during the replacement of short-engine, partial-engine, engine block, and etc. There should be NO engines with the same engine number. Some engines supplied from Mazdas service parts sale channels are not stamped with the engine type or serial number. NOTE:  As of December 2001, some 3.0L V6 engines (AJ) supplied from service parts are not stamped with engine type and serial number.  As of December 2001, the applicable states for this service information are States of Georgia and Tennessee. Before you install a non-stamped engine in a vehicle, be sure to follow the instruction below. REPAIR PROCEDURE 1. Inspect the replacement engine for the eight digits of the serial number and the two digits of engine type. If not present, proceed to Step 2.

2. Stamp the last eight digits of the VIN and the two digits of the engine type.

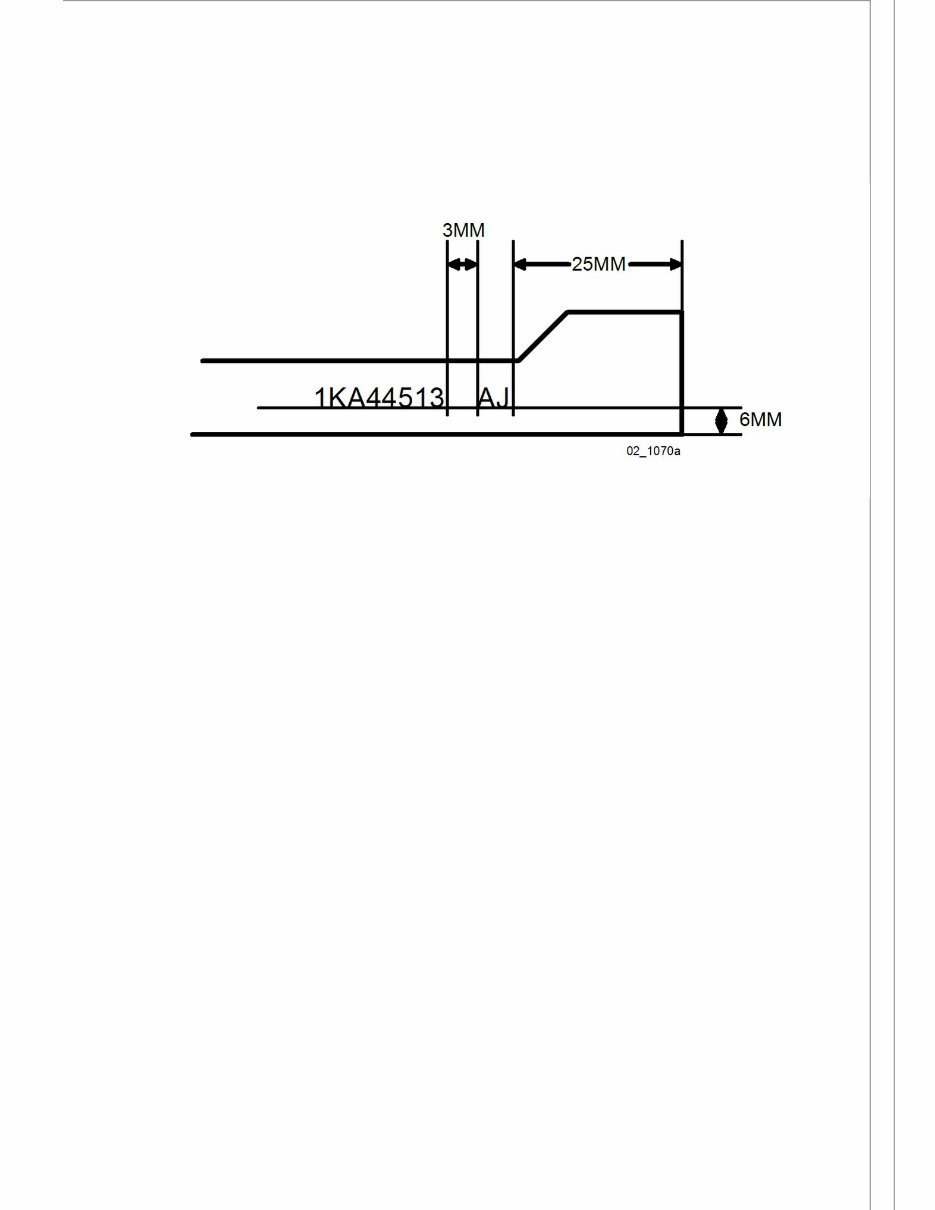

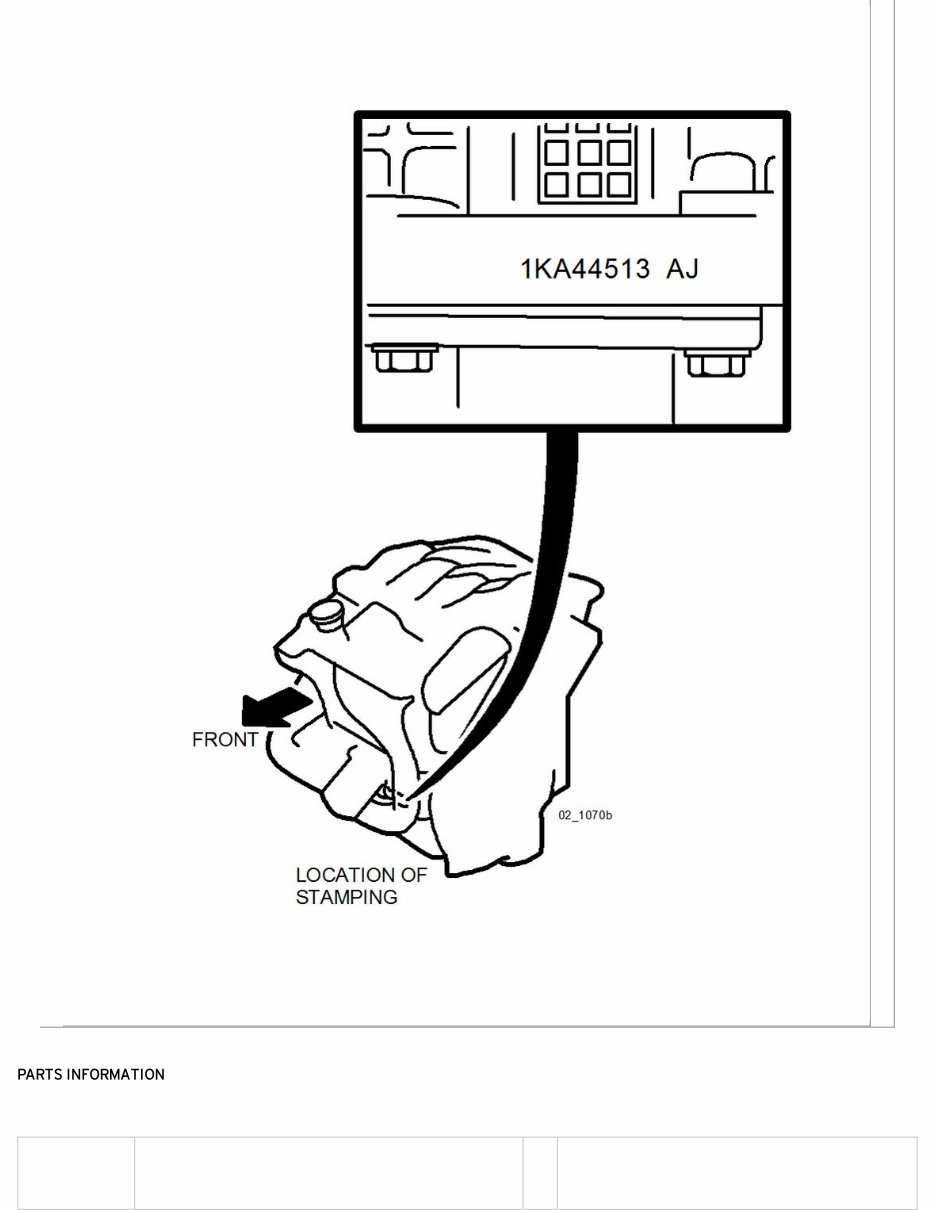

a Font size (Dot size: 1mm) Engine Type Height 6mm, Width 3mm, 2 digits Ex: 1KA44513 AJ b Stamping location

PARTS INFORMATION Part Number Description Qty . Notes

AKS-100- 1010 1/4 inch Letter Figure Combination (36 pieces set) 1 Order using Mazda Tool and Equipment website WARRANTY INFORMATION Information Only.

00-001/08 - SPECIAL TOOL SHIPMENT - FEBRUARY 2008 SI108507 TSB NUMBER: 00-001/08 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS 1998-2008 B-Series 1998-2003 Protege 2002-2003 Protege5 2003 Protegespeed 1998-2005 Miata 2004-2005 Mazdaspeed MX-5/Miata 1998-2002 626 1998-2002 Millenia 1998-2006 MPV 2001-2006 Tribute 2008 Tribute 2008 Tribute Hybrid 2003-2008 Mazda6 2006-2007 Mazdaspeed6 2004-2008 Mazda3 2007-2008 Mazdaspeed3 2004-2008 RX-8 2006-2008 Mazda5 2006-2008 MX-5 2007-2008 CX-7 2007-2008 CX-9

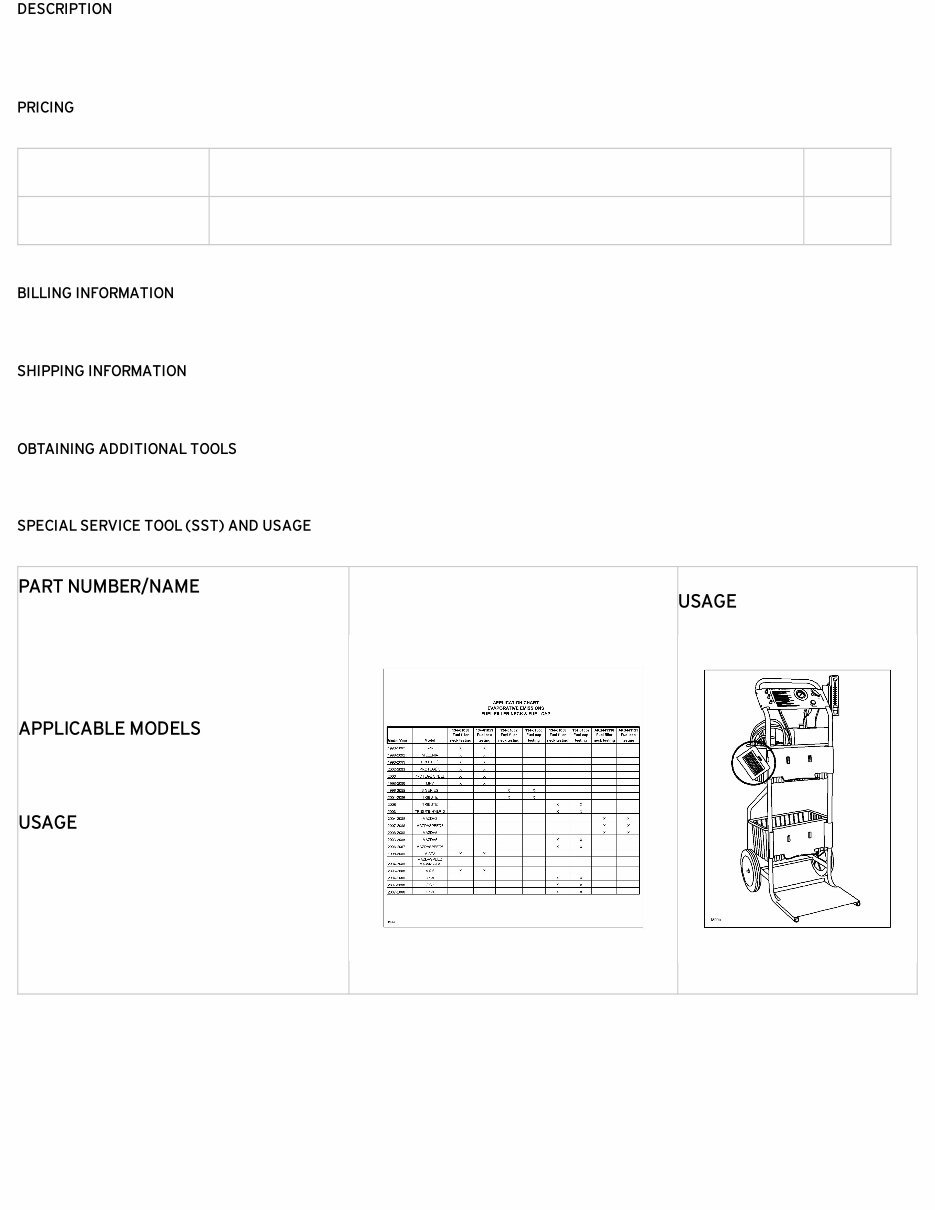

DESCRIPTION Mazda will ship to all dealers one (1) laminated application chart for Evaporative Emissions Fuel Filler Neck and Fuel Caps. This application chart will be shipped to your dealers during February 2008. PRICING Part Number Description Pricing 9999-SST-EVAPCHARTApplication Chart - Evaporative Emissions Fuel Filler Neck and Fuel CapsNo charge BILLING INFORMATION No charge for the laminated application chart. SHIPPING INFORMATION Laminated application chart will be sent via US mail. OBTAINING ADDITIONAL TOOLS You can download additional copies through MGSS under Service Tools. SPECIAL SERVICE TOOL (SST) AND USAGE PART NUMBER/NAME: 9999-SST-EVAPCHART Application Chart - Evaporative Emissions Fuel Filler Neck and Fuel Cap APPLICABLE MODELS: MULTI-MODEL 1998 to 2008. USAGE: To show model applications for the evaporative fuel ﬁller neck and fuel cap. Secure the laminated application chart to the current MRT/Evaporative Emissions Tester (134-01049). OVERVIEW USAGE

00-001/05 - MULT. MODELS - WDS PTU BATTERY WARRANTY AND ORDER INFORMATION SI108504 TSB NUMBER: 00-001/05 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS 1997-2003 Protege 2002-2003 Protege5 1997-2005 Miata 1997-2002 626 1995-2002 Millenia 1997-1998 MPV 2000-2005 MPV 2004-2005 Mazda3 2004-2005 RX-8 2003-2005 Mazda6 2001-2005 Tribute 1995-2005 B-Series Truck DESCRIPTION Mazda Worldwide Diagnostic System (WDS) PTU batteries are not covered by the system’s 1-year extension agreement. WDS support information was communicated in the “WDS Support Extension Program” documentation sent to all dealers as part of the 1-year extension agreement. The WDS PTU batteries are considered a consumable item and most have been in use for several years. WDS PTU batteries are available for purchase on Mazda Tool and Equipment website. PARTS INFORMATION Part Number Description Qty. Notes 418-F402 WDS PTU Battery Pack 1 Available on Mazda Tool and Equipment website

NOTE: Replacement batteries carry a 13 month warranty.

00-001/03 - MULTI-MODEL - WDS MS-CAN 16-PIN CABLE SHIPMENT SI108502 TSB NUMBER: 00-001/03 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS MULTI-MODEL DESCRIPTION Mazda will ship to all dealers an updated WDS cable at NO CHARGE. This new WDS cable is required to communicate with the new Medium Speed CAN (MS-CAN) network being introduced on new model vehicles. The cable can be identiﬁed by the blue 16-pin connector. The existing 418-F231 (B-203) DLC cable can still be used, except on those vehicles using the MS-CAN communication network. The new 418-F557 (B-259) DLC cable can be used in place of the 418-F231 (B-203) DLC cable on past models and on new MS-CAN supported models. The new MS-CAN supported DLC cable can be used once your WDS is loaded with B25 or later CD. PRICING One (1) 418-F557 cable is being shipped to all dealers at NO CHARGE. Additional cables may be purchased if needed. SHIPPING INFORMATION Cables will be shipped to your service department at the end of June. Please advise your shipping / receiving personnel of this WDS cable shipment. OBTAINING ADDITIONAL CABLES UNITED STATES: Purchase additional cables using Mazda Tool and Equipment website. You can logon to Mazda Tool and Equipment website via the dealer home page. http://dealers.mazdausa.com CANADA: Purchase additional cables by calling SPX at 1-800-336-6687 (Canada Only) . PUERTO RICO: Purchase additional cables by calling Technical Assistance in Puerto Rico at 787-641-0849 (Puerto Rico Only) .
