MAZDA MIATA 1990-97
SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag
Special Cautions.
SUSPENSION
Manufacturer advises that some new fasteners must be used whenever
old fasteners are loosened or removed.
PAINT CODE LOCATION
Paint code located on left lock pillar.
CLEAR COAT IDENTIFICATION
All metallic colors are clear coat.

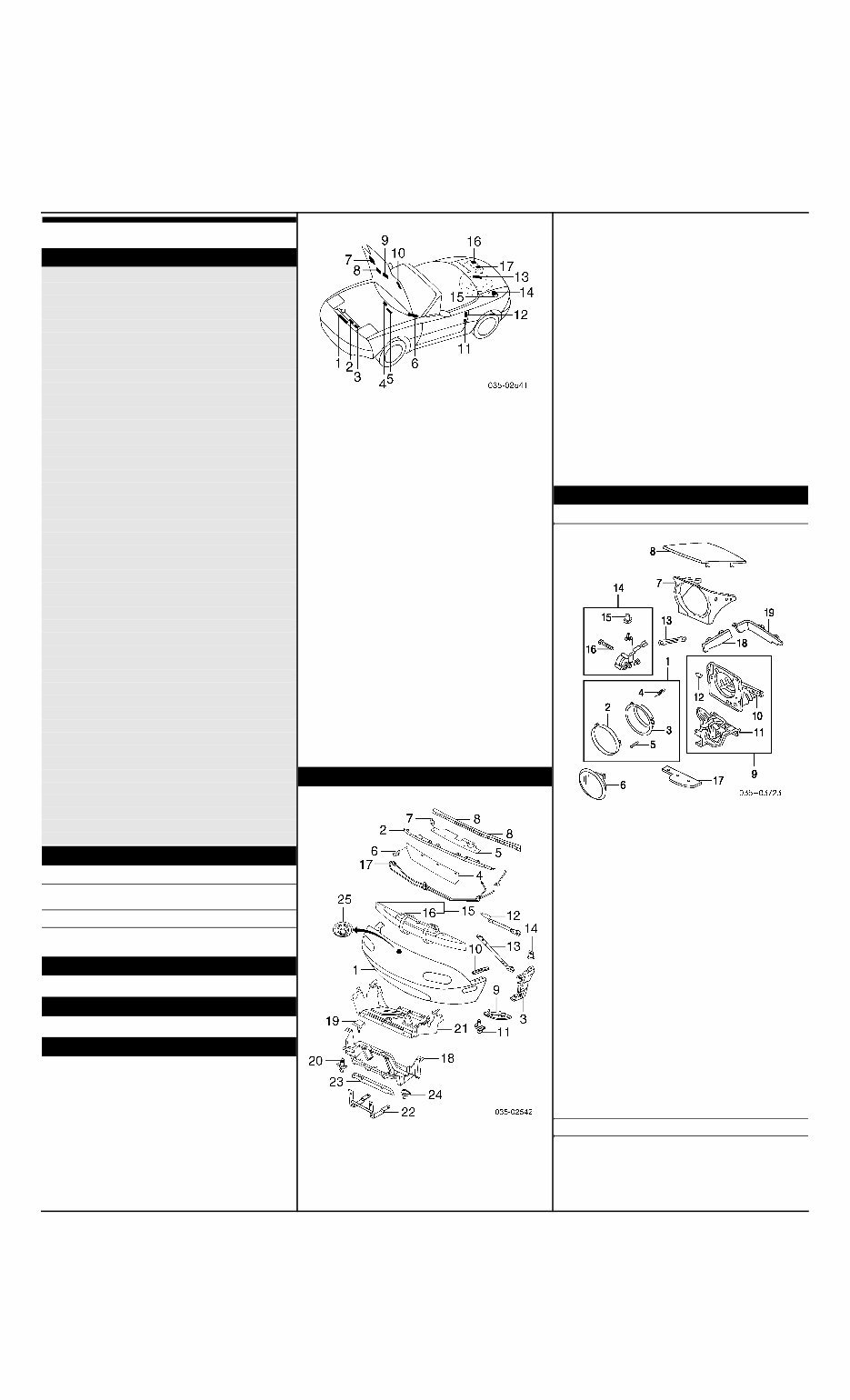

INFORMATION LABELS
Illustration Located in Next Column
1 Label, Headlamp NA04-51-S02
2 Label, Radiator Caution 0488-15-201
3 Label, Fan Caution B660-15-031
4 Label, Model 90-93 8595-69-011B
94 NA01-69-068A
95-97 B001-69-D51
5 Label, Air Bag Caution 90-93 NA01-57-K92
94 KA78-57-K91
6 Label, VIN NA01-69-068A
7 Label, Emission
1990-91
w/Calif Emission NA01-69-036D
w/o Calif Emission NA04-69-036C
1992
w/Calif Emission NA01-69-036E
w/o Calif Emission NA04-69-036D
1993
w/Calif Emission NA01-69-036G
w/o Calif Emission NA04-69-036E
1994
USA NA75-69-036
Canada
English N.A.
French N.A.
1995
USA NB11-69-036
Canada
English N.A.
French N.A.
1996-97
USA NB38-69-036
Canada
English N.A.
French N.A.
8 Label, Caution 90-93 NA01-57-K91
94 KA78-57-K91
9 Label, Vacuum Diaphragm 90-93 NA01-69-044
94-96 NA75-69-044
97 NB38-69-044
10 Label, A/C NA75-61-439
11 Label, Tire NA01-69-014A
12 Label, Safety Panel
Canada N.A.
13 Label, Spare Tire
English BF68-69-073B
French N.A.
14 Label, Fuel Warning KA10-69-D61A
15 Label, Unleaded Fuel UB40-69-C61
16 Label, Battery FA03-69-C72A
17 Label, Battery FA01-69-064B
FRONT BUMPER
1 Cover, Front (P) NAY1-50-030A
(P) Paint to Match
2 Retainer, Center Cover NA01-50-0K0B
3 Retainer, Outer R NA01-50-0J1
L NA01-50-0J5
4 Seal, Lower 90-96 NA75-50-0K6A
97 N.A.
5 Seal, Upper NA75-50-0K7A
6 Fastener, Lwr Seal (8) 90-96 UB39-50-795
97 N.A.
7 Fastener, Upper Seal (4) NA01-56-145
8 Plate, Center Support R NA01-50-2A0B
L NA01-50-1AYC
9 Plate, Outer Support R NA01-50-1B0
L NA01-50-1C0
10 Seal, Cover R/L NA01-50-0G9
11 Fastener, Cover R/L BF82-50-233
12 Bracket, Upper R/L NA01-50-1ZYB
13 Bracket, Upper L NA01-50-160
14 Slide, Bumper R/L B092-50-032
15 Bar Assy, Reinforcement NA01-50-070
16 Spacer, Reinf Bar¶ NA01-50-114
¶Included w/Reinforcement Bar Assy
17 Pipe, Strg Return/Cooler-See Steering Pump Section
18 Guide, Air
w/ABS NA23-50-A20A
w/o ABS NA01-50-A20B
19 Cover, Air Guide (3) NA01-50-101A
20 Fastener (2) BF67-50-033
21 Cover, Under NA01-56-111F
22 Frame, License NA01-50-180A
23 Protector, License FB01-50-144
24 Bracket, Frame R/L NA01-50-18X
25 Emblem
1990-93
Light Gray NA04-51-711-14
Dark Gray NA04-51-711-18
1994-97 BB1H-51-731
FRONT LAMPS
HEADLAMP
1 Lamp Assy R 8BN1-51-030A
L 8BN1-51-040A
2 Ring, Retaining¶ R/L NA01-51-033A
3 Ring, Mounting¶ R NA01-51-032
L NA01-51-034
4 Spring, Adjust¶ R/L NA01-51-046
5 Screw, Adjust¶ (2/Side) R/L NA01-51-037
¶Included w/Lamp Assy
6 Sealed Beam R/L 0000-11-6024-HL
7 Bezel, Headlamp R NA01-50-741
L NA01-50-751
Screw, Headlamp (4/Side) R/L B481-50-75X
8 Lid, Lamp R NA01-51-SH1B
L NA01-51-SH2B
Screw, Lid (4/Side) 90-93 R/L 9074-00-512
94-97 R/L BS34-51-S25A
9 Hinge Assy R NA01-51-SC0B
L NA01-51-SD0B
10 Housing, Hinge¶ R NA01-51-SC5B
L NA01-51-SD5B
11 Bracket, Hinge¶ R NA01-51-SC1A
L NA01-51-SD1A
12 Cap, Hinge¶ R/L KA01-51-SD6
¶Included w/Hinge Assy
13 Rod, Retractable R/L NA01-51-SA5
14 Motor Assy R NA01-51-SAX
L NA01-51-SBX
15 Boot, Motor¶ R/L NA01-51-669
16 Bolt, Motor¶ R/L FB01-51-665
¶Included w/Motor Assy
17 Protector, Lamp Front R/L NA01-51-SJ2A
18 Protector, Lamp L NA01-51-SK2
19 Protector, Lamp Rear R NA01-51-SE1
L NA01-51-SE2
PARK/SIGNAL LAMP
Illustration Located in Next Column
1 Lamp Assy R 8BN1-51-060
SECTION INDEX
A/C /HEATER.................................................................................... 221
A/C REFRIGERANT CAPACITIES ................................................... 221
ABS/BRAKES ................................................................................... 223
AIR BAG SYSTEM............................................................................ 222
AIR CLEANER .................................................................................. 225
BACK WINDOW................................................................................ 230
CENTER CONSOLE......................................................................... 227
CLEAR COAT IDENTIFICATION ...................................................... 220
CONVERTIBLE TOP......................................................................... 229
COOLING.......................................................................................... 221
COWL & DASH ................................................................................. 226
CRUISE CONTROL SYSTEM .......................................................... 222
ELECTRICAL .................................................................................... 226
EMISSION SYSTEM......................................................................... 226
ENGINE MOUNTS............................................................................ 225
ENGINE/TRANS ............................................................................... 225
EXHAUST ......................................................................................... 226
FRONT BUMPER ............................................................................. 220
FRONT DOOR.................................................................................. 228
FRONT FENDER .............................................................................. 222
FRONT INNER STRUCTURE........................................................... 222
FRONT LAMPS................................................................................. 220
FRONT STEERING LINKAGE/GEAR............................................... 224
FRONT SUSPENSION ..................................................................... 223
FUEL TANK....................................................................................... 231
HARDTOP......................................................................................... 230
HOOD ............................................................................................... 221
INFORMATION LABELS................................................................... 220
INSTRUMENT PANEL ...................................................................... 227
LUGGAGE LID.................................................................................. 231
PAINT CODE LOCATION.................................................................. 220
QUARTER PANEL ............................................................................ 230
REAR BODY ..................................................................................... 231
REAR BUMPER................................................................................ 232
REAR DRIVE AXLE.......................................................................... 231
REAR LAMPS................................................................................... 232
REAR SUSPENSION........................................................................ 231
ROCKER/PILLARS/FLOOR.............................................................. 227
SEAT ................................................................................................. 228
SEAT BELTS ..................................................................................... 228
SPECIAL CAUTIONS........................................................................ 220
STEERING PUMP ............................................................................ 224
STEERING WHEEL/COLUMN ......................................................... 224
UNDERHOOD DIMENSIONS........................................................... 222
WHEEL ............................................................................................. 223
WINDSHIELD.................................................................................... 226
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
221 madpl1_g01_
Page 221—April 22, 2004—13:33:41—Version Manufacturer
L 8BN1-51-070
2 Lens & Housing Assy¶ R NA01-51-06XA
L NA01-51-07XA
3 Tube, Lamp¶ (a) R/L NA01-51-069
(a) Included w/Lens & Housing Assy
4 Socket¶ R/L NA01-51-064
5 Wire¶
USA-Serviced w/Socket
Canada R/L N.A.
6 Bulb¶ R/L 0000-11-0194
¶Included w/Lamp Assy
SIDE MARKER LAMP
1 Lamp Assy R 8BN1-51-120
L 8BN1-51-130
2 Lens & Body Assy¶ 90 R NA01-51-5E1C
L NA01-51-5F1C
91-97 R NA01-51-5EXA
L NA01-51-5FXA
3 Gasket, Lens¶ (a) R/L NA01-51-5D3A
(a) Included w/Lens & Body Assy
4 Socket¶ R/L NA01-51-5E2
5 Bulb¶ R/L 0000-11-1157-NA
¶Included w/Lamp Assy

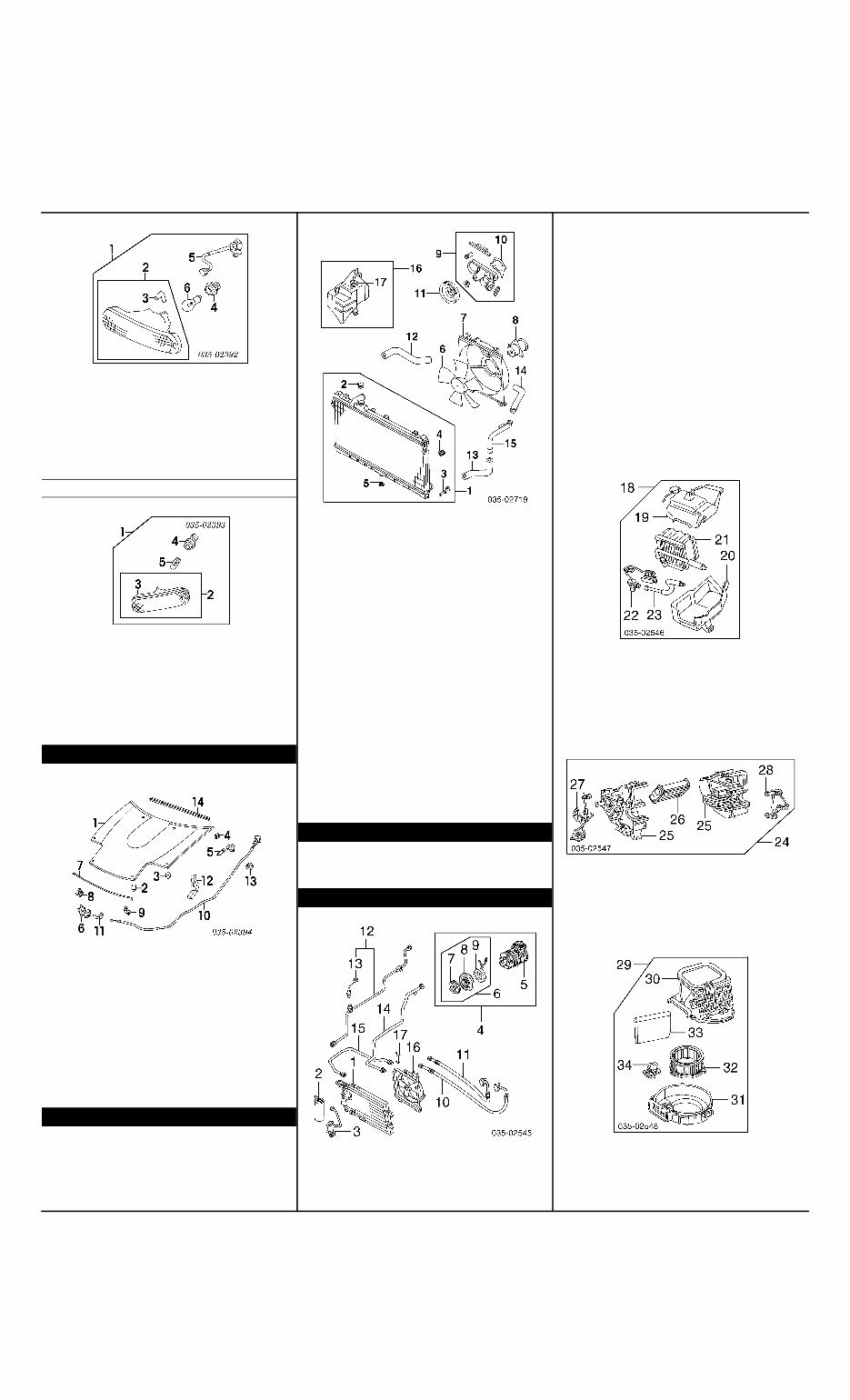

HOOD
1 Panel, Hood NAY1-52-310D
2 Cushion, Front Rubber R/L FB01-56-787B
3 Cushion, Center Rubber R/L FB01-56-786A
4 Cushion, Rear Rubber R/L NA01-56-78X
5 Hinge R NA01-52-410D
L NA01-52-420D
6 Latch NA01-56-620C
7 Rod, Support 90-93 NA01-56-650
94-97 NA75-56-650A
8 Holder, Rod Front G030-56-693A
9 Holder, Rod Rear B092-52-518
10 Cable, Release NA01-56-720D
11 Fastener, Cable LA01-56-631
12 Holder, Cable H115-45-916A
13 Clip, Cable G030-67-519
14 Seal, Cowl NA01-56-760
COOLING
Illustration Located in Next Column
1 Radiator Assy
Man Trans 90-93 BPE8-15-200
94-97 BPE8-15-200
Auto Trans 90-93 B64J-15-200C
94-97 BPE9-15-200
2 Cap, Radiator¶ D316-15-205
3 Cock, Drain¶ NF01-15-203
4 Mount, Rad Upper¶ R/L N326-15-202
5 Mount, Rad Lower¶ R/L B61P-15-202
¶Included w/Radiator Assy
6 Fan, Cooling
Man Trans 90-91 B61P-15-140
92-97 B61P-15-140A
Auto Trans 90-91 B6S8-15-140A
92-97 B64J-15-140
7 Shroud, Fan B61P-15-210B
8 Motor, Fan
Man Trans BPE8-15-150
Auto Trans B64J-15-150A
9 Pump Set, Water 90-94 8AB8-15-010
95-97 8ABB-15-010A
10 Gasket, Pump¶ 90-93 B6BF-15-116
94-97 B6BF-15-116
¶Included w/Water Pump Set
11 Pulley, Pump 90-93 B366-15-131A
94-97 B3C7-15-131
12 Hose, Rad Upper 90-93 B61P-15-186
94-97 BPE8-15-186
13 Hose, Frt Lower Rad 90-93 B61P-15-185
94-97 B61P-15-185
14 Hose, Rear Lower Rad B61P-15-184
15 Pipe, Lower Rad B61P-15-190
16 Tank Assy, Coolant B61P-15-350D
17 Cap, Tank¶ B61P-15-355A
¶Included w/Coolant Tank Assy
A/C REFRIGERANT CAPACITIES
A/C R-12 Refrigerant Capacity
1990-93: 28 Ozs (1.75 Lbs)
A/C R-134 Refrigerant Capacity
1994-97: 21.2 Ozs (1.32 Lbs)
A/C /HEATER
1 Condenser NA75-61-480
2 Receiver/Drier 90-93 NA01-61-500A
94-97 NA75-61-500
3 Pipe, Receiver/Drier NA75-61-467
4 Compressor Assy 90-93 NA02-61-450A
94-97 NA75-61-450
5 Compressor¶ 90-93 NA02-61-K00
94-97 NA75-61-K00
6 Clutch Assy, Magnet¶ 90-93 NA02-61-L10
94-97 NA75-61-L10
7 Armature, Clutch¶ (a) 90-93 F065-61-611
94-97 NA75-61-L11
8 Pulley, Clutch¶ (a) 90-93 NA02-61-L12
94-97 NA75-61-L12
9 Coil, Magnet¶ (a) 90-93 FD15-61-L13
94-97 NA75-61-113
¶Included w/Compressor Assy
(a) Included w/Magnet Clutch Assy
10 Hose, Suction 90-93 NA01-61-461C
94-97 NA75-61-461
11 Hose, Pressure 90-93 NA01-61-462D
94-97 NA75-61-462
12 Tube Assy, Upper A/C 90-93 NA01-61-46X
94-97 NA75-61-46XA
13 Switch, Pressure¶ 90-93 NA01-61-503
94-97 GB6H-61-503
¶Included w/Upper A/C Tube Assy
14 Tube, Lower A/C 90-93 NA01-61-468A
94-97 NA75-61-468
15 Pipe, Condenser Pressure
1990-93 NA02-61-466C
1994-97-Serviced w/Pressure Hose
16 Fan, Condenser NA01-61-710
17 Bracket, Mounting NA01-61-4H1
18 Evaporator Assy 90-93 NA75-61-520D
94-97 NA75-61-520D
19 Case, Evap Upper¶ 90-93 NA01-61-J20
94-97 NA01-61-J01A
20 Case, Evap Lower¶ NC10-61-J02
21 Core, Evaporator¶ NA75-61-520D
22 Valve, Expansion¶ 90-93 NA01-61-J14
94-97 NA75-61-J14
23 Pipe, Valve¶ NA01-61-J15
¶Included w/Evaporator Assy
24 Heater Assy 90-93 NA01-61-130A
94-97 NC10-61-130F
25 Case, Heater¶ R/L NA01-61-A01-2
26 Core, Heater¶ 90-93 NA01-61-A10
94-97 NA75-61-A10
27 Linkage, Heater Air Flow¶ NA01-61-A30A
28 Linkage, Heater Temperature¶ NA01-61-A20
¶Included w/Heater Assy
29 Blower Assy 90-93 NA01-61-140A
94-97 NC11-61-140A
30 Case, Upper¶ 90-93 NA01-61-B01
94-97 NA75-61-B01
31 Case, Lower¶ NA01-61-B02
32 Motor, Blower¶ NA01-61-B10
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
222 madpl1_g01_
Page 222—April 22, 2004—13:33:43—Version Manufacturer
A/C /HEATER Cont’d
33 Flap, Vent¶-Serviced w/Blower Assy
34 Resistor¶ NA01-61-B15
¶Included w/Blower Assy

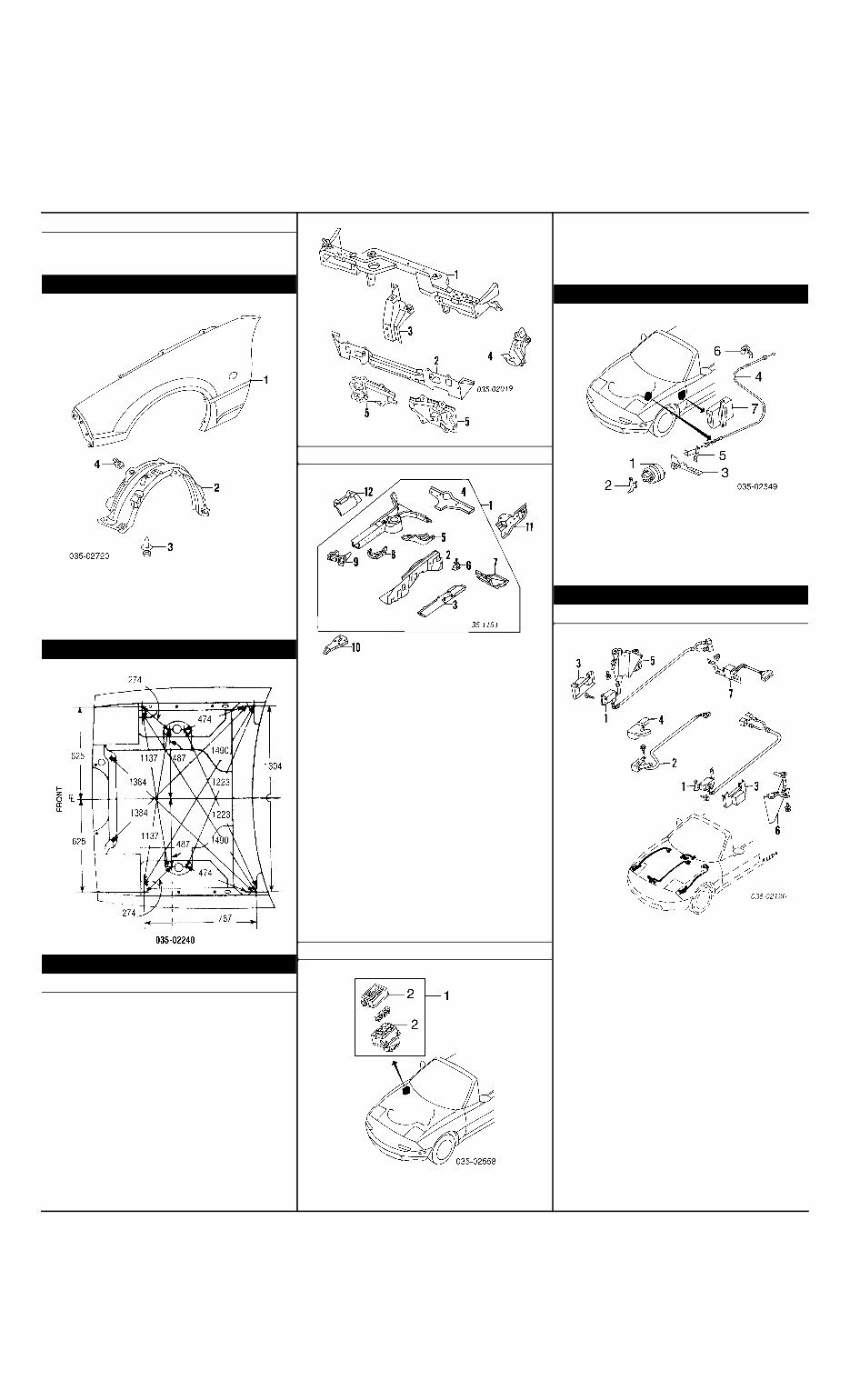

FRONT FENDER
1 Fender (HSLA) R NAY1-52-110
L NAY1-52-210
2 Liner, Fender R NA01-56-131A
L NA01-56-141C
3 Fastener, Liner (5/Side) R/L NA01-56-145
4 Clip, Liner Screw
(5/Side) R/L LA01-56-135
UNDERHOOD DIMENSIONS
FRONT INNER STRUCTURE
FRONT
Illustration Located in Next Column
1 Bar, Upper Tie 90-93 NA01-53-100F
94-97 NA75-53-100
2 Bar, Lower Tie NA01-53-16XC
3 Support, Latch NA01-56-221B
4 Bracket, Radiator R B61P-15-240A
L B61P-15-250A
5 Bracket, Stay R/L NA01-54-180
SIDE
1 Apron Assy (a) 90-93 R NAY1-53-200D
L NAY1-54-200D
94-97 R NAY1-53-200D
L NAY2-54-200
2 Panel, Apron¶ (a) R NA01-53-210F
L NA01-54-210G
(a) Use w/Part #B001-56-051
Cover¶ (b) B001-56-051
(b) As Required
3 Rail, Upper Front¶ R NA01-53-37Y
L NA01-54-37Y
4 Rail, Upper Rear¶ 90-96 R NA01-53-37ZB
L NA01-54-37ZA
97 R NA01-53-37ZB
L NA01-54-37ZD
5 Reinforcement¶ R NA01-53-380
L NA01-54-380B
6 Bracket, Air Cleaner¶
Left Side NA01-54-36X
7 Box, Torque¶ R NA01-53-391
L NA01-54-391
8 Bracket, Stabilizer¶ R N067-53-330
L N067-54-330
9 Reinf, Tie Down Hook¶ R NA01-53-32XB
L NA01-54-32XC
¶Included w/Apron Assy
10 Hook, Tie-Down R NA01-56-34XD
L NA01-56-34YD
11 Reinf, Apron R NA01-53-591
L NA01-54-590
12 Shield, Splash NA01-56-112
ELECTRICAL COMPONENTS
1 Block Assy, Main Fuse 90 NA01-66-760B
91-93 NA23-66-760
94 NA80-66-760
95-97 NB11-66-760
2 Cover, Fuse Block¶ 90 NA02-66-762B
91-93 NA23-66-762
94 NA80-66-762
95-97 NB11-66-762
¶Included w/Main Fuse Block Assy
CRUISE CONTROL SYSTEM
1 Actuator, Cruise Control LA01-66-310A
2 Brkt, Actuator Front NA01-66-3A3A
3 Brkt, Actuator Rear NA01-66-3A2A
4 Wire, Cruise Control NA01-66-311A
Clip, Cruise Control Wire
5 Front LA01-66-3A1
6 Rear UB39-61-479A
7 Control, Cruise NA01-66-320

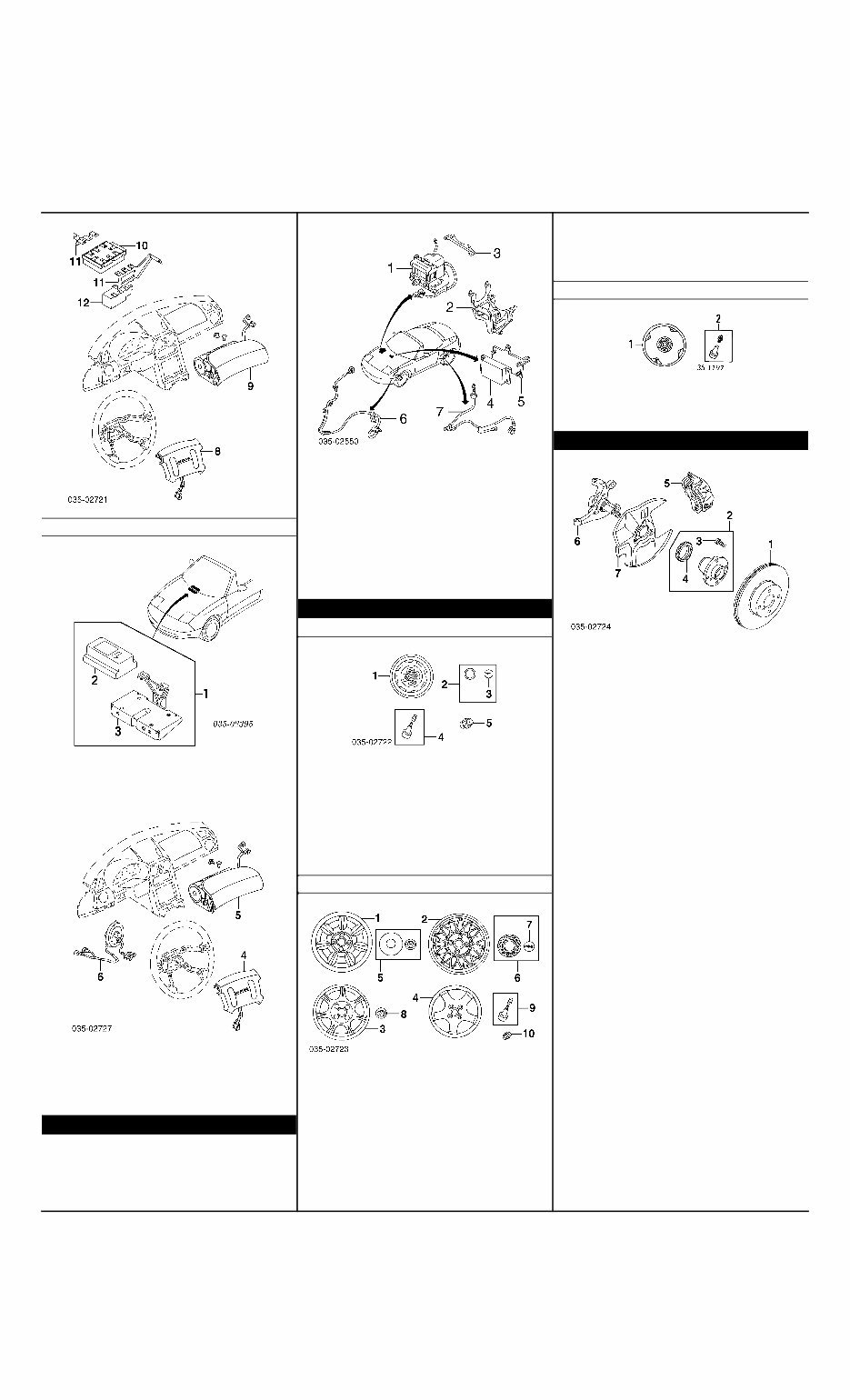

AIR BAG SYSTEM
1990-94
1 Sensor, Outer R NA01-57-K2XK
L NA01-57-K2YK
2 Sensor, Center 90-93 NA01-57-K10H
94 NA75-57-K1XA
3 Cover, Outer Sensor R NA01-57-K45B
L NA01-57-K46B
4 Cover, Center Sensor NA01-57-K47C
Cover, Outer Sensor
5 Right NA01-56-191A
6 Left
w/o ABS NA01-56-181A
7 Sensor, Inner Air Bag NA01-57-K40D
Illustration Located in Next Column
8 Module, Driver Air Bag NA01-57-K00E-00
9 Module, Pass Air Bag 94 NAY5-57-K7X-00
10 Control Unit, Diagnosis
1990-93 NA01-67-7F0A
1994 GA2A-67-7F0A
11 Bracket, Control Unit R NA05-67-9A1B
L NA06-67-9A1B
12 Power Unit, Back-Up 90-93 NA01-67-7G0A
Clockspring¶-See Steering Wheel/Column Section
¶Serviced w/Combination Switch
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
223 madpl1_g01_
Page 223—April 22, 2004—13:33:45—Version Manufacturer
1995-97
1 Sensor Assy, Air Bag¶ N034-57-K30B
¶Add'l Parts &/or Dealer Contact Required
2 Sensor, Air Bag¶ N034-57-K30B
3 Bracket, Sensor¶ N034-57-KX0A
¶Included w/Air Bag Sensor Assy
4 Module, Driver Air Bag NB11-57-K00-00
5 Module, Passenger Air Bag NB29-57-K7X-00
6 Clockspring¶ (a)
1997 NB17-66-CS0A
¶1995-96-Serviced w/Combination Switch Assy-See Steering
Wheel/Column Section
(a) Included w/Combination Switch Assy
ABS/BRAKES
Illustration Located in Next Column
1 Hydraulic Unit, ABS 90-94 NA23-43-7A0C
95 NA13-43-7A0A
96-97 NA13-43-7A0B
2 Brkt, Hydraulic Unit 90-94 NA23-43-310B
95-97 NB13-43-310A
3 Bracket, Upper 95-97 NB13-43-321A
4 Control Unit, ABS¶ 90-94 NA17-67-650A
95-97 N036-67-650
5 Bracket, ABS Control Unit
1990-94¶-Serviced w/ABS Control Unit
1995-97 NB13-67-B4X
¶Included w/ABS Control Unit
6 Sensor, ABS Front R NA23-43-70XE
L NA23-43-73XE
7 Sensor, ABS Rear R NA23-43-71YB
L NA23-43-72YB
WHEEL
STEEL WHEEL
1 Wheel
14x5-1/2JJ" 9965-B9-5540
2 Cap Assy, Center 90-93 B455-37-190
94-96 NA53-37-190
97 B455-37-191
3 Emblem¶ 90-92 B001-37-192
93-96 GA7C-37-192
97 N.A.
¶Included w/Center Cap Assy
4 Stem, Valve 9963-60-4130
5 Nut, Lug
w/Chrome B002-37-160A
w/o Chrome 0603-26-161A
ALUMINUM WHEEL
Wheel
1 14x5-1/2" (7 Spoke) 90-91 8BN1-37-600
93 8BN5-37-600
2 14x6" BBS 92-93 8BN4-37-600
94 9965-09-6040
95-97 9965-C3-6050
3 14x6" 7 Spoke
Silver 94-97 9965-13-6040
Polished 94-97 9965-19-6040
4 15x6" 5 Spoke 95-97 9965-E8-6050
5 Cap, Center
14x5-1/2" (7 Spoke) 90-92 NA01-37-190A
93 NA52-37-190A
Cap, Center (BBS Wheel)
6 Cap Set M011-37-190
7 Emblem¶ M011-37-192
¶Included w/Cap Set
8 Cap, Center (Spoke Wheels) EA02-37-192
9 Stem, Valve 9963-60-4130
10 Nut, Lug
w/Chrome B002-37-160A
w/o Chrome 0603-26-161A
SPARE WHEEL
1 Wheel
14x4T" 90-93 9965-15-4040
94-96 9965-18-4040
97 N.A.
2 Stem, Valve 9963-60-4130

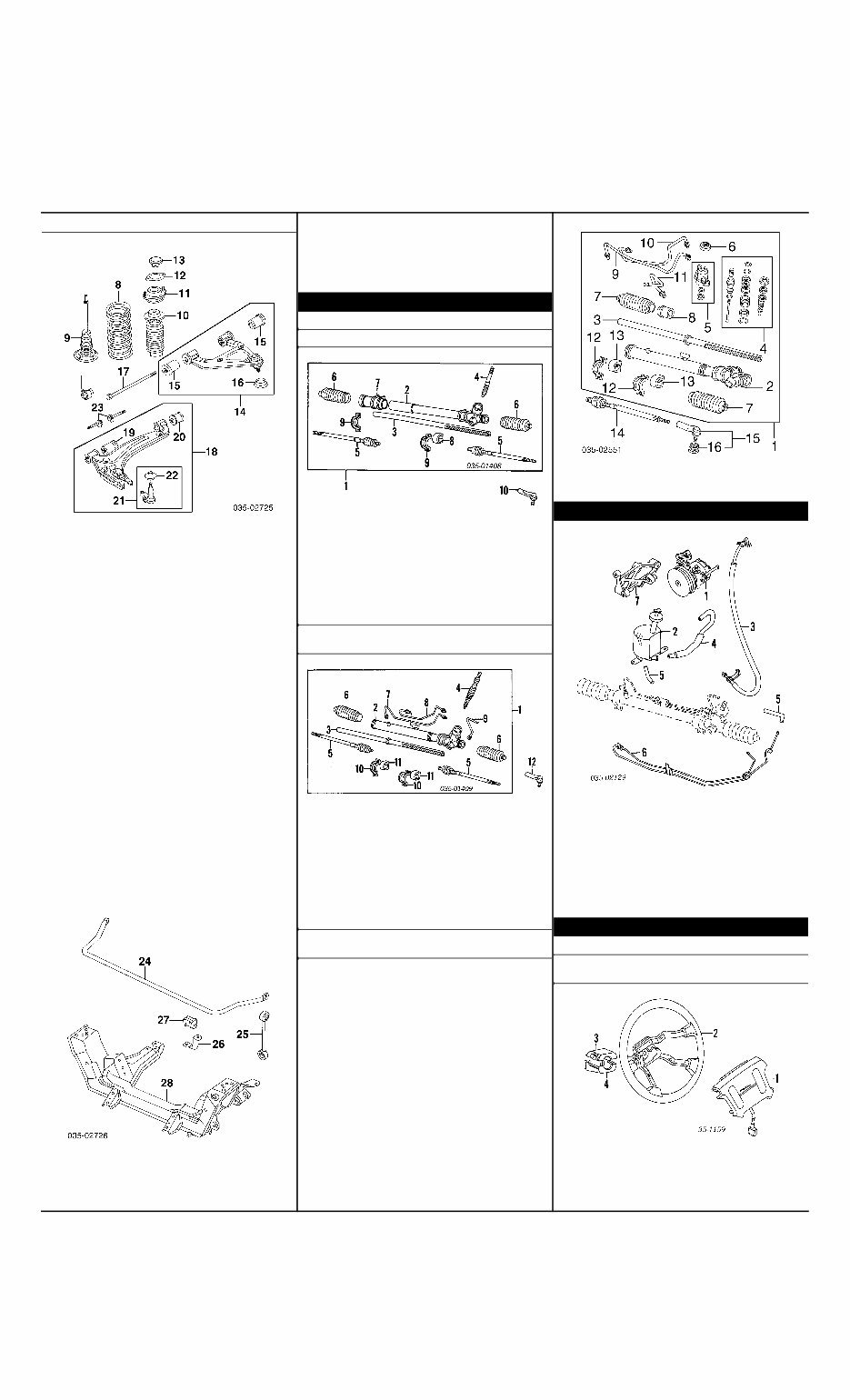

FRONT SUSPENSION
1 Rotor, Brake 90-93 R/L B25Y-33-25XB
94-97 R/L N026-33-25XC
2 Hub Assy
w/ABS 90-93 R/L NA23-33-04XA
94-97 R/L NA23-33-04XA
w/o ABS R/L NA01-33-04X
3 Bolt, Hub¶ (4/Side) R/L B455-33-062
4 Ring, ABS Sensor¶ R/L NA23-33-471B
¶Included w/Hub Assy
Sensor, ABS-See Anti-Lock Brake System Section
5 Caliper, Brake
1990-93
w/ABS R NAY0-33-98ZR
L NAY0-33-99ZR
w/o ABS R N001-33-980
L NAY0-33-99ZR
1994-96 R NAY5-33-98ZR
L NAY5-33-99ZR
1997 R NAY5-33-98ZR
L NAY5-33-99ZR
Hose, Brake 90-93 R NA01-43-810B
L NA01-43-820B
94-97 R NA75-43-810A
L NA75-43-820A
6 Knuckle Assy
w/ABS 90-94 R NA23-33-021A
L NA23-33-031A
95-97 R NA23-33-021B
L NA23-33-031B
w/o ABS 90-94 R NA01-33-021A
L NA01-33-031A
95-97 R NA01-33-021B
L NA01-33-031B
7 Shield, Splash
1990-93¶
w/ABS R NA23-33-261
L NA23-33-271
w/o ABS R NA01-33-261
L NA01-33-271
1994-97 R NA75-33-261
L NA75-33-271
¶Included w/Knuckle Assy
Illustration Located in Next Column
8 Spring, Coil
Man Trans 90-93 R/L NA01-34-011A
94-97 R/L NA03-34-011
Auto Trans 90-93 R/L NA03-34-011
94-97 R/L NA81-34-011
9 Strut
1990-93
w/ABS R/L NA23-34-700B
w/o ABS R/L NA01-34-700
1994
w/ABS R/L NA53-34-700B
w/o ABS R/L N018-34-700B
1995-97
w/Sport Pkg R/L N023-34-700D
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
224 madpl1_g01_
Page 224—April 22, 2004—13:33:46—Version Manufacturer
FRONT SUSPENSION Cont’d
w/o Sport Pkg
w/ABS R/L NA53-34-700B
w/o ABS R/L N018-34-700B
10 Stopper, Bumper 90-93 R/L NA01-28-111
94-97 R/L N021-34-111
11 Rubber, Mounting R/L NA01-28-380B
12 Seat, Spring R/L G030-28-013A
13 Cap, Strut R/L NA01-34-019
14 Arm Assy, Upper Control
w/ABS R NA23-34-200A
L NA23-34-250A
w/o ABS R/L NA01-34-200A
15 Bushing, Upper Control Arm¶
Front/Rear (2/Side) R/L NA01-34-480A
16 Seal, Dust¶ R/L NA01-34-548
¶Included w/Upper Control Arm Assy
17 Bolt, Upper Arm R/L NA01-34-112
18 Arm Assy, Lower Control
1990-94 R N066-34-310
L N066-34-360
1995-96
w/ABS
To 10-94 R N066-34-310
L N066-34-360
From 10-94 R N066-34-310
L N066-34-360
w/o ABS R N066-34-310
L N066-34-360
1997 R N066-34-310
L N066-34-360
Bushing, Lower Arm¶
19 Front R/L NA01-34-460A
20 Rear R/L NA01-34-490
21 Ball Joint Assy, Lower¶ R/L NA01-34-550B
22 Seal, Dust¶ (a) R/L H266-28-448
¶Included w/Lower Control Arm Assy
(a) Included w/Lower Ball Joint Assy
23 Bolt, Adjust (2/Side)
1990-93 R/L NA80-28-66ZD
1994-96
To 11-94¶ R/L NAY9-28-6AZ
From 11-94 R/L NA75-34-4A04
1997 R/L NA80-28-66ZD
¶Add'l Parts &/or Dealer Contact Required
24 Bar, Stabilizer
1990-93 NA01-34-151A
1994 NA80-34-151
1995-97
w/Sport Pkg NA75-34-151
w/o Sport Pkg NA80-34-151
25 Link, Stab Bar R/L NA01-34-170
26 Bracket, Stab Bar R/L FB01-34-155
27 Bushing, Stab Bar
w/Sport Pkg R/L NA75-34-156
w/o Sport Pkg R/L NA01-34-156A
28 Crossmember, Susp NA01-34-800E
FRONT STEERING LINKAGE/GEAR
MANUAL
1 Gear Assy NA01-32-110
2 Housing, Gear¶ NA01-32-120
3 Rack, Gear¶ NA01-32-119
4 Pinion¶ NA01-32-122
5 Rod, Tie¶ R/L NA01-32-240
6 Boot, Outer¶ R/L NA01-32-12X
7 Mount, Rubber¶ NA01-32-123
8 Bushing, Mounting¶ NA01-32-124
9 Bracket, Mounting¶ R BC51-32-133
L NA01-32-134
¶Included w/Gear Assy
10 End, Tie Rod R/L 8AN1-32-280
POWER
1990-95
1 Gear Assy NA02-32-110R-00
2 Housing, Gear¶ NA02-32-120
3 Rack, Gear¶ NA02-32-119
4 Pinion¶ NA02-32-380
5 Rod, Tie¶ R/L NA02-32-240
6 Boot, Outer¶ R NA02-32-125
L NA02-32-135
7 Pipe, Upper Fluid¶ NA02-32-481
8 Pipe, Lower Fluid¶ NA02-32-482
9 Pipe, Fluid Return¶ NA02-32-452
10 Bracket, Mounting¶ R/L NA02-32-134-3
11 Bushing, Mount¶ R/L NA02-32-124-3
¶Included w/Gear Assy
12 End, Tie Rod R/L 8AN1-32-280
POWER
1996-97
Illustration Located in Next Column
1 Gear Assy 96 NB38-32-110R-0B
97 NB38-32-110R-0B
2 Housing, Gear¶ NB38-32-120
3 Rack, Gear¶ NB38-32-119
4 Pinion¶ NB38-32-380
5 Seal, Shaft¶ NB38-32-126
6 Cover, Lever¶ NB38-32-112
7 Boot, Outer¶ R/L NB38-32-125
8 Holder, Strg Gear¶ NB38-32-154
9 Pipe, Upper Fluid¶ NB38-32-450
10 Pipe, Lower Fluid¶ NB39-32-450
11 Pipe, Fluid Return¶ 96 NA02-32-452
97 NB38-32-480
12 Bracket, Mounting¶ 96 R/L NA02-32-134-3
97 R NA02-32-134
L NB38-32-133
13 Bushing, Mount¶ R/L NA02-32-124-3
¶Included w/Gear Assy
14 Rod, Tie R/L NA02-32-240
15 End Assy, Tie Rod R/L 8AN1-32-280
16 Seal, Dust¶ R/L B455-32-279
¶Included w/Tie Rod End Assy
STEERING PUMP
1 Pump, Steering N002-32-600R-0F
2 Reservoir, Fluid 90-96 NA02-32-690A
97 NB11-32-690
Belt, Drive
1990-93 BPE8-15-909A
1994-97
w/ A/C BPE8-15-909A
w/o A/C B61P-15-907A
3 Hose, Pressure NA02-32-490C
4 Hose, Return NA02-32-684B
5 Hose, Cooler Inlet/Outlet NA02-32-682
6 Pipe, Strg Return/Cooler NA02-32-410A
7 Bracket, Pump NA02-32-680
STEERING WHEEL/COLUMN
WHEEL & TRIM
1990-93
1 Module, Air Bag-See Air Bag System Section
Pad, Center B461-32-800A
2 Wheel, Steering
Urethane NA01-32-980D
Leather NA02-32-980D
3 Cover, Column Upper NA01-60-220-00
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
225 madpl1_g01_
Page 225—April 22, 2004—13:33:48—Version Manufacturer
4 Cover, Column Lower NA01-60-230A-00
WHEEL & TRIM
1994-97
1 Wheel Assy, Steering
Urethane Wrap Wheel NA01-32-980D
Leather Wrapped Wheel NA02-32-980D
2 Parts Kit, Wheel¶ NA01-32-750
3 Bracket, Coupler¶ NA01-32-019
4 Cover, Wheel Front¶ NA01-32-049
¶Included w/Steering Wheel Assy
5 Module, Air Bag-See Air Bag System Section
COLUMN
1 Cover Assy, Column Upper NA01-60-220-00
2 Cap, Upper Cover¶ NA01-60-223-00
¶Included w/Column Upper Cover Assy
3 Cover, Column Lower NA01-60-230A-00
4 Lock Assy, Ignition
Man Trans 90-94 NA01-76-290F
95 NA75-76-290C
96-97 NA75-76-290C
Auto Trans 90-94 N022-76-290C
95 NA81-76-290C
96-97 NA81-76-290C
5 Switch, Ignition¶ D001-66-151A
¶Included w/Ignition Lock Assy
6 Switch Assy, Combination
1990-96
w/Air Bag
w/Cruise Control NB18-66-120A
w/o Cruise Control NB17-66-120A
w/o Air Bag
Base Model NA08-66-120C
1997
w/Cruise Control NB18-66-120A
w/o Cruise Control NB17-66-120A
7 Switch, Wiper¶ 97 NA02-66-135
8 Lever, Wiper¶
w/Cruise Control 97 NA02-66-128
w/o Cruise Control 97 NA01-66-128
9 Switch, Dimmer¶ 97 NA02-66-136
10 Switch, Headlamp¶ 97 NA02-66-122
11 Spring, Cancel Cam¶ 97 H384-66-121
12 Cam, Cancel¶ 97 NA02-66-126
13 Clockspring¶-See Air Bag System Section
¶Included w/Combination Switch Assy
14 Shaft
1990-93
w/Air Bag NA01-32-100B
w/o Air Bag NA07-32-100B
1994-96 NA75-32-100A
1997 NA75-32-100A
15 Cover, Joint 90-93 NA01-32-AZ1B
94-97 NA75-32-AZ1
16 Cover, Joint Lower
1990-96
USA-Serviced w/Joint Cover
Canada N.A.
1997 NA01-32-AZ1B
17 Shaft, Intermediate
1990-93
Man Strg NA01-32-090B
Pwr Strg NA02-32-090B
1994-97
Man Strg NA01-32-090D
Pwr Strg NA02-32-090D
18 Grommet NA01-32-217
19 Joint, Steering 90-93 NA01-32-850
94-96 NA01-32-850B
97 NA01-32-850B
ENGINE/TRANS
1 Pulley, Crankshaft
1990-93
To Eng 209446 B6S7-11-401A
From Eng 209446 B6S8-11-401
1994-97 BPD3-11-401A
2 Cover, Upr Front Timing B61P-10-510
3 Cover, Upr Ctr Timing B660-10-521B
4 Cover, Lwr Ctr Timing B660-10-501E
5 Pan, Eng Oil 90-93 B6Y0-10-400D
94-97 BPY0-10-400D
6 Seal, Front Eng Pan B6F4-10-427
7 Seal, Rear Eng Pan B6F4-10-428
Sealant, Eng Oil Pan 8527-77-739
8 Pan, Trans Oil BV02-19-836
9 Gasket, Trans Oil Pan BT28-19-835
ENGINE MOUNTS
1 Mount, Engine R/L NA01-39-040A
2 Bracket, Mount 90-93 R NA01-39-020
L NA01-39-030
94-97 R NA75-39-021
L NA75-39-030
3 Casing, Stopper 90-96 R/L NA01-39-041B
97 R/L NA01-39-041B
4 Support, Trans
1990-93
Man Trans NC10-39-710B
Auto Trans NC13-39-710A
1994-97
To 10-94
Man Trans NC10-39-710B
Auto Trans NA81-39-710A
From 10-94
Man Trans NC10-39-710B
Auto Trans NC13-39-710A
5 Bracket, Support
Man Trans NA01-39-730A
6 Spacer, Bolt NA01-39-723
7 Bolt, Outer Support (3) NA01-39-721A
8 Bolt, Inner Support (1) NA01-39-722
AIR CLEANER
1990-93
1 Cleaner Assy, Air B61P-13-320A
2 Cover, Air Cleaner¶ B61P-13-Z01
3 Element, Cleaner¶ B6S7-13-Z40-9U
¶Included w/Air Cleaner Assy
4 Brkt, Air Cleaner Mtg B61P-20-211
5 Duct, Air B61P-13-200C
6 Meter, Air Flow B6S7-13-210R-0A
7 Gasket, Meter B6S7-13-211A
8 Brkt, Mtg Air Flow Meter B61P-13-311B
9 Hose, Air Flow Meter B61P-13-221B
10 Resonator Assy
Man Trans B61P-13-330E
Auto Trans B64J-13-330
11 Joint, Rubber¶ B61P-13-245
12 Pipe, Air Intake-Serviced w/Resonator Assy
13 Hose, Resonator¶ B61P-13-206A
14 Hose, Air Intake Pipe¶ B61R-13-765
¶Included w/Resonator Assy
15 Hose, Ventilation B61P-13-742C
1994-97
1 Cleaner Assy, Air BPE8-13-320
2 Cover, Air Cleaner¶ BPE8-13-Z01
3 Element, Cleaner¶ B6S7-13-Z40-9U
4 Bushing, Mounting¶ (3) FE51-13-363
5 Spacer, Mounting¶ (3) FE51-13-329
6 Mount, Rubber¶ B61P-13-Z66
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
226 madpl1_g01_
Page 226—April 22, 2004—13:33:50—Version Manufacturer
AIR CLEANER Cont’d
1994-97 Cont’d
¶Included w/Air Cleaner Assy
7 Meter, Air Flow B6BF-13-215
8 Pipe, Air Intake BPE8-13-331B
9 Hose, Breather BPE8-13-765A
10 Duct Assy, Fresh Air BPE8-13-200
11 Bushing, Duct¶ S501-13-349
12 Spacer, Duct¶ SLA1-13-321
¶Included w/Fresh Air Duct Assy
13 Bracket, Cleaner B61P-20-211

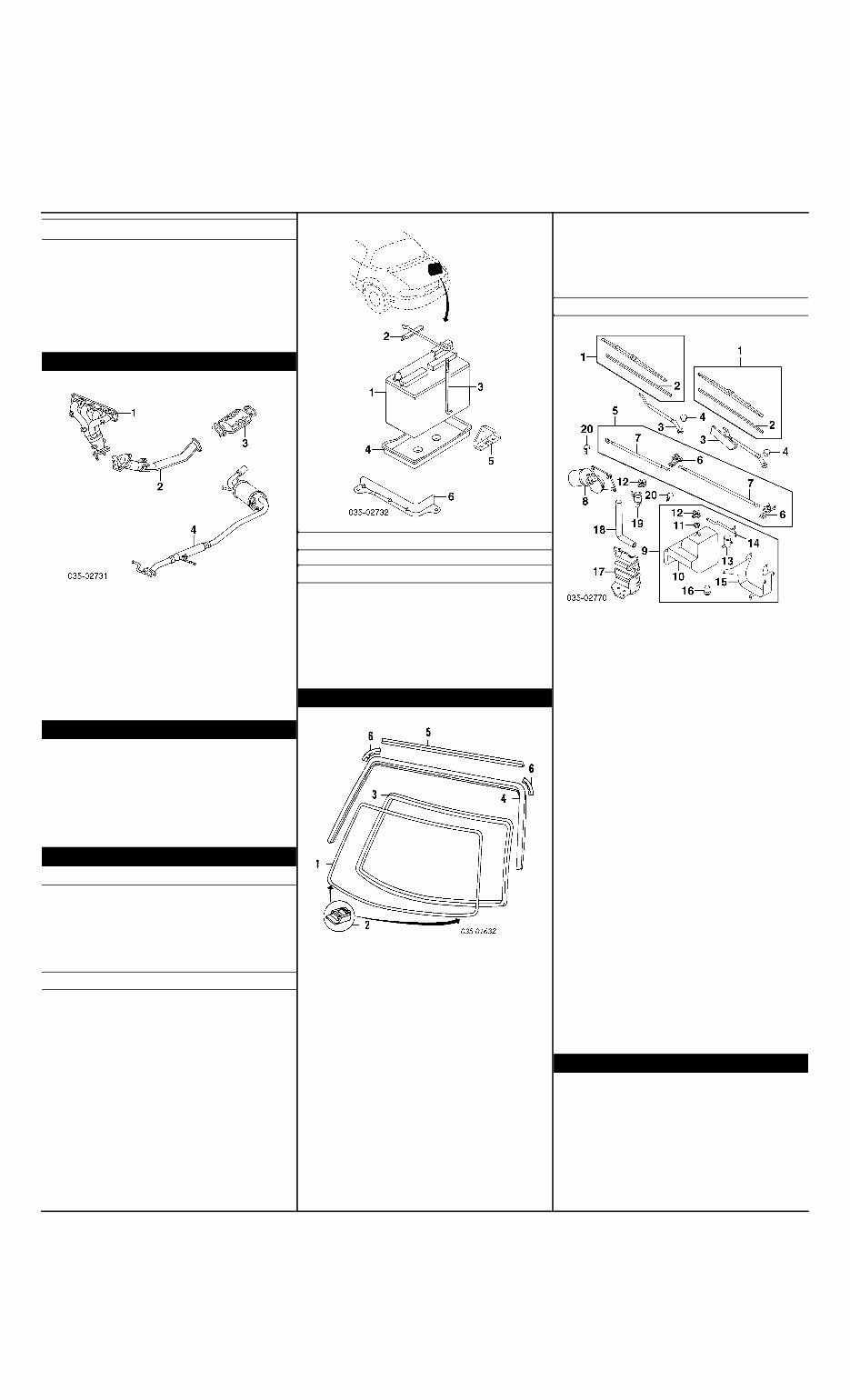

EXHAUST
1 Manifold, Exhaust 90-93 B61P-13-450B
94-97 BPE8-13-450
2 Pipe, Exhaust 90-93 B690-40-500B
94-97 BP56-40-500B
3 Converter, Catalytic 90-93 B6Y4-20-600A
94-95 BPE8-20-600
96-97 BPS1-20-600
4 Muffler
Man Trans 90-93 BP55-40-100D
94-95 BP55-40-100D
96-97 BPA5-40-100B
Auto Trans 90-93 B6B4-40-100F
94-95 BP59-40-100D
96-97 BPA6-40-100B
EMISSION SYSTEM
Valve, Three Way 90 FE65-18-741A
91-93 JE16-18-741
94-97 FS05-18-741
Canister, Vapor 90-93 F286-13-970A
94-97 JE16-13-970A
Brkt, Canister Mtg B61P-13-960A
Valve, Air
1990-93
Man Trans B61P-13-190A
Auto Trans B64J-13-190
1994-97 B6BF-20-660
ELECTRICAL
ALTERNATOR
Alternator¶
Man Trans 90-93 B61P-18-300R-00
94-97 BPE8-18-300R-00
Auto Trans 90-93 B64J-18-300R-00
94-97 BPE9-18-300R-00
¶Remanufactured Part. Contact Dealer for Core Charge & Exchange
Information
Belt, Drive 90-93 B6S7-18-381B-9U
94-97 B6BF-18-381-9U
BATTERY
Illustration Located in Next Column
1 Battery B6AC-18-520
2 Clamp, Battery
Std Duty NA01-56-03XA
Hvy Duty 8871-56-030A
3 Bolt, Battery Clamp
Std Duty 0259-54-292A
Hvy Duty W001-38-518A
4 Tray, Battery
Std Duty B095-56-032
Hvy Duty BG62-56-032A
5 Brkt, Battery Clamp NA01-56-032B
6 Brkt, Battery Tray NA01-56-033B
HORN
Horn SA59-66-790A
IGNITION
Module, Main Computer
1990-93
Man Trans B61P-18-881R
Auto Trans B64J-18-881R
1994 ZPC2-18-881R
1995 ZPC1-18-881R
1996 BPS1-18-881R-0B
1997 BP3A-18-881R-0B
Coil & Igniter 90-93 B61P-18-10XC
94-95 BPE8-18-10XA
96-97 BPE8-18-10XC
WINDSHIELD
1 Glass Assy, Windshield
Mazda (Tint) 90-95 NC11-63-900A
96 NB38-63-900A
97 NC11-63-900A
2 Spacer, Glass 90-93 R/L GJ21-50-891
94-97 R/L EA01-50-891A
3 Dam, Windshield
1990-94 NA01-50-894A
1995-96
Type 1 NA01-50-894A
Type 2 GA7B-50-899
1997 NA01-50-894A
4 Moulding, Reveal NA01-50-601A
5 Fastener, Moulding NA01-50-6B1
6 Protector, Moulding R/L NA01-50-6B2
Moulding, Inside Garnish
Upper NA01-68-090E
Side R NA01-68-160-00
L NA01-68-170-00
Mirror Assy, Rear View 90-95 NA01-69-220A
96-97 HG82-69-220A
Base, Mirror Mtg
1990-95¶ NA01-69-240
1996-97 (a) BC1C-69-240
¶Included w/Rear View Mirror Assy
(a) Included w/Windshield Glass Assy
Cover, Mirror Base GJ21-69-225-00
Visor, Sun
w/Air Bag 90-93 R NA01-69-270B-02
L NA01-69-320D-02
94 R NA01-69-270B-02
L NA75-69-320-02
95-96 R NB12-69-270A-02
L NB11-69-320B-02
97 R NB12-69-270A-02
L NB11-69-320B-02
w/o Air Bag R NA01-69-270B-02
L NA75-69-320-02
WIPER SYSTEM
1 Blade Assy, Wiper R NC11-67-330-9U
L BM95-67-330B
2 Insert, Blade¶ R/L D040-67-333-9U
¶Included w/Wiper Blade Assy
3 Arm, Wiper R NA02-67-321
L NA01-67-321
4 Cap, Arm R/L LA01-67-395C
5 Link Assy, Wiper NA01-67-360B
6 Pivot, Wiper Shaft¶ R/L NA01-67-363-4
7 Link, Pivot Drive¶ R NA01-67-361A
L NA01-67-362
¶Included w/Wiper Link Assy
8 Motor, Wiper
Std Duty NA01-67-340E
Hvy Duty (Cold Climate Spec) NA95-67-340B
9 Tank Assy, Fluid
w/ABS NA17-67-4T0A
w/o ABS
2.2 Liter Capacity NA01-67-480B
4.5 Liter Capacity NA04-67-480B
10 Tank, Fluid¶
w/ABS NA17-67-4T1
w/o ABS
2.2 Liter Capacity NA01-67-481
4.5 Liter Capacity NA04-67-481
11 Grommet, Tank¶ B002-51-814
12 Cap, Tank
w/ABS GJ21-67-483
w/o ABS¶ UB39-51-815
13 Pump, Washer¶
w/ABS LA01-67-482
w/o ABS S084-76-672
14 Brkt, Tank Mtg Upr¶
w/ABS NA18-67-521
15 Brkt, Tank Mtg Lwr
w/ABS¶ NA17-67-521
w/o ABS
2.2 Liter Capacity¶ NA01-67-520
4.5 Liter Capacity NA04-67-520
16 Switch, Level¶
w/ABS NA17-67-488
¶Included w/Fluid Tank Assy
17 Cover, Tank
w/ABS NA20-56-181A
18 Tube, Filler
w/ABS NA17-67-4C1
19 Neck, Filler
w/ABS NA17-67-4C2
20 Nozzle, Washer R/L DB02-67-510

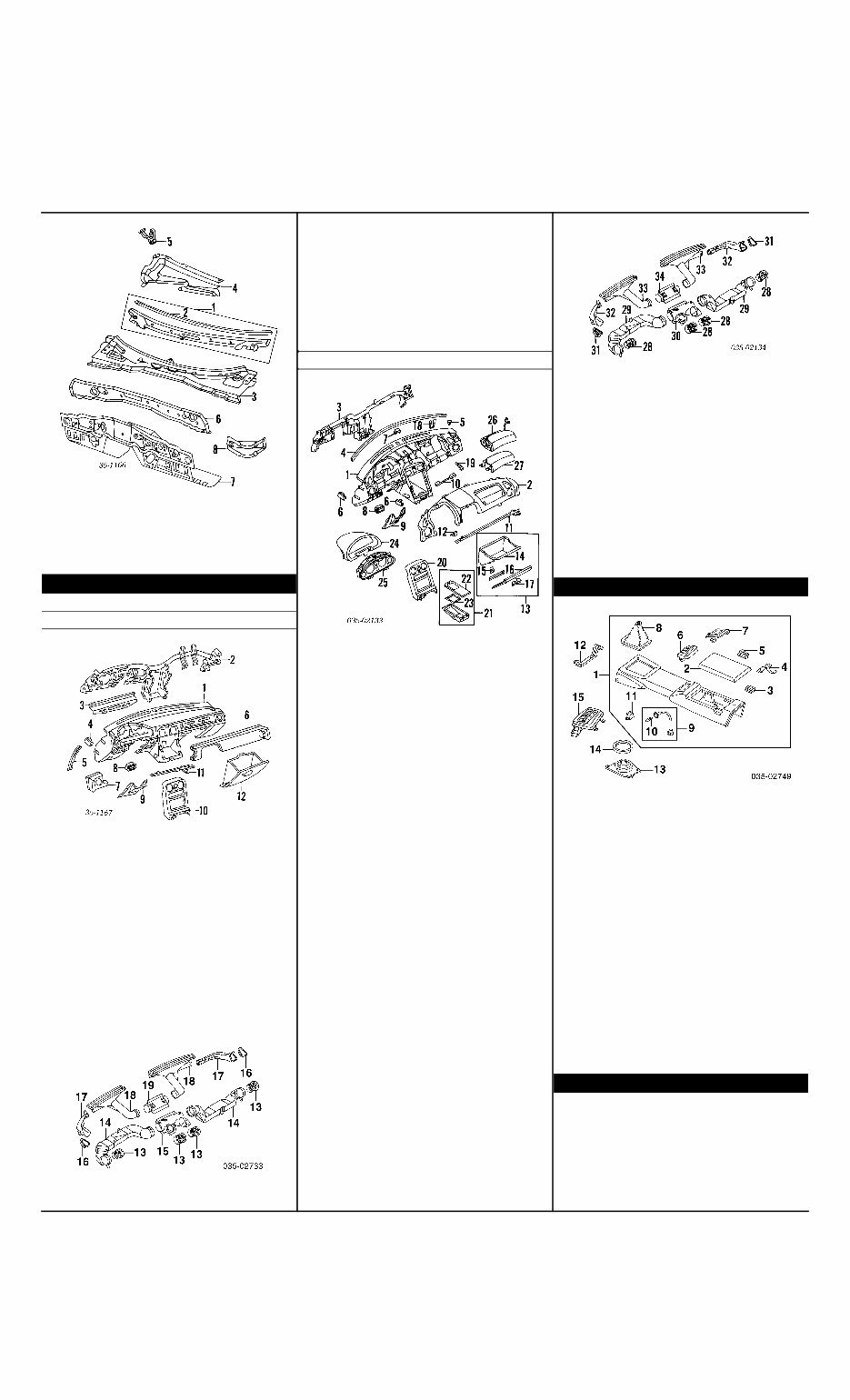

COWL & DASH
Illustration Located in Next Column
1 Grille Assy, Cowl Top NA01-50-790E
2 Moulding, Grille¶ NA01-50-792A
¶Included w/Cowl Top Grille Assy
3 Panel, Cowl Top 90-93 NA01-53-510E
94-96 NA75-53-510
97 NA75-53-510C
4 Cover, Cowl Panel NA01-56-35X
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
227 madpl1_g01_
Page 227—April 22, 2004—13:33:51—Version Manufacturer
5 Clip, Hood Support H260-56-724
6 Panel, Upper Dash 90 NA01-70-62YA
91-97 NA01-70-62YD
7 Panel, Lower Dash NA01-54-400J
Insulator, Dash 90 NA01-68-631A
91-93 NA01-68-631C
94-97 NA01-68-631D
8 Joint, Dash Panel R/L NA01-54-480B
INSTRUMENT PANEL
1990-93
1 Panel, Instrument
Black/Black NA01-60-401D-00
Black/Tan NA02-60-401-88
2 Frame NA01-60-420E
3 Bracket, Instrument Panel NA01-60-462A
4 Cover, Hole (6) NA01-64-912A-00
5 Cover, Side-Not Serviced
6 Pad, Safety
Black NA01-60-350-00
Tan NA01-60-350-88
7 Extension, Safety Pad
Black NA01-60-35X-00
Tan NA01-60-35X-88
8 Box, Panel NA01-55-241A-00
9 Cover, Strg Column
Black NA01-64-270E-00
Tan NA01-64-270E-88
10 Cover, Center NA01-55-210B-00
11 Bracket, Center NA01-60-430C
Brkt, Safety Pad NA01-60-435
12 Glove Box
Black NA01-64-030E-00
Tan NA01-64-030E-88
13 Nozzle, Vent (4) N001-64-81X-00
14 Duct, Front Outer R NA01-64-741
L NA01-64-841
15 Duct, Front Center NA01-61-161A
16 Grille, Side Defrost 90-91 R NA01-60-161-00
L NA01-60-171-00
92-93 R N002-60-161-00
L N002-60-171-00
17 Duct, Side Defrost R NA01-60-183
L NA01-60-193
18 Nozzle, Defrost R NA01-60-121A
L NA01-60-141
19 Connector, Defrost NA01-61-253
Radio¶
AM-FM 0000-81-9445-HB
AM-FM-Cassette 0000-81-5092
¶Order by Application
1994-97
1 Panel, Instrument
Black 94-96 NA75-60-401G-00
97 NA75-60-401G-00
Black/Tan NA75-60-401G-88
2 Pad, Impact NA75-60-350B-00
3 Support, Panel 94-96 NA75-60-420B
97 NB38-60-420A
4 Strip, Panel Front NA75-60-353
5 Clip, Trim (4) W201-68-AA5A-00
Plug, Bolt-Hole
6 Side (6)
Black NA01-64-912A-00
Tan NA01-64-912A-88
7 Center NA01-64-905A-00
8 Cover, Panel (3) NA01-55-241A-00
9 Panel, Under-Column
Black NA75-64-270C-00
Tan 94-96 NA75-64-270C-88
97 NA75-64-270C-88
10 Bracket, Pad NA01-60-463
11 Reinf, Pad 94 NA01-60-430E
95-97 NA01-60-430E
12 Bracket, Reinf Inner NA01-60-435
13 Glove Box Assy
Black 94-96 NA75-64-030D-00
97 NA75-64-030D-00
Tan 94-96 NA75-64-030F-88
97 NA75-64-030F-88
14 Box, Glove¶ NA75-64-161C-00
15 Hinge, Box¶ (2) NA75-64-03XA
16 Lid, Box Outer¶
Black 94-96 NA75-64-041C-00
97 NA75-64-041C-00
Tan 94-96 NA75-64-041C-88
97 NA75-64-041C-88
17 Lock, Glove Box¶
Black 94-96 BC1D-64-090C-02
97 BC5E-64-090E-00
Tan 94-96 BC1D-64-090-88
97 BC5E-64-090E-67
¶Included w/Glove Box Assy
18 Striker, Glove Box BC1D-64-101
19 Bumper, Door (2) B092-64-046
20 Panel, Center
w/CD Player NA75-55-210A-00
w/o CD Player NB38-55-210A-00
21 Ashtray Assy 94-96 NA01-64-617-00
97 NA01-64-610B-00
22 Holder, Ashtray¶ NA01-64-623-00
23 Lid, Ashtray¶ NA01-64-617-00
¶Included w/Ashtray Assy
24 Hood, Instrument
Black Panel NA75-55-420B-00
Tan Panel NA79-55-420B-00
25 Meter, Instrument
1994-96 NA75-55-430A
1997
USA
Type A NB13-55-430B
Type B NB39-55-430
Canada N.A.
26 Module, Passenger Air Bag
-See Air Bag System Section
27 Cover
w/o Air Bag (Canada) N.A.
28 Nozzle, Vent (4) N001-64-81X-00
29 Duct, Front Outer R NA75-64-741
L NA75-64-841
30 Duct, Front Center NA75-61-161A
31 Grille, Side Defrost
Black Panel R NA75-60-160A-00
L NA75-60-170A-00
Tan Panel R NA79-60-160A-00
L NA79-60-170A-00
32 Duct, Side Defrost R NA75-60-183
L NA75-60-193
33 Nozzle, Defrost 94-96 R NA75-60-121
L NA01-60-141
97 R NA75-60-121B
L NA01-60-141
34 Connector, Defrost NA01-61-253
Radio Unit¶
AM-FM-Cassette (a) 94-96 0000-81-191A-M5
97 0000-81-6690
AM-FM-Cassette-CD 94-96 NA54-66-9W0
97 NB41-66-9C0
¶Order by Application
(a) Add'l Parts &/or Dealer Contact Required
CENTER CONSOLE
1 Console Assy (b)
Man Trans
Man Windows N007-64-410D-00
Pwr Windows N008-64-410D-00
Auto Trans
Man Windows NA03-64-410E-00
Pwr Windows NA06-64-410F-00
(b) Order by Application
2 Lid, Console¶ NA01-64-450B-00
3 Lock, Lid¶ FB01-64-430
4 Stopper, Lid¶ NA01-64-452-00
5 Hinge, Lid¶ (2) NA01-64-45XA-00
6 Switch, Power Window¶ (a) NA01-66-350A-00
(a) Order by Application
7 Box, Coin¶ NA01-64-437-00
8 Boot, Shift¶
Man Trans NA01-64-331-00
9 Bulb & Socket Assy¶
Man Trans NA01-55-280
Auto Trans NA06-55-280
10 Bulb¶ (a) 0000-11-0074
(a) Included w/Bulb/Socket Assy
11 Case, Lamp¶ NA01-64-414
¶Included w/Console Assy
12 Bracket, Mounting NA01-64-416
13 Insulator, Shift Boot
Man Trans NA01-64-481B
14 Gasket, Boot
Man Trans H001-64-493
15 Indicator, Shift
Auto Trans NA81-64-350C

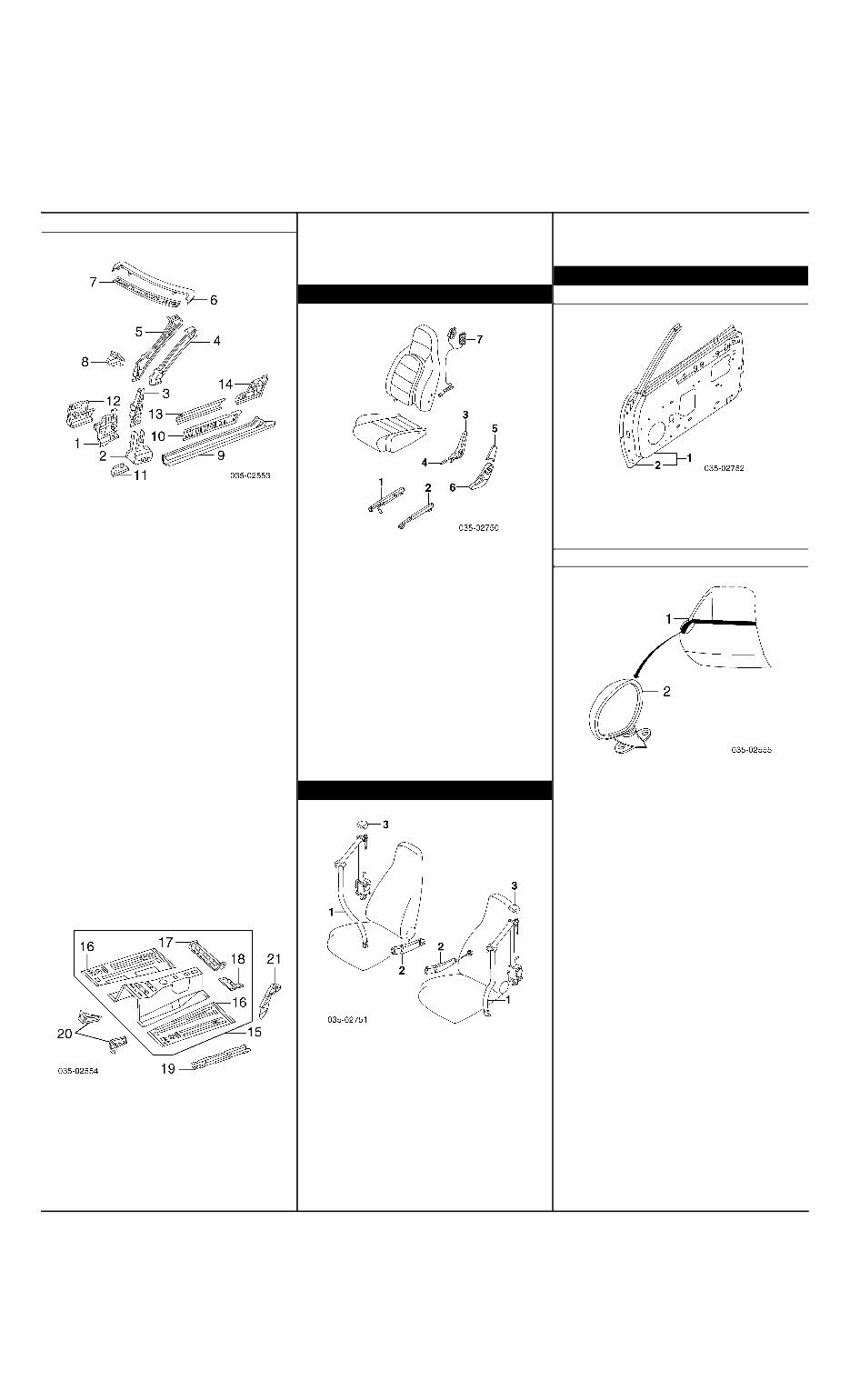

ROCKER/PILLARS/FLOOR
Illustration Located in Next Column
1 Panel, Cowl Side
Inner R NA01-70-020B
L NA01-71-020B
Panel, Cowl Trim
Black 90-93 R NA01-68-370-00
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
228 madpl1_g01_
Page 228—April 22, 2004—13:33:53—Version Manufacturer
ROCKER/PILLARS/FLOOR Cont’d
L NA01-68-390-00
94-97 R NA75-68-370-00
L NA01-68-390-00
Tan 90-93 R NA01-68-370-88
L NA01-68-390-88
94-97 R NA75-68-370-88
L NA01-68-390-88
Pillar, Lower Hinge
2 Outer R NA01-70-280B
L NA01-71-280C
3 Inner R NA01-70-230C
L NA01-71-230C
Pillar, Upper Hinge
4 Outer R NA01-70-210
L NA01-71-210
5 Inner R NA01-70-240D
L NA01-71-240D
6 Header, Front Upper NA01-70-650
7 Header, Front Lower 90-95 NA01-70-640
96-97 NB38-70-640A
8 Bracket, Inst Panel R NA01-70-071A
L NA01-71-071A
9 Panel, Rocker Outer R NA01-70-270B
L NA01-71-270B
10 Reinf, Rocker Panel R NA01-70-275
L NA01-71-275
11 Gusset, Front Rocker R NA01-70-274
L NA01-71-274
12 Panel, Front Rocker
Inner 90-93 R NA01-53-960D
L NA01-54-96XC
94-96 R NA75-53-960
L NA01-54-96XC
97 R NA01-53-960D
L NA01-54-96XC
Panel, Inner Rocker
13 Center 90-93 R/L N067-54-971A
94 R/L N067-54-971A
95-97 R/L N067-54-971A
14 Rear R NA01-53-980E
L N067-54-95ZA
Plate, Scuff
Plastic R NA01-68-711-00
L NA01-68-721-00
Stainless Steel 90-96 R NA02-68-710A
L NA02-68-720B
97 R NA02-68-710A
L NA02-68-720B
15 Pan Assy, Front Floor 90-95 NA01-53-600B
96-97 NB38-53-600A
16 Pan, Floor Side¶ 90-96 R NA01-53-602B
L NA01-54-610C
97 R NA01-53-602B
L NA01-54-610C
17 Crossmember¶ 90-96 R NA01-53-650
L NA01-54-650
97 R NA01-53-650A
L NA01-54-650A
18 Bracket, Seat¶ 90-96 R NA01-53-670
L NA01-54-670A
97 R NA01-53-670A
L NA01-54-670A
¶Included w/Front Floor Pan Assy
19 Extension, Floor Side R/L N053-53-660A
20 Brkt, Floor Front R NA01-53-482
L NA01-54-482
21 Gusset, Floor Rear R NA01-53-725A
L NA01-54-725A
SEAT
1 Adjuster, Seat Track Inr 90-96 R NA01-88-103A
L NA01-88-152A
97 R NA75-88-103
L NA01-88-152A
2 Adjuster, Seat Track Otr R NA01-88-102A
L NA01-88-153A
3 Recliner, Seat R NA01-88-101C
L NA01-88-151C
4 Knob, Recliner
Black R NA01-88-034-00
L NA01-88-084-00
Tan R NA01-88-034-88
L NA01-88-084-88
5 Cover, Upper Recliner
Black R NA01-88-036-00
L NA01-88-086-00
Tan R NA01-88-036-88
L NA01-88-086-88
6 Cover, Lower Recliner
Black R NA01-88-031A-00
L NA01-88-081A-00
Tan R NA01-88-031-88
L NA01-88-081A-00
7 Speaker, Radio (a) (b) R/L 0000-81-024A-01
(a) Located in Headrest
(b) Order by Application
SEAT BELTS
1 Belt, Retractor Side Seat
w/Air Bag
Black 90-93 R NA82-57-630-00
L NA01-57-690C-00
94-95 R NA75-57-630D-00
L NA76-57-630E-00
96-97 R NA75-57-630G-00
L NB38-57-630A-00
Tan 90-93 R NA82-57-630E-88
L NA01-57-690B-88
94-95 R NA75-57-630D-88
L NA76-57-630E-88
96-97 R NA75-57-630G-88
L NB38-57-630A-88
w/o Air Bag
Black R NA82-57-630-00
L NA07-57-690A-00
Tan R NA82-57-630E-88
L NA07-57-690-88
2 Belt, Buckle Side Seat 90-93 R NA01-57-620B-00
L NA01-57-680B-00
94-97 R NA75-57-620-00
L NA75-57-680A-00
3 Cover, Anchor R/L N026-57-631-00
FRONT DOOR
SHEET METAL
1 Shell Assy, Door (HSLA) R NAY4-58-02XB
L NAY4-59-02XB
2 Panel, Door Repair¶ 90-93 R NA01-58-030C
L NA01-59-030C
94-97 R NA52-58-030A
L NA52-59-030A
¶Included w/Door Shell Assy
EXTERIOR TRIM
1 W/Strip, Belt Outer R NA01-58-810E
L NA01-59-810E
2 Mirror, Rear View
1990-94
Black R NA05-69-120A-PZ
L NA05-69-180A-PZ
Blue R NA05-69-120-DU
L NA05-69-180A-DU
Green R NA05-69-120-HU
L NA05-69-180A-HU
Red R NA05-69-120A-SU
L NA05-69-180A-SU
Silver R NA05-69-120A-3L
L NA05-69-180-3L
White R NA05-69-120A-UC
L NA05-69-180A-UC
Yellow R NA05-69-120A-HZ
L NA05-69-180-HZ
1995-97
Manual
To 2-95
Brilliant Black R NA05-69-120A-PZ
L NA05-69-180A-PZ
Chaste White R NA05-69-120C-PT
L NA05-69-180C-PT
Classic Red R NA05-69-120C-SU
L NA05-69-180C-SU
Laguna Blue R NA05-69-120C-6W
L NA05-69-180C-6W
Neo Green R NA05-69-120B-HU
L NA05-69-180B-HU
From 2-95
Artvin Red R NA05-69-120C-18
L NA05-69-180C-18
Brilliant Black R NA05-69-120C-PZ
L NA05-69-180C-PZ
Chaste White R NA05-69-120C-PT
L NA05-69-180C-PT
Classic Red R NA05-69-120C-SU
L NA05-69-180C-SU
Laguna Blue R NA05-69-120C-6W
L NA05-69-180C-6W
Montego Blue R NA05-69-120C-M8
L NA05-69-180C-M8
Neo Green R NA05-69-120C-HU
L NA05-69-180C-HU
Satellite Blue R NA05-69-120C-A5
L NA05-69-180C-A5
Pwr Remote
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
229 madpl1_g01_
Page 229—April 22, 2004—13:33:55—Version Manufacturer
Artvin Red R NA52-69-120C-18
L NA52-69-180C-18
Brilliant Black R NA52-69-120C-PZ
L NA52-69-180C-PZ
Chaste White R NA52-69-120C-PT
L NA52-69-180C-PT
Classic Red R NA52-69-120C-SU
L NA52-69-180C-SU
Laguna Blue R NA52-69-120C-6W
L NA52-69-180C-6W
Montego Blue R NA52-69-120C-M8
L NA52-69-180C-M8
Neo Green R NA52-69-120C-HU
L NA52-69-180C-HU
Satellite Blue R NA52-69-120C-A5
L NA52-69-180C-A5

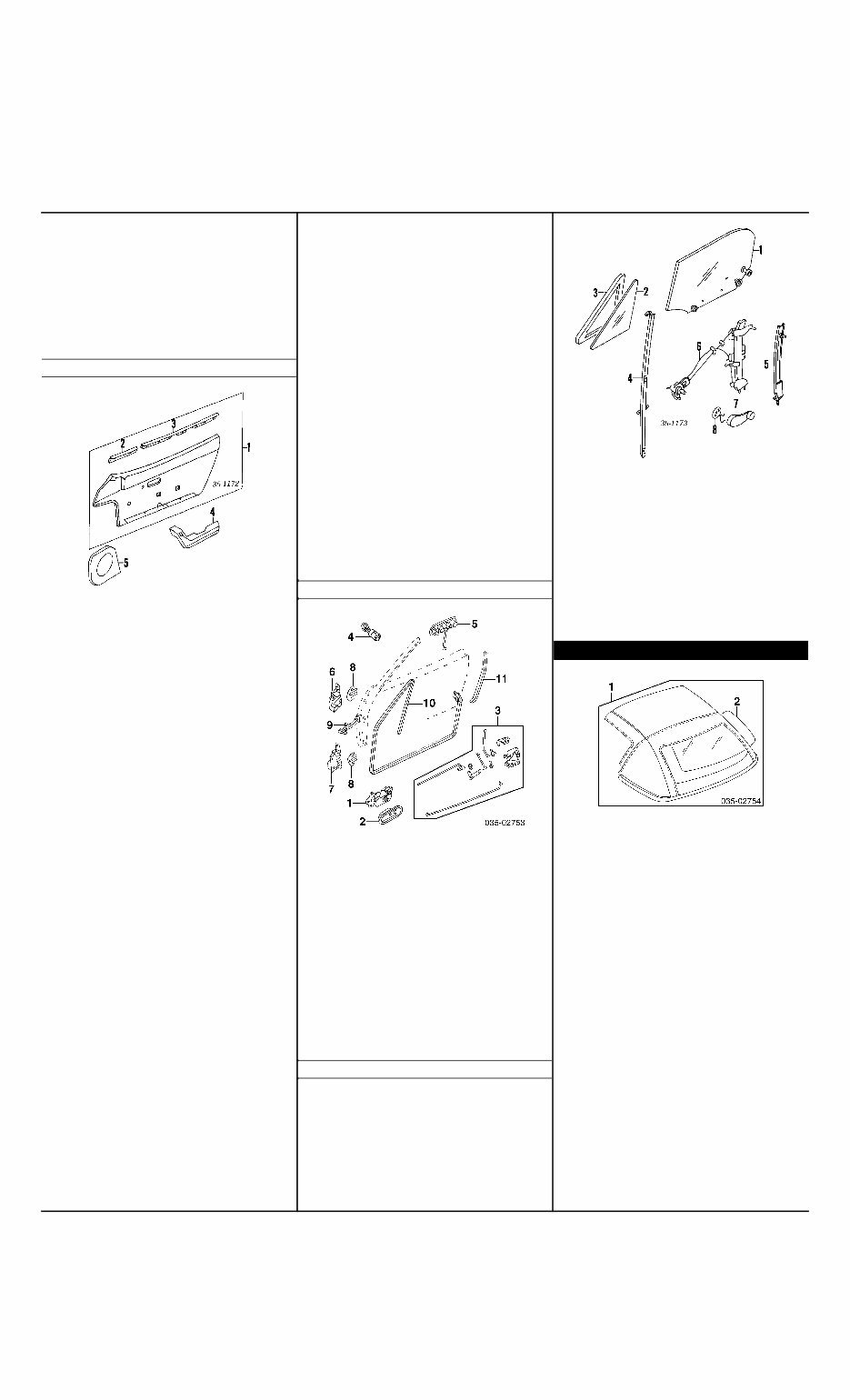

INTERIOR TRIM
1 Panel Assy, Trim
1990-93
Man Windows
Black R NA01-68-420C-00
L NA01-68-450C-00
Black/Tan R NA01-68-420C-88
L NA01-68-450C-88
Pwr Windows
Black R N019-68-420A-00
L N019-68-450A-00
Black/Tan R N019-68-420A-88
L N019-68-450A-88
1994
Pwr Windows
w/Sensory Sound
Plastic Kickplate
Black R N031-68-420C-00
L N031-68-450B-00
Tan R N031-68-420B-88
L N031-68-450B-88
Stainless Steel Kickplate
Black R N021-68-420C-00
L N021-68-450C-00
Tan R N021-68-420C-00
L N021-68-450E-88
w/o Sensory Sound
Plastic Kickplate
Black R N030-68-420D-00
L N030-68-450D-00
Tan R N030-68-420C-88
L N030-68-450B-88
Stainless Steel Kickplate
Black R N026-68-420B-00
L N026-68-450C-00
Tan R N026-68-420B-88
L N026-68-450B-88
Man Windows
w/Sensory Sound
Black R N029-68-420B-00
L N029-68-450B-00
Tan R N029-68-420B-88
L N029-68-450B-88
w/o Sensory Sound
Black R N028-68-420C-00
L N028-68-450C-00
Tan R N028-68-420B-88
L N028-68-450B-88
1995-96¶
Man Windows
w/Sensory Sound R N036-68-420A-00
L N036-68-450A-00
w/o Sensory Sound R N028-68-420C-00
L N028-68-450C-00
Pwr Windows
w/Sensory Sound R N035-68-420A-00
L N035-68-450A-00
w/o Sensory Sound R N034-68-420-00
L N034-68-450-00
1997
Man Windows
w/CD Player R NB86-68-420-00
L NB86-68-450-00
w/o CD Player R NB84-68-420-00
L NB84-68-450-00
Pwr Windows
w/CD Player
Black R NB87-68-420-00
L NB87-68-450-00
Tan R NB87-68-420D-80
L NB87-68-450D-80
w/o CD Player
Black R NB85-68-420-00
L NB85-68-450D-00
Tan R NB85-68-420-80
L NB85-68-450-80
¶Order by Application
2 W/Strip, Front Inner Belt¶ R/L NA02-58-821
3 W/Strip, Rear Inner Belt¶ R/L NA01-58-821A
¶Included w/Trim Panel Assy
4 Armrest/Grip
1990-93
Black R BF70-69-370C-00
L BF70-69-390C-00
Tan R BF70-69-370C-88
L BF70-69-390C-88
1994-95 R N026-69-D70-00
L N026-69-D90-00
1996-97
Black R BF70-69-370C-00
L BF70-69-390C-00
Tan R BF70-69-370C-88
L BF70-69-390C-88
5 Grille, Speaker
1990-93
Black R NA01-68-4H0-00
L NA01-68-4W0-00
Tan R NA01-68-4H0-88
L NA01-68-4W0-88
1994-96¶ R N020-68-4E6
L N020-68-4V6
1997
Man Windows R/L A004-68-5H0-00
Pwr Windows
w/CD Player R/L BR72-68-3S0A-60
w/o CD Player R/L A004-68-5H0-00
¶Order by Application
Speaker, Radio
1990-93 R/L 0000-81-084A-01
1994-96 R/L 0000-81-7501
1997 R/L NB42-66-960
HARDWARE
1 Handle, Inside 90-96 R NA01-58-330A-00
L NA01-59-330C-00
97 R NA01-58-330C-00
L NA01-59-330C-00
2 Cover, Inside Handle R/L NA01-58-303-00
3 Latch, Door R NA01-58-310B
L NA01-59-310B
Striker, Door-See Quarter Panel Section
4 Cylinder Kit, Lock 90-94 R NA01-76-210E
L N001-76-220E
95 R N001-76-210E
L N001-76-220E
96-97 R N001-76-210E
L N001-76-220E
5 Handle, Outside R NA01-58-410D
L NA01-59-410D
6 Hinge, Upper R B156-59-240
L B156-58-240
7 Hinge, Lower R B156-58-240
L B156-59-240
8 Shim, Hinge (2/Side) R/L B092-58-201A
9 Check, Door R/L NA01-58-270B
10 Weatherstrip, Door R NA01-58-760J
L NA01-59-760J
11 Welt, Seam R/L NA01-68-911-00
GLASS & PARTS
Illustration Located in Next Column
1 Glass, Front Door
Mazda (Tint) 90-96 R NA01-58-510
L NB39-59-510
97 R NB39-58-510
L NB39-59-510
2 Glass, Vent
Mazda (Tint) 90-96 R NB39-58-661A
L NA01-59-661
97 R NB39-58-661A
L NB39-59-661A
3 W/Strip, Vent Glass R NA01-58-651B
L NA01-59-651B
4 Channel, Division R NA01-58-604B
L NA01-59-604B
5 Guide, Glass R NA01-58-603D
L NA01-59-603D
6 Regulator, Window
Manual R NA01-58-560J
L NA01-59-560J
Power R NA02-58-560L
L NA02-59-560L
Motor, Regulator-Serviced w/Pwr Window Regulator
7 Handle, Regulator 90-93 R/L B092-58-580-00
94-97 R/L S084-58-580A-00
8 Escutcheon, Handle R/L B001-58-582A-00
CONVERTIBLE TOP
1 Cover Assy, Top Outer
Black NA01-R1-210M
Blue N.A.
Tan NA02-R1-210F
2 Window, Back¶
Black NAY1-R1-240G
Blue N0Y5-R1-240A
Tan NAY2-R1-240D
¶Included w/Top Outer Cover Assy
Cloth, Repair Top
Black NAY1-R1-211
Blue N0Y5-R1-211
Tan NAY2-R1-211
Illustration Located in Next Column
3 Cover, Top Inner NA01-R1-96XD
4 Frame, Cover NA01-R1-100E
5 Weatherstrip, Header NA01-R1-711B
6 Handle, Top NA01-R1-331
7 Latch, Top R NA01-R1-310L
L NA01-R1-320L
8 Striker, Latch R NA01-R1-361H
L NA01-R1-371H
9 Hook, Upper Pin R/L NA01-R1-38XB
10 Base, Pin Hook R/L FB67-R1-91YC
11 Plate Set, Front NA01-R1-291A
12 Plate Set, Rear Center NA01-R1-581D
13 Plate Set, Rear Outer R NA01-R1-582B
L NA01-R1-592B
14 Welt, Seam NA01-R1-281
15 W/Strip, Frame Front R NA01-R1-461
L NA01-R1-471
16 W/Strip, Frame Center R NA01-R1-462
L NA01-R1-472
17 W/Strip, Frame Rear R NA01-R1-463
L NA01-R1-473
Retainer, Weatherstrip
18 Front R NA01-R1-411C
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
$40.99
1990-1997 Mazda MX-5 Miata Parts Catalog
Viewed 44 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
$40.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
This manual provides a comprehensive parts list with exploded views and part numbers for the MX5 / Miata, covering model years 1990 to 1997. It is an invaluable resource for both professional mechanics and DIY enthusiasts, offering essential information for repairing collision damage.
