00-004/16 - MULTI-MODEL - WARNINGS AND CAUTIONS FOR CUSTOMERS CHANGING A FLAT TIRE SI111153 TSB NUMBER: 00-004/16 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS 2000-2003 Protege 2000-2002 626 2000-2002 Millenia 2000-2006 MPV 2011-2017 Mazda2 2004-2017 Mazda3 2006-2014 Mazda5 2003-2017 Mazda6 2016-2017 CX-3 2013-2017 CX-5 2007-2012 CX-7 2007-2017 CX-9 DESCRIPTION Raising a vehicle with a jack can be dangerous if not done properly. The vehicle can slip off the jack and seriously injure someone. In this service information, some important warnings and cautions have been taken from the Owner’s Manual. For Mazda customers who have questions about safely lifting their vehicle to change a ﬂat tire or to install snow chains, please provide a copy of the attached handout for them. Also, be sure to always direct customers to follow the directions in the Owner's Manual. CUSTOMER HANDOUT: Before Lifting Your Vehicle With The Jack...

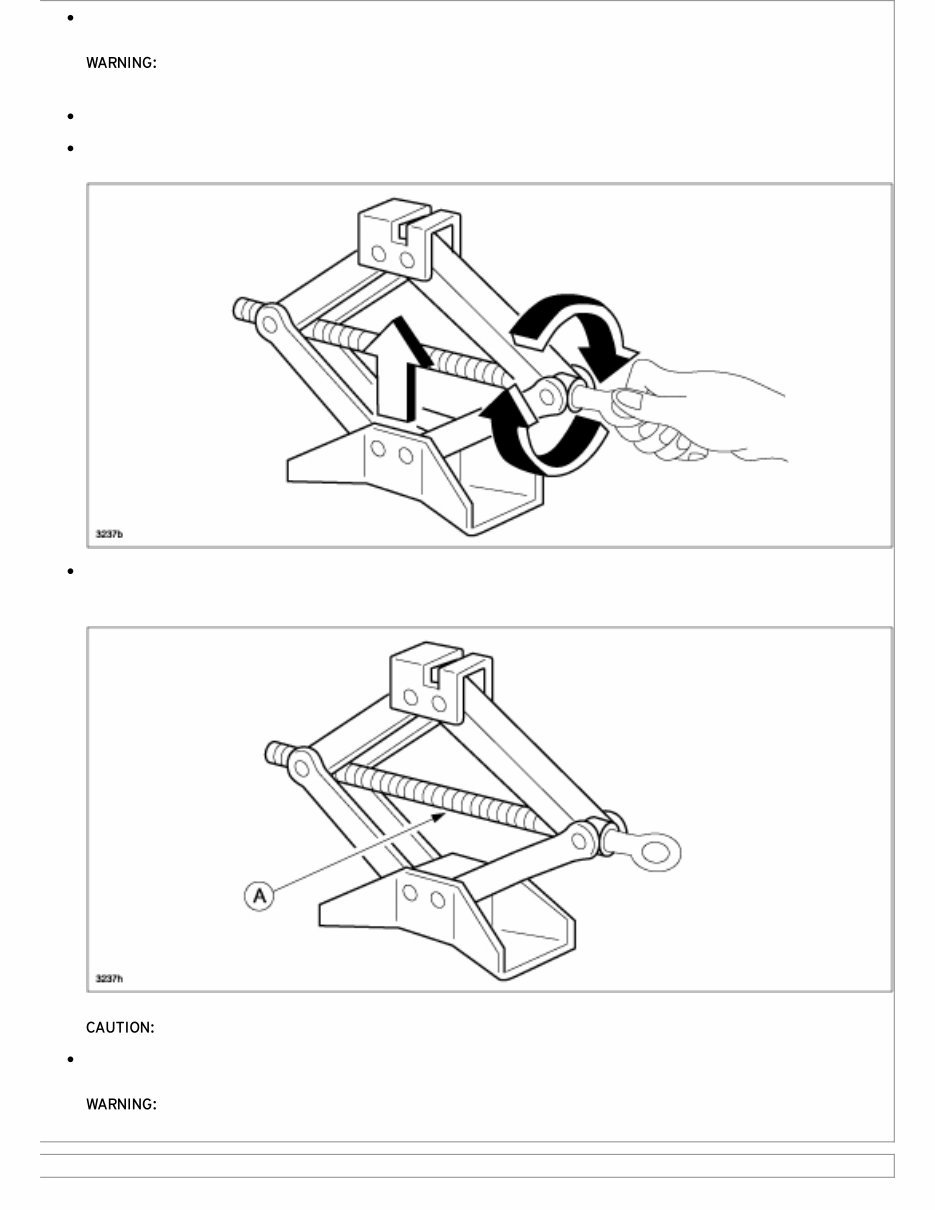

Use only the jack provided with your Mazda vehicle. WARNING: Using a jack that is not designed for your Mazda is dangerous. The vehicle could slip off the jack and seriously injure someone. Only use the jack for tire replacement and snow chain removal/installation. DO NOT use the jack for any other purposes. Make sure the jack screw threads are lubricated and the jack can be easily turned by hand. If the jack cannot be easily turned by hand, remove all dirt, debris or corrosion from the threads (A), then lubricate the threads with WD-40 (or equivalent lubrication). CAUTION: Poor lubrication could result in damaged threads and could cause the vehicle to fall off the jack. NEVER allow anyone inside the vehicle when it is supported by the jack. WARNING: Allowing someone to remain in the vehicle supported by a jack is dangerous. If an occupant moves around in the vehicle, the vehicle could fall of the jack resulting in damage and/or serious injury. 1. Pull the vehicle off the road and onto a ﬁrm level surface.

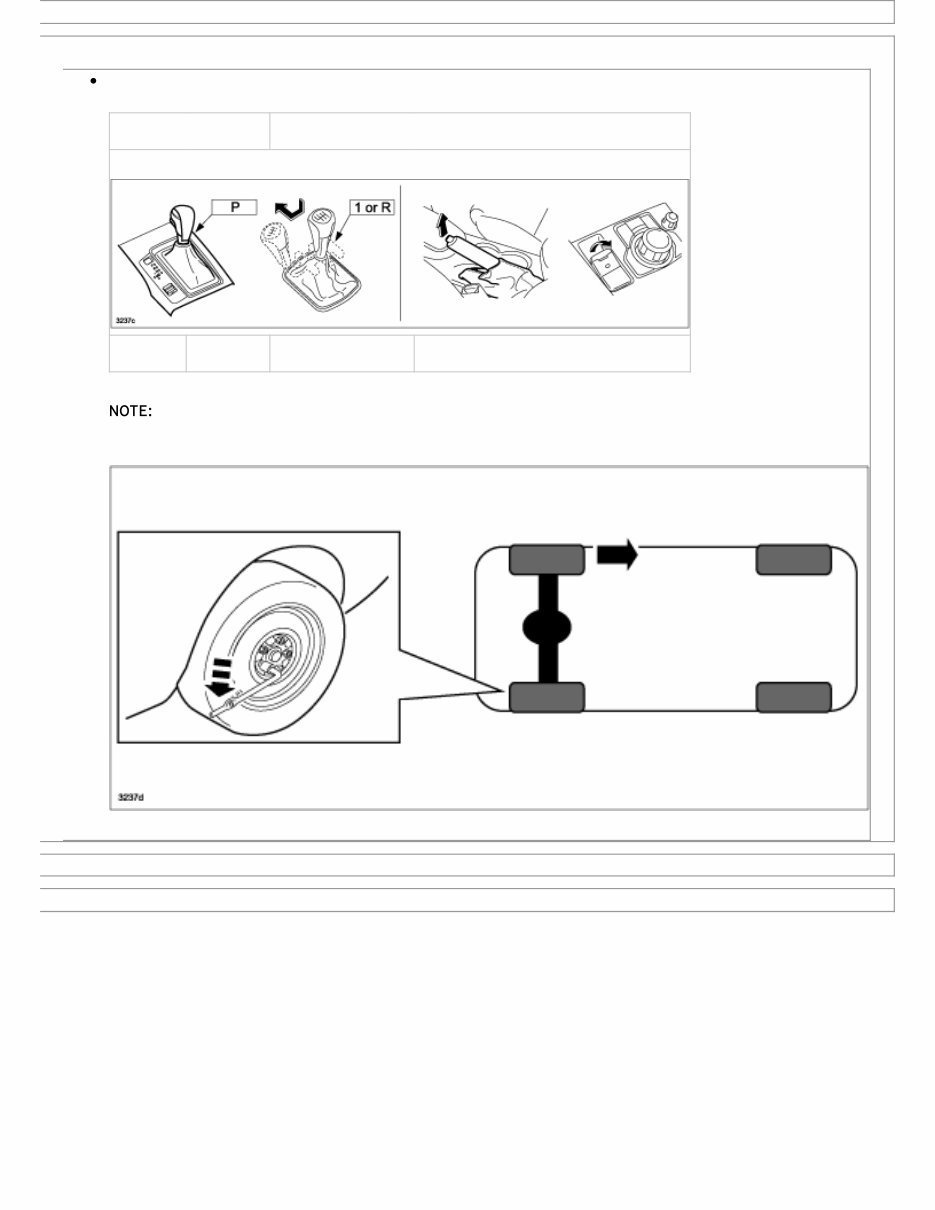

2. Press the brake pedal to hold the vehicle in place. 3. Select the “P” position for automatic transmission (1st gear or R for manual transmission) and apply the parking brake. Transmission Parking Brake A/T M/T Hand Brake Electric Parking Brake NOTE: Firmly setting the parking brake is important because the differential can move freely, even if the transmission position is set to P, 1st gear or R. 4. Turn off the engine. 5. Ensure that all occupants exit the vehicle.

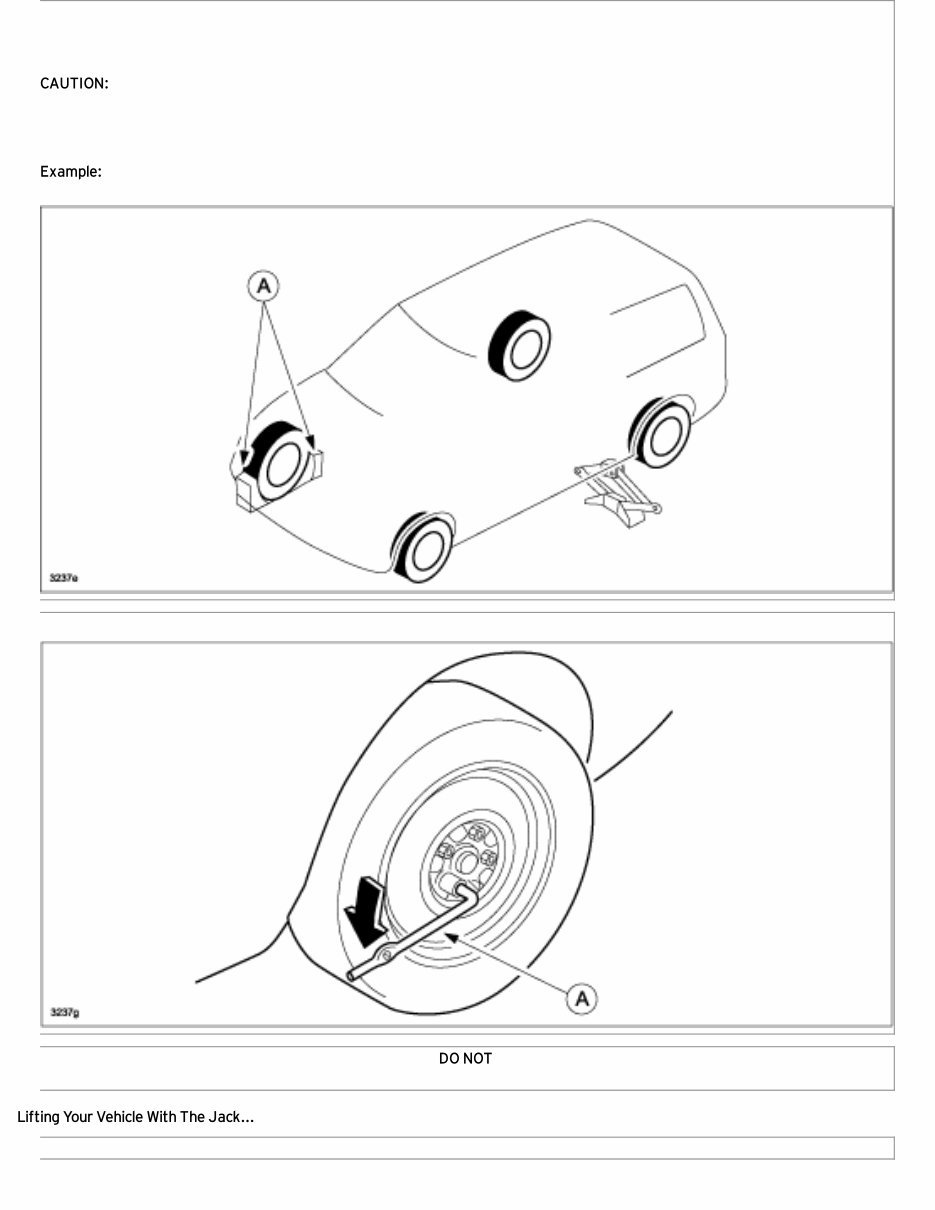

6. Block the front and rear sides of the wheel (with bricks, large rocks, or suitable pieces of wood) that is diagonally opposite the ﬂat tire (as shown below). CAUTION: Loosening or tightening a wheel lug-nut with the lug-nut wrench may cause the vehicle to roll, so blocking a wheel is important. Example: If the left-rear tire is ﬂat, block the right-front wheel (A). 7. Use the lug-nut wrench (A) to break the lug-nuts loose. 8. Turn the lug-nuts counter-clockwise one (1) turn each, but DO NOT remove any of them until the wheel has been raised off the ground with the jack. Lifting Your Vehicle With The Jack... 1. Remove the jack and spare tire from the trunk or rear cargo area of your vehicle.

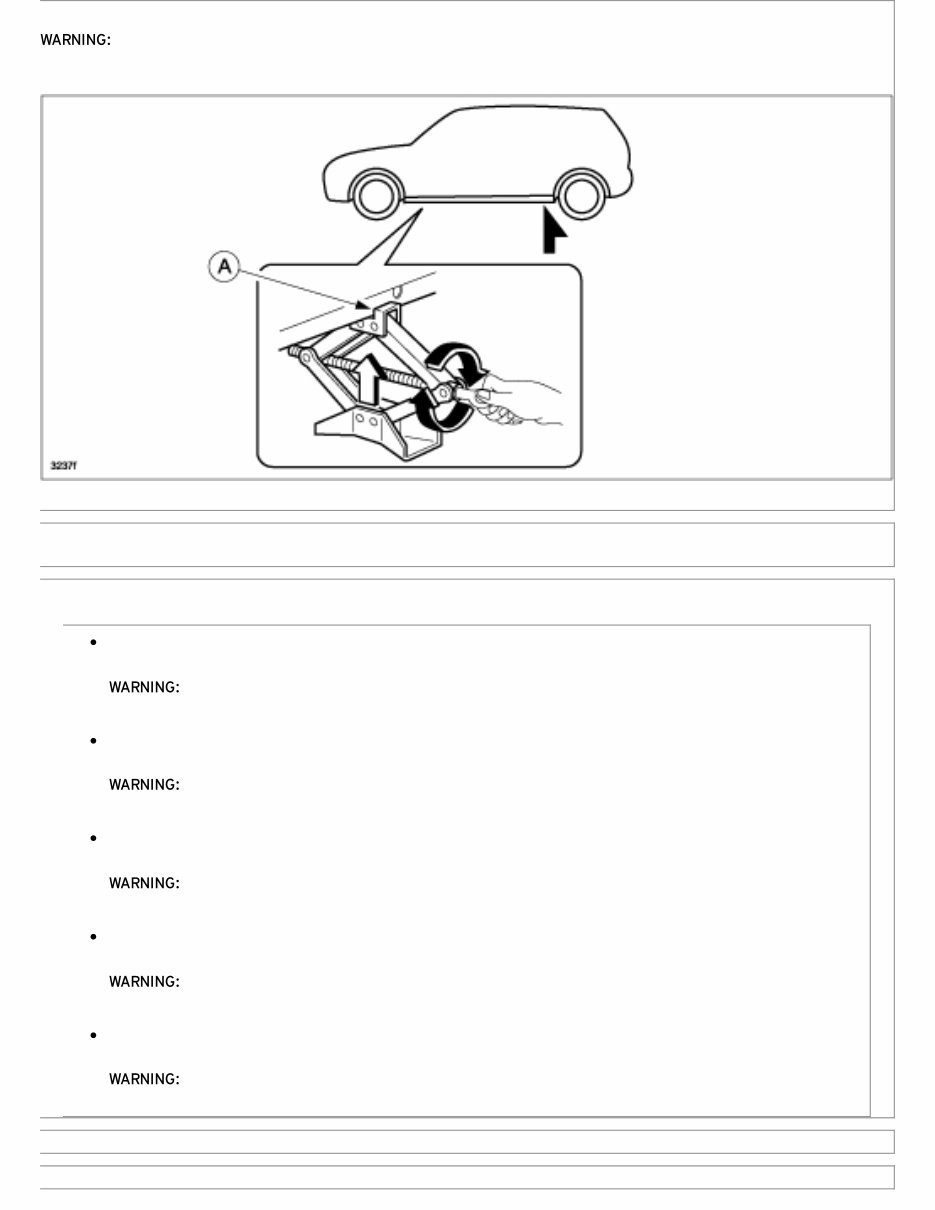

2. Position the jack under the vehicle in only the front or rear jacking positions that are recommended in the Owner’s Manual. WARNING: Attempting to lift the vehicle in positions other than those recommended in the Owner's Manual is dangerous. The vehicle could slip off the jack and could result in serious injury or death. 3. Raise the jack head gradually by rotating the jack screw with your hand (as shown above) until the “notch” in the jack head is properly aligned with the “lip” (A) on the bottom of the vehicle body. 4. Use the lug-nut wrench to continue turning the jack screw clockwise to raise the vehicle. DO NOT lift the vehicle up higher than necessary to remove the wheel assembly. WARNING: Lifting the vehicle higher than necessary is dangerous as it could destabilize the vehicle resulting in an accident. NEVER place any objects on or under the jack. WARNING: Placing objects on or under the jack is dangerous as it could deform the vehicle body or the vehicle could fall off the jack resulting in an accident. NEVER move under the vehicle while it is being lifted up. WARNING: Moving under the vehicle while it is lifted up is dangerous as it could result in serious injury or death if the vehicle were to fall off the jack. DO NOT start the engine or shake the vehicle while the vehicle is lifted. WARNING: Starting the engine or shaking the vehicle while it is lifted is dangerous as it could cause the vehicle to fall off the jack resulting in an accident. DO NOT open or close the doors while the vehicle is lifted. WARNING: Opening or closing doors while the vehicle is lifted up is dangerous as it could cause the vehicle to fall off the jack resulting in an accident. 5. Once the wheel is raised slightly off the ground, remove the pre-loosened lug-nuts by hand. 6. Remove the ﬂat tire and replace it with the spare tire.

7. Reinstall the lug-nuts and hand tighten them all. 8. Lower the vehicle slightly by turning the jack screw counter-clockwise until the tire touches the ground. 9. Once the tire touches the ground, use the lug-nut wrench to tighten all the lug-nuts (clockwise) in a criss-cross pattern. 10. Once the lug nuts are fully tightened, completely lower the vehicle to the ground, then remove the jack and the wheel blocks. 11. Place the ﬂat tire and jack in the trunk or rear cargo area of your vehicle.

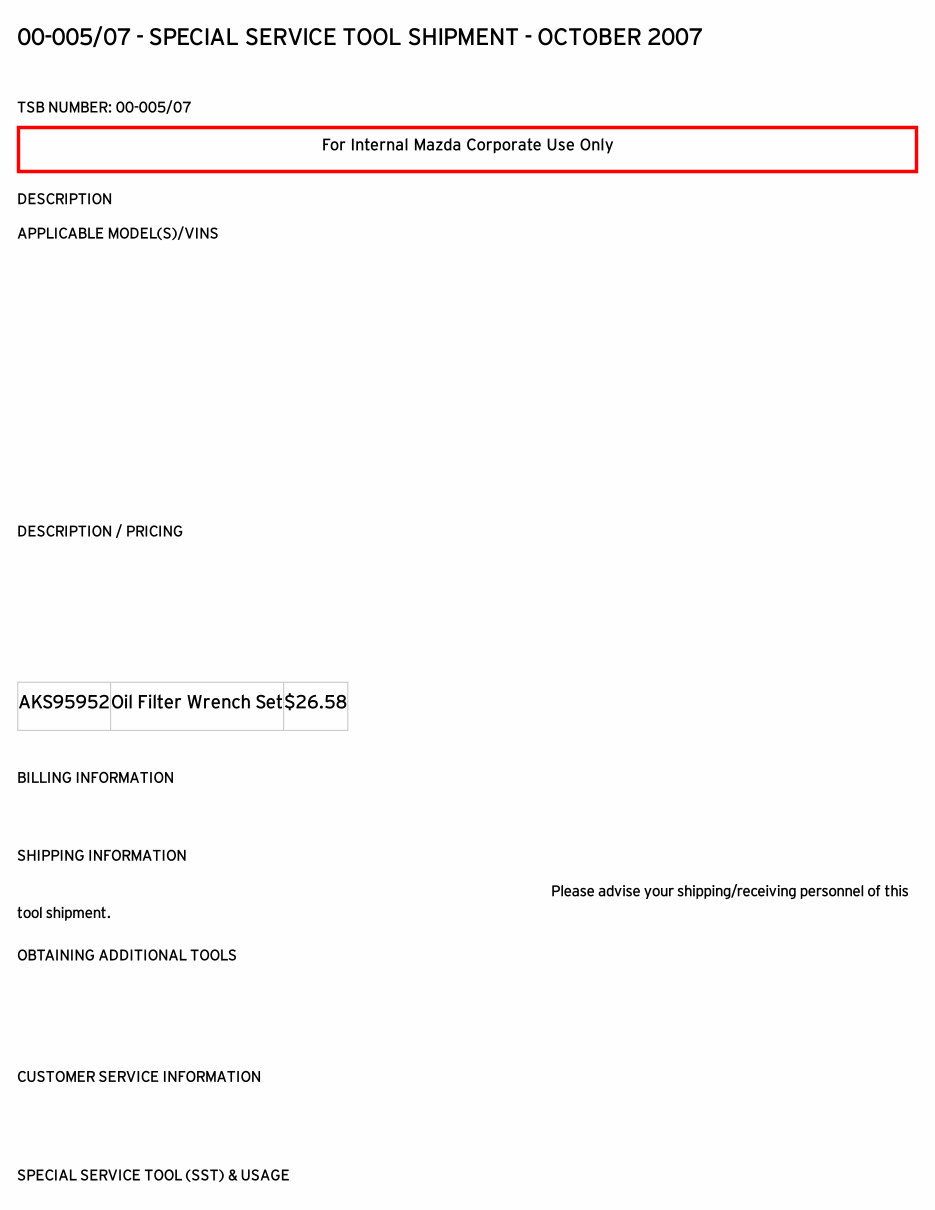

00-005/07 - SPECIAL SERVICE TOOL SHIPMENT - OCTOBER 2007 SI108531 TSB NUMBER: 00-005/07 For Internal Mazda Corporate Use Only DESCRIPTION APPLICABLE MODEL(S)/VINS 2002-2006 MPV 2004-2008 Mazda3 2003-2008 Mazda6 2006-2008 MX-5 2005-2006 & 2008 Tribute 2000-2008 B-Series Truck DESCRIPTION / PRICING In support of current models, Mazda will ship to all dealers one (1) new Special Service Tool (SST). The SST will be shipped automatically by Mazda’s tool vendor, America Kowa Seiki (AKS) during October 2007. The following SST is the latest addition to the Mazda Required Tool (MRT) list: AKS95952 Oil Filter Wrench Set $26.58 BILLING INFORMATION Tool(s) will be automatically invoiced to your dealer parts account statement. Do not send your payment to America Kowa Seiki. SHIPPING INFORMATION Tool(s) will be shipped via UPS ground to your service department October 2007. Please advise your shipping/receiving personnel of this tool shipment. OBTAINING ADDITIONAL TOOLS To order additional SSTs, submit orders using Mazda Tool and Equipment website. You can logon to Mazda Tool and Equipment website at: http://dealers.mazdausa.com CUSTOMER SERVICE INFORMATION For warranty or product information call America Kowa Seiki (AKS) at 877-768-6657. Customer service representatives are available from 7:30 AM until 7:00 PM CST, Monday through Friday. SPECIAL SERVICE TOOL (SST) & USAGE

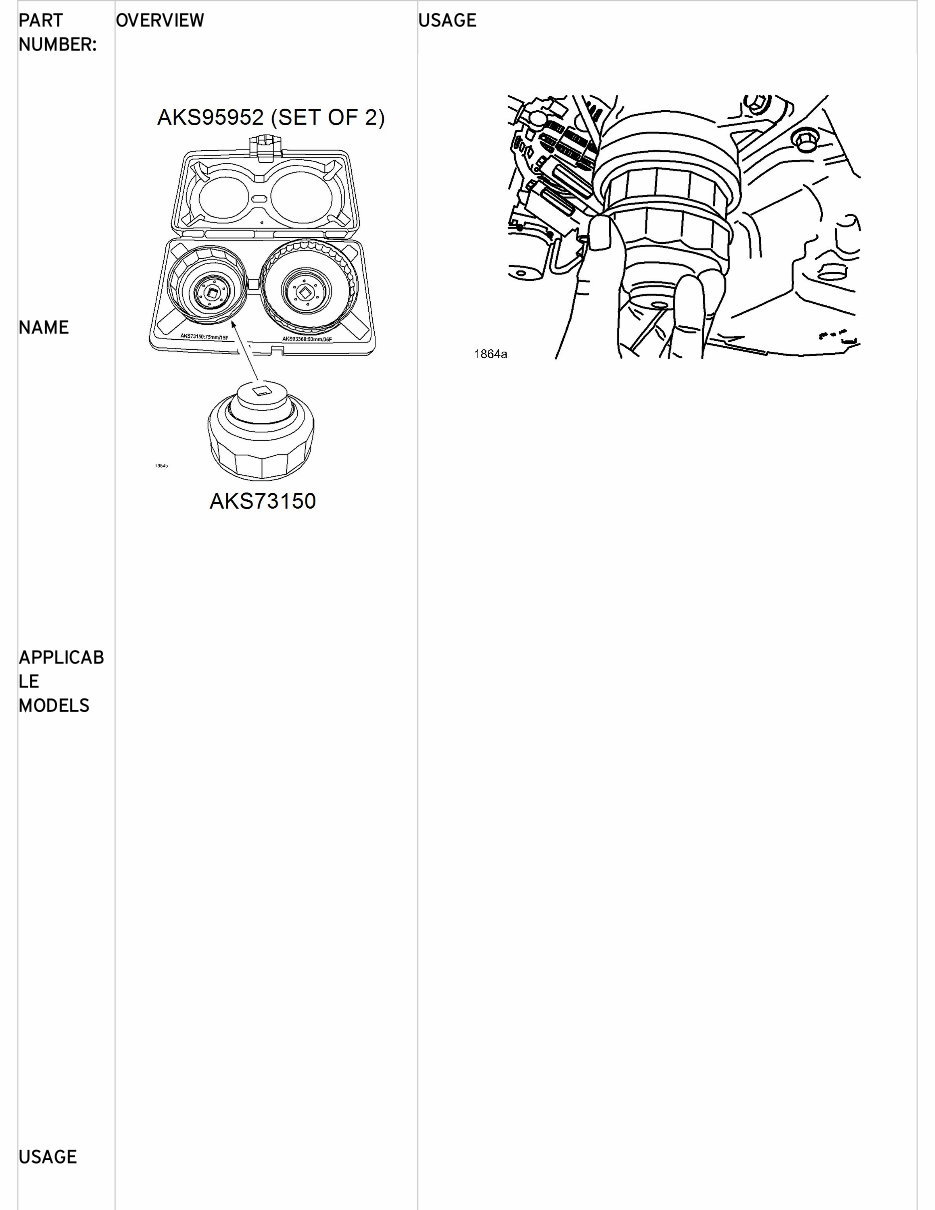

PART NUMBER: Oil Filter Wrench Set AKS95952 (Set of 2) NAME: Oil Filter Wrench AKS73150 (75mm x 15 ﬂutes) (1 of 2) APPLICAB LE MODELS: 2005-06 & 08 Tribute (2.3L) 2004-08 Mazda3 (2.0L) 2006-08 MX-5 (2.0L) 2000-08 B-Series Truck (2.3L) USAGE: OVERVIEW: USAGE:

For use with Mazda oil ﬁlters.
