2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 FOREWORD OUTLINE  The OBD (on-board diagnostic) system has the following functions:  Malfunction detection function: Detects malfunctions in the air bag system and outputs DTCs.  Data monitor function: Reads out specific input/output signals and the system status.  Diagnostic DTCs can be read/cleared using the M-MDS. FLOWCHART  Use the following flowchart to verify the cause of the trouble. NOTE:  While performing the inspection of the past malfunction code, the applicable DTCs may be added to memory by removing or disconnecting the related parts. Inspect only the DTCs that were indicated before inspecting.  When DTCs of the present malfunction are no longer output after present or past malfunctions or both have been repaired, be sure to perform past malfunction display cancellation to prevent repair of malfunctions that have already been repaired. 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net

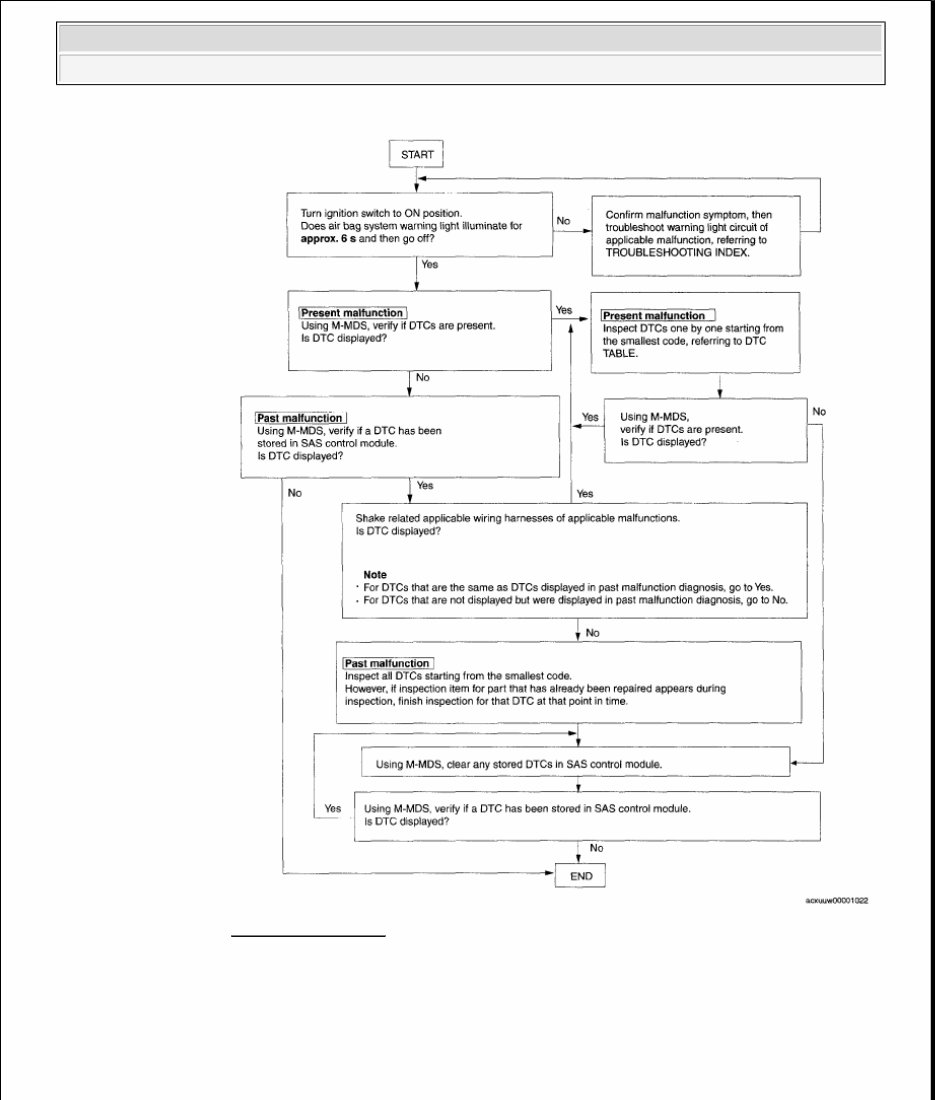

AIR BAG SYSTEM WIRING DIAGRAM (ON-BOARD DIAGNOSTIC) Fig. 1: Flow Chart Courtesy of MAZDA MOTORS CORP. 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net

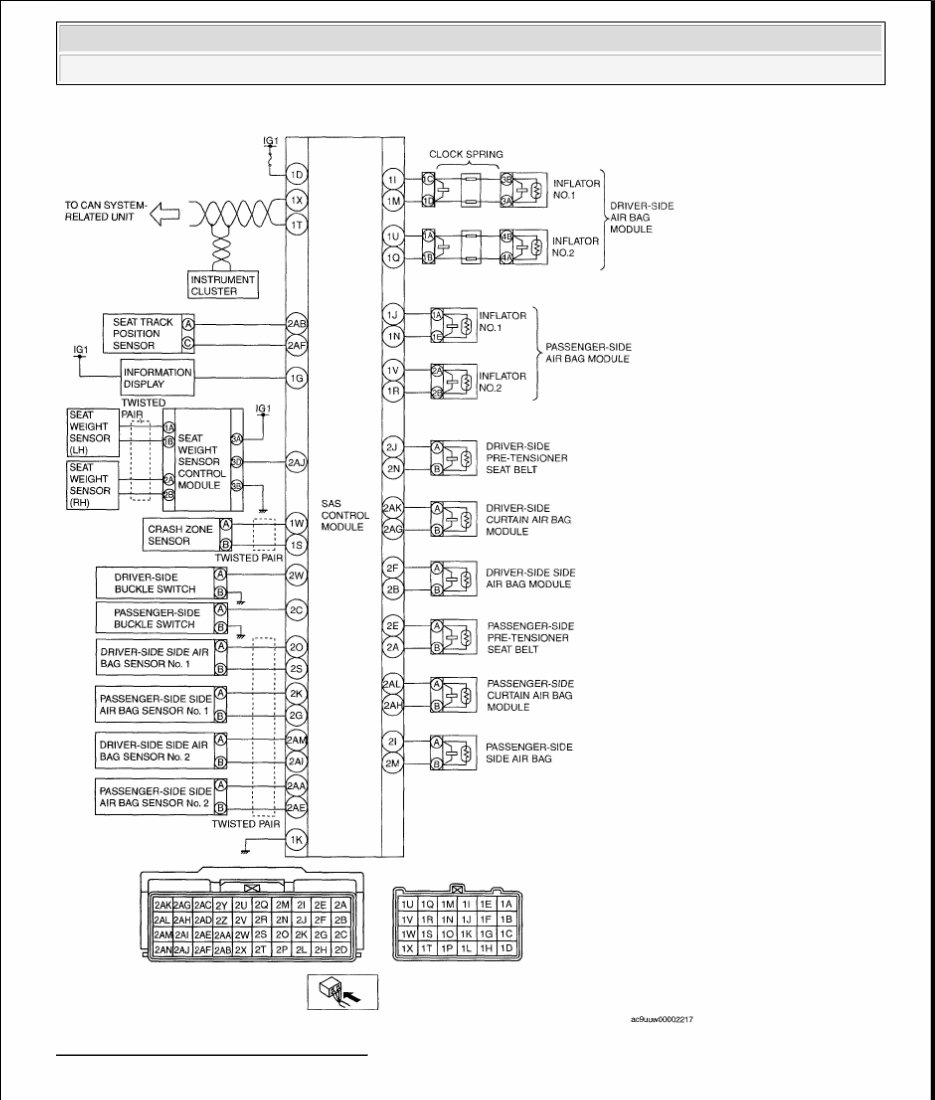

Fig. 2: Air Bag System Wiring Diagram Courtesy of MAZDA MOTORS CORP. 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net

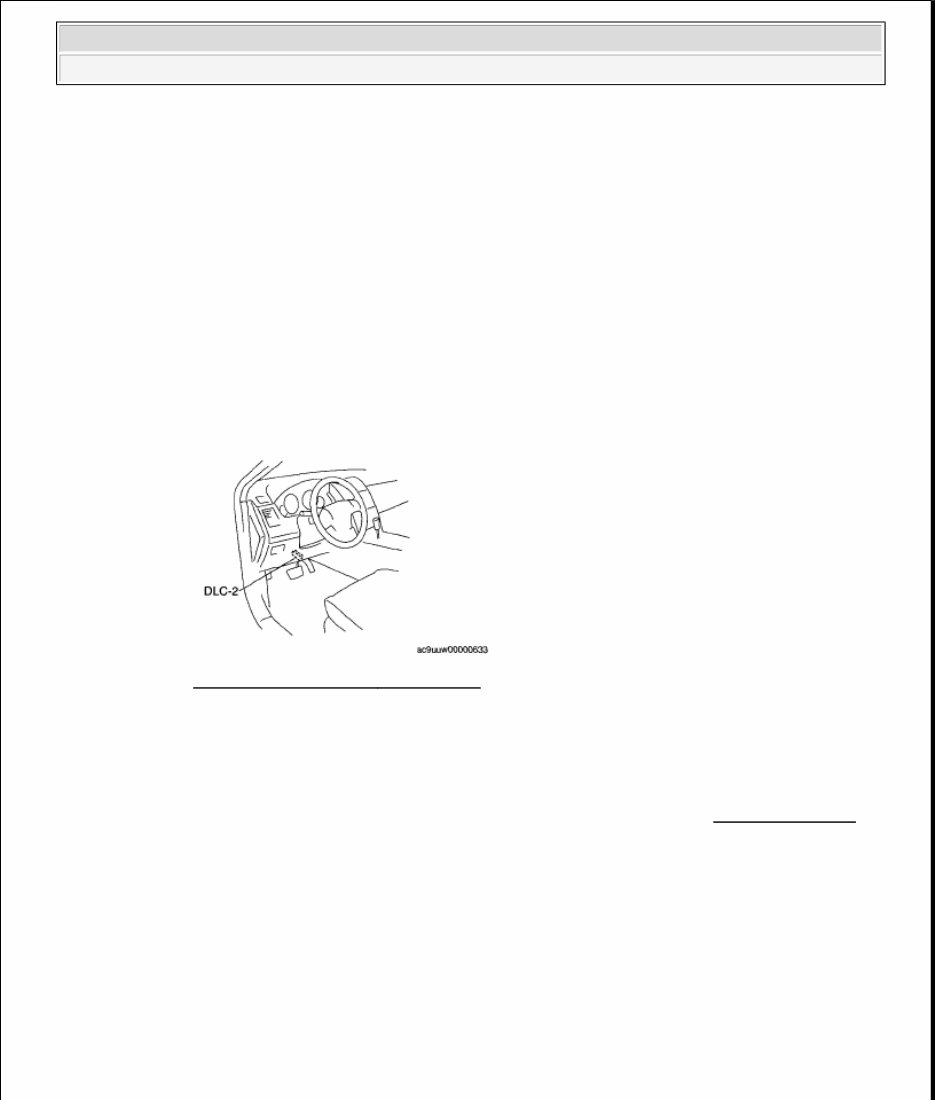

DTC DISPLAY 1. Connect the M-MDS to the DLC-2. 2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.  When using the IDS (laptop PC) 1. Select "Self Test". 2. Select "Modules". 3. Select "RCM".  When using the PDS (Pocket PC) 1. Select "Module Tests". 2. Select "RCM". 3. Select "Self Test". Fig. 3: Identifying DLC - 2 Connector Courtesy of MAZDA MOTORS CORP. 3. Verify the DTC according to the directions on the screen.  If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection. 4. After completion of repairs, clear all DTCs stored in the SAS control module. (See CLEARING DTC .) CLEARING DTC 1. Connect the M-MDS to the DLC-2. 2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.  When using the IDS (laptop PC) 1. Select "Self Test". 2. Select "Modules". 3. Select "RCM".  When using the PDS (Pocket PC) 1. Select "Module Tests". 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net

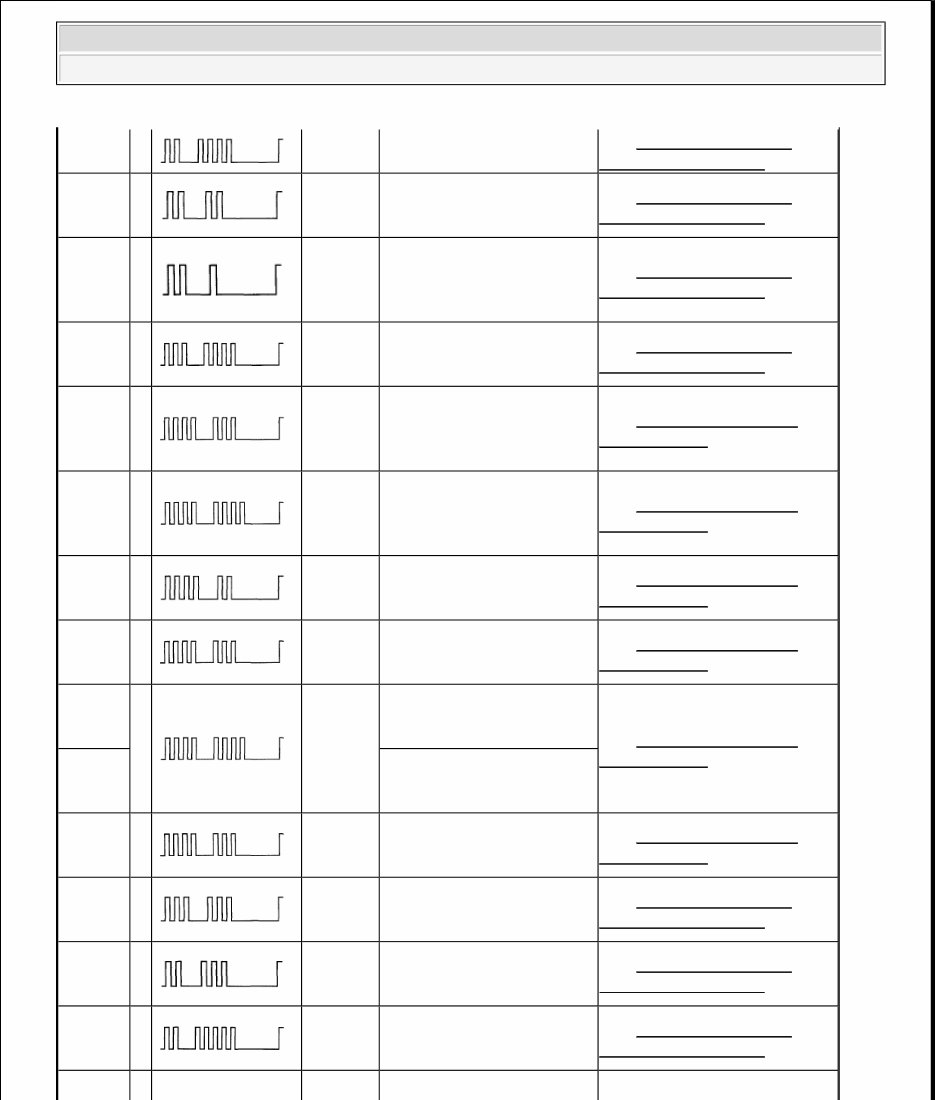

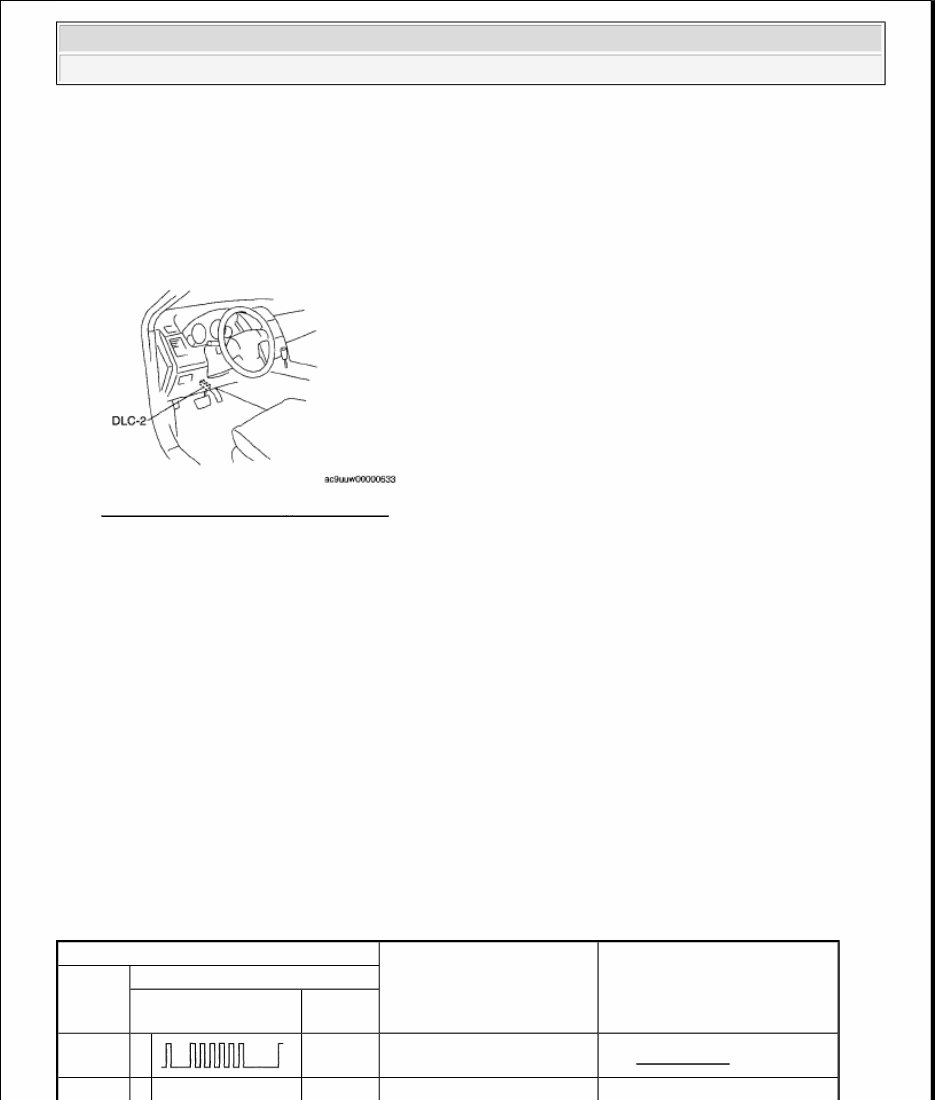

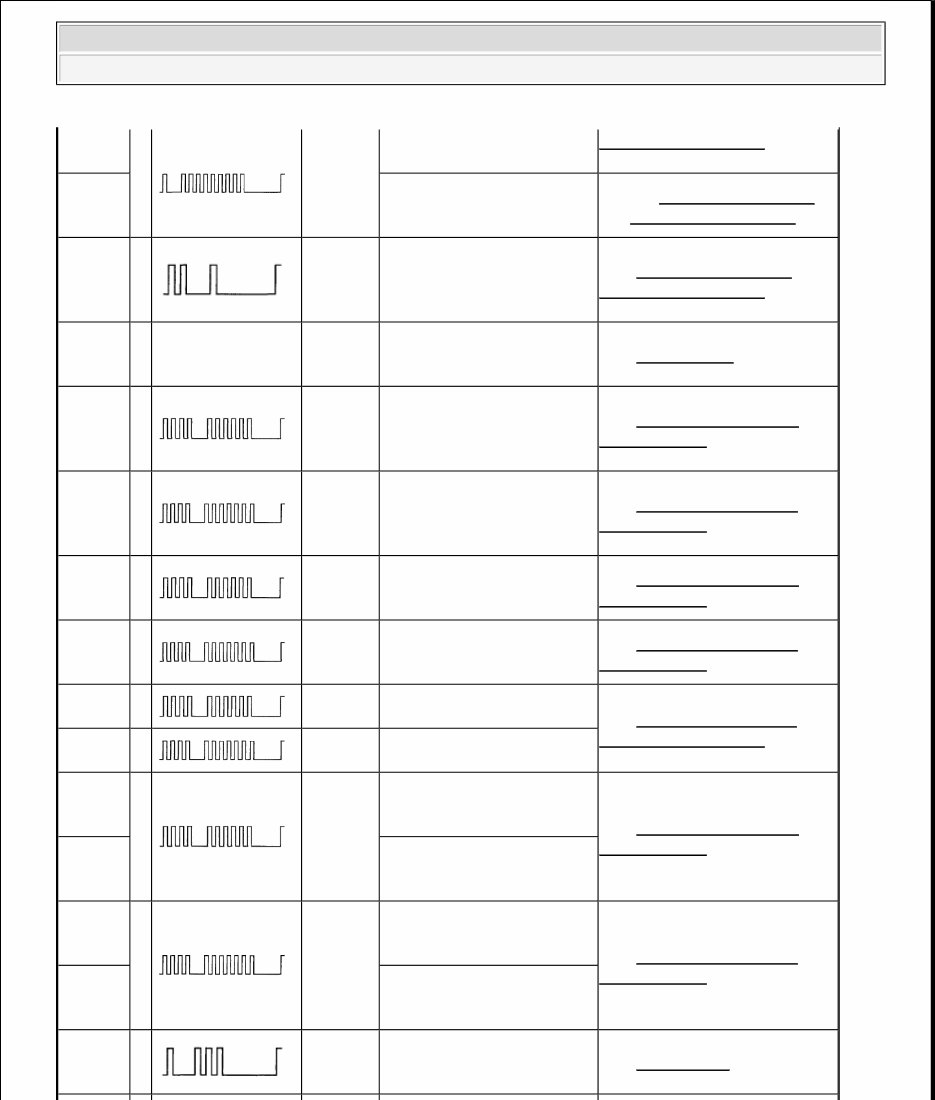

2. Select "RCM". 3. Select "Self Test". 3. Verify the DTC according to the directions on the screen. 4. Press the clear button on the DTC screen to clear the DTC. 5. Verify that no DTCs are displayed. Fig. 4: Identifying DLC - 2 Connector Courtesy of MAZDA MOTORS CORP. DTC TABLE  DTCs are common for present and past malfunction diagnosis. DTC TABLE DTC CHART NOTE:  When DTCs not shown in the DTC table are displayed, replace the SAS control module.  If the air bag system warning light does not illuminate or remains illuminated when the ignition switch is turned to the ON position, inspect and repair the air bag system warning light circuit, and then confirm that the air bag system warning light is operational.  The air bag system warning light flashes the DTC pattern for five cycles, and then remains illuminated until the ignition switch is turned to the ACC or LOCK position. DTC System malfunction location Page M-MDS display Air bag system warning light Flashing pattern Priority ranking B1013 16 20 Seat weight sensor calibration error (See DTC B1013 .) Driver-side curtain air bag 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net

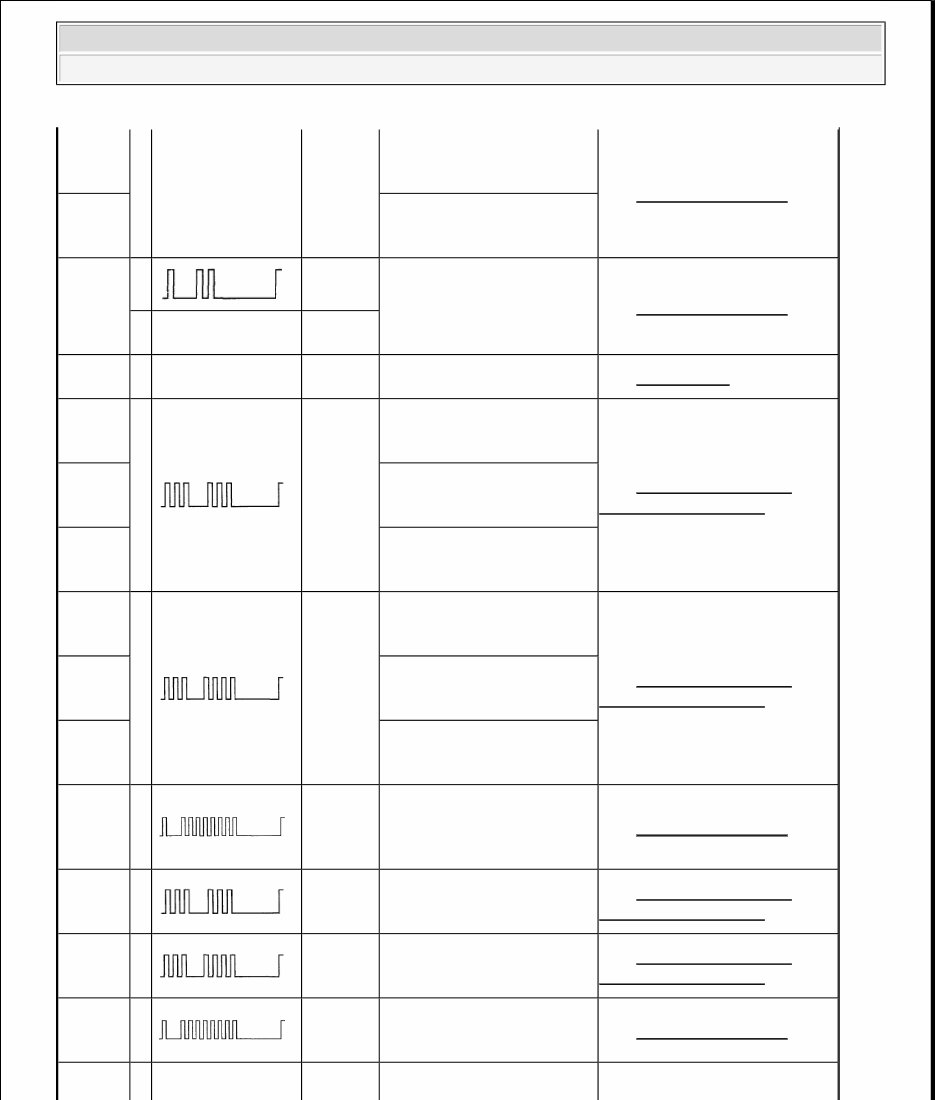

B1046 24 19 module and other air bag module circuits short (See DTC B1046, B2773, B2774, B2775, B2776 .) B1047 22 17 Driver-side side air bag module and other air bag module circuits short (See DTC B1047, B1992, B1993, B1994, B1995 .) B1048 21 12 Passenger-side air bag module (inflator No.1) and other air bag module circuits short (See DTC B1048, B1925, B1933, B1935, B1938 .) B1049 34 14 Passenger-side pre-tensioner seat belt and other air bag module circuits short (See DTC B1049, B1881, B1882, B1883, B1886 .) B104B 43 8 Driver-side side air bag sensor No. 1 and other sensor circuits short to power supply (See DTC B104B, B104E, B1051, U2017 .) B104C 44 7 Passenger-side side air bag sensor No.1 and other sensor circuits short to power supply (See DTC B104C, B104F, B1050, U2018 .) B104D 42 11 Crash zone sensor and other sensor circuits short to power supply (See DTC B104B, B104E, B1051, U2017 .) B104E 43 8 Driver-side side air bag sensor No.1 circuit open or short (See DTC B104B, B104E, B1051, U2017 .) B104F 44 7 Passenger-side side air bag sensor No.1 (internal circuit abnormal) (See DTC B104C, B104F, B1050, U2018 .) B1050 Passenger-side side air bag sensor No.1 circuit open or short B1051 43 8 Driver-side side air bag sensor No.1 (internal circuit abnormal) (See DTC B104B, B104E, B1051, U2017 .) B1054 33 15 Driver-side pre-tensioner seat belt and other air bag module circuits short (See DTC B1054, B1877, B1878, B1879, B1885 .) B1055 23 16 Passenger-side side air bag module and other air bag module circuits short (See DTC B1055, B1996, B1997, B1998, B1999 .) B1056 25 18 Passenger-side curtain air bag module and other air bag module circuits short (See DTC B1056, B2777, B2778, B2779, B2780 .) Driver-side air bag module (See DTC B1057, B1916, 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net

B1057 19 13 (inflator No.1) and other air bag module circuits short B1932, B1934, B1936 .) B1058 Driver-side air bag module (inflator No.2) and other air bag module circuits short (See DTC B1058, B2228, B2230, B2232, B2234 .) B1059 21 12 Passenger-side air bag module (inflator No.2) and other air bag module circuits short (See DTC B1059, B2229, B2231, B2233, B2235 .) B105A - Continuously illuminated 1 SAS control module activation (deployment) control frequency error (See DTC B105A .) B105B 46 10 Driver-side side air bag sensor No. 2 and other sensor circuits short to power supply (See DTC B105B, B110C, B1144, B1145 .) B105F 47 9 Passenger-side side air bag sensor No. 2 and other sensor circuits short to power supply (See DTC B105F, B110D, B1146, B1147 .) B110C 46 10 Driver-side side air bag sensor No. 2 circuit open or short (See DTC B105B, B110C, B1144, B1145 .) B110D 47 9 Passenger-side side air bag sensor No. 2 circuit open or short (See DTC B105F, B110D, B1146, B1147 .) B110E 46 10 Driver-side side air bag sensor No.2 ID mismatch (See DTC B110E, B110F, B2856, B2886, B2887 .) B110F 47 9 Passenger-side side air bag sensor No.2 ID mismatch B1144 46 10 Driver-side side air bag sensor No. 2 (internal circuit abnormal) (See DTC B105B, B110C, B1144, B1145 .) B1145 Driver-side side air bag sensor No. 2 (communication error) B1146 47 9 Passenger-side side air bag sensor No. 2 (internal circuit abnormal) (See DTC B105F, B110D, B1146, B1147 .) B1147 Passenger-side side air bag sensor No. 2 (communication error) B1231 13 3 SAS control module activation (deployment) control freeze (See DTC B1231 .) 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net

B1317 - Continuously illuminated 1 SAS control module power supply voltage increases (18.1 V or more) (See DTC B1317, B1318 .) B1318 SAS control module power supply voltage decreases (less than 8 V) B1342 12 2 SAS control module (internal circuit abnormal) (See DTC B1342, B1921 .) - Continuously illuminated 1 B1868 - - 1 Air bag system warning light malfunction (See DTC B1868 .) B1877 33 15 Driver-side pre-tensioner seat belt circuit resistance high (See DTC B1054, B1877, B1878, B1879, B1885 .) B1878 Driver-side pre-tensioner seat belt circuit short to power supply B1879 Driver-side pre-tensioner seat belt circuit short to body ground B1881 34 14 Passenger-side pre-tensioner seat belt circuit resistance high (See DTC B1049, B1881, B1882, B1883, B1886 .) B1882 Passenger-side pre-tensioner seat belt circuit short to power supply B1883 Passenger-side pre-tensioner seat belt circuit short to body ground B1884 18 21 Passenger air bag deactivation (PAD) indicator circuit open or short to body ground (See DTC B1884, B1890 .) B1885 33 15 Driver-side pre-tensioner seat belt circuit resistance low (See DTC B1054, B1877, B1878, B1879, B1885 .) B1886 34 14 Passenger-side pre-tensioner seat belt circuit resistance low (See DTC B1049, B1881, B1882, B1883, B1886 .) B1890 18 21 Passenger air bag deactivation (PAD) indicator circuit short to power supply (See DTC B1884, B1890 .) Driver-side air bag module (See DTC B1057, B1916, 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net

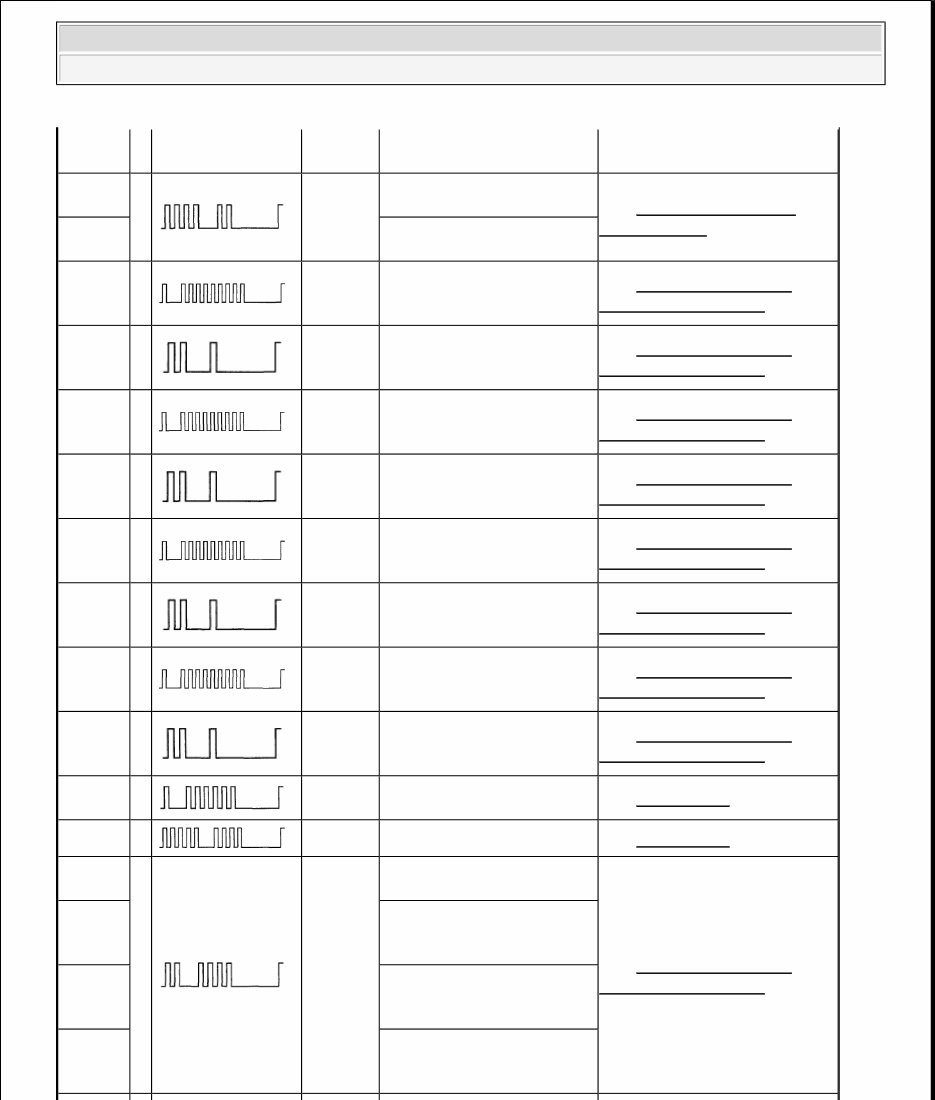

B1916 19 13 (inflator No.1) circuit short to power supply B1932, B1934, B1936 .) B1921 - Continuously illuminated 1 Air bag diagnostic ground circuit open (See DTC B1342, B1921 .) B1925 21 12 Passenger-side air bag module (inflator No.1) circuit short to power supply (See DTC B1048, B1925, B1933, B1935, B1938 .) B1932 19 13 Driver-side air bag module (inflator No.1) circuit resistance high (See DTC B1057, B1916, B1932, B1934, B1936 .) B1933 21 12 Passenger-side air bag module (inflator No.1) circuit resistance high (See DTC B1048, B1925, B1933, B1935, B1938 .) B1934 19 13 Driver-side air bag module (inflator No.1) circuit resistance low (See DTC B1057, B1916, B1932, B1934, B1936 .) B1935 21 12 Passenger-side air bag module (inflator No.1) circuit resistance low (See DTC B1048, B1925, B1933, B1935, B1938 .) B1936 19 13 Driver-side air bag module (inflator No.1) circuit short to body ground (See DTC B1057, B1916, B1932, B1934, B1936 .) B1938 21 12 Passenger-side air bag module (inflator No.1) circuit short to body ground (See DTC B1048, B1925, B1933, B1935, B1938 .) B1992 22 17 Driver-side side air bag module circuit short to power supply (See DTC B1047, B1992, B1993, B1994, B1995 .) B1993 Driver-side side air bag module circuit short to body ground B1994 Driver-side side air bag module circuit resistance high B1995 Driver-side side air bag module circuit resistance low B1996 23 16 Passenger-side side air bag module circuit short to power supply (See DTC B1055, B1996, B1997, B1998, B1999 .) B1997 Passenger-side side air bag module circuit short to body ground B1998 Passenger-side side air bag module circuit resistance high 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net

B1999 Passenger-side side air bag module circuit resistance low B2226 42 11 Crash zone sensor (internal circuit abnormal) (See DTC B104D, B2226, B2227, B2855 .) B2227 Crash zone sensor (communication error) B2228 19 13 Driver-side air bag module (inflator No.2) circuit short to body ground (See DTC B1058, B2228, B2230, B2232, B2234 .) B2229 21 12 Passenger-side air bag module (inflator No.2) circuit short to body ground (See DTC B1059, B2229, B2231, B2233, B2235 .) B2230 19 13 Driver-side air bag module (inflator No.2) circuit short to power supply (See DTC B1058, B2228, B2230, B2232, B2234 .) B2231 21 12 Passenger-side air bag module (inflator No.2) circuit short to power supply (See DTC B1059, B2229, B2231, B2233, B2235 .) B2232 19 13 Driver-side air bag module (inflator No.2) circuit resistance high (See DTC B1058, B2228, B2230, B2232, B2234 .) B2233 21 12 Passenger-side air bag module (inflator No.2) circuit resistance high (See DTC B1059, B2229, B2231, B2233, B2235 .) B2234 19 13 Driver-side air bag module (inflator No.2) circuit resistance low (See DTC B1058, B2228, B2230, B2232, B2234 .) B2235 21 12 Passenger-side air bag module (inflator No.2) circuit resistance low (See DTC B1059, B2229, B2231, B2233, B2235 .) B2290 16 20 Seat weight sensor signal malfunction (See DTC B2290 .) B2477 54 6 Configuration error (See DTC B2477 .) B2773 24 19 Driver-side curtain air bag module circuit resistance low (See DTC B1046, B2773, B2774, B2775, B2776 .) B2774 Driver-side curtain air bag module circuit resistance high B2775 Driver-side curtain air bag module circuit short to body ground B2776 Driver-side curtain air bag module circuit short to power supply 2008 Mazda CX-9 Grand Touring 2008 RESTRAINTS On-Board Diagnostic (Restraints) - Mazda CX-9 Automotive-Manual.net
