U005/97 - A/C O-RING REPLACEMENT - 1988-92 626/MX-6
SI107864
TSB NUMBER: U005/97
For Internal Mazda Corporate Use Only
DESCRIPTION
APPLICABLE MODELS
1988-92 626/MX-6
DESCRIPTION

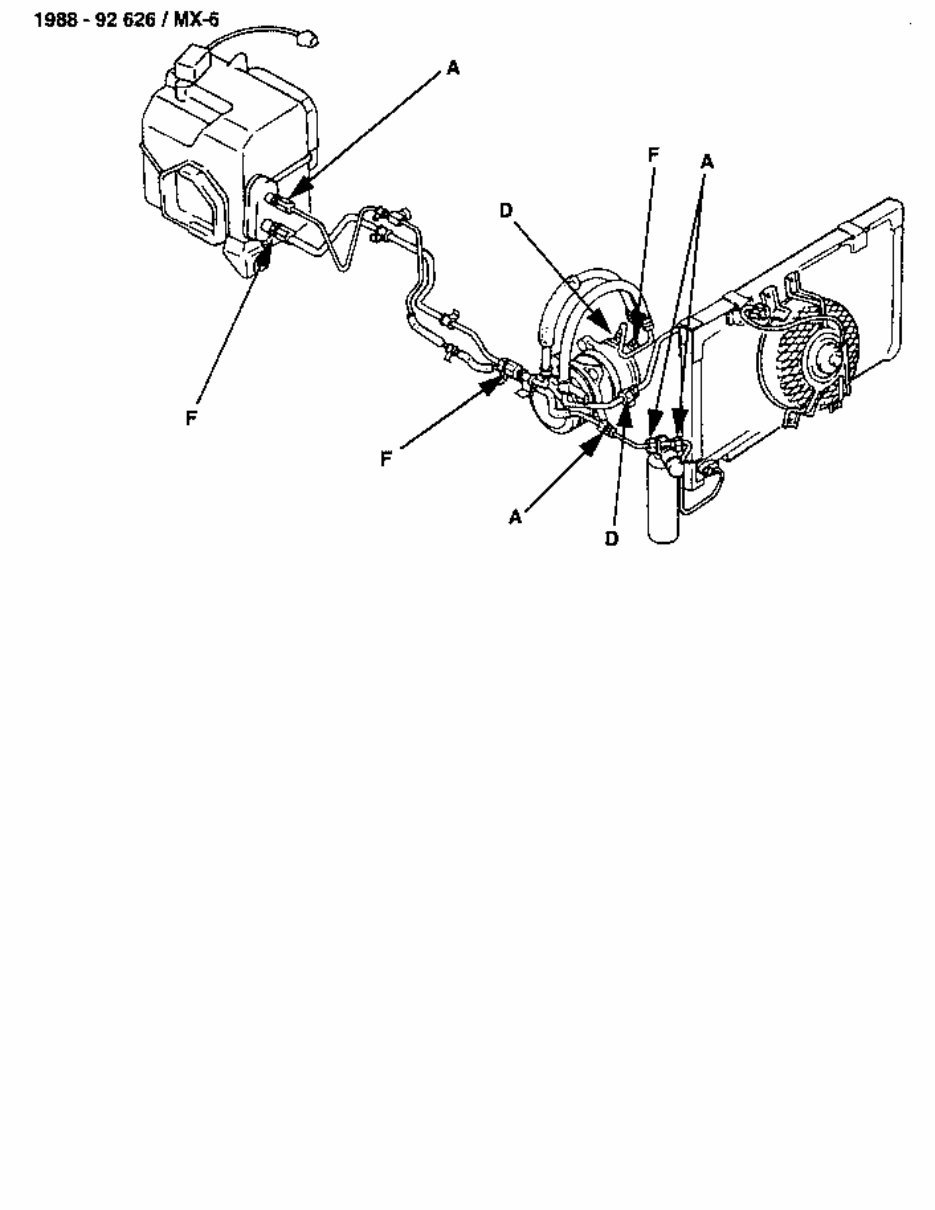

Refer to the appropiate illustration and the chart below when replacing A/C system o-rings. These o-rings are designed for use in both
R-12 and R-134a systems.
O-Ring Description O-Ring Quantity Per Vehicle
CodePipe Size O-Ring Size IDxTPart and Kit Numbers88-92 626/MX-6
A 8mm 6.9x1.76 LB51-61-J1X 4
B 5/16in 6.8x1.5 LB52-61-J1X
C 3/8in 7.65x1.78 LB53-61-J1X
D 12mm 10.8x1.78 LB54-61-J1X 2
E 12mm axial10.8x2.4 LB55-61-J1X
F 16mm 14.0x1.78 LB56-61-J1X 3
G 16mm axial13.4x2.4 LB57-61-J1X
H 3/8in 7.36x1.8 9XG0-19-9300
J 1/2in 10.16x1.85 9XG0-19-9201
K 5/8in 12.95x1.85 9XG0-19-9400
L 5/8in 6.07x1.78 C003-61-J17
M 16mm axial14x1.78 C004-61-J17
N 5/8in 10.8x1.78 C005-61-J17
P 12mm 10.8x2.4 W257-61-J17
Q 5/16in 6.7x1.8 W326-61-J17
R 16mm 13.4x2.4 W329-61-J17
NOTE: Part numbers ending with "J1X" are delivered in quantities of ten (10).

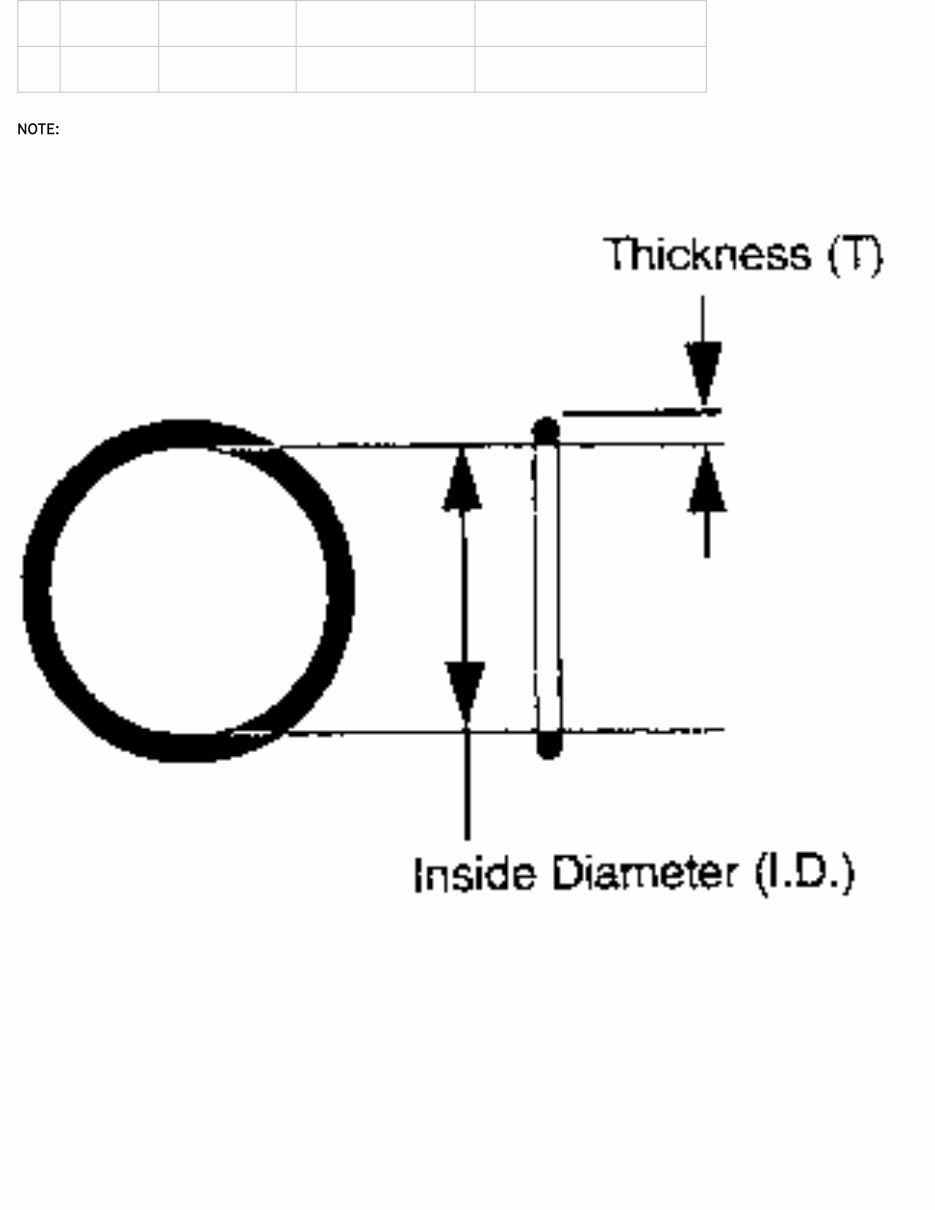

The illustration to the right indicates where the o-ring must be measured to determine diameter and thickness. Use this information
and the chart above to identify the proper part if the o-rings are accidentally mixed.
