REMOVING-REFITTING THE ENGINE
• Remove the front lid.
Removing-refitting the front compartment lid
• Remove the spare wheel housing.
Removing /refitting the spare wheel housing

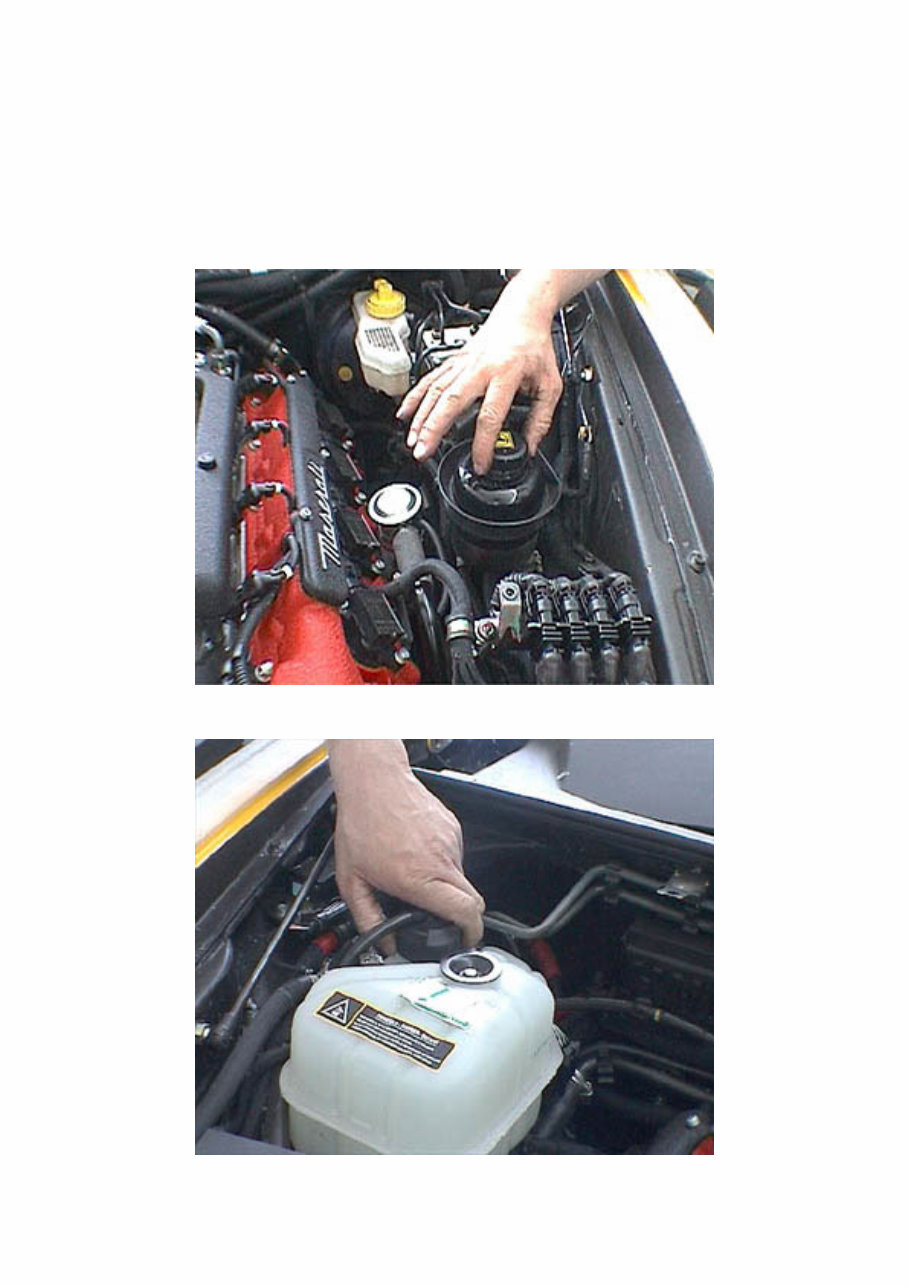

• Working from inside the engine compartment, loosen the cap for the hydraulic steering reservoir.
• Loosen the water nourice cap.
1

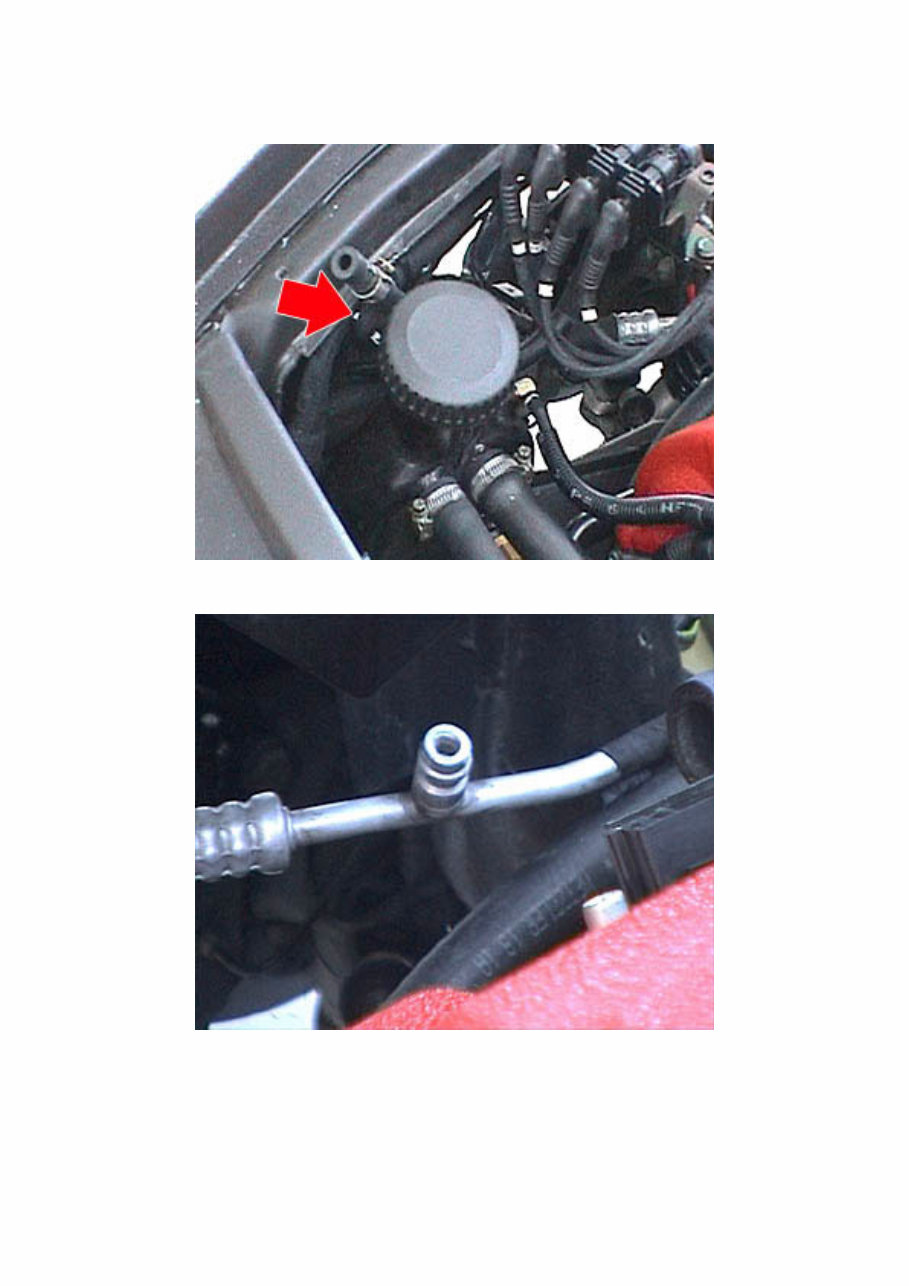

• Loosen the oil reservoir cap.
• Drain the A/C fluid circuit.
2
• Detach the air filter duct clips and remove it

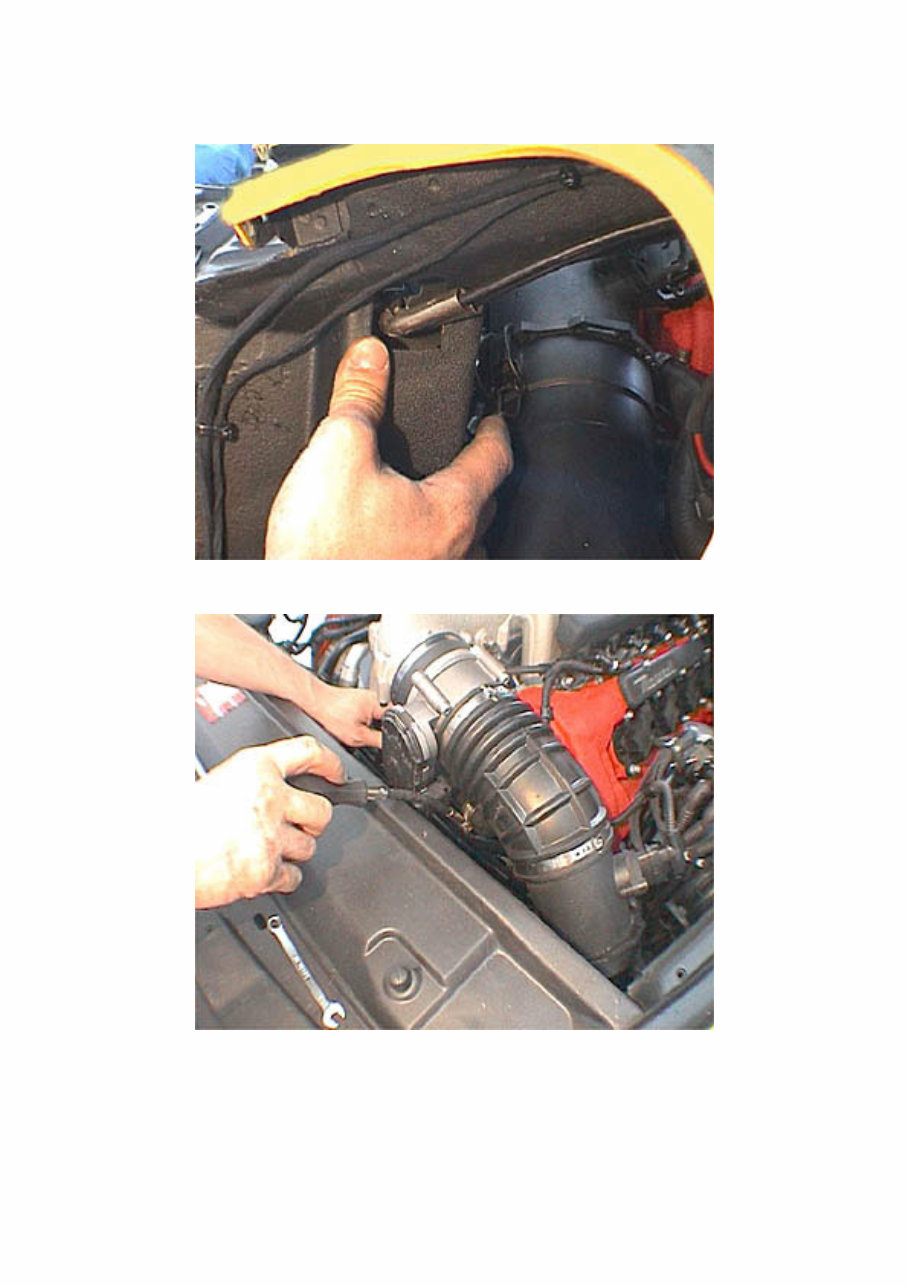

• Unscrew the oil draining pipe clip next to the air flow meter.
3

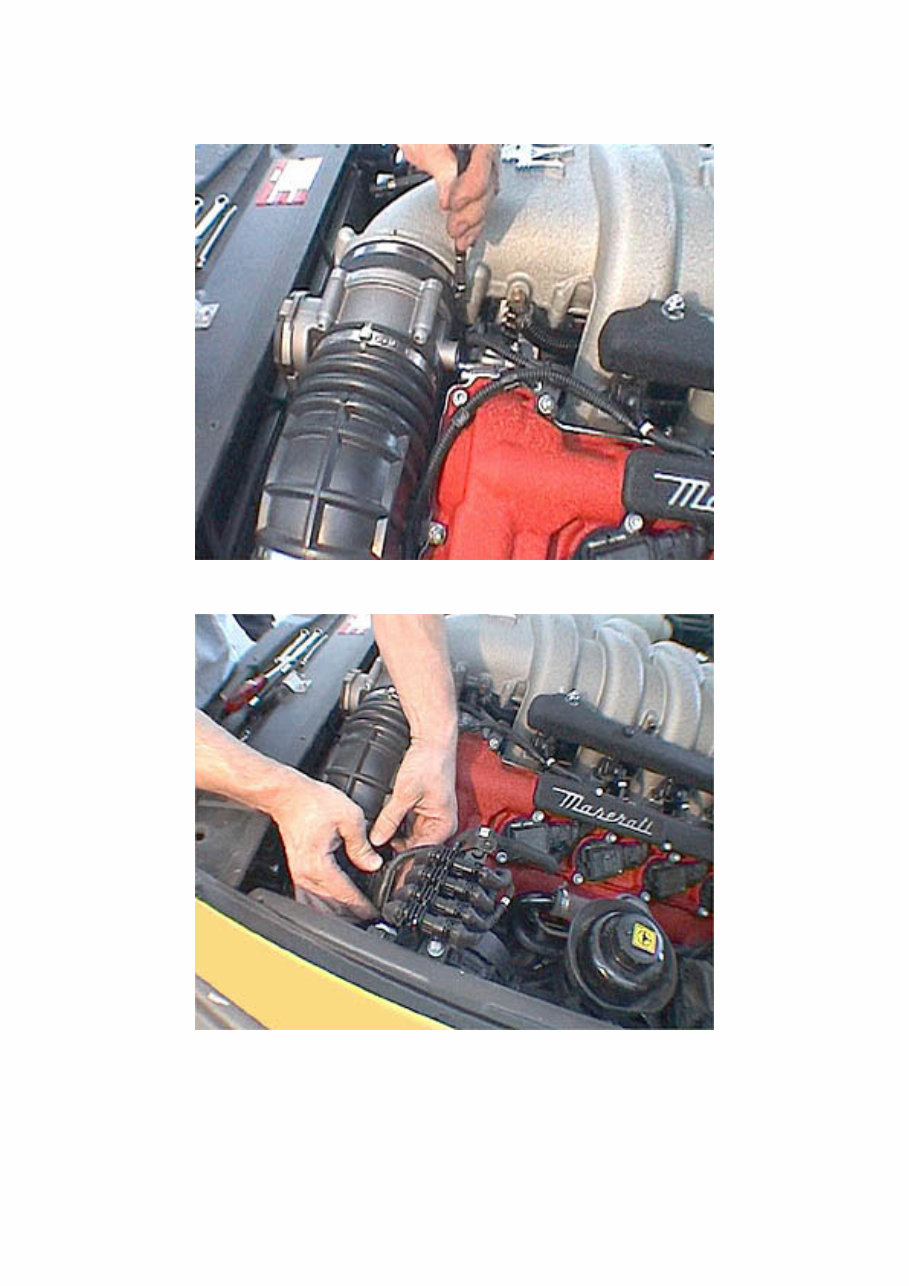

• Unscrew the plenum chamber/throttle connector clip.
• Detach the air flow meter connector.
4

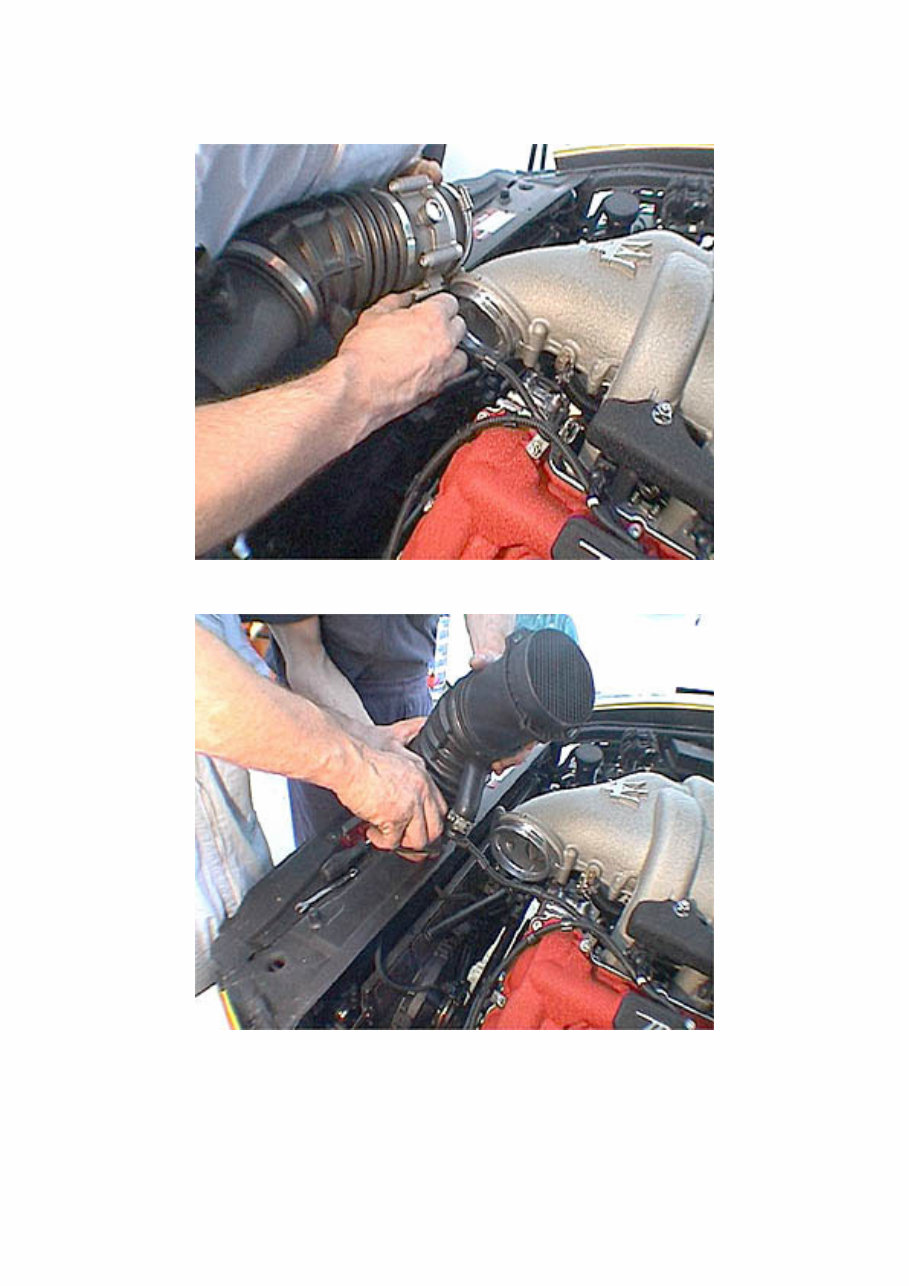

• Release the throttle cabling
• Remove the throttle / air flow meter assembly.
5
N.B.

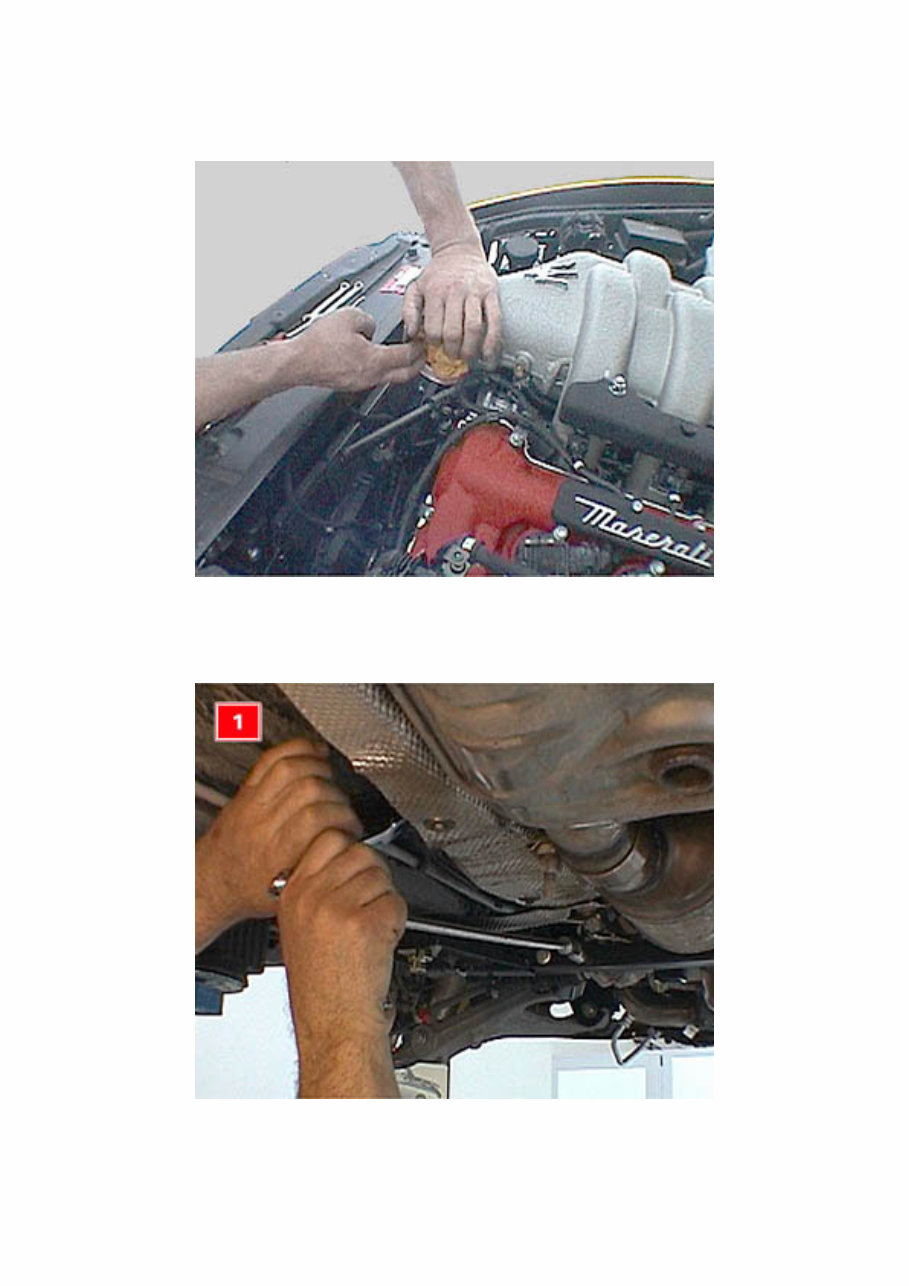

Suitably plug the plenum chamber "intake".
• Working from the underbody, unscrew the four screws and disassemble the front frame (Figure 1).
N.B.

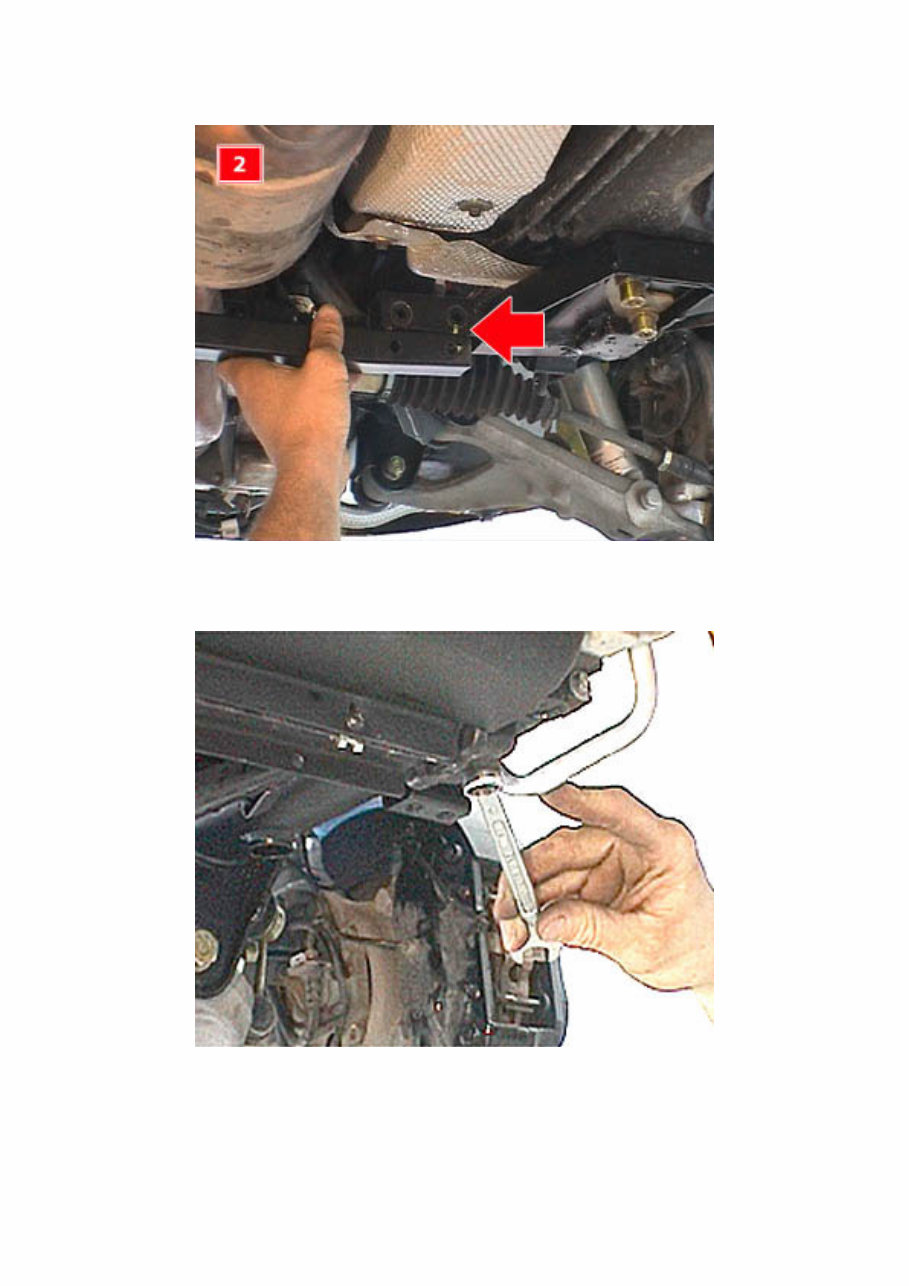

Using a felt-tip pen, mark the relative positions of the two parts of the front frame (Figure 2).
6
• Remove the central exhaust line.
Removing/refitting the central exhaust line
• Drain the cooling system fluid by unscrewing the radiator plug.
7

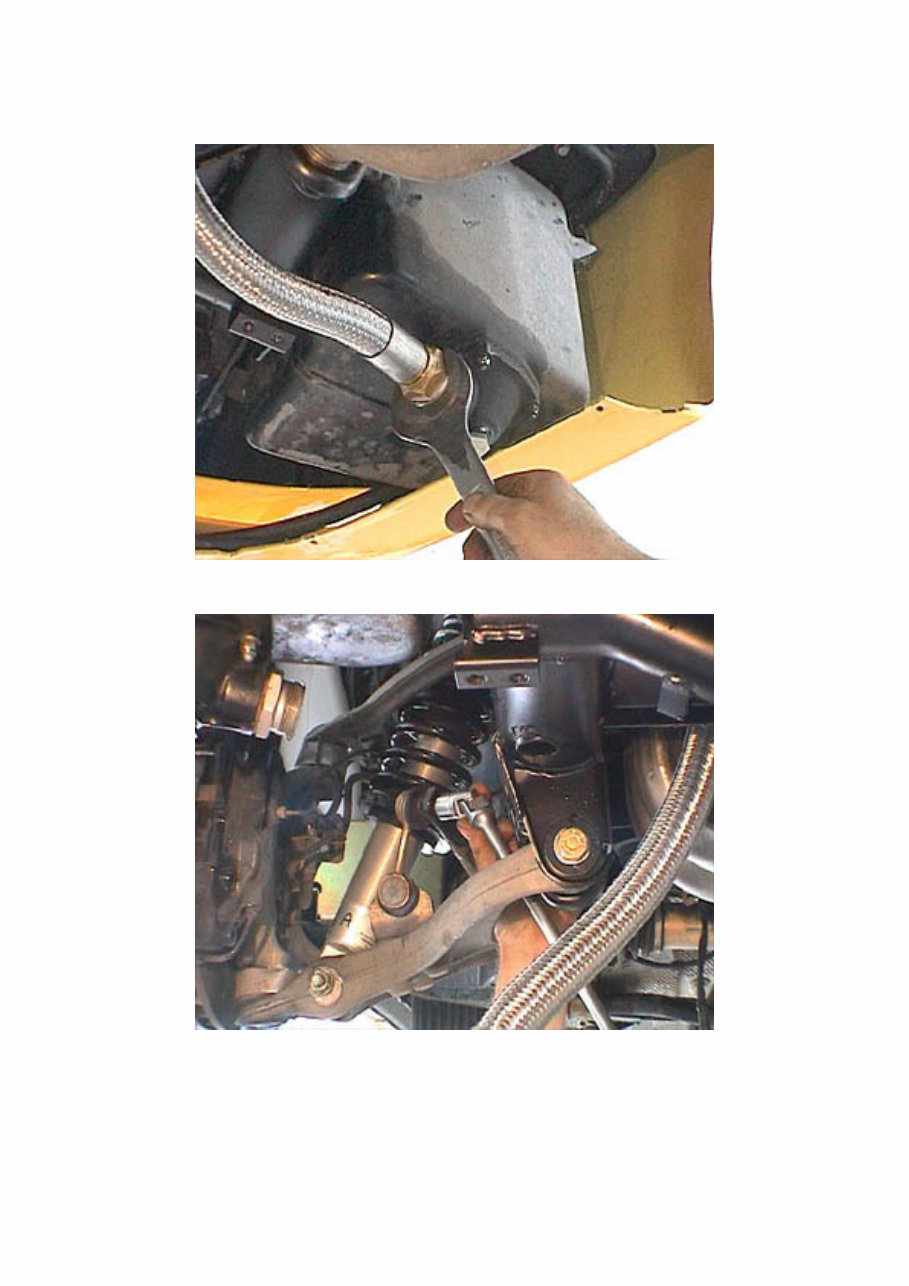

• Drain the lubrication system oil by unscrewing the duct to the tank.
• Disconnect the torsion bar from its connecting rods.
8

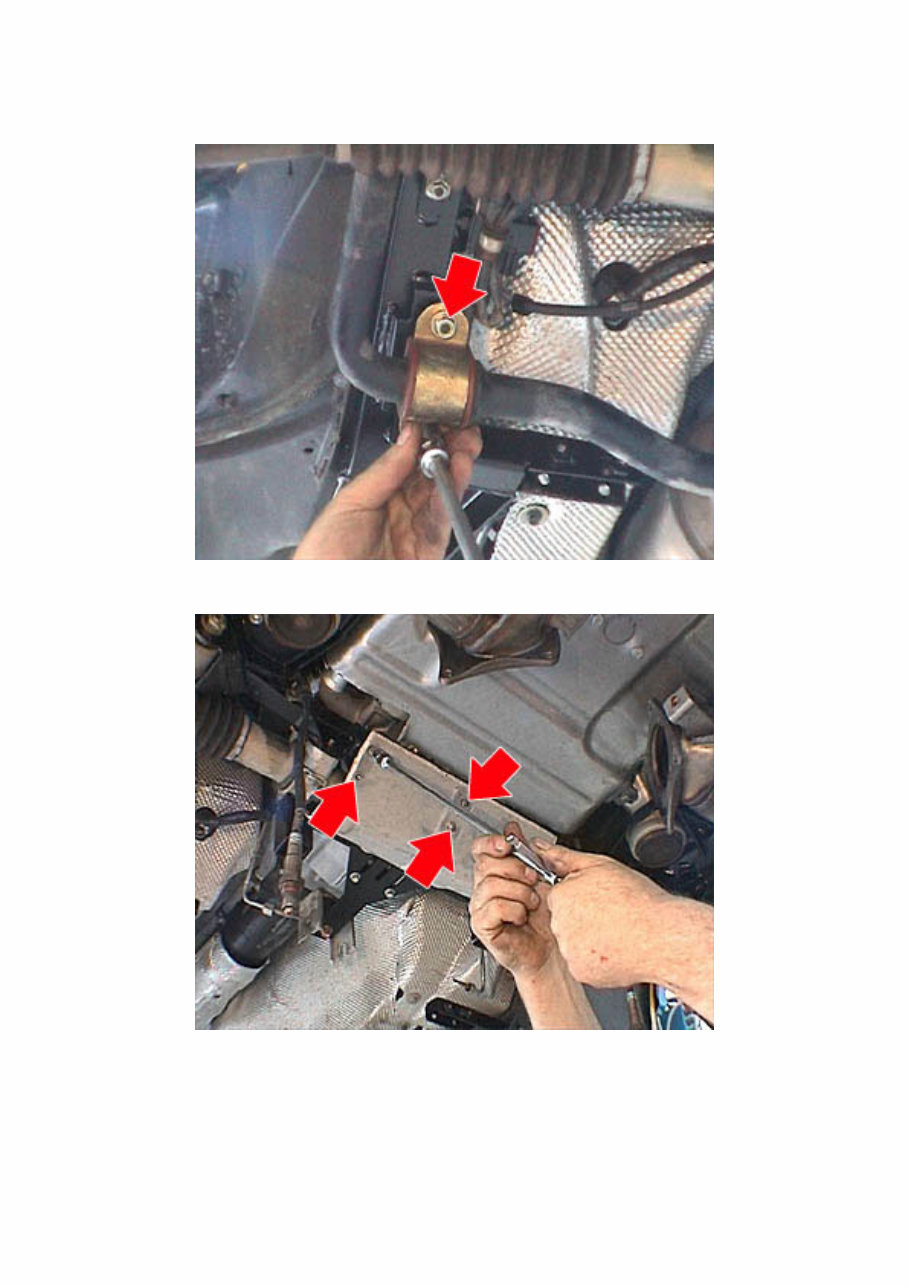

• Disconnect the torsion bar from the body by unscrewing the two screws on each jumper.
• Unscrew the six steering box protection screws.
9

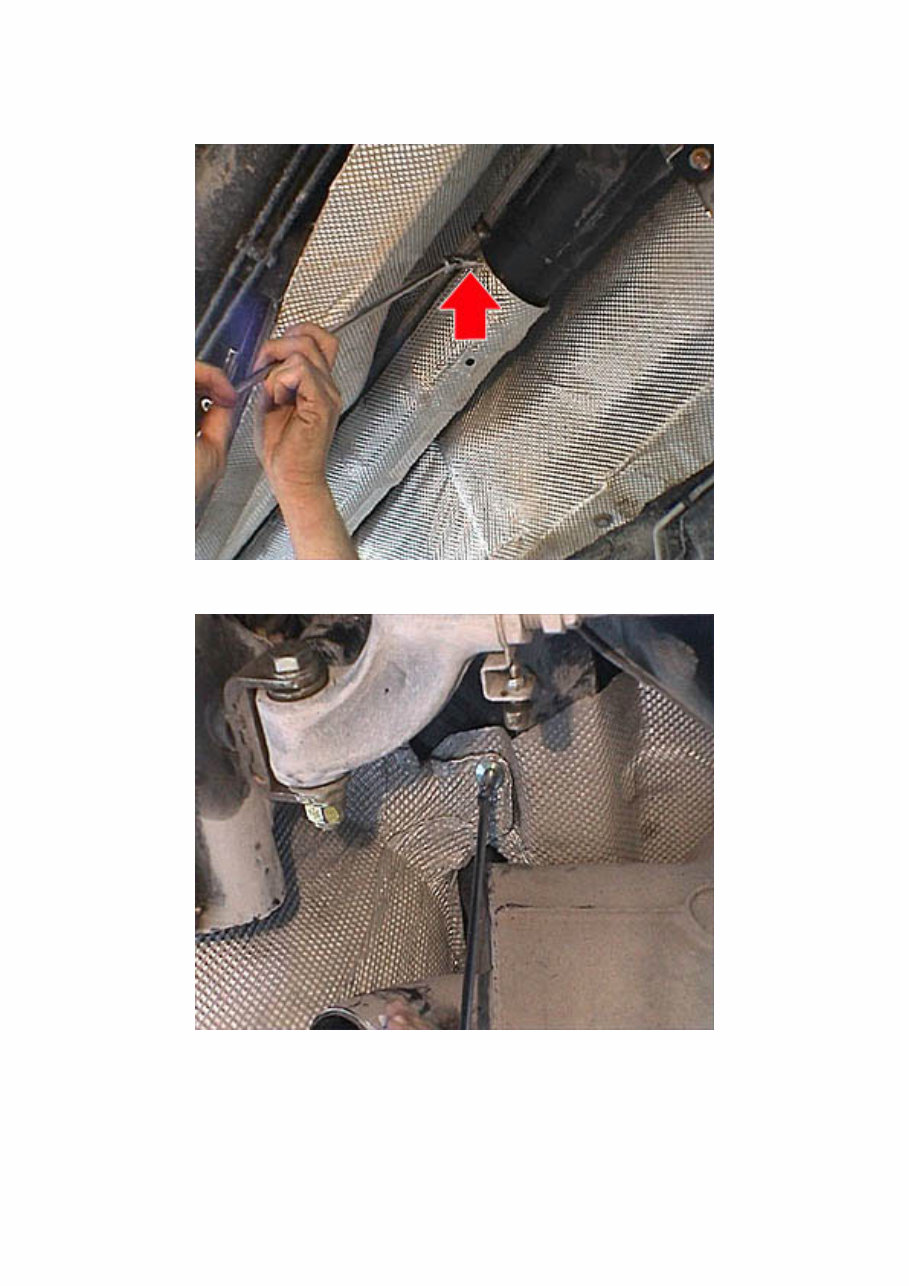

• Unscrew its eight fastening screws and remove the transmission shaft heat shield.
• Remove the heat shield for the spare wheel housing by unscrewing its six screws.
10
