1990 ACCESSORIES & EQUIPMENT
Antenna Systems - LS 400
DESCRIPTION & OPERATION
The antenna automatically extends when the radio and ignition are turned on and retracts when either is turned
off.
COMPONENT LOCATION
COMPONENT LOCATIONS
CAUTION: When battery is disconnected, vehicle computer and memory systems
may lose memory data. Driveability problems may exist until computer
systems have completed a relearn cycle. See COMPUTER RELEARN
PROCEDURES article in GENERAL INFORMATION before disconnecting
battery.
Component Location
Body Ground BI Above left rear wheelwell. See Fig. 2 .
Body Ground BK In right, rear side of trunk. See Fig. 2 .
ECU-IG & RADIO No. 2 Fuses In passenger compartment fuse block
Passenger Compartment Fuse Block Behind left side of dash
RADIO No. 1 (20 A) Fuse Left side of engine compartment, in fuse/relay (J/B 2) box
1990 Lexus LS 400
1990 ACCESSORIES & EQUIPMENT Antenna Systems - LS 400
1990 Lexus LS 400
1990 ACCESSORIES & EQUIPMENT Antenna Systems - LS 400
5:19:13 PM Page 1 5:19:15 PM Page 1

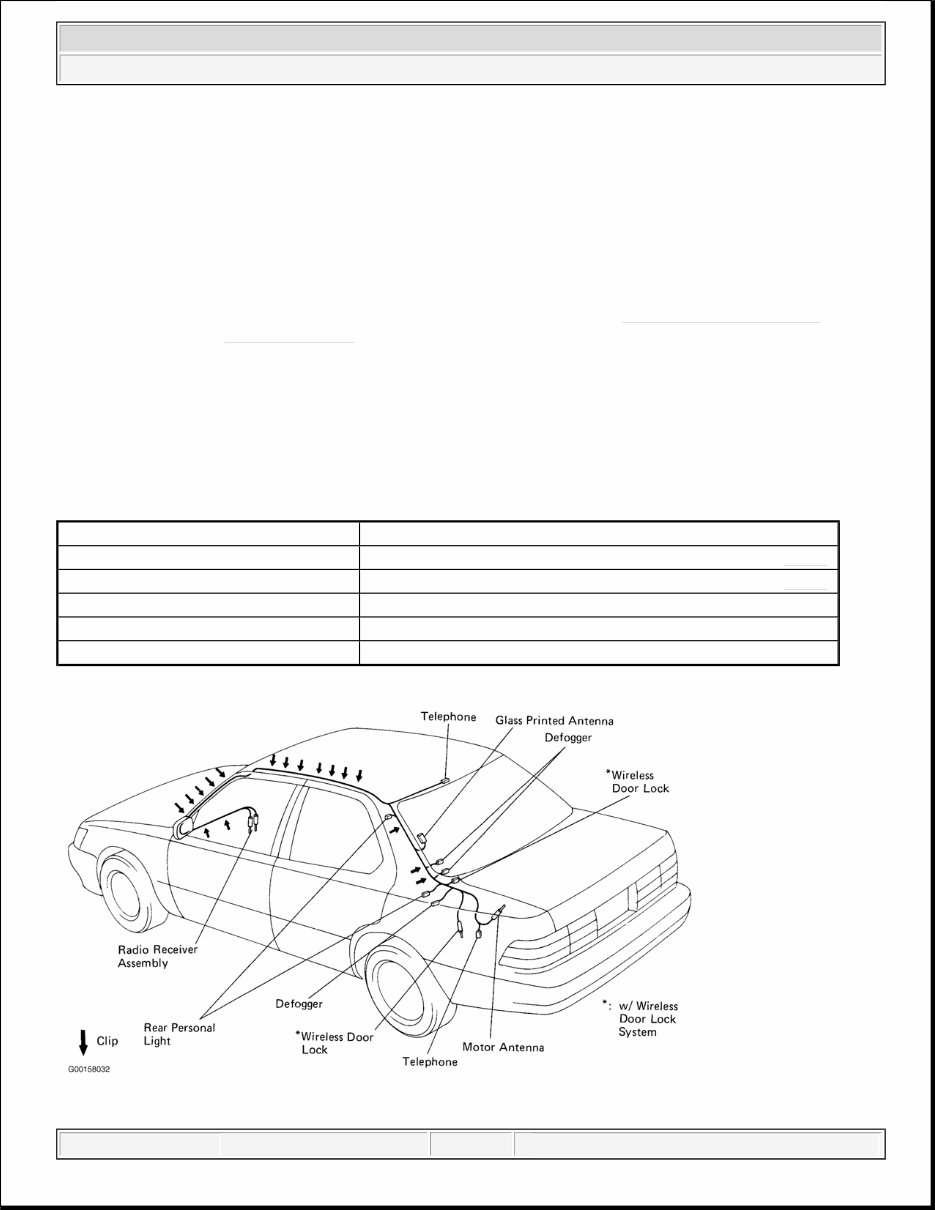

Fig. 1: Locating Power Antenna Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

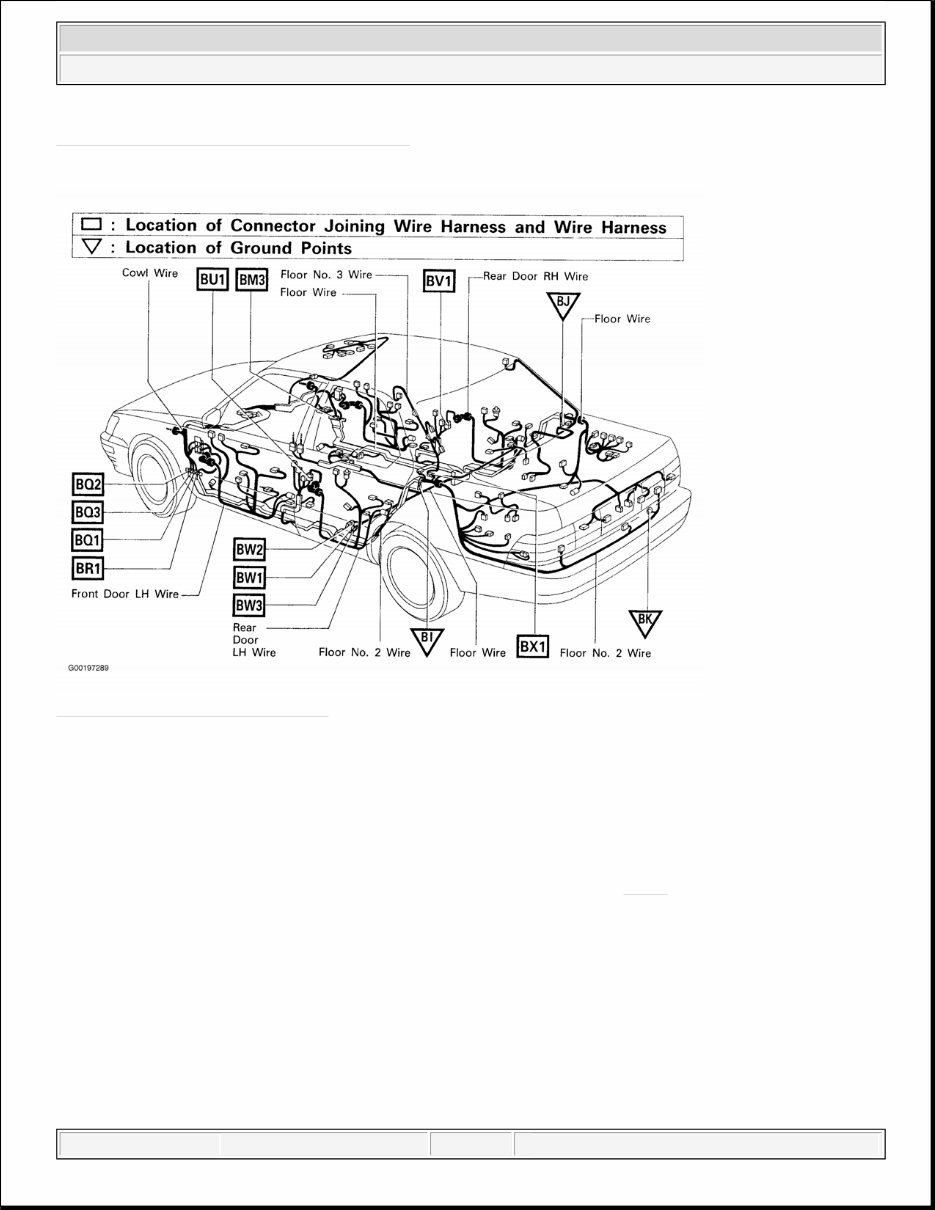

Fig. 2: Locating Grounds BI & BK
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
ON-VEHICLE SERVICE
GLASS PRINTED ANTENNA REPAIR
1. Clean broken wire tips with a grease, wax and silicone remover.
2. Place the masking tape along both sides of the wire to be repaired. See Fig. 3 .
3. Thoroughly mix the repair agent (DuPont paste No. 4817).
4. Use a fine tip brush, apply a small amount to the wire.
5. After a few minutes, remove the masking tape.
6. Allow the repair to stand at least 24 hours.
1990 Lexus LS 400
1990 ACCESSORIES & EQUIPMENT Antenna Systems - LS 400
5:19:13 PM Page 2

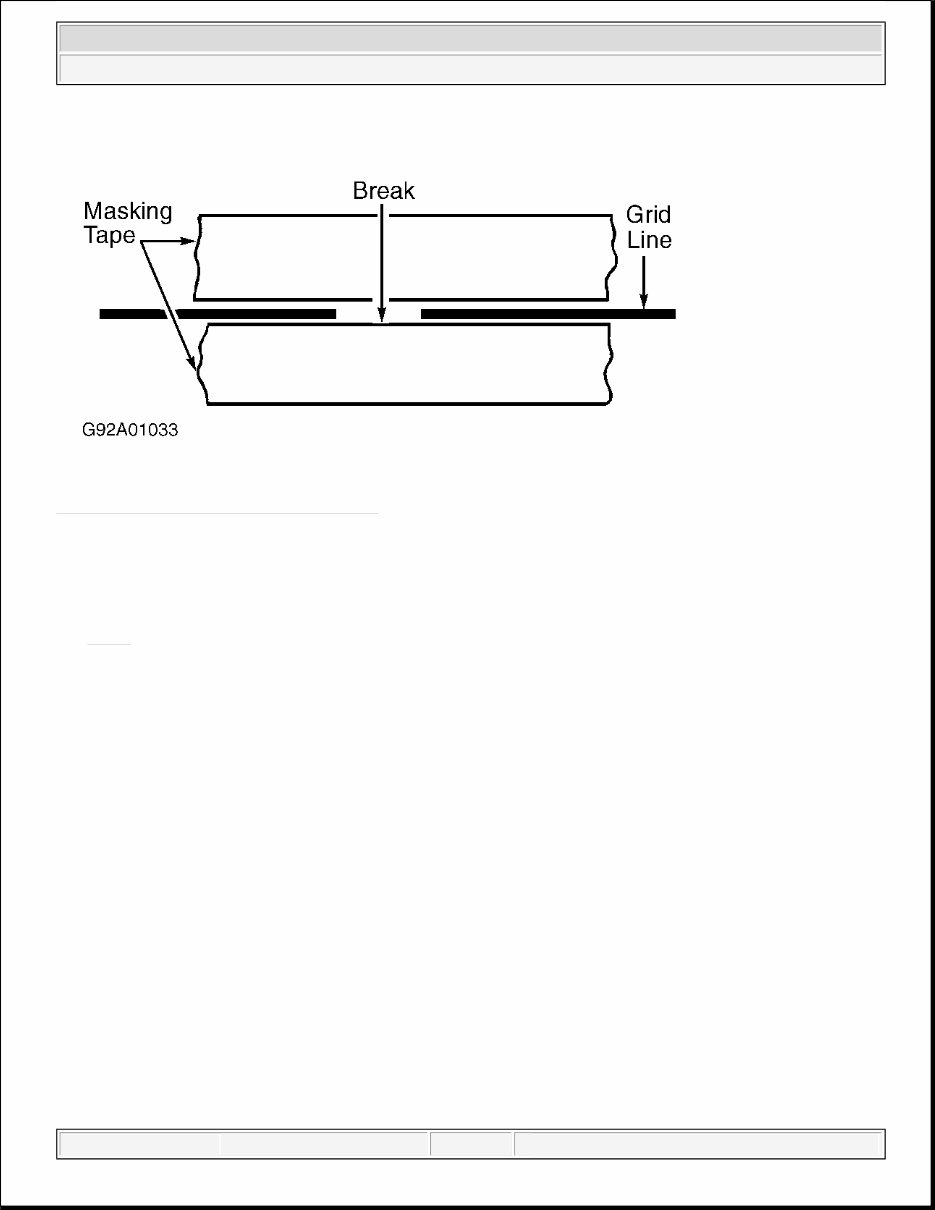

Fig. 3: Repairing Antenna Grid Filament
TROUBLE SHOOTING
ANTENNA
See Fig. 4 .
1990 Lexus LS 400
1990 ACCESSORIES & EQUIPMENT Antenna Systems - LS 400
5:19:13 PM Page 3

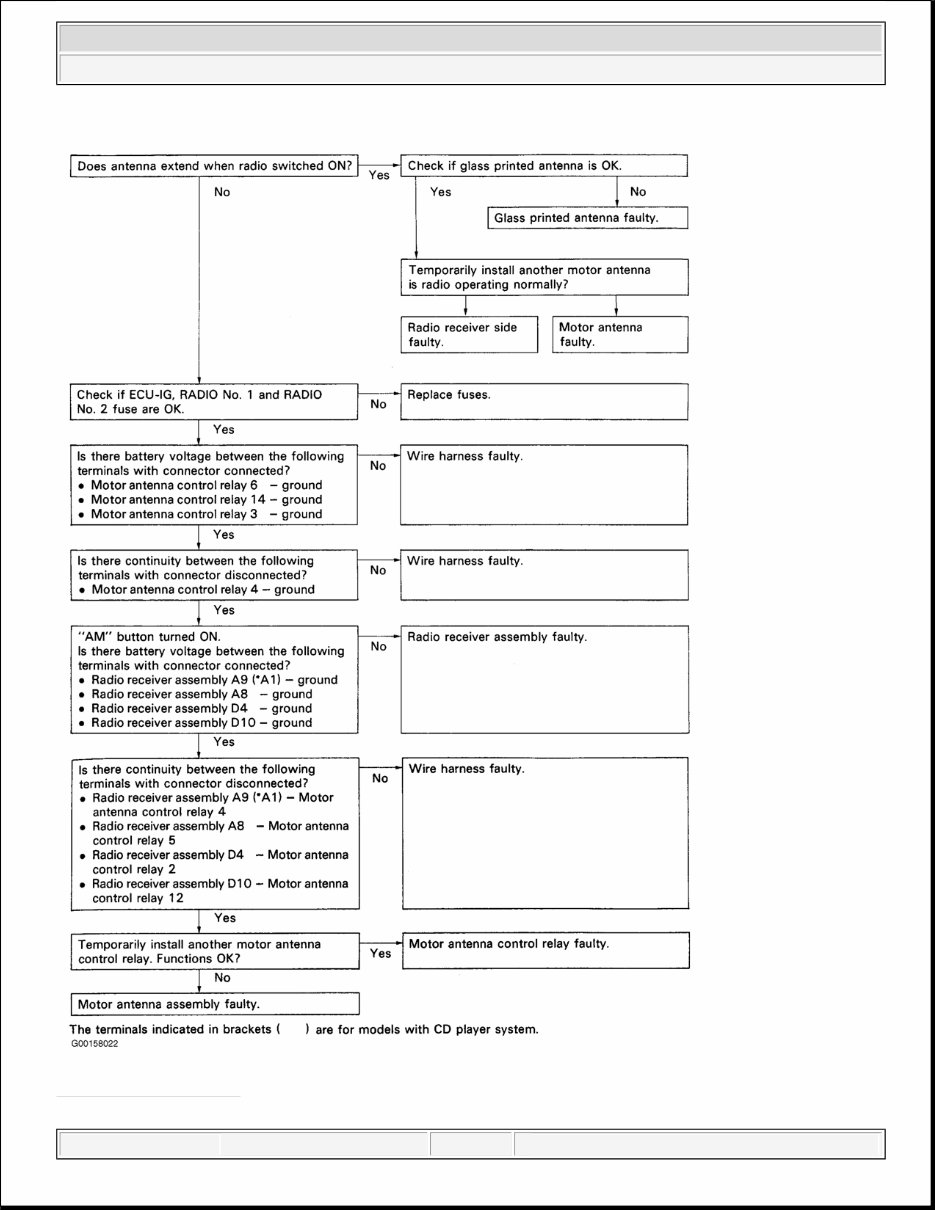

Fig. 4: Testing Antenna
1990 Lexus LS 400
1990 ACCESSORIES & EQUIPMENT Antenna Systems - LS 400
5:19:13 PM Page 4
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
CIRCUIT TESTS
POWER ANTENNA CIRCUIT
Disconnect the motor antenna connector from the body wire harness and inspect the connector on body wire
harness side. See Fig. 5 and Fig. 6 . If circuit is not as specified, inspect radio or wire harness. If circuit is as
specified, replace power antenna. See POWER ANTENNA under REMOVAL & INSTALLATION.

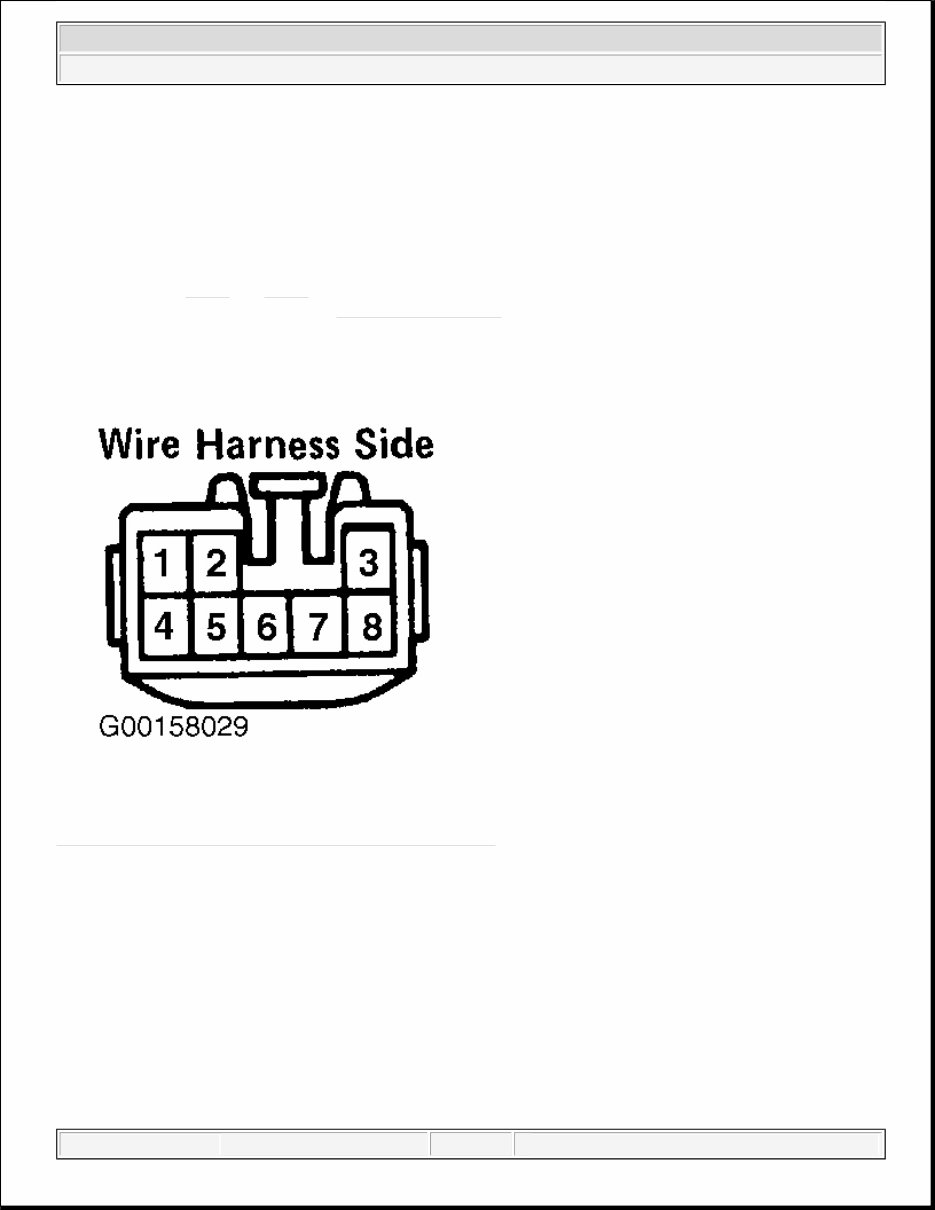

Fig. 5: Identifying Power Antenna Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
1990 Lexus LS 400
1990 ACCESSORIES & EQUIPMENT Antenna Systems - LS 400
5:19:13 PM Page 5

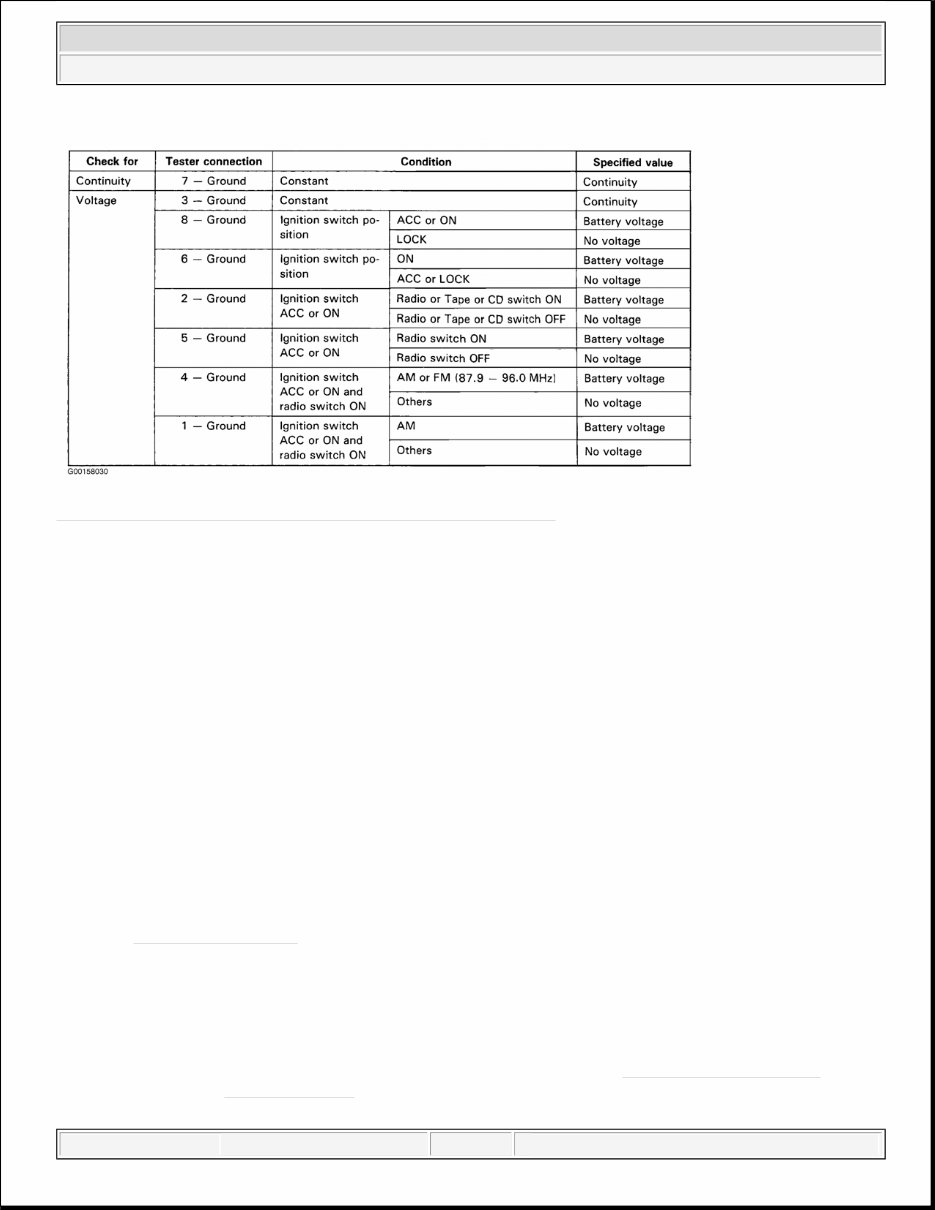

Fig. 6: Testing Power Antenna Connector Continuity & Voltage
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
COMPONENT TESTS
ANTENNA MOTOR
1. Install antenna nut.
2. Disconnect connector from the motor antenna control relay.
3. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 5 on the
wire harness side connector.
4.
Check that the motor turns (moves upward).
5. Then reverse the polarity, check that the motor turns the opposite way (moves downward). When motor is
normal, lower the antenna to the lower most position. If operation is not as specified, replace the motor.
See POWER ANTENNA under REMOVAL & INSTALLATION.
REMOVAL & INSTALLATION
NOTE: These tests must be performed quickly (within 3-5 seconds) to prevent the
coil from burning out.
CAUTION: When battery is disconnected, vehicle computer and memory systems
may lose memory data. Driveability problems may exist until computer
systems have completed a relearn cycle. See COMPUTER RELEARN
PROCEDURES article in GENERAL INFORMATION before disconnecting
1990 Lexus LS 400
1990 ACCESSORIES & EQUIPMENT Antenna Systems - LS 400
5:19:13 PM Page 6
POWER ANTENNA
Removal
1. Remove the antenna nut. See Fig. 7 .
2. Remove the left side cover.
3. Disconnect the motor antenna connector and the antenna cord.
4. Remove the 2 nuts and the power antenna assembly.

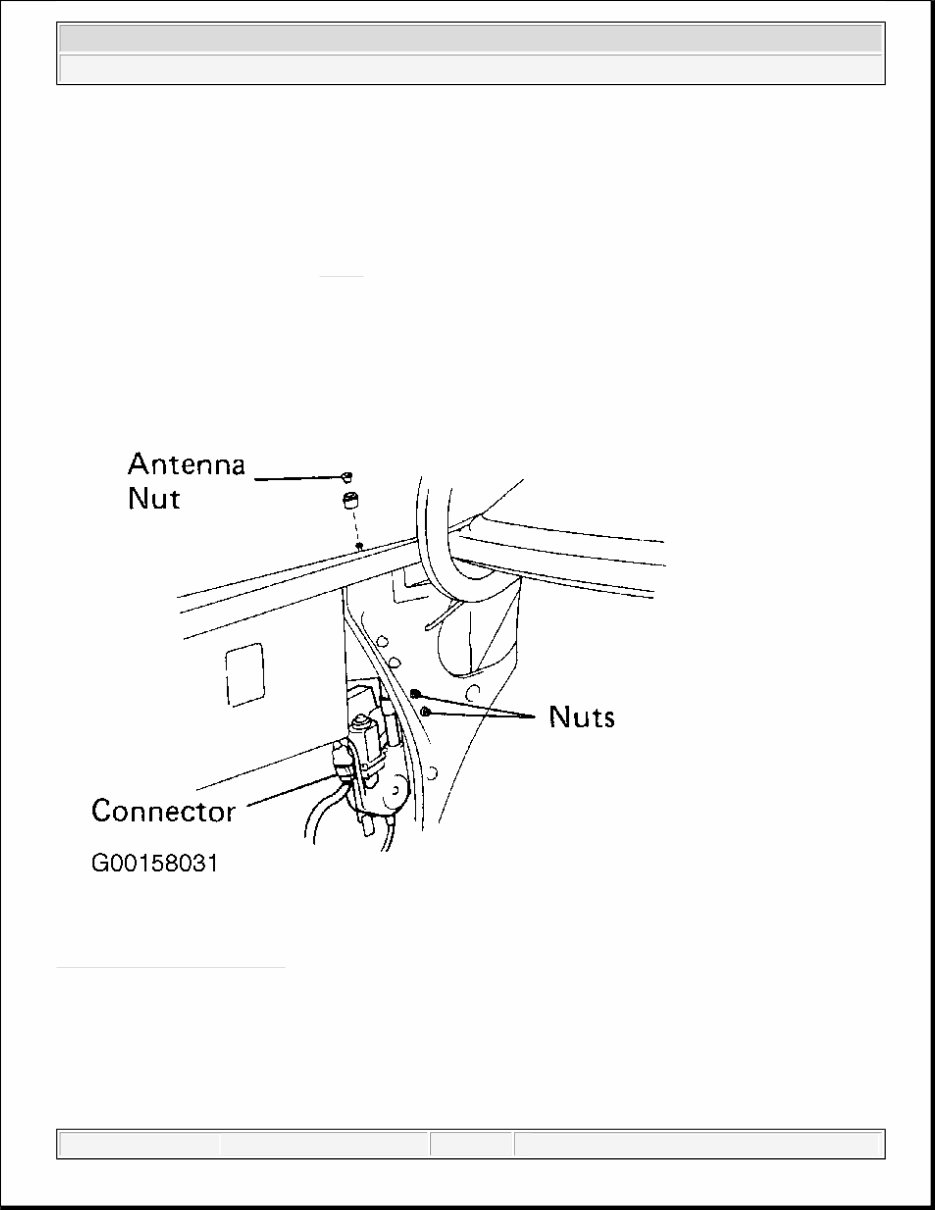

Fig. 7: Locating Antenna Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Installation
1. Install antenna nut.
2. Connect the power antenna connector and the antenna cord.
battery.
1990 Lexus LS 400
1990 ACCESSORIES & EQUIPMENT Antenna Systems - LS 400
5:19:13 PM Page 7
3. Install the 2 nuts.
WIRING DIAGRAMS
1990 Lexus LS 400
1990 ACCESSORIES & EQUIPMENT Antenna Systems - LS 400
5:19:13 PM Page 8

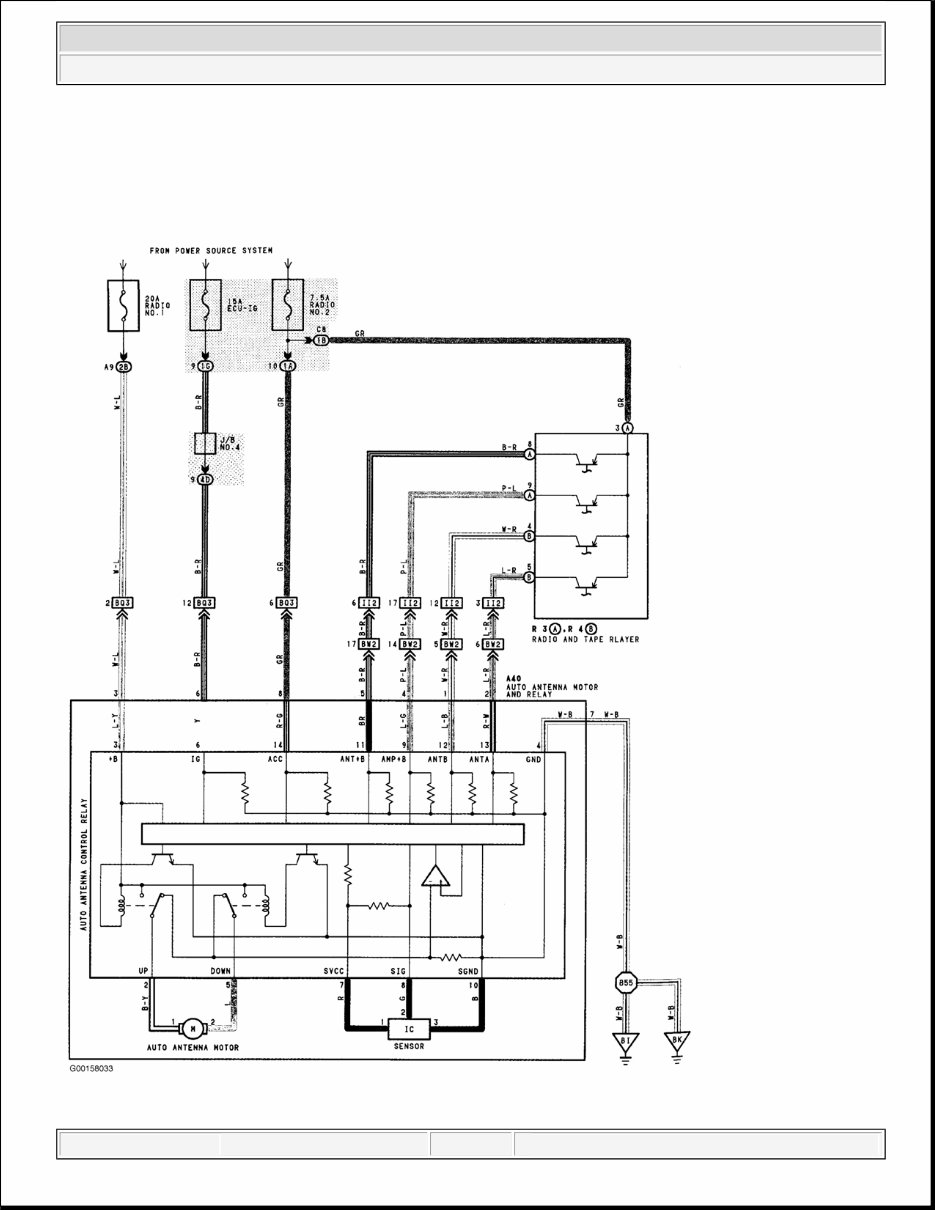

Fig. 8: Power Antenna Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
