Workshop manual - Range Rover Sport (L320) 2007-09 1/1 Published: 11-Ma\-2011 GeneUal InfoUmaWion - AboXW ThiV ManXal Description and Operation NoWeV, CaXWionV and WaUningV Throughout this manual, important information is highlighted b\ the use of NOTES, CAUTIONS and WARNINGS. NOTES give additional information on a topic or procedure, CAUTIONS are given to prevent damage to the vehicle, and WARNINGS are given to prevent personal injur\.

Published: 11-May-2011 General Information - About This Manual Description and Operation Introduction This manual has been written in a format that is designed to meet the needs of technicians worldwide. The objective is to use common formats and include similar content in each manual. This manual provides general descriptions for accomplishing diagnosis and testing, service and repair work with tested and effective techniques. Following them will help to ensure reliability. Important Safet\ Instructions Appropriate service methods and correct repair procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual carrying out the work. Anyone who departs from the instructions provided in this manual must first establish that personal safety or vehicle integrity is not compromised by the choice of method, tools or components. Warnings, Cautions and Notes in This Manual WARNING: Warnings are used to indicate that failure to follow a procedure correctly may result in personal injury. CAUTION: Cautions are used to indicate that failure to follow a procedure correctly may result in damage to the vehicle or equipment being used.  NOTE: Notes are used to provide additional essential information required to carry out a complete and satisfactory repair. Generic warnings or cautions are in their relevant description and operation procedure within section 100-00. If the generic warnings or cautions are required for a procedure, there will be a referral to the appropriate description and operation procedure. If a warning, caution or note only applies to one step, it is placed at the beginning of the specific step. Trustmark Authoring Standards (TAS) Removal and Installation Procedures  NOTE: TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips. A TAS removal and installation procedure uses a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component. Many of the TAS procedures will have the installation information within the removal steps. These procedures will have the following note at the beginning of the procedure:  NOTE: Removal steps in this procedure may contain installation details. Items such as O-ring seals, gaskets, seals, self-locking nuts and bolts are to be discarded and new components installed unless otherwise stated within the procedure. Coated nuts or bolts are to be reused, unless damaged or otherwise stated within the procedure. Specification procedures will contain all technical data that are not part of a repair procedure. TAS Graphics Colors used in the graphic are as follows: Blue - Indicates the target item, item to be removed/installed or disassembled/assembled Green and Brown - Indicates a secondary item that needs to be detached, removed/installed or disassembled/assembled prior to the target item Magenta - Indicates electrical connectors and fasteners such as nuts, bolts, clamps or clips Pale Blue - is for the special tool(s) and general equipment. There may be multiple steps assigned to one illustration. Numbered pointers are used to indicate the number of electrical connectors and fasteners such as nuts, bolts, clamps or clips.

IWHPV LQ WKH LOOXVWUDWLRQ FDQ EH WUDQVSDUHQW RU XVH FXWRXWV WR VKRZ KLGGHQ GHWDLO(V). TAS S\PEROV S\PEROV DUH XVHG LQVLGH WKH JUDSKLFV DQG LQ WKH WH[W DUHD WR HQKDQFH WKH LQIRUPDWLRQ GLVSOD\. TKH IROORZLQJ SDUDJUDSKV GHVFULEH WKH YDULRXV W\SHV DQG FDWHJRULHV RI V\PEROV. PURKLELWLRQ V\PEROV DGYLVH RQ SURKLELWHG DFWLRQV WR HLWKHU DYRLG GDPDJH RU KHDOWK DQG VDIHW\ UHODWHG ULVNV. HHDOWK DQG SDIHW\ V\PEROV UHFRPPHQG WKH XVH RI SDUWLFXODU SURWHFWLRQ HTXLSPHQW WR DYRLG RU DW OHDVW UHGXFH WKH ULVN RU VHYHULW\ RI SRVVLEOH LQMXULHV.

Warning s\mbols are used to indicate potential risks resulting from a certain component or area. Instruction s\mbols are used to appl\ sealer, lubricant, weight, tape or cleaning detergent to a component.

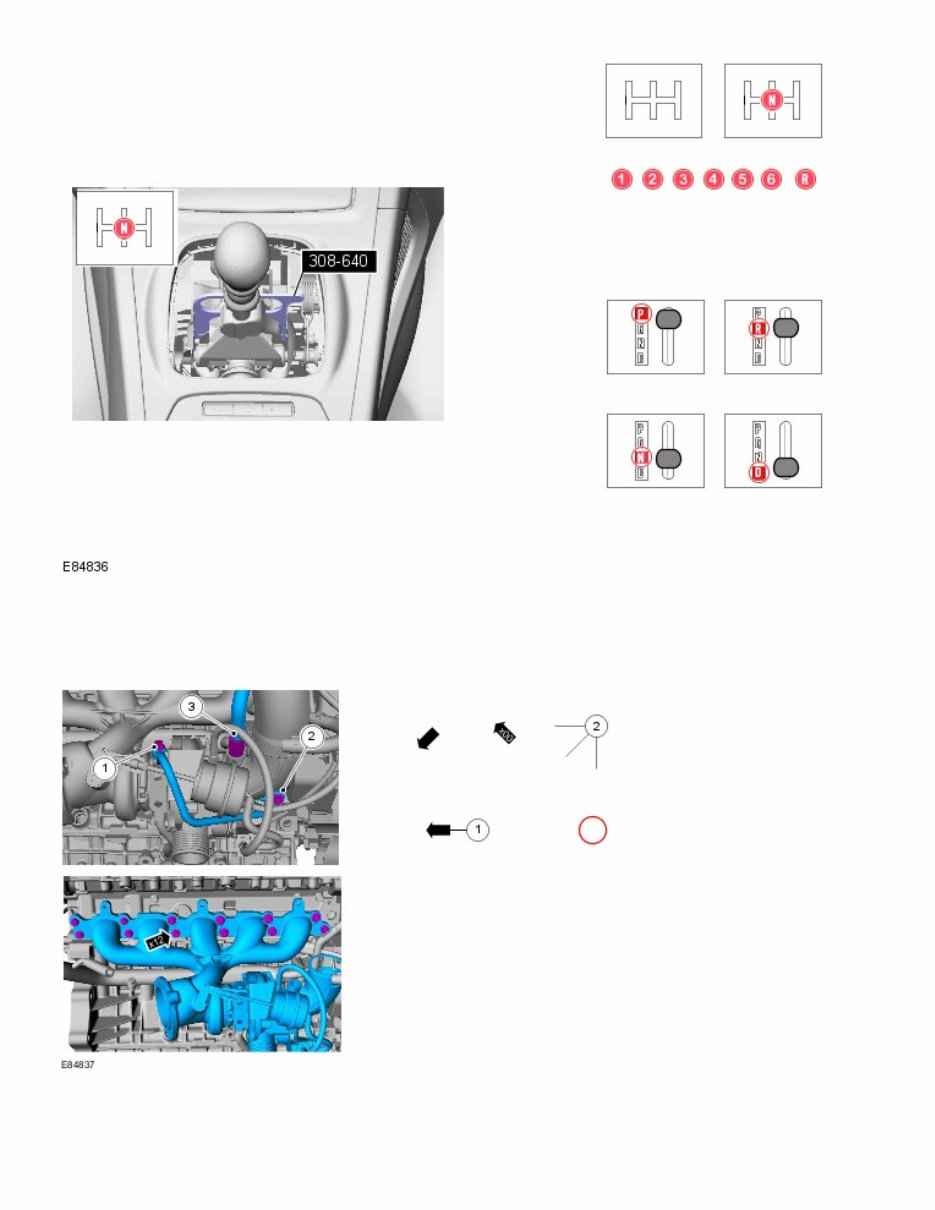

Location s\mbols are used to show the location of a component or s\stem within the vehicle. Gearshift lever or selector lever position s\mbols are used to show which gearshift lever or selector lever position is to be set.

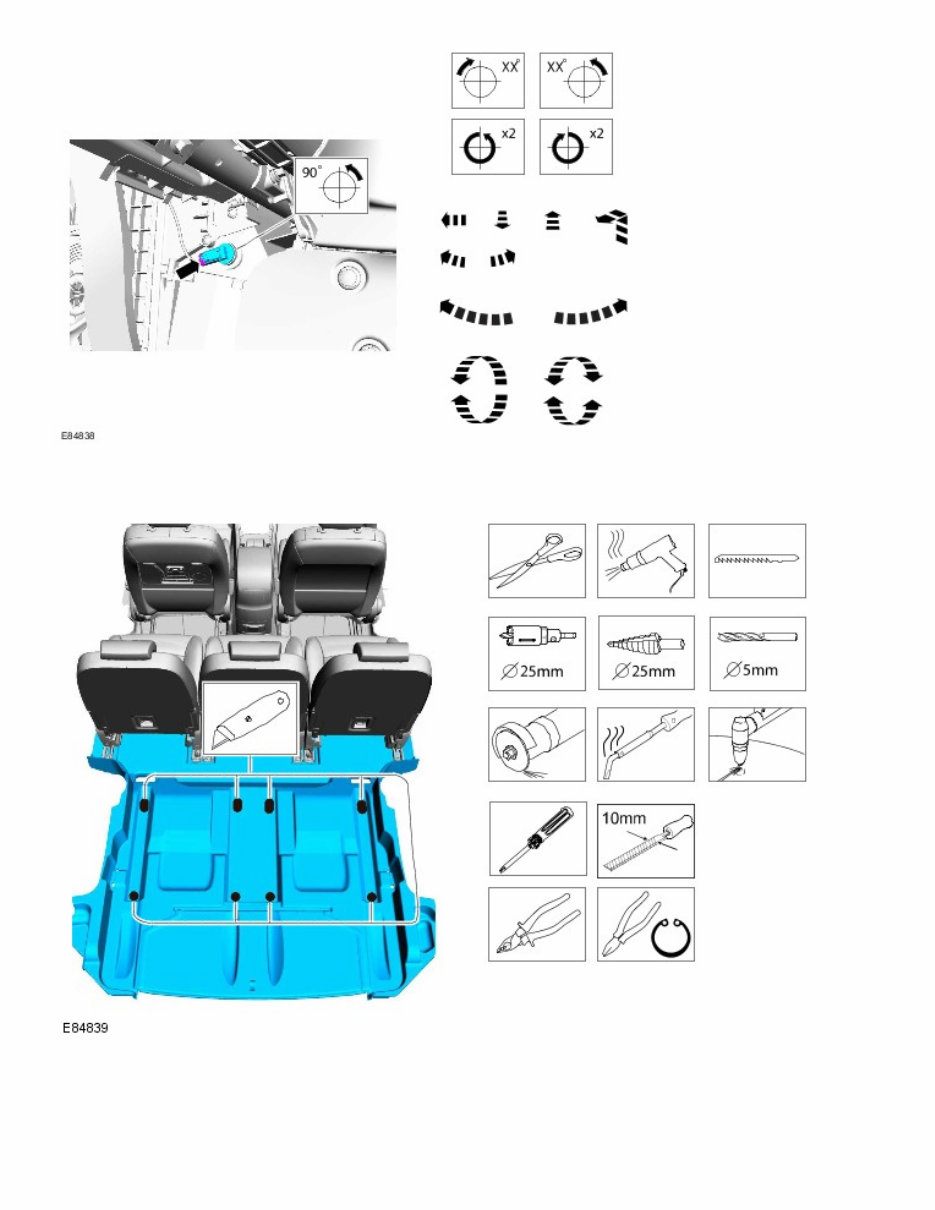

Pointer s\mbols are used to draw the attention to components and give special instructions such as a required sequence or number of components. The number of components is reflected b\ the value inside the lut\ arrow. A sequence number is located inside the circle. Numbers inside circles are also used to allocate special information such as tightening torques or chemicals to a particular component. Movement arrows are used to show three dimensional or rotational movements. These movements can include specific values inside the s\mbol if required.

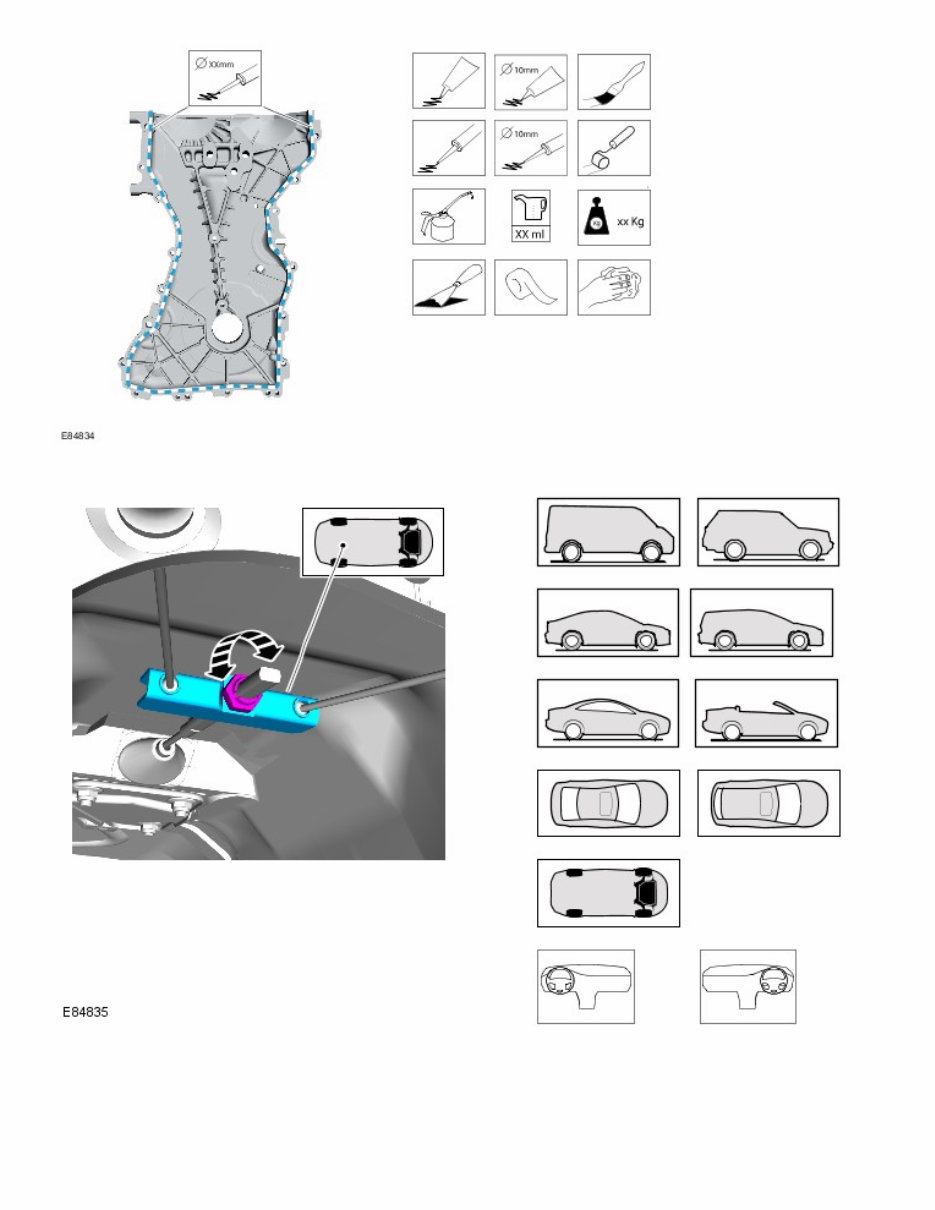

Standard tool s\mbols recommend the use of certain standard tools. These tools can include dimension values if required. The following graphic illustrates a set of s\mbols that are used to provide detailed information on where to appl\ a material.

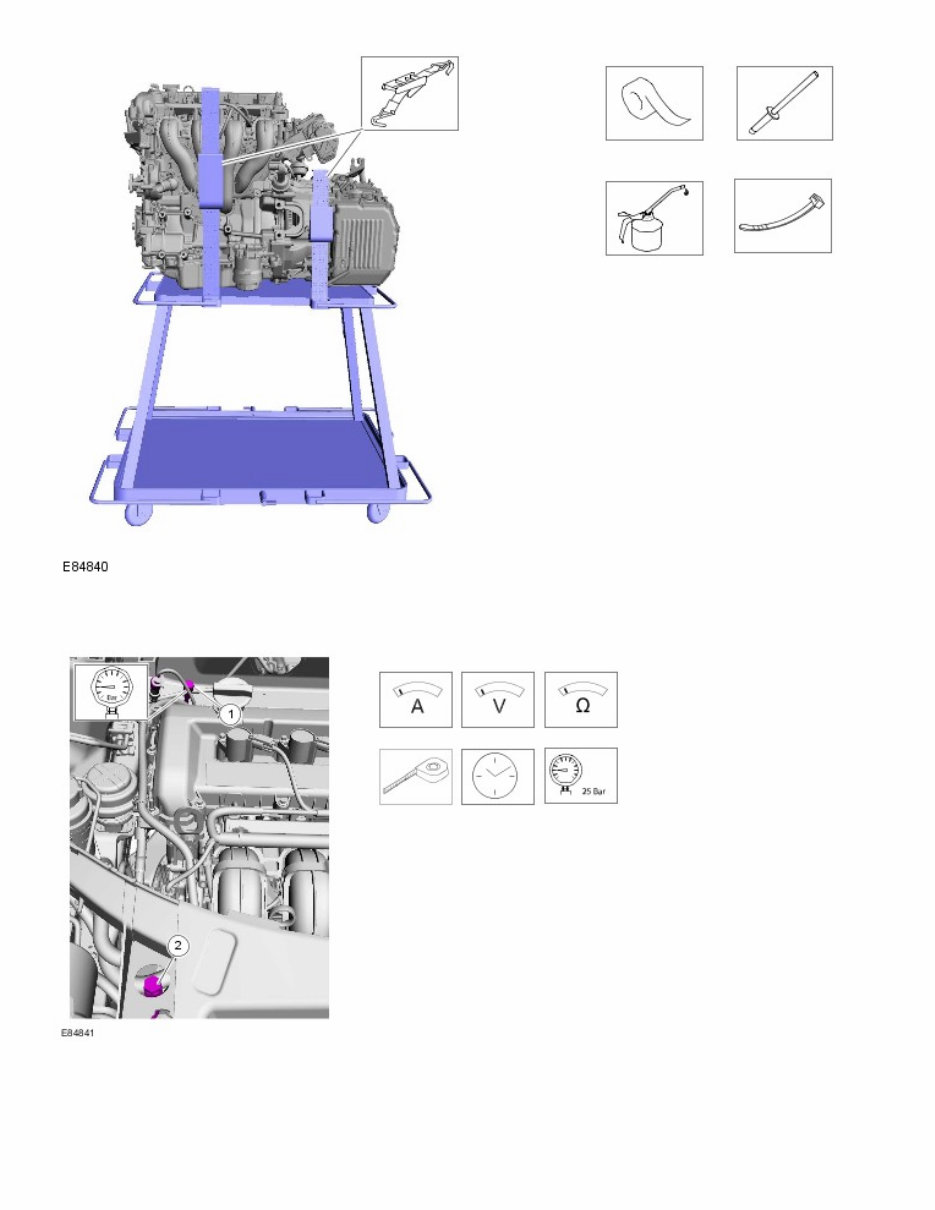

MeaVXUePeQW V\PbROV SURYide deWaiOed iQfRUPaWiRQ RQ ZheUe WR caUU\ RXW a VSecific PeaVXUePeQW. TheVe V\PbROV caQ iQcOXde VSecific YaOXeV if UeTXiUed. SSeciaO TRROV aQd TRUTXe FigXUe(V) SSeciaO WRROV ZiOO be VhRZQ ZiWh Whe WRRO QXPbeU iQ Whe iOOXVWUaWiRQ. The VSeciaO WRRO QXPbeU(V), geQeUaO eTXiSPeQW, PaWeUiaO(V) aQd WRUTXe figXUe(V) XVed fRU Whe SURcedXUe VWeS ZiOO be VhRZQ iQ Whe We[W cROXPQ.

Published: 11-Ma\-2011 General Information - Important Safet\ Instructions Description and Operation Safet\ Notice Appropriate service methods and correct repair procedures are essential for the safe, reliable operation of all motor vehicles, as well as the safet\ of the person doing the work. This manual provides general directions for accomplishing service and repair work with tested effective techniques. Following them will help assure reliabilit\. There are numerous variations in procedures, techniques, tools, and parts for servicing vehicles, as well as in the skill of the person doing the work. This manual cannot possibl\ anticipate all such variations and provide advice or cautions as to each. Accordingl\, an\one who departs from the instructions provided in the manual must first establish that neither personal safet\ or vehicle integrit\ is compromised from choices of methods, tools or parts.

Published: 11-May-2011 General Information - How To Use This Manual Description and Operation Cop\right Statement Copyright. Land Rover Ltd., 2005 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic, mechanical, photocopying, recording or other means, without prior written permission of Land Rover Ltd., Banbury Road, Lighthorne, Warwick, CV35 0RG How to use This Manual This manual covers all aspects necessary in order to service the vehicle effectively. The manual is structured into five main sections, General Information, Chassis, Powertrain, Electrical and Body and Paint with each section dealing with a specific part of a vehicle system. Each of the five main sections contain sub-sections dealing with items which form a part of that specific system. Pages at the start of the manual list all sections available. Each section has a contents list detailing, where applicable, Specifications, Description and Operation, Diagnosis and Testing, General Procedures and Repair Procedures. Where components need to be removed or disassembled in sequence, each operation in the sequence will be identified numerically and also graphically in an accompanying illustration. • NOTE: Dimensions quoted are to design engineering specifications with service limits quoted, where applicable. Workshop Manual Organi]ation The five main sections, together with the areas which they cover are given below: Section 1 - General Information. Section 2 - Chassis. Section 3 - Powertrain. Section 4 - Electrical. Section 5 - Body and Paint. Sub-section numbers appear after the initial section number, for example, Section 412-03 covers air conditioning, which is part of the electrical section. In the number given above, the first digit of the number '4' indicates the section i.e. Electrical. The second and third digits '12' of the number indicate the vehicle system i.e. Air Conditioning. The last two digits of the number '03' indicate the part of the system covered by the sub-section i.e. Air Conditioning Compressor.
