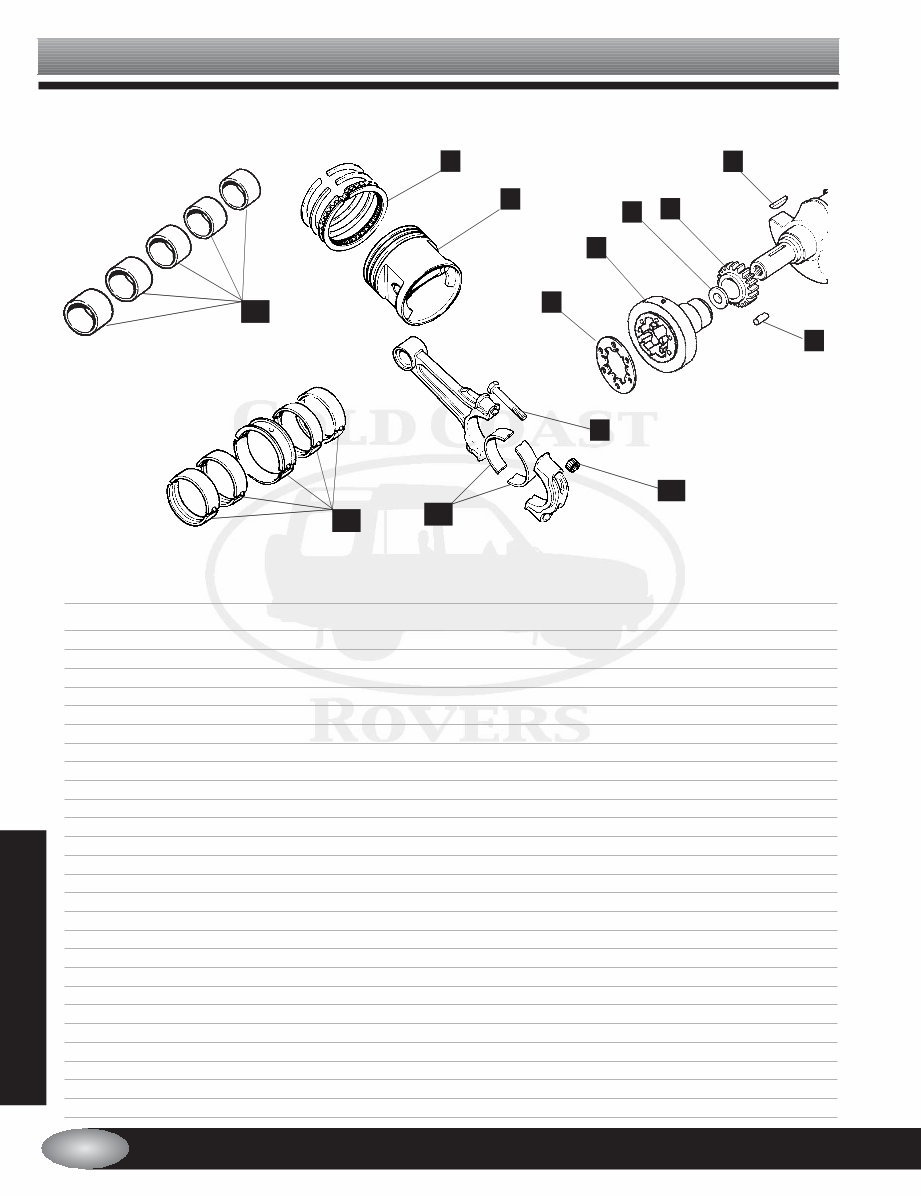

ENGINE DISCOVERY SERIES I
GOLD COAST ROVERS () * Denotes Aftermarket Part
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. Piston Ring Set RV-STC1427 For ERR5553 Piston 1
2. Piston, 3.9 Liter RV-STC909S High Compression, Standard Bore 8
2. Piston, 4.0 Liter RV-ERR5553 High Compression, Standard Bore 8
3. Crankshaft Key RV-ERR2846 1
4. Timing Gear on Crankshaft RV-ERR2958 1
5. Washer on Crankshaft RV-ERC416 1
6. Crankshaft Damper/Pulley RV-ERR3442 3.9-Liter 1
6. Crankshaft Damper/Pulley RV-ERR7373 4.0-Liter 1
7. Reinforcing Plate RV-602587 1
8. Spring Pin RV-603535 Ensures proper orientation of timing marks. 1
9. Rod Bolt, 3.9 Liter RV-602609 16
9. Rod Bolt, 4.0 Liter RV-ERR1772 16
10. Rod Nut, 3.9 Liter RV-602061 16
11. Rod Bearing Set, standard RV-RTC2117.000* 3.9 Liter 1
11. Rod Bearing Set, +.010" RV-RTC2117.010* 3.9 Liter A/R
11. Rod Bearing Set, +.020" RV-RTC2117.020* 3.9 Liter A/R
11. Rod Bearing Set, Standard RV-STC1426 4.0, Standard 1
11. Rod Bearing Set, +.010" RV-STC1426.010 4.0, Oversize A/R
11. Rod Bearing Set, +.020" RV-STC1426.020 4.0, Oversize A/R
12. Main Bearing Set, standard RV-RTC1718.000* 3.9 Up to 35D08966B & 36D25523B 1
12. Main Bearing Set, + .010" RV-RTC1718.010* 3.9 Up to 35D08966B & 36D25523B A/R
12. Main Bearing Set, +.020" RV-RTC1718.020* 3.9 Up to 35D08966B & 36D25523B A/R
12. Main Bearing Set, Standard RV-STC3724 3.9 From 35D08967B & 36D25524B 1
12. Main Bearing Set, Standard RV-STC4299 4.0 Liter Only 1
12. Main Bearing Set, + .010" RV-STC4299.010 4.0 Liter Only A/R
13. Cam Bearing Set, 3.9-Liter RV-RTC5918 1
13. Cam Bearing Set, 4.0 Liter RV-STC1961 1

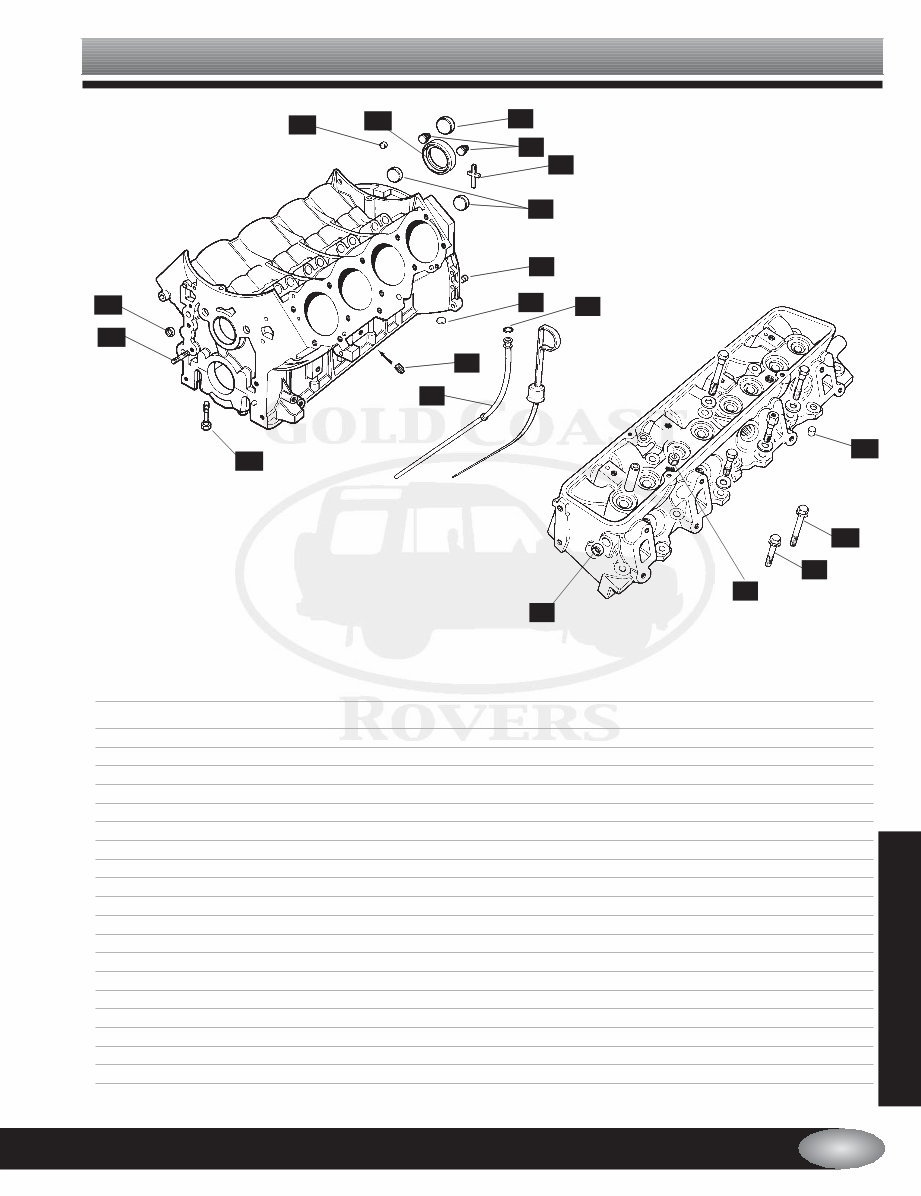

ENGINE CYLINDER BLOCK HARDWARE DISCOVERY SERIES I
* Denotes Aftermarket Part GOLD COAST ROVERS ()
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. Plug, Cam Bore, Rear RV-602146 1
2. Plug, tappet, rear RV-602212 3.9 Liter 2
2. Plug, tappet, rear RV-ERR4314 4.0 Liter 2
3. Oil Seal Retainers RV-LUN000010 2
4. Cup Plug RV-602152 3.9 Liter 1
5. Dowel, Flywheel Housing RV-602141 2
6. Plug, Rear Flange RV-612898 2
7. Seal, Dipstick Tube RV-602545 1
8. Plug, Drain RV-ERR4315 1
9. Dipstick Tube RV-ERR4556 1
10. Bolt, Main Bearing Cap RV-602130 10
11. Stud, timing assembly RV-252513 1
12. Plug, tappet RV-602147 4
13. Plug, Breather Hose RV-154545 3.9 Liter 1
14. Oil Seal, Crankshaft RV-ERR2640 1
15. Dowel, head to block RV-602040 1
16. Bolt, Cylinder Head, 66mm RV-ERR2943 14
17. Bolt, Cylinder Head, 96mm RV-ERR2944 6
18. Core Plug RV-602123 4
19. Cup Plug RV-602289 4
Note: Always replace hold-down bolts when cylinder heads are removed.
ENGINE VALVE TRAIN DISCOVERY SERIES I
GOLD COAST ROVERS () * Denotes Aftermarket Part
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. Cotter, split (per pair) RV-ERC1637 AKA “Keepers” 32
2. Valve Spring Retaining Cap RV-ERC573 16
3. Valve Stem Seal RV-ERR1782 Intake Only 8
4. Valve Spring, sold per each RV-ERR4628* 16
5. Valve Guide, Intake or Exhaust, standard RV-LJG100900 16
5. Valve Guide, Intake or Exhaust RV-LJG100900.002 .002" O/S A/R
5. Valve Guide, Intake or Exhaust RV-LJG100900.005 .005" O/S A/R
6. Valve Seat, Intake, Standard RV-ERC224 Standard Size 8
6. Valve Seat, Intake, +.010" O/S RV-ERC225 +.010" oversize A/R
7. Valve Seat, Exhaust RV-ETC8596 Standard Size 8
7. Valve Seat, Exhaust RV-ERC211 +.010" oversize A/R
8. Valve, Exhaust RV-ERR7338* 8
9. Valve, Intake RV-ERR1780* 8

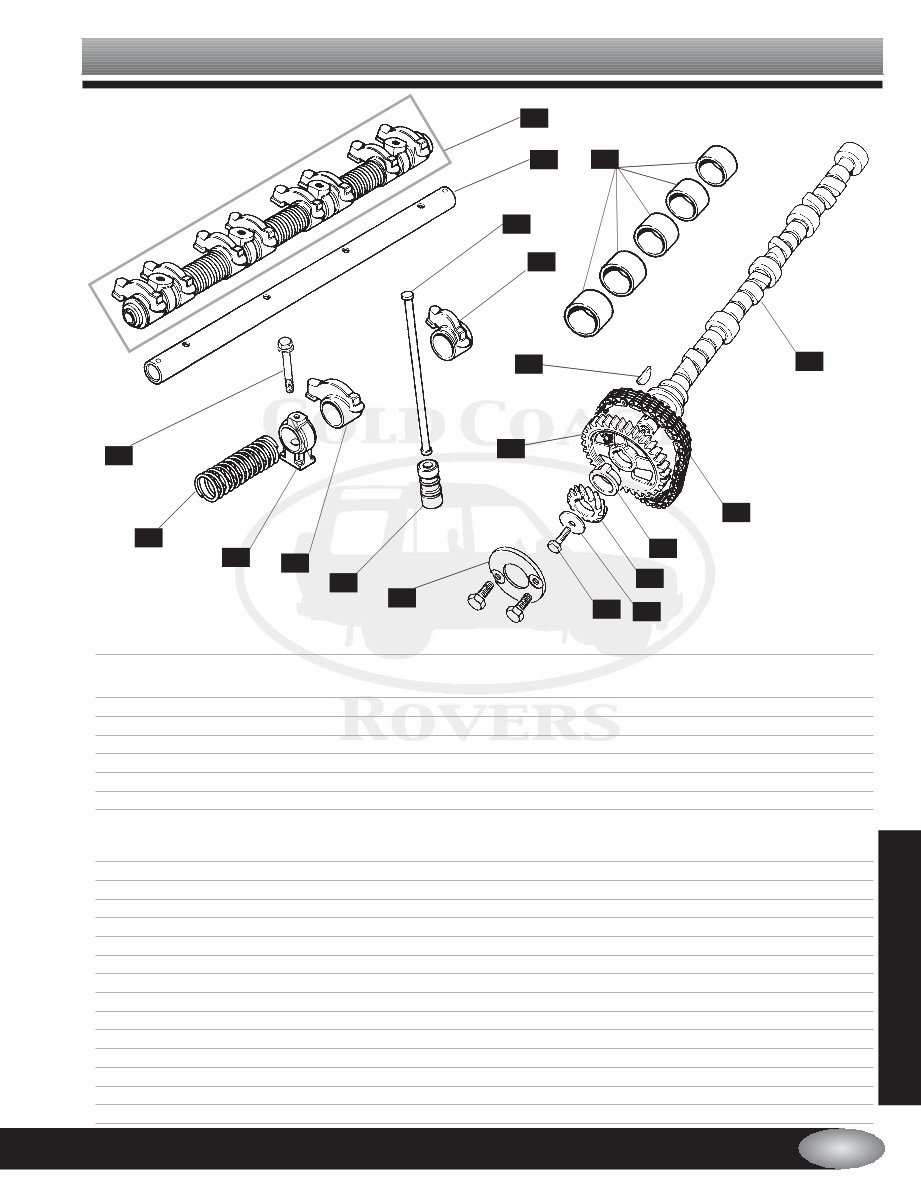

ENGINE CAMSHAFT & RELATED DISCOVERY SERIES I
* Denotes Aftermarket Part GOLD COAST ROVERS ()
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. Updated Rocker Shaft Assembly RV-611660 2
Note: These are complete assemblies that use alloy rocker arms for less reciprocating mass. Highly recommended.
2. Rocker Shaft Only RV-611659L 2
3. Push Rod RV-603378 16
4. Rocker Arm, RH or LH RV-602153 16
5. Camshaft Key RV-ERC2838 3.9-Liter Only 1
6. Cam Bearing Set RV-RTC5918 3.9 Liter 1
6. Cam Bearing Set RV-STC1961 4.0-Liter 1
7. Cam Shaft, 3.9-Liter RV-ERR5924 1
Note: This is an updated camshaft that incorporates a thrust plate to eliminate knock. On early vehicles not drilled to accept the
thrust plate, the thrust plate is not used.
7. Cam Shaft, 4.0-Liter RV-ERR3720 4.0-Liter 1
8. Timing Chain RV-ERC7929 1
9. Chain Gear on Camshaft RV-610289 3.9-Liter 1
9. Chain Gear on Camshaft RV-ERR5086 4.0-Liter 1
10. Spacer, Chain Gear RV-ERC2839 3.9-Liter 1
11. Distributor Drive Gear, RR, DS, DF RV-614188 3.9-Liter Only 1
12. Washer, Distributor Drive Gear RV-ERC6552 3.9-Liter Only 1
13. Bolt, Cam Shaft RV-602227 3.9-Liter Only 1
14. Thrust Plate RV-ERR5926 For ERR5924 Cam Shaft 1
14. Thrust Plate RV-ERR2609 For ERR3720 Cam Shaft 1
15. Lifter/Tappet RV-ERC4949 16
16. Rocker Arm Bracket/Stand RV-603734 8
17. Rocker Shaft Springs RV-602142 6
18. Special Bolt, Rocker Arm Bracket/Stand RV-602097 8
ENGINE OIL PUMP & FILTER DISCOVERY SERIES I
GOLD COAST ROVERS () * Denotes Aftermarket Part
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. Gasket RV-ERR7280 1
2. Washer, Oil Pressure Switch RV-243967 Alternative to O-Ring A/R
3. O-Ring, Oil Pressure Switch RV-STC3372 Alternative to Washer A/R
4. Oil Pressure Switch RV-STC4104K* 1
5. Oil Filter RV-ERR3340* 1
6. Oil Pump/Front Engine Cover RV-ERR6815 1
6. Crankshaft Seal RV-ERR6490 1
Description Order Number Explanatory Notes Qty
1. Engine Mount RV-KKB103120 2
2. Transfer Box Mount RV-ANR2805 2
ENGINE & TRANSFER BOX MOUNTS DISCOVERY SERIES I
ENGINE GASKETS & SEALS DISCOVERY SERIES I
* Denotes Aftermarket Part GOLD COAST ROVERS ()
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. O-Ring, Oil Filler Cap to Cover RV-564258 1
1. O-Ring, Under Cap RV-564258 1
2. Oil Filler Cap RV-625038 3.9 Liter 1
3. Valve Cover Gasket, Cork RV-602512* 2
4. Updated Rubber Valve Cover Gasket RV-LVC100260 2
5. Head Gasket RV-ERR7217* 2
6. Gasket, Exhaust Manifold RV-ERR6733 4
7. Gasket, throttle position sensor RV-ERR4944 1
8. Gasket, Exhaust Manifold to Downpipe/CatalystRV-ETC4524 2
9. Rear Crankshaft Seal RV-ERR2640 1
10. Retainers for Rear Seal RV-LN000010 2
11. Oil Pan Gasket RV-602087 1
12. Drain Plug, Oil Pan RV-603659 1
13. Sealing Washer, Oil Pan Drain Plug RV-ETC7398 1
14. Oil Screen RV-602070 1
15. Oil Filter Suction Pipe RV-ERR3677 1
16. Gasket, Oil Filter Suction Pipe RV-ERR3788 1
17. Water Pump Gasket RV-ERR4077 1
18. Front Crankshaft Seal RV-ERR6490 1
19. Gasket, Timing Cover RV-ERR7280 1
20. Intake Manifold Gasket RV-LKJ500020 1
21. Seal, front of intake gasket RV-ERR7283 2
22. Gasket, Thermostat/Water Elbow Gasket RV-ERR2429 1

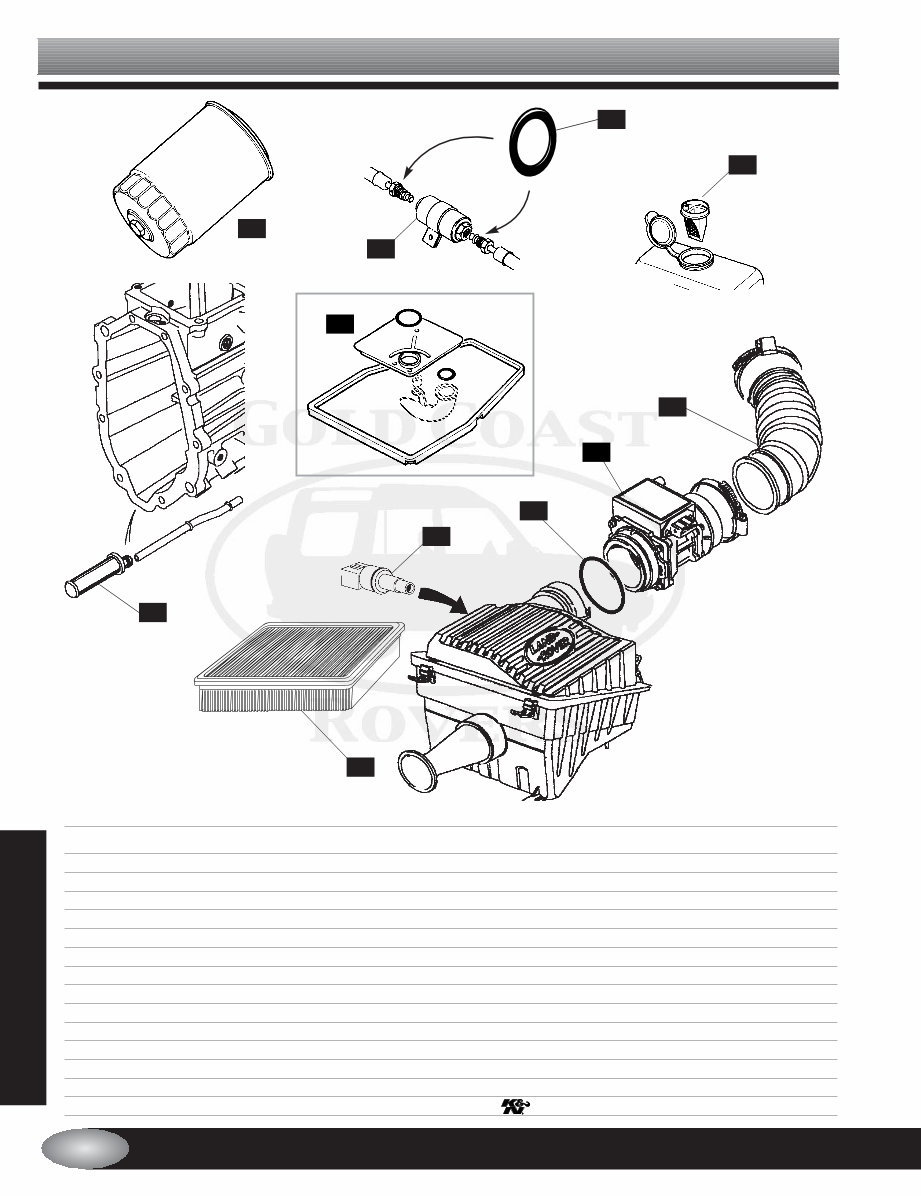

FILTERS AND AIR FLOW METER DISCOVERY SERIES I
GOLD COAST ROVERS () * Denotes Aftermarket Part
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. Oil Filter RV-ERR3340* 1
2. Fuel Filter JA-C2C-4163 1
3. O-Rings for Fuel Filter, two required RV-ESR259 2
4. Windshield Washer Reservoir Filter RV-AMR3266 1
5. Automatic Transmission Filter Kit, with ZF RV-RTC4653 (Includes Filter, Gasket and two O-Rings) 1
6. Manual Transmission Filter RV-FRC7855 1
7. Intake Hose RV-ESR1807 1
8. Air Flow Meter JA-DBC12517/E To VIN RA112194 1
8. Air Flow Meter RV-ERR5198 RA112195 to end of 1995 1
8. Air Flow Meter RV-ERR5595 1996-On 1
9. O-Ring, Airflow Meter to Canister RV-NTC3354 1
10. Sensor, Air Inlet Temperature RV-ERR2946 Located in air filter box 1
11. Air Filter RV-ESR1445 1
11. Air Filter RV-1501 replacement for ESR1445 1

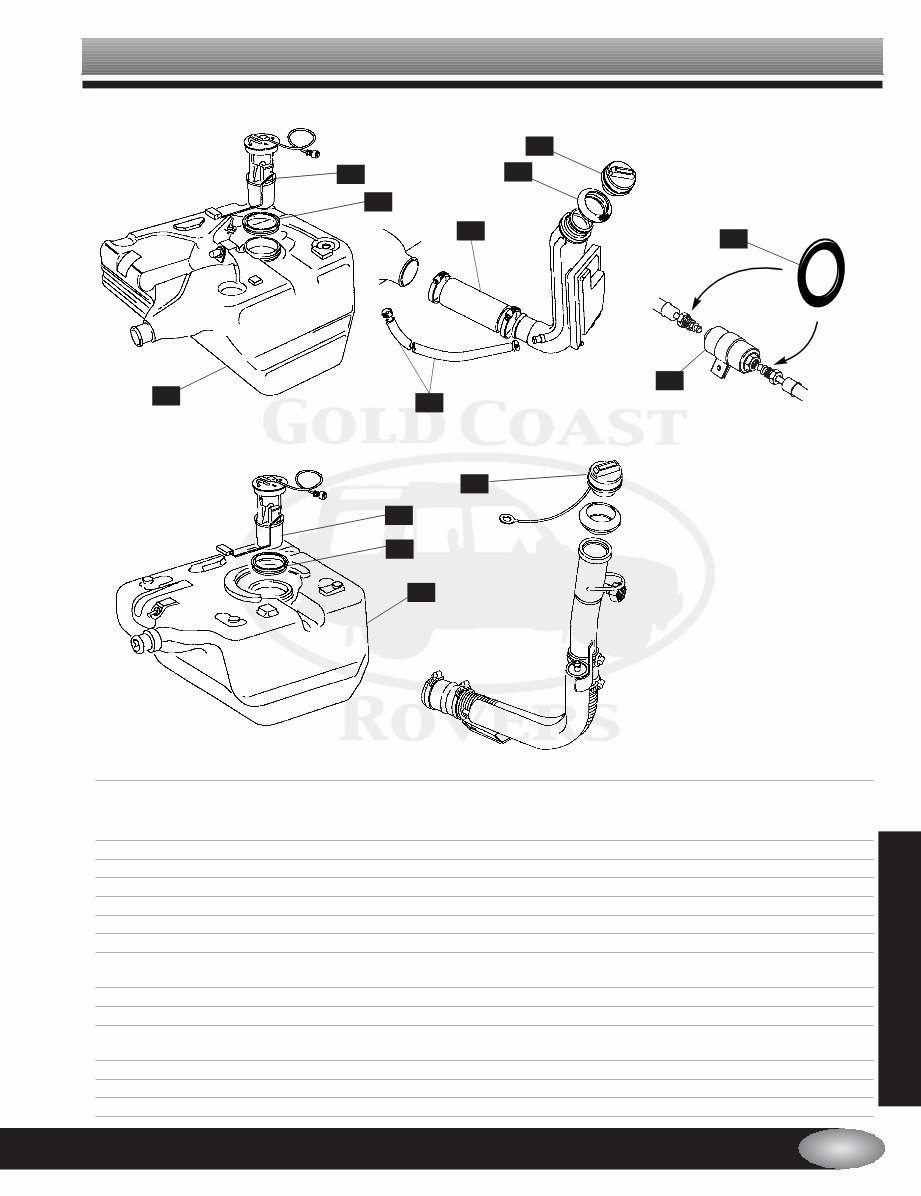

FUEL SYSTEM DISCOVERY SERIES I
* Denotes Aftermarket Part GOLD COAST ROVERS ()
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. Fuel Pump RV-ESR3926 Up to VA714241/VA546029 (Mid 1997). 1
Note: The first-time updated pump ESR3926 is fitted to vehicles prior to VIN 064760, wiring harness RV-STC3919
must also be used.Two RV-NRC9770 and two RV-NRC9771 required when fitting ESR3926 pump.
2. Seal, pump to tank RV-NTC5859 With ESR3926 Pump 1
3. Fuel Filler Cap RV-NTC5418 Without A.E.L. (does not have a tether) 1
4. Seal/Grommet RV-WLR000020 Without A.E.L. 1
5. Filler Hose RV-ESR2834 Without A.E.L. 1
5. Filler Hose RV-NTC7344 Without A.E.L. 1
6. Breather Hose RV-ESR1056 Without A.E.L. 1
7. Fuel Tank RV-ESR2585 To VINs VA714241/VA546029 1
(vehicles without Advance Evaporative Loss)
8. Fuel Pump RV-WFX101020 From VINs VA714242/VA546030 1
9. Seal, Pump to Tank RV-WGQ500020 With WFX101020 Pump 1
10. Fuel Tank RV-ESR3706 VINS VA714242-on & VA546030-on 1
(with Advance Evaporative Loss)
11. Fuel Filler Cap RV-ESR2872 With A.E.L. (has a tether) 1
12. Fuel Filter JA-C2C-4163 1
13. O-Rings, Fuel Filter RV-ESR259 2
WITHOUT ADVANCED EVAPORATIVE LOSS UP TO MID
FILTER ALL
WITH ADVANCED EVAPORATIVE LOSS MID – ON

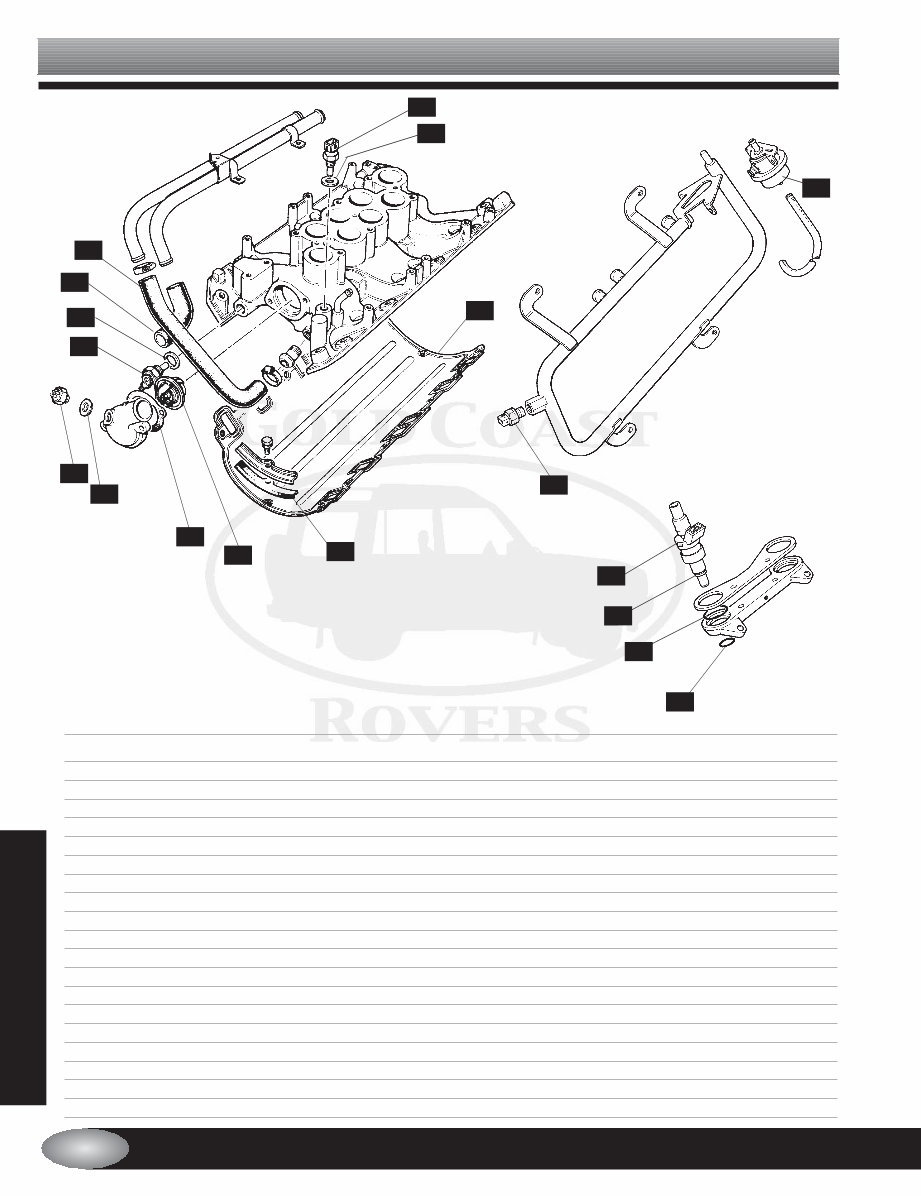

INLET MANIFOLD AND FUEL RAIL DISCOVERY SERIES I
GOLD COAST ROVERS () * Denotes Aftermarket Part
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. Coolant Temperature Sender for ECU LU-SNB802 Through 1998; As per EAC3927L/ETC8496 1
2. Sealing Washer for Sender RV-243967 1
3. Intake Manifold Gasket RV-LKJ500020 1
4. Seal, front of intake gasket RV-ERR7283 2
5. Thermostat RV-ETC4765 1
6. Thermostat Gasket RV-ERR2429 1
7. Sealing Washer for Switch RV-C457593 1
8. Fan Switch RV-PRC3505 1
9. Temperature Sender for Gauge RV-AMR1425 1
10. Sealing Washer for Sender RV-90568054 1
11. Heater Return Hose RV-ETC6889 Front of intake manifold 1
12 Heater Supply Hose RV-ETC6890 Front of intake manifold 1
12. Heater Supply Hose RV-BTR8725 Front of intake manifold, to VIN RA104738 1
13. Fuel Pressure Regulator RV-ETC8494 1
14. Fuel Temperature Sender RV-ETC6661 1
15. Fuel Injector RV-ERR722 8
16 O-Ring, Injector RV-RTC5679 Two per injector 16
17. Ring Seal, Upper RV-EAC2414L 8
18. Ring Seal, Lower RV-EAC2415L 8

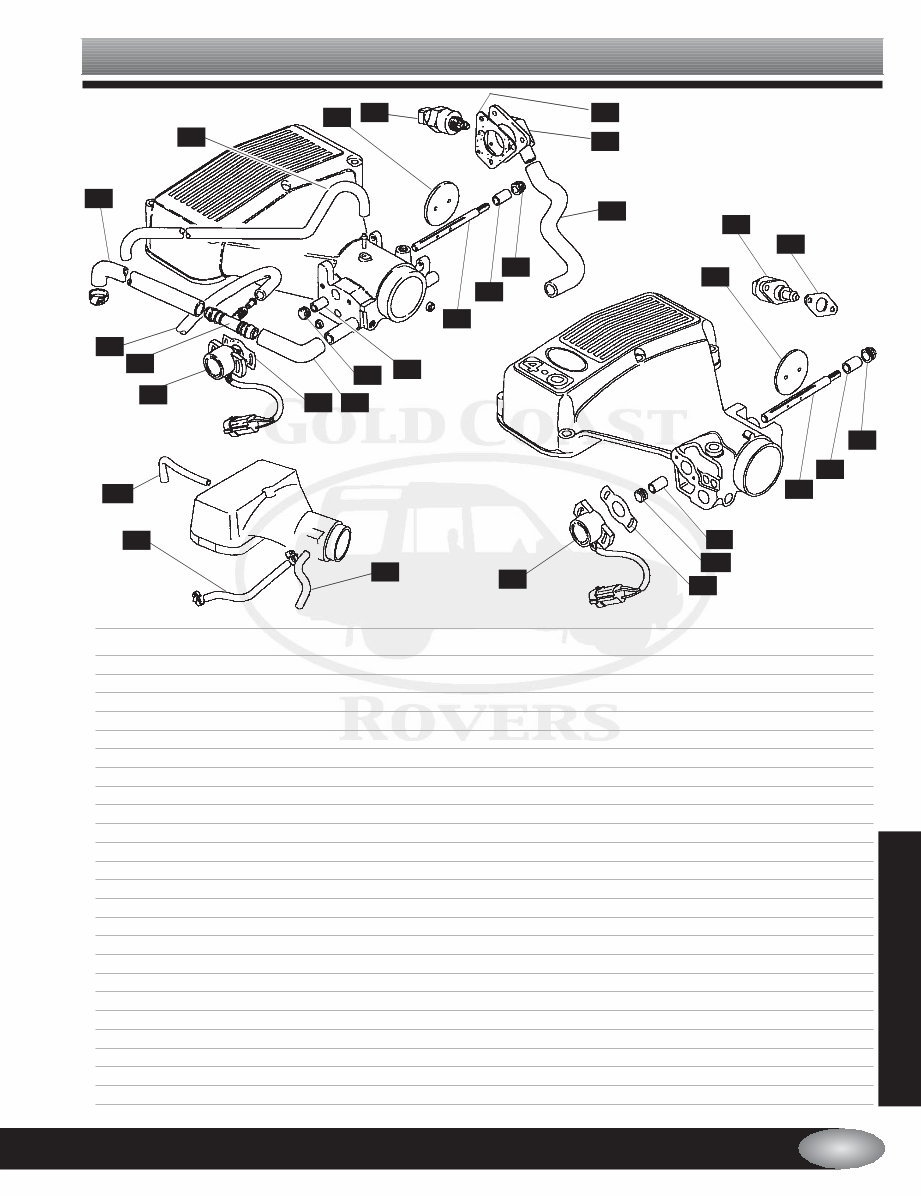

PLENUM CHAMBER DISCOVERY SERIES I
* Denotes Aftermarket Part GOLD COAST ROVERS ()
DISCOVERY I
Description Order Number Explanatory Notes Qty
1. Throttle Disc RV-ETC6222 1
2. Stepper Motor; AKA “intake air control valve” RV-ERR5199 3.9-Liter 1
3. Gasket for Idler Control Adapter RV-ERR2926 3.9-Liter 1
4. Idler Control Adapter Assy. RV-MKF100200 1
5. Hose, Control Idler to Throttle Body RV-ETC7874 3.9-Liter 1
6. Throttle Shaft Seal RV-AUD3577L 3.9-Liter, front and rear, to RA104738 2
6. Throttle Shaft Seal RV-AUD3577L 3.9-Liter, front only, RA104739-on 1
7. Bushings for Throttle Shaft RV-ERR1756 2
8. Shaft in Throttle Body RV-ETC6223 3.9-Liter 1
9. Hose, PCV to throttle housing RV-ERR4763 3.9-Liter 1
10. Gasket, Throttle Position Sensor, ALL RV-ERR4944 All 1
11. Throttle Position Sensor RV-ETC8495 Up to RA112194 1
11. Throttle Position Sensor RV-ERR2263 From RA112195 1
12. PCV Tee RV-ERR4765 3.9-Liter 1
13. Hose, PCV to Manifold RV-ERR4764 3.9-Liter 1
14. Hose to PCV Valve Flame Trap RV-ERR4762 3.9-Liter 1
15. Hose, Delay Valve to Throttle Housing RV-RTC3942 3.9-Liter 1
16. Stepper Motor; AKA “intake air control valve” RV-ERR4352 4.0-Liter 1
17. Gasket for Stepper Motor RV-ERR3359 4.0-Liter 1
18. Throttle Shaft Seal RV-ERR4318 4.0 Rear 1
19. Shaft in Throttle Body RV-ERR4225 4.0-Liter 1
20. Throttle Shaft Seal RV-AUD3577L 4.0 Front 1
21. Hose, Rocker to Ram Housing, ALL RV-ERR4258 4.0-Liter 1
22. Hose, Rocker to Plenum, RV-LLH500100 4.0-Liter 1
23. Hose, Water Manifold to Plenum RV-ERR4388 4.0-Liter 1
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
Viewed 14 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$32.99
This parts catalog is designed for the Land Rover Discovery I, manufactured between 1994 and 1998, and equipped with the V8i engine. The V8i engine is a 3950cc petrol unleaded engine with EFI, available in variation trims SD, SE, and SE7.
- ENGINE
- ENGINE CYLINDER BLOCK HARDWARE
- ENGINE VALVE TRAIN
- ENGINE CAMSHAFT & RELATED
- ENGINE OIL PUMP & FILTER
- ENGINE & TRANSFER BOX MOUNTS
- ENGINE GASKETS & SEALS
- FILTERS AND AIR FLOW METER
- FUEL SYSTEM
- WITHOUT ADVANCED EVAPORATIVE LOSS, UP TO MID 1987
- WITH ADVANCED EVAPORATIVE LOSS MID 1987 - ONWARDS
- INLET MANIFOLD AND FUEL RAIL
- PLENUM CHAMBER
- ENGINE ELECTRICAL SENSORS
- AUTOMATIC TRANSMISSION
- TRANSFER BOX
- CLUTCH
- MANUAL GEARBOX
- GEARBOX COOLER
- EXHAUST
- BORLA STAINLESS EXHAUST
- WATER PUMP AND BELTS
- RADIATOR & HOSES
- AIR CONDITIONING AND HEATER
- SHOCK ABSORBERS
- FRONT SUSPENSION GENERAL
- REAR SUSPENSION GENERAL
- STEERING
- DRIVE COMPONENTS
- DIFFERENTIALS AND COMPONENTS
- FRONT AXLES AND FRONT HUBS
- SWIVEL PINS
- REAR AXLE AND HUBS
- BRAKES
- FRONT BRAKE PADS AND ROTORS
- REAR BRAKE PADS AND ROTORS
- HAND BRAKE AND MISCELLANEOUS COMPONENTS
- IGNITION
- ROTATING ELECTRICAL
- STARTER MOTOR
- ALTERNATOR
- CRUISE CONTROL
- SWITCHES
- COURTESY LAMPS, HORNS, AND ACTUATORS
- ENGINE SENSORS
- EXTERIOR LIGHTING
- WIPERS
- RELAYS
- BODY
- GAUGES, MIRRORS, DECALS AND BADGES
This comprehensive manual is valuable for both professional mechanics and DIY enthusiasts working on the Land Rover Discovery I V8i series with SD, SE, and SE7 trims.
